DO3100 - Food thermometer DOMO - Free user manual and instructions

Product type	Digital food thermometer
Brand	DOMO
Model	DO3100
Power supply	2 LR44 batteries (included)
Display	Digital screen with backlight (7 seconds)
Sensor	Stainless steel probe
Main functions	Temperature measurement, °C/°F switching, auto power-off
Measurement range	Not specified (suitable for meat cooking: 40°C to 75°C)
Use	For meat, poultry, fish (cooking chart included)
Maintenance and cleaning	Clean the probe with a damp cloth; silicone protective cap; do not immerse or put in dishwasher
Safety	Do not use in a closed oven, do not immerse in water, keep out of reach of children
Warranty	2 years (accessories and wear parts: 6 months)
Spare parts	Replaceable LR44 batteries
Dimensions (estimated)	Approximately 20 cm long
Weight (estimated)	Approximately 80 g

Frequently Asked Questions - DO3100 DOMO

How to turn the thermometer on and off?

Press the on/off button once to turn on the device. To turn it off, press the same button again.

How to switch from °C to °F?

Use the °C/°F button on the device to toggle between Celsius and Fahrenheit units.

How to clean the thermometer?

Clean the probe with a damp cloth after each use and replace the silicone protective cap. Never immerse the device in water and do not put it in the dishwasher.

Can I use the thermometer in a closed oven?

No, never use the thermometer in a closed oven. It is designed for outdoor use or in a pan.

What type of batteries does the thermometer use?

It uses 2 LR44 batteries. Make sure to install the batteries with the + side up.

How to replace the batteries?

Remove the battery compartment cap by turning the hanging hook counterclockwise. Install 2 new LR44 batteries, then put the compartment back in place and tighten.

What is the warranty period?

The device is guaranteed for 2 years from the date of purchase. Accessories and wear parts have a 6-month warranty.

Is the thermometer waterproof?

No, the thermometer is not water resistant or dishwasher safe. Never fully immerse it.

How to use the thermometer for optimal cooking?

Insert the probe into the middle of the meat or fish. Wait 4 to 10 seconds for the display to stabilize. Refer to the cooking chart provided in the instructions for recommended temperatures.

What to do if the screen becomes dim?

Replace the batteries as soon as the screen becomes dim to ensure a clear display.

USER MANUAL DO3100 DOMO

Close-up of a metallic test probe with a digital display showing 5.0, labeled 'DOMO' (no additional text or symbols visible)

DO3100

Handleiding	CULINAIRE THERMOMETER
Mode d'emploi	THERMOMÈTRE CULINAIRE
Gebrauchsanleitung	KULINARISCHE THERMOMETER
Instruction booklet	CULINARY THERMOMETER
Manual de instrucciones	TERMÓMETRO CULINARIO
Istruzioni per l'uso	TERMOMETRO DA CUCINA
Návod k použití	KUCHYŇSKÝ TEPLOMĚR
Návod na použitie	KUCHYNSKÝ TEPLOMER

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Four-panel diagram showing a mechanical component with arrows indicating motion, including a valve-like structure and a cylindrical component (no text or symbols)

MILIEURICHTLIJNEN

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Four-panel diagram showing mechanical components: a piston-like device with rotating arms, two cylindrical parts, a triangular component, and a final piston-like device with a handle (no text or symbols)

MISE AU REBUT

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

BATTERIE AMOVIBLE

Close-up of a metallic mechanical component with a curved handle and upward arrow indicator (no text or symbols)

Two metallic cylindrical batteries with visible internal components, one partially filled with a coin for scale (no text or symbols)

Simple diagram of a mechanical device with a handle and internal components, no text or symbols present.

Close-up of a mechanical component with a curved handle and arrow indicating direction (no text or symbols)

ENTSORGEN

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

HERAUSNEHMBARE BATTERIE

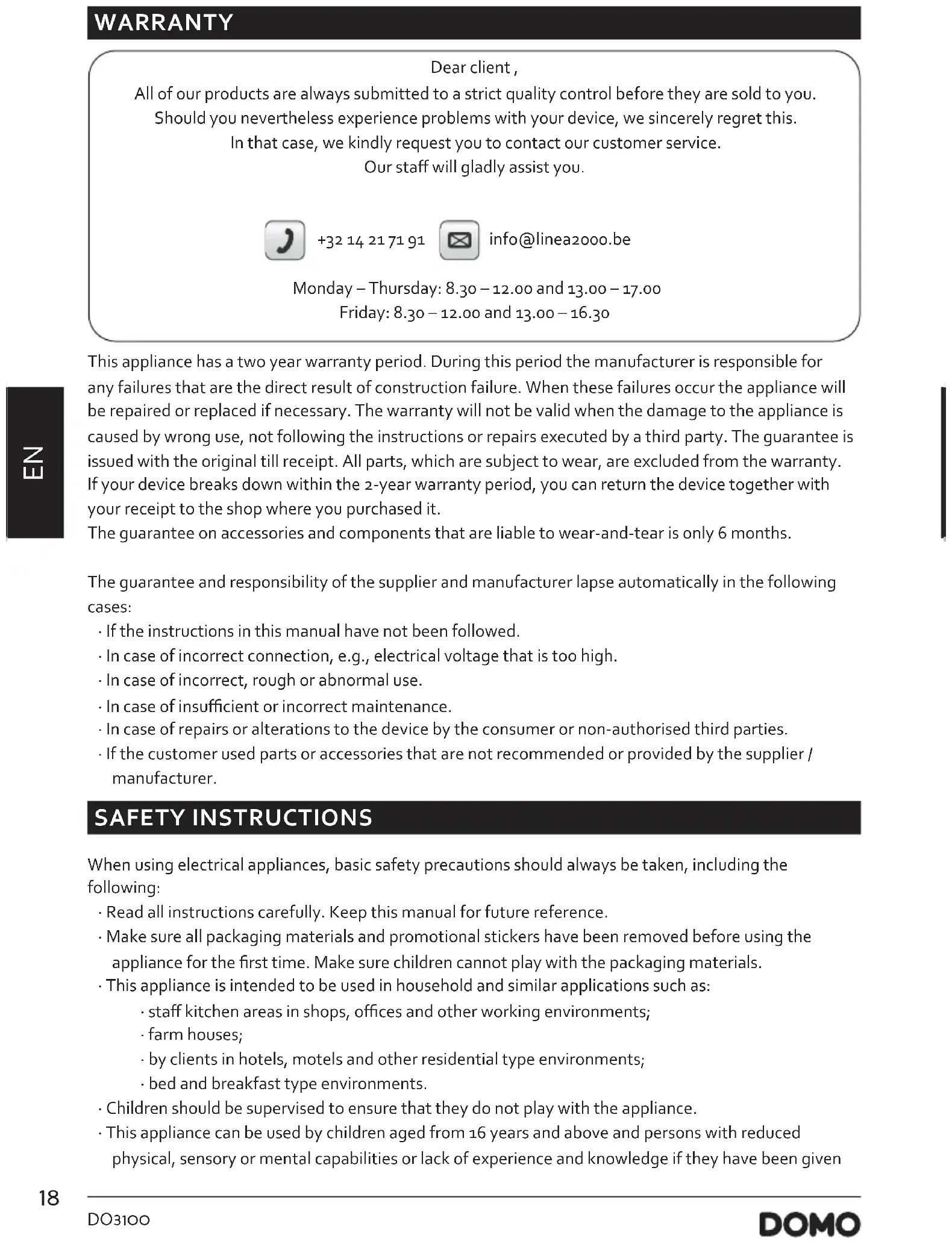

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• The thermometer is not waterproof and can not be used in the dishwasher.
  · Never immerse the appliance in water.
• Never use the thermometer in a closed oven.
  · Always clean the sensor after use and place the silicone protection cap over the sensor.
• Replace the batteries if the screen becomes blurry.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

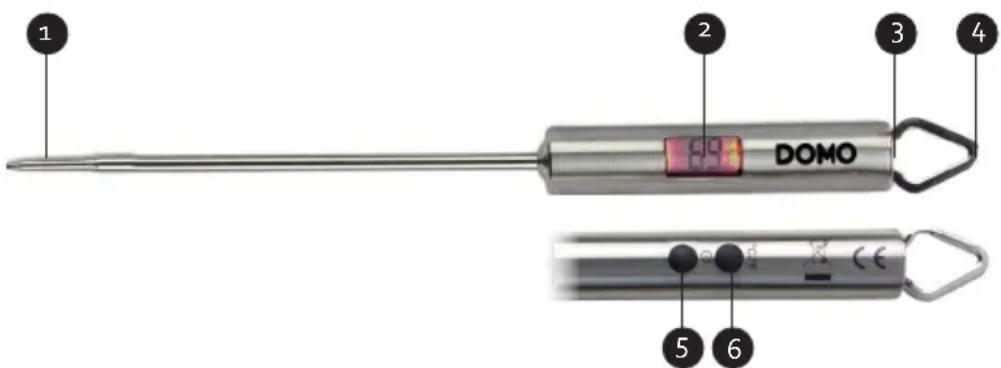

PARTS

1. Probe
2. Display
3. Cap from the battery compartment
4. Hook
5. On/off button
6. °C/°F button: Celsius/Fahrenheit button

1 2 3 4 DOMO 5 6

BEFORE THE FIRST USE

Remove the silicone protection cap and clean the probe and the thermometer before the first use with a damp cloth.

USE

1. First place the batteries that are packed separately (see 'Replace batteries'). The thermometer turns on automatically.
2. Remove the silicone protection cap. Press the on/off button to turn on the thermometer.
3. With the °C/°F button you can switch between Celsius and Fahrenheit.

4. Stick the point of the probe in the middle of the meat (in the oven or in the frying pan) to measure the temperature. The measurement is correct when the indication on the display does not change anymore. This takes about 4 to max. 10 seconds.

5. The display of the thermometer has a display light. When you turn on the thermometer this light will light up for 7 seconds. After these 7 seconds the light will go out automatically. To make it light up again, you need to press the on/off button twice or the °C/°F button once.

6. To turn off the thermometer, press the on/off button once. The appliance will shut down immediately.

The table below is a guideline to cook meat and fish with an optimal result according to the right temperature for every kind:

MEAT Very rare Medium rare Medium Well done
Beef 40 °C 48 - 50 °C 55 - 60 °C 65 - 70 °C
Veal 40 °C 48 - 50 °C 55 - 60 °C 65 - 70 °C
Lamb 50 °C 55 °C 65 °C 75 °C
Pork 50 °C 55 °C 65 °C 75 °C
Red game 40 °C	48 - 50 °C 55 - 60 °C 65 - 70 °C
Pigeon	40 °C 48 - 50 °C 55 - 60 °C 65 - 70 °C

POULTRY
Chicken	65 - 70 °C
Turkey	65 - 70 °C
Pheasant	65 - 70 °C

FISH
Salmon 48°C
Cod	58°C

CLEANING AND MAINTENANCE

CLEANING

Clean the probe after every use with a damp cloth en put the silicone protection cap back on the thermometer.

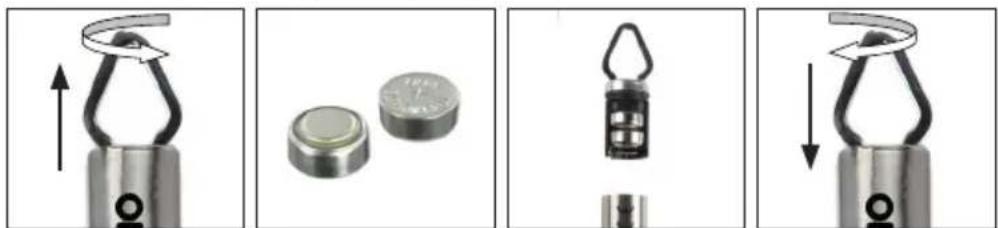

REPLACE BATTERIES

1. Remove the battery compartment cap by turning the suspension hook anti-clockwise and pulling it.

2. Place 2 new LR44 batteries with the + side up.

3. Place the battery compartment back in the thermometer. When the compartment is in place, push it all the way into the device and tighten.

4. Always use two new batteries and never mix old and new batteries. Do not throw old batteries into the garbage can but put them up for recycling.

Four-panel diagram showing a mechanical component with arrows indicating motion, including a cylindrical component and a triangular housing (no text or symbols)

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment. Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

Battery leakage may occur under extreme conditions. If the liquid from the battery comes into contact with the skin, immediately wash it off with soap and water or neutralise it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them abundantly with water for

at least 10 minutes and contact a doctor.

GARANTIA

Four-panel diagram showing a mechanical component with an arrow indicating upward motion, alongside two circular components (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

BATERÍA EXTRAÍBLE

Four-panel diagram showing mechanical components: a valve-like device, a battery, a spring-loaded component, and a final lever mechanism (no text or symbols)

MISURE AMBIENTALI

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a metallic mechanical component with a curved handle and upward arrow indicator (no text or symbols)

Two metallic cylindrical batteries with visible internal components (no text or symbols)

Simple diagram of a mechanical device with a handle and internal grid pattern (no text or symbols)

Close-up of a mechanical component with a curved handle and arrow indicating downward motion (no text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

VYJÍMATELNÉ/VYMĚNITELNÉ BATERIE

Symbol of a trash bin crossed with no text or numbers, enclosed in a square frame (no text or numbers present)

ZÁRUKA

Four-panel diagram showing mechanical components with arrows indicating motion, no text or symbols present

OHŁAD NA ŽIVOTNÉ PROSTREDIE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

VYBERATEL'NÉ/VYMENITEL'NÉ BATÉRIE
