DO636K - Massage device DOMO - Free user manual and instructions

Product type	Heating cushion for back and neck
Brand	DOMO
Model	DO636K
Usage	Domestic, massage and heat
Power supply	Mains 220-240 V, standard plug
Power	Not specified (estimated 100 W)
Number of heat settings	9 levels (1-9)
Automatic switch-off	After approximately 1h30
Overheat protection	Yes, automatic shut-off
Outer material	Washable fabric (not specified)
Dimensions (approx.)	Approx. 50 x 40 cm (adjustable)
Weight (approx.)	Approx. 0.5 kg
Included accessories	Heating cushion, control panel, power cable
Care and cleaning	Hand wash at 30°C max, mild detergent, air dry
Safety instructions	Do not use folded/creased, do not place heavy objects, avoid moisture
Warranty	2 years on device, 6 months on accessories
After-sales service	[phone], [e-mail], Mon-Thu 8:30-17:00, Fri 8:30-16:30
Repairability	Repairs by manufacturer or authorized service

Frequently Asked Questions - DO636K DOMO

How to use the DO636K heating cushion?

Attach the cushion to your shoulders, close the fasteners at the neck and waist, then plug in the power cable. Press the on/off button and adjust the temperature from 1 to 9 using the + and - buttons.

How long does it take for the device to heat up?

The cushion heats up quickly, but reaches its maximum temperature after about 15 minutes. Start with a low setting and increase gradually.

Why does the device turn off automatically?

For safety, the device turns off after about 1h30 of use. Let it cool down for 10 minutes before turning it on again.

What does a flashing 'F' on the screen mean?

This indicates a connection problem. First make sure to plug the connector into the cushion, then plug in the mains cable. If the problem persists, check that the connector is fully inserted.

Can I wash the heating cushion?

Yes, disconnect the cable and hand wash at 30°C maximum with a mild detergent. Rinse thoroughly and air dry. Do not put in tumble dryer, do not iron, do not dry clean.

Can I use the device if I have a pacemaker?

Electromagnetic fields may interfere. Consult your doctor and the pacemaker manufacturer before use.

Does the device heat evenly?

Yes, but if you feel excessive heat, reduce the setting. The back of the hand is more sensitive for testing the temperature.

What is the warranty of the DO636K?

The device is guaranteed for 2 years from the date of purchase. Accessories and wear parts are covered by a 6-month warranty.

Can I use an extension cord?

No, using an extension cord or power strip is prohibited for safety reasons.

How to store the heating cushion?

Let it cool completely, roll it up without folding and store in a dry place, preferably in its original packaging, without placing heavy objects on it.

USER MANUAL DO636K DOMO

Medical pressure monitor with attached bandage and digital thermometer (no text or symbols visible)

DO636K

Handleiding Nek- en rugverwarmer

Mode d'emploi Coussin chauffant dos et nuque

Gebrauchsanleitung Nacken- und Rückenwärmer

Instruction booklet Neck and back warmer

Manual de instrucciones Calentador de cuello y espalda

Istruzioni per l'uso Scaldacollo e scaldaschiena

Návod k použití Hřejivá dečka na záda a šíji XL

Návod na použitie Hrejivá dečka na chrbát a šiju XL

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Instructional steps showing a person adjusting a bandage with a brush, labeled 2 to 4.

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Instructional steps showing a person adjusting a bandage with numbered labels (2, 3, 4)

AVANT LA PREMIÈRE UTILISATION

Close-up of a hand inserting a white plastic plug into a gray fabric (no text or symbols visible)

2

Person wearing a black top and gray ribbon, hands adjusting the ribbon (no text or symbols visible)

3

Back view of a person wearing glasses and a patterned top, holding an object (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Instructional steps showing a person adjusting a bandage with numbered labels (2, 3, 4)

Close-up of a hand holding a white cable with a circular connector attached, on a textured gray surface (no text or symbols visible)

2

Person wearing a gray garment with a collar, holding a small object (no visible text or symbols)

Person wearing a black top and gray belt, hands adjusting the ribbon (no text or symbols visible)

3

Back view of a person holding a small object, no visible text or symbols

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

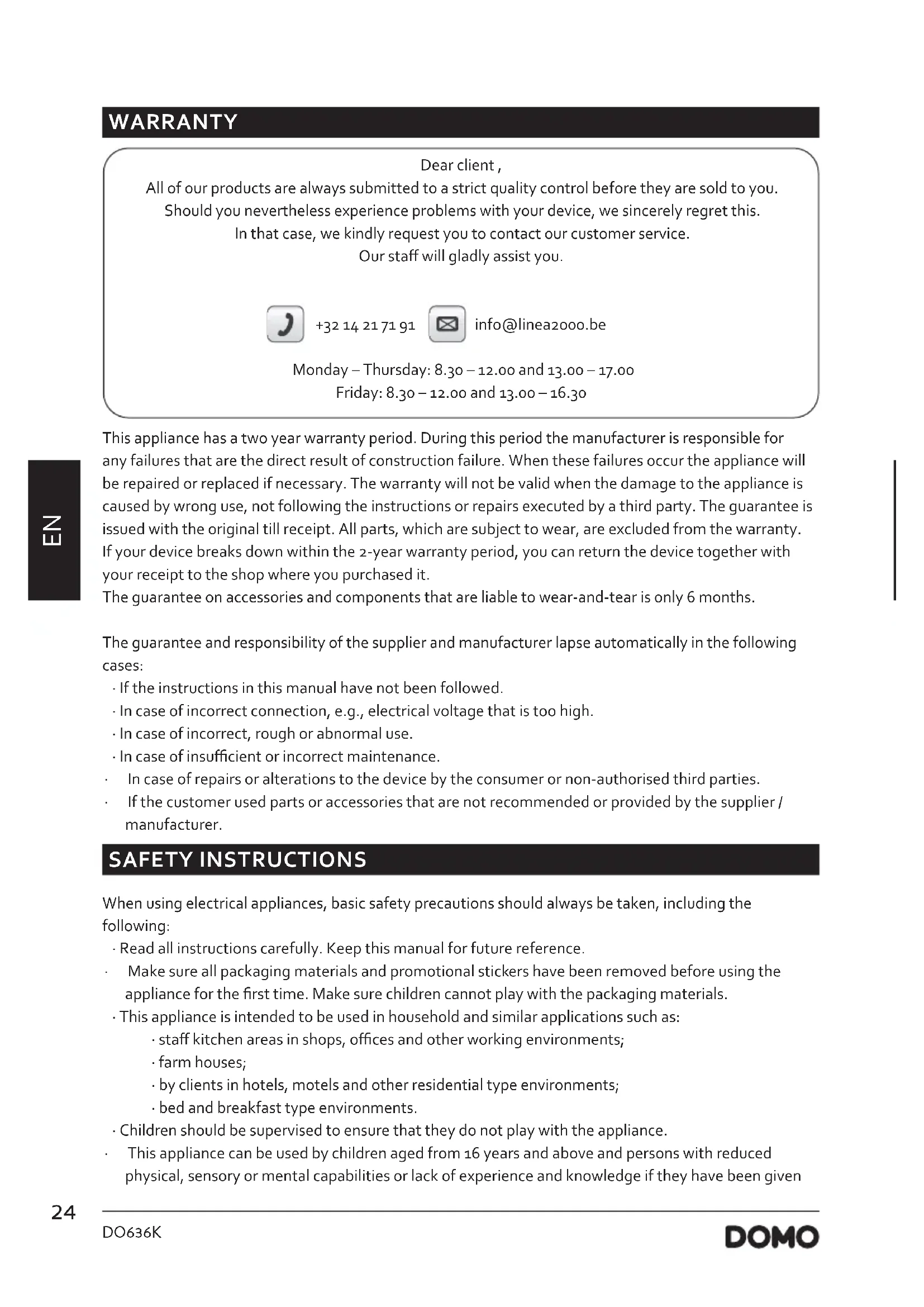

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

· Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• Wrap the cord up completely to prevent it from overheating.
  · Never touch the device with wet or damp hands.
  Do not use needles, safety pins, or other sharp objects on the device as these will damage the wiring.
  · While the device is switched on:

- No large or heavy object may be placed on top of it.

- No source of heat (e.g. hot-water bottles, bed warmers, heating pads) may be placed on top of it.

- Avoid letting animals lie on the device.

- The electric and magnetic fields emitted by this electrical product can interfere with the operation of a pacemaker under certain circumstances. Therefore, contact your doctor and the manufacturer of your pacemaker before using this product.

· The device is not intended for use in hospitals.

- The device must not be used by people who are insensitive to heat or who are unable to react should the device start to overheat.

- The cord and control panel of the device may present a risk of suffocation, strangulation, tripping, or stumbling if not laid away neatly. The user must ensure that the attachments and the cord are always in a safe position.

- The device may only be operated using the control panel supplied.

· Always allow the device to cool down before folding it up and storing it away.

- Do not crease the device by placing objects on top of it when stored.

· Do not use the device when it is still wet. The device must be completely dry before use.

In case of long-term use, e.g. if the user falls asleep, it is recommended to set the device to setting 1.

- Unplug the device and allow it to cool down for at least 10 minutes before cleaning.

· The device can be washed by hand.

Never use the appliance when folded or bent

Do not stick pins or other sharp objects into the appliance

Not suitable for children under 3 years of age

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

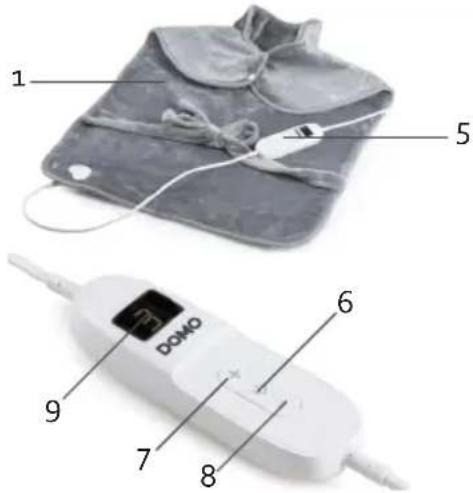

PARTS

1. Neck and back warmer
2. Cable connection
3. Neck fastening
4. Waist fastening
5. Control panel
6. On/off button
7. Increase heat setting
8. Decrease heat setting
9. Display

1 5 6 DOKO 9 7 8

Instructional steps showing hair styling: starting with a brush, applying material to a bandage, then adjusting the bandage.

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
  · Never use the device when folded, bent, turned down, and/or tucked in.
  · Do not place artificial heat sources, or heavy and/or angular objects on the device.

- The device is equipped with overheating protection. This protection prevents the device from overheating across its entire surface by automatically switching off the power in the event of a malfunction. Please note that the device may not be used afterwards for safety reasons and must be returned to your retailer.

- There may be a slight odour from the device when it is used for the first time. This is normal. It is recommended that the room be ventilated briefly after the first use.

USE

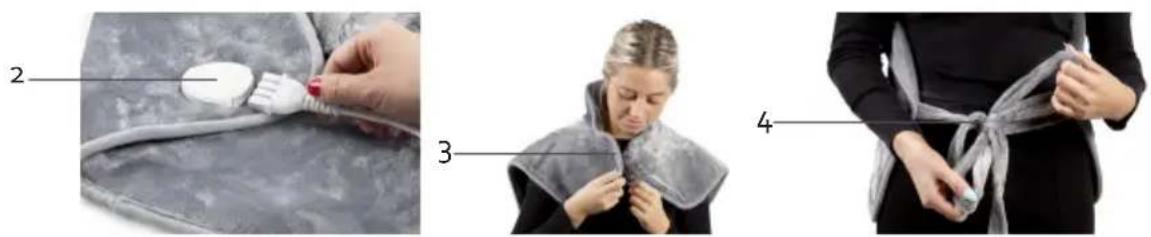

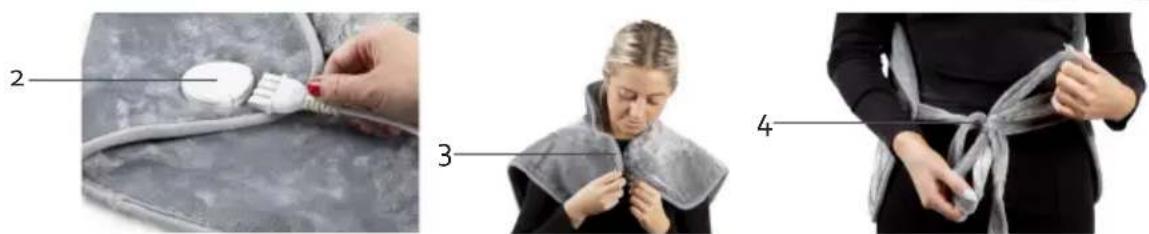

1. Click the cable into the cable connector on the neck and back warmer and plug the other end into the electrical socket.

2. Lay the neck and back warmer over your shoulders, close the neck fastener using the snaps, and tie the belt around your waist. Make sure that the cable connector is located on the outside of the neck and back warmer.

3. Press the on/off button to switch on the appliance. "1" will appear on the display.

1

Close-up of a hand inserting a white plug into a gray fabric (no text or symbols visible)

2

Person wearing a black top and gray tassel, hands adjusting the ribbon (no text or symbols visible)

3

Back view of a person holding a small object, no visible text or symbols

1. Then press the button to increase the heat setting. Each press of the button will increase the temperature. Use the button to lower the heat setting to decrease the temperature again. You can choose between 9 heat settings (1-9). We recommend starting on a low setting and gradually

increasing it. The neck and back warmer will heat up quickly. The selected heat setting is shown on the display.

1. The appliance will switch off automatically after 1.5 hours. This is a set safety measure.
2. Let the appliance cool down for 10 minutes before turning it on again.
3. Press the on/off button if you want to disconnect the appliance. Then unplug the appliance.

ATTENTION!

· Prolonged use on a high temperature setting may cause burns on a sensitive skin.

• Check if the temperature is pleasant with the top of your hand. This zone is more sensitive than the palm of the hand.
• If you use the appliance for several hours at the highest setting, the appliance could overheat.

CLEANING AND MAINTENANCE

1. Let the appliance cool down completely before cleaning it. Remove the connection plug. Always remove the plug from the electrical socket before cleaning.
2. The neck and back warmer can then be washed by hand. Wash the neck and back warmer using lukewarm water and a mild liquid detergent. Gently wring out any excess water. Rinse with clean water to remove all the detergent. Washing it too frequently can lead to colour changes or wear. So wash the neck and back warmer only when absolutely necessary.
3. Small stains can be cleaned with a cloth or damp sponge, if necessary with a liquid mild washing detergent.
4. Please note that the device must not be dry-cleaned.
5. Then let it air dry. Never dry in a tumble dryer, in the sun, or on a heater. Do not use clothes pegs. Instead, drape the device over a drying rack.
6. Never switch the device on to dry it faster.
7. Store the appliance in a dry place. Make sure the appliance is rolled up properly. Do not fold the appliance.

Washing symbol	Washing symbol explanation
	Hand wash – max. water temperature of 30°C
	Do not iron
	Do not bleach
	Not suitable for tumble dryer
	Not suitable for dry cleaning

STORING THE DEVICE

If you do not use the device for a longer period of time, we recommend that you store it in its original packaging in a dry environment and without placing anything heavy on top of it. Allow the device to cool down before storing it.

PROBLEMS AND SOLUTIONS

Problem Solution
The appliance does not work. - Make sure the connection plug has been connected correctly.- Check if the appliance works if you use another socket.
The appliance has been stopped working. - After 1.5 h, the appliance shuts off automatically.Let the appliance cool down for 10 min. and press again the on/off button.
“F” flashes on the display. - Did you first insert the plug into the socket and then insert the connector plug into the device?You must always insert the connector plug first, and then plug the other end into the electrical socket.- Did the connector plug accidentally come off while using the device? Remove the plug from the electrical socket first, then reattach the connector plug to the device, and then plug the cable back in.
The appliance does not heat enough. - After +/- 15 min. the appliance reaches the set temperature. Increase the temperature if necessary.

ENVIRONMENTAL GUIDELINES

Prohibition sign with a trash bin crossed out and a black rectangular base symbol below

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Step-by-step instructions for adjusting a garment with numbered steps labeled 2, 3, and 4.

Close-up of a hand holding a white plastic bulb attached to a gray fabric or towel, with no visible text or symbols.

Person adjusting a garment with a collar and zipper (no visible text or symbols)

Person wearing a black top and gray ribbon, hands adjusting the ribbon (no text or symbols visible)

Person holding a small object, viewed from behind (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a dark fabric or patterned garment with labeled parts (1 and 5), no visible text or symbols on the garment itself.

6 DOMO 9 7 8

Step-by-step instructions for adjusting a bandage, showing steps from lapel to tie-up.

PRIMA DELL'USO

Close-up of a hand inserting a light bulb onto a textured gray surface (no text or symbols visible)

Person adjusting a gray garment with a collar (no visible text or symbols)

Person wearing a gray ribbon tied with hands, wearing a black top (no visible text or symbols)

Person styling a hair accessory with a curling iron (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Step-by-step instructions for adjusting a bandage, showing steps from banding to stretching.

PŘED PRVNÍM POUŽITÍM

Close-up of a hand holding a white bulb attached to a gray fabric cable (no text or symbols visible)

Person adjusting a gray garment with a collar (no visible text or symbols)

Person wearing a black top and gray ribbon, hands adjusting the ribbon (no text or symbols visible)

Person holding a small object, viewed from behind (no visible text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Instructional steps showing a bandage being applied to a person's back, labeled 2, 3, and 4.

PRED PRVÝM POUŽITÍM

Close-up of a hand inserting a white plastic bulb onto a gray fabric surface (no text or symbols visible)

Person adjusting a gray hooded garment, no visible text or symbols

Person wearing a black top and gray ribbon, hands adjusting the ribbon (no text or symbols visible)

Person holding a handheld device, viewed from behind (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
