MLE27N5AWWC - Tumble drier MIDEA - Free user manual and instructions

Product Type	Dryer
Brand	Midea
Model	MLE27N5AWWC
Dimensions (W x D x H)	653 mm x 595 mm x 850 mm
Power Supply	240 V / 60 Hz / 30 A
Drying Capacity	Maximum Load: 7 kg (estimate)
Drying Cycles	Normal, Jeans, Perm Press, Quick Dry, Wool, Air Fluff, Time Dry, Refresh, Sanitize, Delicates, Active Ware, Towel, Bulky, Heavy Duty, Mixed Load
Drying Levels	More, Normal, Less, Damp
Special Functions	Wrinkle Care (90 min no heat), Delay Start (24 h), Damp Alert, My Custom Cycle, Child Lock
Vent Type	With water tank (condensation) or external vent
Lint Filter	Clean after each use; base filter every 5 cycles
Drum Maintenance	Clean with a damp cloth and a mild non-abrasive cleaner
Control Panel Cleaning	Soft damp cloth, no abrasive products
Safety	Child lock, automatic stop when tank full, overheat protection
Error Codes	E32 (humidity), E33 (temperature sensor), E64 (motor), E82 (PCB)
Warranty	1 year parts and labor (extension possible)
Installation	Requires a grounded 30 A outlet; clearances: sides 25 mm, rear 50 mm, top 50 mm
Country of Manufacture	China
Customer Service	1-866-646-4332 (North America)
Manual	Available in French (88 pages)

Frequently Asked Questions - MLE27N5AWWC MIDEA

How to install the dryer correctly?

Make sure you have a grounded 240 V / 30 A electrical outlet. Respect the clearances: sides 25 mm, rear 50 mm, top 50 mm. Use a rigid vent duct if possible. Level the appliance with the adjustable feet.

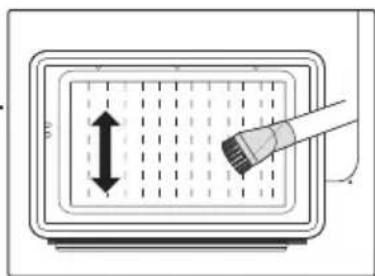

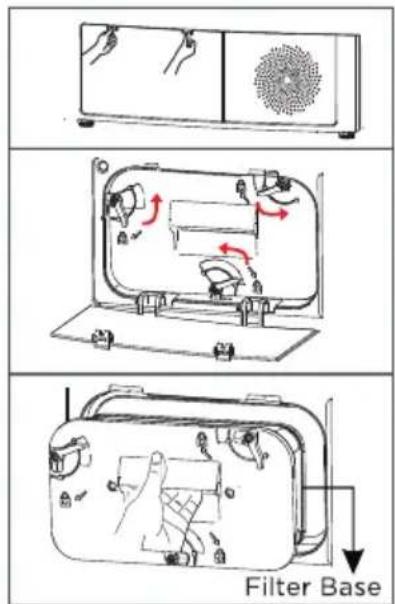

How to clean the lint filter?

Open the cover, unlock the three levers, remove the base filter. Clean it with water if necessary, dry it thoroughly, then reinstall. The main filter is cleaned after each use.

What to do if the dryer does not heat?

Check the circuit breaker or fuse. Make sure the selected cycle is not 'Air Fluff' (no heat). Clean the lint filter. If the problem persists, contact customer service.

How to use the 'Damp Alert' function?

Press the Damp Alert button. When the laundry is ready for ironing, the appliance beeps for 10 seconds. Remove the relevant clothes and press Start/Pause to continue drying.

Why does the remaining time change abnormally?

The dryer automatically adjusts the time based on detected humidity. This is normal. The duration may vary depending on load size and fabric type.

What does error code 'E32' mean?

Code E32 indicates a humidity issue. Clean the filter and water tank. If the code persists, contact an authorized technician.

How to activate the child lock?

Press the 'Dry' and 'Damp Alert' buttons simultaneously for 3 seconds. The Lock indicator light turns on. To deactivate, repeat the procedure.

Can I dry foam or rubber items?

Only use the 'Air Fluff' (no heat) cycle for foam rubber items. Heat may cause spontaneous combustion.

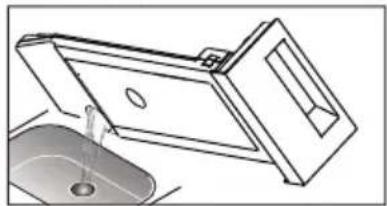

How to empty the water tank?

Remove the water tank with both hands, tilt it to pour the condensed water into a sink, then replace it. Empty it after each use to avoid program pause.

Where to find spare parts?

Contact your dealer or email [e-mail]. Use only genuine Midea parts.

USER MANUAL MLE27N5AWWC MIDEA

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

version A

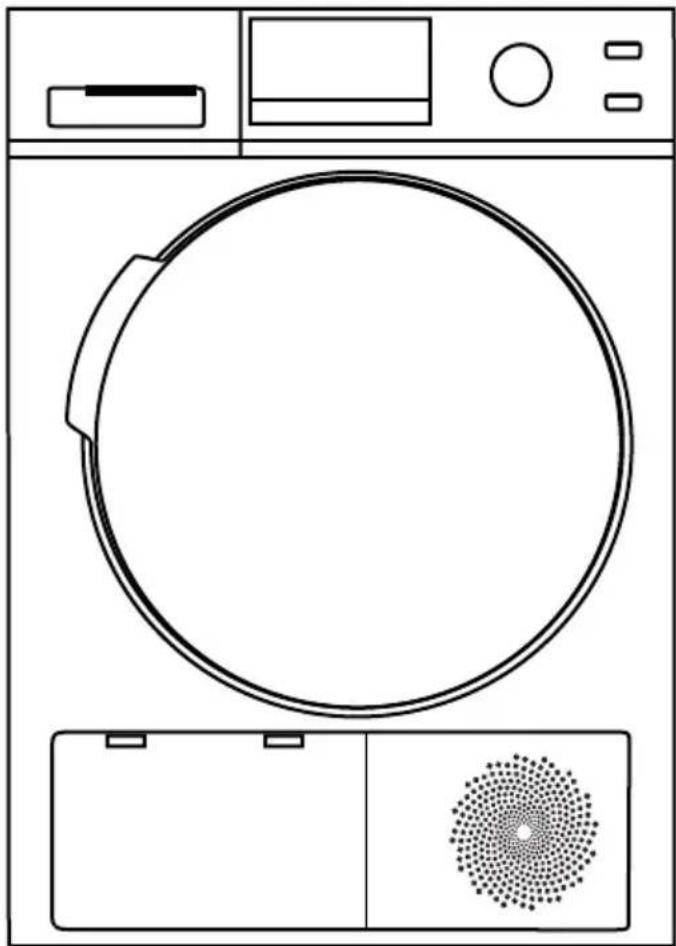

USER MANUAL & INSTALLATION INSTRUCTIONS

Free 3 months

extension of the

original limited warranty period!* Simply text a picture of your proof of purchase to:

1-844-224-1614

*The warranty extension is for the three months immediately following

the completion of the product's original warranty period. Individuals do not need to register the

product in order to get all the rights and remedies of registered owners under the original limited warranty.

MODEL NUMBER MLE27N5AWWC

Dear user

THANK YOU and CONGRATULATIONS on your purchase of this high-quality Midea product. Your Midea dryer is designed for reliable, trouble-free performance. Please take a moment to register your new dryer.

Register your new dryer at www.midea.com/ca/support/Product-registration

For future reference, record your product model and serial numbers located on the inside frame of the dryer.

Model Number
Serial Number

SAFETY AND PRECAUTIONS 4

INSTALLATION REQUIREMENTS 8

Important to installer. 8

Basic requirements 8

Location requirements 8

Drain system 10

Electrical requirements. 12

Grounding 14

Replacement parts and accessories 14

INSTALLATION INSTRUCTIONS 15

Removing from the package 15

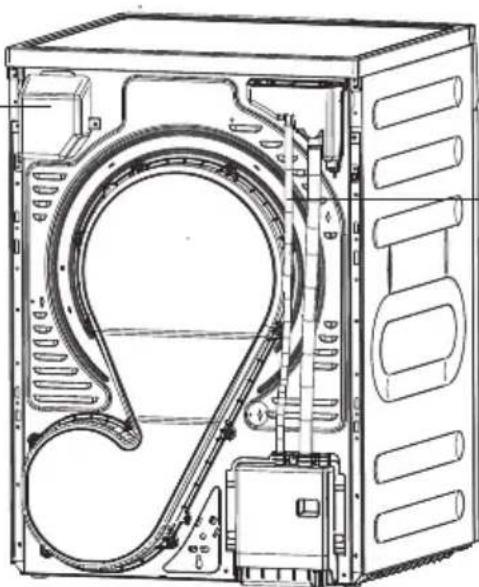

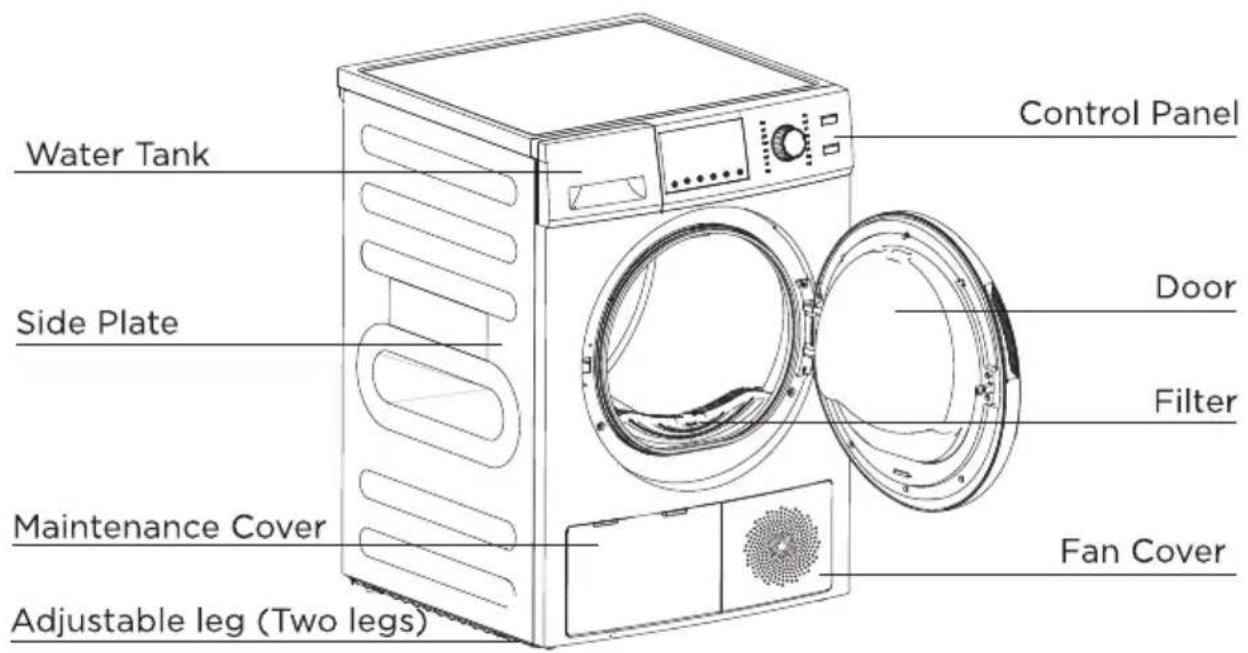

Parts identification 15

Tools required 16

Installation steps. 17

DRYERUSE 27

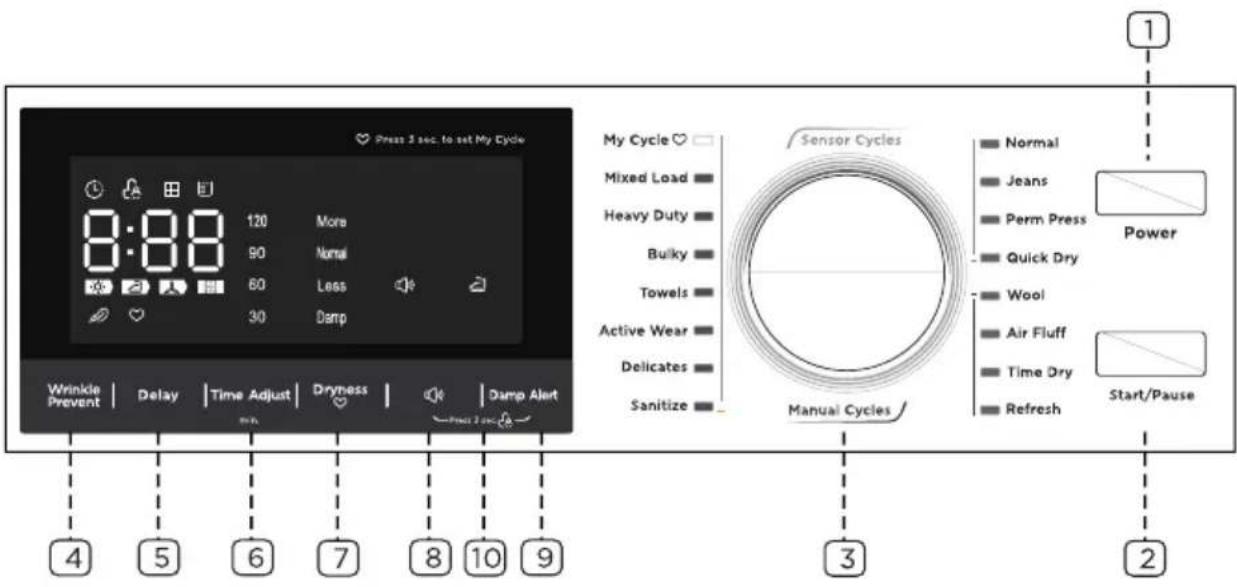

Control panel 27

Drying a load of laundry 29

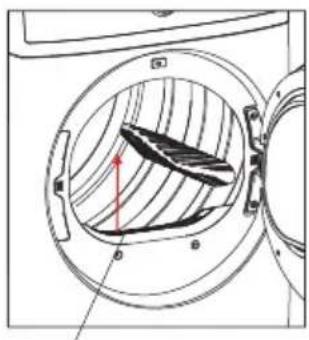

Filter clean 33

Special laundry tips 35

DRYER CARE 30

Care and maintenance 30

BEFORE YOU CALL FOR SERVICE 31

Error codes 33

WARRANTY 34

PRODUCT REGISTRATION 36

READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

This manual contains important information on the installation, use, and care of your appliance. Please read this manual carefully before installation and operation of this machine to prevent injury and property damage.

Warnings and Important Safety Instructions in this manual DO NOT cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your washer.

CAUTION RISK OF FIRE!

SAFETY AND PRECAUTIONS

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

This indicates that hazards or unsafe practices may cause serious personal injury or death. To reduce the risk of fire, explosion, electric shock or person injury when using your washing machine, these basic safety precautions SHOULD be followed.

This indicates that hazards or unsafe practices may cause minor personal injury or property damage.

WARNING

For your safety the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Before use, the dryer must be properly installed as described in this manual.

• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.

• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.

• Do not use the dryer to dry clothes which have traces of any flammable substance, such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as mops and cleaning clothes. Flammable substances may cause the fabric to catch fire by itself.
• Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the lid of the washing or door of the drying compartment.
• Do not reach into the appliance if the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather or freezing temperatures.
• Do not tamper with the controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless it is specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Turn off the water faucets and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.
• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from children.
• Always check the inside of the dryer for foreign objects before loading laundry. Keep the door closed when not in use.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.

• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

• This appliance must be grounded. See "Electric requirements" and "Grounding" in the "INSTALLATION REQUIREMENTS" section.

• This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. Refer to installation instructions for grounding this appliance.
• Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

SAVE THESE INSTRUCTIONS

WARNING

To reduce the risk of fire or explosion

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite or explode. Any material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed.
• There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials on a heat setting. Heated foam rubber materials can under certain circumstances, produce fire by spontaneous combustion.

CAUTION

• Do not sit on top of the dryer.
  Because of continuing product improvements, Midea America reserves the right of change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid things.
  Install and use in accordance with the manufacturer's instructions.

• Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils.

• Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion increases when items containing vegetable oil or cooking oil are exposed to heat. Heat source such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur.

• Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can create a fire hazard.
  Take care that children's fingers are not caught in door when closing it. This may result in injury.

WARNING

Risk of Fire

Clothes dryer installation must be performed by a qualified installer.
- Install the clothes dryer according to the manufacturer's instructions and local codes.
- To reduce the risk of severe injury or death, follow all installation instructions. Save these instructions.

INSTALLATION REQUIREMENTS

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference.

CAUTION

• The dryer is not suitable for installation in a mobile home.
• Remove the door from all discarded appliances to avoid the danger of a child being trapped and suffocating, after unplugging Power Cord.

BASIC REQUIREMENTS

Make sure you have everything necessary for the proper installation.

• A GROUNDED ELECTRICAL OUTLET is required. Refer to the "Electrical requirements" section.
• A POWER CORD (except for Canada).

LOCATION REQUIREMENTS

• The dryer should be located where there is enough space at the front for loading the dryer, and enough space behind for the exhaust system.
• Make sure the room in which the dryer is located has enough fresh air. The dryer must be located where there are no air-flow obstructions.
• The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The dryer area must be kept clear of combustible materials, gasoline, and other flammable vapors and liquids. A dryer produces combustible lint. The area around the dryer should be kept lint-free.

Alcove or closet installations

WARNING

No other fuel-burning appliance should be installed in the same closet as the dryer.

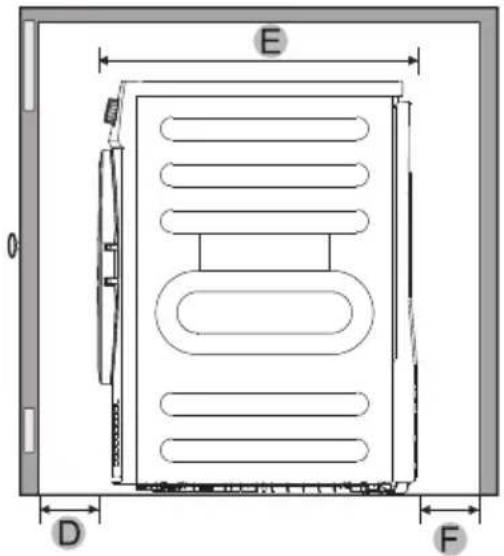

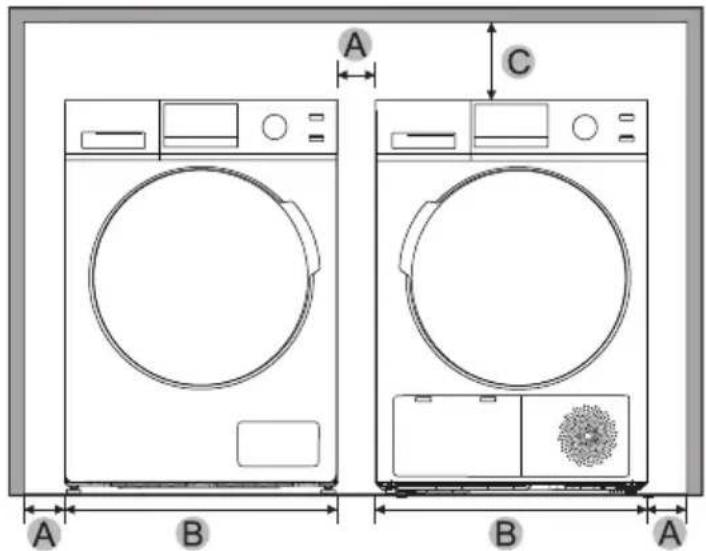

Minimum clearances between the dryer and adjacent walls or other surfaces :

Sides	1 in. (25.4 mm)	Rear	2 in. (50.8 mm)
Top	2 in. (50.8 mm)	Closet front	2 in. (50.8 mm)

A	1 in. (25.4 mm)	C	2 in. (50.8 mm)	E	25.7 in. (653 mm)
B	23.4 in. (595 mm)	D	2 in. (50.8 mm)	F	2 in. (50.8 mm)

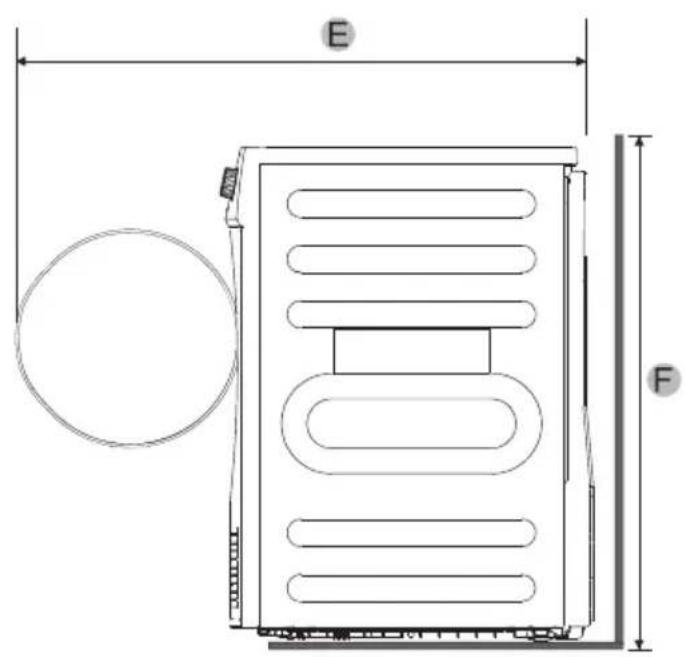

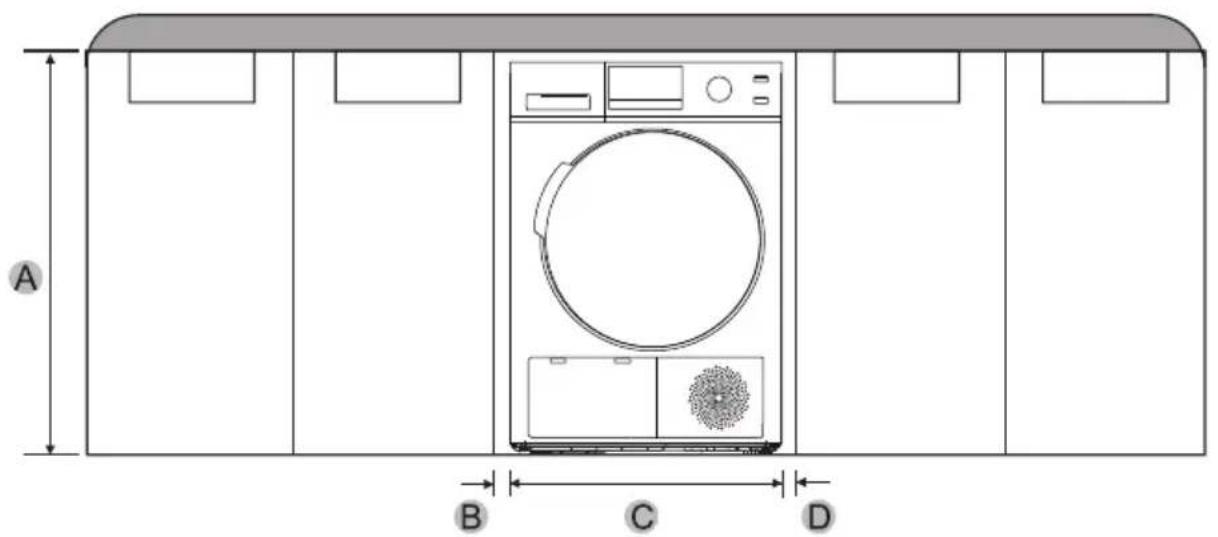

Undercounter installation

A	≥35.5in.(≥901mm)	C	23.4 in.(595mm)	E	42.2 in.(1072mm)
B	1 in.(25.4mm)	D	1 in.(25.4mm)	F	33.5 in.(850mm)

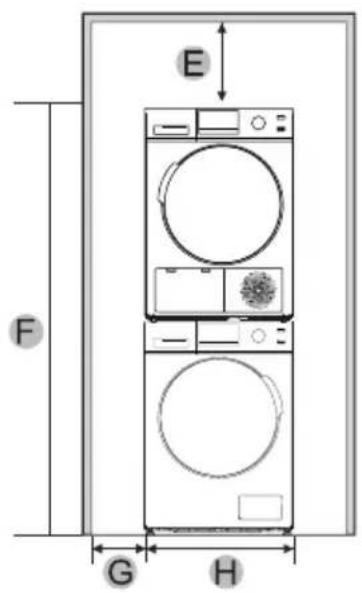

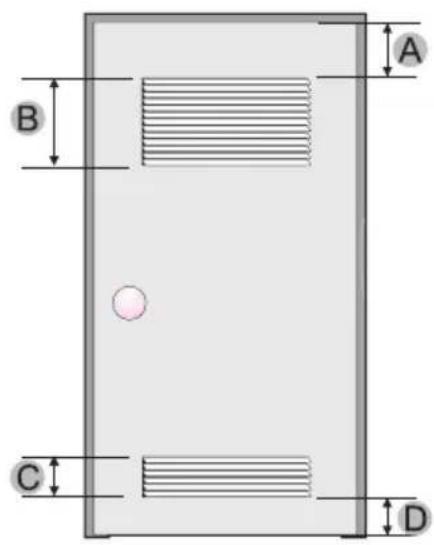

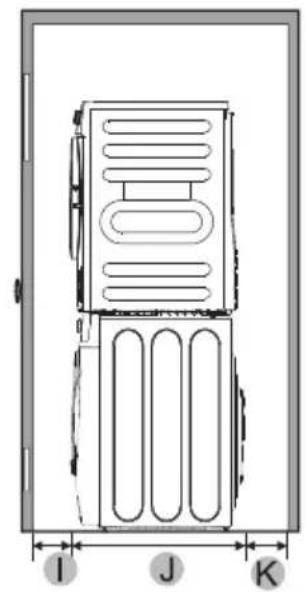

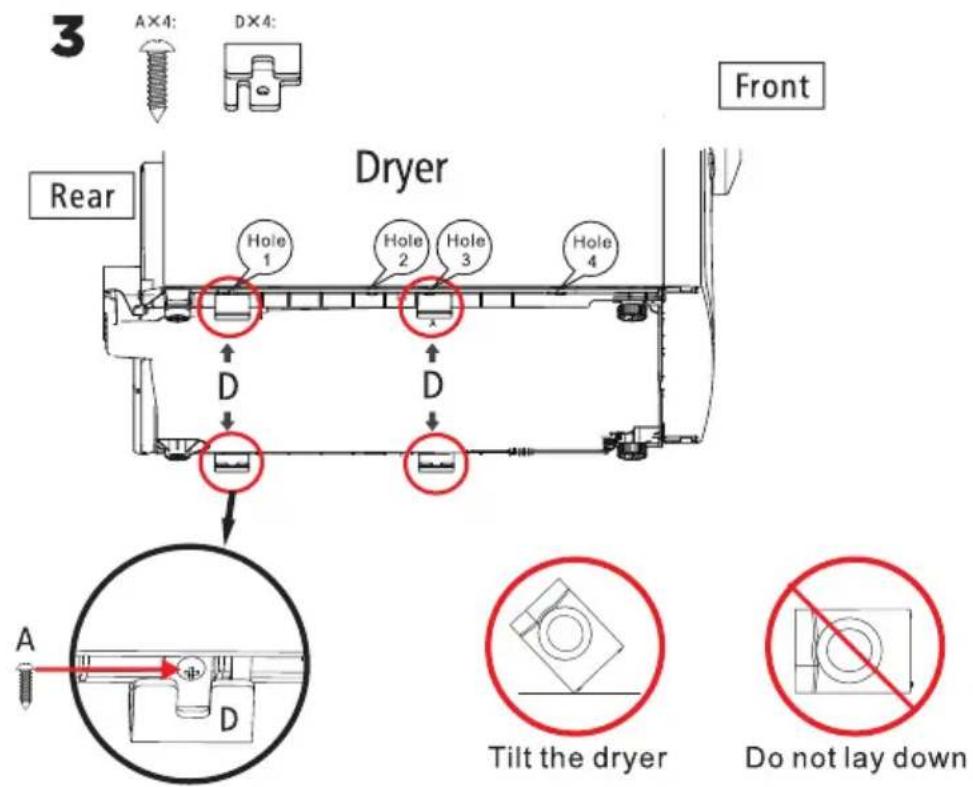

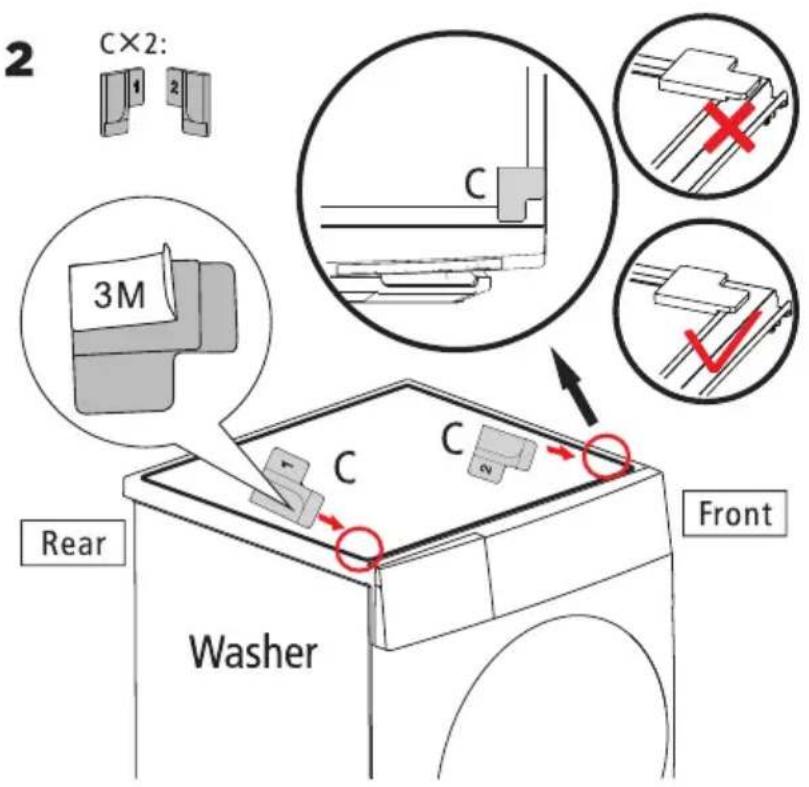

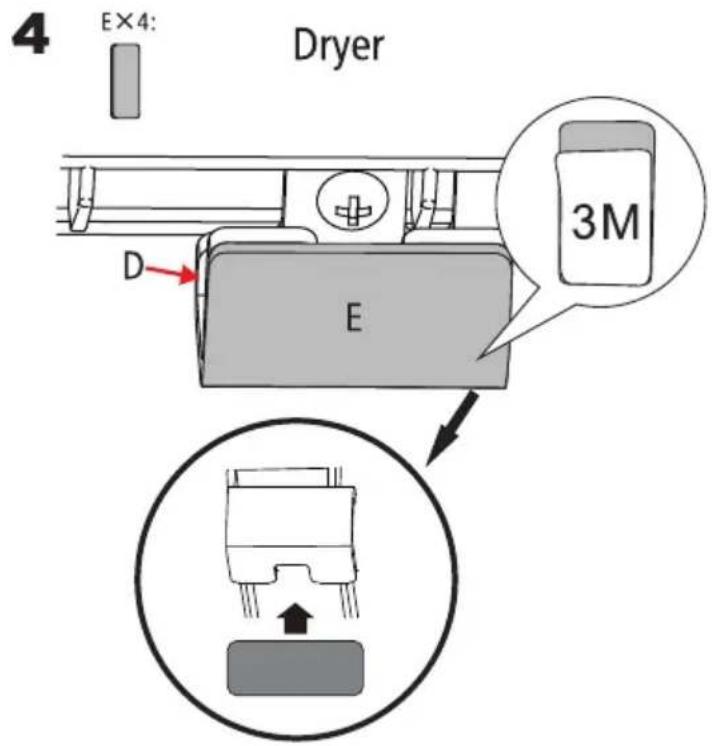

Installation with stacked washing machine and dryer

A	3 in. (76 mm)	E	2 in. (50.8 mm)	I	3 in. (76 mm)
B	48 in.2 (3100 mm2)	F	/	J	25.7 in. (653 mm)
C	24 in.2 (1550 mm2)	G	1 in. (25.4 mm)	K	2 in. (50.8 mm)
D	3 in. (76 mm)	H	23.4 in. (595 mm)

NOTE:

The front of the closet must have two unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (76mm) at the top and bottom. A slatted door with equivalent space clearance is acceptable.

DRAIN SYSTEM

The following parts are optional for specific models.

If your dryer has following parts, please wear gloves and install them as per the instruction below.

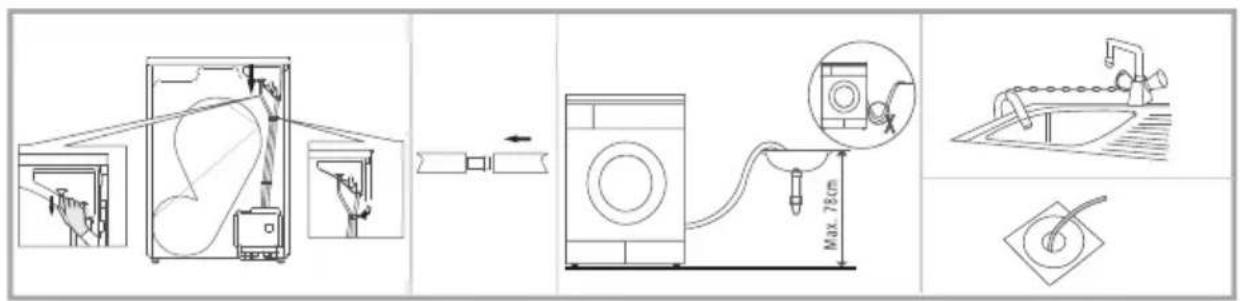

Installation

Take the hose out of the holder.
- Disconnect the hose from the water container inflow. (To assure Water tightness, there is tension between the hose and the inflow and therefore an increased force is required for disassembly.)
- Insert the drain hose and the external drainage hose into the connector.
- Put the hose on the washing basin or floor drain. To assure the smooth drainage, ensure the pipe is not folded.

ELECTRIC REQUIREMENTS

The wiring diagram is located on the back board of the unit.

WARNING

• The improper connection of the equipment grounding conductor can result in the risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet installed by a qualified electrician.

• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 - Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical services for your dryer.

• All gas installations must be done in accordance with the National Fuel Code ANSI/Z2231 - Latest Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and local codes and ordinances.

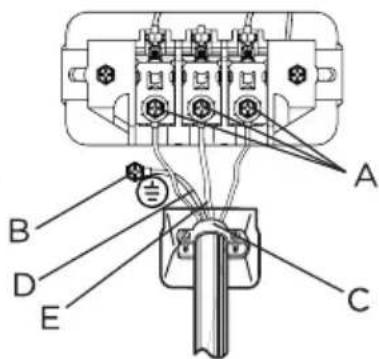

Electrical connections

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD.

Electric models - U.S. only

The dryers require a 240 volt, 60Hz AC approved electrical service.

The electric service requirements can be found on the data label located on the back.

A 30-amperefuse or circuit breaker on both sides of the line is required.

If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
The power cord is NOT provided with U.S. electric model dryers.

WARNING

RISK OF ELECTRIC SHOCK:

When local codes allow, the electrical supply of the dryer may be connected by means of a new power supply cord kit, marked for use with a dryer, that is UL listed and rated at a minimum of 240 volts, 30-ampere with three No.10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branchcircuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. (Use a 4-prong plug for 4 wire receptacles, NEMA type 14-30R.)

Electric models - Canada only

A 240 volt, 60Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on both sides of the line is required.
- All Canadian models are shipped with the power cord attached. The power cord should be plugged into a 30-ampere receptacle.

NOTE:

A power cord is NOT provided with U.S. electric model dryers.

Install the clothes dry according to manufacture's instructions and local codes.

GROUNDING

• For products sold in the U.S., your dryer has an optional cord with an equipment grounding conductor and a grounding plug, which is sold separately. For products sold in Canada, your dryer is equipped with a cord having an equipment-grounding conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided with the appliance: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
• If a power cord is not used and the electric dryer is to be permanently wired, This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

WARNING

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel, if you are in doubt as to whether the appliance is properly grounded.
• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing.

Service personnel - do not contact the following parts while the appliance is energized: Main Motor, Cooling Fan.

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer where you purchased your dryer or email to [e-mail].

INSTALLATION INSTRUCTION

REMOVING FROM THE PACKAGE

• Unpack your dryer and inspect it for shipping damage. Make sure you have received all the items shown below.
• To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

WARNING

• Packaging materials can be dangerous to children.
• Keep all packaging material (plastic bags, polystyrene, etc.) well out of children's reach.

PARTS IDENTIFICATION

Wiring Box

Drain Hose

TOOLS REQUIRED

Phillips screwdriver

Flat screwdriver

Level

Pliers

Adjustable wrench that opens to 1" (25 mm)

Cutting knife

Tape measure

Four wire outlet

4-Wire receptacle (14-30R)

Then choose a 4-wire power supply cord with ring terminals and UL listed strain relief. The 4-wire power supply cord, at least 4.92 ft. (1.5 m) long, must have 4 10-gauge solid copper wires and match a 4-wire receptacle of NEMA Type 14-30 R, rated 240V , min 10A. The ground wire (ground conductor) may be either green or bare. The neutral conductor must be identified by a white color.

4-Wire system connections

• Connect the ground wire (green or unwrapped) of the power cord to the external ground conductor screw.
• Remove the center terminal block screw and Connect the neutral wire (white or center wire) of the power cord to the center terminal screw of the terminal block. Be sure to cross the screw through the terminal ring and tighten the screw.
• Remove the two side terminal block screw and connect the other wires to the outer terminal screws. Be sure to cross the screw through the terminal ring and tighten the screw.
• Tighten the strain relief screws.
• Insert the tab of the terminal block cover into your dryer's rear panel slot. Secure the cover with a screw.

4-wire system instructions:

A. Terminal block screw
B. External ground connector
C. 3 / 4'' (1.9cm) UL-listed strain relief
D. Green or bare copper wire of the power cord
E. Neutral wire (white or center wire)

! AVENTISSEMENT

Ring-type terminals are recommended. If using strip terminals, make sure they are tightened.

AVERTISSEMENT

U.S. Models:

Risk Of Electric Shock - All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION.

The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral conductor.

If the 4-wire system is used, the dryer frame cannot be grounded to the neutral conductor at the terminal block. Refer to the "Electric requirements" section on page 14 for 3-WIRE or 4-WIRE SYSTEM CONNECTIONS.

Remove the terminal block cover plate.

Insert the power cord with a UL-listed strain relief through the hose provided in the cabinet near the terminal block.

A strain relief must be used.

Do not loosen the nuts already installed on the terminal block. Be sure they are tight.

Use a 3/8'' (1cm) deep well socket.

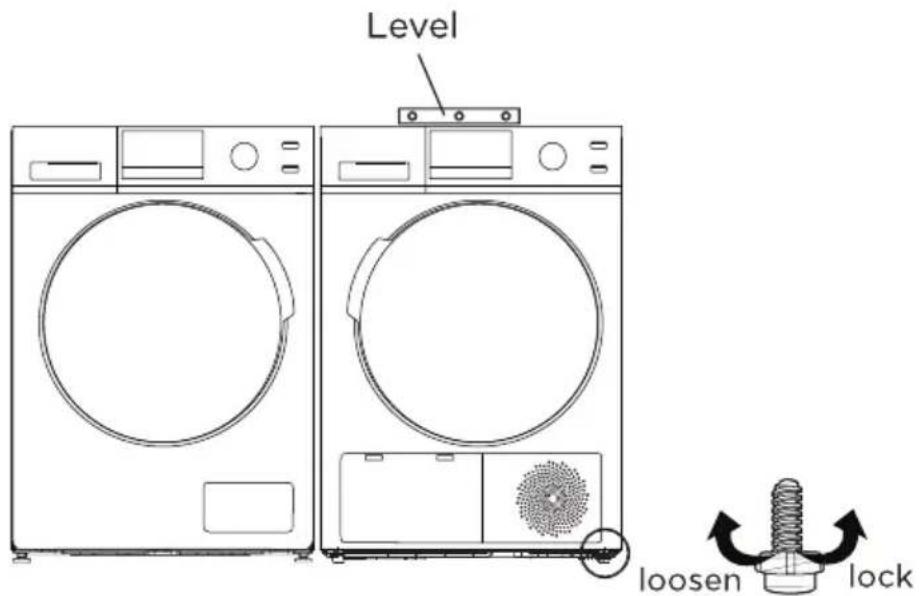

STEP3 Level the dryer

To ensure that the dryer provides the optimal drying performance, it must be leveled. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

• Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate.

Adjustable leg

STEP4Poweron

Make sure all electrical connections are complete. Plug in your dryer.

STEP 5 Final check

• Make sure the dryer is plugged into an electrical outlet and is properly grounded.
  The dryer is leveled and is sitting firmly on the floor.
• Start your dryer to confirm that it runs, heats, and shuts off.

Stacking Kit Installation Instruction

1 A×10:

B×2:

C×2:

D×4:

E×4:

F×2:

Make sure that the power supply is disconnected before installation!

2

Note: Hole 2 and 4 will not be used.
Tilt the dryer to the side then attach part D underneath the dryer and secure with screw A. Repeat both sides.

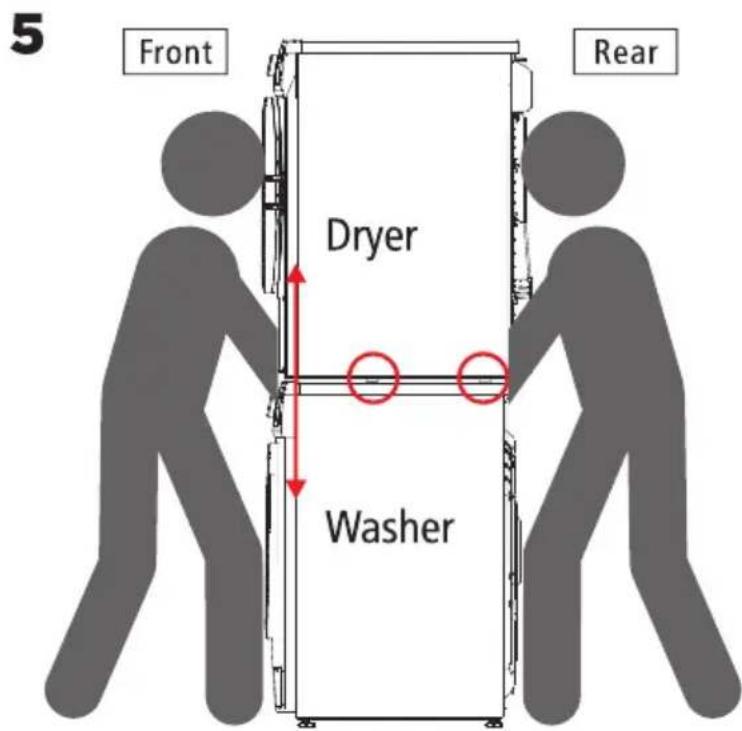

With the help of two people, place the dryer on top of the washer.

6

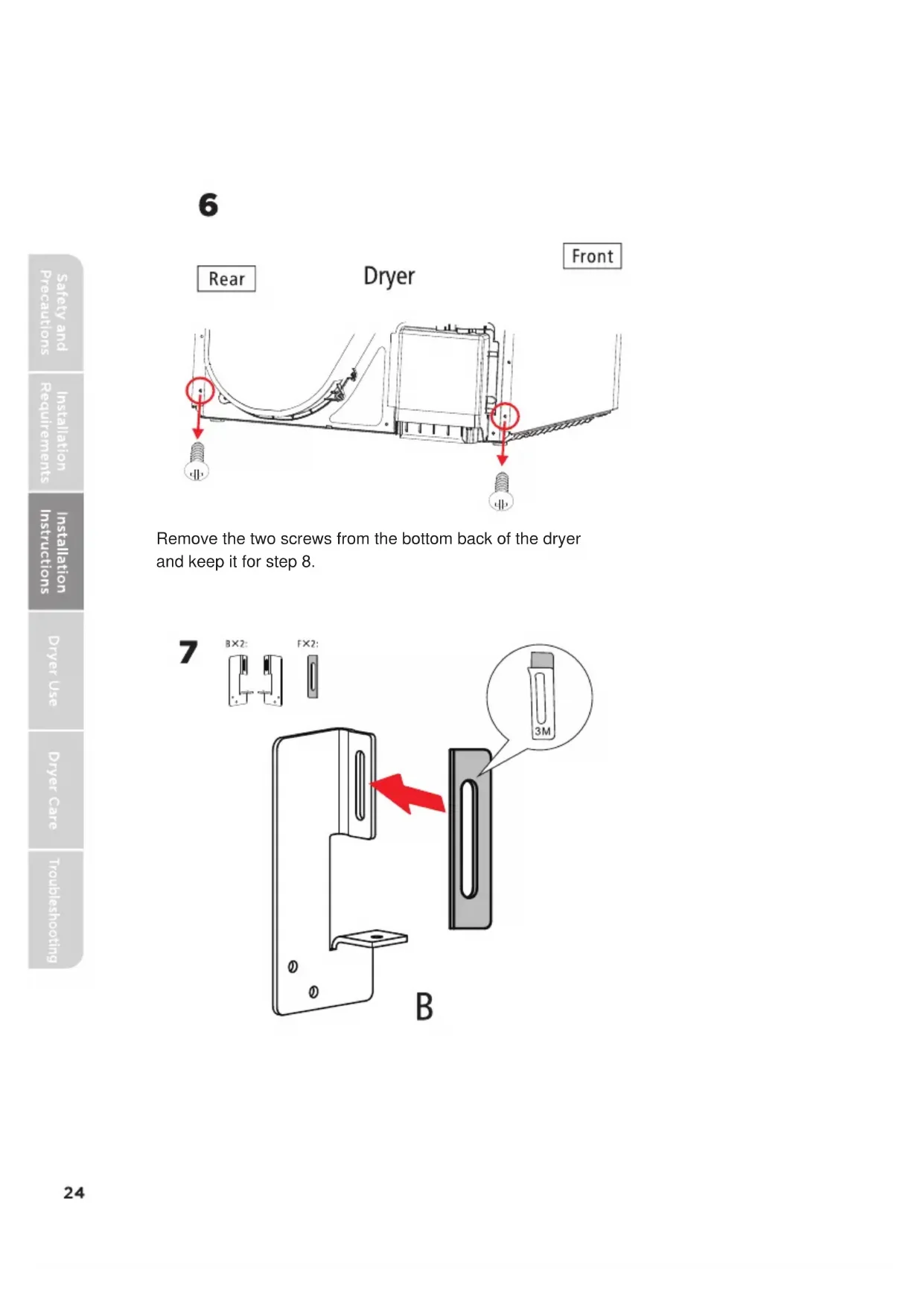

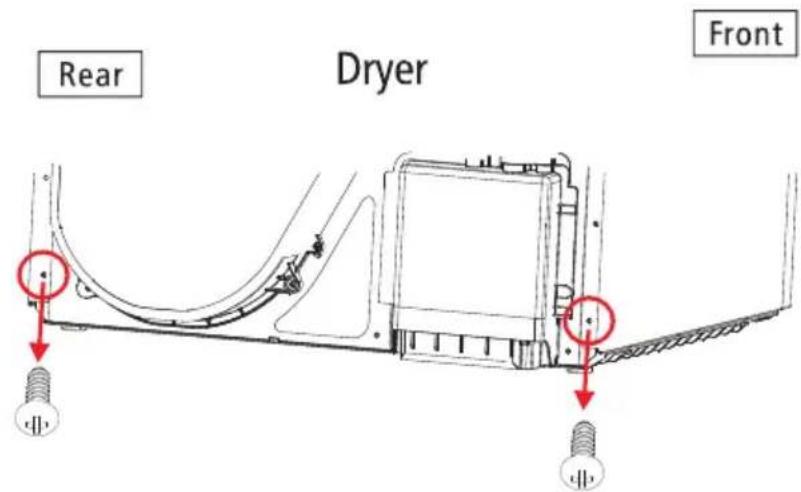

Remove the two screws from the bottom back of the dryer and keep it for step 8.

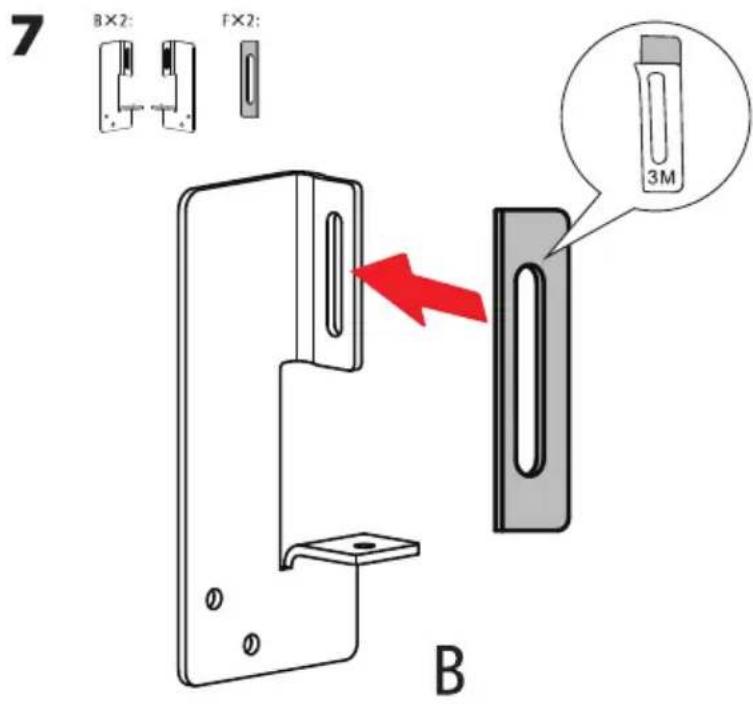

Secure Part B to the dryer with the two screws left in Step 6.

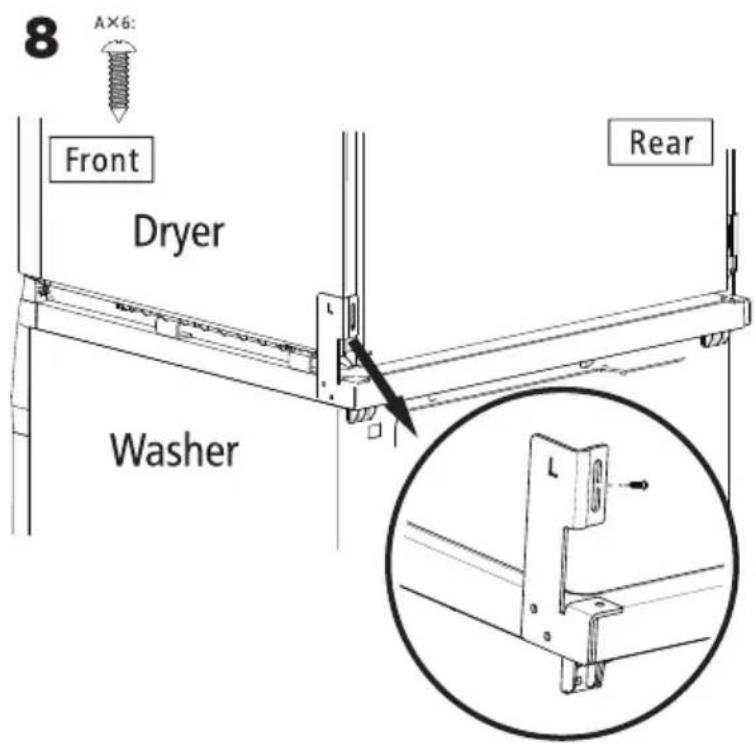

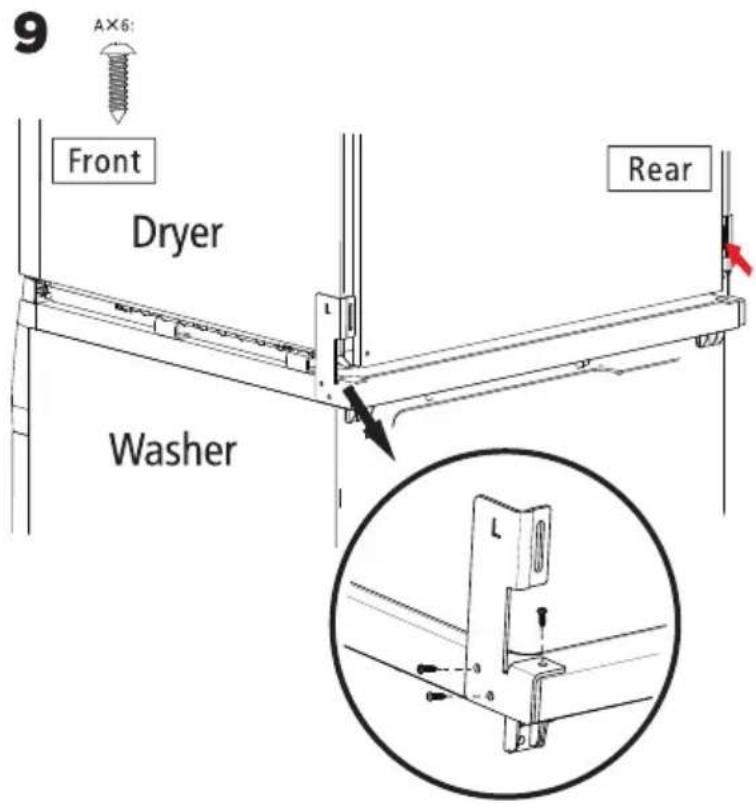

Secure Part B with Part A (x3) to the washer.There are no pre-drilled holes to receive the Part A screws, as they are self-tapping.

DRYERUSE

CONTROL PANEL

WARNING

• To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating the appliance.

1 Power

Press to power on your dryer or into stand-by situation. If your dryer is on for more than 10 minutes without any buttons being pressed, it automatically turns into stand-by situation.

2 Start/Pause

Press to turn your dryer on or into stand-by situation. If your dryer is on for more than 10 minutes without any buttons being pressed, it automatically turns into stand-by situation.

3 Cycle selector

Select your desired cycle for the type of load. The cycle you select determines the heat control for the cycle.

The Normal, Jeans, Perm Press, Quick Dry, My Cycle, Mixed Load, Heavy Duty, Bulky, Towels, Active Ware, Delicates, Sanitize are Sensor cycles. Wool, Air Fluff, Time Dry, Refresh are Manual cycles.

4 Wrinkle Prevent

Press once to add the wrinkle care step into the operating program. Press again to cancel selection.

If wrinkle prevent was active, it provides approximately 90 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling.

The load is already dry, and can be removed at any time during the wrinkle care cycle.

5 Delay

This function is used for delaying clothes drying time within 24 hours. The delay time means the program will start after x hours. When the delay programme starts, the time starts to countdown on the display and the delay icon blinks.

Time Adjust

These buttons are effective only for Manual cycles. Press these buttons to change the drying time you prefer. Push repeatedly to get your desired drying time, including 120 minutes, 90 minutes, 60 minutes, 30 minutes.

7 Dryness

Press the button to select the dry level, including More, Normal, Less, Damp. Different dry level will result in different drying time. For clothes to be ironed manually, a lower dry level should be selected.

Press and hold for 3 seconds to remember your favorite drying cycle, this cycle will be "My Cycle".

8 Signal

Press once to stop the buzzer sound. Press again to activate the sound. Your selection will be kept until next pressing.

Damp Alert

This function is useful when you want to take some garments out for ironing. The unit will beep 10s when the moisture in the clothes is good for ironing. At this time, you can take those garments out and continue drying the other by pressing the "START/PAUSE" button once.

NOTE:

The unit will not stop operating if you don't take those garments out for ironing.

Control Lock

Press the "▶" and "Damp Alert" together to activate the control lock function. Press again for another 3 seconds to deactivate the function. All buttons except the "Power" will be out of function when control lock activated.

Symbols

Delay start

Wrinkle Prevent

Control lock

My Cycle

Clean filter

Buzzer sound on

Water tank full (you should empty water tank)

Damp alert on

Cycle phase status

Means machine is drying with heating air

Means machine is working with cooling air

Means it is time to open the door.

Means machine is making wrinkle care

DRYING A LOAD OF LAUNDRY

Step 1: Power on your dryer

• Press Power button to power your dryer on.

Step 2: Load your dryer

• Place only one wash load in your dryer at a time.
• Mixed loads of heavy and light weight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle.
• Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency.
• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.

Step 3: Select the appropriate cycle and options for the load

• Select the appropriate cycle by Cycle Selector according to the cycle chart on page 25.
• Select the appropriate optional function by buttons according to the chart on page 25.
  My cycle

Once you have set the cycle selector and option function, you can push and hold the "Dryness" button for 3 seconds to memory this setting as your favorite cycle before start the unit.

The light beside the knob will flash with beeps to confirm the memory.

• You can finish this Step by just select the "My cycle" once to use your favorite.

Step 4: Start your dryer

• Pressing Start/Pause button will start the selected cycle. To PAUSE cycle, press Start/Pause button then open the door. To resume operation after closing the door, always presses Start/Pause.
• Opening the door during the operation will instantly stop operation and will require pressing Start/Pause button to resume operation.

Dryness Level in bold is an initial setting.
"●" (dots) indicate options functions you can select.
For even better drying effect, please select higher dry level.

Load Size Recommendations:

For best results, follow the wet load size recommendations noted for each cycle.

Small load: Fill the dryer drum with 3-4 items, not more than 1/4 full.

Medium load: Fill the dryer drum up to about 1/2 full.

Large load: Fill the dryer drum up to about 3/4 full. Do not overload. Items need to tumble freely.

For best results, follow the wet load size recommendations noted for each cycle. For the best performance, the load for each cycle should be recommended as follows:

Cycle	Recommend load
Normal	Cotton
Jeans	Jeans
Perm Press	Synthetic fiber (easy care)
Quick Dry	Small accounts of clothing
Wool	Wool
Air Fluff	/
Time Dry	/
Refresh	/
Sanitize	Cotton
Delicates	Delicates
Active Ware	Sports clothes, synthetic fiber
Towel	Towels
Bulky	Bedsheet
Heavy Duty	Jeans, sports clothes, skirts
Mixed Load	Synthetic fiber

STEP 5: Unloading your laundry

The "Clean filter" will flash 10 sec. when your laundry load is powered on.
The dryer will beep 3 times after the cycles done.
- You should clean the filter after every load once the laundry is unloaded.

NOTE:

Clothes that are easy to be tangled or worn and small pieces, please put them in the laundry bag to dry.
Clothes with long belts or ropes, please make a knot to dry.
Clothes with slender buttons, please button up to dry.
Clothes with zippers, please zip up and flip to the inside to dry.

Control Lock

This function is useful to prevent children from playing with the unit.

• Press and hold the "▶" and "Damp Alert" buttons simultaneously for 3 seconds to activate this function. The blue "Control Lock" light will turn ON.
• Press and hold the "▶" and "Damp Alert" buttons simultaneously again for 3 seconds to deactivate this function. The "Control Lock" light will turn OFF.
• When this function is activated, all functions will be out of function except the POWER button and DEACTIVATE function above.
• You can Power ON your unit and set this function then Power OFF. When you do so, even if the unit is powered on, you still cannot start it before the Control Lock function is deactivated.
• This function will be cancelled automatically if your unit is out of power, such as unplug the unit, power supply out of service, etc.

Empty the water container

• Pull out and hold the water container with two hands.
• Tilt the water container, pour out the condensate water into the basin.
  Install the water container.

WARNING

• Empty the water container after each use. Otherwise, the programme will be paused and the "☑" icon will light. After the container is emptied, the dryer can be restarted by pressing Start/Pause button.
• Do not drink the condensate water.
• Do not use the dryer without the water container.

FILTER CLEAN

Lint filter

Clean the lint filter

To prevent a risk of fire, make sure to clean the lint filter before or after every load.

• To shorten drying time.
  To operate more energy efficiently.

WARNING

• Do not operate your dryer without the lint filter in place.
• Do not use a damage or broken lint filter. This may reduce performance and/or cause fire.

Clean the base filter

• Open the cover.
• Unlock three locking levers and grasp the filter handle.
• Remove the base filter and clean it. If there is too much lint on the filter, clean it in water. Dry the filter thoroughly before installing it back.
  Clean the rubber sealing, both at the filter and handle.
• Re-insert the filter.
• Lock three locking levers and make sure that the levers are in lock position.
• Close the cover until there is a click sound.

NOTE:

• The fluff accumulated on the filter will block the air circulation. Not cleaning the filter regularly will increase drying time and energy consumption.
• Disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• Clean the base filter after each fifth cycle to prevent fluff accumulation inside the dryer.

Clean the heat exchanger

WARNING

Do not touch the heat exchanger with your hand, which may cause an injury.

• As necessary, approx. once every 2 months, remove the fluff from the heat exchanger using a vacuum cleaner with a dusting brush attached.
• Clean the heat exchanger without applying any pressure. Otherwise the heat exchanger could be damaged. The dryer will not dry if the cooling fins are damaged or bent.

SPECIAL LAUNDRY TIPS

Items	Drying guide
Bedspreads & Comforters	·Follow the care label instructions or dry in Bulky cycle. ·Make sure the item is thoroughly dry before using or storing. ·May require repositioning to ensure even drying.
Blankets	·Use the Normal cycle and dry only one blanket at a time for best tumbling action. ·Make sure the item is thoroughly dry before using or storing. ·May require repositioning to ensure even drying.
Curtains & Draperies	·Use the Casual cycle and less dry to help minimize wrinkling. ·Dry these in small loads for best results and remove as soon as possible.
Cloth Diapers	·Use the Normal cycle.
Down Filled Items (jackets, sleeping bags, comforters, etc.)	·Use the Normal cycle. ·Add a couple of dry towels to shorten drying time and absorb moisture.
Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)	·DO NOT dry on a seat setting. Use the Air Fluff cycle (no heat). WARNING: Drying a rubber item with heat may damage it or create a fire hazard.
Pillows	·Use the Normal cycle. ·Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the item. ·DO NOT dry kapok or foam pillows in the dryer. You can dry these items in the dryer as long as you use the air fluff cycle.
Plastics (shower curtains, outdoor furniture covers, etc.)	·Use the Air fluff cycle (no heat).

DRYER CARE

WARNING

Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel - Do not contact the following parts while the appliance is energized: Main Motor, Cooling Fan. Do no touch the heat exchanger with your hand, which may cause an injury.

CARE AND MAINTENANCE

Control panel

• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray cleaners directly on the panel.
• The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. Apply such products away from your dryer and wipe up any spills or overspray immediately.

Stainless steel or anonymized drum

• To clean the stainless steel or anonized drum, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel and anonymized surfaces.
• Remove the cleaner residue and dry with a clean cloth.

Dryer exterior

• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased pedestal or in a separate storage box. This may scratch or damage the top cover of the dryer.
• Since the entire dryer has a high-gloss finish, the surface can be scratched or damaged.
• Avoid scratching or damaging the surface when using the dryer.

BEFORE YOU CALL FOR SERVICE...

Troubleshooting Tips

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problems	Solutions
The unit does not start	Make sure the door is latched shut. Be sure the power cord is plugged into a live electrical outlet. Check the home's circuit breaker and fuses. Press the Start/Pause button again if the door is opened during the cycle.
The unit does not heat	Check the home's circuit breaker and fuses. Select a heat setting other than Air fluff. Clean the lint filter. Dryer may have moved into the cool-down process of the cycle.
The unit does not dry	Check the entire above, plus... Do not overload. 1 wash load = 1 dry load. Sort heavy items from lightweight items. Large, bulky items like blankets or comforters may require repositioning to ensure even drying. Load may be too small to tumble properly. Add a few towels.
The unit is noisy	Check the load for objects such as coins, loose buttons, nails, broken zips, etc. Remove promptly. It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle. Be sure the dryer is leveled properly as outlined in the installation instruction.
The remaining time changes abnormally	The sensor cycle will estimate dampness of clothes automatically. Due to amount and material of clothes, to assure the expected dampness, the dryer will adjust remaining time, this is normal.
Clothes are unevenly dried	• Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the Time Dry setting if desired. • If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level. Sort heavy items from lightweight items for best drying results.
Shuts off before load is dry	• Household odors from painting, varnishing, strong cleaners, etc. may enter the dryer with surrounding room air. This is normal as the dryer draws the air from surrounding air space of the dryer locations. • When these odors linger in the air, ventilate the room completely before using the dryer.
Odors remain in clothing after refresh	• Fabrics containing strong odors should be washed utilizing desired wash cycle.
Garments still wrinkled after Wrinkle-prevent	• Small loads of 1 to 4 items work best. • Load fewer garments. Load similar-type garments.
Lint on clothes	• Lint filter be cleaned before every cycle. With some loads that produce high amounts of lint, it is necessary to clean the filter after the cycle. • Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they should be dried separately from clothes that are lint trappers (for example, a pair of lack linen pants). • Divide larger loads into smaller loads for drying. • Check pockets thoroughly before washing and drying clothes.
“田” is lighting	• Clear lint filter.
“田” is flashing	• When the cycle ends, “田” will flash and dryer will beep 5 seconds. • Check the water container. If it's full, please pour out the condensate water and restart the dryer. • If the container is not full, please restart the dryer directly. • If the “water full” icon is still flashing after you have finished the first two steps, please call the service.
Degree of dryness was not reached or drying time too long	Clean lint filter. Empty container. Check drain hose. Dryer installation place is too restricted. Clean the moisture sensors. Keep the air inlet clean. Use higher drying intensity level programme or time programme.

ERROR CODES

Code	Reason	Solutions
E32	Humidity	Please contact Midea service centre if the problem occurs.
E33	Temperature sensor error
E64	Motor communication error
E82	PCB communication error

MIDEA LAUNDRY DRYER LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer Service Centre:

Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer name and address, and date of purchase

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or email [e-mail].
2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the U.S. and Canada.

Midea Customer Service

In the U.S.A. or Canada, call 1-866-646-4332 or email [e-mail].

If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies.

LIMITED WARRANTY

WHAT IS COVERED

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOUR)

For one year from the date of purchase, if this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea America (Canada) Corp. (hereafter "Midea") will pay for factory specified replacement parts and repair labour to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

LIMITED WARRANTY

WHAT IS NOT COVERED

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical codes or correction of household electrical system (i.e. house wiring, fuses, etc.).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5. Defects or damage caused by the use of non-genuine Midea parts or accessories.
6. Damage from accident, misuse, abuse, fire, floods, electrical issues, acts of God or use with products not approved by Midea.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to Midea within 30 days.
9. Routine maintenance of the product.
10. Products that were purchased "as is" or as refurbished products.
11. Products that have been transferred from its original owner.
12. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
13. Pick-up or delivery. This product is intended for in-home repair.
14. Travel or transportation expenses for service in remote locations where an authorized Midea servicer is not available.
15. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
16. Service or parts for appliances with original model/serial numbers removed, altered or not easily identified.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTYES

IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Midea REGISTRATION INFORMATION

PROTECT YOUR PRODUCT:

We will keep the model number and date of purchase of your new Midea product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

Register online at www.midea.com/ca/support/Product-registration

OR

Please fill out and return it to the following address:

Midea America Corp. 759 Bloomfield Ave #386, West Caldwell, NJ 07006-6701

(detach here)

Name:	Model#: Serial #: Card:
Address:	Date Purchased: Store / Dealer Name:
City: State: Zip:	E-mail Address:
Area Code: Phone Number:
Did you purchase an additional warranty:	As your Primary Residence? (Y/N)
How did you learn about this product: □ Advertising □ In Store Demo □ Personal Demo

Information collected or submitted to us is only available to company internal employees for purposes of contacting you or sending you emails, based on your request for information and to company service providers for purposes of providing services relating to our communications with you. All data will not be shared with other organizations for commercial purposes.

Midea America (Canada) Corp.
Unit 2 - 215 Shields Court
Markham, ON, Canada L3R 8V2
Customer Service 1-866-646-4332

Made in China

idea

Secheuse

Unit 2 - 215 Shields Court

Markham, ON, Canada L3R 8V2
