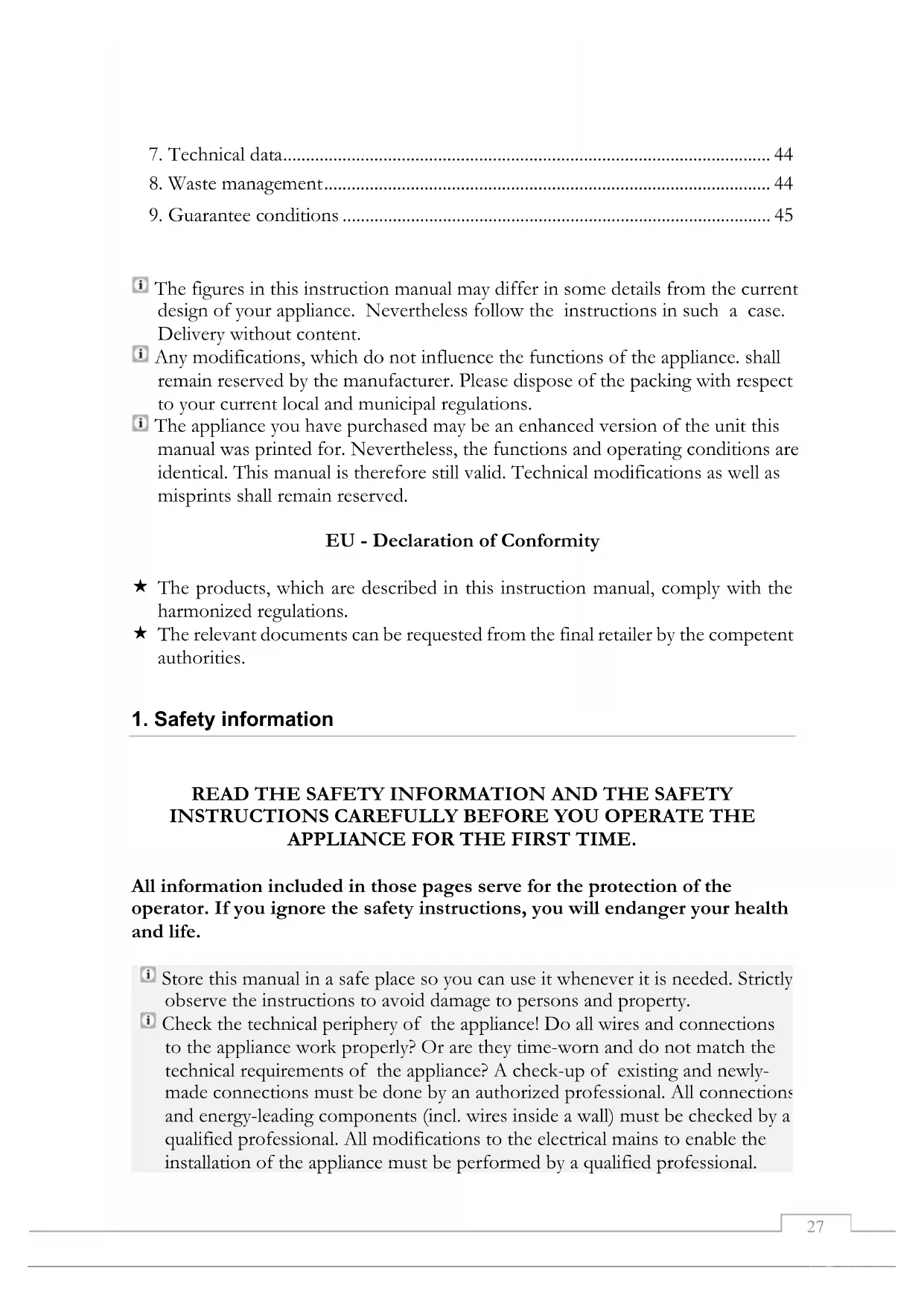

1. Safety information

READ THE SAFETY INFORMATION AND THE SAFETY

INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE

APPLIANCE FOR THE FIRST TIME. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life. Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property. Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly- made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.28 The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments. The appliance is intended for cooking only. The appliance is intended for indoor-use only. The appliance is not intended to be operated for commercial purposes, during camping and in public transport. Operate the appliance in accordance with its intended use only. Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

Precautions to avoid possible exposure to excessive microwave energy

Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do not break or tamper with the safety interlocks.

Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.

Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the:

hinges and latches ( must not be broken or loosened ).

door seals and sealing surfaces.

The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury. WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

1. Do not connect the appliance to the mains if the appliance itself or

the power cord or the plug are visibly damaged.29

2. Always check that the power cord is not placed under the appliance

or damaged by moving the appliance.

3. Never try to repair the appliance yourself. If the appliance does not

operate properly, disconnect it from the mains and contact the shop you purchased the appliance at. Original spare parts should be used only.

4. When the power cord is damaged, it must be replaced by the

manufacturer or an authorized aftersales service or a qualified professional only.

1. Operate the appliance with 220~240V AC/50Hz only. Do not use an

extension cord or a multiple socket.

2. Connect the appliance to a properly grounded socket only. Use a

safety socket to minimize any risk of electric shock.

3. The technical data of your energy supply must meet the data on the

rating label. The main current circuit must be equipped with a safety shut-down device.

4. Any repair or service work including the removal of any cover, which

protects from exposure to microwave energy, must be performed by an qualified professional only.

5. Only operate the appliance when the door is closed.

6. Unattended cooking with fat or oil can be dangerous and may result

in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket..

7. Accessible parts may become hot during use. Young children should

be kept away. Do not touch the hot parts of the appliance. RISK OF BURNS!

8. Do not use the appliance to dry clothes or wet newspapers etc.

9. Do not use the appliance when it is empty.

10. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers. b. Remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance. c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames. d. Do not use the appliance to store anything inside. e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

11. Do not fry in the appliance. Hot oil can damage parts of the appliance30

and result in skin-burns.

12. Never heat any food or liquids in sealed containers, because they

13. The contents of feeding bottles and baby food should be stirred or

shaken and their temperature should be checked before serving to avoid burns.

14. Do not use a steam cleaner to clean the appliance. RISK OF

15. Disconnect the appliance from the mains before cleaning or

16. While unpacking, the packaging materials (polythene bags,

polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!

17. This appliance may be operated by children aged from 8 years and

above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

18. Children must never play with the appliance. Touching the appliance

during operation can cause serious burns.

19. Only allow children to use the appliance without supervision, when

adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use. CAUTION!

1. This appliance complies with the current European safety legislation.

We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

2. Lead the power cord in such a way that you will not trip on it.

3. Microwave heating of beverages can result in delayed eruptive

boiling. Be extremely careful when handling the container.

4. Do not heat eggs in their shell or hard-boiled eggs as they may

explode even after microwave heating has ended.

5. Cooking utensils may become hot because of the heat transferred by

the heated food. Pot-holders may be needed to handle such utensils.31 NOTICE

1. Do not use the door to transport the appliance as you will damage

2. Do not connect your appliance to the mains unless all packaging and

transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.

3. Regularly cleaning and maintenance grants proper operation and

optimal performance of your appliance.

4. Check your utensils if they are suitable for use in a microwave

5. The rating plate must not be removed or made illegible, otherwise

all terms of the warranty become invalid!

➢ Remove all packaging materials before installation.

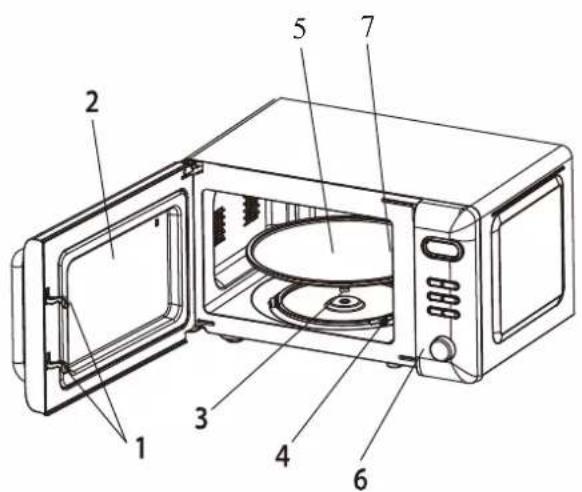

Door lock The door has to be closed for proper operation.

Window Helps you to observe the cooking procedure.

Rotation axis The turntable is placed on the rotation axis. The motor installed below enables the rotational movement.

Rotation ring The turntable is also placed on the rotation ring, which stabilises the turntable and maintenances its balance.

Turntable Place the food on the turntable. The rotation ensures uniform cooking.

Wave guide The wave guide is installed on the right side inside the oven cavity.

2.2 Installation of the appliance

1. remove all packaging materials. If a safety film is on the appliance, pull it off

carefully. Check that the appliance is not damaged. If you detect any damage, please contact the shop you purchased the appliance at.

2. Install the appliance in a dry and corrosion-safe place. Keep the appliance away

from sources of heat and moisture such as gas burners, water containers etc.

3. Strictly observe the minimum distances for proper ventilation on the schedule

below: Back of the appliance ↔ Wall min. 10 cm Sides of the appliance ↔ Wall, cupboard etc. min. 5 cm Free space above the appliance min. 20 cm

4. The distance to the ground should be min. 85 cm.

5. Install the appliance more than 5 m away from TV-sets, radios and antennas to

avoid interferences.

6. The plug must always be accessible after installation. Only use a proper grounded

safety socket for connection.

7. Operate the appliance with its door closed only.

8. Manufacturing residues or oil having remained in the oven cavity or on the

heating element may cause some odours and smoke emission. These are normal operational parameters, which will disappear after a number of uses. Open the 20cm 10cm 5cm33 room door or a window to ensure proper ventilation. We strongly recommend to place a cup of water on the turntable; then operate the appliance with high power a few times.

2.3 Installation of the turntable

1. Place the rotation ring first.

2. Place the turntable on the rotation axis. Ensure that the turntable is positioned

3. Never place the turntable upside down. The rotation of the turntable must never

4. Never use the appliance without the turntable and rotating ring.

5. All food or containers with food must be placed on the turntable.

6. Do not operate the appliance when the turntable and/or rotating ring are

3.2 General operational information

Initial use When you have switched on the appliance, the DISPLAY flashes thrice. Then the colon ":" flashes. Now you can set the cooking menu and time. Rotary knob Auto-Cooking/Time-Weight (8) You can increase and decrease the cooking time and the weight of the food or select AUTO-COOKING using the ROTARY KNOB. Pause/Cancel (4)

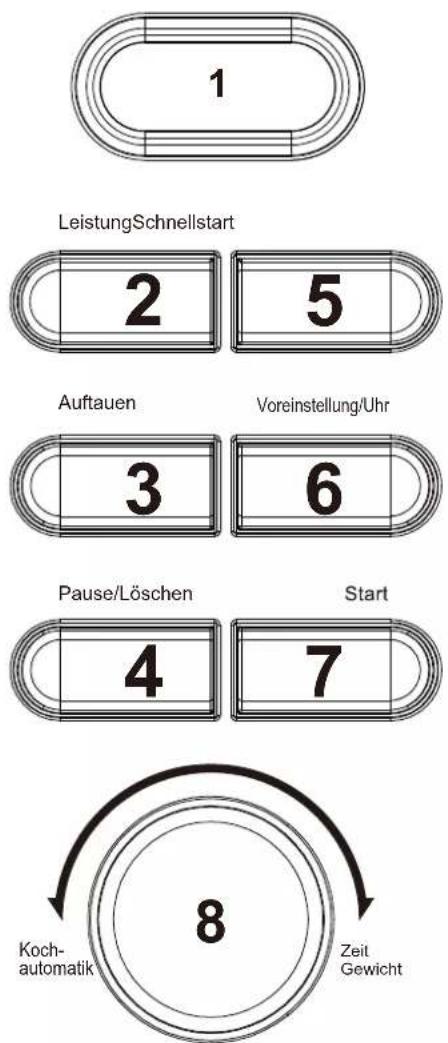

1. At the start of operation or during input: Press once to cancel your input.

2. During operation: Press once to stop operation. Press twice to cancel the

Koch- Zeit automatikGewicht35 Auto reminder When the preset cooking procedure has ended, the DISPLAY indicates End. Three acoustic signals sound to remind you to remove the cooked food. If you do not press PAUSE/CANCEL (4) once or open the door, the acoustic signals continue in intervals of 3 minutes. Instant Cooking Press the START-button (7) during stand-by status. The appliance runs with high power; the default cooking time is 1 minute. You can increase or decrease the cooking time using the ROTARY KNOB (8). ❖ INSTANT COOKING is applicable to the 3 following conditions: ➢ You can activate INSTANT COOKING within 2 minutes when a) you have closed the door of the appliance. b) you have pressed the PAUSE/CANCEL-button (4). c) a preset programme has ended.

3.3 Setting of the clock

Example: 12:30 (12:30 pm)

1. The colon flashes after switching on.

2. Press the PRE-SET/CLOCK-button (6) once.

4. Press the PRE-SET/CLOCK-button (6) once.

seconds to confirm.36

WARNING! Do not use the appliance when it is empty. Press the POWER-button (2). The DISPLAY indicates 100P-80P-60P-40P-20P cyclically. High power 100 % microwave power. Suitable for quick and thorough cooking. Medium-high power 80 % microwave power. Suitable for medium-quick cooking. Medium power 60 % microwave power. Suitable for stewing. Medium-low power 40 % microwave power. Suitable for defrosting of food. Low power 20 % microwave power. Suitable for keeping food warm.

❖ The max. adjustable cooking time is 60 minutes. ❖ When operating with high power, the appliance will decrease the power after a certain period of time to extend its service life. ❖ If you turn the food during operation, press the START-button (7) once to continue the preset cooking programme. ❖ If you want to remove the food before the cooking time has elapsed, you must press the PAUSE/CANCEL-button (4) once. In doing so, you delete the set programme to avoid unintended operation during next use.

Example: Cooking with 80 % power for 10 minutes.

1. The colon flashes after switching on

2. Select the desired power by pressing the POWER-button (2)

3. Set the cooking time (10 minutes) using the ROTARY KNOB

4. Press the START-button (7) to initialise cooking. The

DISPLAY indicates the cooking time remaining.

When you press the EXPRESS-button (5), the DISPLAY indicates 0:30, 1:00, 1:30 cyclically. You can heat a cup of water or beverage relevant to the cooking time steps37 when using the EXPRESS function. Which cooking time step you use depends on the quantity of the beverage. Example: EXPRESS-cooking for 1 minute.

1. The colon flashes after switching on.

2. Select the desired cooking time step by pressing the

EXPRESS-button (2) consecutively. 1:00

3. Press the START-button (7) to initialise cooking.

Press the DEFROST-button (3) for the defrosting of food. The DISPLAY indicates d.1- d.2-d.3 cyclically. d.1 For the defrosting of meat with a weight of 0.1 to 2.0 kg. d.2 For the defrosting of poultry with a weight of 0.2 to 3.0 kg. d.3 For the defrosting of seafood with a weight of 0.1 to 0.9 kg.

❖ Turn the food during defrosting for an uniform result. ❖ Defrosting requires a longer period of time than cooking. ❖ When you can cut the food using a knife, the defrosting can be considered as to be completed. ❖ Microwaves penetrate most of frozen food by approx. 4 cm. ❖ Consume defrosted food as soon as possible. Do not refreeze after defrosting! Example: Defrosting of 0.4 kg of poultry.

1. The colon flashes after switching on.

2. Press the DEFROST-button (3) to select the kind of food.

5. An acoustic signal sounds twice during defrosting. Open

the door and turn the food. Close the door and press the START-button (7) to proceed.38

Turn the ROTARY KNOB (8) while the colon is flashing on the DISPLAY . The DISPLAY indicates A.1, A.2 ....A.8 cyclically. Select a suitable menu relevant to the kind and weight of the food. Observe the information on the schedule below; otherwise the result of cooking can be influenced strongly. Auto-Cooking settings DISPLAY FOOD METHOD A.1 Popcorn Suitable for commercially available popcorn bags with a weight of 85 g. When the popping-speed has decreased to once every 1-2 seconds, press the PAUSE/CANCEL-button (4). A.2 Popcorn Same as A.1, but for 100 g bags. A.3 Pizza Suitable to warm a piece of 150 g. A.4 Beverages Suitable for a cup containing 250 ml of a liquid at a temperature of 5-10

C. Use mugs. The mug must not be sealed. A.5 Beverages Same as A.6, but for 500 ml. A.6 Potatoes Cut 450 g of potatoes into strips (5 mm thick and high). Place the strips on a large dish. Cover the dish using a suitable thin foil to avoid water loss. A.7 Potatoes Same as A.6, but for 650 g. A.8 Fish Suitable for stewing 450 g of fish. Wash the fish and remove the fish scales. Slightly cut into the fish skin. Place the fish on a shallow plate (diameter 22-27 cm). Season the fish and cover using a suitable thin foil to avoid water loss. Allow to rest for 2 minutes after cooking.

❖ The temperature of the food should be 20-25

C before cooking. Higher or lower temperatures require increase or decrease of the cooking times. ❖ Temperature, weight and shape of the food will affect the result of cooking. If you detect differences to the factors on the schedule, you can modify the cooking times accordingly. Example: Stewing of 450 g of fish.39

1. The colon flashes after switching on.

3. Press the START-button (7) to initialise cooking. The

DISPLAY indicates the cooking time remaining.

3.8 Programmed start of cooking

➢ Ensure that the time of the day is set properly (see chapter 3.3). ➢ Carry out your programming. Example: It is 12:30. You want the appliance to operate for 9 minutes and 30 seconds at 14:20 (2:20 pm).

3. Press and hold the PRE-SET/CLOCK-button (6) for 3 seconds

to enter the time of the day indication.

5. Press the PRE-SET/CLOCK-button (6) to confirm. The

programme has been activated. Cooking will start at 14:20.

6. You can check the preset starting time by pressing the PRE-

Some recipes require different cooking methods and cooking times to reach the best result. Example: You want to cook with 100P power for 3 minutes and then with 20P for 9 minutes. ➢ This example is a 2-sequence-programming. ➢ You can programme up to 4 sequences by repeating the steps.

2. 20P power for 9 minutes.

3. Press the START-button (7) to initialise cooking.

Activation Press and hold the PAUSE/CANCEL-button (4) for 3 seconds. Deactivation Press and hold the PAUSE/CANCEL-button (4) for 3 seconds.

4. Microwave cooking

4.1 Basics of microwave cooking

1. Arrange your food carefully. Place thick pieces at the outer areas of your

2. Consider the cooking times. Choose the shortest time available. If needed, add

some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.

3. Cover food while it is cooking. Covering avoids splashes and enhances an even

4. Turn over your food once while cooking it. Food like chicken or hamburgers will

then cook faster. Larger pieces like roasts must be turned over at least once.

5. Rearrange food like meat-balls in the middle of the cooking time from the outer

areas to the inner ones (and inversely) and also turn them over.

6. If you use microwave-safe plastic wrap, it must not contact the food as the wrap

7. Some microwave-safe plastic cookware might not be suitable for cooking food

with a high content of fat and sugar. Moreover, the preheating time specified in the dish instruction manual must not be exceeded.

4.2 Suitable materials for microwave cooking

1. Use microwave-safe cookware made of heat-resistant ceramic, glass or plastic

made ornaments. Microwave radiation cannot penetrate metal.

3. WARNING! Metal can generate sparks. RISK OF FIRE.

MATERIAL REMARKS Aluminium foil Only suitable to protect small parts of the food. You can cover the thin parts of meat or poultry using small parts of aluminium foil as an overcooking-41 protection. When the parts of the aluminium foil are too close to the walls of the appliance, sparking can occur. The aluminium foil must be at least 2.5 cm away from the walls of the appliance. Browning dishes Observe the information given by the relevant manufacturer. The bottom of the browning dish must be at least 5 mm above the turntable. Improper use can break the turntable. Tableware Use microwave-safe tableware only. Observe the information given by the relevant manufacturer. Do not use cracked or chipped tableware. Glass jars Always remove the lid. Heat-up the food until it is just warm. Most glass jars are not heat-resistant and can break. Glass tableware Use heat-resistant glass tableware only. The glass tableware must not contain any metal components. Do not use cracked or chipped glass tableware. Oven cooking bags Observe the information given by the relevant manufacturer. Do not close using metal ties. make small openings to allow steam to escape. Paper plates/cups Only suitable for short-time cooking or reheating! Do not leave the appliance unattended while it is operating. Paper towel Only suitable for short-time cooking or reheating! Do not leave the appliance unattended while it is operating. Parchment paper Use as a cover to prevent splattering or as a cover for steaming. Plastic Only use microwave-safe plastic. Observe the information given by the relevant manufacturer. The plastic must be labelled "Microwave-safe". Some plastic containers can melt when the food they contain becomes hot. Boiling bags and tightly closed plastic bags must be equipped with small openings, pierced or vented as described on their packaging. Plastic wrap Only use microwave-safe plastic wrap. You can use plastic wrap to cover the food so moisture is retained. The plastic wrap must not touch the food! Thermometer Only use microwave-safe thermometers. Wax paper You can use wax paper as a cover to protect the appliance from splatters or to retain moisture.42

4.3 Unsuitable materials for microwave cooking

MATERIAL REMARKS Aluminium trays Aluminium trays can cause sparking. Transfer the food into a microwave-safe container. Food carton with metal handle etc. Food cartons with metal handle etc. can cause sparking. Transfer the food into a microwave-safe container. Metal-made or metal- trimmed items Metal shields the food from the microwave energy. Metal components can cause sparking! Paper bags Paper bags can catch fire in the appliance. RISK OF FIRE! Plastic foam Plastic foam can melt when exposed to high temperatures and/or contaminate the food. Wood Wood used in a microwave appliance can dry and/or can get cracks. Wood can catch fire in the appliance. RISK OF FIRE!

5. Cleaning and maintenance

WARNING! Disconnect the appliance from the mains before you clean or maintain it.

1. Keep the inside of your appliance clean. When food splatters or spilled liquids

are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.

2. Clean the outside with a damp cloth. Water should not run into the ventilation-

openings to prevent damage to the operating parts inside the appliance.

3. Wipe both sides of the door and the window, the door seals and adjacent parts

frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.

4. The control panel should not become wet. Clean it with a soft and damp cloth.

When cleaning the control panel, leave the door open so the appliance cannot be switched on accidentally.

5. If steam accumulates inside or around the outside of the door, wipe it with a soft

cloth. This may occur when the appliance runs under high-humidity-conditions. It is a normal occurrence.

6. It is sometimes necessary to remove the turntable and/or rotating ring for

cleaning. Wash the turntable/ring in warm soapy water, then rinse and dry thoroughly. When having removed the rotating ring from the appliance, you must reinstall it in its proper position.43

WARNING! If it is necessary to remove the internal light

of the appliance, please contact the shop you purchased the appliance at.

Interference to radio or television reception Radio and TV reception can be interfered while the appliance is operating, similar to interferences of other electric appliances such as mixers, vacuum cleaners, electric fans etc. Dim oven light The oven light may become dim while the appliance is operating in lower power cooking. Steam accumulation on door/hot air escapes from the air vents During cooking, steam escapes from the food. Most of the steam is discharged via the ventilation openings. Nethertheless, some steam can accumulate at the cooler parts of the appliance, e.g. the door. The appliance was accidentally-started without load (food). WARNING! Never operate the appliance when it is empty.

1. The power cord is not plugged in

2. Blown fuse in household fuse box.

3. Socket malfunction.

1. Unplug. Plug in again after 10

2. Check household fuse box.

3. Check the socket using another

electric appliance. THE APPLIANCE DOES NOT HEAT.

Equipment depending on model.44 The door of the appliance is not closed properly. Close the door of the appliance properly. THE TURNTABLE GENERATES UNUSUAL NOISE. The rotating ring or the bottom of the appliance inside is contaminated. Clean the relevant parts (look also chapter CLEANING AND MAINTENANCE).

Length of power cord in cm

Dimensions H*W*D in cm Weight net / gross in kg

❖ Technical modifications reserved.

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces,

etc.) should be kept away from children and pets. CHOKING HAZARD!

2. Old and unused appliances must be send for disposal to the responsible recycling

centre. Never expose to open flames.

3. Before you dispose of an old appliance, render it inoperative. Unplug the

appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.

4. Dispose of any paper and cardboard into the corresponding containers.

5. Dispose of any plastics into the corresponding containers.

6. If suitable containers are not available at your residential area, dispose of these

materials at a suitable municipal collection point for waste-recycling.

7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable. Please contact your local authorities to receive further information.

9. Guarantee conditions

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material- components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the46 purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property. The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;

2. minor modifications of the Wolkenstein-products concerning their authorized

condition if they do not influence the utility value of the product;

3. damage caused by handling errors or false operation;

4. damage caused by aggressive environmental conditions, chemicals, detergents;

5. damage caused by non-professional installation and haulage;

6. damage caused by non common household use;

7. damages which have been caused outside the appliance by a Wolkenstein-product

unless a liability is forced by legal regulations. The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not

2. the appliance is repaired by a non-professional.

3. the appliance is damaged by the vendor, the installer or a third party.

4. the installation or the start-up is performed inappropriately.

5. the maintenance is inadequately or incorrectly performed.

6. the appliance is not used for its intended purpose.

7. the appliance is damaged by force majeur or natural disasters, including, but with

not being limited to fires or explosions. The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.
