Pad X8 Lite - Tablet HONOR - Free user manual and instructions
Find the device manual for free Pad X8 Lite HONOR in PDF.
| Product type | Digital tablet |
| Brand | Honor |
| Model | Pad X8 Lite |
| Dimensions (L x W x D) | Approximately 240.2 x 159 x 7.6 mm |
| Weight | Approximately 460 g |
| Display | 10.4 inches, resolution 2000 x 1200 pixels |
| Operating system | Android (with Magic UI) |
| Processor | Qualcomm Snapdragon 680 (octa-core) |
| RAM memory | 4 GB |
| Internal storage | 64 GB (expandable via microSD) |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.1, USB Type-C |
| Sensors | Accelerometer, proximity sensor, ambient light sensor |
| Camera | Rear: 5 MP, Front: 2 MP |
| Battery | Lithium polymer 5100 mAh, built-in, charging via USB-C |
| Power supply | 5V/2A power adapter (included) |
| Battery life | Up to 10 hours of mixed usage |
| Main functions | Web browsing, video playback, games, productivity, educational apps |
| Care and cleaning | Clean with a soft, dry cloth. Do not use chemical products. |
| Safety | Follow guidelines: operating temperature 0-35°C, avoid humidity and dust. Body SAR: 1.00 W/kg. |
| Spare parts and repairability | Built-in battery not user-replaceable. Repair by authorized center recommended. |
| General information | Manufactured by Honor Device Co., Ltd. Complies with RED Directive 2014/53/EU. |
Frequently Asked Questions - Pad X8 Lite HONOR
User questions about Pad X8 Lite HONOR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tablet in PDF format for free! Find your manual Pad X8 Lite - HONOR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Pad X8 Lite by HONOR.
USER MANUAL Pad X8 Lite HONOR
Before using the device, familiarize yourself with its basic operations.
•To power on your device, press and hold the power button until the screen turns on.
•To power off your device, press and hold the power button, and then touch ⏻
•To restart your device, press and hold the power button, and then touch ✦
- Press and hold the power button for 10 or more seconds to force restart your device.


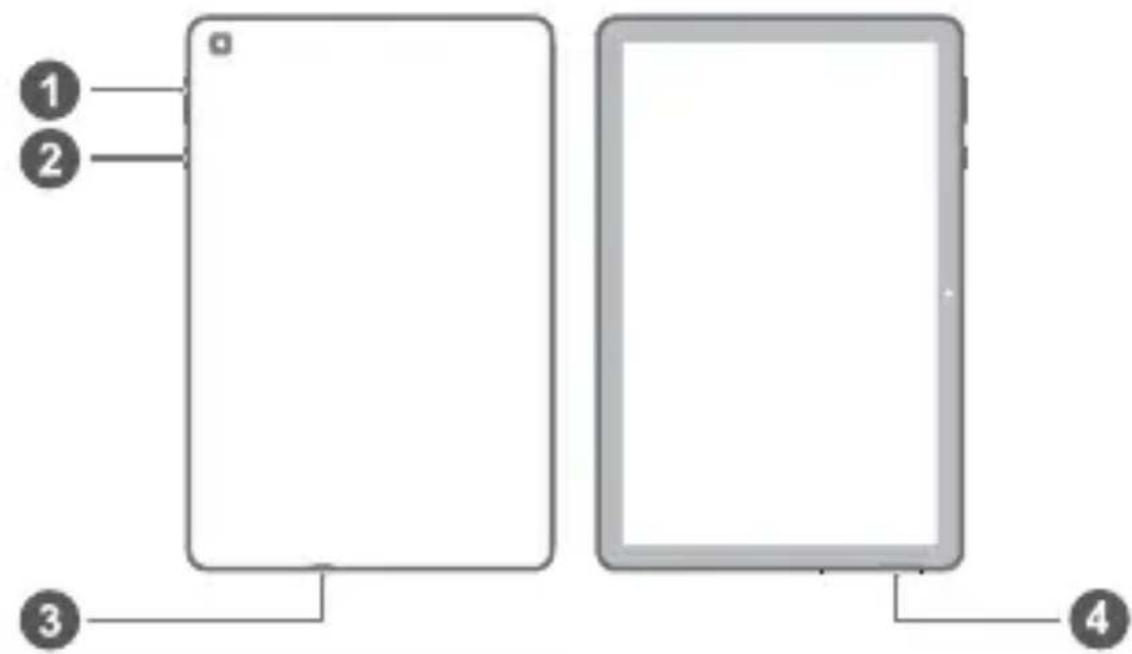

Diagram showing two devices with numbered labels pointing to their front panels, likely for labeling or annotation purposes.| 1 | Volume button Power button | 2 | |
| 3 | USB Type-C port/Headset jack | 4 | Card slot |
- Check out the pre-installed Tips app and master all the great features on your device.
Getting Started
- Be careful not to scratch your device or hurt yourself when using the eject pin.
- Store the eject pin out of the reach of children to prevent accidental swallowing or injury.

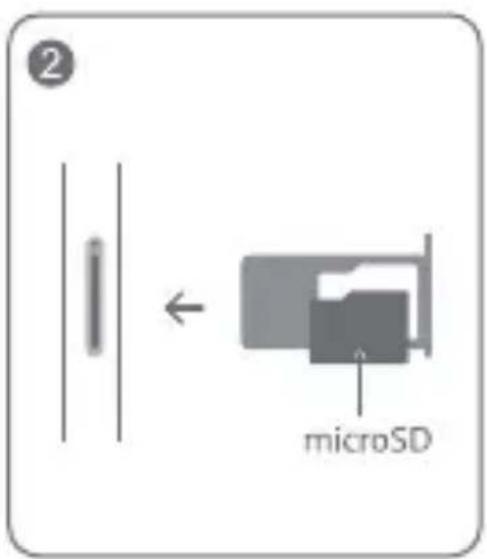

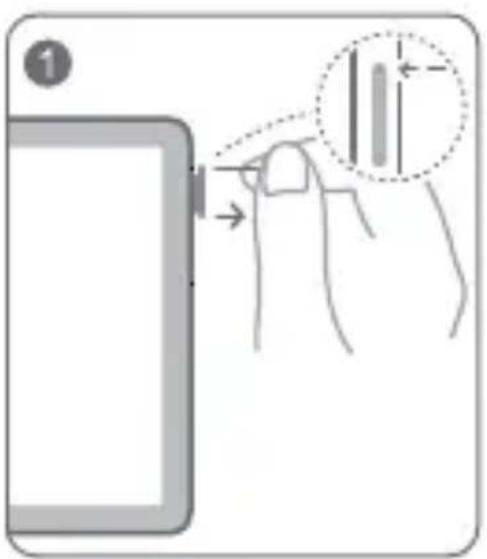

Follow the instructions in the following figures to set up your device. Please use the eject pin included.
Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device.
If you encounter any problems while using your device, you can obtain help from the following resources:
- Visit https://www.hihonor.com to view device information and other information.
- Visit https://www.hihonor.com/global/support/for the most up-to-date contact information for your country or region.
- Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information.
Safety Information
Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.
Operation and safety
- To prevent possible hearing damage, do not listen at high volume levels for long periods.
- Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards.
- Ideal operating temperatures are 0^ to 35^ . Ideal storage temperatures are -20^ to +45^ .
- Pacemaker manufacturers recommend that a minimum distance of 15cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
- Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators.
- Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.
- While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal.
• In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field.
- When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.
- Unplug the charger from electrical outlets and the device when not in use.
- Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire.
- Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode.
- Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards.
- Please consult your doctor and the device manufacturer to determine if using your device may interfere with the operation of your medical device.
- Adhere to any rules or regulations set forth by hospitals and health care facilities.
- This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition,
adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.
Disposal and Recycling Information
The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment.
For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/.
Reduction of hazardous substances
This device and its electrical accessories comply with local applicable rules on the restricted use of certain hazardous substances in electrical and electronic devices, such as the Restriction of Hazardous Substances Directive (RoHS) and Batteries Directive (where batteries are included).
RF Exposure Information
This device complies with the applicable national and international standards for exposure to radio waves.
"SAR" stands for "Specific Absorption Rate", it is a measure of rate that quantifies the user's exposure to radio waves from the radio equipment concerned.
Keep the device away from your body to meet the distance requirement.
The World Health Organization has stated that exposure can be reduced by limiting your usage or simply using a hands-free kit. Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. The highest reported SAR value: body SAR: 1.00 W/kg, limit of 2.0 W/kg over 10 grams, at distance of 0.50 cm.
EU Regulatory Compliance
Hereby, Honor Device Co., Ltd. declares that this device is in compliance with the Radio Equipment Directive 2014/53/EU (RED). For more details, please refer to the EU Declaration of Conformity at https://www.hihonor.com/global/legal/certification/.
Frequency Bands and Power
The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:
| AGM-W09HN | Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 23dBm, 5470-5725MHz: 23dBm, 5725-5850MHz: 14dBm |
Legal Notice
Trademarks and Permissions
Android is a trademark of Google LLC.
The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Honor Device Co., Ltd. is under license.
Wi-Fi ^® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance.
Copyright © Honor Device Co., Ltd. 2022. All rights reserved.
ALL PICTURES AND ILLUSTRATIONS IN THIS GUIDE, INCLUDING BUT NOT LIMITED TO THE DEVICE COLOR, SIZE, AND DISPLAY CONTENT, ARE FOR YOUR REFERENCE ONLY. THE ACTUAL DEVICE MAY VARY. NOTHING IN THIS GUIDE CONSTITUTES A WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy at
https://www.hihonor.com/privacy-policy/worldwide/.
Français
Diagram showing a hand holding a device with a magnified view of a vertical bar, labeled with number 1 and an arrow indicating direction.
Diagram showing two devices with numbered labels pointing to their front panels, likely for labeling or annotation purposes.text_image
Diagram showing a hand pressing a button on a device, with an inset highlighting a vertical bar and directional arrows.
