RS 110 C SB - Combination lock Burg Wächter - Free user manual and instructions

Product type	Mechanical combination lock
Brand	Burg Wächter
Model	RS 110 C SB
Number of dials	4
Default combination	0-0-0-0
Locking mechanism	Sliding bolt
Material	Steel
Dimensions (approx.)	80 x 50 x 25 mm
Weight (approx.)	200 g
Power supply	None (mechanical)
Mounting	Wall or door mounting with security screws (included)
Opening function	Turn the dials to the combination, then operate the bolt
Locking function	Scramble the dials after locking
Code change	Press the silver pin, turn the dials, release
Special feature	Lockable in open or closed position
Maintenance	Clean with a damp cloth, lubricate the mechanism with suitable product
Instructions available	French, English, Italian, Dutch

Frequently Asked Questions - RS 110 C SB Burg Wächter

What is the default factory combination?

The factory combination is 0-0-0-0. Make sure each dial is aligned with the center line.

How do I change the combination?

Fully press the small silver pin at the end of the locking bolt (fig. 1). While holding the pin down, turn the 4 dials to set your new code. Release the pin. Write down your new code, as it is impossible to open the lock if lost.

What if I lose my custom combination?

It is impossible to open the lock without the combination. No reset procedure is available. Keep your code safe.

How do I lock the lock?

After closing the sliding bolt, scramble the combination by turning the 4 dials to different numbers. The bolt can be locked in the open or closed position.

How do I open the lock?

Turn each dial to align your combination with the center line. Then operate the sliding bolt. In low light, turn the dials until they stop (click) to find zero again.

What mounting screws are included?

The kit includes security screws that cannot be unscrewed once installed. For temporary mounting, use ordinary screws, then replace them with the security screws for final installation.

How do I drill the guide holes?

Mark the hole locations on the support. Drill small guide holes with a drill suitable for the material (wood, metal, etc.). Use wall plugs if needed for better hold.

How do I maintain the lock?

Clean with a damp cloth (no harsh chemicals). Lubricate the locking mechanism with a suitable lubricant (e.g., silicone grease) for smooth operation.

Can this lock be used outdoors?

The instructions do not specify outdoor use. For outdoor use, protect the lock from weather and lubricate regularly.

Where can I download the full instructions?

The PDF instructions are available free of charge at notice-facile.com for the Burg Wächter brand model RS 110 C SB.

USER MANUAL RS 110 C SB Burg Wächter

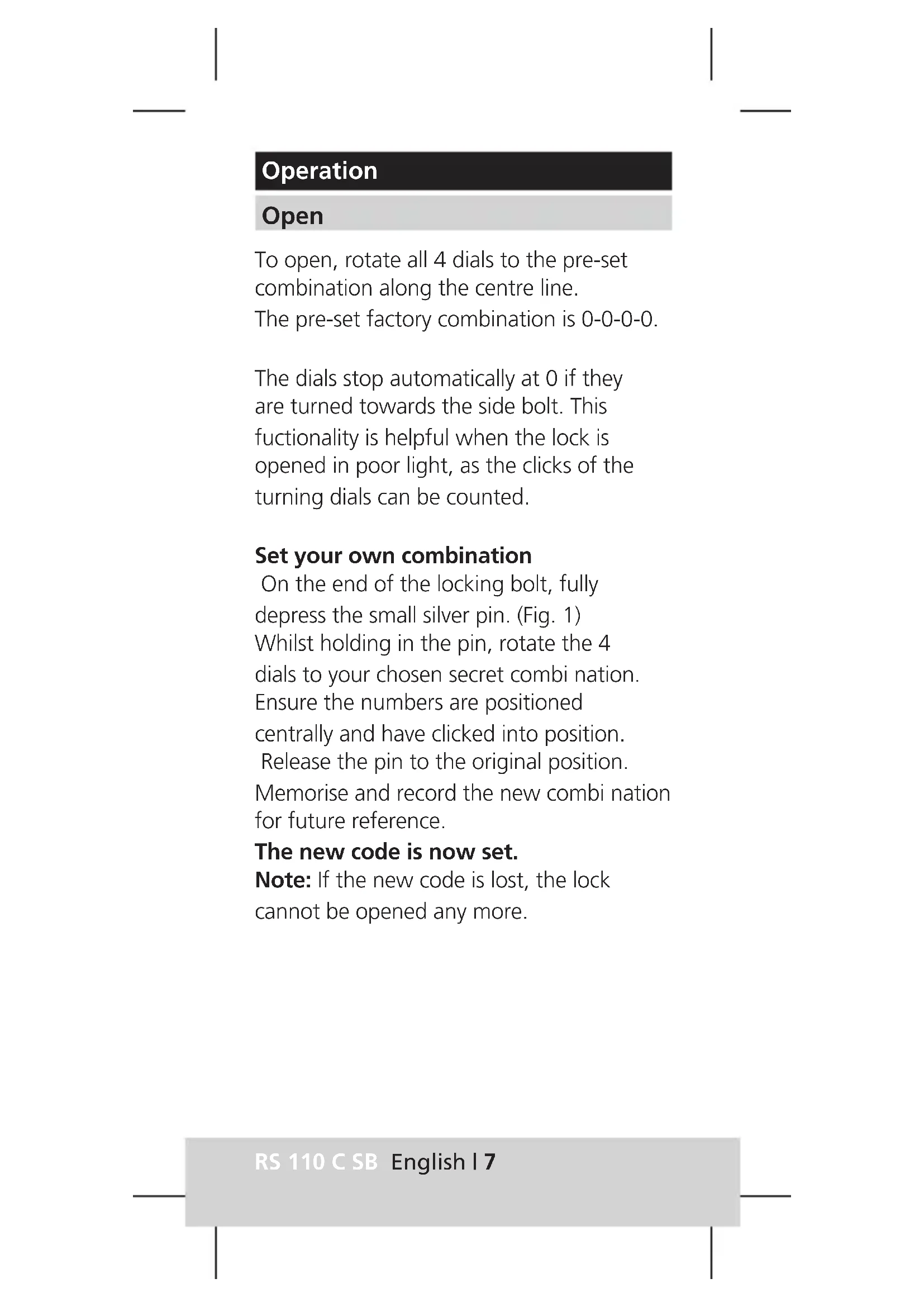

To open, rotate all 4 dials to the pre-set combination along the centre line. The pre-set factory combination is 0-0-0-0.

The dials stop automatically at 0 if they are turned towards the side bolt. This fuctionality is helpful when the lock is opened in poor light, as the clicks of the turning dials can be counted.

Set your own combination

On the end of the locking bolt, fully depress the small silver pin. (Fig. 1) Whilst holding in the pin, rotate the 4 dials to your chosen secret combi nation. Ensure the numbers are positioned centrally and have clicked into position. Release the pin to the original position. Memorise and record the new combi nation for future reference.

The new code is now set.

Note: If the new code is lost, the lock cannot be opened any more.

Lock

The combination must be scrambled by rotating the 4 dials. The slide bolt can be latched both while open and closed.

Fitting instructions

Note: Regular screws can be used to temporally fix the locking bolt before finally fixing using the security screws supplied. It is important to drill a small pilot hole for the screws as they cannot be unscrewed once used.

1 Hold the slide bolt in the required position and check the slide bolt and the gate / door will function correctly. Once positioned correctly, mark the location of the 4 screw holes.
2 The slide bolt should be mounted using all the 4 corner fixing holes on the back plate. Drill a small pilot hole for the screws. Screws should be tight without distorting the back plate.

Depending on the material of the installation place it may make sense to drill small guiding holes to facilitate fitting. Drills should be chosen according to material and screw diameter. It may be advantageous to use dowels.

3 Hold the counterpiece in the required position and check the slide bolt and the gate / door will open and close correctly. Mark the location of the 2 screw holes and drill small pilot holes. Fix in position using the screws.

Maintenance: It is recommended the dials are rotated weekly to keep them moving freely. Please clean the lock with a wet cloth if required, and use a common lubricant for the locking mechanism.

Mistakes and changes reserved.
