USER MANUAL RK505K Rommelsbacher

Red circular emblem with vertical line patterns (no text or symbols)

ROMMELSBACHER

D Bedienungsanleitung
GB Instruction manual
F Mode d'emploi
I Istruzioni per l'uso

Close-up of a circular electric stove burner with black and silver casing (no visible text or symbols)

RK 501

Black and silver portable stove burner with a handle, placed on a black stand (no visible text or symbols)

Close-up of a black and silver mechanical component with a labeled base (RK 501/SU), no visible text or symbols on the main subject.

Bedienungsanleitung

We are pleased you decided in favour of this product of German make and would like to thank you for your confidence. Its easy operation and wide range of applications will certainly fill you with enthusiasm as well. To make sure you can enjoy using this travel hot plate for a long time, please read through the following notes carefully and observe them. Keep this instruction manual safely. Hand out all documents to third persons when passing on the appliance. Thank you very much.

Intended use

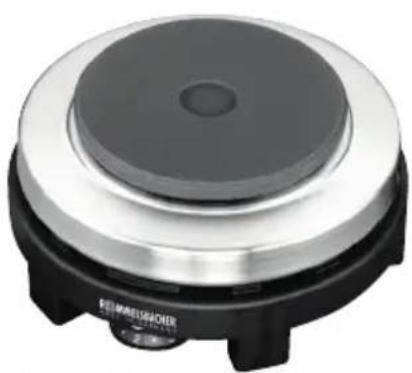

This mobile automatic travel hot plate is designed for heating or keeping warm small portions of food and beverages (domestic use only). Other uses or modifications of the appliance are not intended and harbour considerable risks. For damage arising from not intended use, the manufacturer does not assume liability. The appliance is not designed for commercial use.

Technical data

Only connect the appliance to an isolated ground receptacle installed according to regulations. The rated voltage must comply with the details on the rating label. Only connect to alternating current. In case you use a model with tension selection switch (type RK 501/SU) you first have to verify the correct setting in accordance with the used power supply. A wrong voltage selection setting will cause a destruction of the appliance!

RK 501, RK 501/S RK 501/SU

Nominal voltage: 230 V \~ selectable setting: 115/230 V \~

Nominal power, ca.: 500 W 500 W

Standby-consumption: 0 W 0 W

Heating zone: 8 cm ∅ 8 cm ∅

Packing material

Do not simply throw the packing material away but recycle it. Deliver paper, cardboard and corrugated cardboard packing to collecting facilities. Also put plastic packing material and foils into the intended collecting basins.

In the examples for the plastic marking PE stands for polyethylene, the code figure 02 for PE-HD, 04 for PE-LD, PP for polypropylene, PS for polystyrene.

For your safety

WARNING: Read all safety advices and instructions. Non-observance of the safety advices and instructions may cause electric shock, fi re and/or bad injuries!

General safety advices:

• Always keep children under 8 away from the product and the power cord.
• Children from the age of 8 must be supervised when cleaning or maintaining the appliance.
• Children from the age of 8 and persons not having the knowledge or experience in operating the appliance or having handicaps of physical, sensorial or mental nature must not operate the appliance without supervision or instruction by a person, responsible for their safety. Never leave the appliance unattended during operation.
• Children should be supervised in order to ensure that they do not play with the appliance.
• Packing material like e. g. foil bags should be kept away from children.
• Do not operate this unit with an external timer or a separate telecontrol system.
• Prior to each use, check the appliance and the attachments for soundness, it must not be operated if it has been dropped or shows visible damage. In these cases, the power supply must be disconnected and the appliance has to be checked by a specialist.

• When laying the power cord, make sure that no one can get entangled or stumble over it in order to avoid that the appliance is pulled down accidentally.

• Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Check the power cord regularly for damage and deteriorations. Damaged or entangled cords increase the risk of an electric shock.

• Do not misuse the power cord for unplugging the appliance!
• Never immerse the appliance, power cord and power plug in water for cleaning.
• Do not store the appliance outside or in wet rooms.
• This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be effected by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.
• Improper use and disregard of the instruction manual void all warranty claims.

Safety advices for using the appliance:

WARNING: Hazard of injury and burns!

Casing and heating plate are getting hot during use and firstly stay hot after switch-off!

Thus, work with caution:

- We recommend using pot cloths and appropriate cooking cutlery!

- Do not use the appliance's upper side as depositing rack or working top as it will get hot when operating the appliance! As protection against fire, do generally not put objects made of paper, plastic, fabric or other inflammable material on hot surfaces!

- Note: We recommend using only the original pot. It has a bottom especially designed to prevent it from sliding. This pot cannot be used with normal hot plates! For hygienic reasons cook out the pot with some water prior to first usage.

- Otherwise only use pots with an even, level bottom and the appropriate diameter. Always keep heating plate and pot bottom clean and dry.

- Do not use any cooking pots consisting of plastic, inferior china, enamel or aluminium foil

- Note: During heating, the pot should be covered with a fitting lid. This will save time and energy.

• Attention! Hazard of fire! Overheated fats and oils can inflame.
  Therefore, food containing fats and oils may only be prepared under supervision!
• Never splash cold water on the hot heating plate!
• Appliance and accessories must have cooled completely before cleaning or moving them!
• Observe the following when setting up the appliance:

o Place the appliance on a heat-resistant, stable and even surface (no varnished surfaces, no table cloths etc.).
o Place it beyond children's reach.
o Leave a sufficient ventilation distance around the appliance to avoid damage by heat or fat splatters and to grant an unobstructed work area.
o Unhindered air supply has to be ensured.
Do not operate the appliance in the vicinity of sources of heat (oven, gas flame etc.) or in explosive environments, where inflammable liquids or gases are located.

⚠ Attention! Hazard of fire! This appliance is not qualified for installation.

• Do not use the appliance as space heater.
• Pull the power plug after each use for safe switch-off.

Prior to initial use

Take the power cord out of the cord storage.

In case you use a model with tension selection switch (type RK 501/SU) you first have to verify the correct setting (115 or 230 V) in accordance with the used power supply!

Plug in the power plug.

Heat up the appliance without a pot for approximately 5 minutes at maximum setting. This will give maximum protection to the coating of the plate. Please disregard the slight temporary formation of harmless smoke.

Operation

• In case you use a model with tension selection switch (type RK 501/SU) you first have to verify the correct setting (115 or 230 V) in accordance with the used power supply!
• The temperature of the heating plate can be regulated steplessly via the rotary selector.

Attention! The metal housing around the heating plate is getting hot during use. Therefore, when activating the rotary selector, mind to touch the plastic part of the housing alone.

• The integrated automatic cooking system provides for a quick heating up. The hot plate heats up with maximum power until the selected temperature level has been reached. After that the thermostat maintains the set temperature and also serves as a safe overheating protection.
• TIP: Switch off your appliance in time and make use of the residual heat to keep warm dishes.

Cleaning and maintenance

Always unplug the appliance before cleaning and let it cool down!

• Clean the appliance with a damp cloth and detergent, do not use abrasives and steel wool.
• Do not immerse appliance, power cord and power plug in water and make sure no steam may infiltrate.
  • Always keep heating plate dry since dampness and steam will result in rust formation.
• Do not use any abrasives and solvents or sharp objects!
• Never use a steam jet appliance for cleaning!
• After cool-down and cleaning, the appliance can be stored in a space-saving way by inserting the power supply cord into the bottom of the appliance according to the illustration (see overleaf).

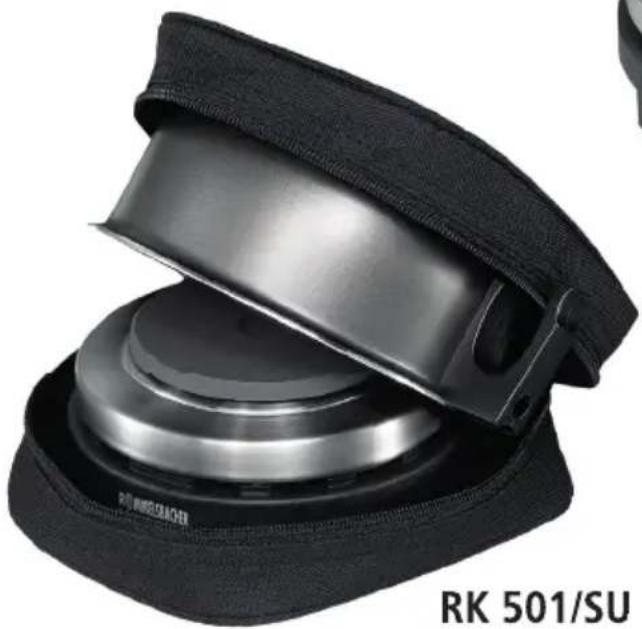

• The types RK 501/S and RK 501/SU (travel hot plate sets) accommodate a convenient zip pouch, which ensures a safe and compact storage also during travelling.

Mode d'emploi

Consumo standby: 0 W 0 W

Cartoon character illustration with a pointed hat and raised finger (no text or symbols)

BIALETTI

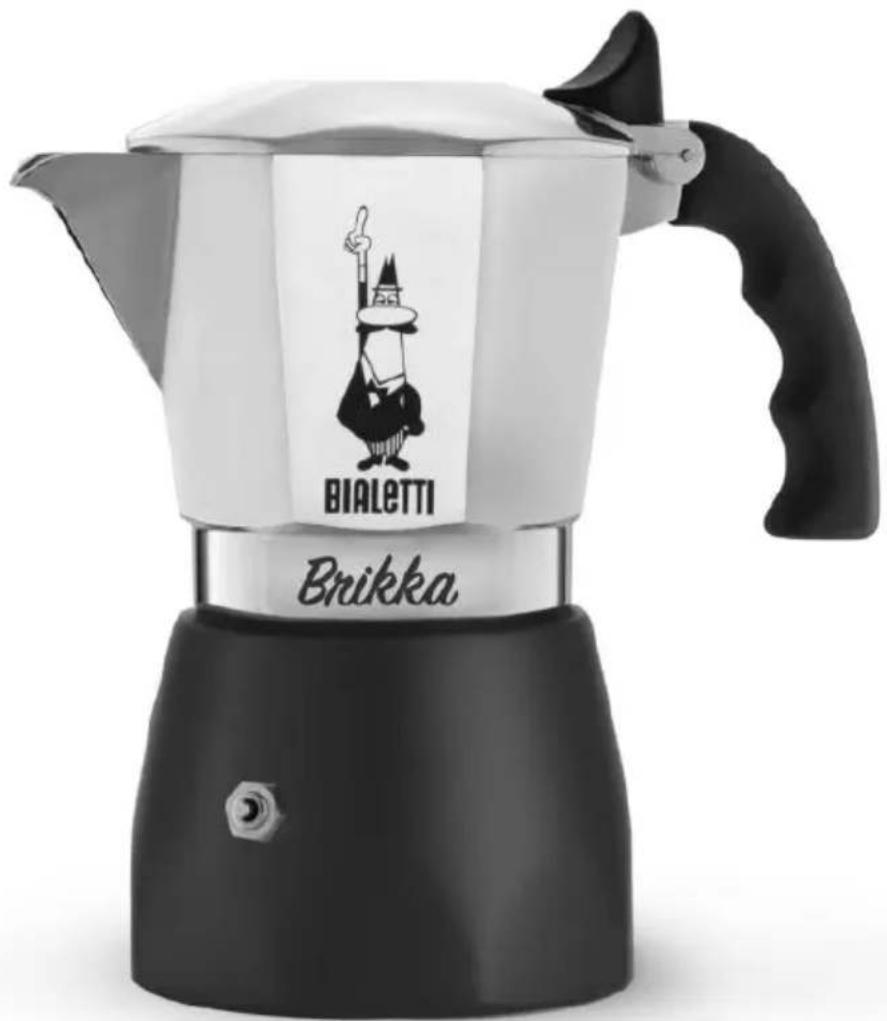

Black and white photo of a Bialetti coffee maker with 'Brikka' branding, no visible text or symbols on the device itself.

BRIKKA

D

GB

F

|

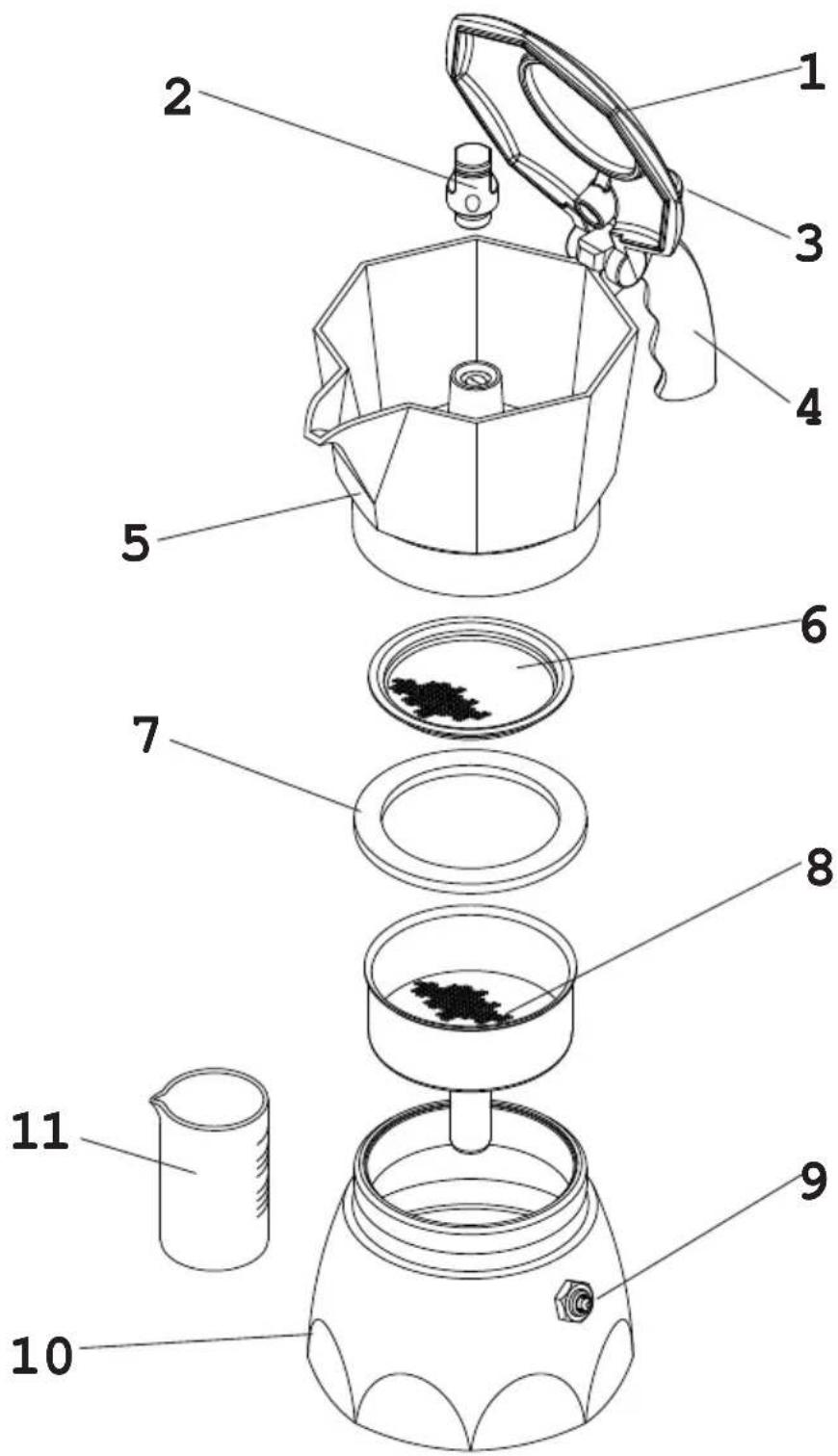

Exploded diagram of a coffee maker with numbered parts for identification and assembly

(*)			120 ml4Oz		100 ml3,4 Oz		15 ml0,5 Oz
			180 ml6,1 Oz		170 ml5,7 Oz		30 ml1 Oz

Read the instructions carefully as they contain important information about safety, use and maintenance of the product.

IMPORTANT: READ THIS MANUAL THOROUGHLY AND KEEP IT WITH CARE FOR FUTURE REFERENCE.

• These instructions are an integral part of the product and, throughout the entire life of the product, must be kept and be available. The documentation should be given to the subsequent owners of the product.
• Attention: this coffee maker requires a heat source for its operation and develops pressure inside. Failure to comply with the instructions may cause the risk of burn or the coffee maker burst.
• Before each use, make sure the coffee maker is not damaged and is complete with all its parts. Furthermore, check the valve, the funnel, the gasket, and the filter plate are intact and properly positioned, as shown on the figure. In case of doubts, contact the dealer or the manufacturer.
• Remove the packaging materials of the coffee maker and any warning inside it before use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge. Keep out of reach of children.
  • Use the coffee maker for the purpose that it was designed for. The product is intended for household use only.
• Do not leave the appliance unattended during operation.
• Do not touch the hot surface of the coffee maker. The surfaces get hot, therefore use the handle and the knob to move the coffee maker.
• Never use the coffee maker without water in the heater.
• Never use other liquids in the heater or the upper part, the coffee maker is intended to be used with water only.
• The coffee maker is designed to be used only with water and ground coffee for Moka for household use: do not use other products (e.g. barley, cocoa, coffee extracts, tea, COFFEE FOR PERCOLATING FILTERS OR ESPRESSO MACHINES, etc.).
• Make sure the steam jet is oriented far from the user, by ensuring the safety valve is not oriented towards the user.
  • To make an excellent creamy coffee, it is very important to respect the right amounts of water and coffee.
• When using a gas heat source, the flame must not go beyond the rim of the heater.
• In case of electric/ceramic glass plate, do not use the highest heat, but maintain a medium setting.
• Immediately remove the coffee maker from the heat source at the end of dispensing.

• Never use the coffee maker in the oven or in a microwave.

• Do not open or close the coffee maker using the handle.

• During use, close the lid of the coffee maker.
• In case of malfunctioning, do not use the product and contact the dealer or the manufacturer.
  • After use, allow the coffee maker to cool down before opening it.
  • After use, place the coffee maker on suitable surfaces, as its base reaches high temperatures. Do not store it in contact with flammable surfaces that might deteriorate with the heat.
• Choose only original Bialetti spare parts suitable for the model used.
• At the end of dispensing there might be some water in the heater.
• Never unscrew the valve system (2) from the column.

Tips

• When using the coffee maker for the first time, wash thoroughly with water and fill it only with water without coffee.
  • Make at least 3 cups of coffee, discarding them (do not drink them), following the instructions below.
  • Do not drink the first 3 dispensing operations of coffee as they are necessary for enhancing the aroma of coffee at best.
• Make sure the safety valve is not oriented towards the user.
• Hand wash only without using detergents and abrasive sponges to preserve its features over the time.
  • Use ground coffee for Moka, that is with a suitable grinding, and never use fine grinding coffee.
• Never press coffee into the funnel.
  • Store each part of the coffee maker completely dry and without closing it.
• Replace the gasket, if worn. It is recommended to replace it at least once a year anyway.
• Do not beat the funnel to remove the coffee, as it might get damaged or get ovalized, jeopardizing a proper sealing.

MAKING COFFEE

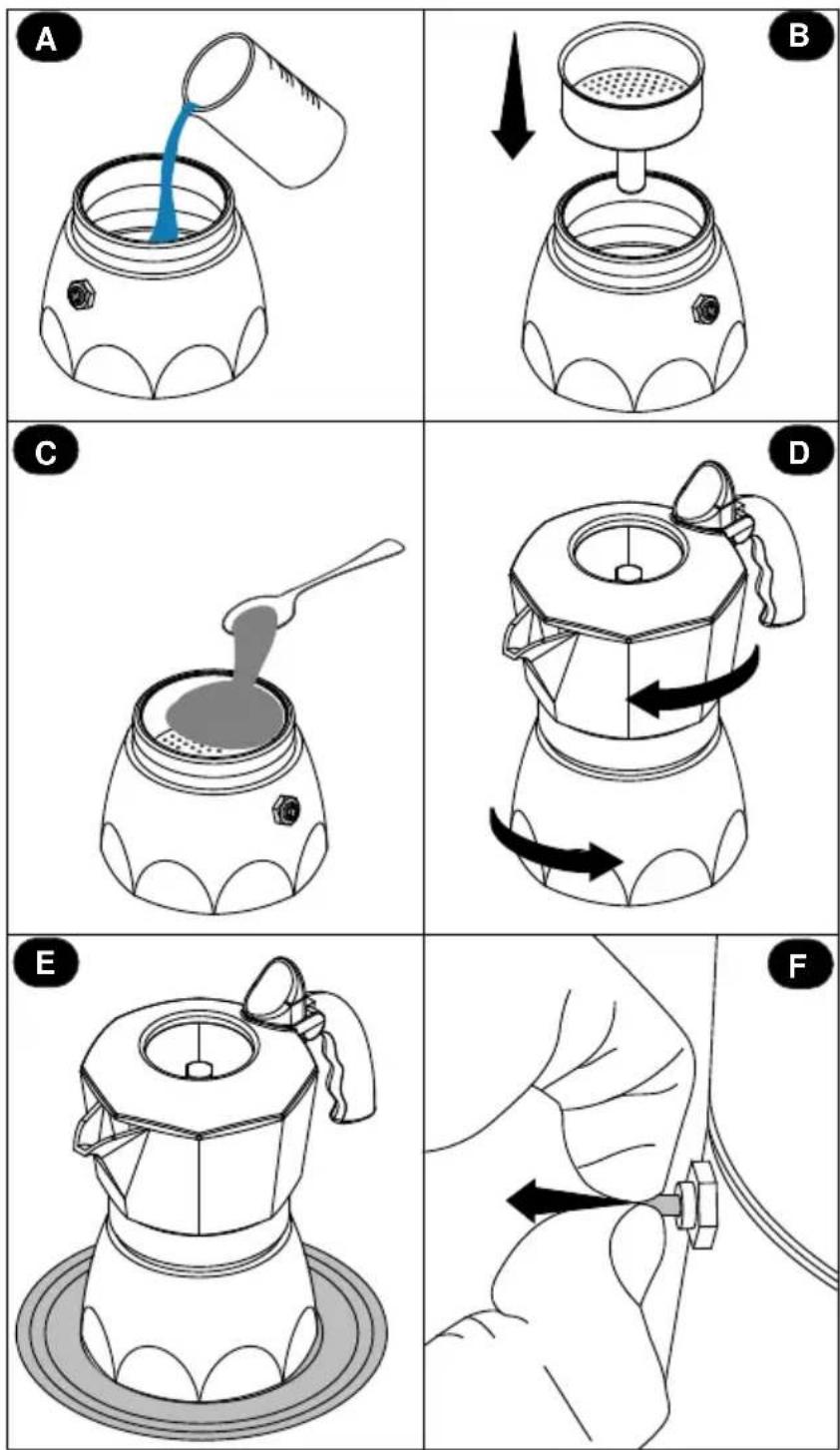

1. Fill heater (10) with cold water by using the graduated measuring cup supplied (11) Fig. A, following the amounts indicated in the table (*).
2. Insert the funnel filter (8) into the heater (10). Fig. B.
3. Fill the funnel filter (8) with ground coffee for Moka, without pressing it down, taking care not to leave coffee powder on the rim of the coffee maker, Fig. C.
4. Screw the upper part (5) on the heater (10) and tighten well, without pressing too much and avoiding to force the handle (4), Fig. D.
5. Put the coffee maker on the heat source. In case of flame, prevent it from going beyond the rim of the coffee unit. In case of electric/ceramic glass plate, maintain a medium setting Fig. E.
6. After few seconds, make sure froth formation has been completed inside the upper part (5).

7. Immediately remove Brikka from the heat source.

8. Pour coffee into the cups, evenly distributing the coffee and froth*. (*) Indicative value: it can vary based on the amount of water or coffee, the type of coffee blend, and its grinding (see table).

NOTE: After having removed Brikka from the heat source, for few seconds dispensing might be still heard from the valve system (2).

IMPORTANT: When the coffee has come out, do not leave Brikka on the heat source. The froth might disappear and the coffee might overflow from the upper part.

BIALETTI INSPECTION SAFETY VALVE (9)

The Bialetti valve has been patented and designed to guarantee the use of the coff ee maker in complete safety.

Using the coffee maker with drinking water might entail the risk of formation of lime scale in the hole of the valve, causing its clogging. To avoid clogging arising from lime scale, just move the small piston coming out of the valve along its axis during the normal washing operations, Fig. F. It is advisable to carry out this inspection periodically to ensure its proper operation. The safety valve is a protective element and should intervene only in conditions of abnormal operation or use of the coffee maker.

FAQ

The coffee maker does not dispense:

- Check the presence of all parts.

The safety valve vents:

• Make sure coffee used is ground coffee for Moka.
• Make sure it is not pressed into the funnel.
• Make sure there is not too much water in the heater.

If the phenomenon still remains, it could signal a malfunctioning, therefore do not use the product and contact the dealer.

The coffee maker leaks water:

• Check proper tightening of the coffee maker.
• Check the gasket for wear and replace, if necessary.
• Make sure there is no coffee powder residues on the rim of the heater.

The coffee maker does not dispense coffee:

• Check proper tightening of the coffee maker.
• Check the coffee maker for leakage.

The coff ee maker did not make froth:

• Check water level. Always use the appropriate measuring cup.
• Remove Brikka from the heat source after the complete formation of froth.

Coff ee leakage from the upper part:

- Do not leave Brikka on the heat source at the end of dispensing and froth formation.

CLEANING AND MAINTENANCE

• Before carrying out cleaning and maintenance, allow the appliance to cool down completely.
• It is advisable to clean the coffee maker in all its parts, including the dispensing column, which must be free from coffee powder obstructions.
  • After each use, wash with warm water without detergents and/or abrasive materials (the product CANNOT be put in the dishwasher).

• Store the product perfectly dry in all its parts and not closed to prevent any build-up of stains/oxidations.
  • Regularly perform the decalcification procedure:

• Fill the heater with water as per normal preparation.

• Add two teaspoons of citric acid or vinegar.
• Reassemble the product and, without adding the coffee powder, dispense once.
• Throw away the solution obtained.

• Wash the coffee maker with current water and make coffee.

• Regularly check that the holes of the filter plate (6) are not obstructed, otherwise open them using a brush with delicate bristles or a needle.

• Periodically check the internal components and, in case of wearing or damage, replace them only with original Bialetti spare parts suitable for the model used.
• Replace the gasket (7), if worn. It is recommended to replace it at least once a year anyway.

DISPOSAL OF THE APPLIANCE

- At the end of the life of the product, dispose it in a waste collection centre.

- The adequate waste sorting and the correct disposal contribute to avoid negative impacts on the environment and public health and permit recycling of the materials which the product is made of.

- For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased.

WARRANTY

The product is guaranteed for a period of 24 months from the date of purchase, with the functional conditions as foreseen in this instruction leaflet. In case of claim for servicing under warranty, it is required to contact the dealer or Bialetti Industrie Spa and provide proof of purchase or an equivalent document showing the identification data of the dealer or the date of purchase.

Warranty does not cover:

• The replaced components (plate, funnel, gasket, and handle) for non-original defects.
• Failures and/or defects caused by an use, which is improper or not-compliant with the instructions.
• Failures and/or defects arising from the use of non-COMPATIBLE spare parts.
• Damages caused by impacts, falls, and lime scale deposits.
