124799 - Router SILVERLINE - Free user manual and instructions
Find the device manual for free 124799 SILVERLINE in PDF.
| Product Type | Plunge Router |
| Brand | Silverline |
| Model | 124799 |
| Supply Voltage | 230-240 V~ 50 Hz |
| Power Consumption | 2050 W |
| No-Load Speed | 6000-24000 min⁻¹ |
| Plunge Depth | 50 mm |
| Collet Diameters | 1/2", 1/4", 8 mm, 10 mm, 12 mm |
| Base Plate Shape | Combined Circular and Flat |
| Protection Class | II (Double Insulation) |
| IP Rating | IP20 |
| Dimensions (H × W × D) | 320 × 163 × 315 mm |
| Weight | 5.7 kg |
| Sound Pressure Level (Lp) | 92.4 dB(A) |
| Sound Power Level (Lw) | 103.4 dB(A) |
| Weighted Vibration | 4.77 m/s² |
| Speed Adjustment | Electronic Selector |
| Included Accessories | Collet wrench, 5 router bits, hex key, 2 spare carbon brushes, additional guide ring |
| Warranty | 3 years (subject to online registration) |
Frequently Asked Questions - 124799 SILVERLINE
User questions about 124799 SILVERLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Router in PDF format for free! Find your manual 124799 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 124799 by SILVERLINE.
USER MANUAL 124799 SILVERLINE
silverlinetools.com
English ......04
Français ......10
Deutsch......18
Español......26
Italiano ....34
Nederlands ......42
Polski ....50
Introduction
Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear head protection.
Wear hand protection.
Read instruction manual.
Caution!
Double insulated for additional protection
Conforms to relevant legislation and safety standards
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice
Technical Abbreviations key
| V Volts | |
| ~ Alternating current | |
| A Ampere | |
| n0 No load speed | |
| Hz Hertz | |
| W, kW Watt, kilowatt | |
| /min or min ^1 | (revolutions or reciprocation) per minute |
Specification
Voltage: 230-240V\~50Hz
Power: 2050W
No load speed: 6000-24,000min
Plunge Stroke: 50mm
Collet size: 1/2", 1/4", 8mm, 10mm, and 12mm
Base shape ....Combined circular & flat
Protection Class: IP20 Ingress Protection:
Power cable length 2.5m
Dimensions (L x W x H): 320 x 163 x 315mm
Weight: 5.7kg
As part of our ongoing product development, specifications of Silverline products may alter without notice.
Sound and Vibration Information:
Sound pressure L 92.4dB(A)
Sound power L vs: 103.4dB(A)
Uncertainty K: 3dB
Weighted vibration 4.77m/s²
Uncertainty K: 1.5m/s ^2
The sound intensity level for the operator may exceed 85dB(A)
and sound protection measures are necessary.
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.
Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration.
www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.
General Safety
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional Safety for Routers
a) Hold the power tool by insulated gripping surfaces to prevent electric shock if the tool cuts through its own power cord or other power cable
b) Clamp the workpiece to a stable platform. Holding the workpiece by hand or against the body may lead to loss of control
c) Use safety equipment including safety goggles or shield, ear protection, dust mask and protective clothing including safety gloves
d) Cloths, cord, string etc should never be left around the work area
e) Ensure the mains supply voltage is the same as the tool rating plate voltage
f) Ensure any cable extensions used with this tool are in a safe electrical condition, and have the correct ampere rating for the tool
g) Completely unwind cable drum extensions to avoid potential overheating
h) Use appropriate detectors to determine if utility cables or pipes are below the surface of the work area. Consult utility companies for assistance if necessary. Contact with electric cables can lead to electric shock and fire. Damaging a gas pipe can lead to explosion. Contact with water lines can lead to major property damage
i) Ensure embedded objects such as nails and screws have been removed from the workpiece before commencing operation
j) Handle router bits with care as they can be extremely sharp
k) Before use, check the bit carefully for signs of damage or cracks. Replace damaged or cracked bits immediately
1) Ensure router cutters/bits are sharp and maintained correctly. Dull cutting edges can lead to uncontrolled situations including stalling, increased heat and possible injury
m) ALWAYS use both handles and maintain a firm grip on the router before proceeding with any work
n) Keep handles and gripping surfaces dry, clean and free of oil and grease to ensure the tool can be securely held in use
o) Before using the tool to make a cut, switch on and let it run for a while. Vibration could indicate an improperly installed bit
p) Take notice of the direction of rotation of the bit and the direction of feed
q) Keep your hands away from the routing area and router bit cutter. Hold the auxiliary handle or an insulated gripping surface with your second hand
r) NEVER start the router while the cutter is touching the workpiece
s) Ensure the plunge spring is always fitted when using hand-held
t) Ensure the cutter has completely stopped before plunging to the collet lock position
u) The maximum speed of the router bit/cutter must be at least as high as the maximum speed of the power tool
v) Parts of the router bits may become hot during operation. Do not handle immediately after use to avoid risk of burns
w) Do not allow parts to come into contact with combustible materials
x) The shank size of the router cutter/bit must be matched to the exact same size collet fitted to the router. Incorrectly fitted router cutter/bits will rotate irregularly and have increased vibration that could lead to loss of control
y) DO NOT press the spindle lock button, or attempt to switch the tool into bit change mode while the router is operating
z) Keep pressure constant while cutting into the workpiece, allowing the router bit cutter to dictate the speed of cut. DO NOT force the tool and overload the motor
aa) Ensure rating labels and safety warnings on the tool remain clear to read and are replaced if marked or damaged
bb) When operating the router, be prepared for the router bit cutter stalling in the workpiece and causing loss of control. Always ensure the router is firmly held and the on/off switch is immediately released in such circumstances
cc) After switching on the router, check the router bit is rotating evenly (not 'wobbling') and there is no additional vibration due to the router bit being incorrectly fitted. Operating the router with an incorrectly fitted router bit can lead to loss of control and severe injury
dd)EXTREME care must be taken when using cutters with a diameter greater than 2" (50mm). Use very slow feed rates and/or multiple shallow cuts to avoid overloading the motor
ee) ALWAYS switch off and wait until the bit has come to a complete standstill before removing the machine from the workpiece
ff) Disconnect from power before carrying out any adjustment, servicing or maintenance
WARNING: Dust generated by using power tools can be toxic. Some materials may be chemically treated or coated and be a toxic hazard. Some natural and composite materials may contain toxic chemicals. Some older paints may contain lead and other chemicals. Avoid prolonged exposure to dust generated from operating a router. DO NOT allow dust to get onto skin or eyes and do not allow the dust to enter your mouth to prevent absorption of harmful chemicals. Where possible, work in a well-ventilated area. Use a suitable dust mask and dust extraction system where possible. Where there is a higher frequency of exposure, it is more critical that all safety precautions are followed and a higher level of personal protection is used.
Product Familiarisation
| 1 Parallel Guide |
| 2 Depth Stop Adjuster |
| 3 Depth Stop |
| 4 Brush Access Cover |
| 5 Variable Speed Dial |
| 6 Guide Rod Locking Knob |
| 7 Spindle Lock Button |
| 8 Collet Nut |
| 9 Turret Stop |
| 10 Guide Rod |
| 11 Depth Stop Lock |
| 12 Line Adjustment Knob |
| 13 Lunge Lock Lever |
| 14 Dust Extraction Port |
| 15 Base Plate |
| 16 Safety Button |
| 17 On/Off Switch |
| 18 Brush Access Cover |
| 19 Measurement Bar |
| 20 Collets |
| 21 Guide Bush Plate |
| 22 Roller Guide |
| 23 Circle Guide |
Accessories (not shown):
- 1 x collet spanner
- 5 x router bits
- 1 x hex key
- 2 x spare brushes
- 1 x additional guide bush plate
Intended Use
Hand-held plunge router for use with 1/2", 1/4", 8mm, 10mm, and 12mm shank router bits (depending on the collet installed). Used for cutting profiles, grooves, edges and elongated holes in natural and composite wood. Also used with guide bushes and templates for cutting of shapes, following patterns, as well as for stationary installation in suitable router table systems.
Unpacking Your Tool
- Carefully unpack and inspect your tool. Familiarise yourself with all its features and functions.
Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool.
Before Use
WARNING: ALWAYS ensure that the machine is disconnected from the power supply before fitting or removing attachments, or altering any machine settings

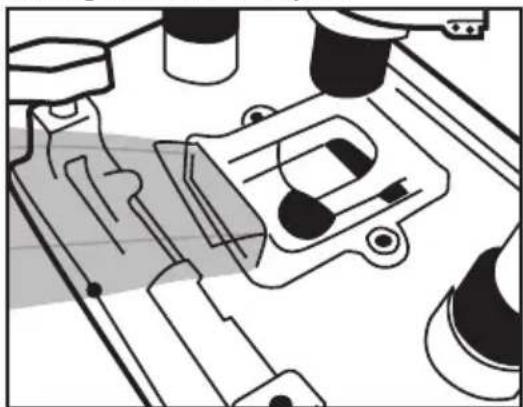

Installing dust extraction port
- Dust from certain materials can be toxic. Attach a dust extraction system to the Dust Extraction Port (14) whenever possible, before using the router
Installing a router bit
- Press in the Spindle Lock Button (7) and rotate the spindle so that the lock engages
- The Collet Nut (8) can then be slackened (it may be necessary to use the supplied spanner)
- Ensure that the correct size of collet is installed. If it is necessary to change the collet, unscrew the Collet Nut completely, change the collet and replace the nut
- Insert the router bit into the collet, ensuring that at least 20mm, or half of the shaft (whichever is greater) is inserted into the collet
• The Collet Nut can then be tightened using the Spanner supplied.
WARNING: DO NOT over tighten the collet nut, as this could cause damage to the collet or the spindle lock.
Removing a router bit
- Press in the Spindle Lock Button (7) and loosen the Collet Nut (8). The router bit should now be loose and can be removed
- If the router bit does not release from the collet, gently tap the collet nut to release.
WARNING: ALWAYS keep the collet, collet nut, spindle threads and router bit shank clean to ensure a reliable and secure fitting.
Fitting the parallel guide
- When grooving, or chamfering, use of the Parallel Guide (1) will help to ensure that accurate cuts are made
- Position the two Guide Rods (10) into the grooves in the top of the Base Plate (15)
- Locate the Parallel Guide (1) onto the guide rods, so that it extends to the correct side of the router for the cut that you intend to make
- Slide the Parallel Guide to the required position relative to the cutter. The Measurement Bar (19) can be clipped to the Guide Rod to help ensure accurate alignment. Ensure that the plastic pads on the Parallel Guide are not in contact with the cutter
- When making the cut, keep the vertical edge of the Parallel Guide held against the edge of the workpiece
Fitting the circle guide
• The Circle Guide (23) allows accurate circles and arcs to be cut
1. Position a Guide Rod (10) into the rear groove in the top of the Base Plate (15)
2. Move a Guide Rod Locking Knob (6) to the rear groove so the Guide Rod is secured by two Guide Rod Locking Knobs
3. Fit the Circle Guide onto the end of the Guide Rod, so that it extends to the correct side of the router for the cut that you intend to make with the point facing downwards
4. Position the screw, washer and wing nut on the Circle Guide screw as required depending on how you will anchor the Circle Guide. The wing nut may be used to create the required height to the workpiece or secure the Circle Guide to the workpiece when placed underneath the workpiece at the end of the thread
5. Ensure the Circle Guide assembly is held securely on the Guide Rod by tightening the screw head or wing nut so the Circle Guide assembly is compressed and tight on the Guide Rod
6. Adjust the Guide Rod position in the guide rod mountings to the required length (radius) from anchor position to centre of router bit cutter
Using the roller guide
- The Roller Guide (22) attaches to the Parallel Guide (1). It enables the router to follow the shape of the wood
- Remove the two plastic pads from the Parallel Guide by removing the four screws
- Attach the Roller Guide using two of the screws to the two inner threads of the parallel fence. The Roller Guide wheel (trimmer guide) should face outward. So the Roller Wheel faces the cutter
- Attach the Parallel Guide with fitted Roller Guide to the router using two Guide Rods and securing using Guide Rod Locking Knobs (6)
- Adjust the Roller Guide height using the wing nut
- Adjust the distance between the router bit cutter and roller wheel by loosening the Guide Rod Locking Knob on each side and positioning the Roller Guide to the correct distance then retightening the Guide Rod Locking Knobs
- To use, hold the router securely with both hands and make the cut by allowing the Roller Guide to follow the contours of the wood. This can be used for curved workpieces
Note: Ensure the Roller Guide wheel is kept clean and rotates freely. Lubricate with a suitable PTFE spray if necessary.
Using the guide bush plate
- The Guide Bush Plate (21) should be used when template/jig cutting. 30mm and 21mm Guide Bush Plates are provided. 30mm is commonly used for kitchen jigs
- Remove the Dust Extraction Port (14) by first removing the two bolts and nuts that secure it
- Remove the protective plastic pad from underneath the Base Plate (15) by removing the four screws that secure it
- On the internal side of the plastic pad fit the correct size Guide Bush Plate into the recess with the bush (circular flange) facing outwards below the router
- Refit the plastic pad with the four screws
- Refit the Dust Extraction Port and dust extraction tubing
- Fit the router bit at the correct height position suitable for the template or jig to be used
- Make the cut as required carefully following the template or jig pattern
Operation
Adjusting the plunge depth
- To release the plunge mechanism, rotate the Plunge Lock Lever (13) to its upper position
- The Depth Stop (3) can be adjusted by slackening the Depth Stop Lock (11), and rotating the Depth Stop Adjuster (2) to the required position of the Depth Stop so the router bit cutter is at the correct height when the router is plunged
- Fine adjustment of the Depth Stop can be made using the Fine Adjustment Knob (12). One full rotation will result in an approximate 1mm adjustment in Depth Stop height
- Retighten the Depth Stop Lock at the correct Depth Stop height for the required cut so when plunged the correct depth of the router bit cutter is exposed to the material
- The scale on the Depth Stop can be used to judge changes in depth setting, but actual cutting depth is best measured by making a trial cut on scrap material
Setting the depth of cut
- To lock the router at a particular depth of cut, plunge the router head down and rotate the Plunge Lock Lever (13) to its lower position. This will hold the router head in this position
Making multiple pass cuts
- The Turret Stop (9) allows the maximum depth of cut to be achieved in up to 7 steps. Each step of the turret is equal to approximately 3mm depth of cut. Set the desired total depth of cut using the depth stop, to the lowest turret step
- Rotate the Turret Stop so that the Depth Stop will contact the highest step when the router is plunged. The first pass of the cut can now be made
- Continue to make passes, rotating the turret stop anti-clockwise by one step for each pass until the full depth of cut has been achieved
Note: For total cuts of less than 21mm the number of steps will be reduced.
Base Plate
- The router features a combined flat-sided and round Base Plate (15). This allows the round edge to follow contours easily but also gives an easy straight edge which may be useful for some straight cuts (when the Parallel Guide (1) cannot be used), using with guide bushes and also where the edge of the Base Plate needs to be closer to the router bit cutter, e.g. for use with dovetail jigs etc.
- Always remember which edge of the base plate you are working with as the distance is different to the router bit cutter
- If the router bit cutter impacts hard material such as metal the router bit will be destroyed and the router itself may be damaged
Switching on and off
- Ensure that the router bit is held securely in the collet, and that the router bit cutter is not in contact with the workpiece or any other object
- To start the motor, hold the Safety Button (16) down, and squeeze the On/Off Switch (17). The motor will start. The router is equipped with a soft start feature so the motor will take a few moments to reach its full operating speed
• To stop the motor, release the On/Off Switch
Speed control
- The speed of the router is set using the Variable Speed Dial (5): a higher number on the dial corresponds to a higher motor speed
- Choosing the correct speed for the router bit and material will produce a higher quality of finish, and prolong the service life of your router bits
Making a cut
Note: NEVER operate the router freehand without some form of guide. Guidance can be provided by a bearing guided router bit cutter, the supplied guides, or a straight edge.
- ALWAYS hold the router using both hands, on the handles provided. Ensure that the workpiece will not move. Use clamps wherever possible
- Allow the motor to reach its full operating speed
- Lower the router bit cutter into the workpiece whilst moving the router slowly, keeping the Base Plate (15) held flat against the workpiece
- If edge cutting, the cutting of the workpiece should be on the left side relative to the cutting direction. Keep the pressure constant and allow the cutter to work steadily through the material. Be aware that knots, and other variations, will slow the rate of progress
Note: To avoid 'bit chatter', direct the cut anticlockwise for external cuts, and clockwise for internal cuts.
Note: Moving the router too fast can result in a poor quality finish, and overloading of the motor. Moving the router too slowly can result in overheating the workpiece.
Note: Normal operation of a router is to plunge the head after the router has been switched on
Accessories
A wide range of suitable accessories for this tool are available from your Silverline stockist, including a large selection of cutter/router bits. Spares including carbon brushes, guide bushes and collets are available from your Silverline stockist or www.toolsparesonline.com.
Maintenance
WARNING: ALWAYS disconnect from the power supply before cleaning or carrying out maintenance.
General inspection
- Regularly check that all the fixing screws are tight. They may vibrate loose over time
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool
Cleaning
WARNING: ALWAYS wear protective equipment including eye protection and gloves when cleaning this tool.
- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device's service life
- Clean the body of your machine with a soft brush, or dry cloth
- Never use caustic agents to clean plastic parts. If dry cleaning is not sufficient, a mild detergent on a damp cloth is recommended
• Water must never come into contact with the tool - Ensure the tool is thoroughly dry before using it
- If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable)
Brushes
• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- To replace the brushes, remove the two Brush Access Covers (4) & (18). Remove the worn brushes and ensure the sockets are clean. Carefully replace with new brushes and then replace the Brush Access Covers
- After fitting run the router without load for 2-3 minutes to help the brushes bed in. The process of the brushes fully bedding in may take repeated uses. Motor sparking may continue until new carbon brushes have bedded in
• Alternatively, have the machine serviced at an authorised service centre
Disposal
Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools
Troubleshooting
| Problem Possible cause Solution | ||
| Router will not operate | No supply of power Check that power is available at source | |
| Brushes worn or sticking | Disconnect power, open Brush Access Covers (4) & (18) and ensure brushes are not damaged or heavily worn | |
| Switch is faulty Have the tool serviced by an authorised Silverline service centre | ||
| Motor components faulty or short circuited Have the tool serviced by an authorised Silverline service centre | ||
| Router runs or cuts slowly | Blunt or damaged cutter Resharpen or replace gutter | |
| Variable Speed Dial (5) set low Increase variable speed setting | ||
| Motor is overloaded Reduce pushing force on router | ||
| Makes an unusual sound | Mechanical obstruction Have the tool serviced by an authorised Silverline service centre | |
| Armature has shorted sections Have the tool serviced by an authorised Silverline service centre | ||
| Excessive vibration Incorrectly fitted or loose router bit Refit or tighten router bit | ||
| Heavy sparking occurs inside motor housing | Bent or damaged router bit Replace router bit | |
| Brushes not moving freely Disconnect power, remove brushes, clean or replace | ||
| Armature short circuited or open circuited | Have the tool serviced by an authorised Silverline service centre | |
| Fine Adjustment Knob (12) "clicks" or not adjusting | Commutator dirty | Have the tool serviced by an authorised Silverline service centre |
| Plunge Lock Lever (13) engaged | Release Plunge Lock Lever | |
| Reached end of adjustment range | Reset Fine Adjustment Knob and set depth with Depth Stop Adjuster (2) | |
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-
- Your personal details
• Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorized repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.
Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
Introduction
Mechanical assembly diagram showing a wrench inserted into a housing component (no text or labels)natural_image
Mechanical assembly diagram showing components like gears and levers (no text or labels)natural_image
Mechanical assembly diagram showing a wrench inserted into a housing component (no text or labels)Silverline Tools Service Centre
PO Box 2988
Yeovil
Mechanical assembly diagram showing a wrench inserted into a housing component (no text or labels)Accessori (non mostrate):
Mechanical assembly diagram showing a wrench inserted into a housing component (no text or labels)Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GB
Mechanical assembly diagram showing a wrench inserted into a housing component (no text or labels)Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GB
Mechanical assembly diagram showing a wrench inserted into a housing component (no text or labels)WARNING: DO NOT over tighten the collet nut, as this could cause damage to the collet or the spindle lock.
Zdejmowanie bitu
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
- Introduction
- Description of Symbols
- Specification
- Sound and Vibration Information:
- General Safety
- Additional Safety for Routers
- Product Familiarisation
- Accessories (not shown):
- Intended Use
- Unpacking Your Tool
- Before Use
- Installing dust extraction port
- Installing a router bit
- Removing a router bit
- Fitting the parallel guide
- Fitting the circle guide
- Using the roller guide
- Using the guide bush plate
- Operation
- Adjusting the plunge depth
- Setting the depth of cut
- Making multiple pass cuts
- Base Plate
- Switching on and off
- Speed control
- Making a cut
- Accessories
- Maintenance
- General inspection
- Cleaning
- Brushes
- Disposal
- Silverline Tools Guarantee
- This Silverline product comes with a 3 year guarantee
- Registering your purchase
- Terms & Conditions
- PLEASE KEEP YOUR SALES RECEIPT
- Silverline Tools Service Centre
- PO Box 2988
- Yeovil
- BA21 1WU, UK
- What is covered:
- What is not covered:
- Accessori (non mostrate):
- BA21 1WU, GB
- Zdejmowanie bitu
Brand : SILVERLINE
Model : 124799
Category : Router
