Haiku I 120 N - Iron ELICA - Free user manual and instructions

Product type	Extractor hood
Brand	Elica
Model	Haiku I 120 N
Width	120 cm
Depth	Approx. 50 cm
Weight	Approx. 18 kg
Power supply	220-240 V, 50/60 Hz
Motor power	280 W
Lighting	LED, long life
Speeds	3 speeds + 2 Boost speeds (Boost 1: 30 min, Boost 2: 7 min)
Grease filter	Metallic, dishwasher safe, monthly cleaning
Activated carbon filter	Optional for recirculation version, cleanable every 2 months
Saturation indicators	Indicators for grease filter and odor filter, resettable
Minimum installation distance	60 cm (electric) / 65 cm (gas or mixed)
Version	Ducted (external evacuation) or recirculating (recycling)
Noise level	Approx. 55 dB(A) at speed 1, 65 dB(A) at Boost
Materials	Stainless steel, tempered glass (depending on finish)
Energy class	B (estimated)
Repairability	Spare parts available via after-sales service
Warranty	2 years (according to legislation)

Frequently Asked Questions - Haiku I 120 N ELICA

How to clean the grease filter?

The metallic grease filter should be cleaned once a month (or when the saturation indicator blinks). You can wash it by hand with a non-aggressive detergent or in the dishwasher on a low temperature short cycle. Washing in the dishwasher may discolor the filter but does not affect its performance.

How to replace the activated carbon filter?

The carbon filter is only used in recirculation mode. It should be cleaned every 2 months (or when the indicator blinks rapidly). To clean it, rinse it in hot water with a mild detergent or in the dishwasher at 65°C without dishes, then dry it in the oven at 100°C for 10 minutes. Replace it every 3 years or if damaged.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the speed selection buttons 1 and 3 (for grease filter) or 2 and 3 (for odor filter) when the hood is off. The indicators will blink rapidly to confirm reset.

What to do if the hood does not turn on?

First check the electrical connection and circuit breaker. Make sure the hood is properly plugged in and the main switch is on. If the problem persists, contact technical support. Do not attempt to repair the appliance yourself.

What is the minimum installation height?

The minimum distance between the cooking surface and the lowest part of the hood is 60 cm for an electric hob, and 65 cm for a gas or mixed hob. Always follow the hob manufacturer's instructions if they specify a greater distance.

How does the Boost function work?

The Boost button activates a timed intensive extraction: a first press triggers Boost 1 for 30 minutes, a second press triggers Boost 2 (7 minutes). After the set time, the hood automatically returns to the previous speed. This function is ideal for very smoky cooking.

Can I use the hood without a filter?

No, you must never use the hood without the grease filter properly installed. The carbon filter is optional depending on the version (recirculation). Using it without the grease filter can damage the motor and pose a fire hazard.

Are the LED bulbs replaceable?

Yes, but replacement must be done by a qualified after-sales technician. LEDs offer a long life (up to 10 times longer than conventional bulbs) and 90% energy savings. Do not attempt to replace them yourself.

What is the noise level of the hood?

The noise level varies by speed: approximately 55 dB(A) at speed 1, 60 dB(A) at speed 2, 65 dB(A) at speed 3, and up to 70 dB(A) in Boost mode. These values may vary depending on installation and duct type.

Is the hood supplied with an exhaust duct?

No, the exhaust duct is not supplied. You must purchase it separately. Use a duct of the same diameter as the connection flange (usually 150 mm). For optimal performance, minimize the length and number of bends.

USER MANUAL Haiku I 120 N ELICA

EN Instruction on mounting and use

1

2

5

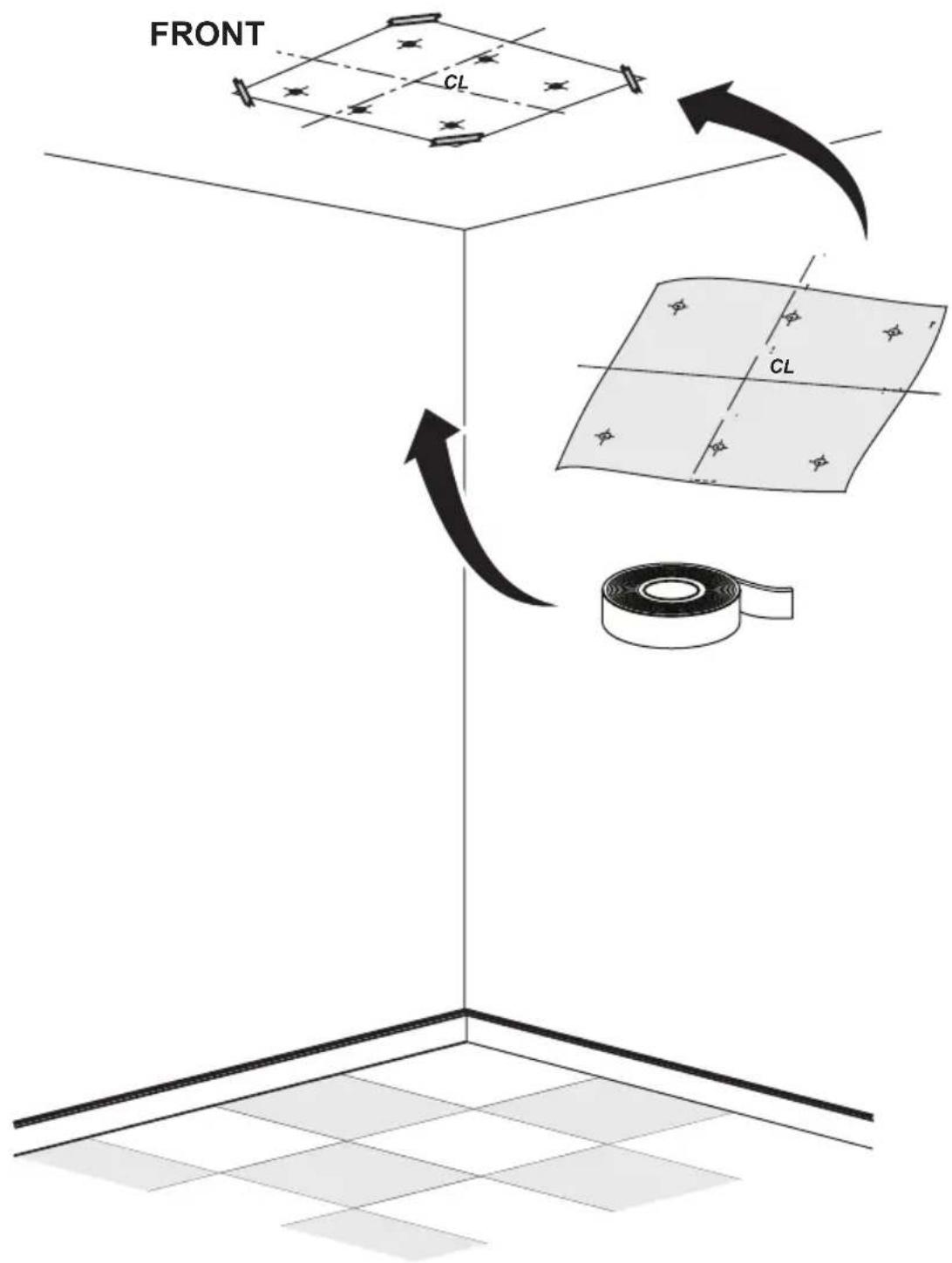

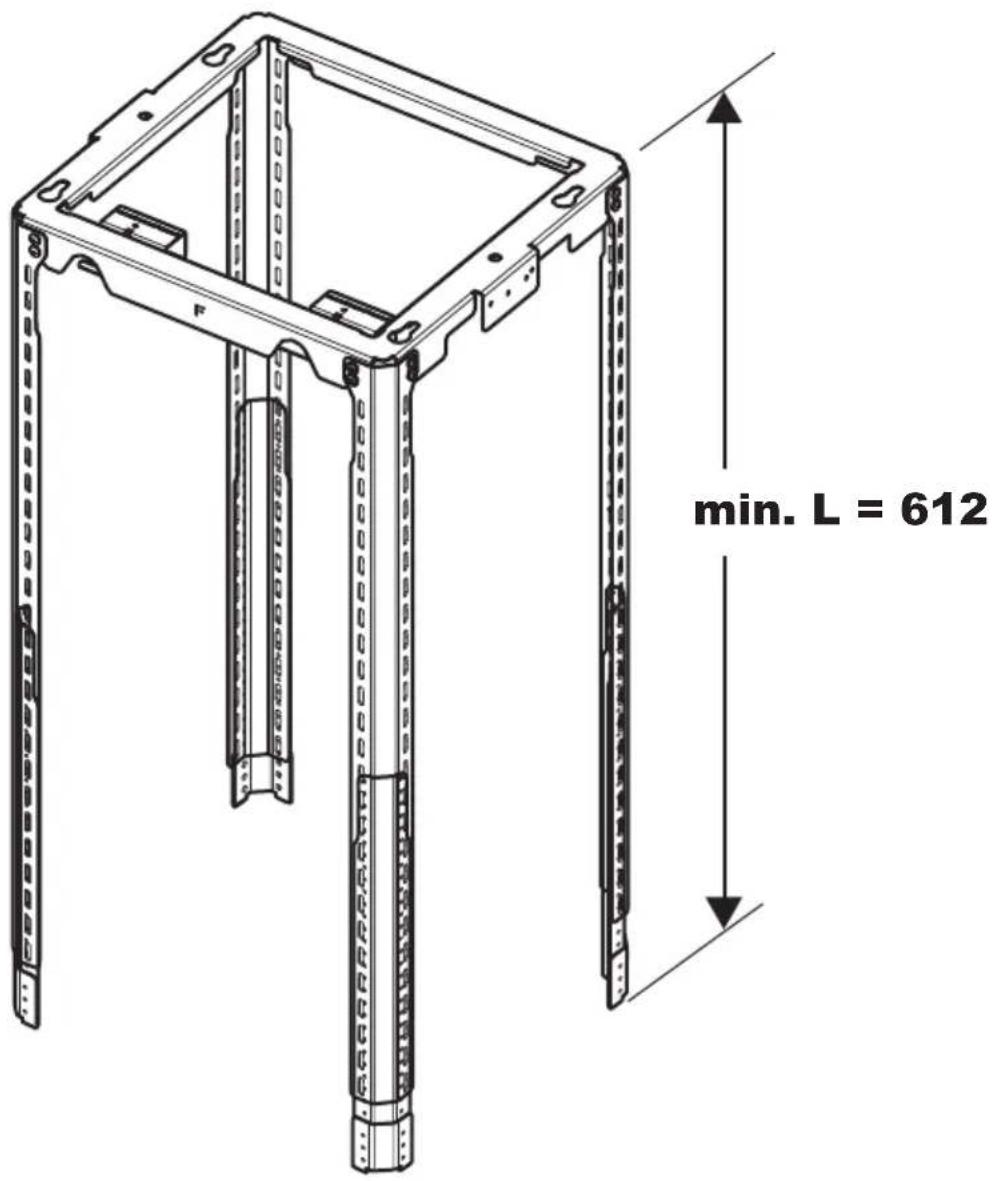

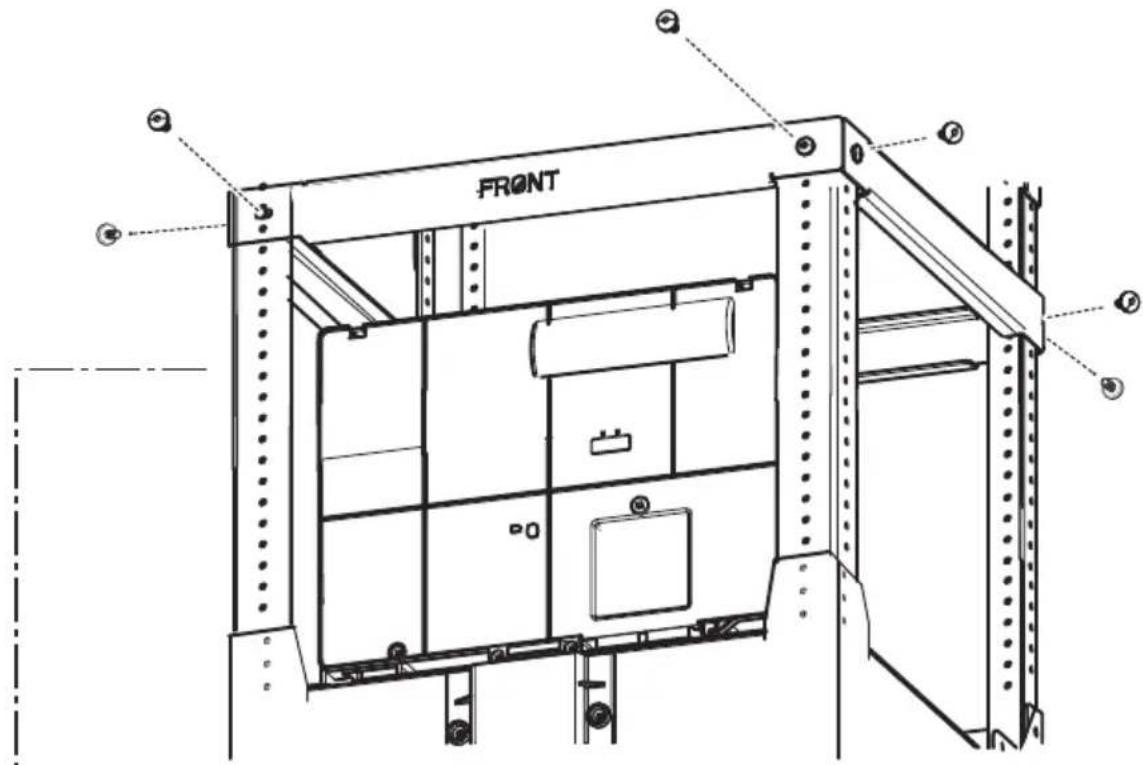

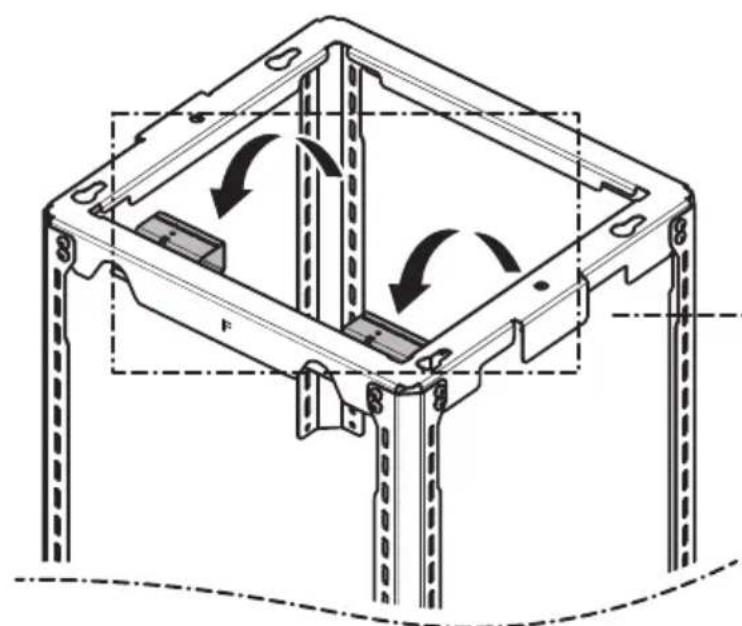

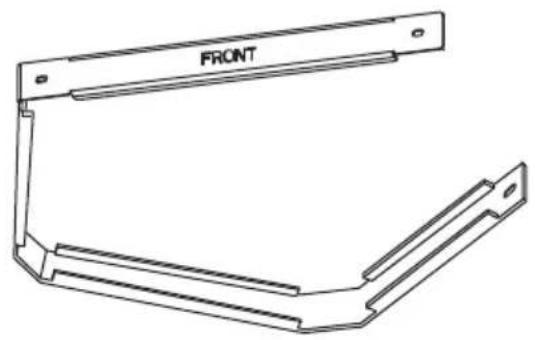

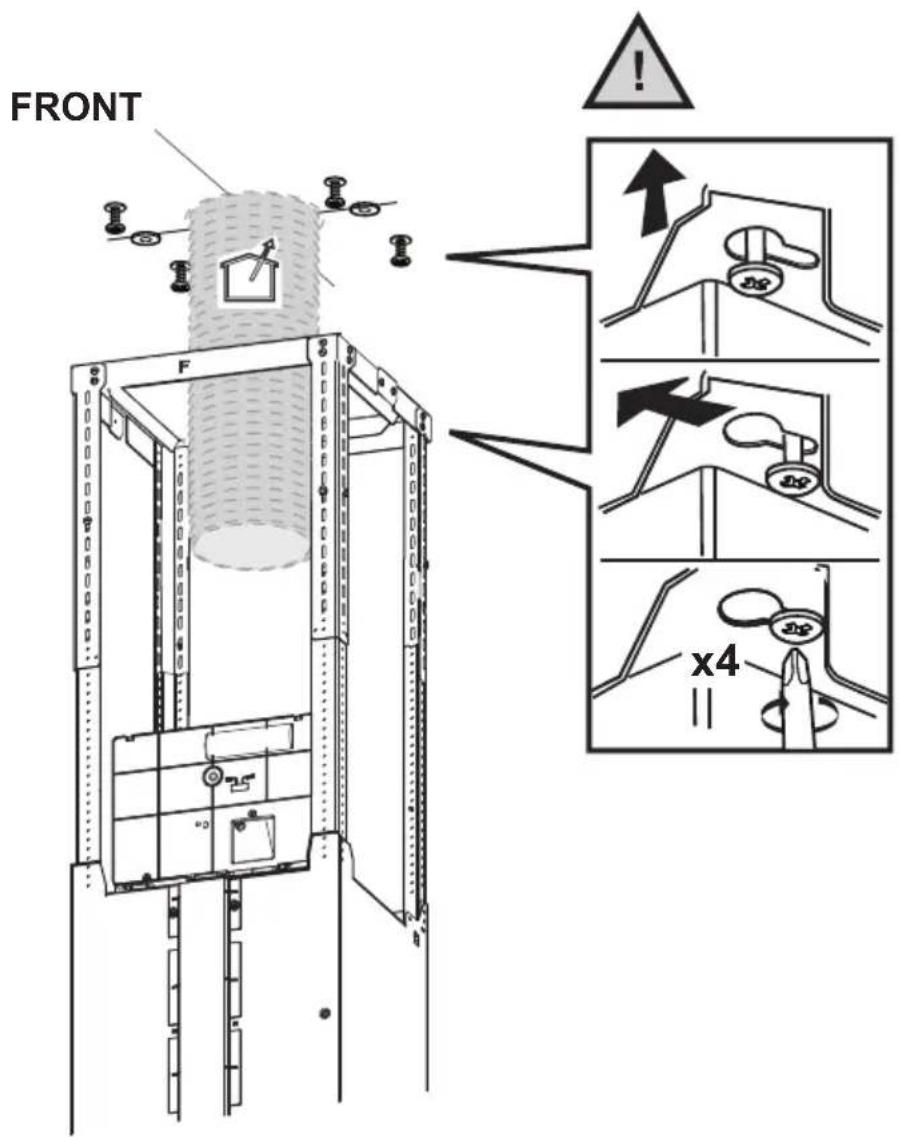

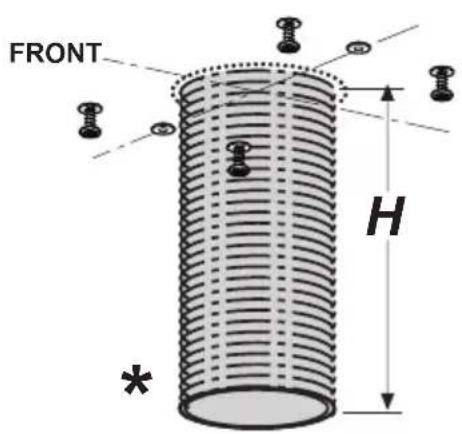

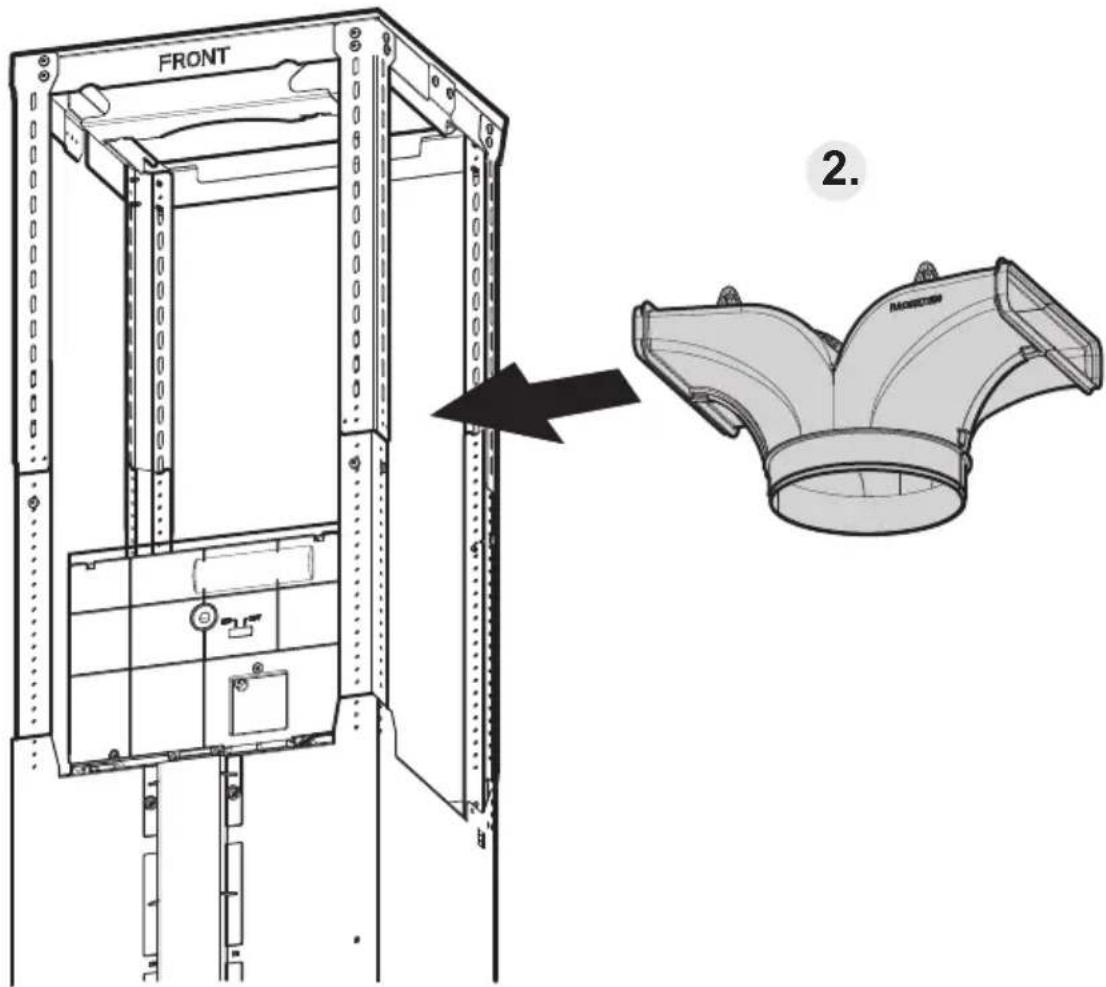

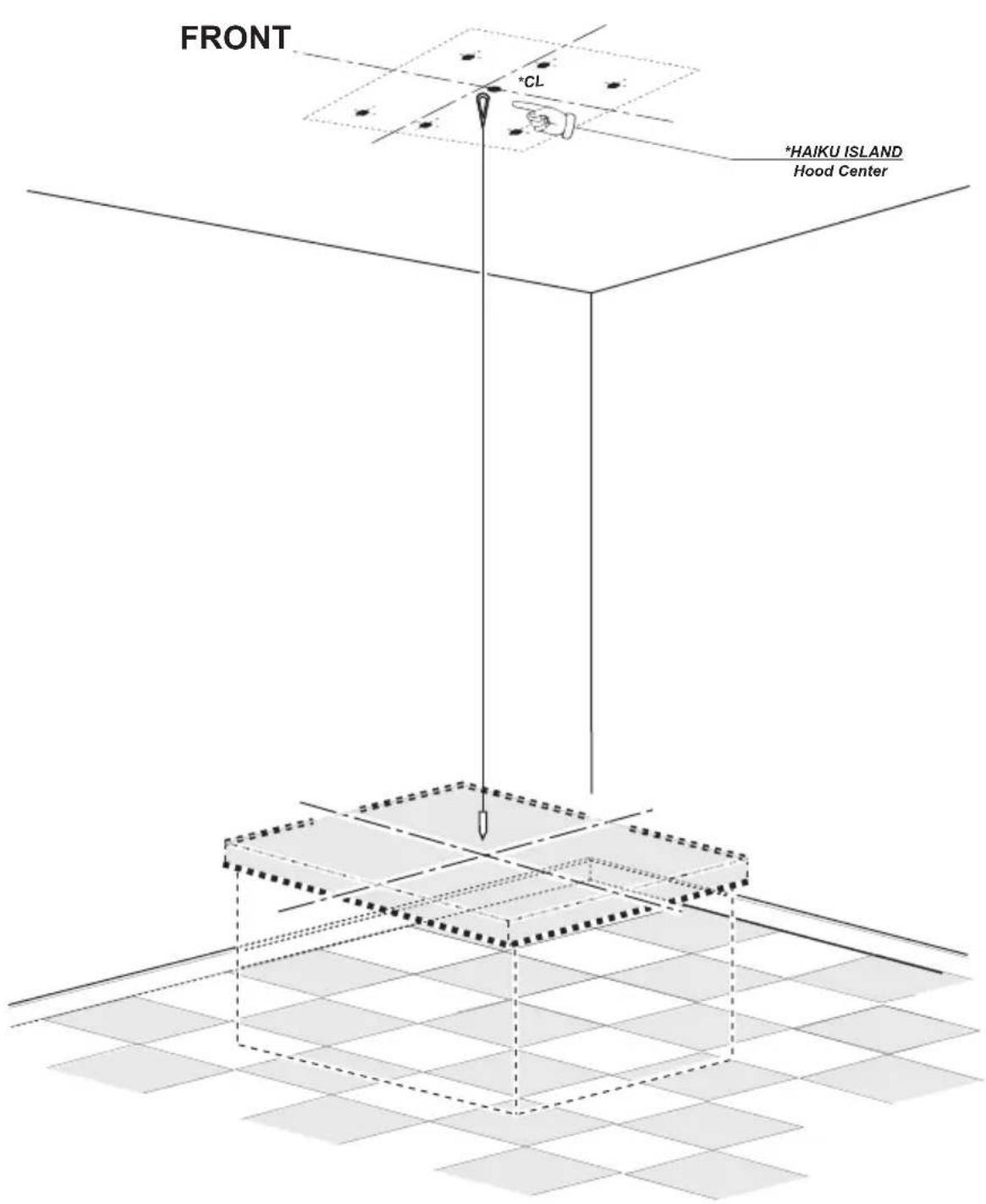

FRONT

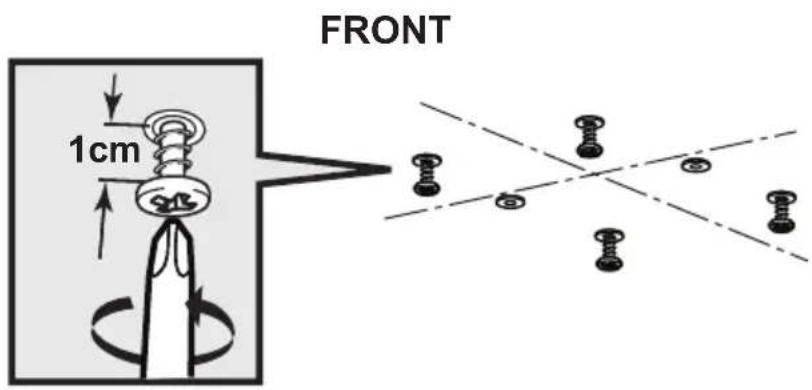

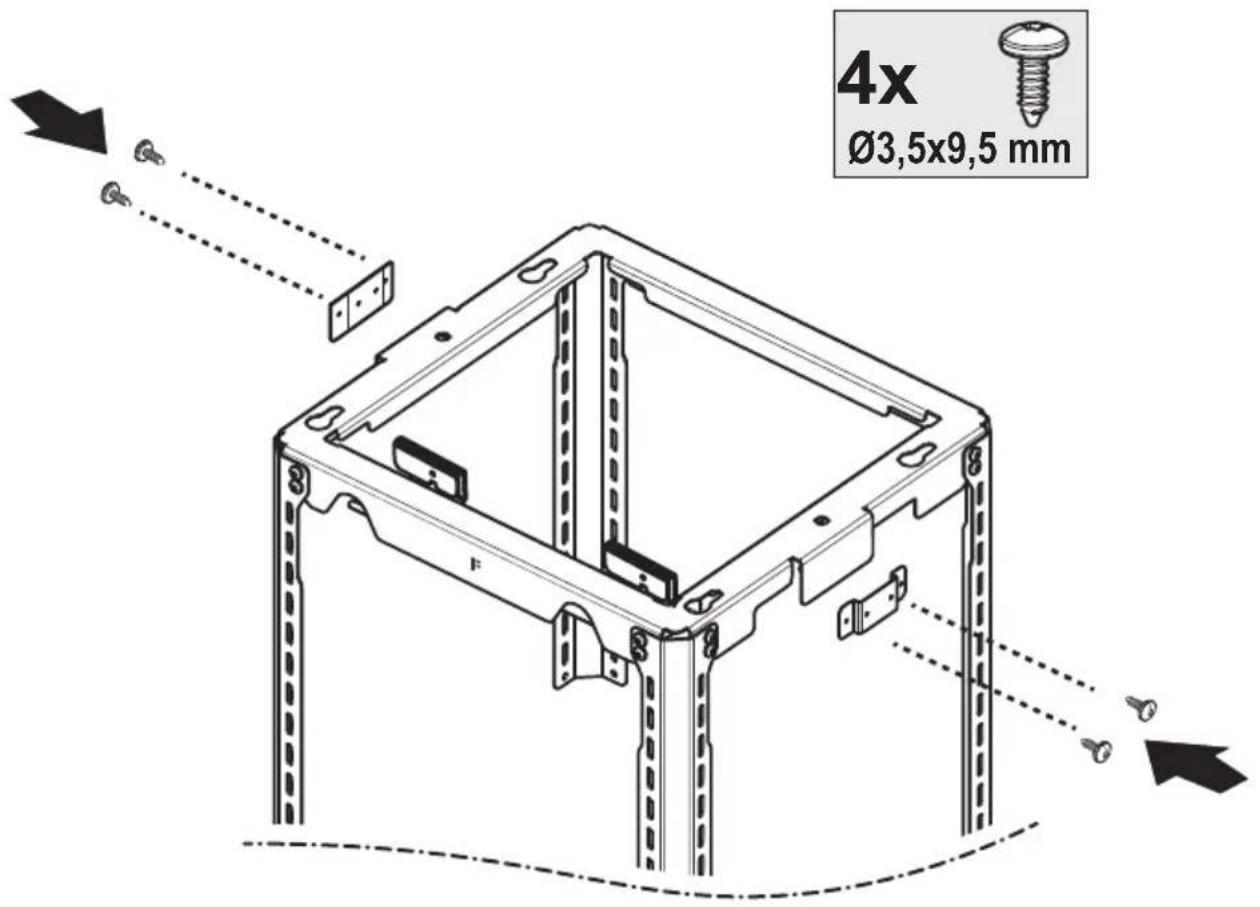

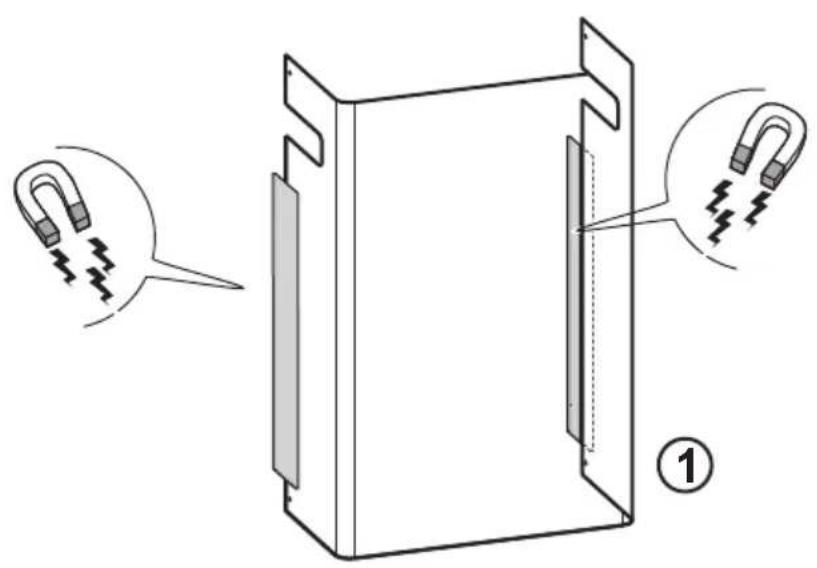

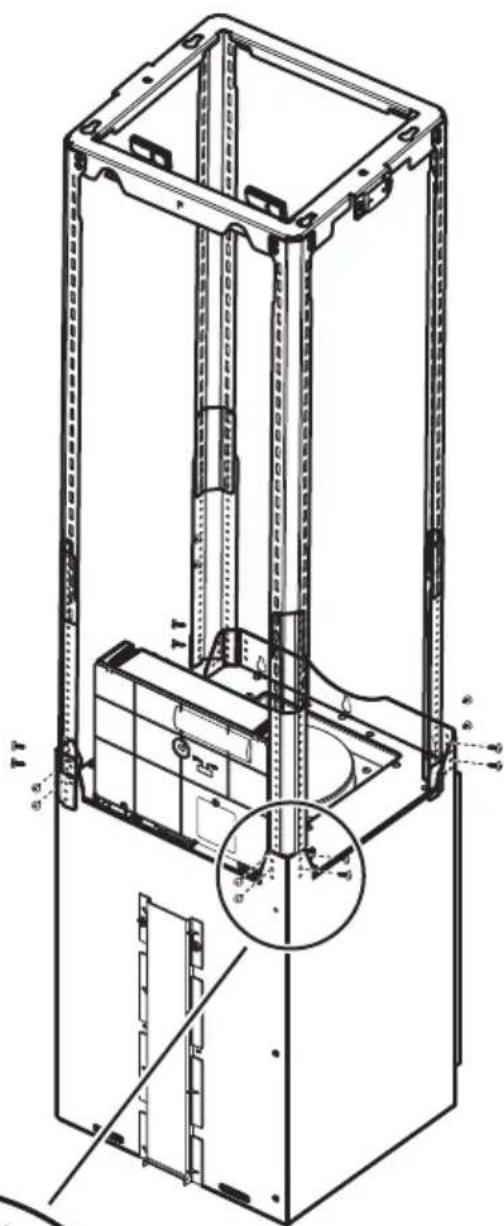

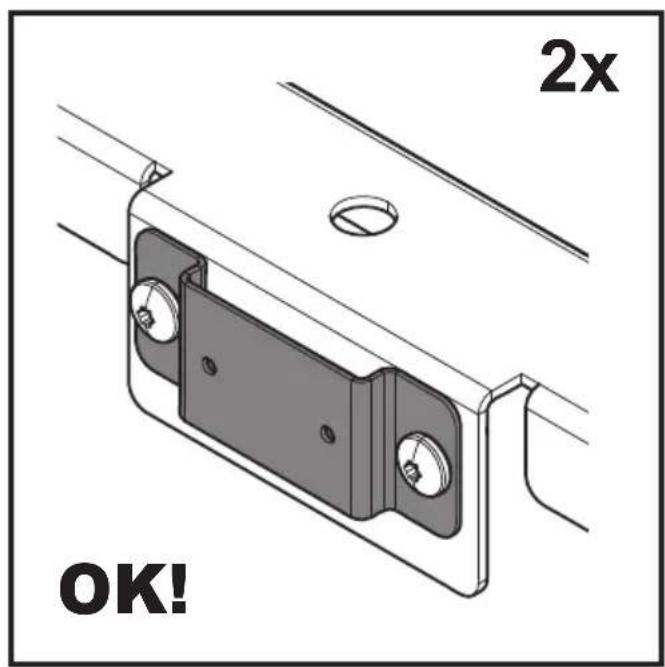

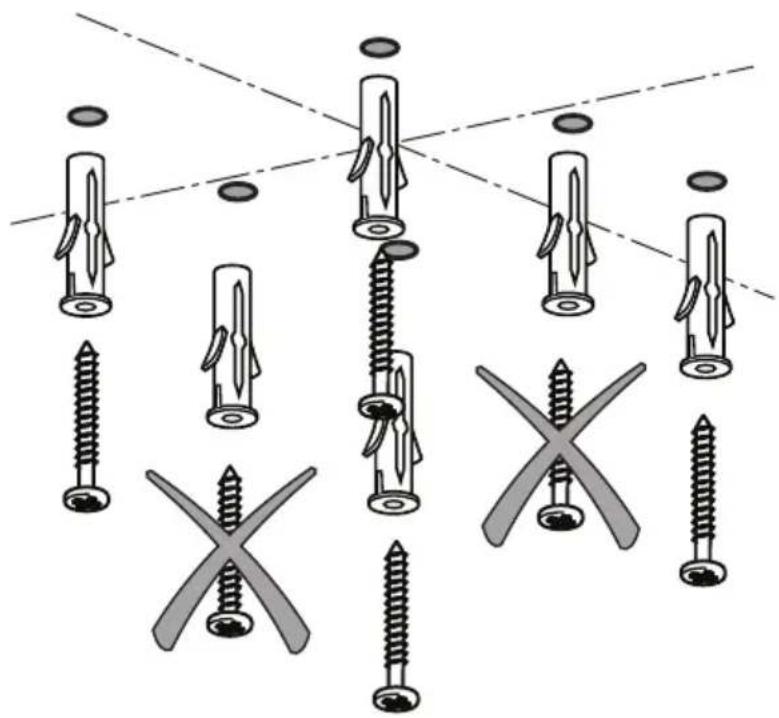

4 x ∅4 x 70mm

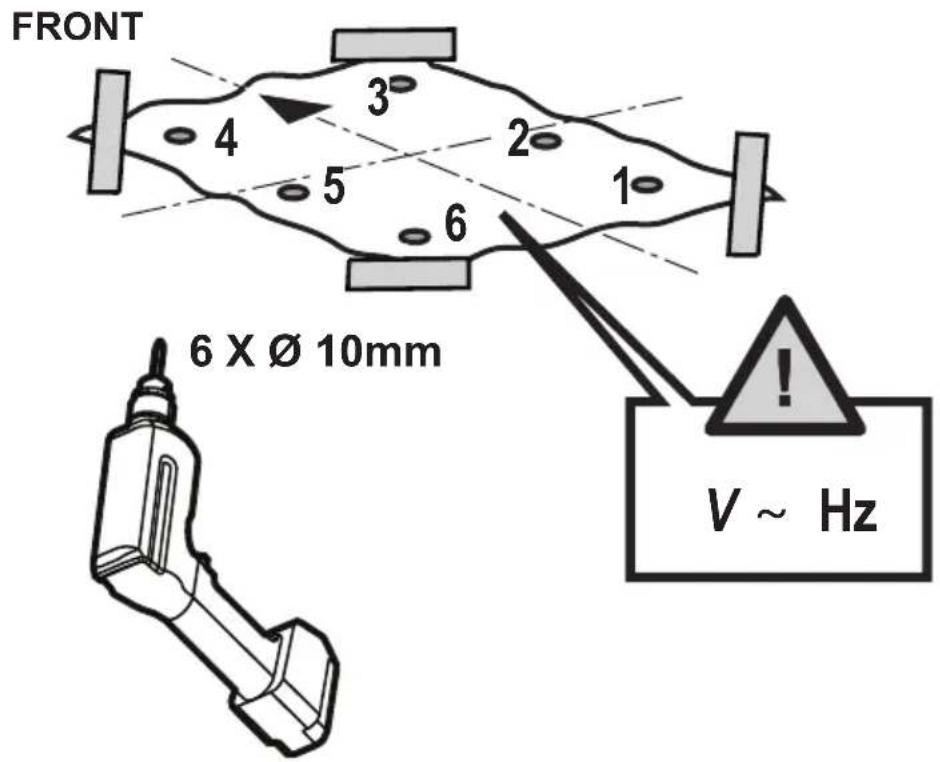

6 x ∅ 10mm

6

7

8

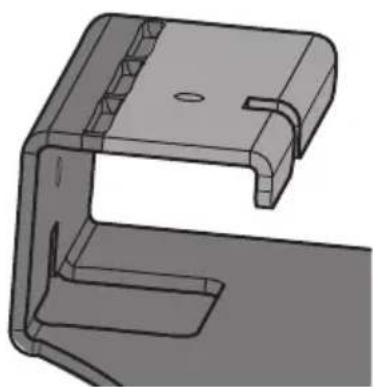

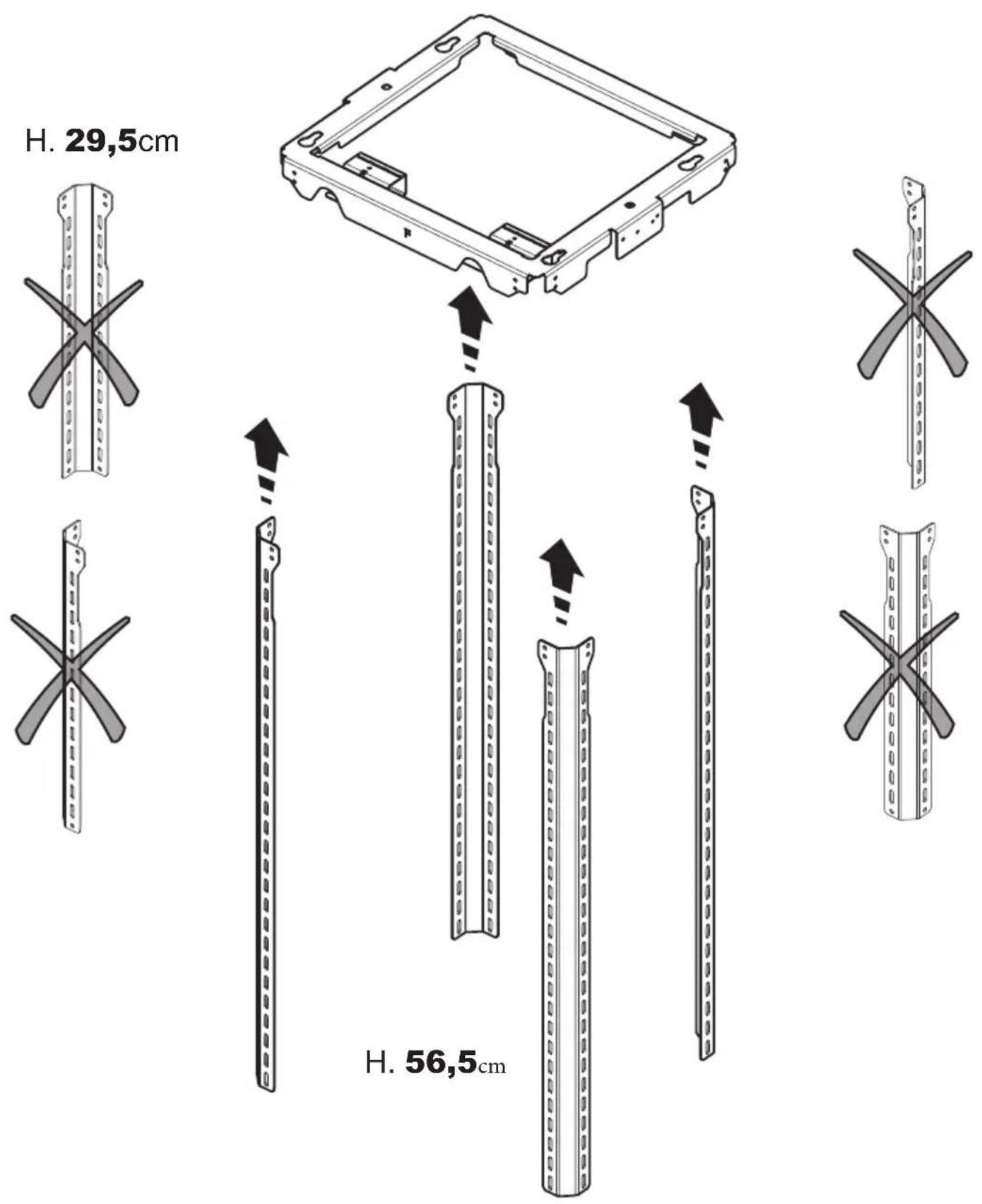

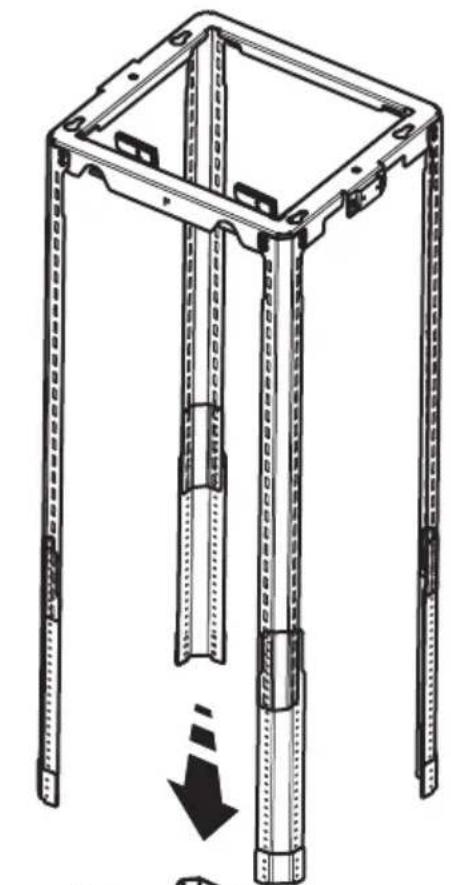

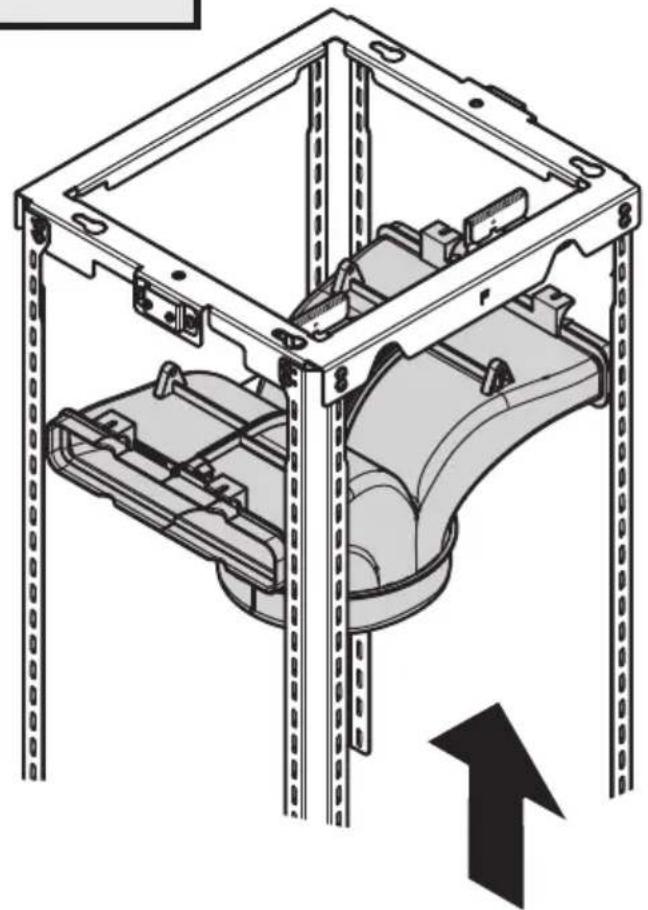

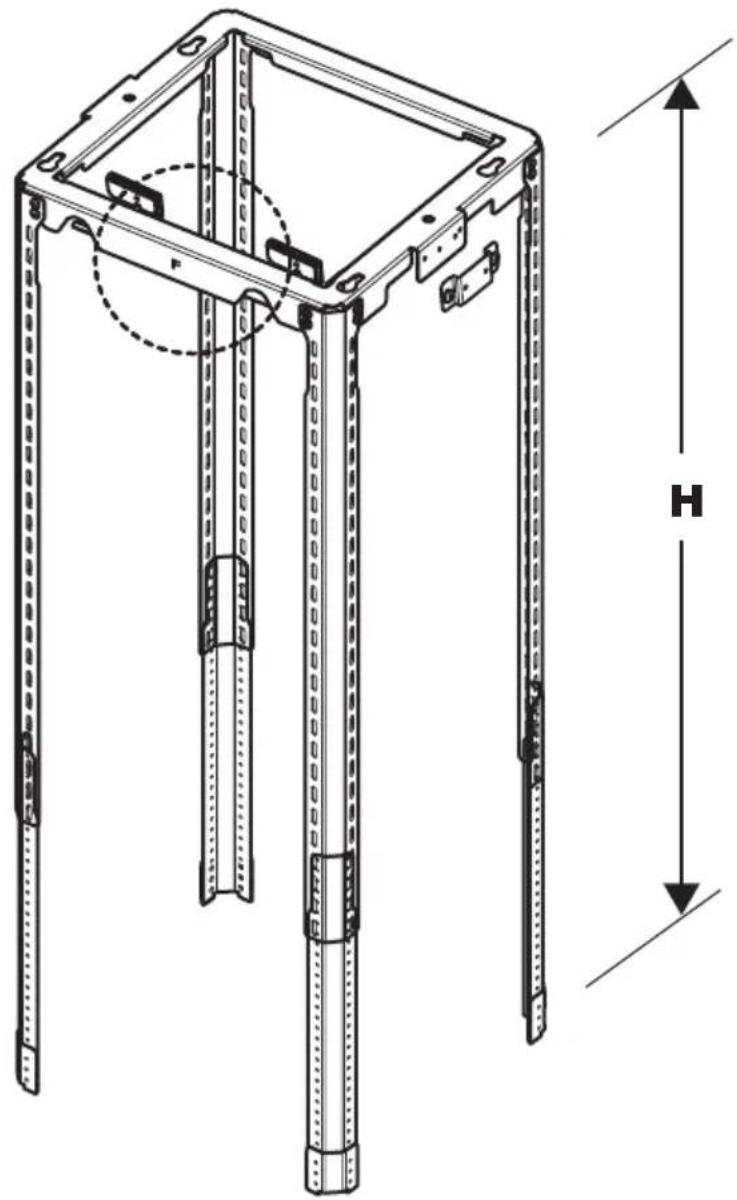

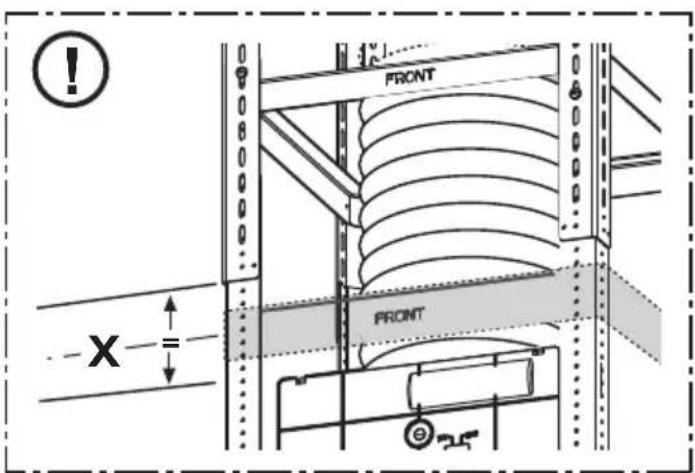

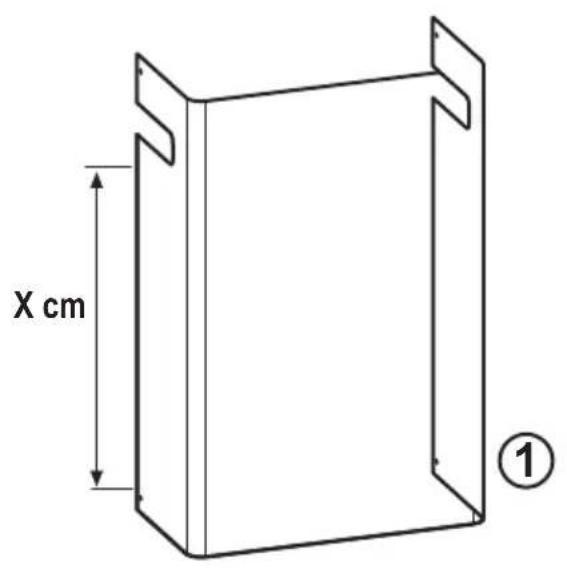

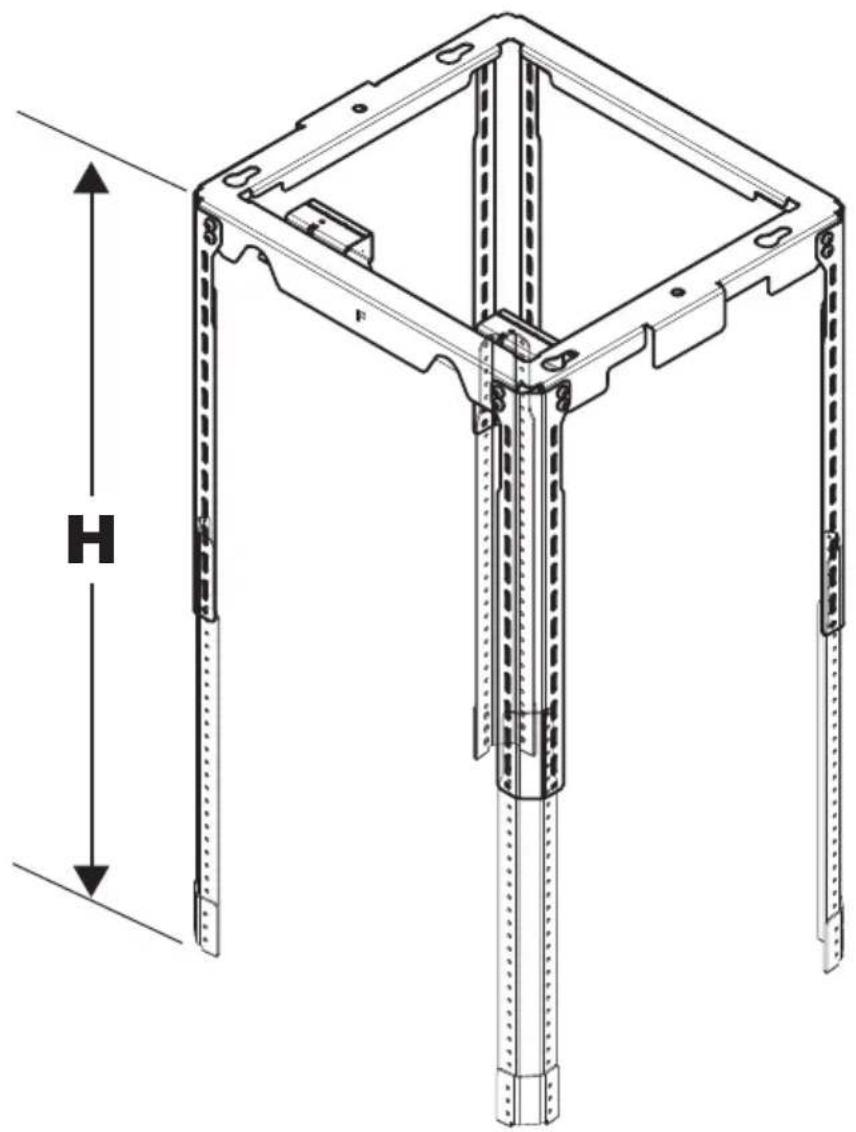

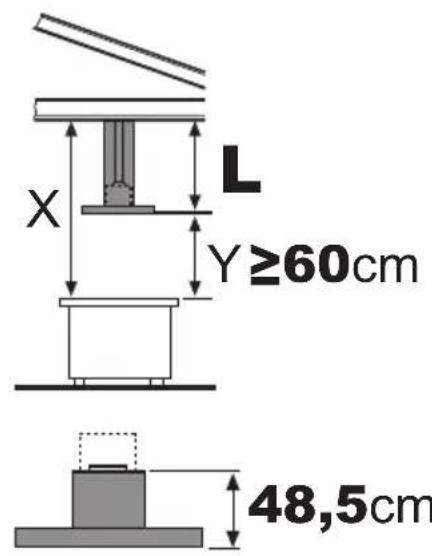

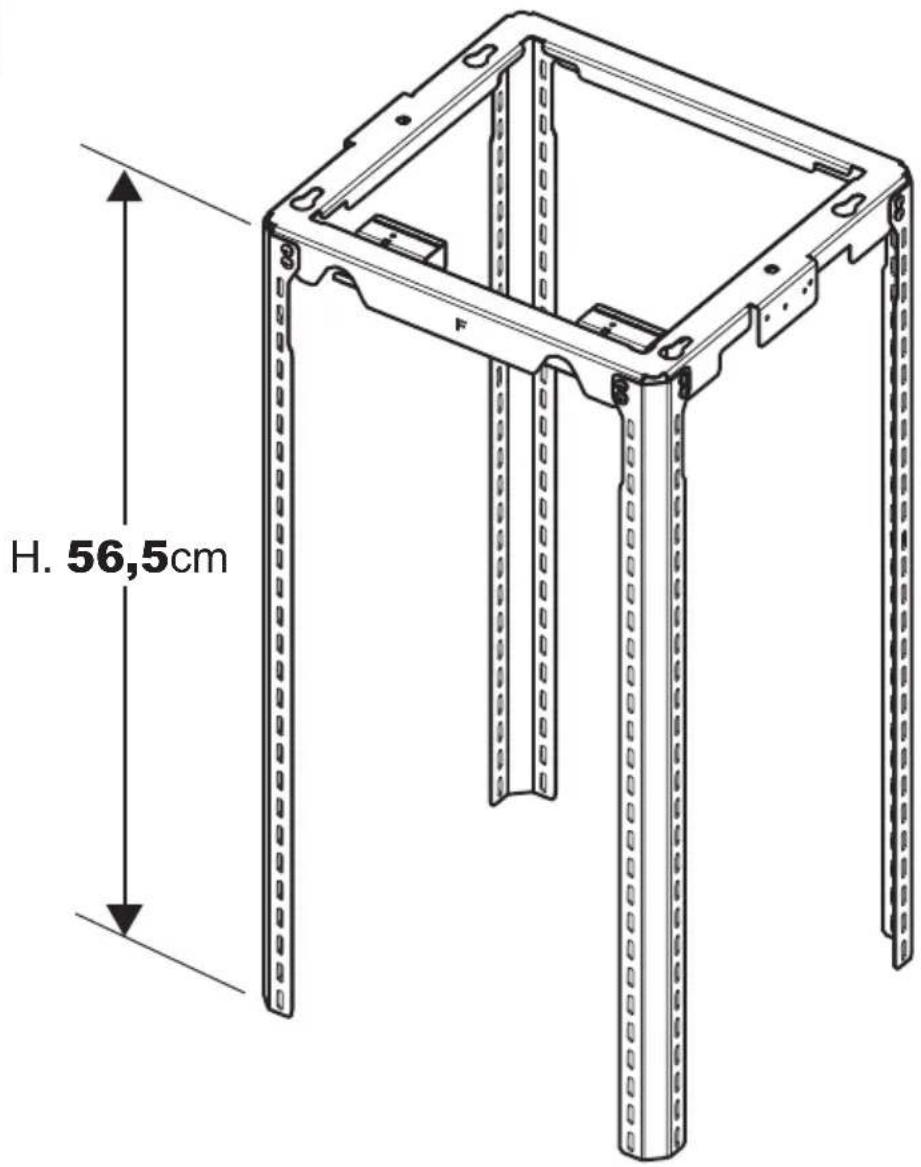

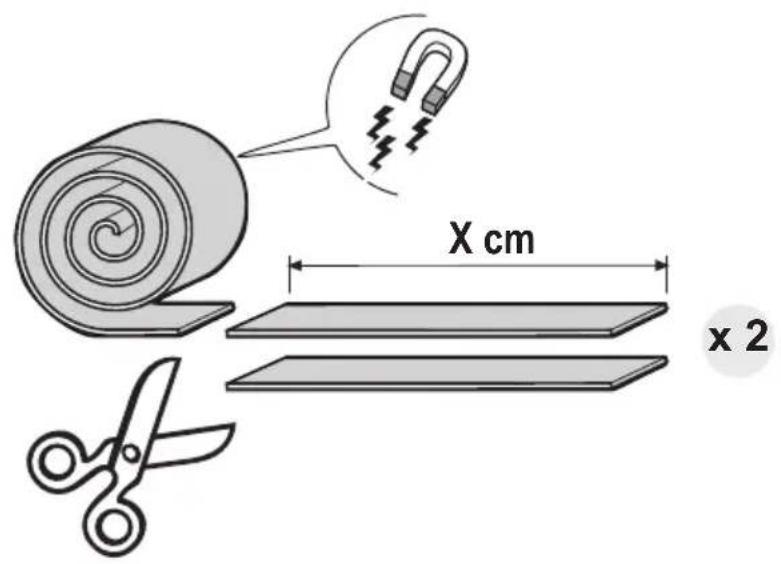

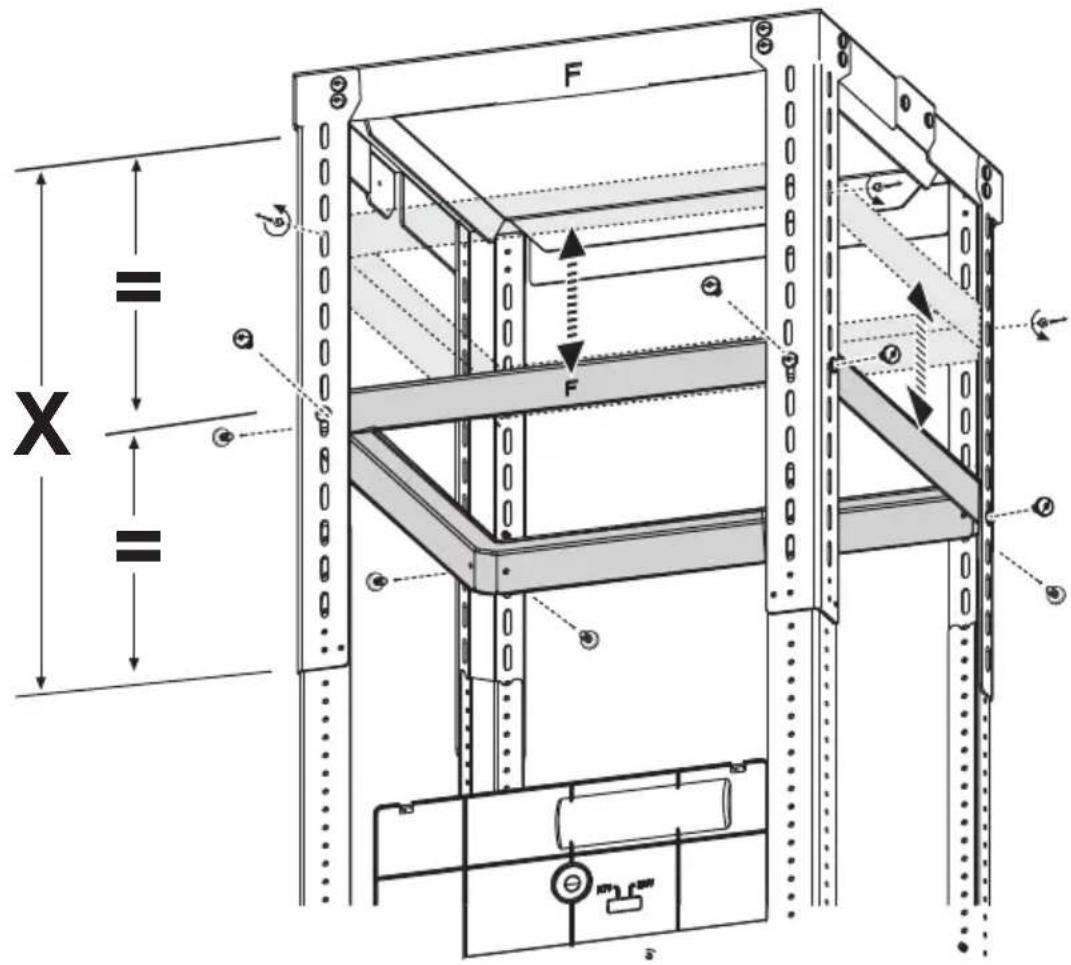

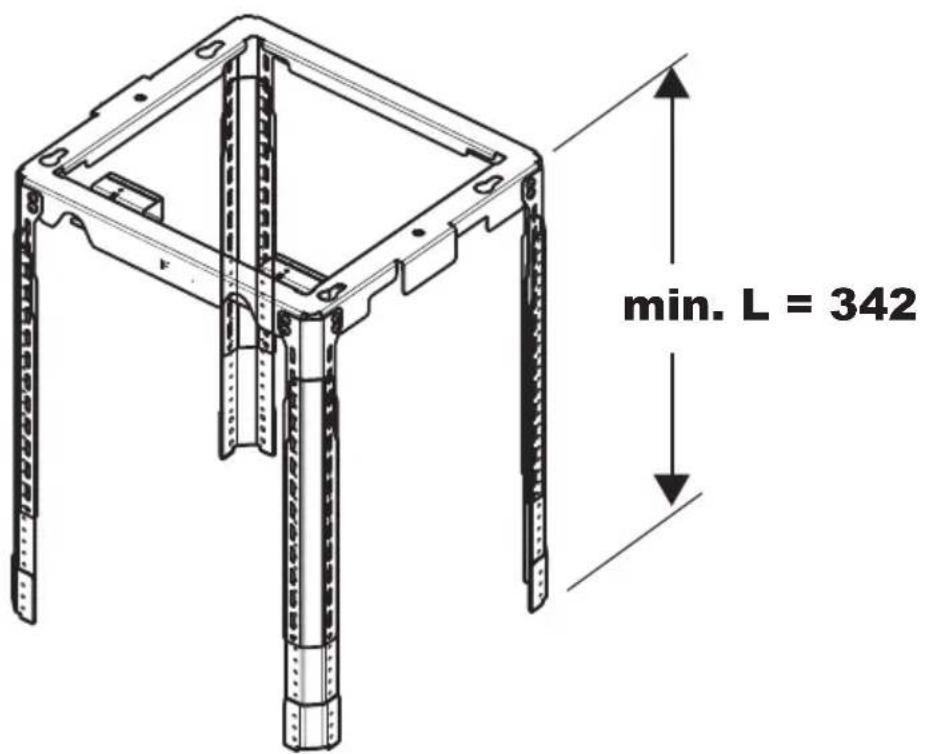

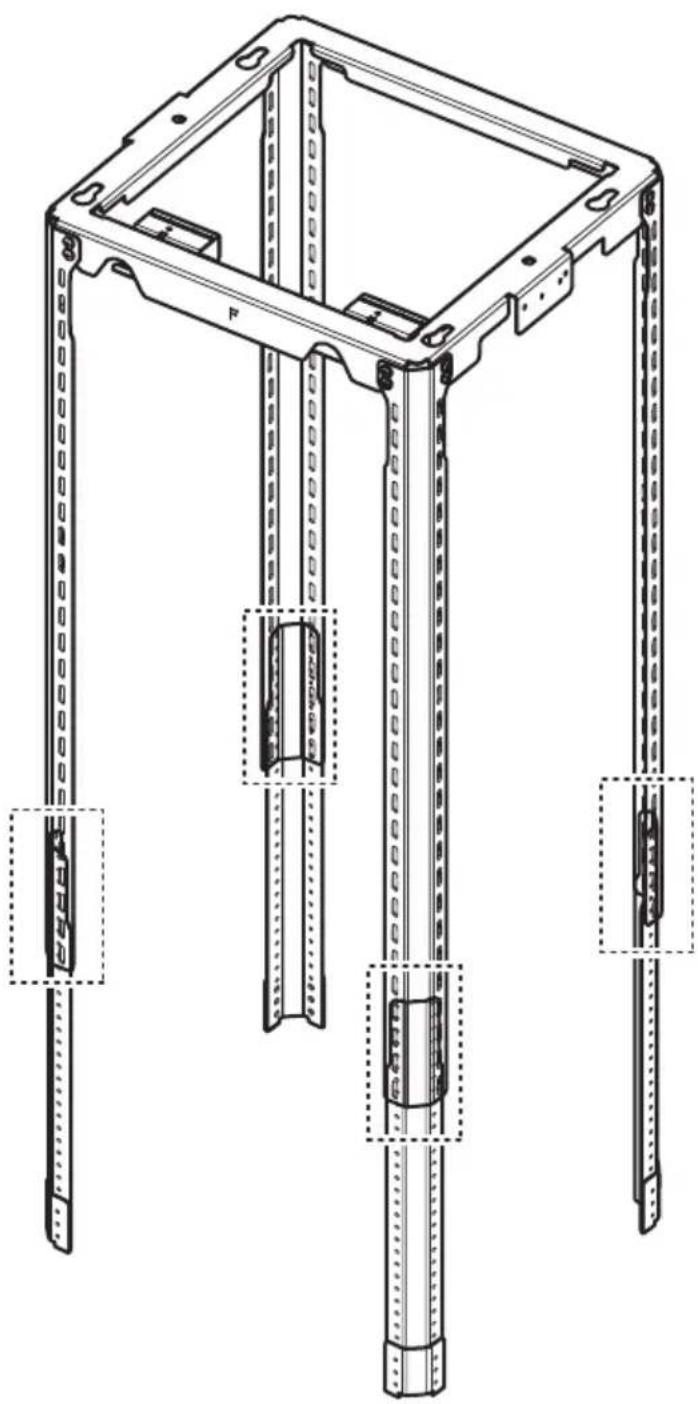

H _ (cm) = (X - Y - 4 8, 5 cm)

16x ∅3,5x9,5 mm

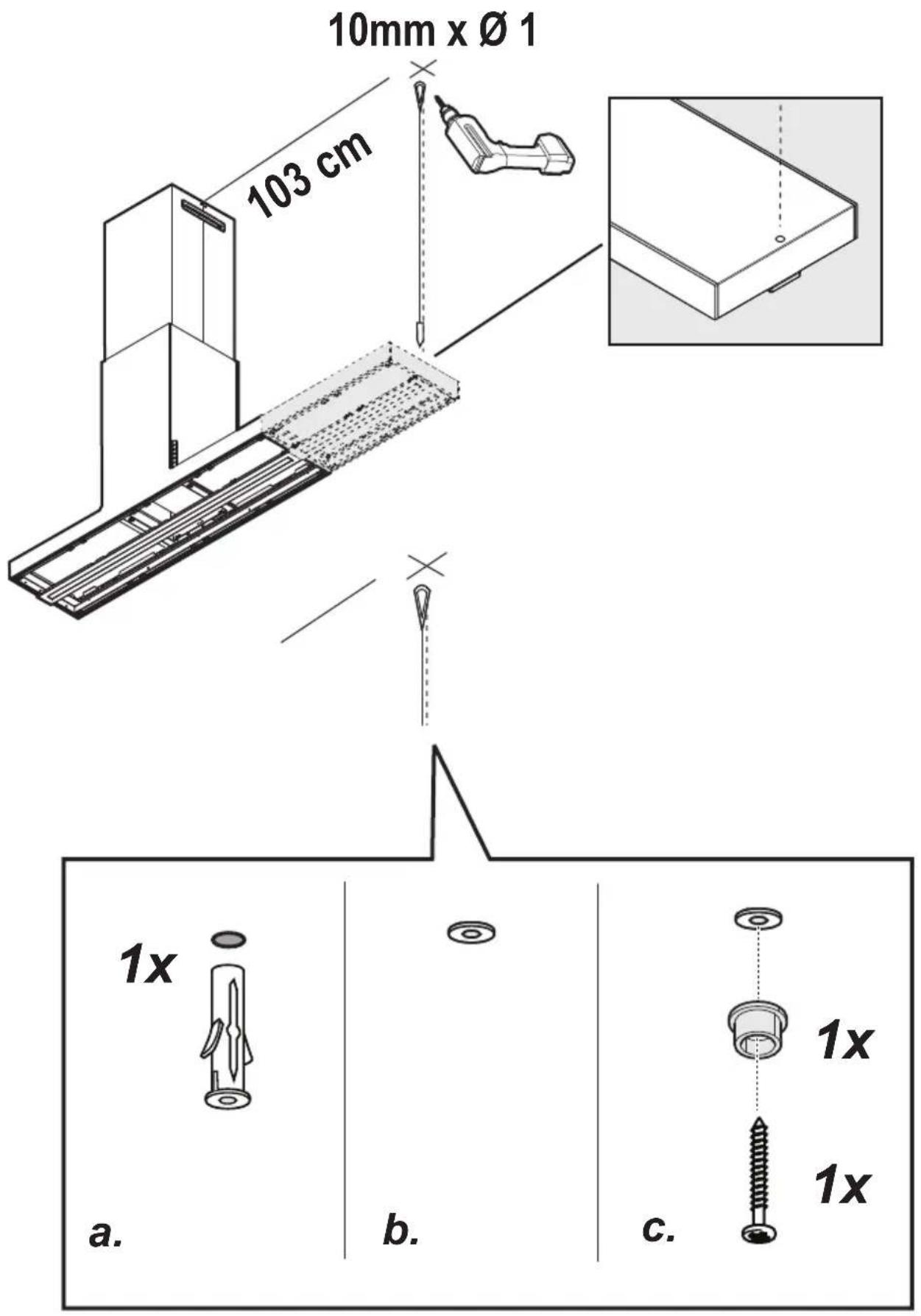

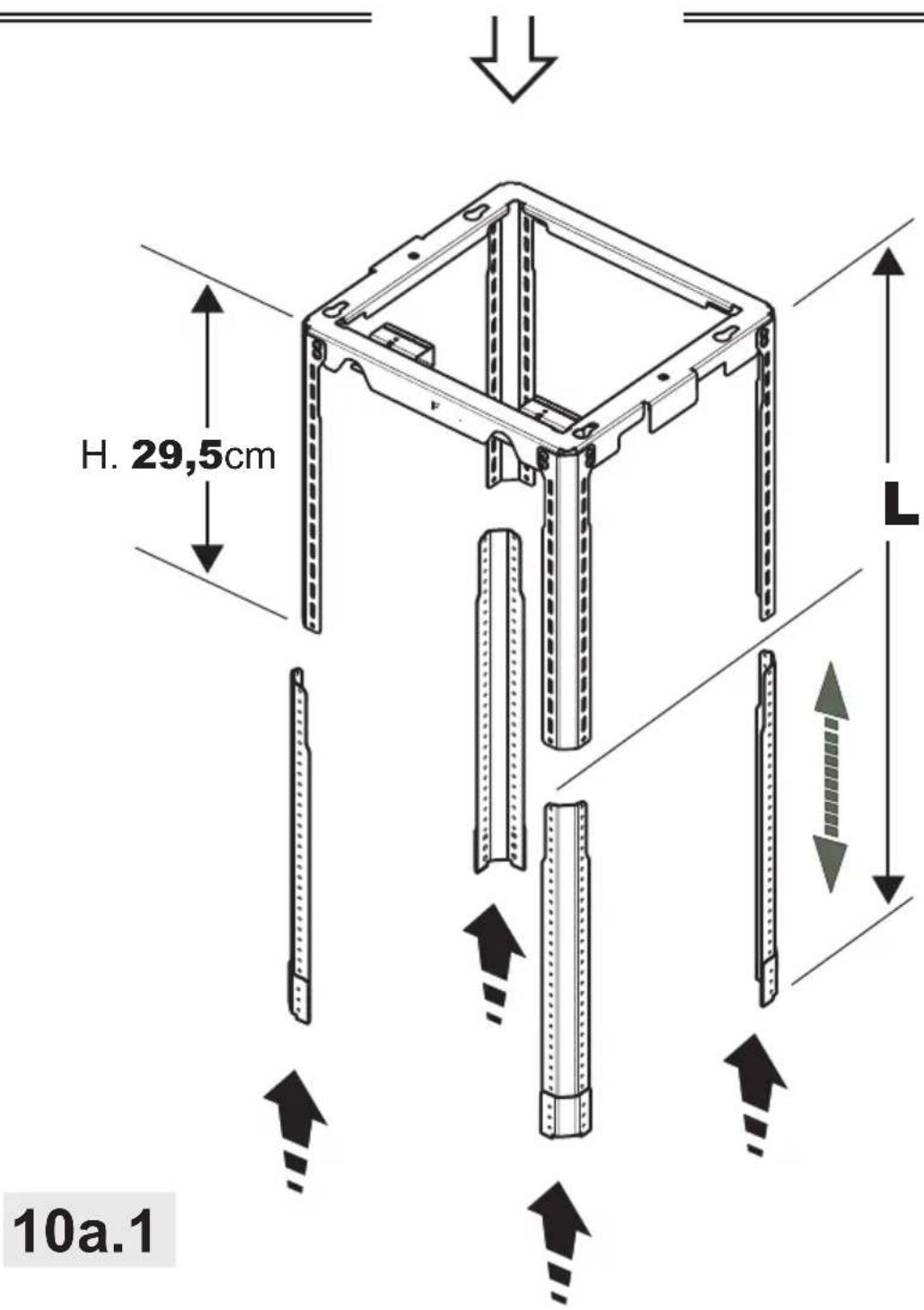

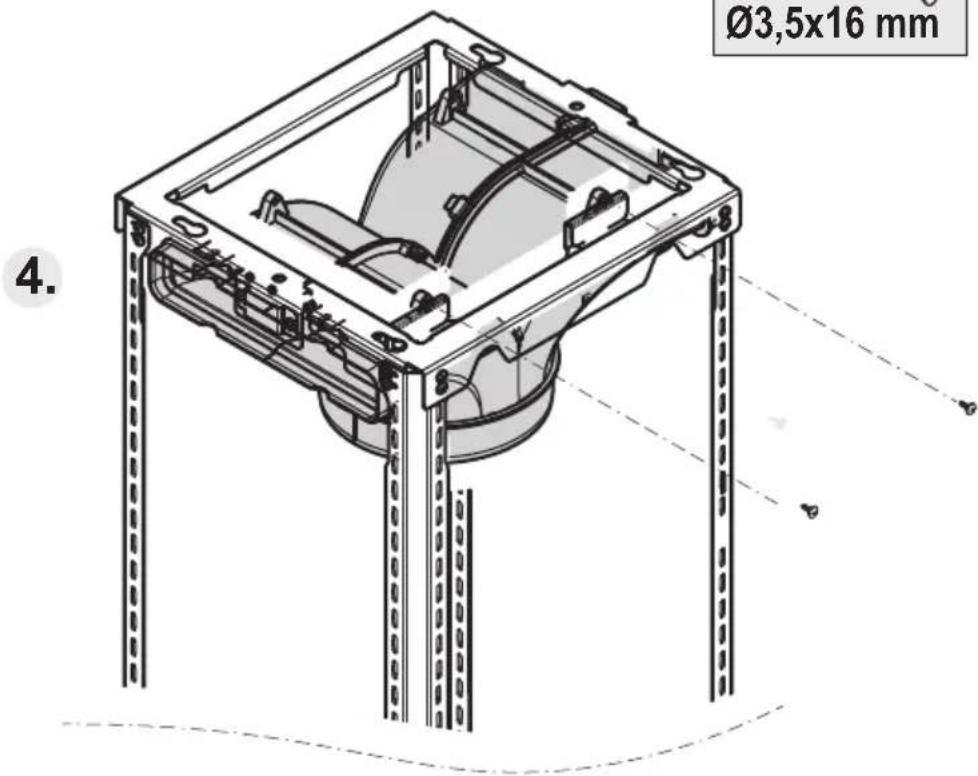

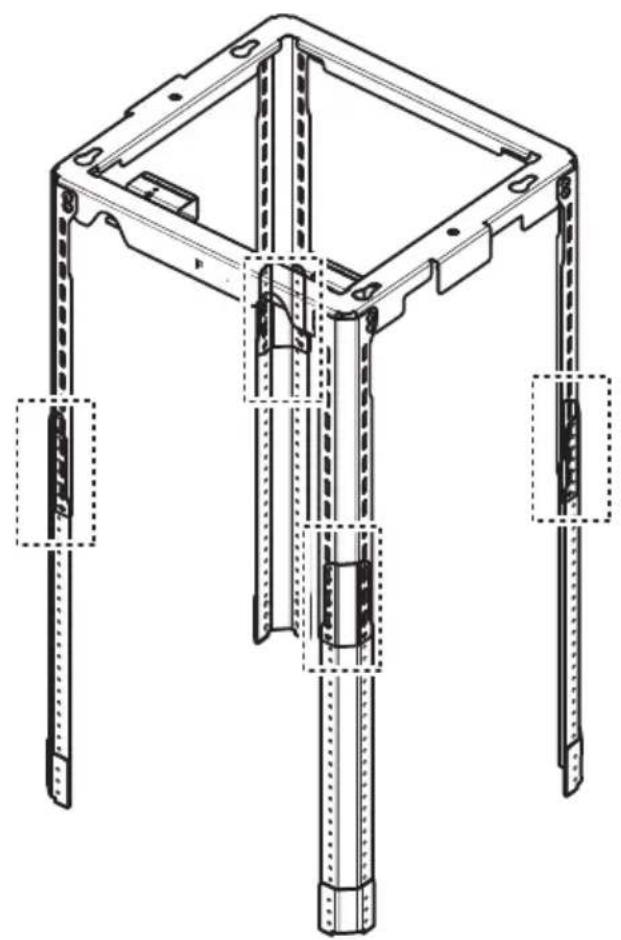

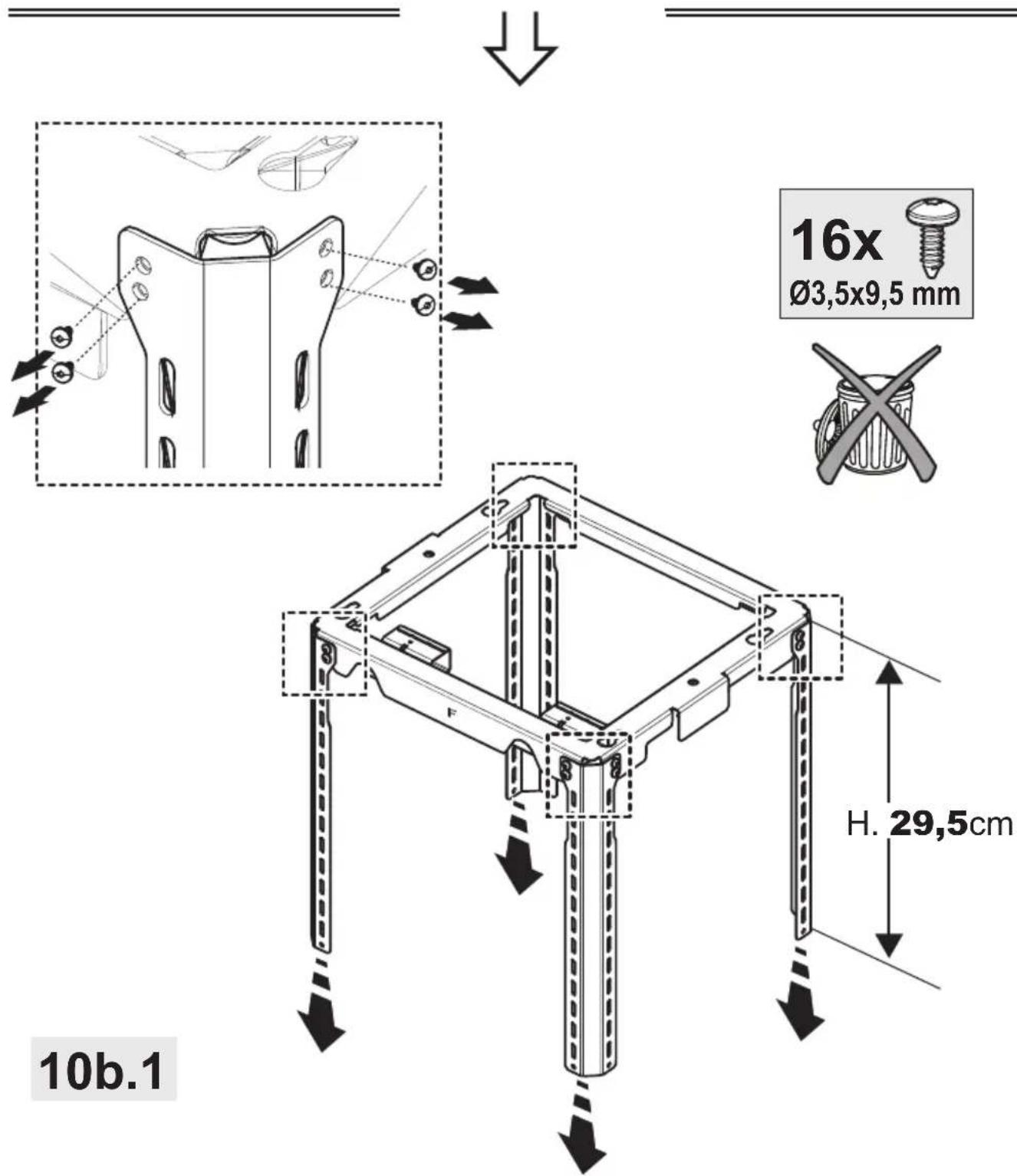

10a.2

1.

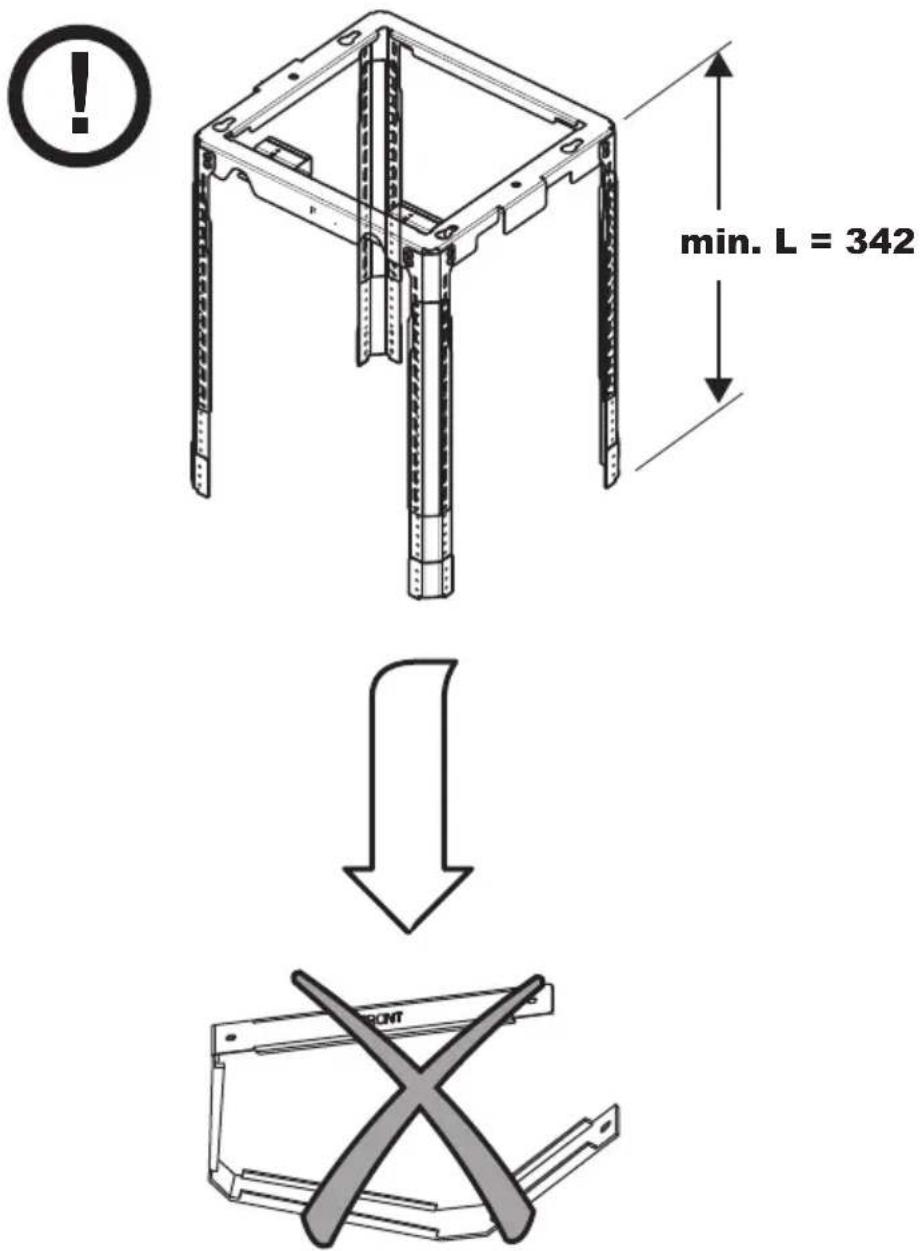

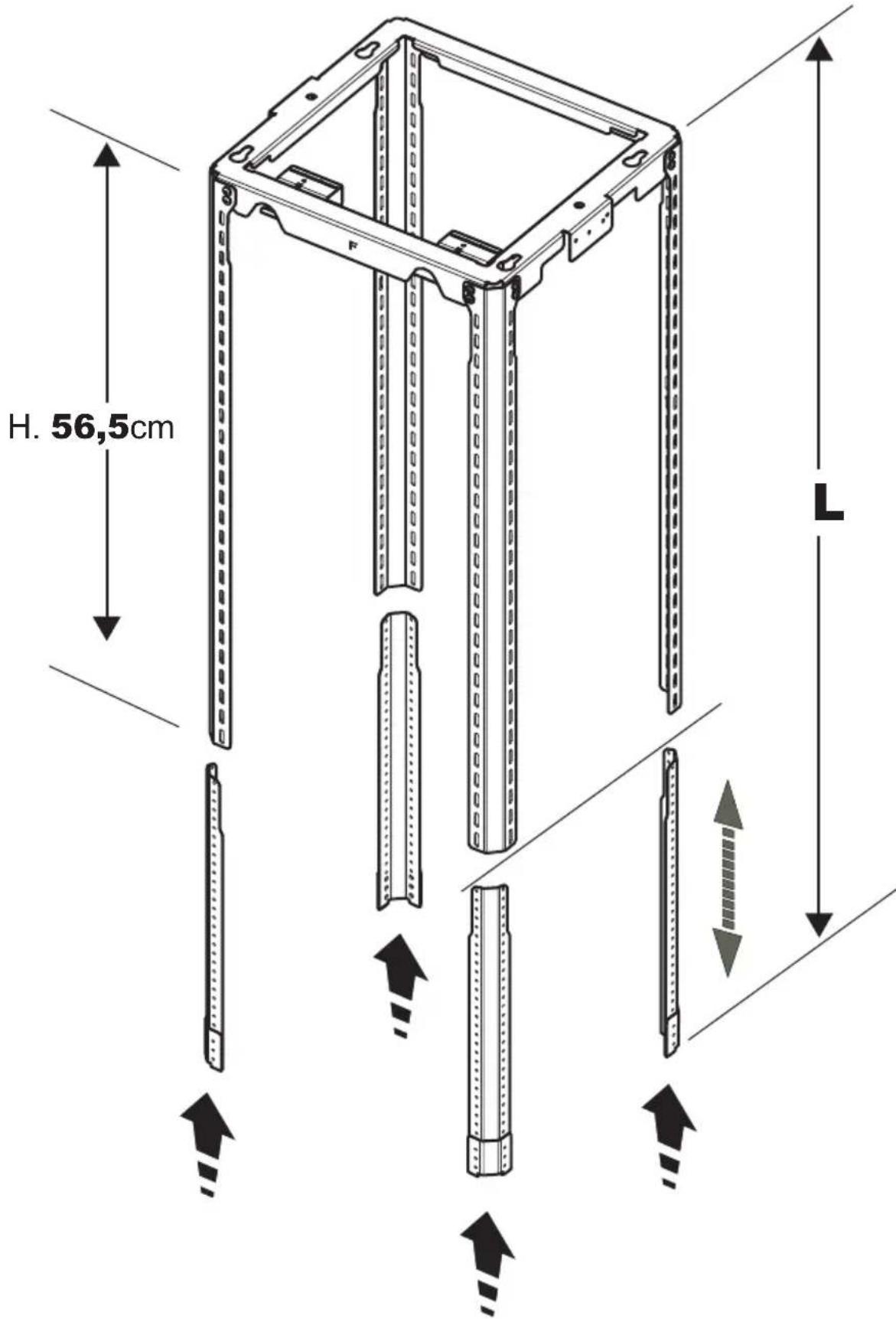

L= 110-117 (cm)

L= 110-125 (cm)

16x

∅3.5x9.5 mm

10b.3

10b.4

16x

∅3.5x9.5 mm

10b.5

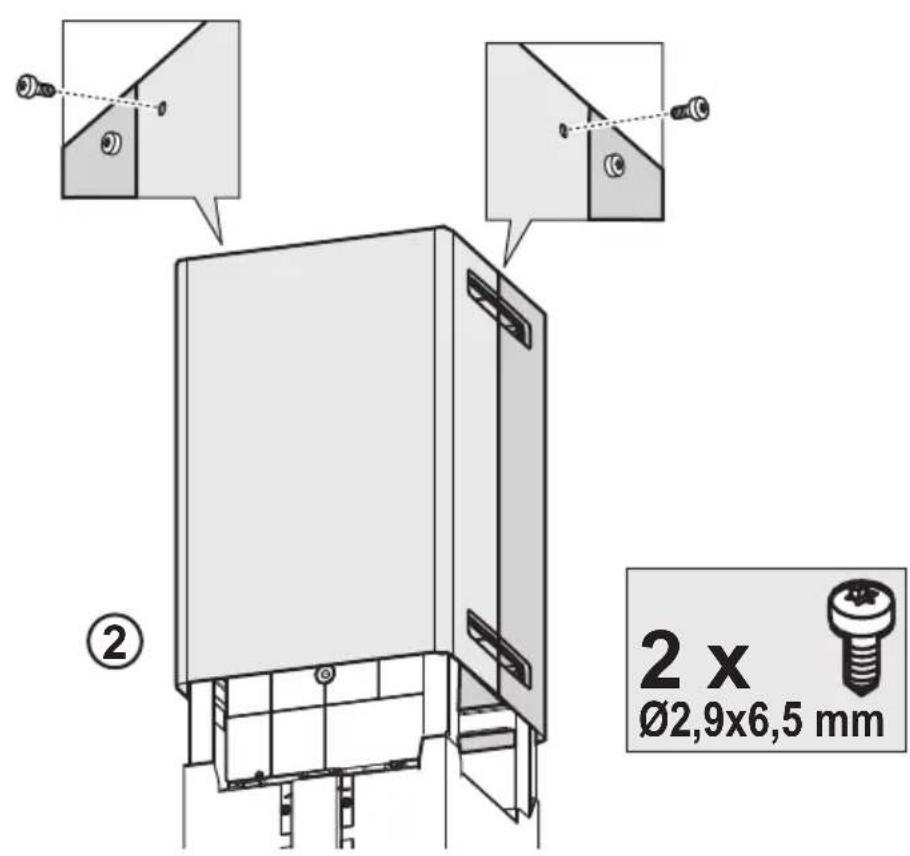

2x

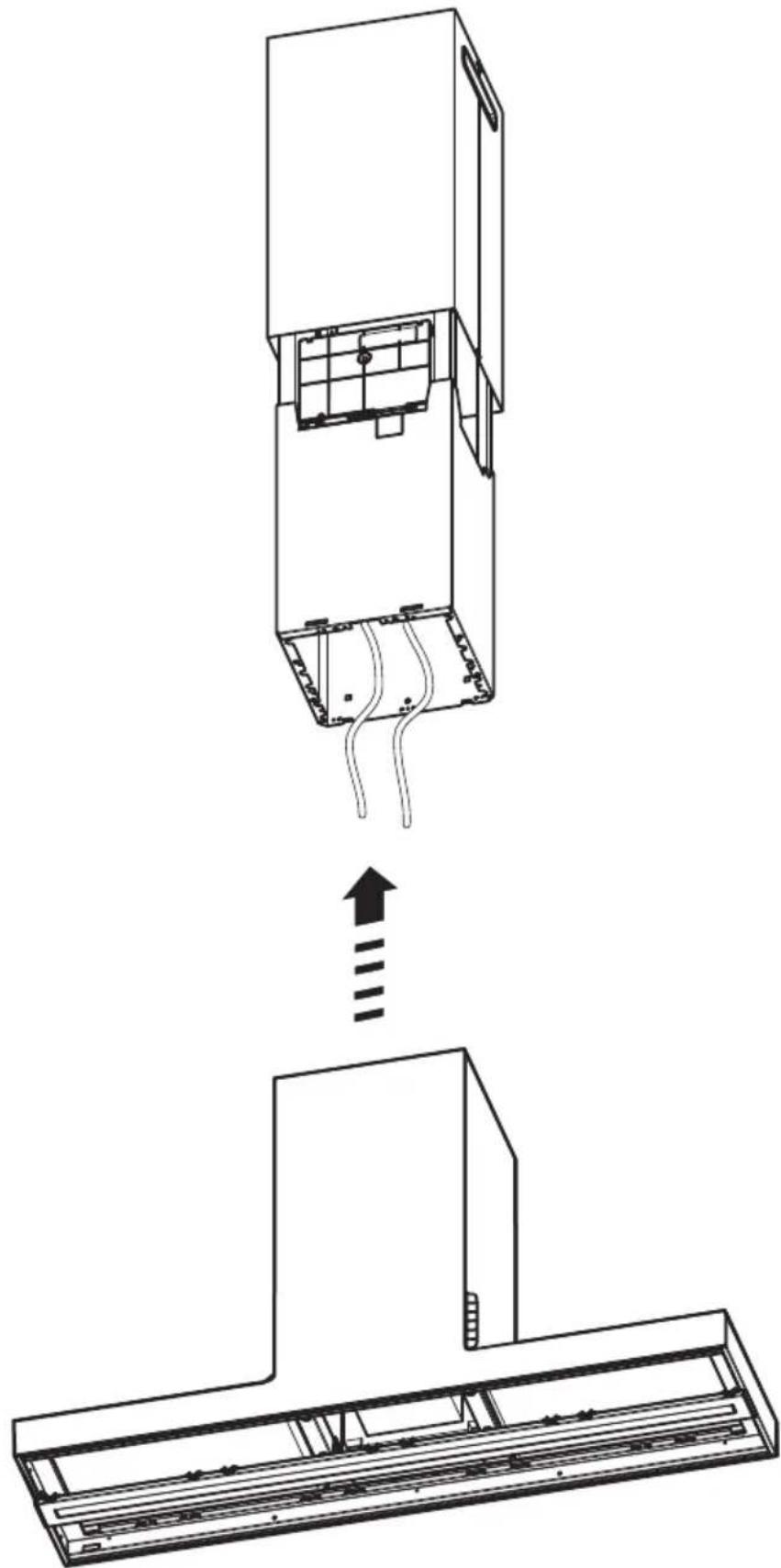

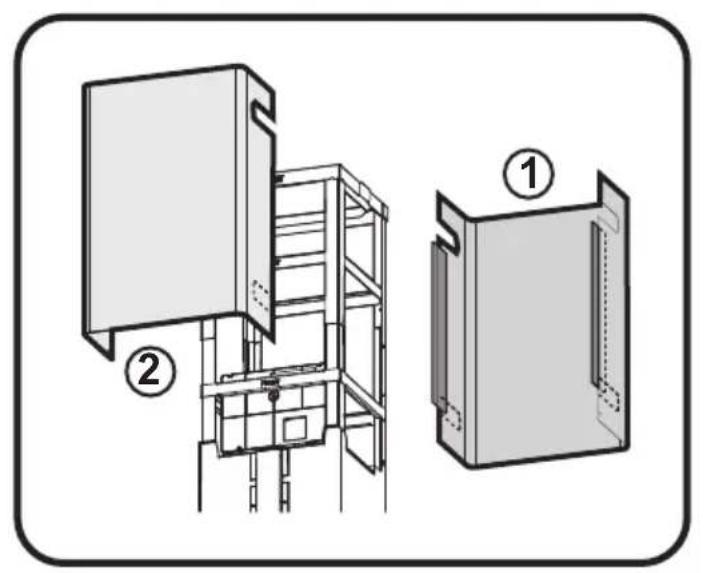

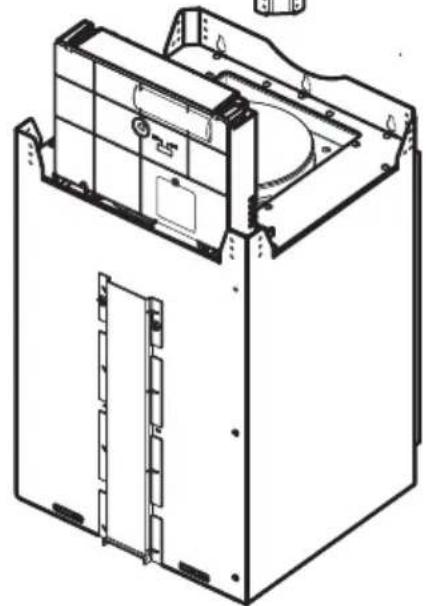

13

14

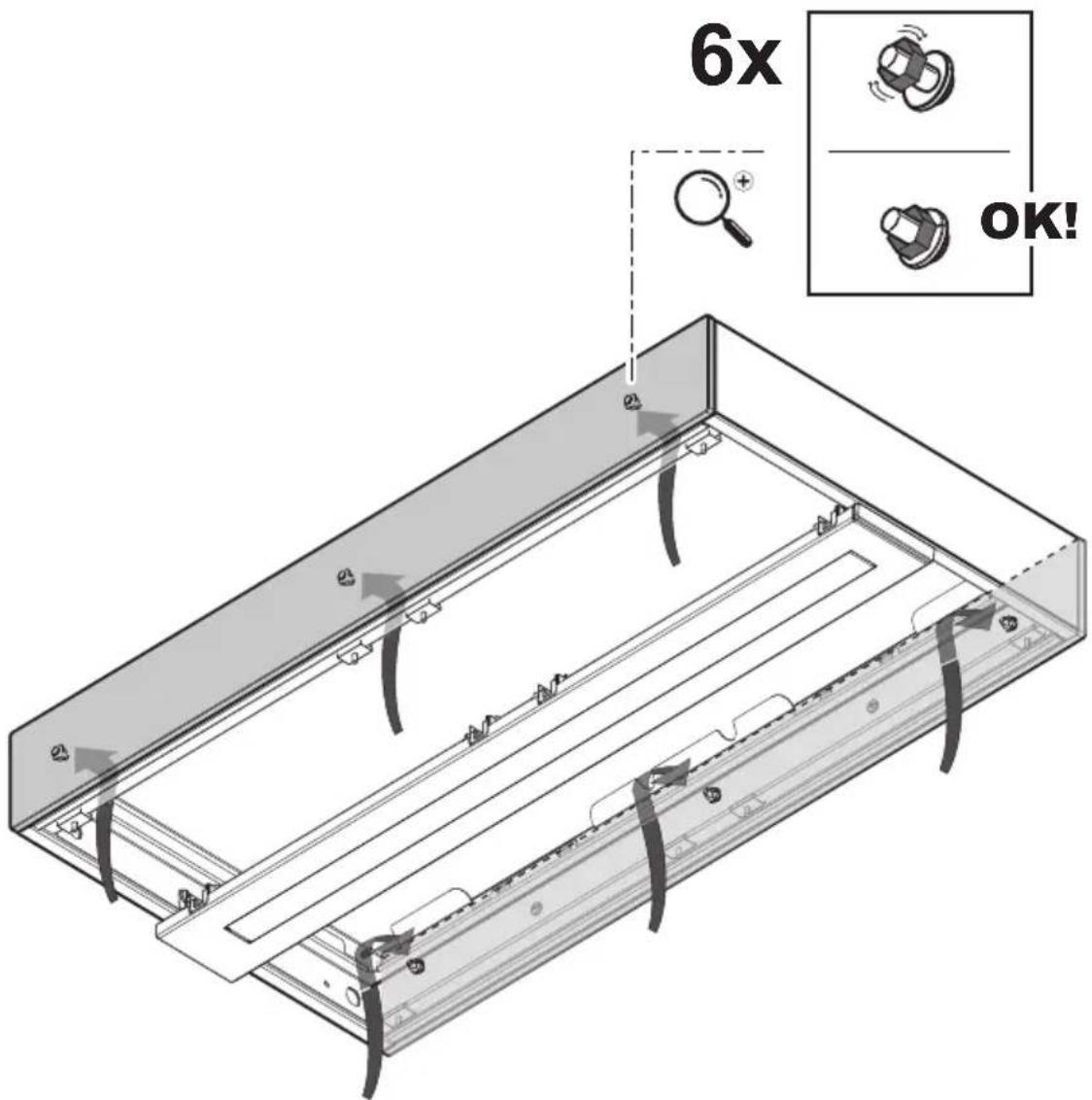

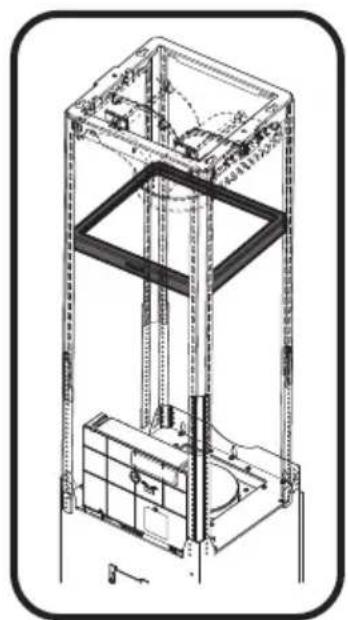

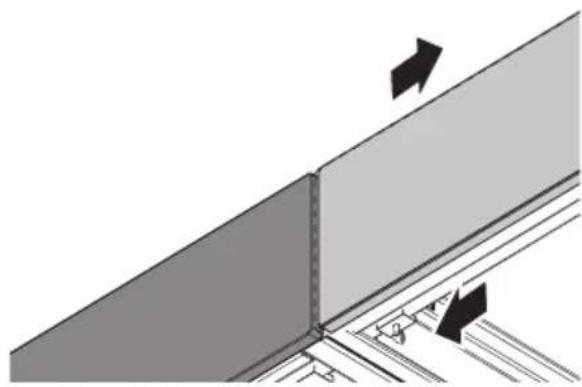

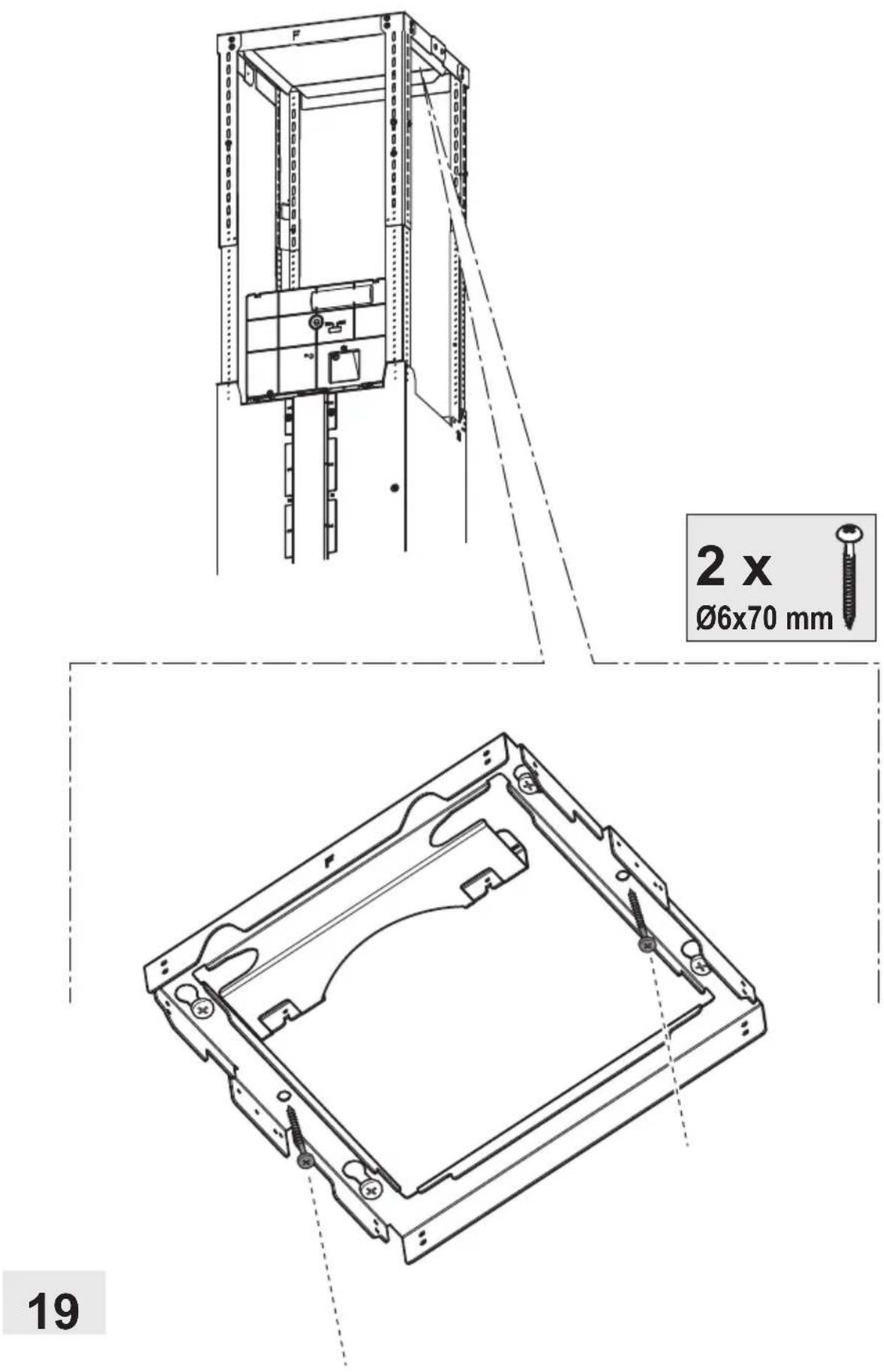

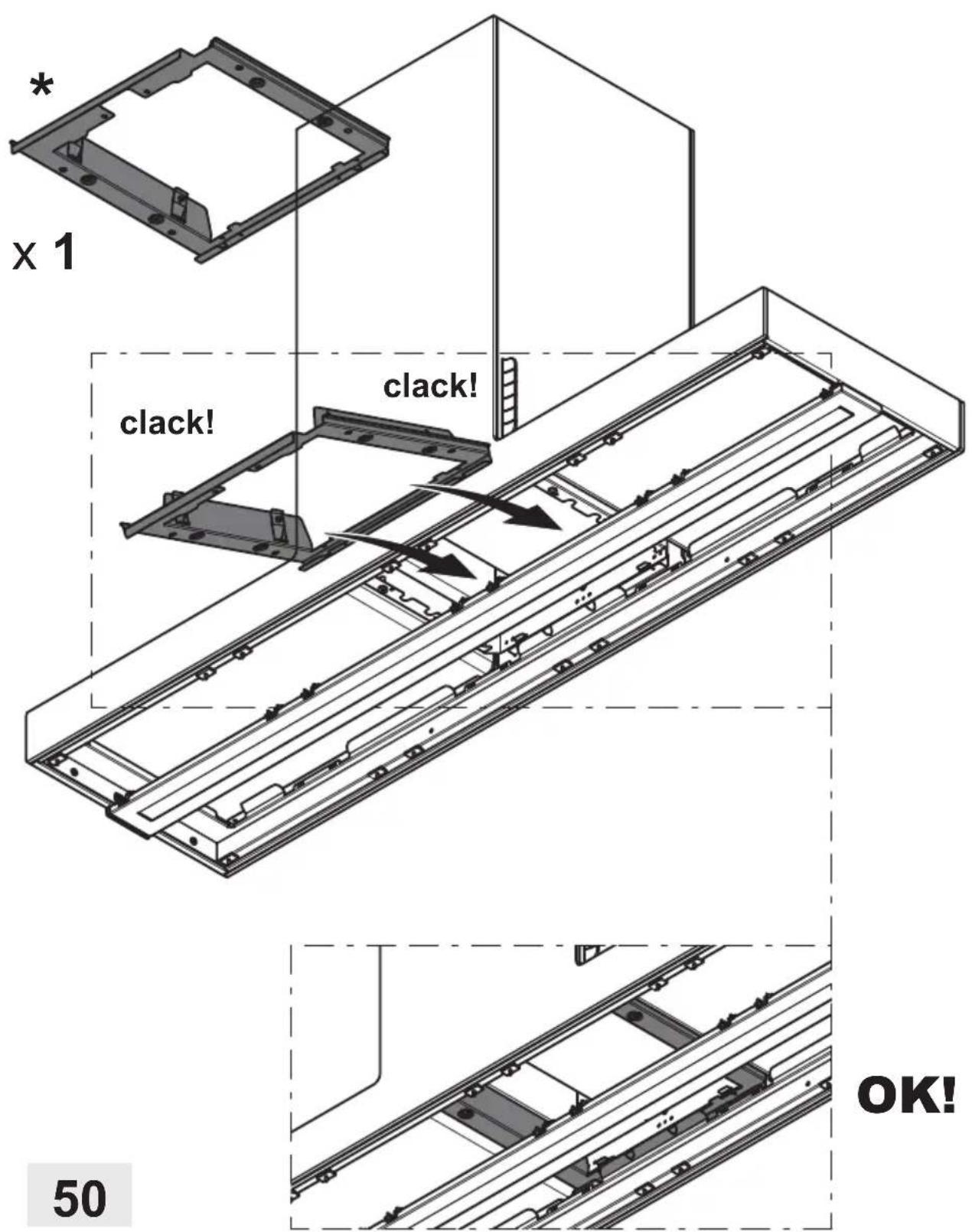

Clack!

1.

3.

20.1

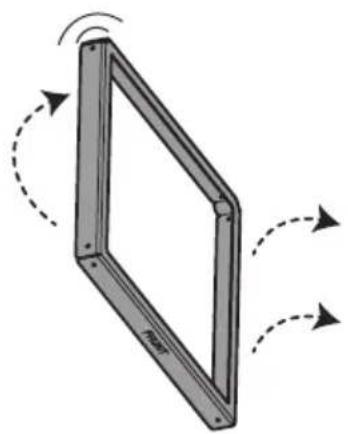

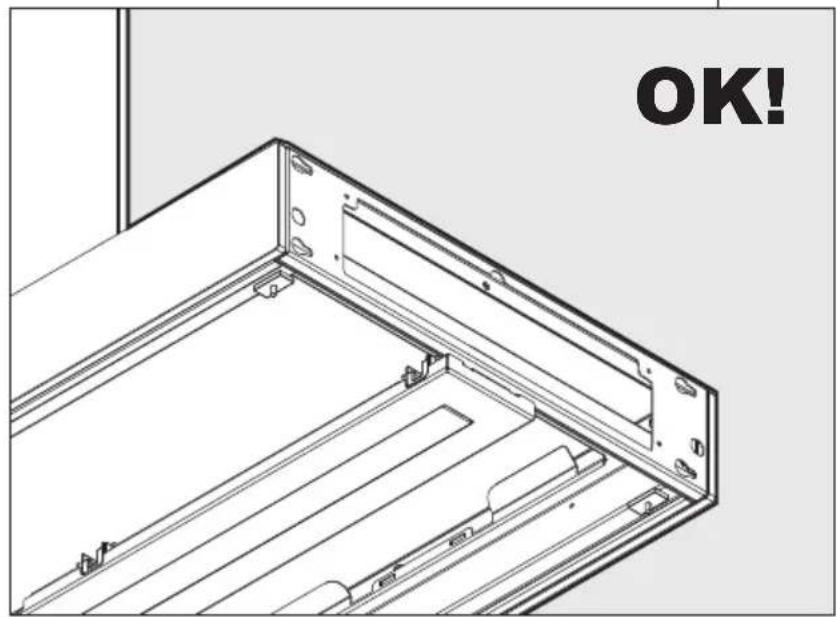

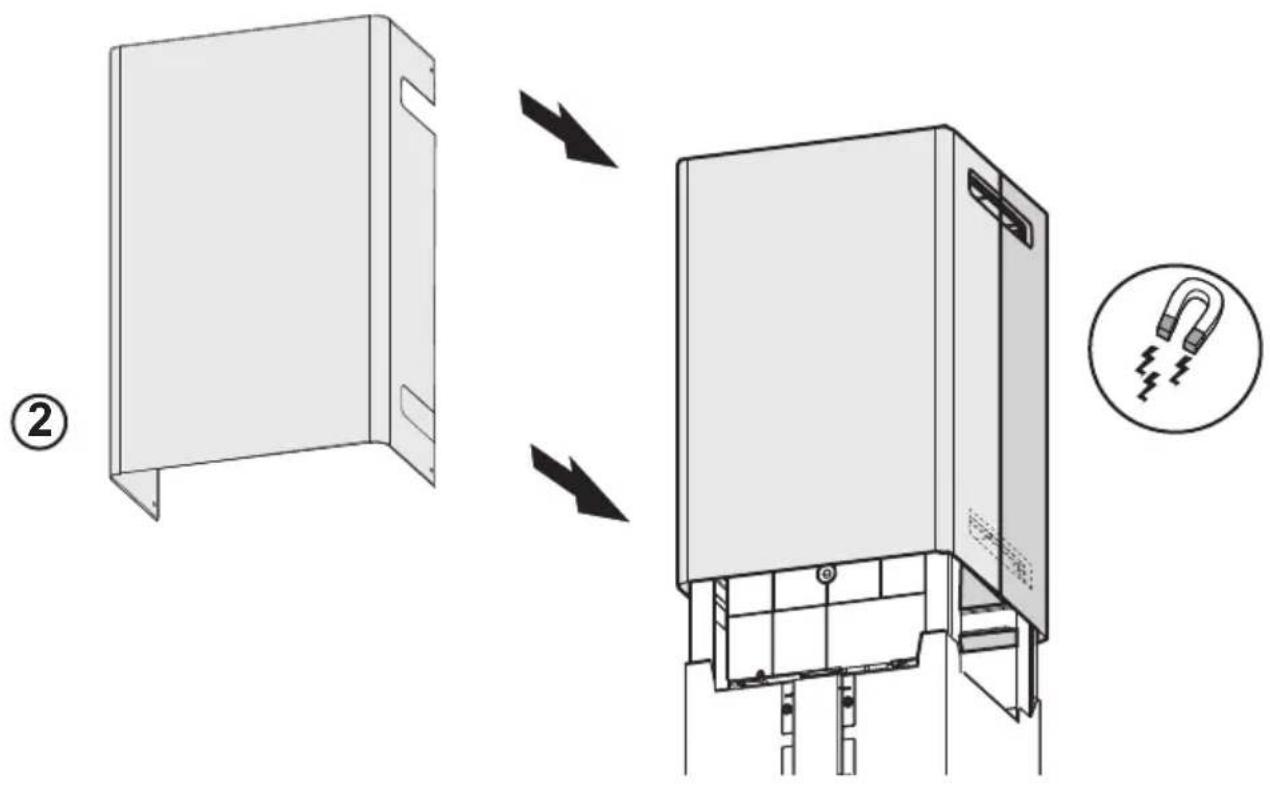

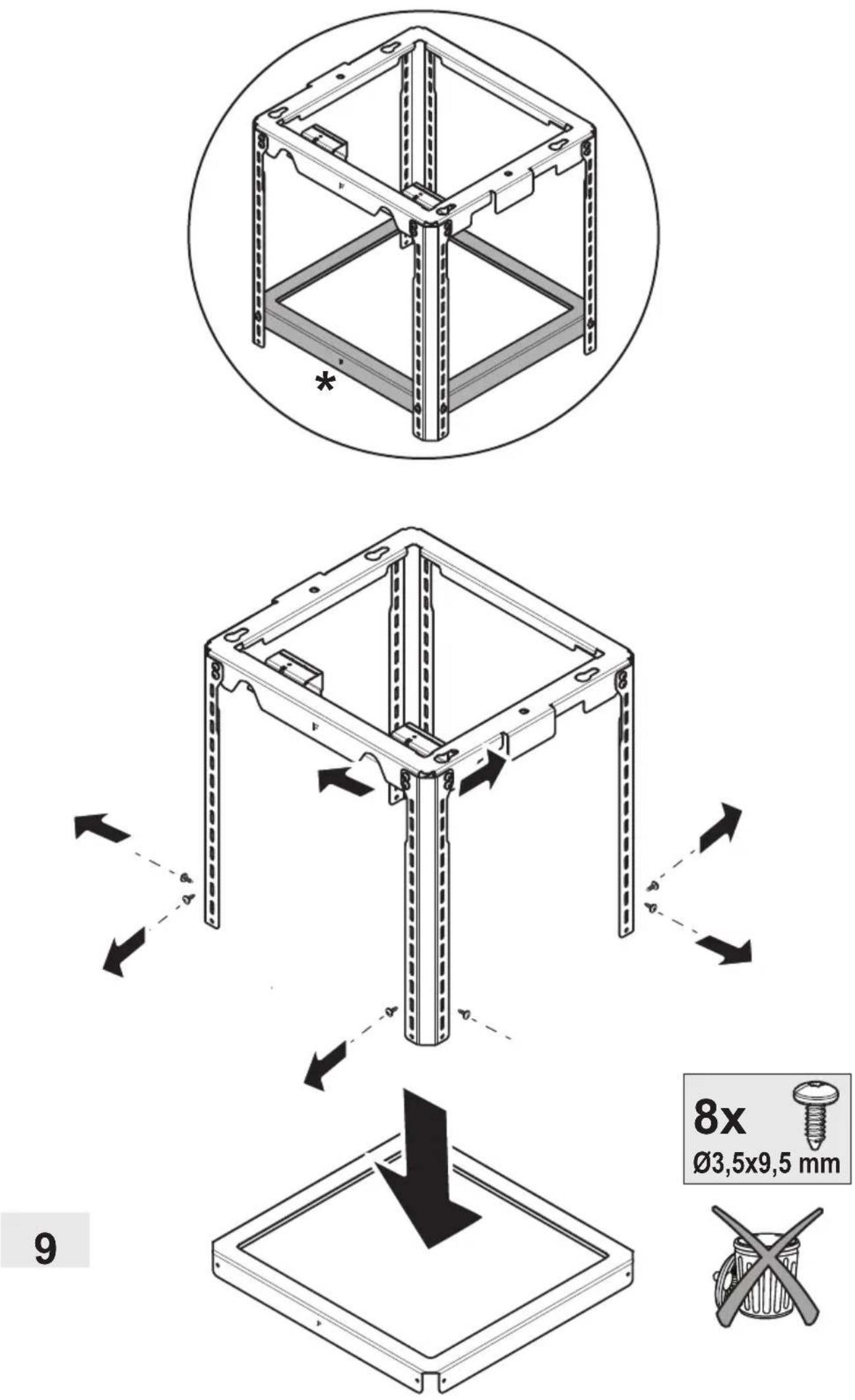

9

8x

3.5x9.5 mm

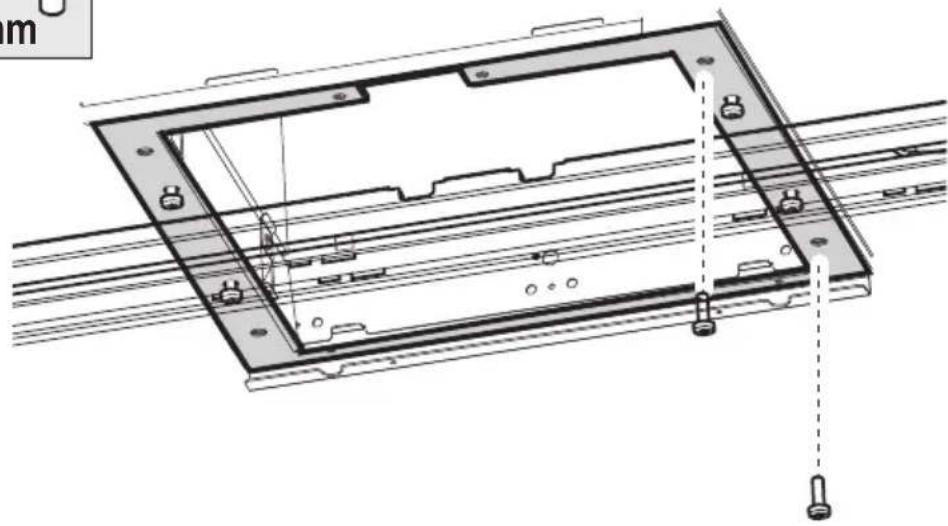

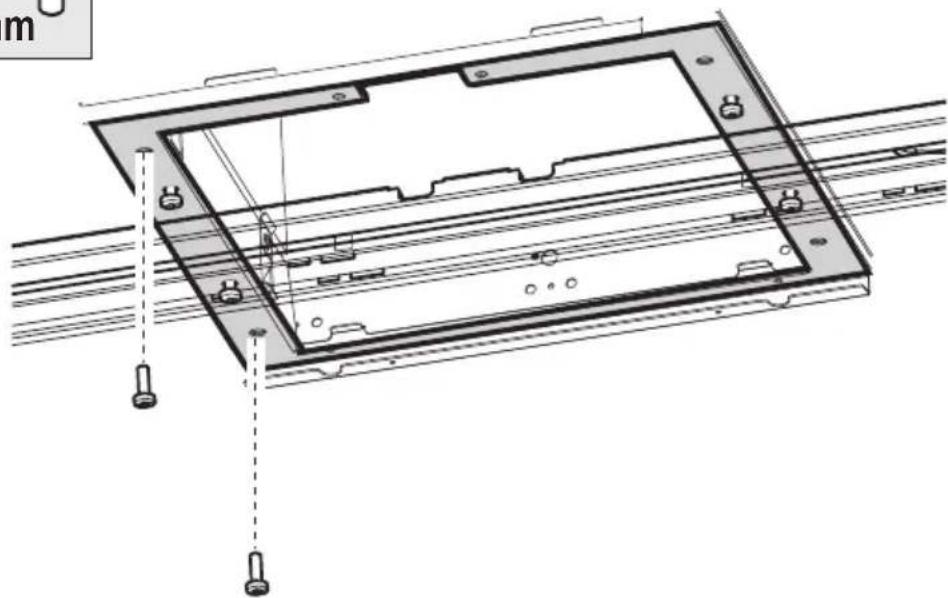

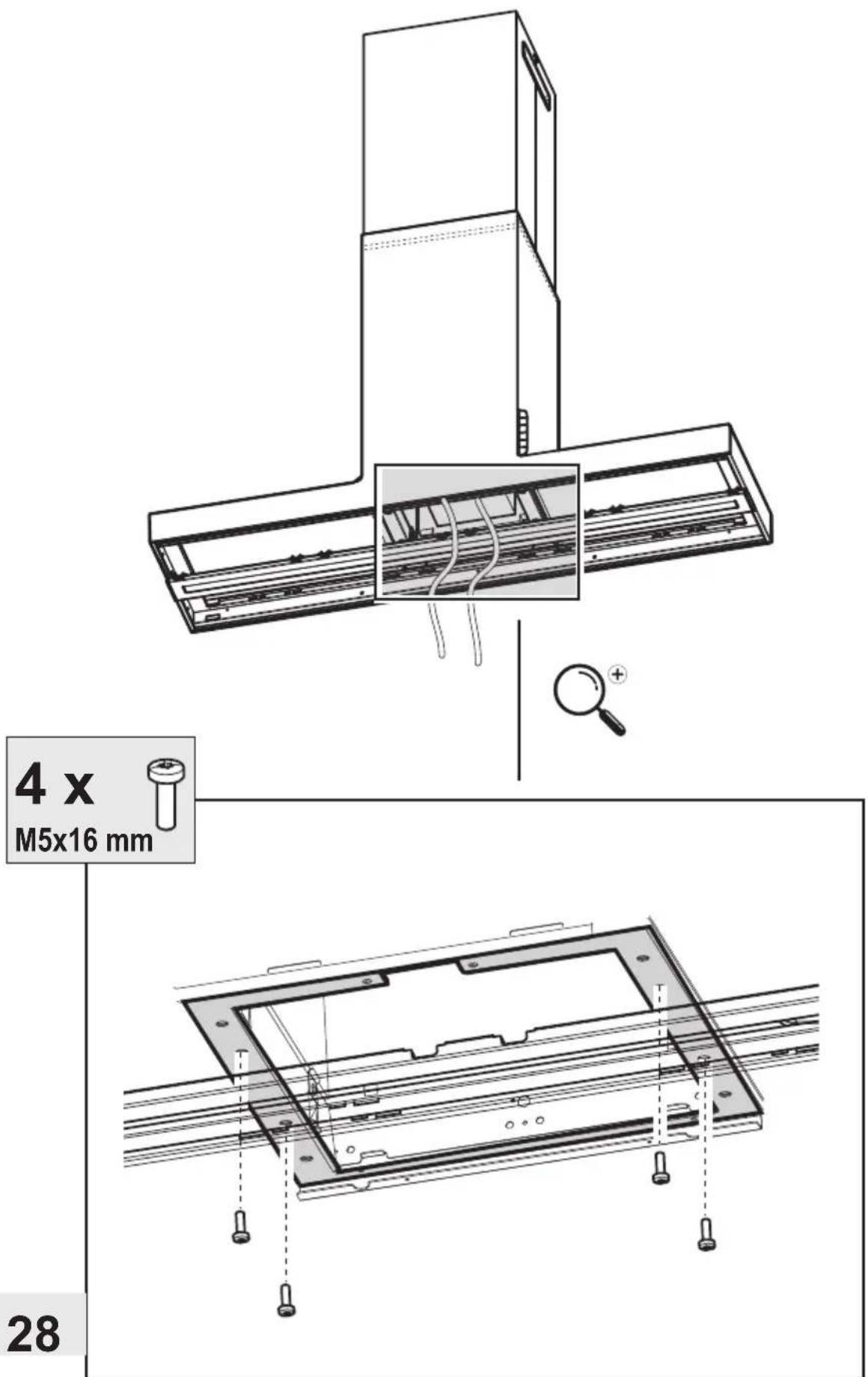

4x

M5x16 mm

2x

M5x16 mm

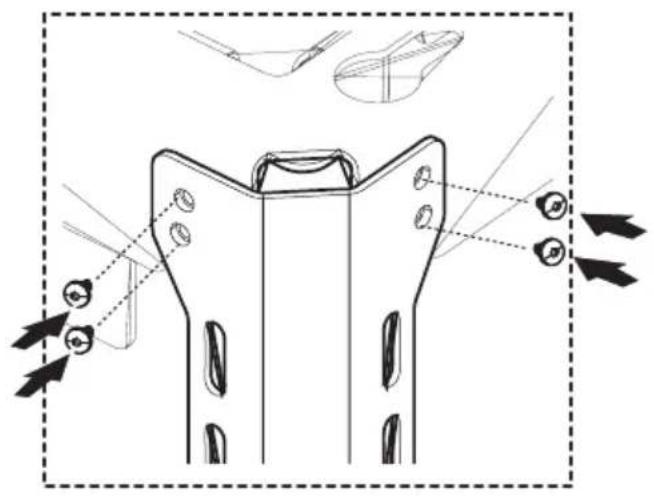

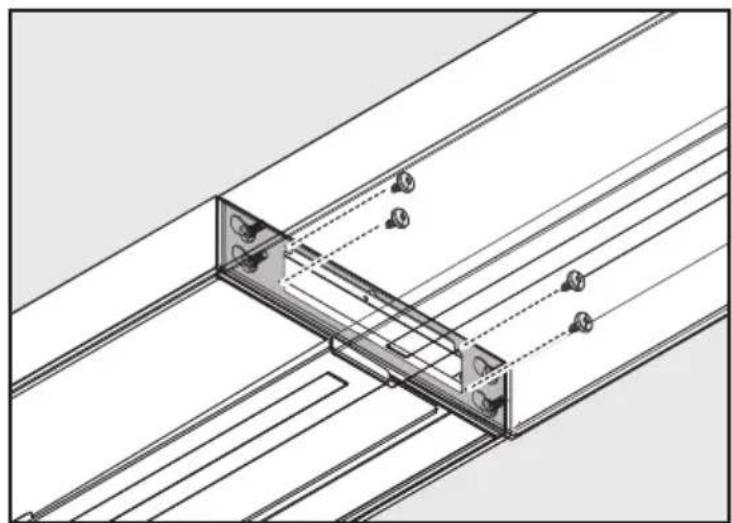

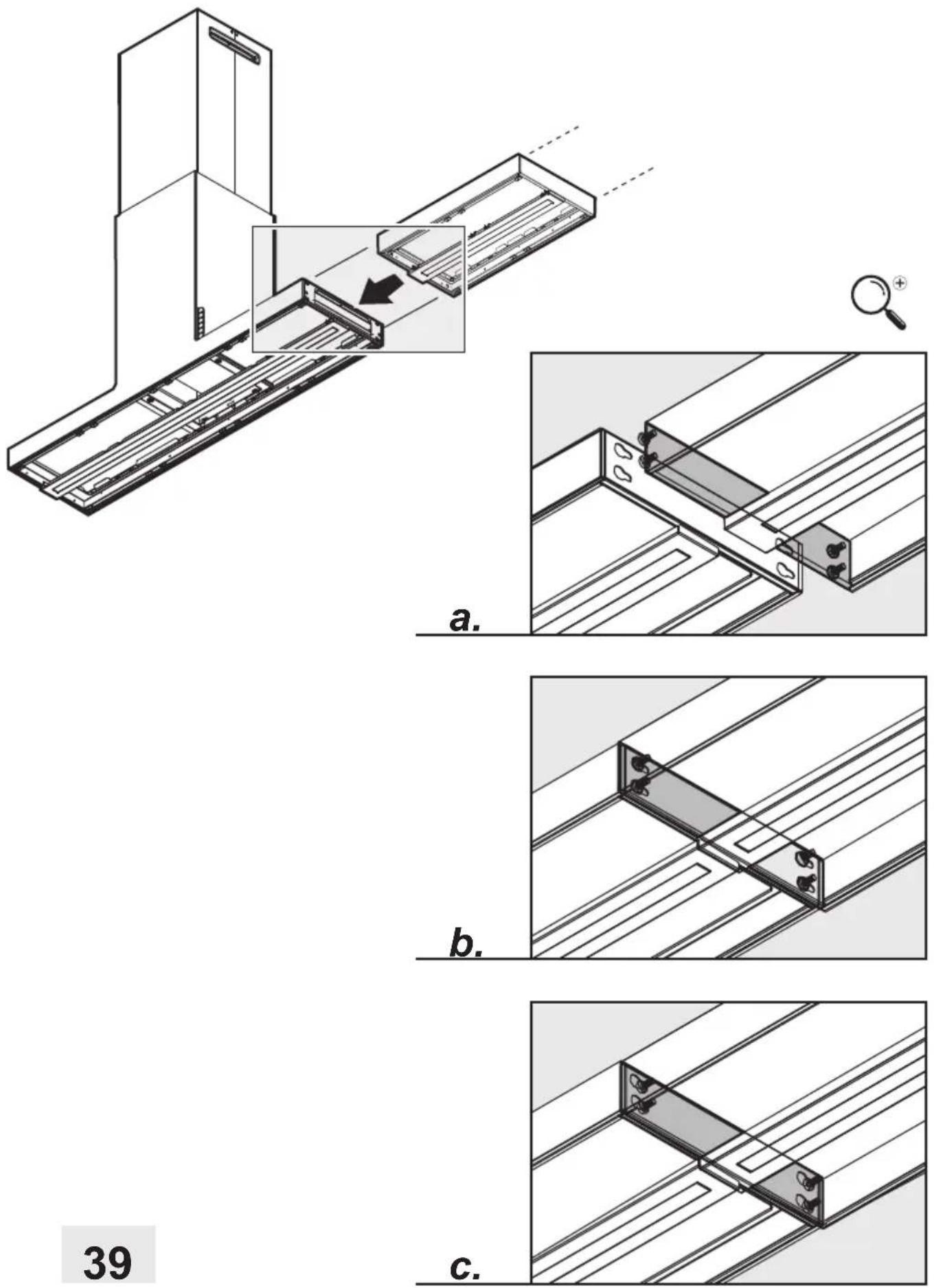

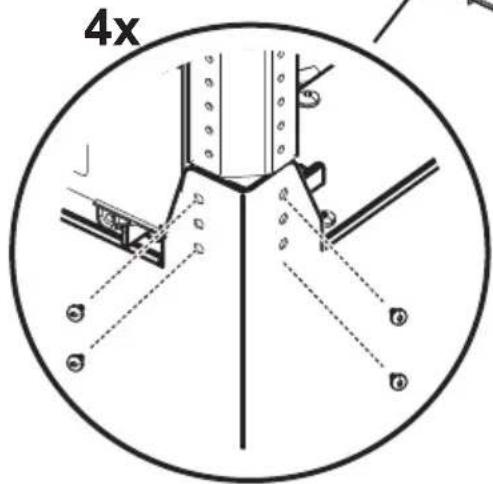

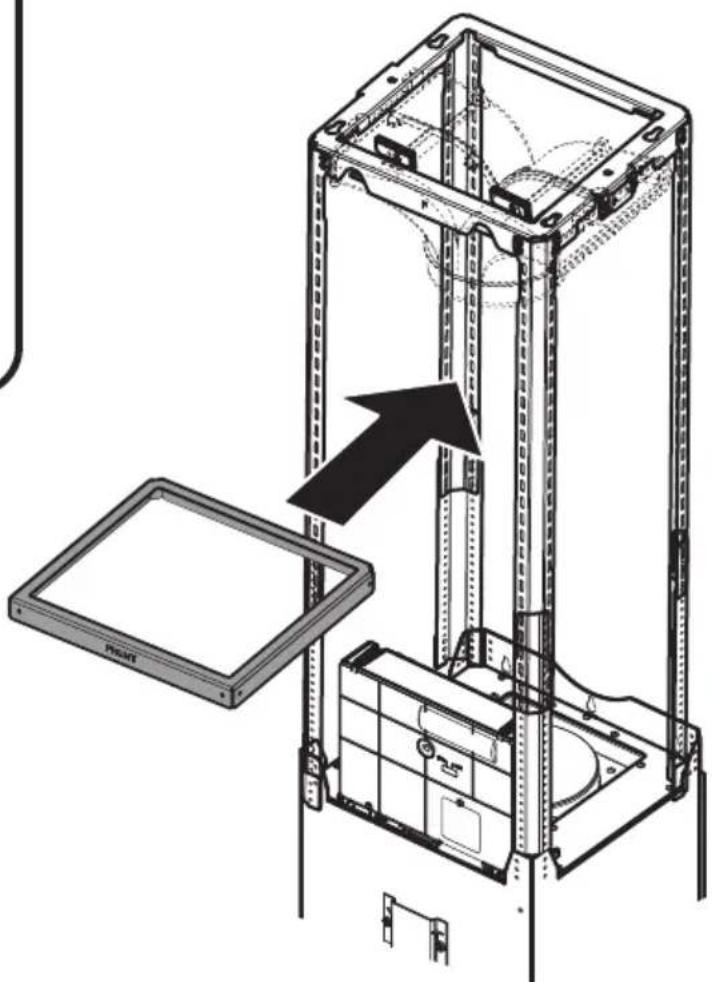

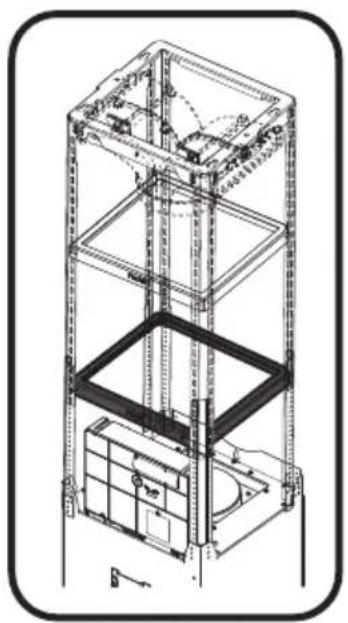

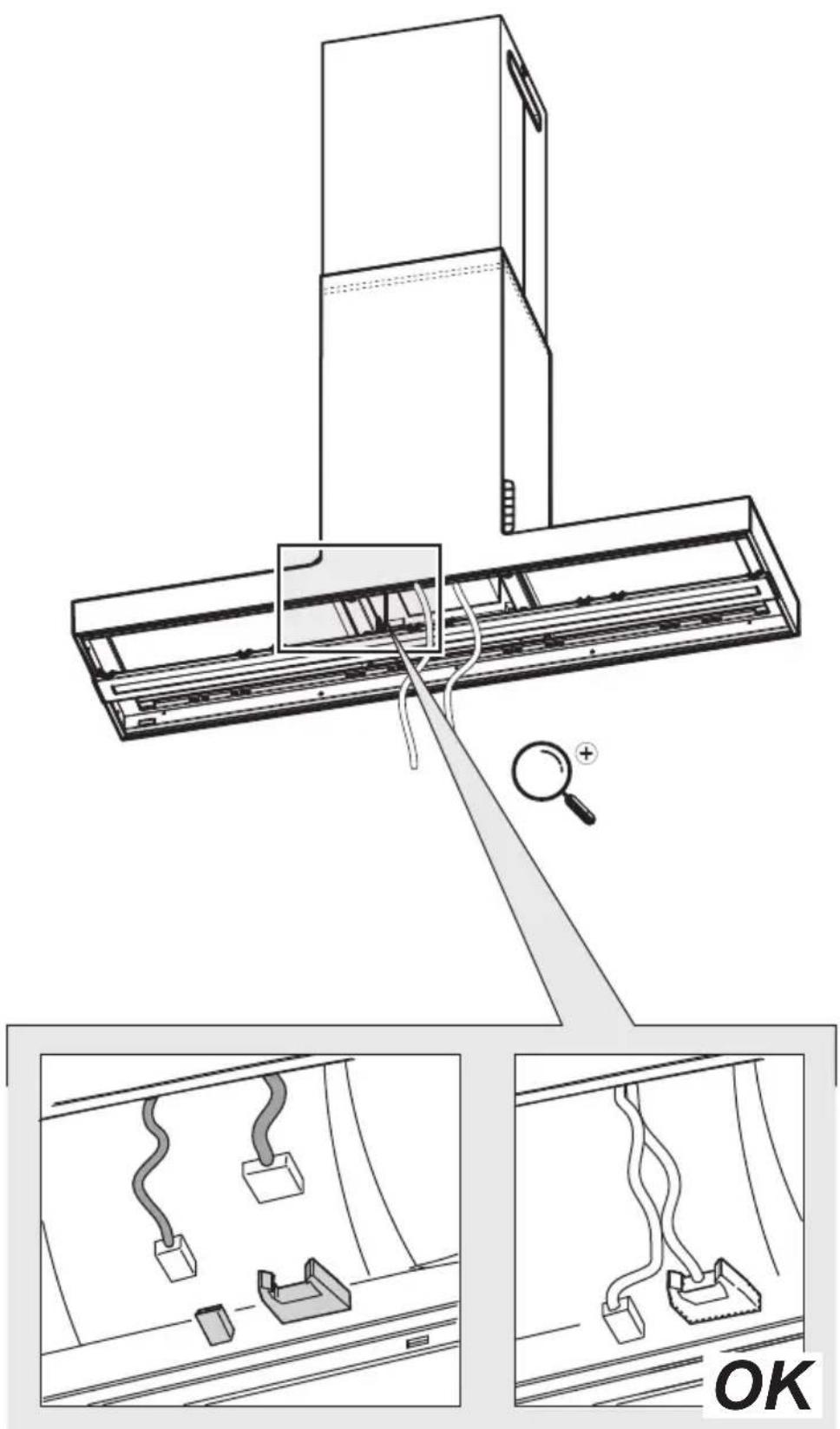

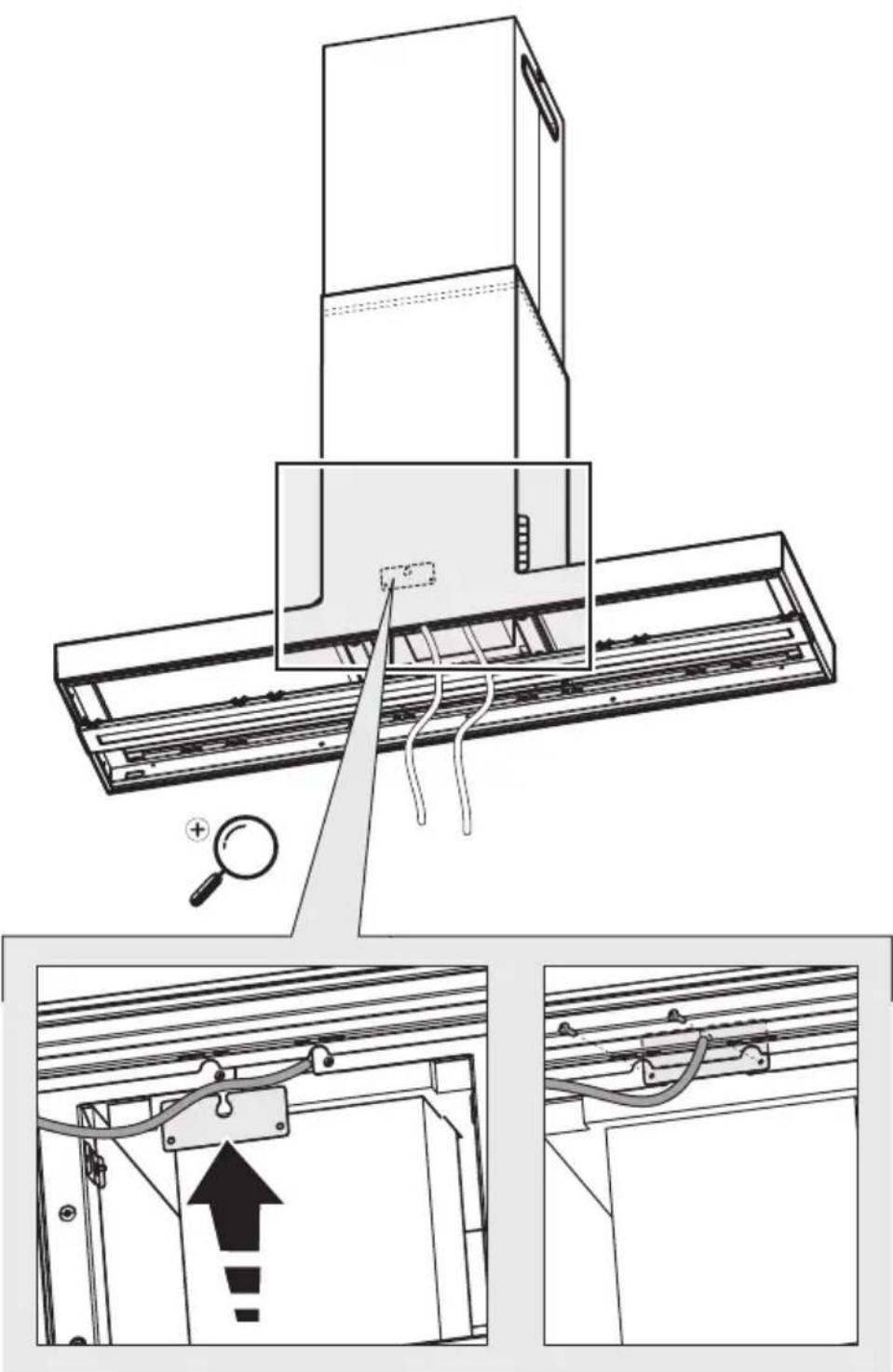

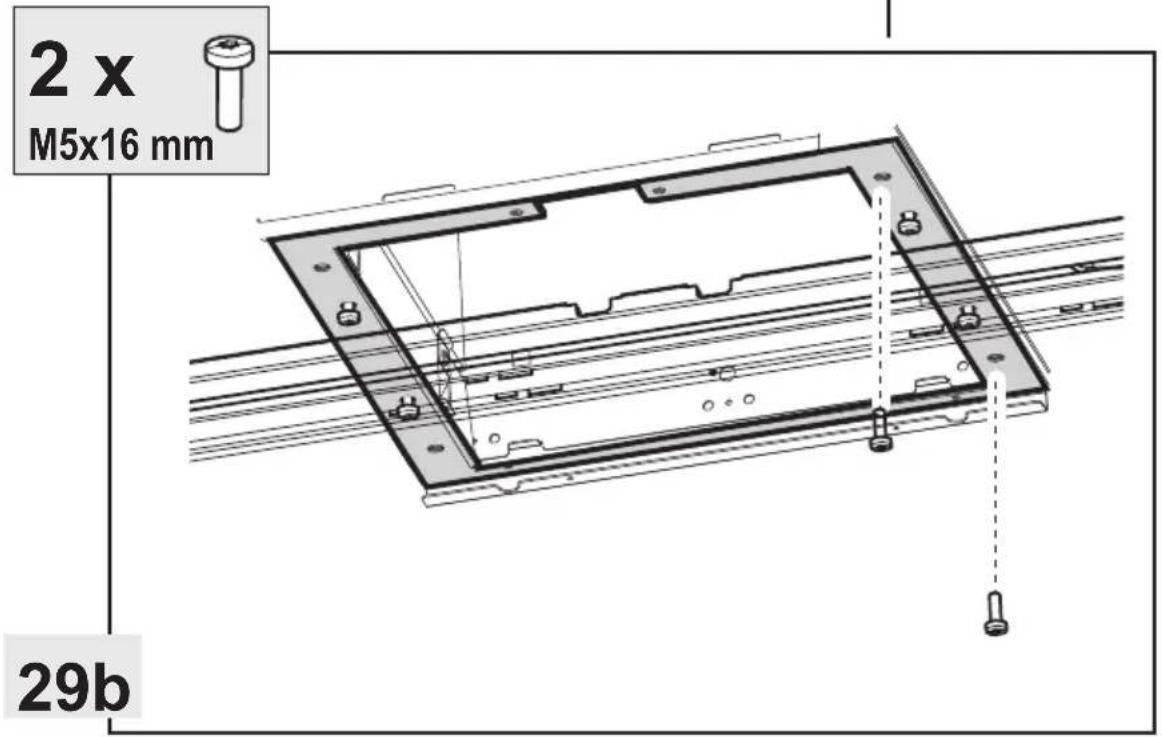

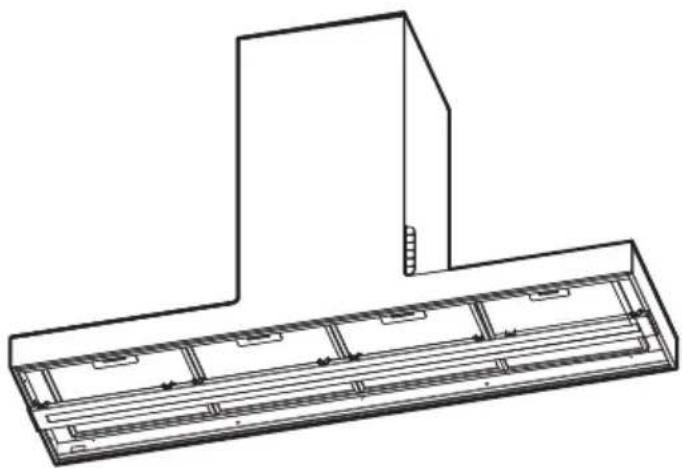

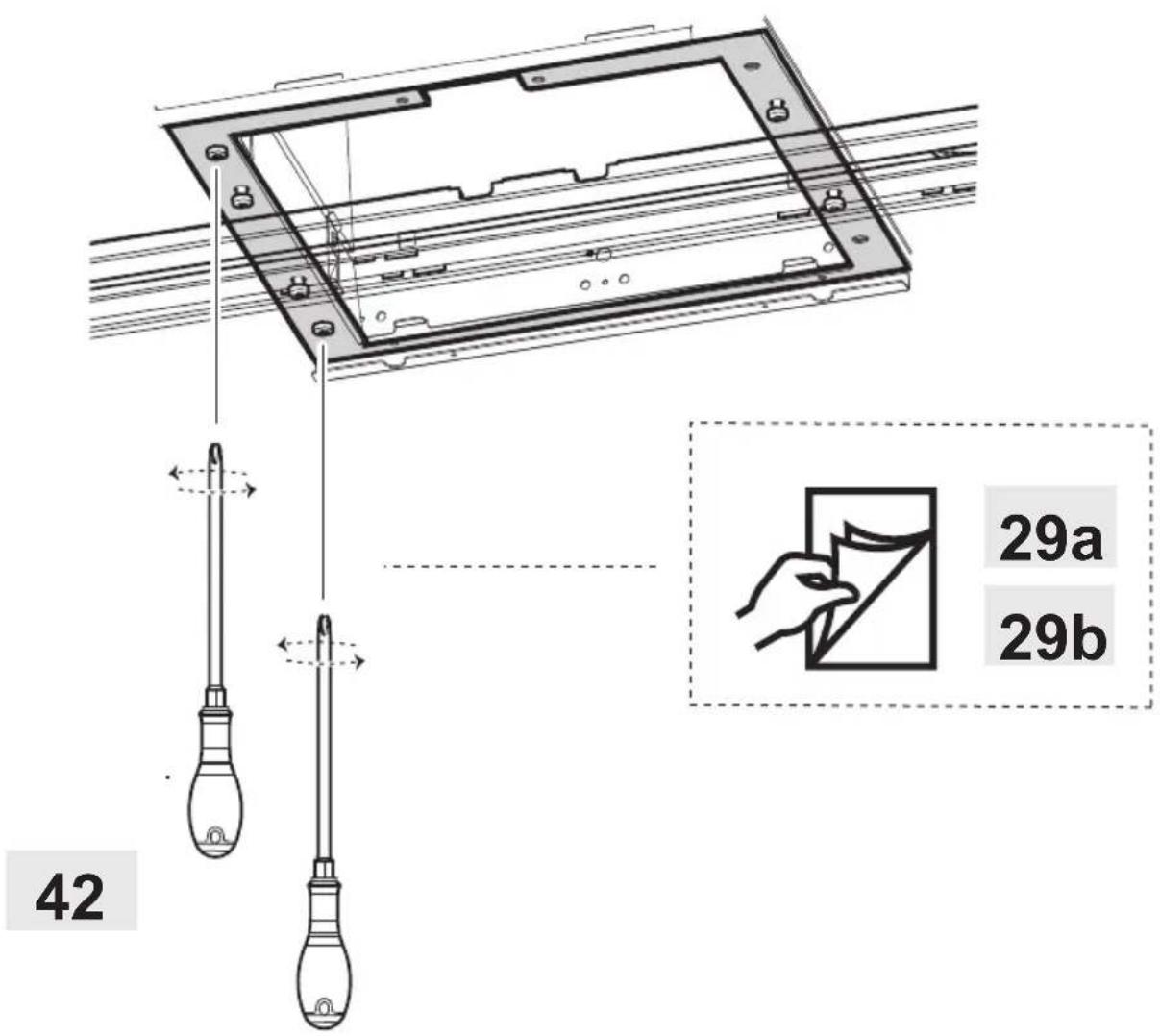

29a

2x

M5x16 mm

29b

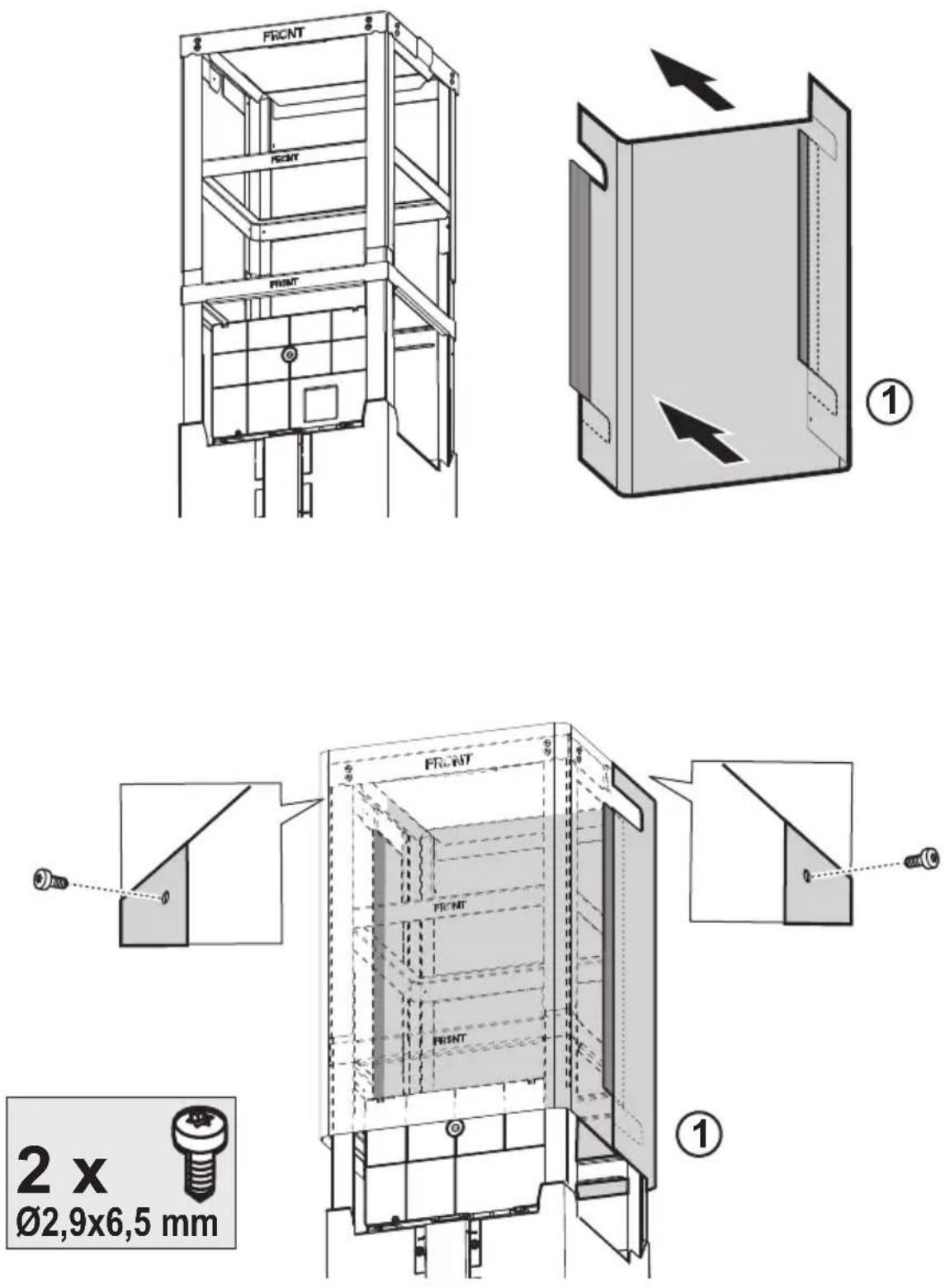

2x

3.5x9.5 mm

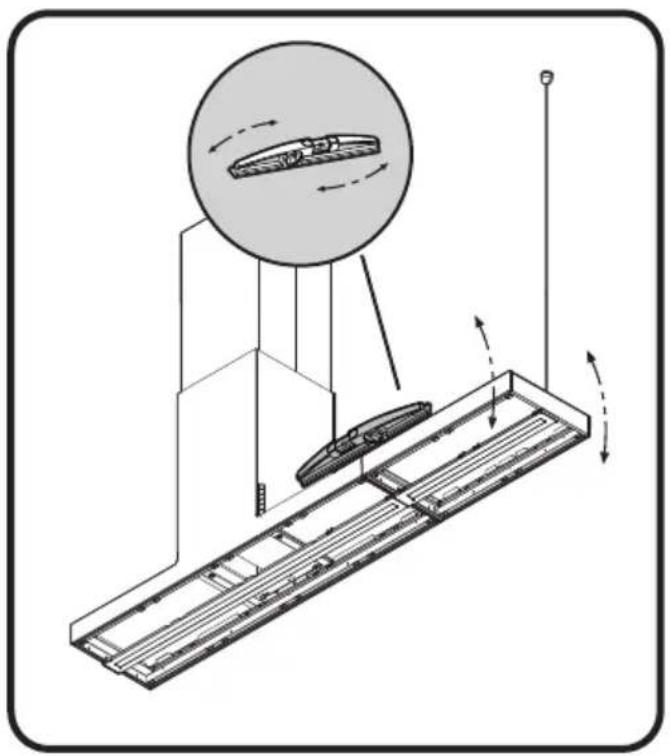

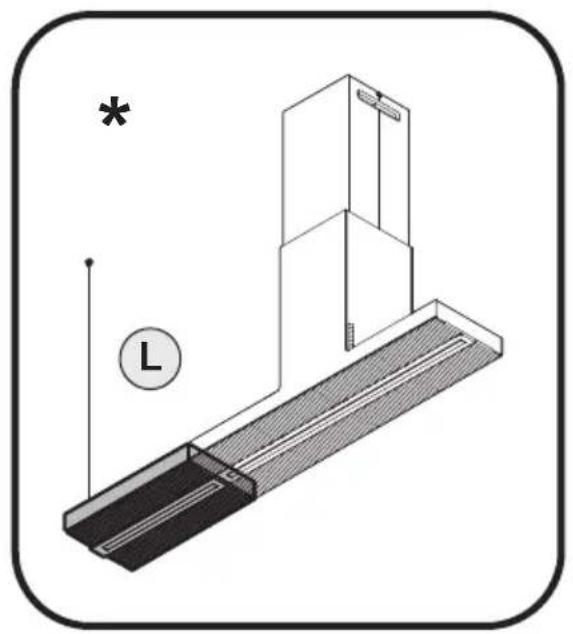

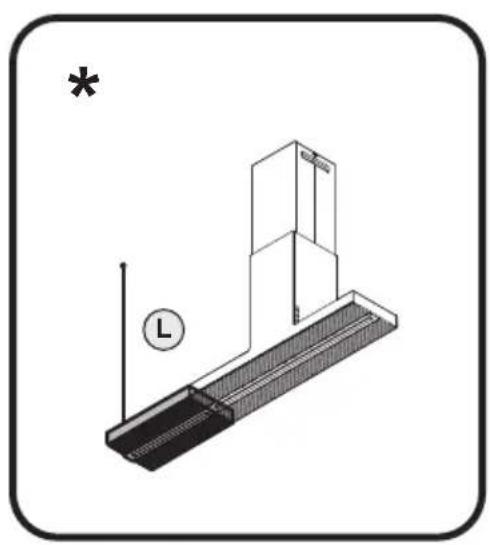

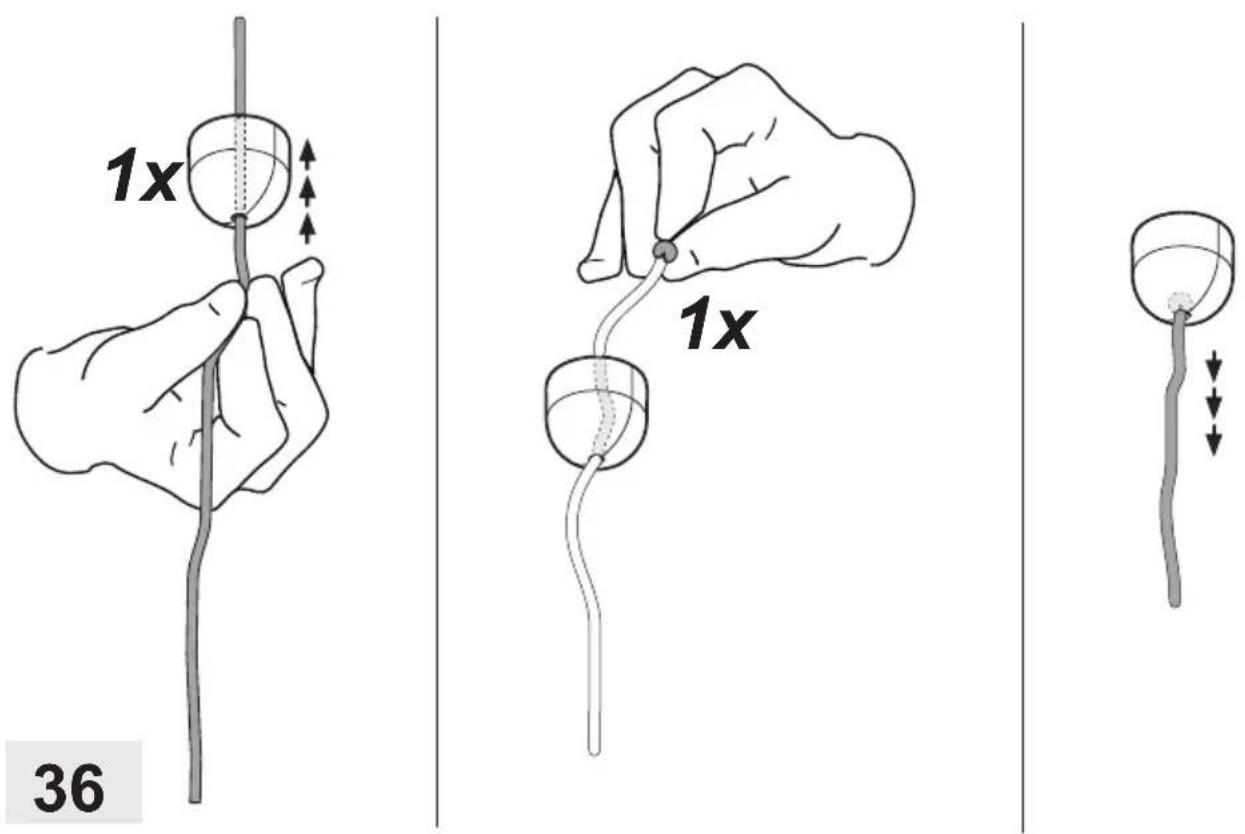

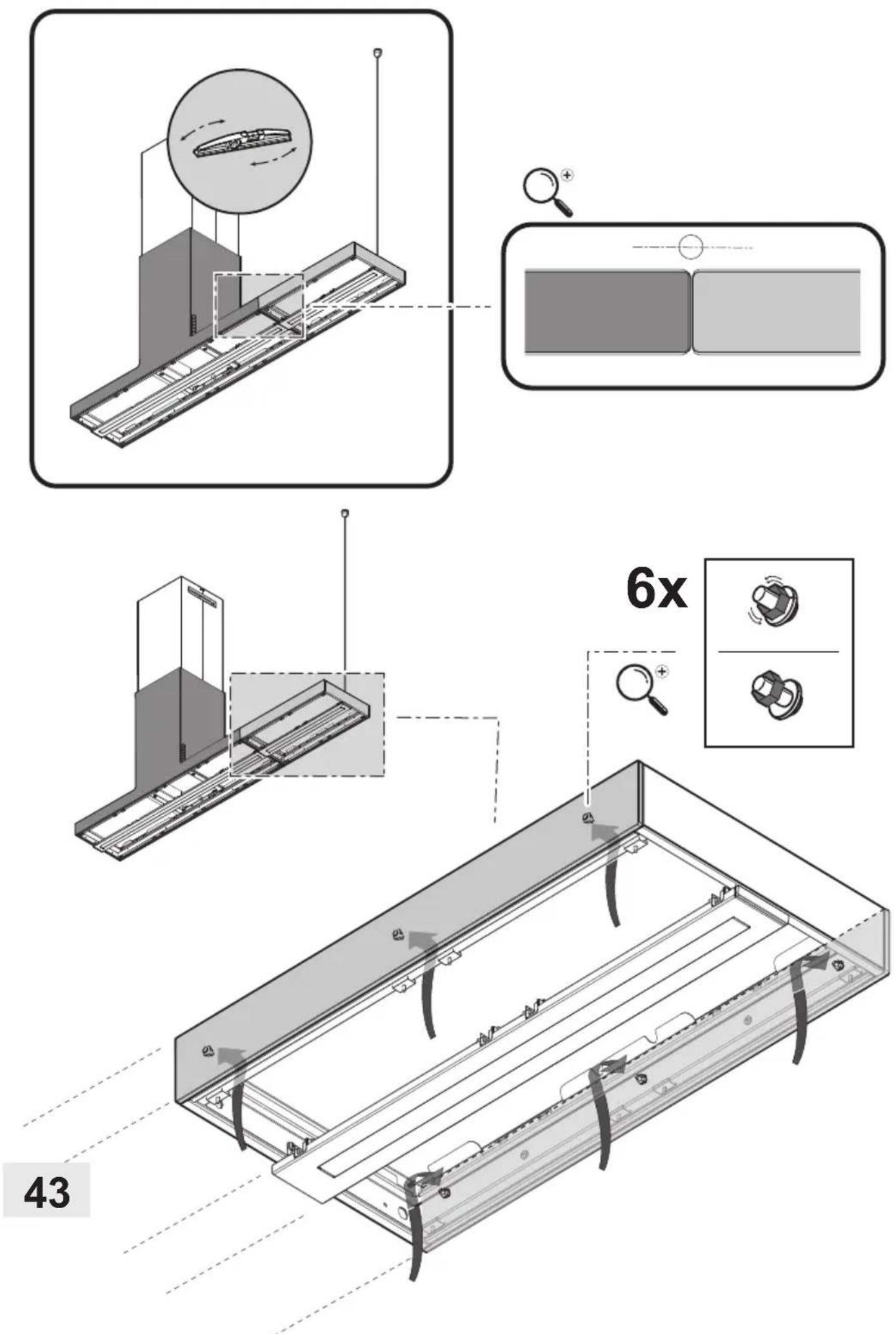

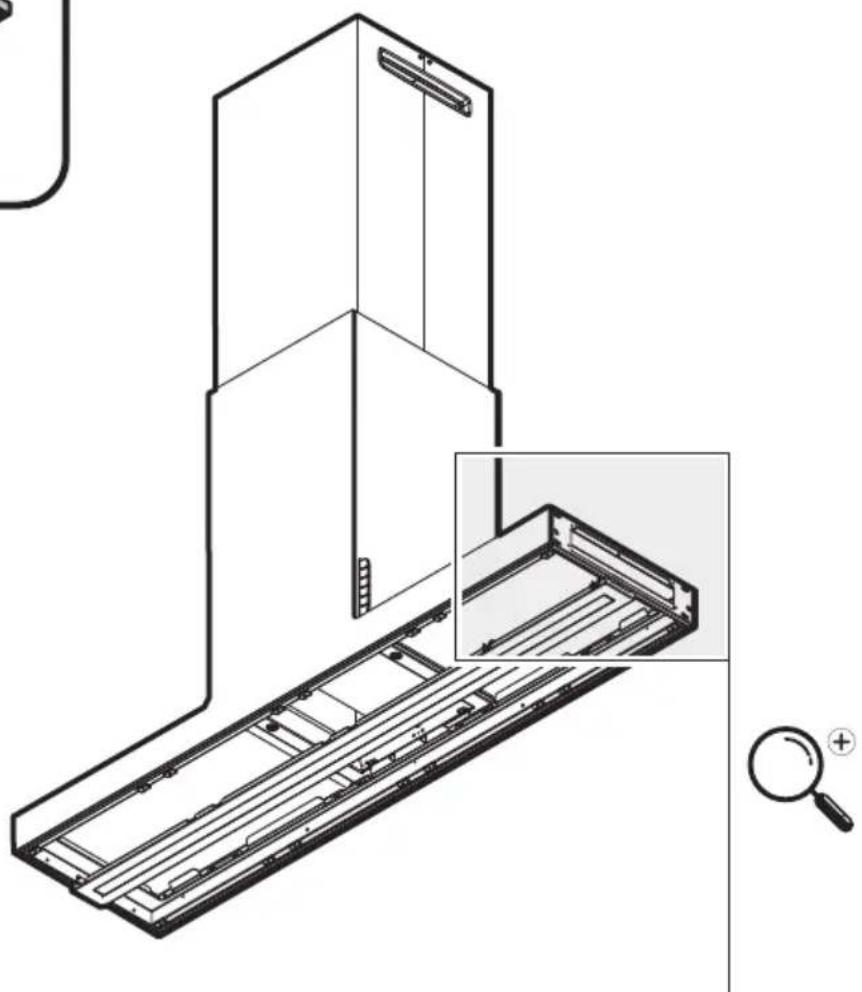

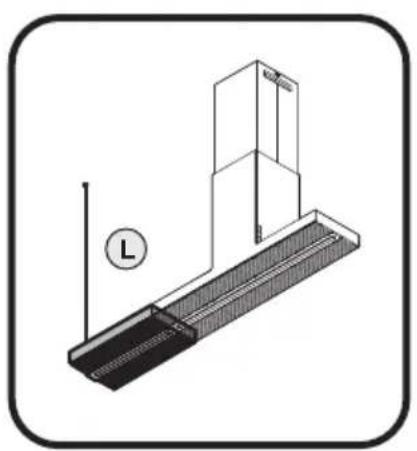

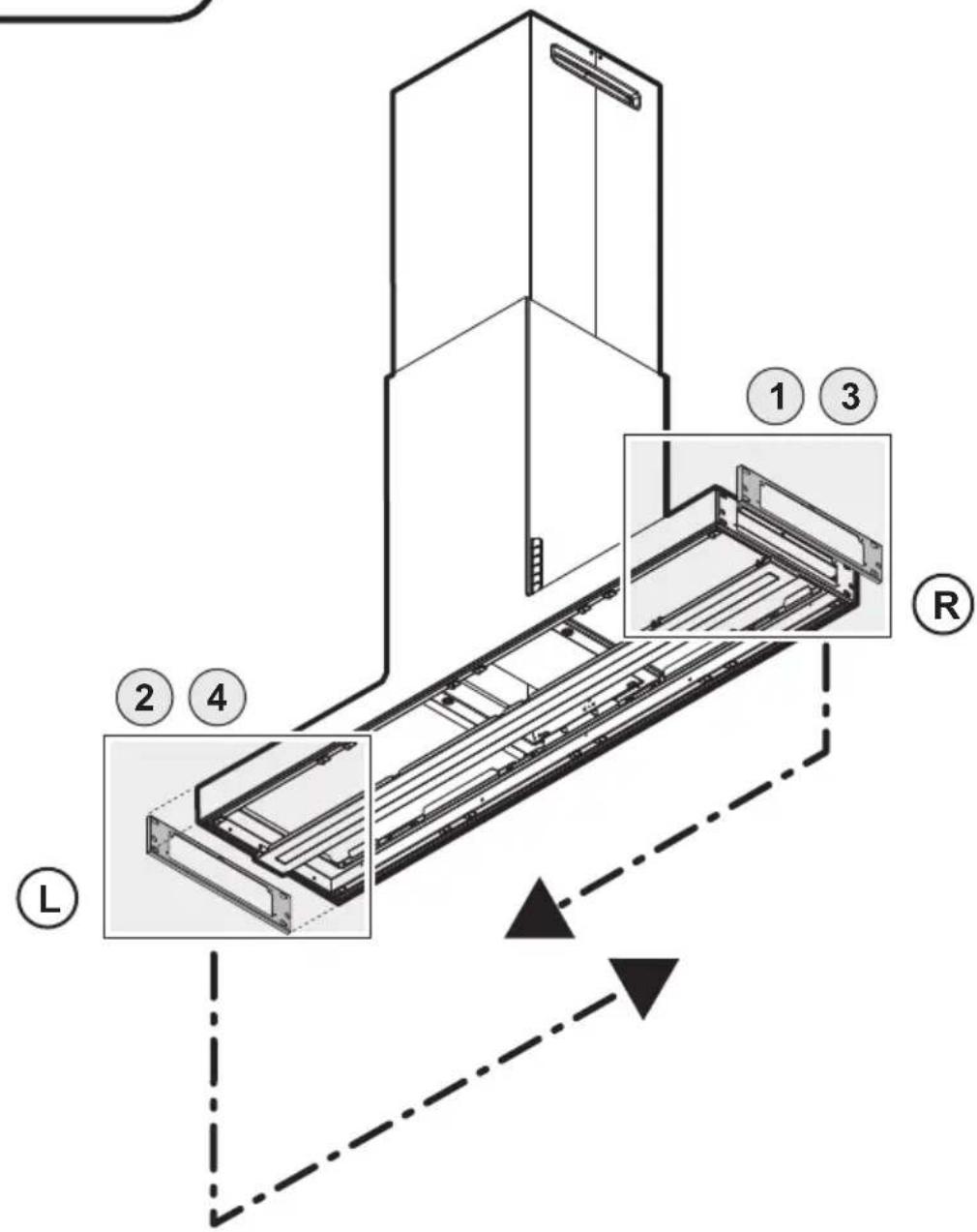

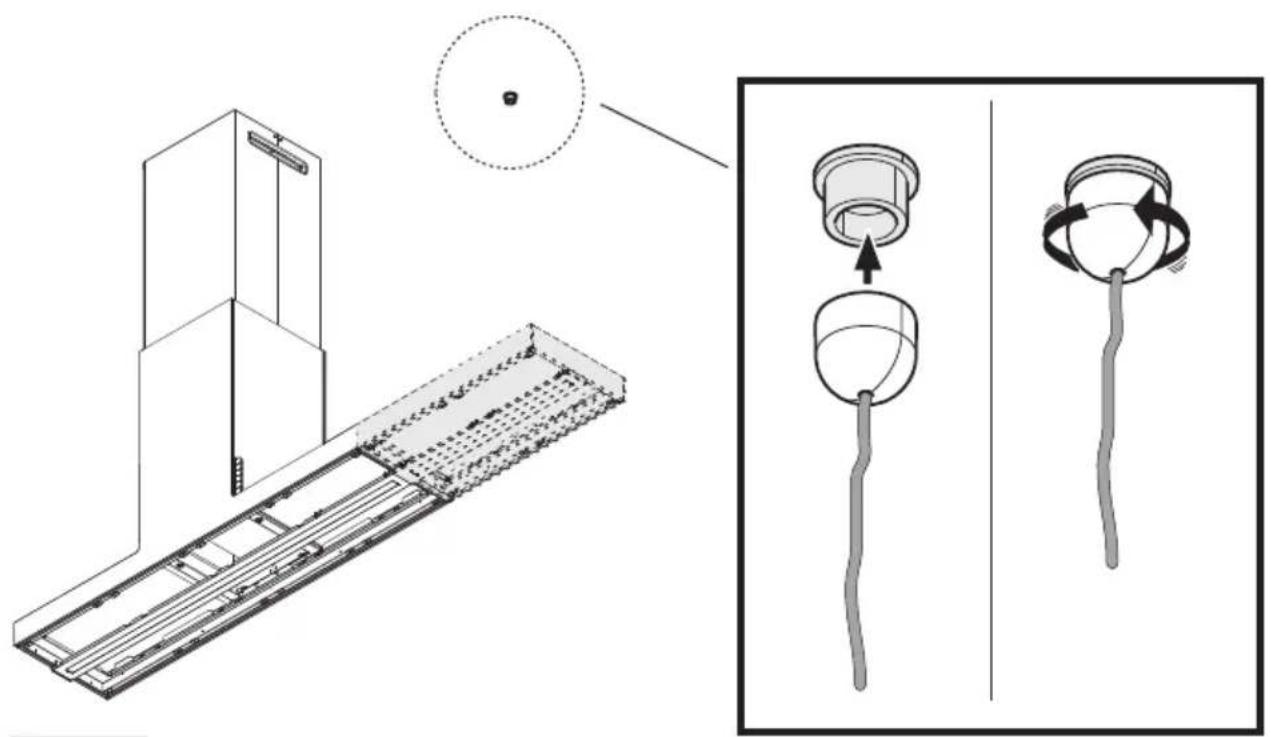

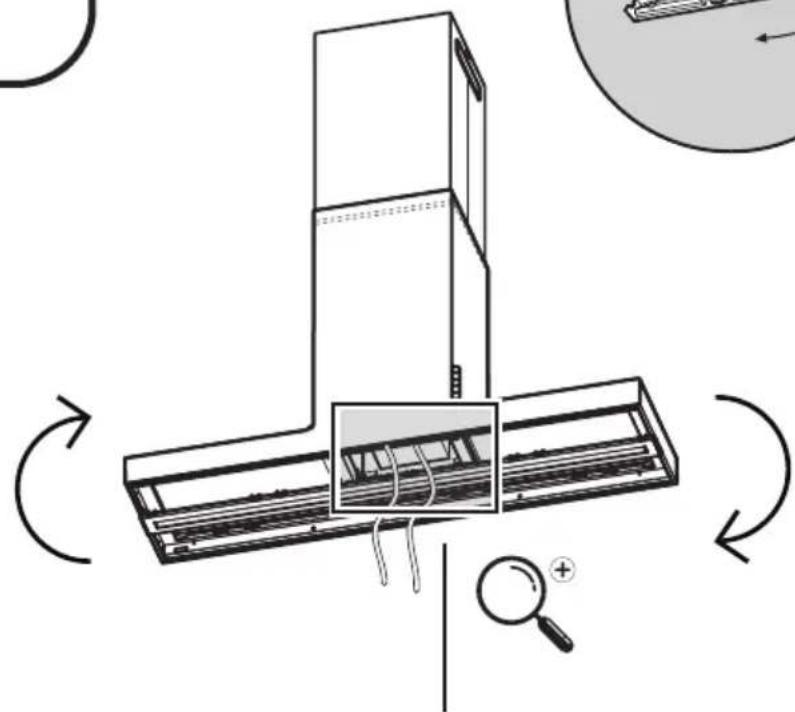

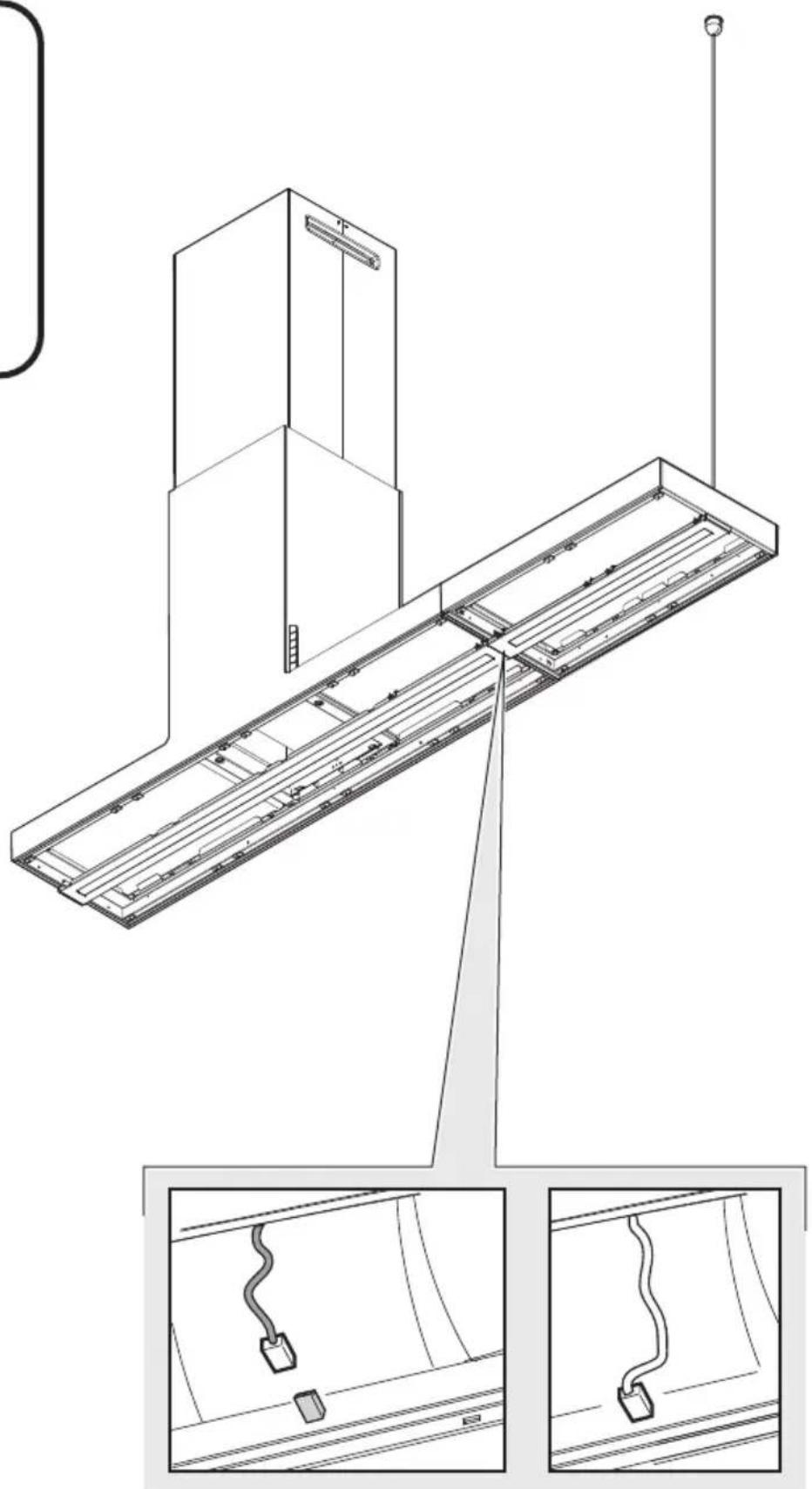

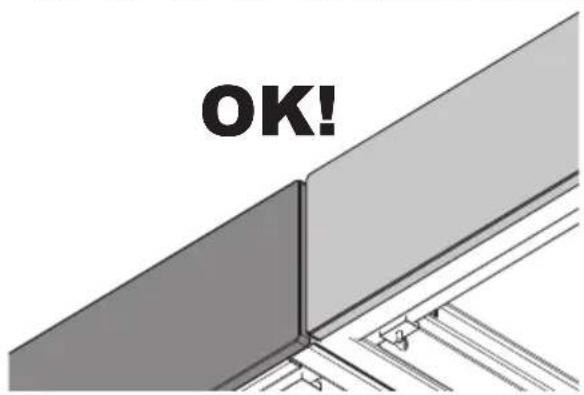

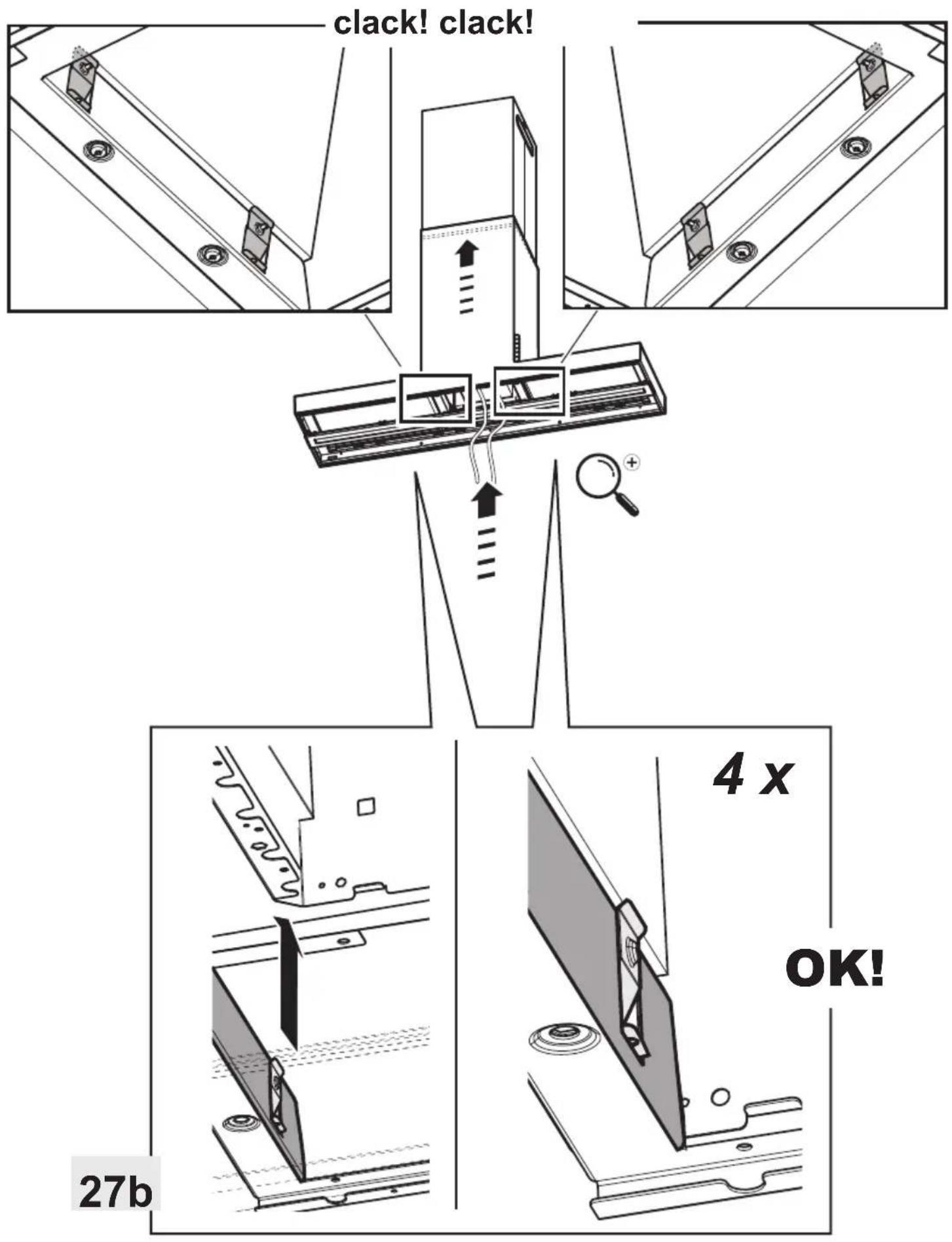

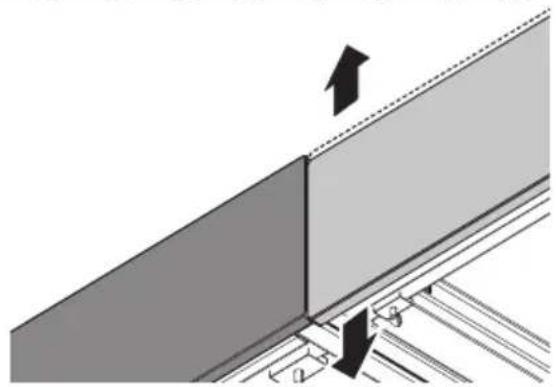

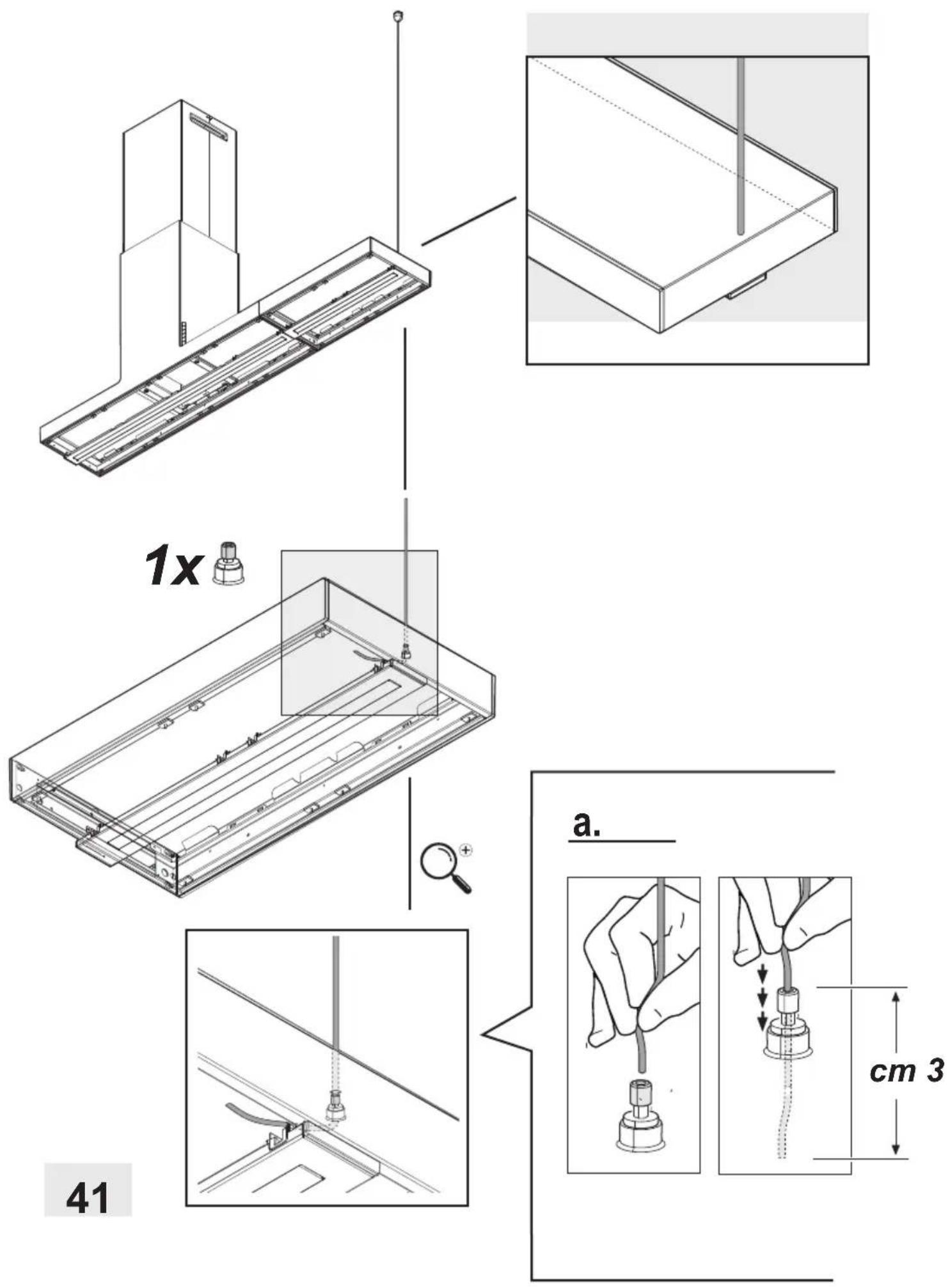

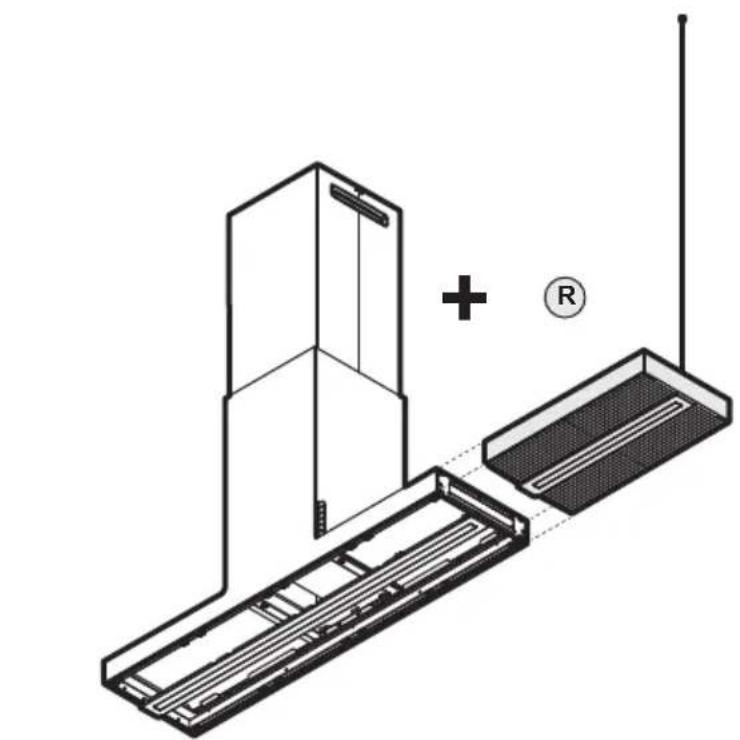

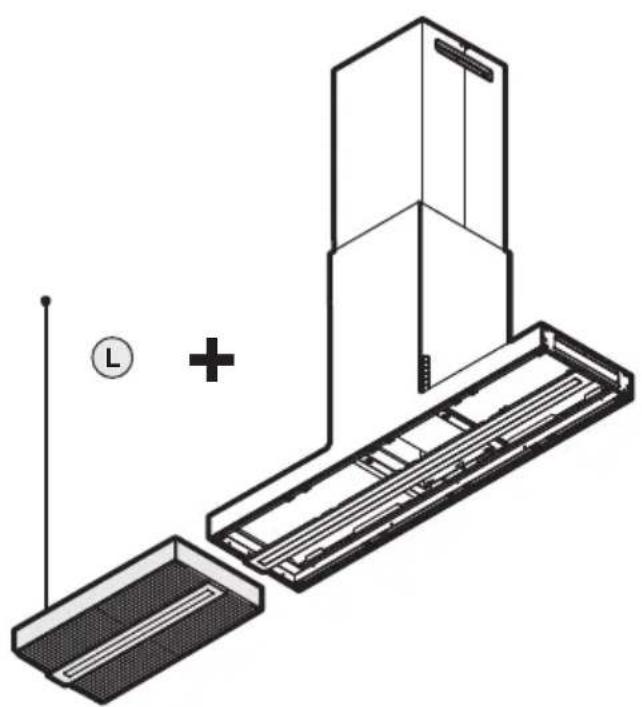

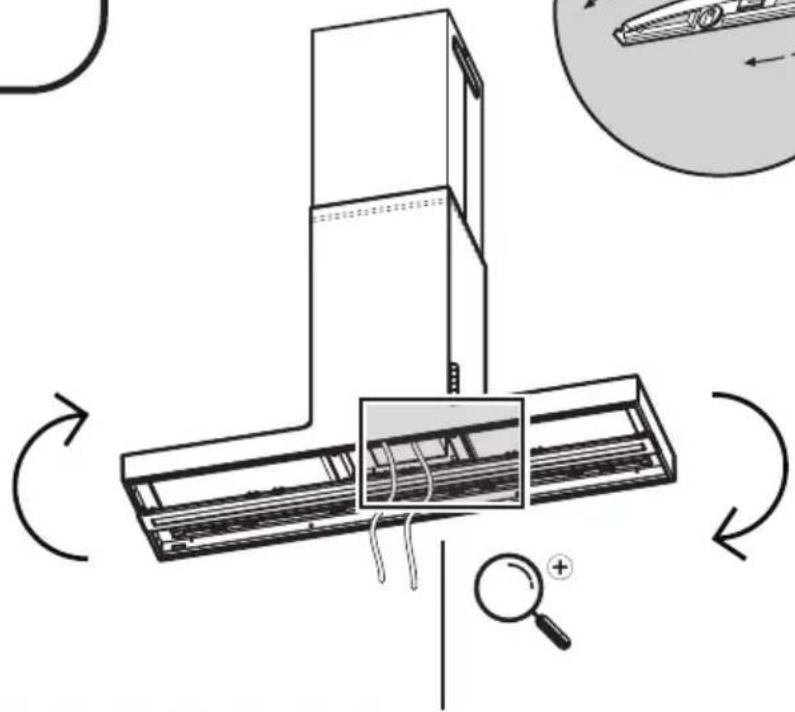

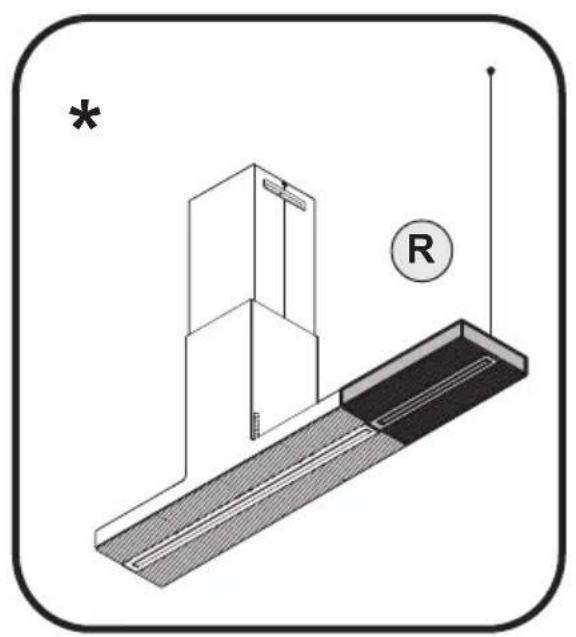

33-35-36-37-38-39-40-41-41a-42-43-44-45-46-48-49

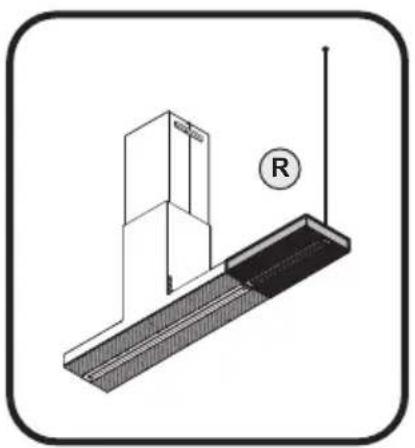

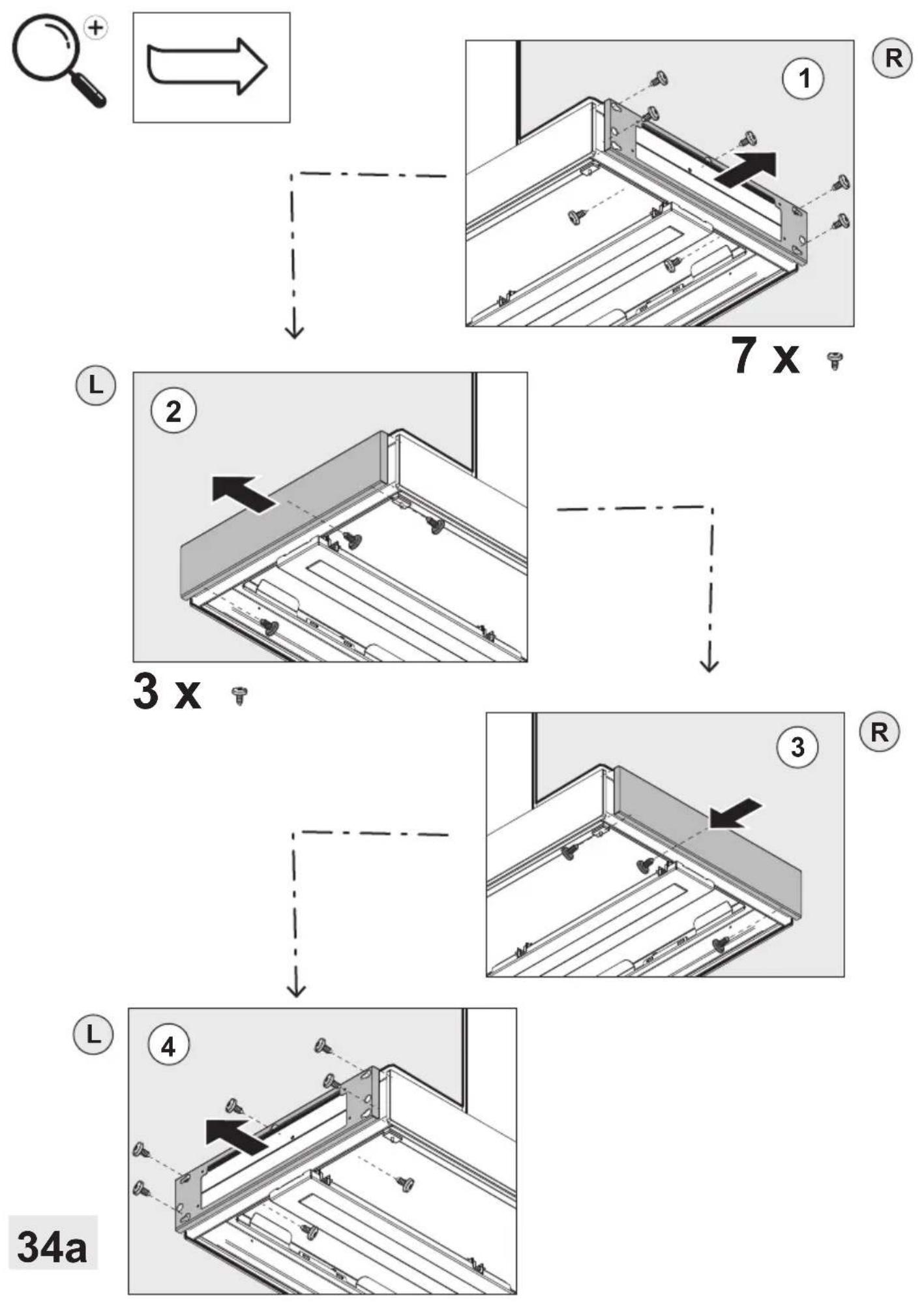

34-34a-35-36-37-38-39-40-41-41a-42-43-44-45-47-48-49

37

48

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

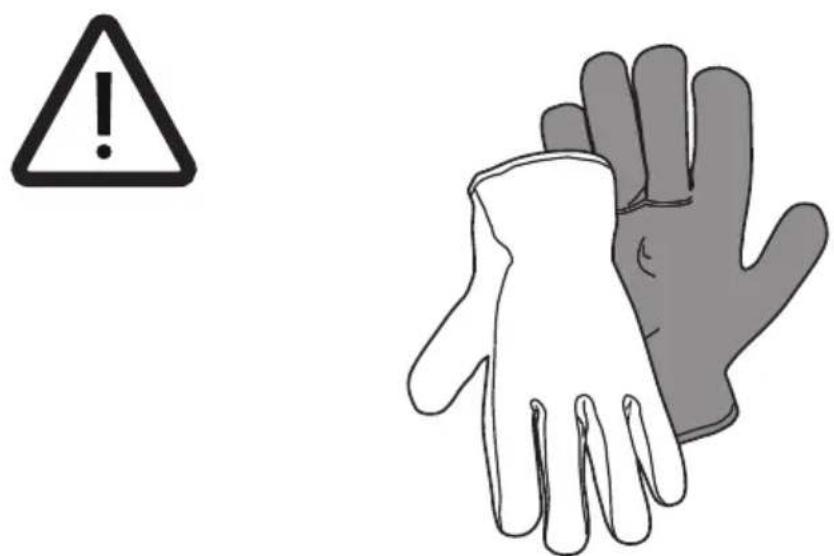

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.
• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for correct use to reduce environmental impact: Switch ON the hood at minimum speed when you start cooking and keep it running for a few minutes after cooking is finished. Increase the speed only in case of large amounts of smoke and vapor, and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Extraction version

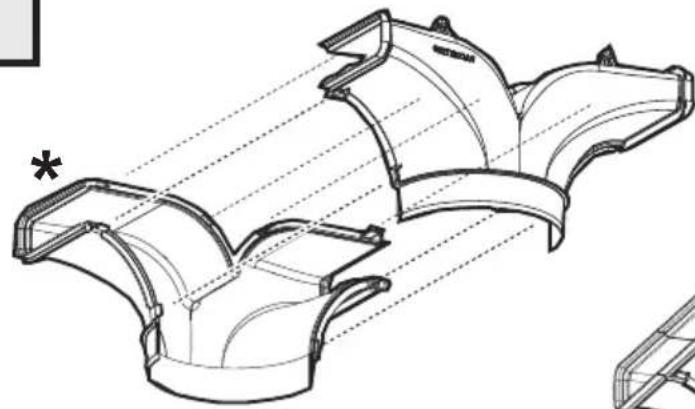

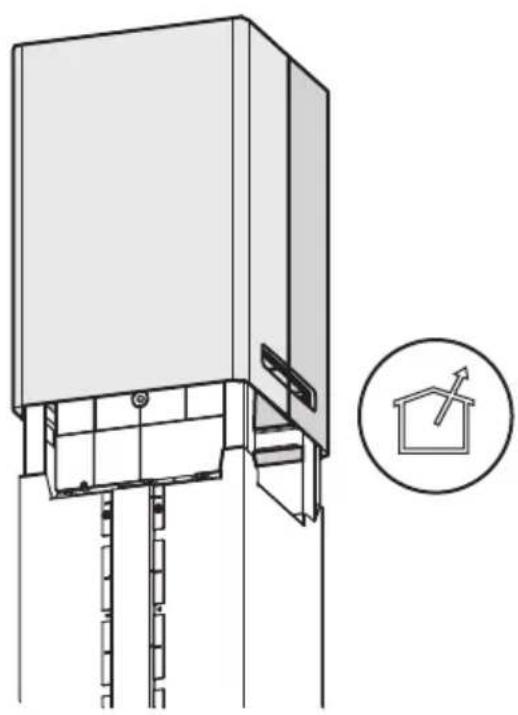

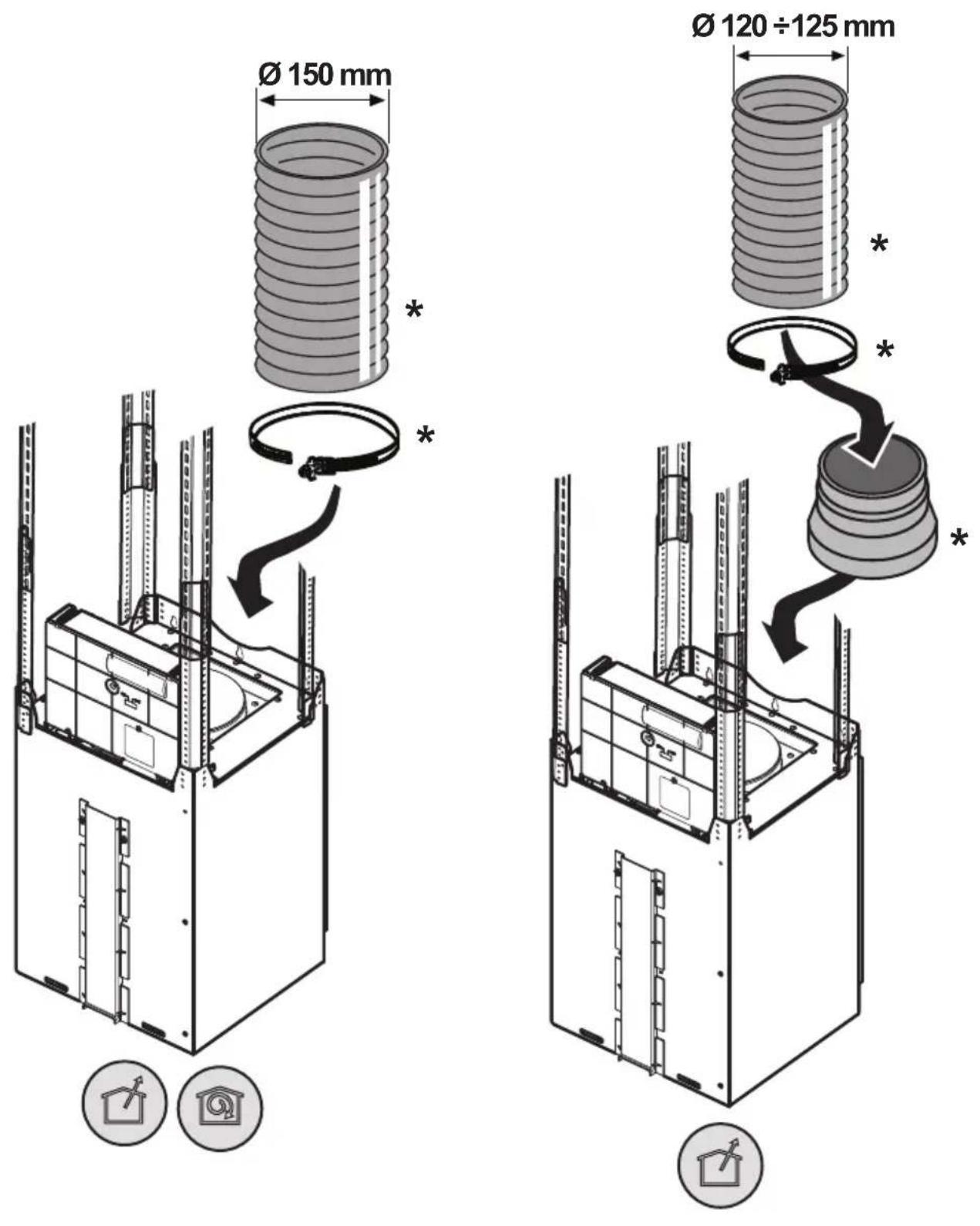

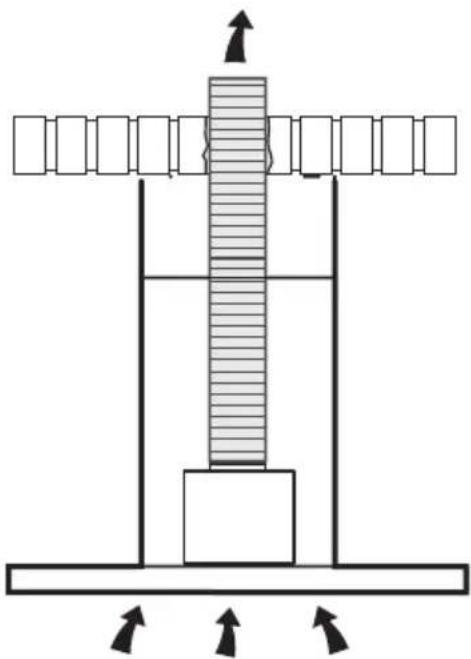

In this case, the fumes are conveyed outside the building by means of a special pipe connected to the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased separately.

The diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with an active charcoal filter, it must be removed.

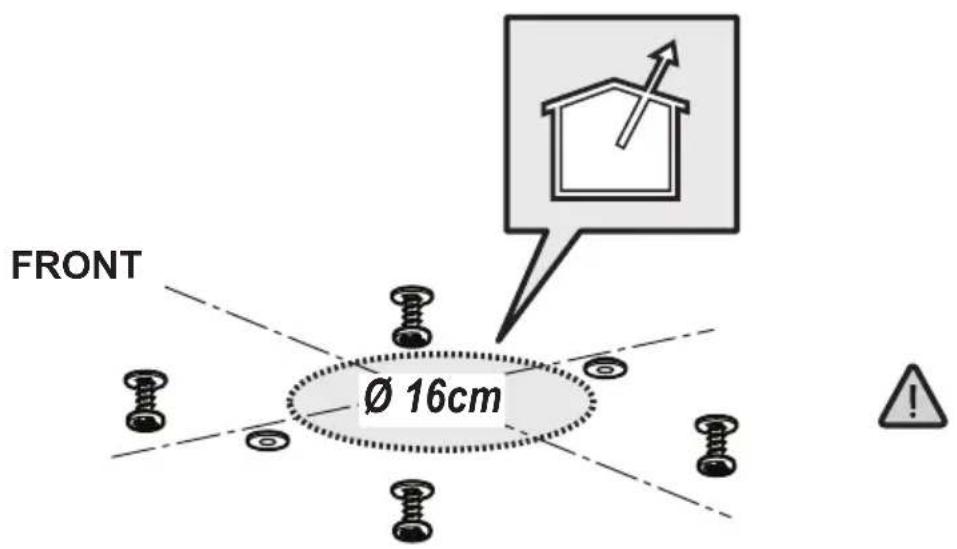

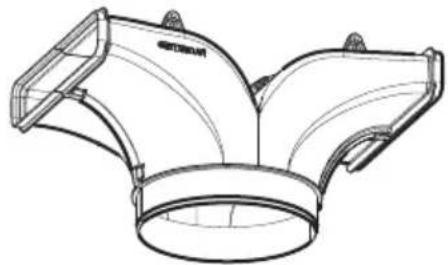

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using tubes and discharge holes on walls with smaller dimensions will cause a reduction in suction performance and a drastic increase in noise.

Any responsibility in this matter is therefore declined.

! Use a duct of the minimum indispensable length. ! Use a duct with as few elbows as possible (maximum elbow angle: 90°). ! Avoid drastic changes in the duct cross-section.

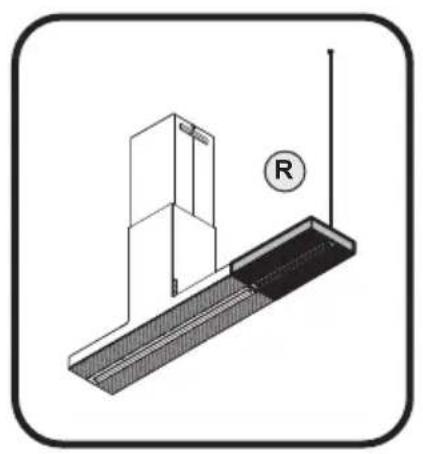

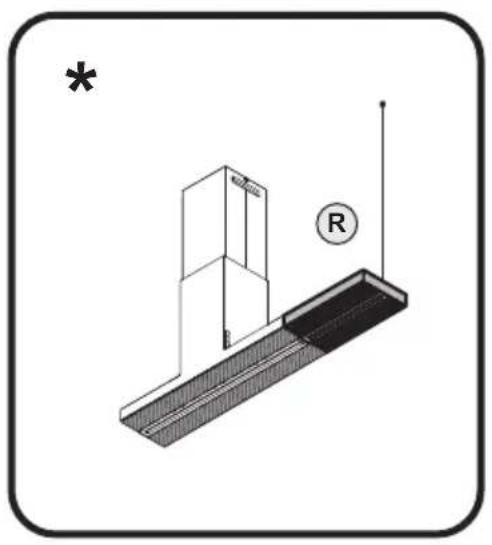

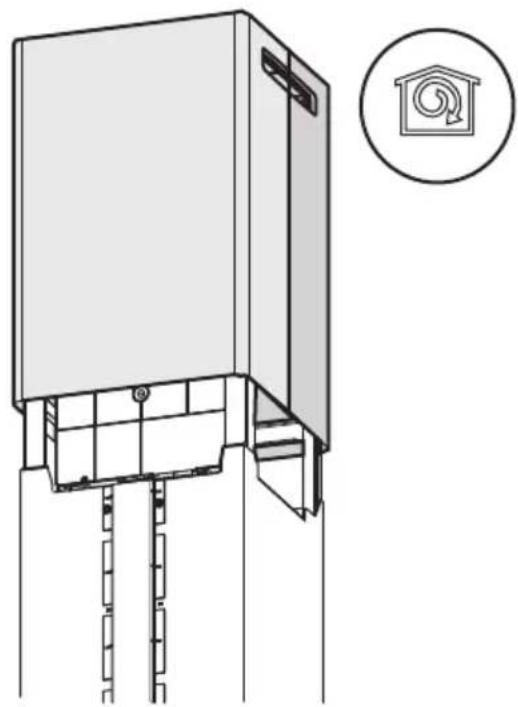

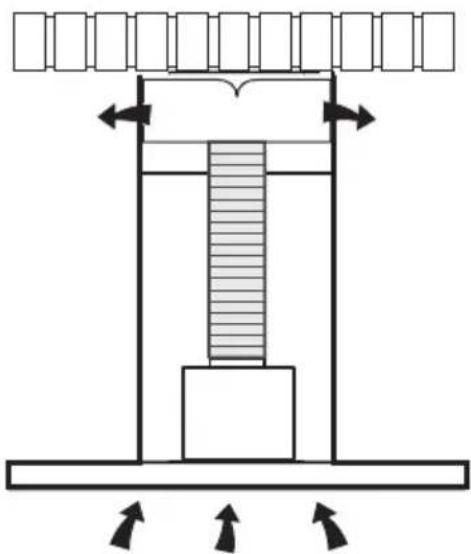

Filtration version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Installation

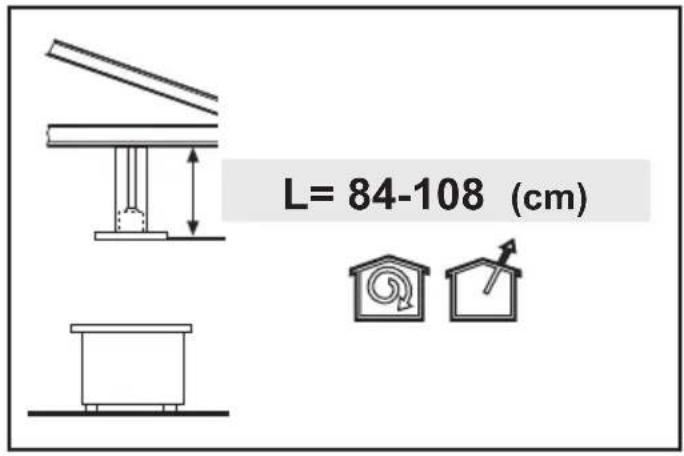

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

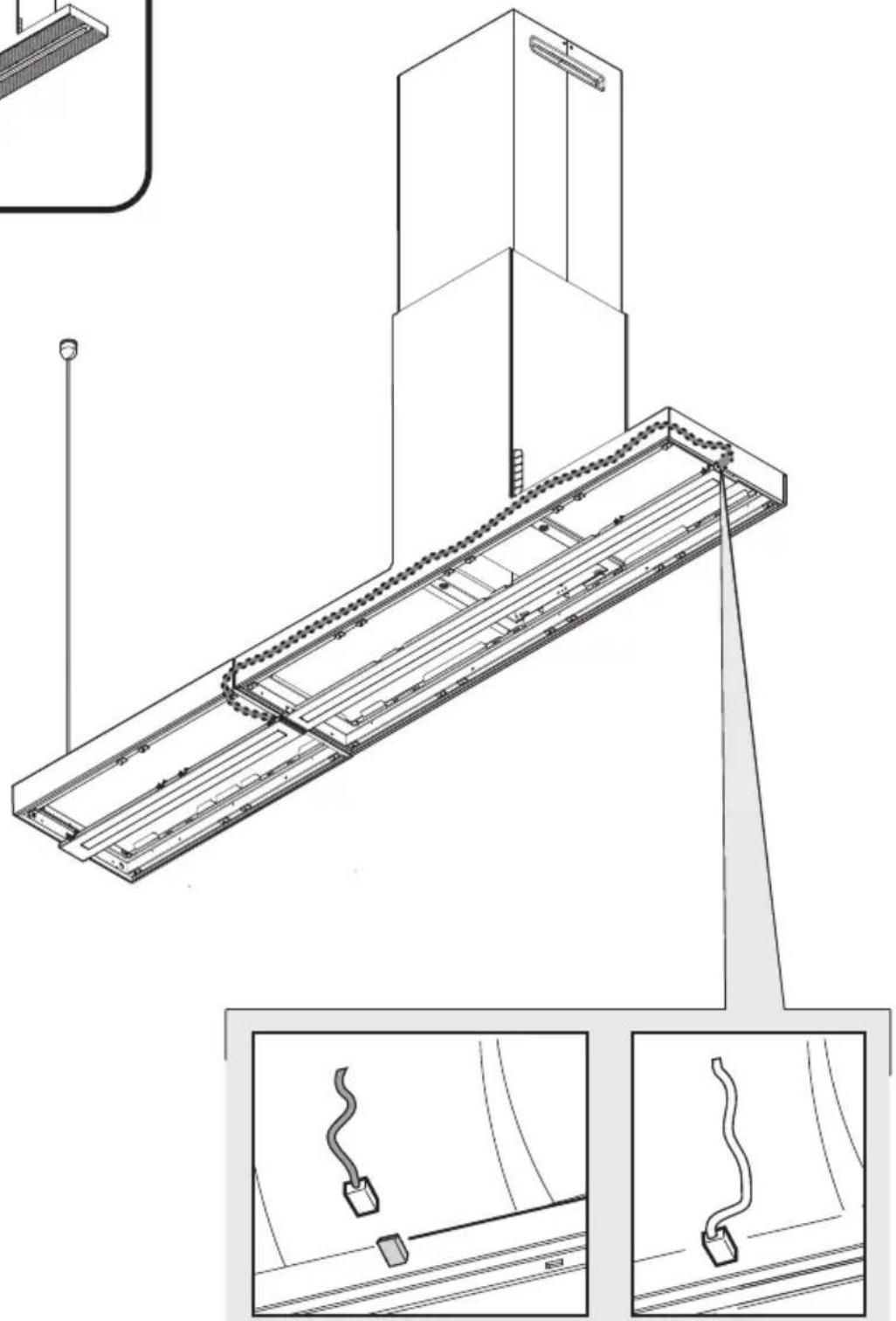

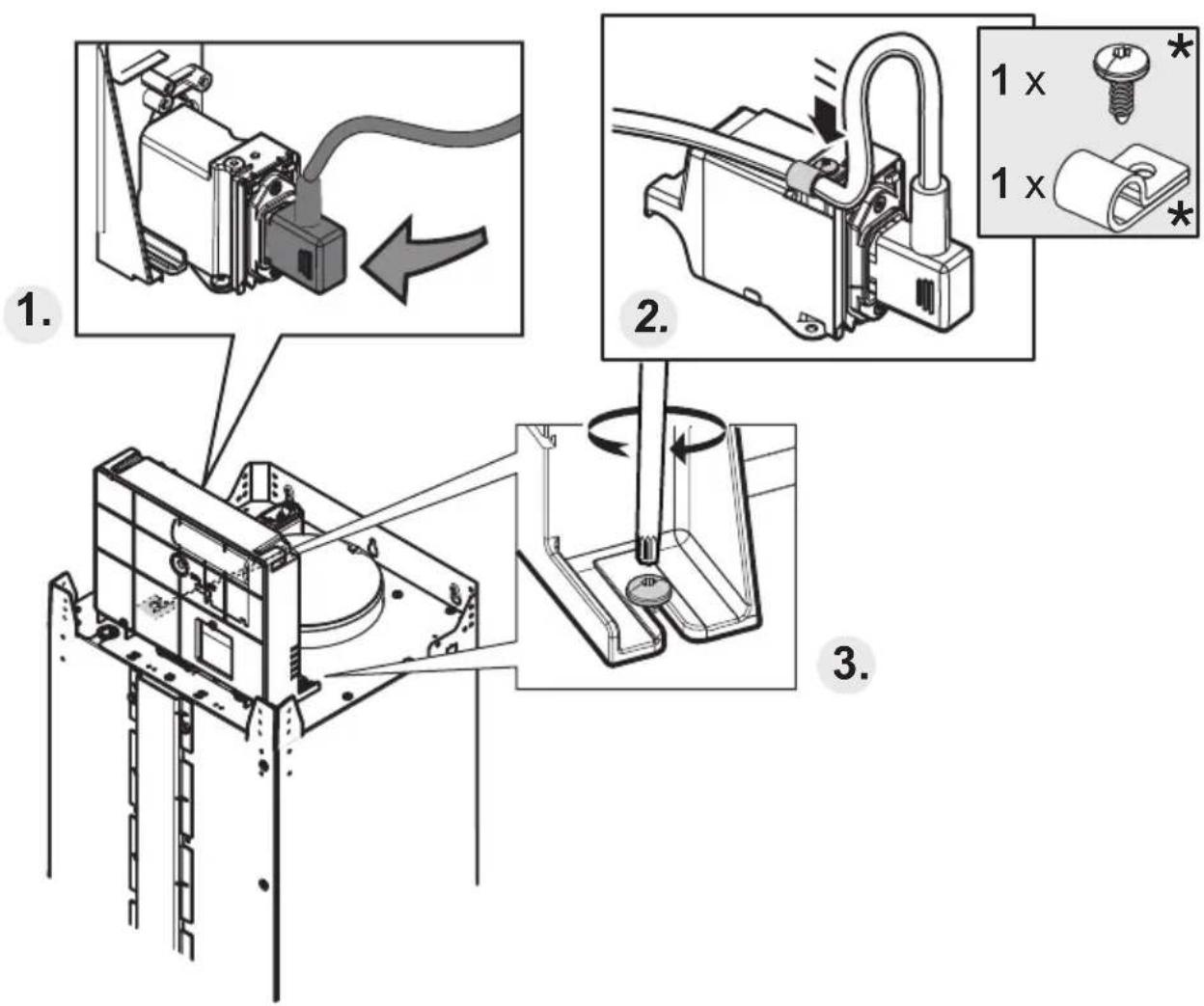

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

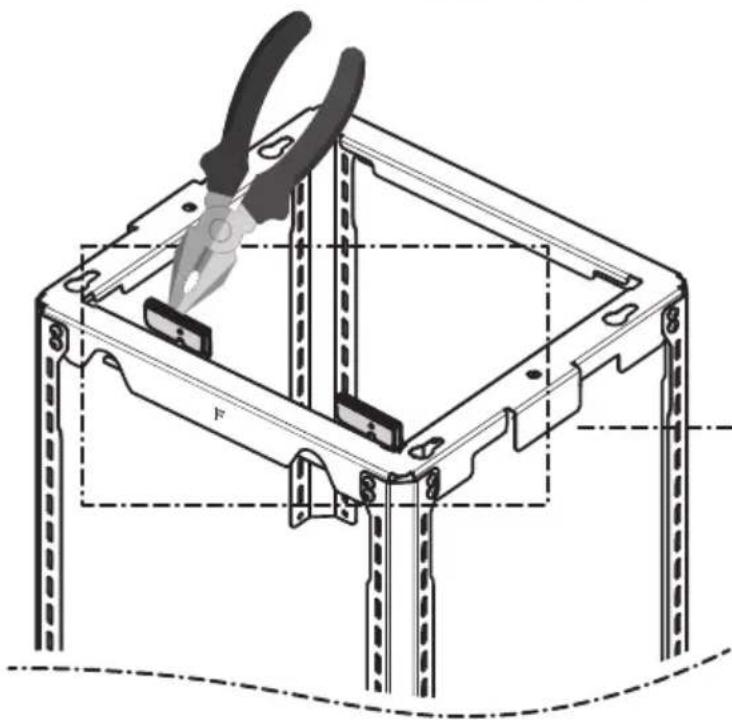

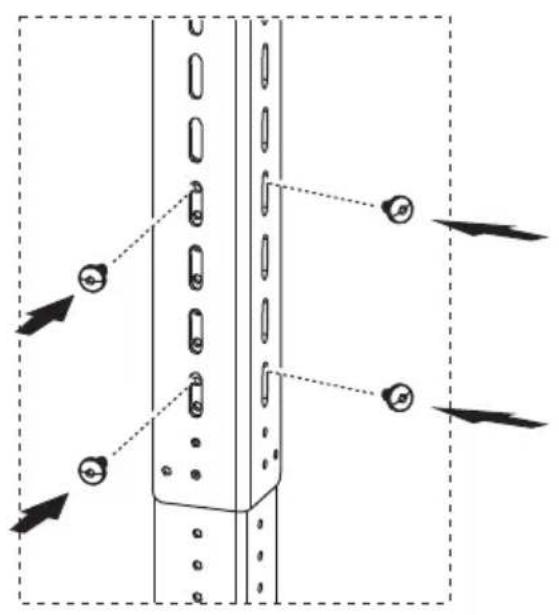

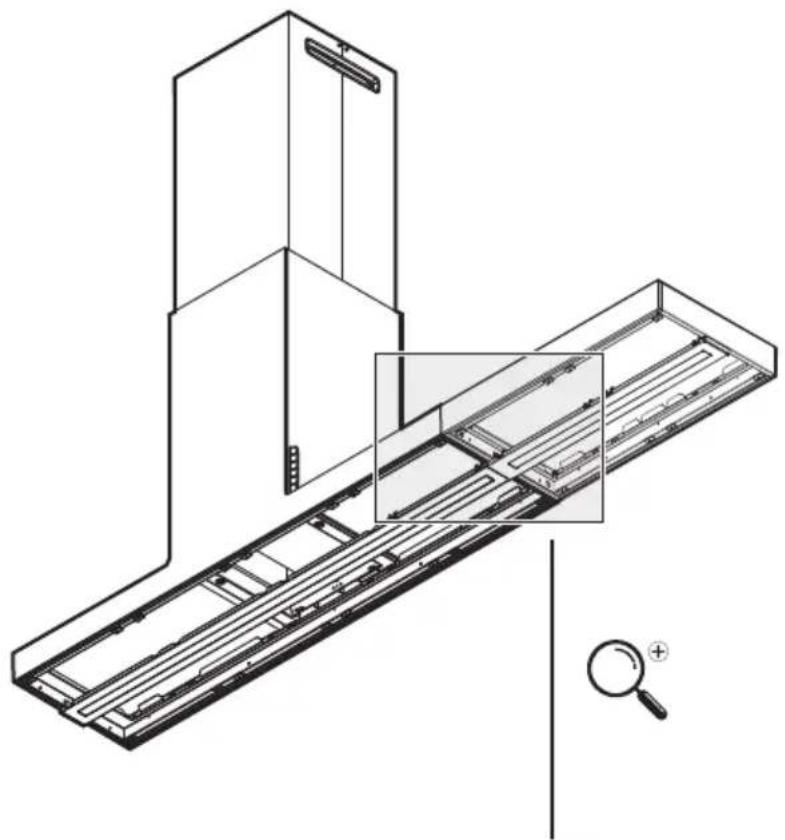

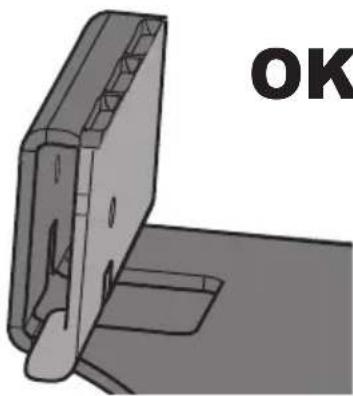

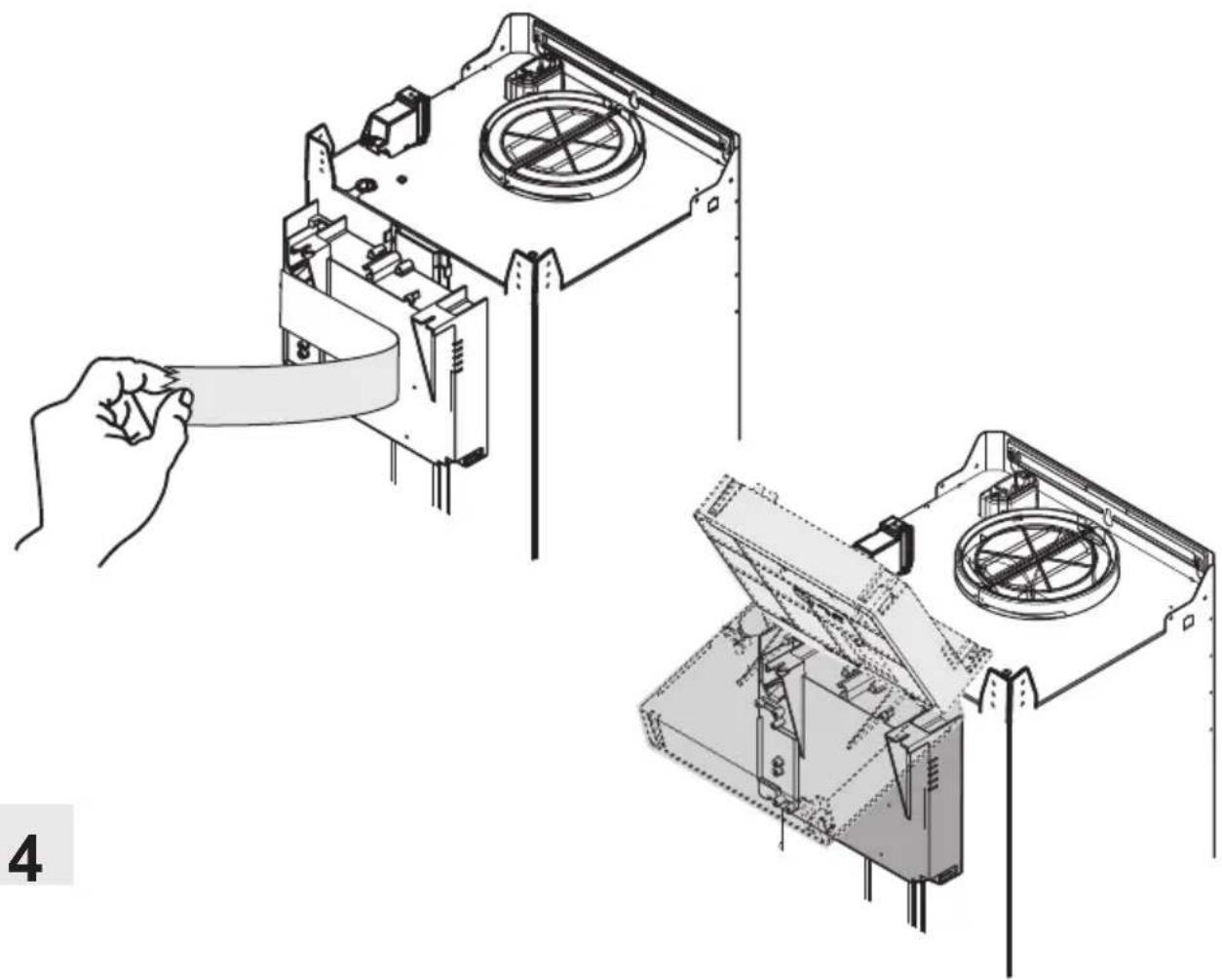

Mounting

Before beginning installation:

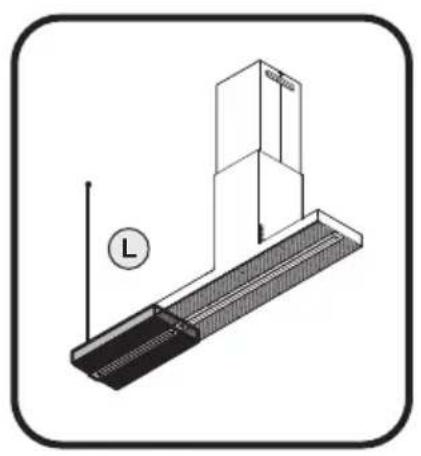

• Check that the product purchased is of a suitable size for the chosen installation area.

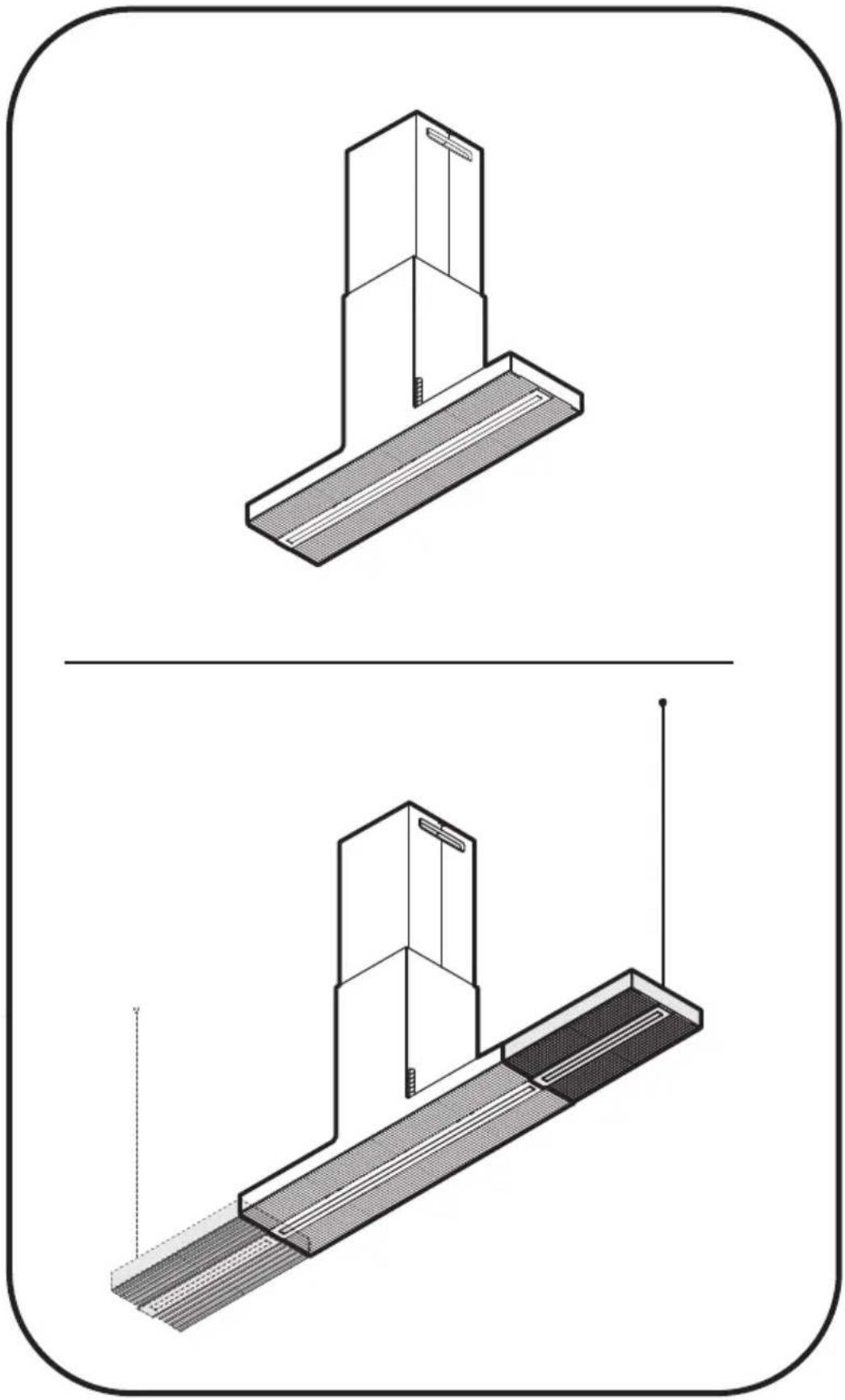

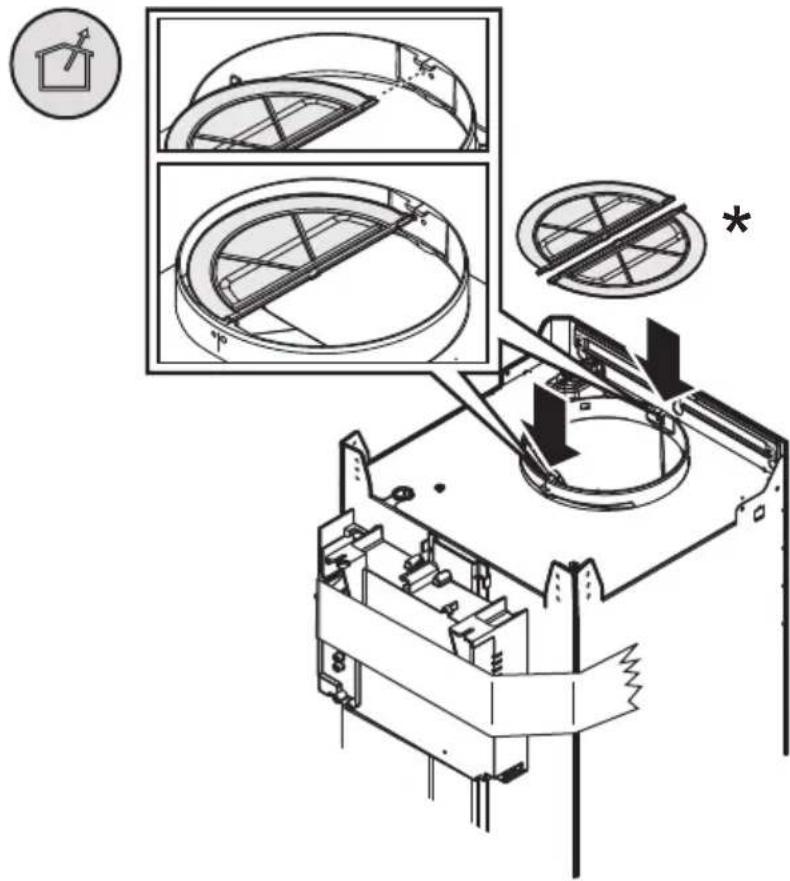

• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

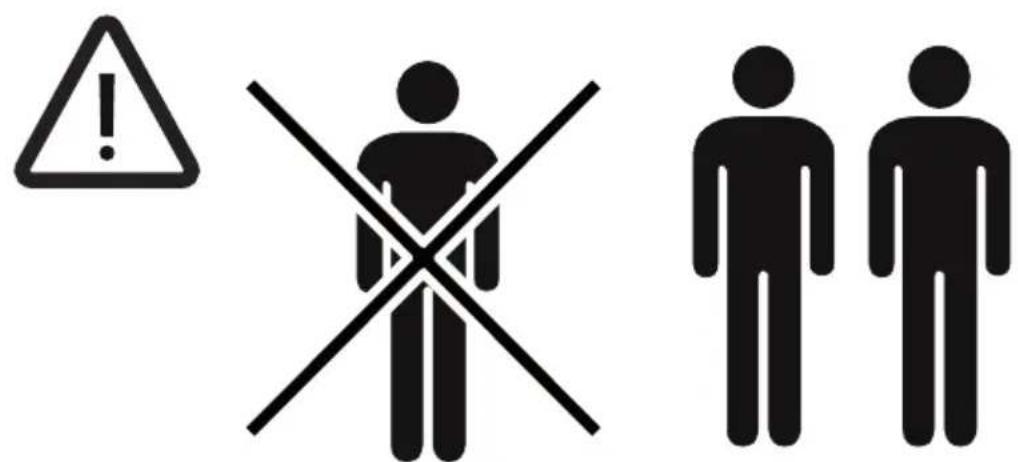

Very heavy product; hood handling and installation must be carried out by at least two persons.

Operation

ON/OFF light button

Press to turn the cooktop light on or off.

"BOOST" speed selection key

1st push: to enable the intensive suction speed "BOOST 1", timed for 30 minutes. This prolonged timing has been designed to guarantee a suitable cooking time for preparations that release high amounts of smoke during cooking.

Note: after 30 minutes, the hood will return to the suction speed previously set.

2nd push ("BOOST 1" activated): to activate the intensive suction speed "BOOST 2", timed for 7 minutes.

Note: after 7 minutes, the hood will return to the previously set suction speed.

3rd push ("BOOST 2" activated): to exit the function and return to the speed previously set.

Note: the speed key previously set remains lit during BOOST operation.

Speed selection key 3

Push to activate the high speed (suction power).

Speed selection key 2

Push to activate the average speed (suction power).

Speed selection key 1

Push to enable the low speed (suction power)

Power button

Push to switch on the hood and enable speed selection;

if pushed while the motor is running, the latter will stop

Note: if no function is activated within 10 seconds, the hood turns off.

Filter Saturation indicator lights

The hood signals at regular intervals that the filters must be serviced.

Keys and lit and flashing very slowly: service the grease filter.

Keys and lit and flashing quickly: service the odour filter.

Note: The filter saturation warning signal is visible within the first 10 seconds after the hood is switched on.

Reset filter saturation indicator:

Press and hold the keys and

The keys will flash quickly to confirm that reset has been completed

Activation of filter saturation indicators

Note: this operation must be performed with the hood off.

- Grease filter

Push and hold down the keys to activate the function.

The keys light up flashing very slowly, indicating that the grease filter indicator can be activated.

Note: Push the keys to deactivate.

- Odour filter

Push and hold down the keys and activate the function.

The keys light up flashing quickly, indicating that the odour filter indicator can be activated (normally deactivated).

Note: Push the keys to deactivate.

Maintenance

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

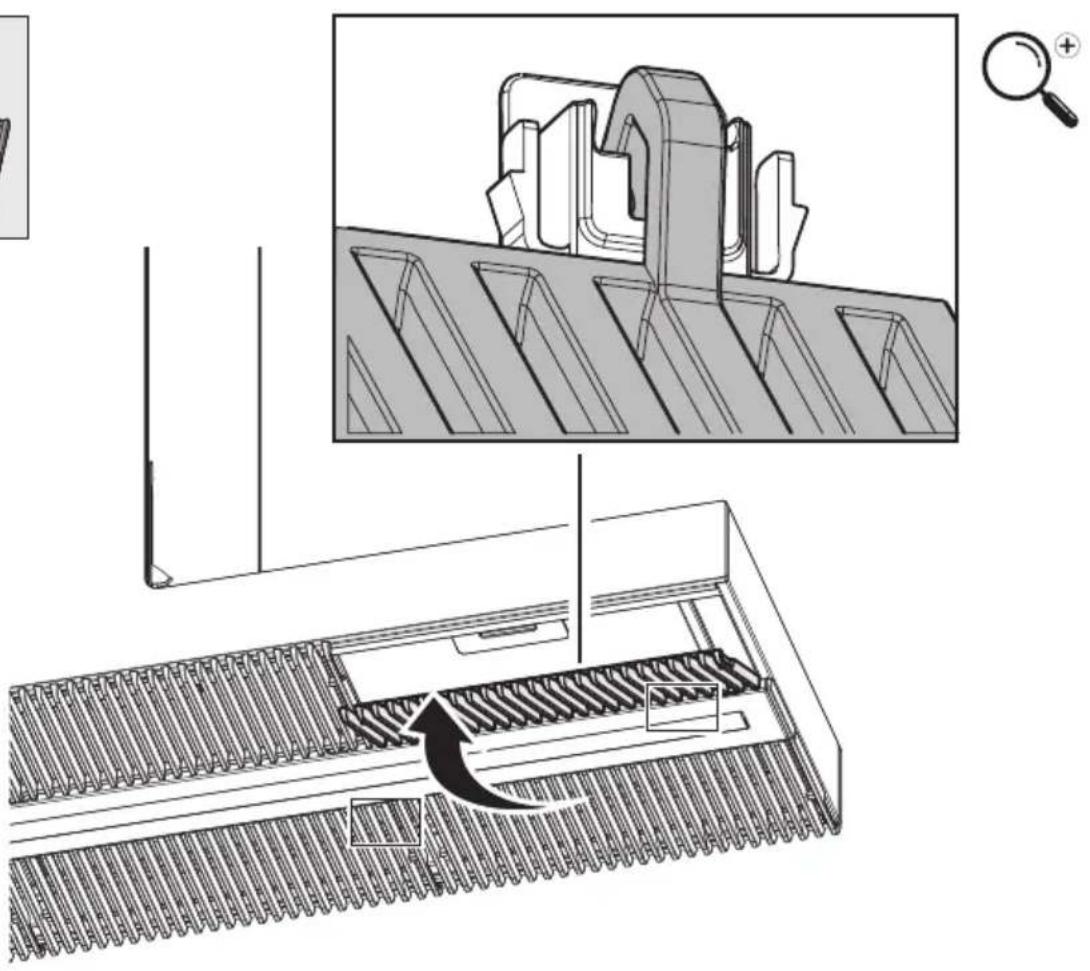

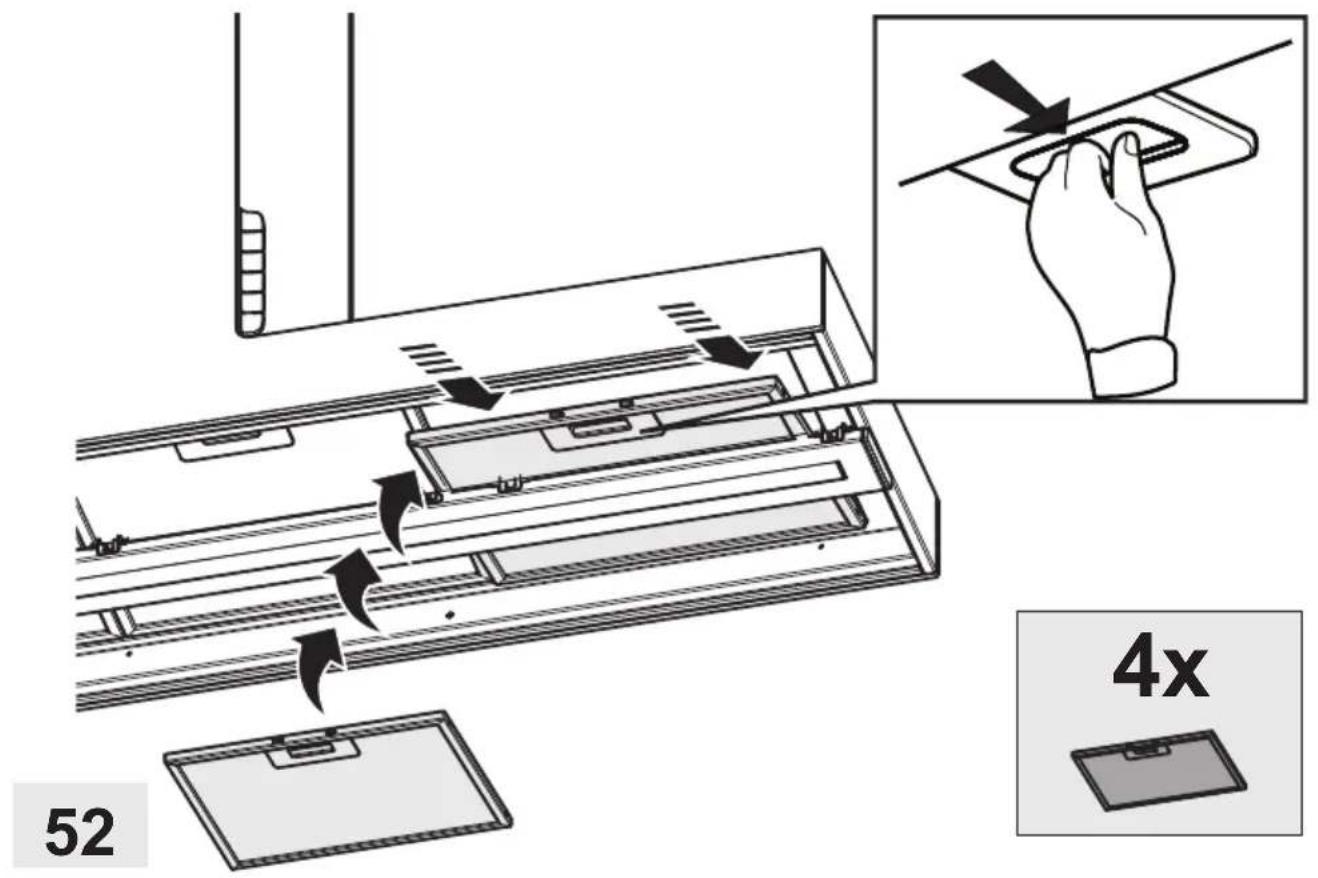

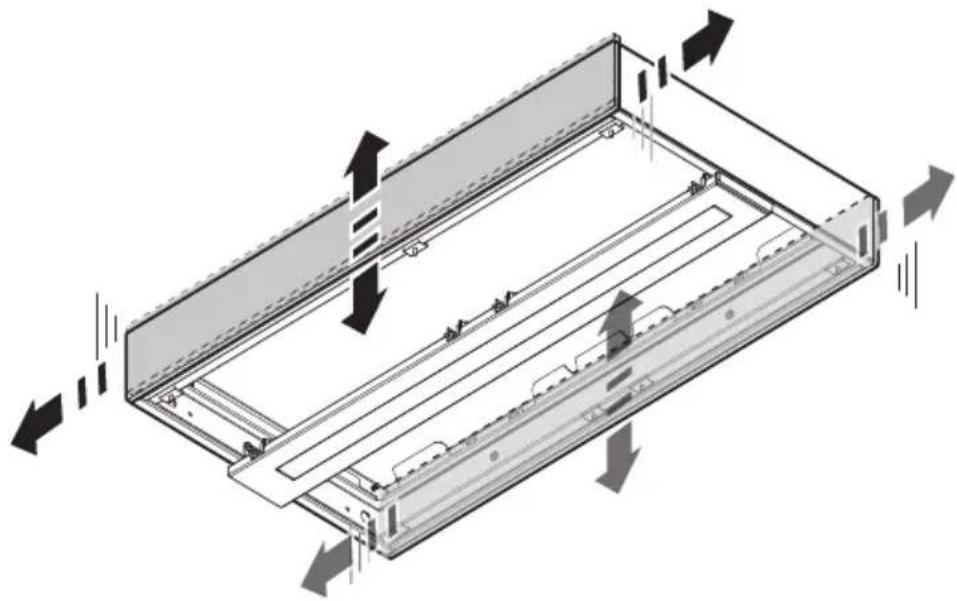

Fig. 38 / 48-52

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

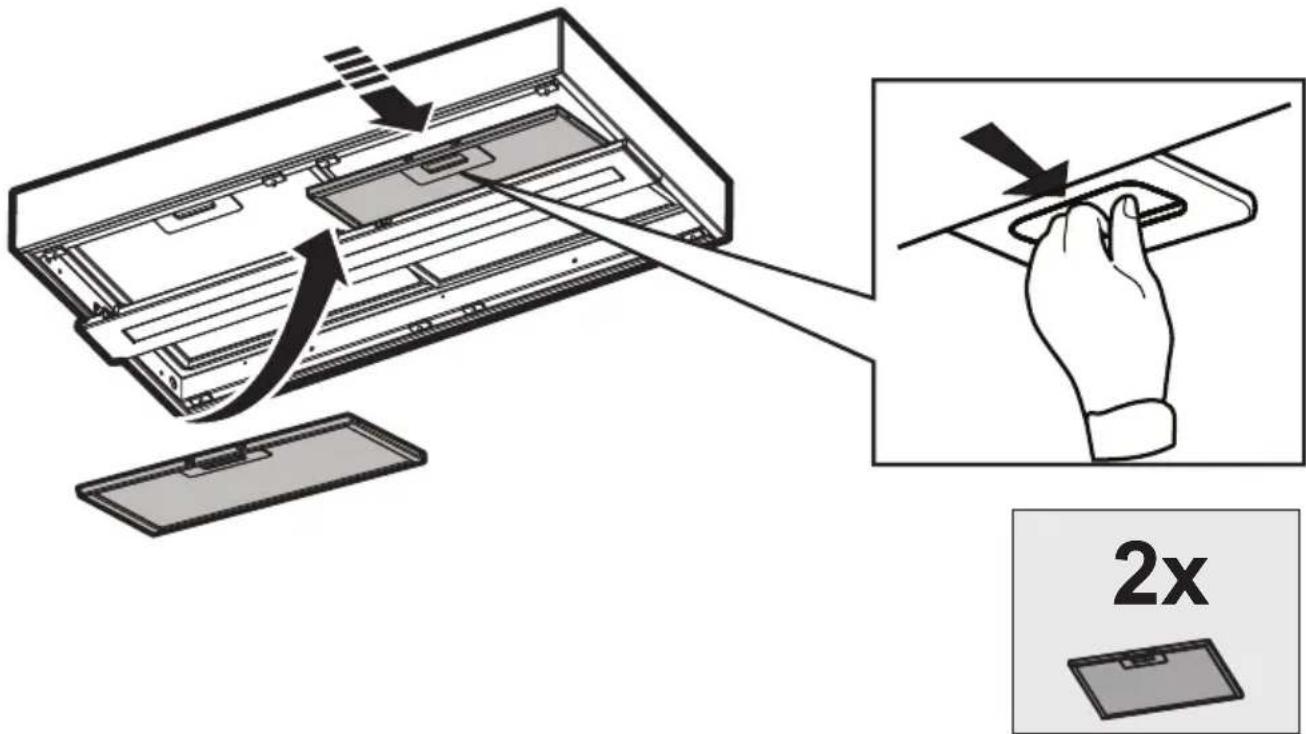

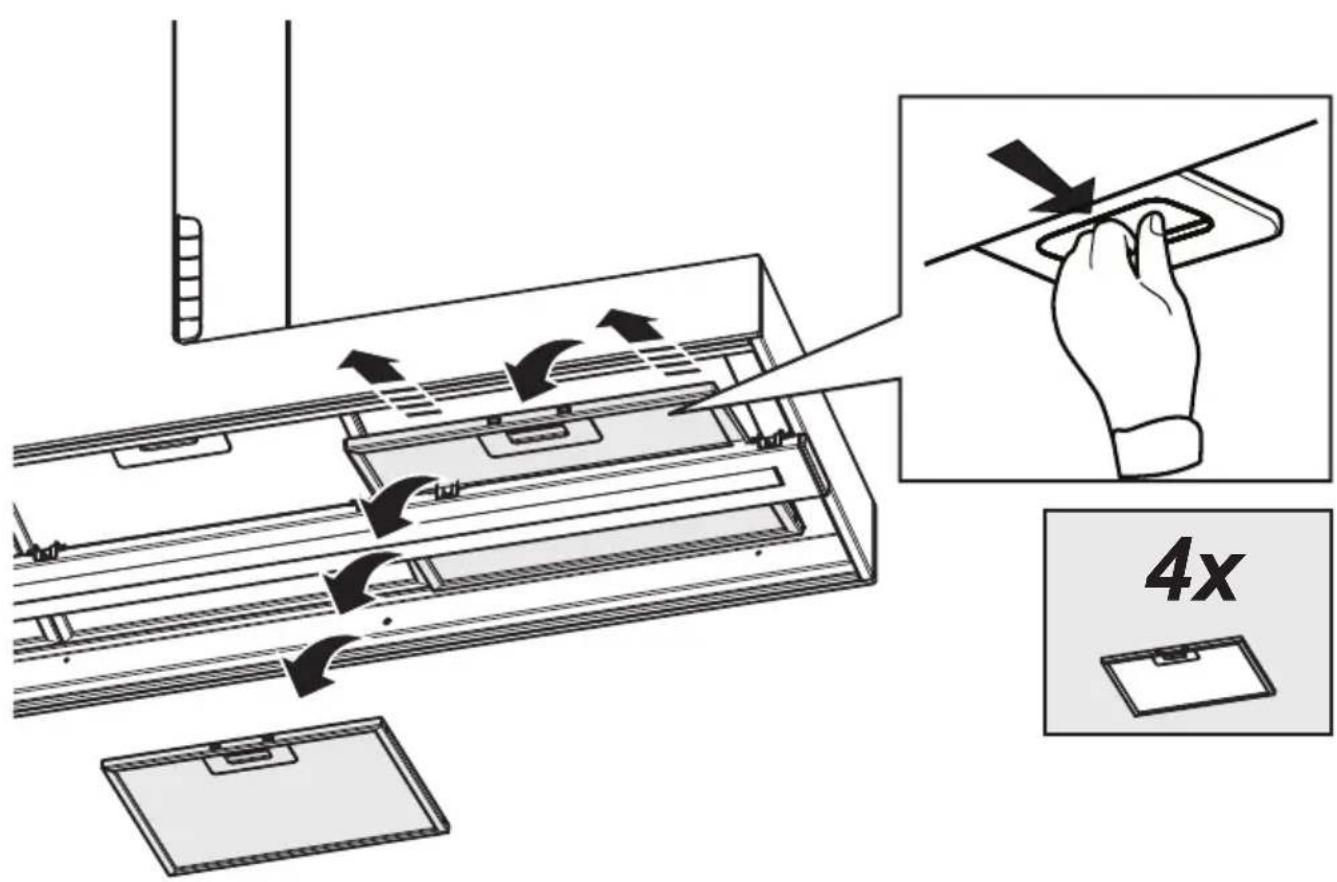

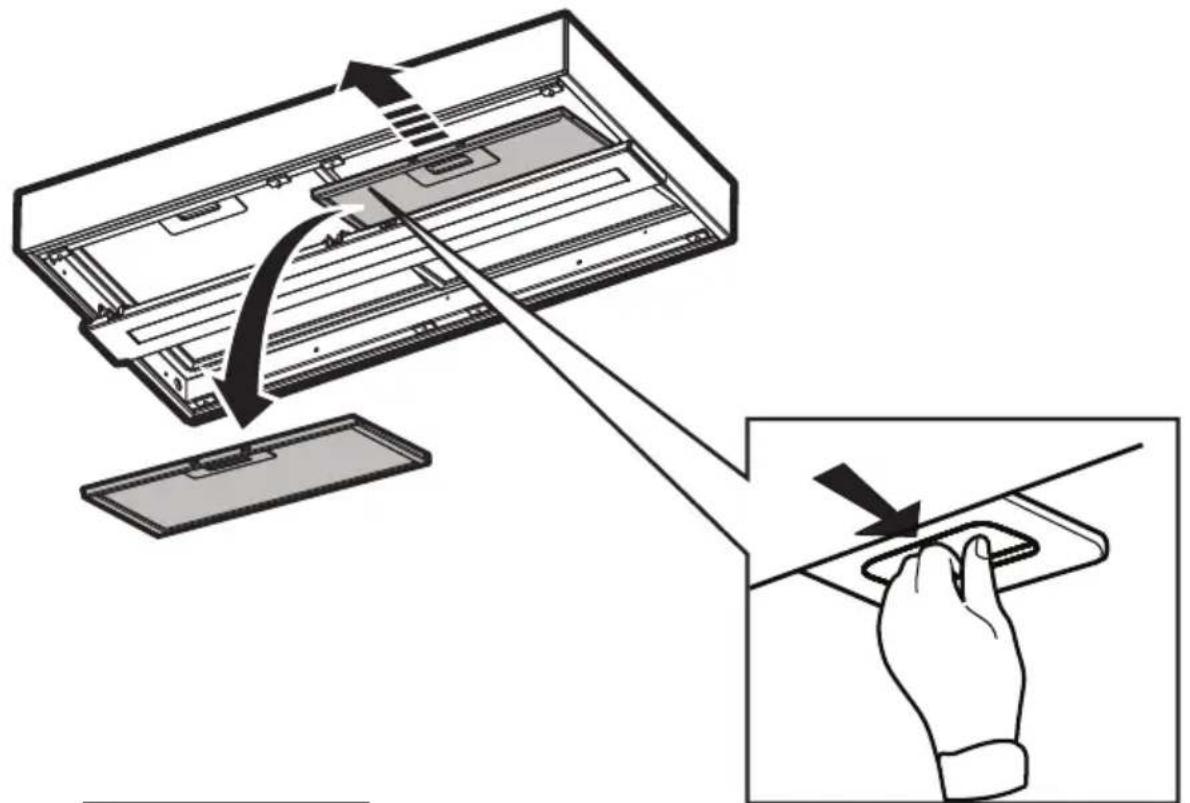

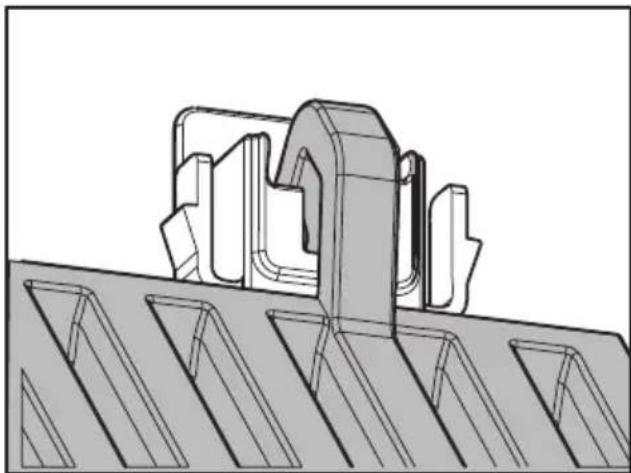

To remove the grease filter, pull the spring release handle.

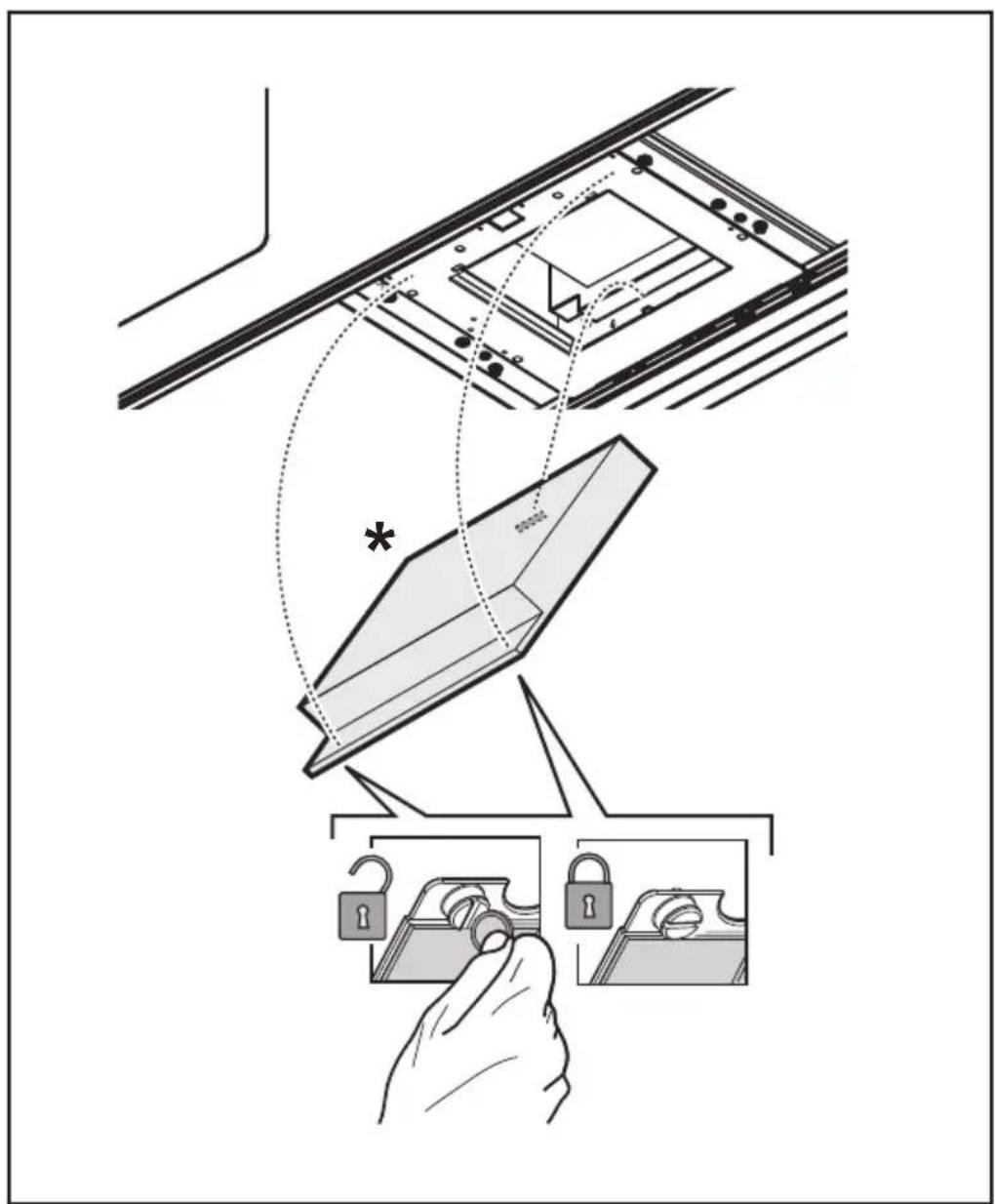

Charcoal filter (filter version only)

Fig. 51

It absorbs unpleasant odors caused by cooking.

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65°C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100°C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.
