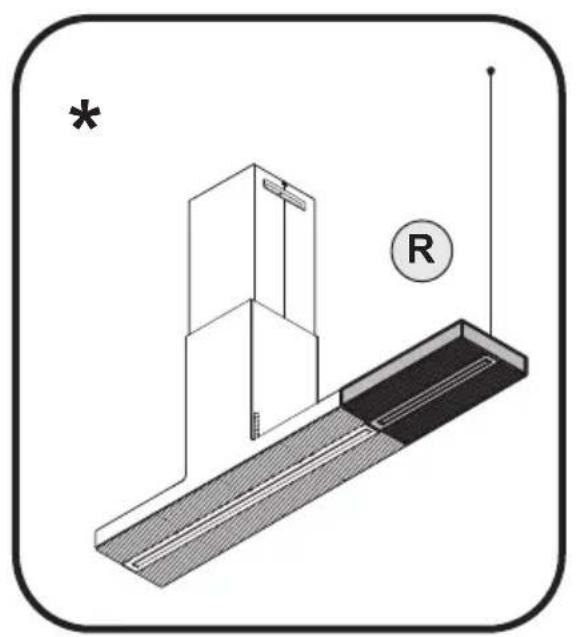

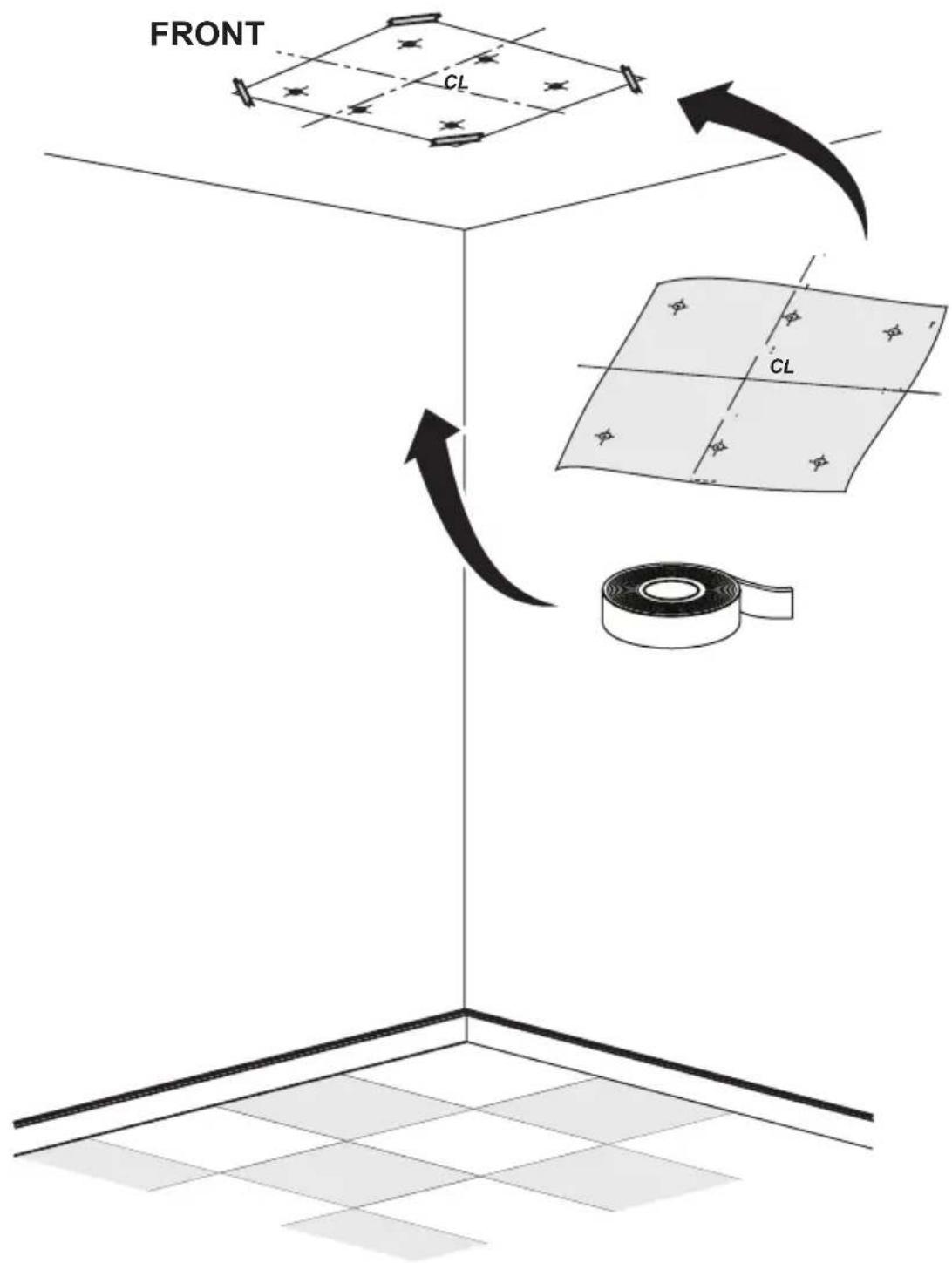

FRONT *CL *HAIKU ISLAND Hood Center

FRONT CL CL

5

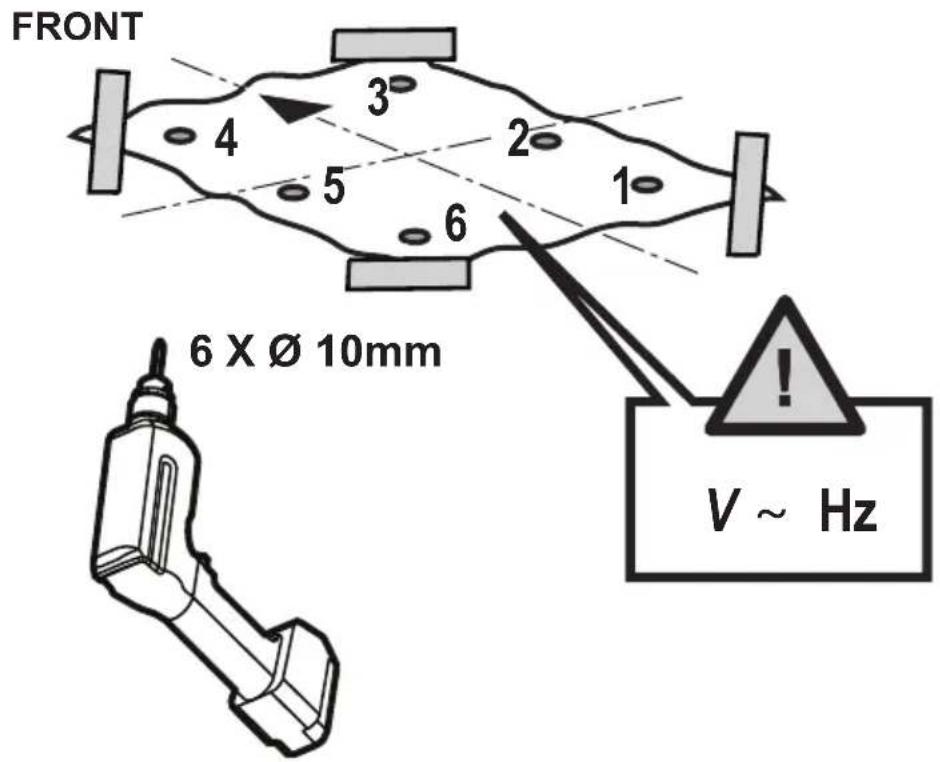

FRONT 4 3 2 1 5 6 6 X Ø 10mm V ~ Hz

FRONT

4 x ∅4 x 70mm

6 x ∅ 10mm

6

Diagram showing various screw types and cross-shaped features, no text or symbols present

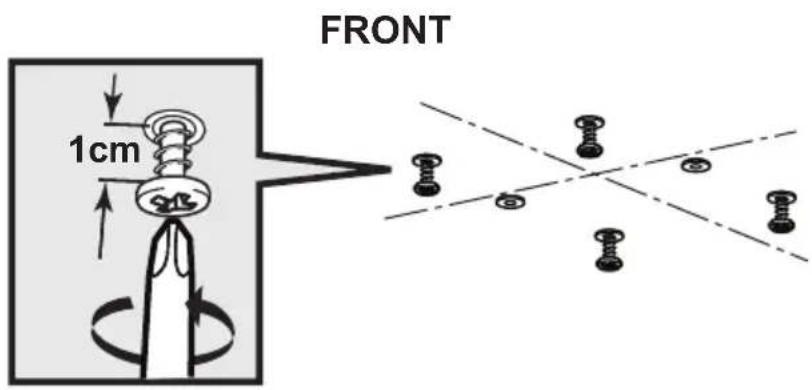

FRONT 1cm

7

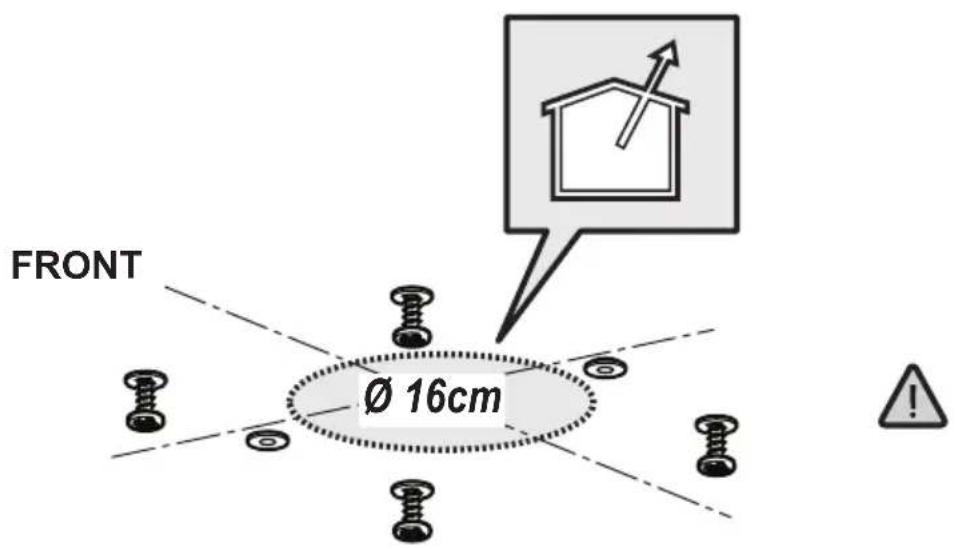

FRONT Ø 16cm

8

Icon depicting a pencil writing on a document with a calculator (no text or symbols)

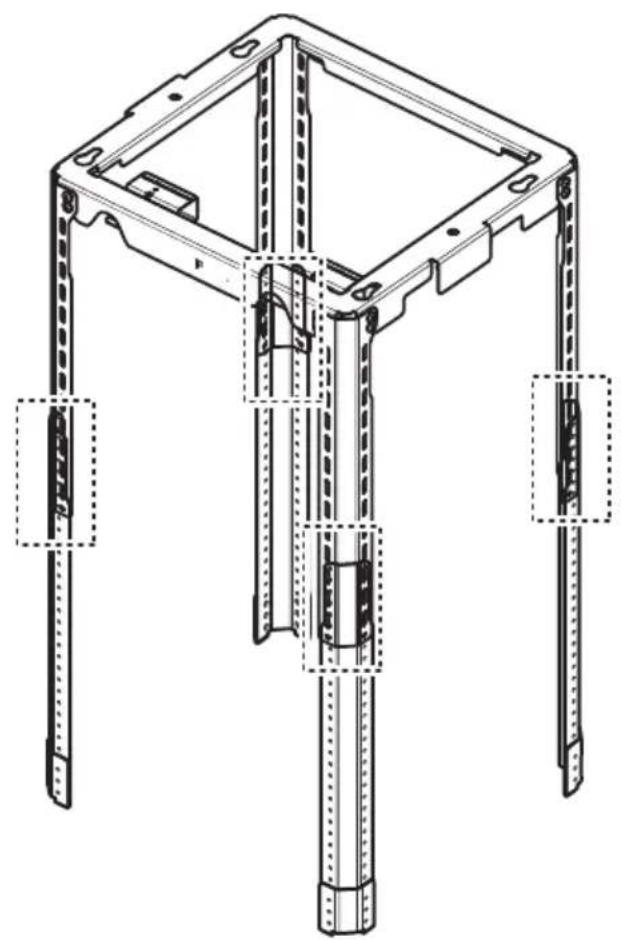

Technical line drawing of a mechanical frame structure with vertical supports and a dimension label H (no text or symbols beyond measurement indicators)

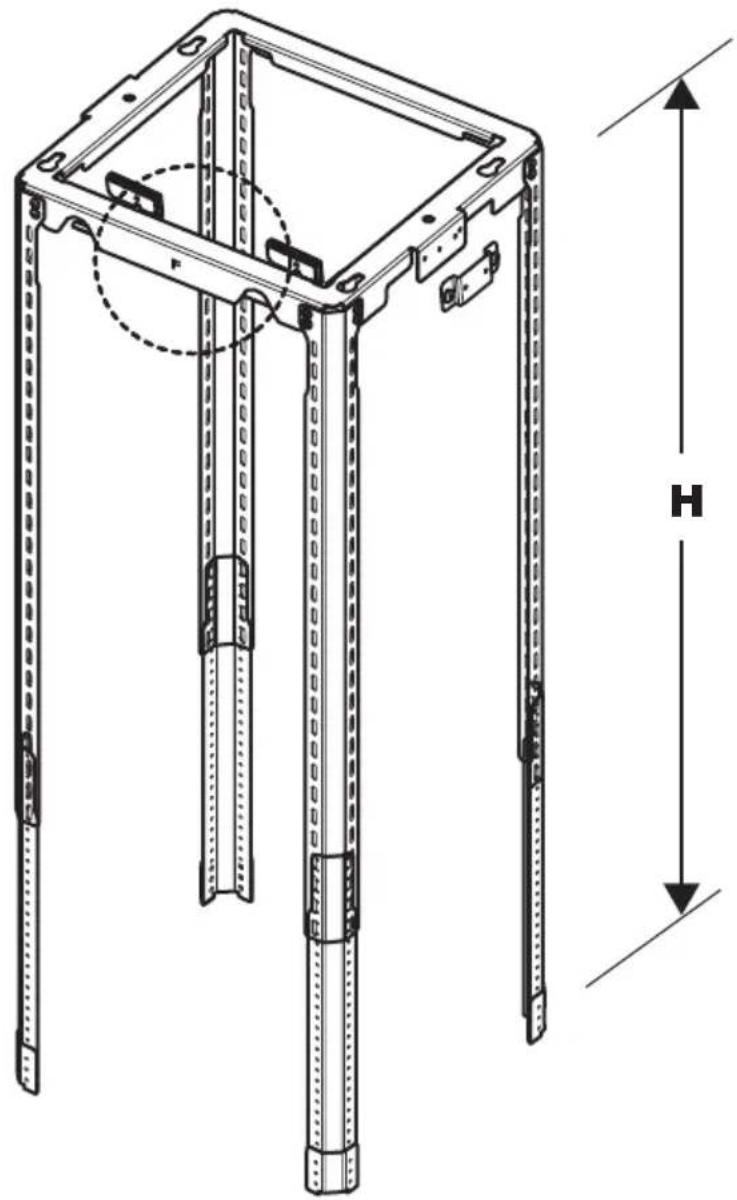

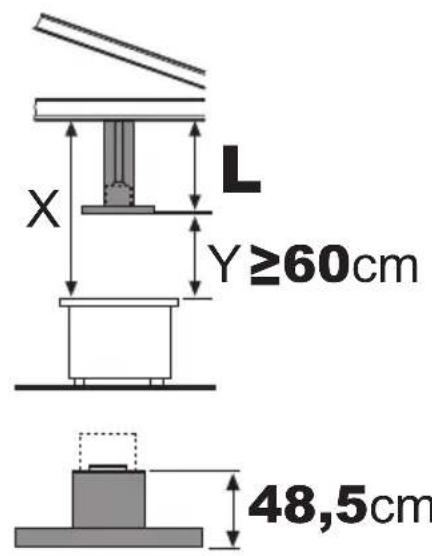

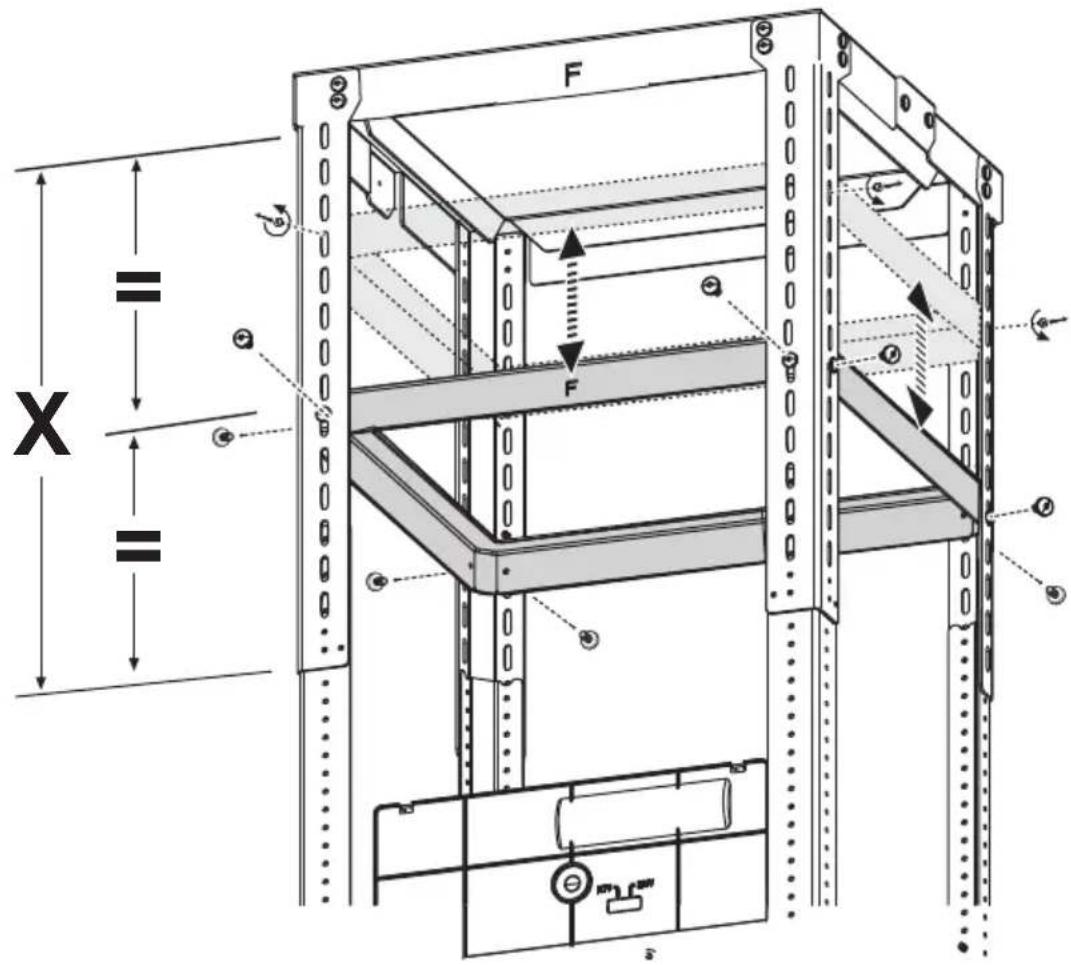

X L Y≥60cm 48,5cm

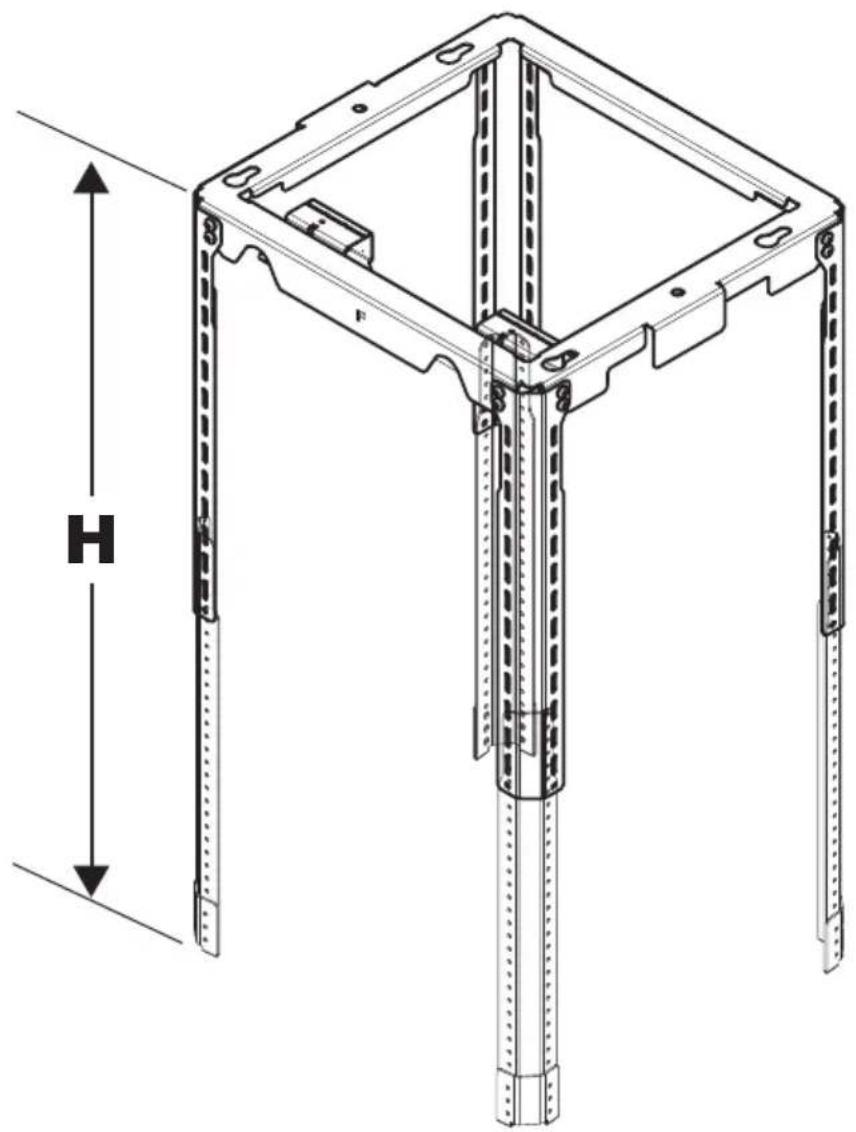

$$ \mathbf {H} _ {\mathrm{(cm)}} = (\mathbf {X} - \mathbf {Y} - 4 8, 5 \mathrm{cm}) $$

1.

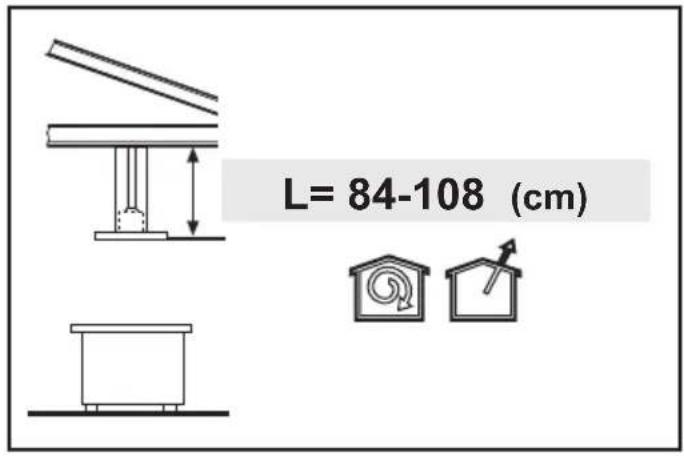

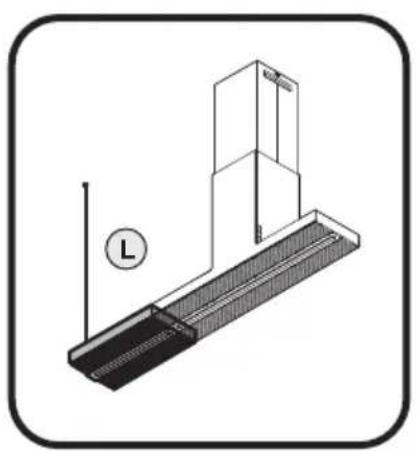

L= 84-108 (cm)

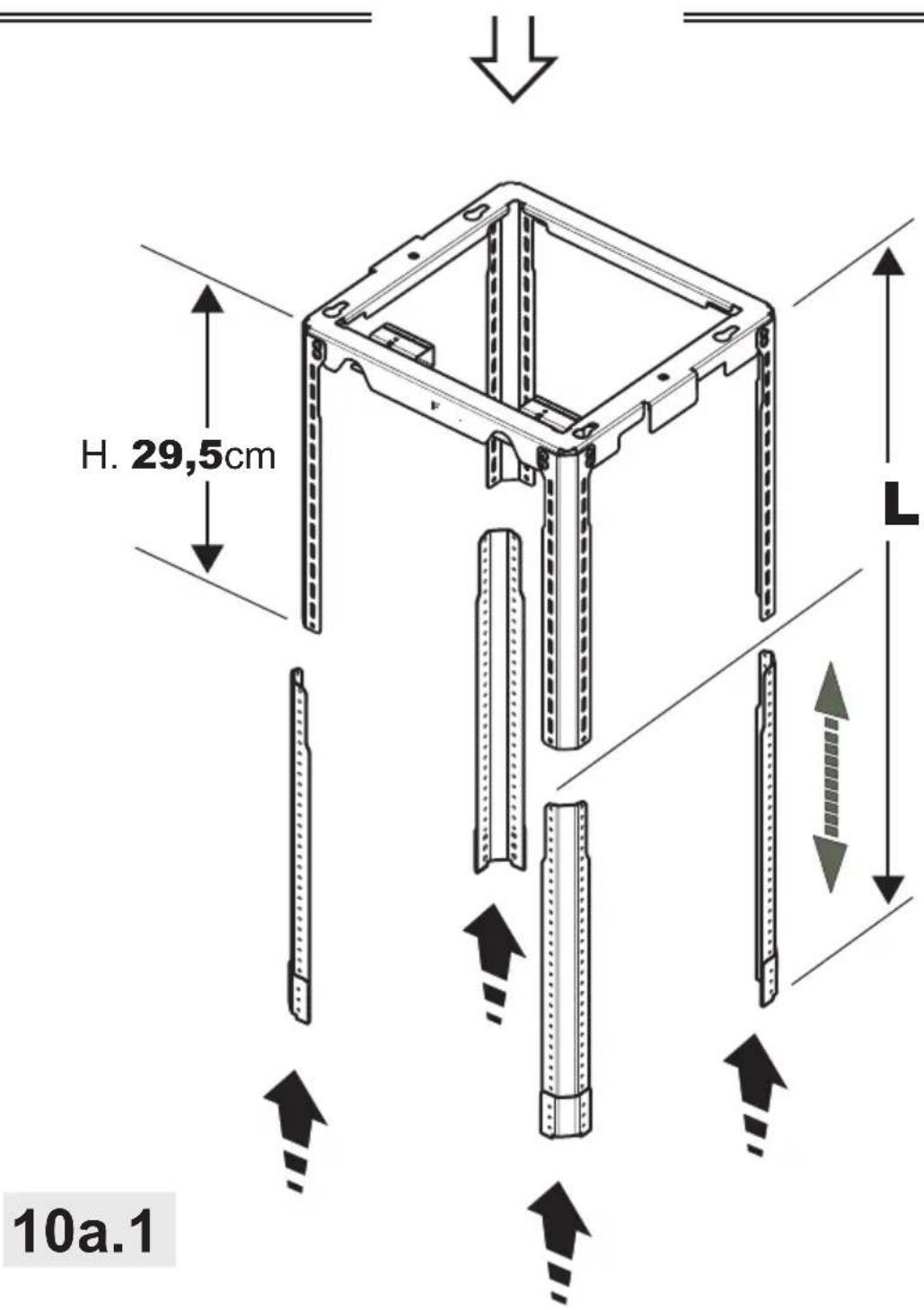

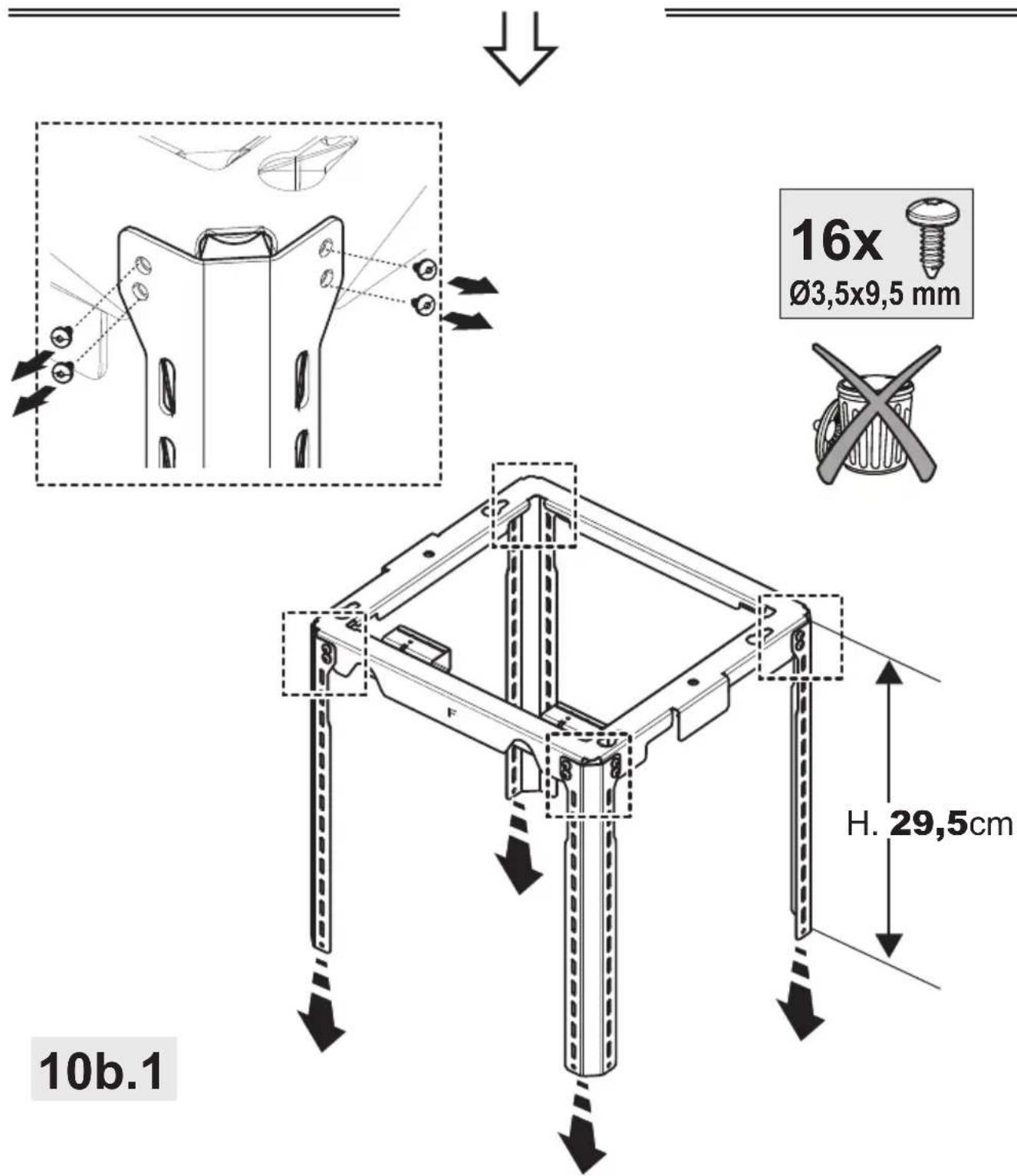

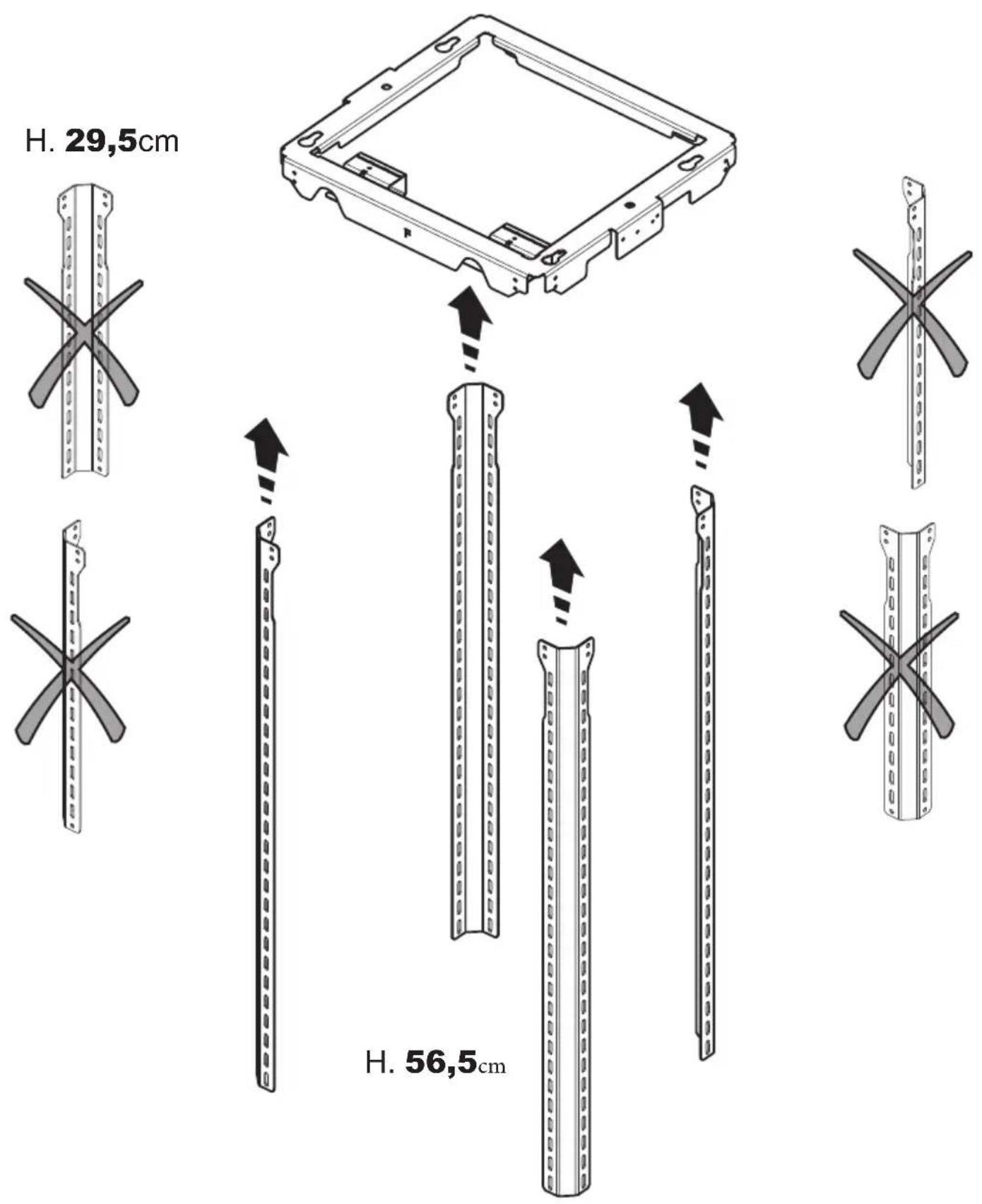

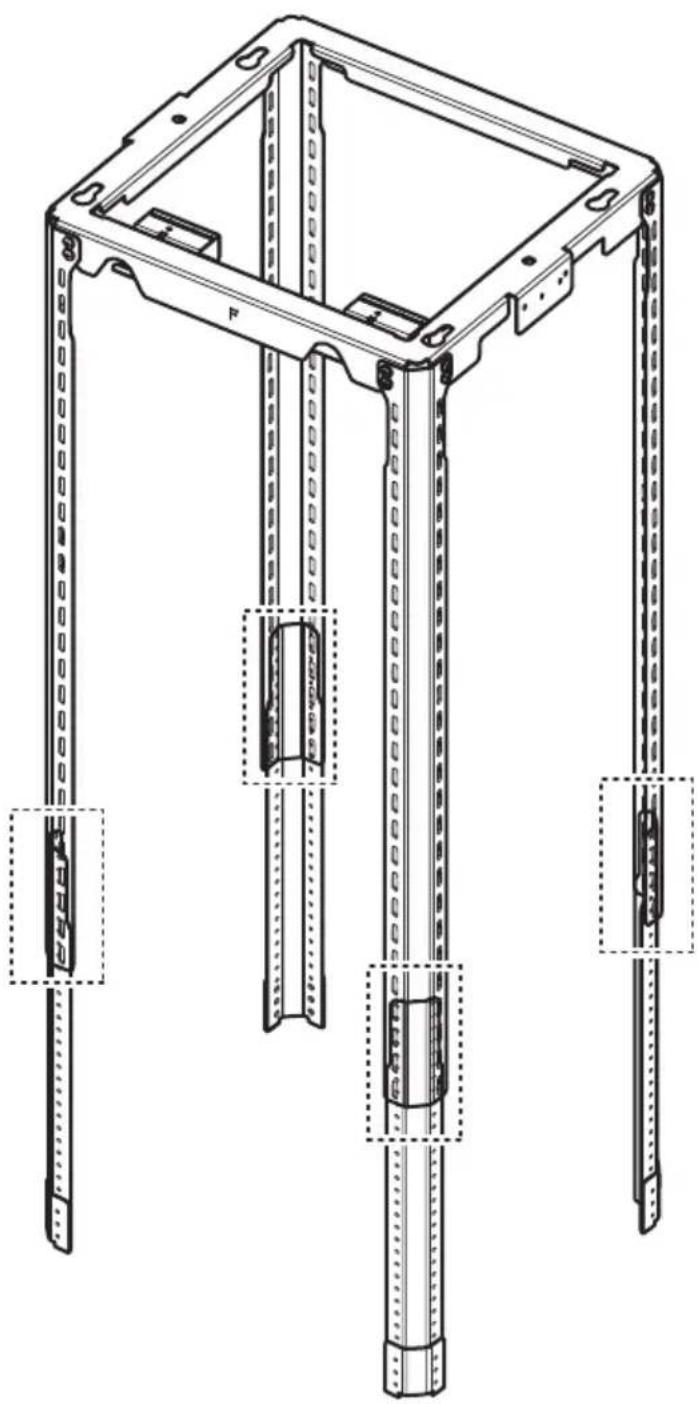

H. 29,5cm 10a.1

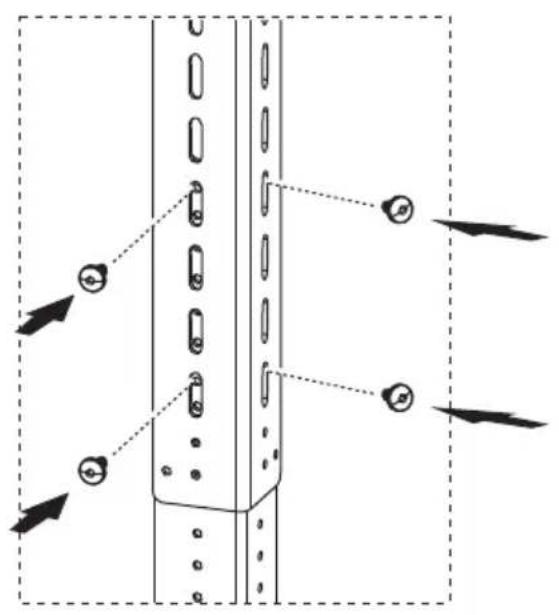

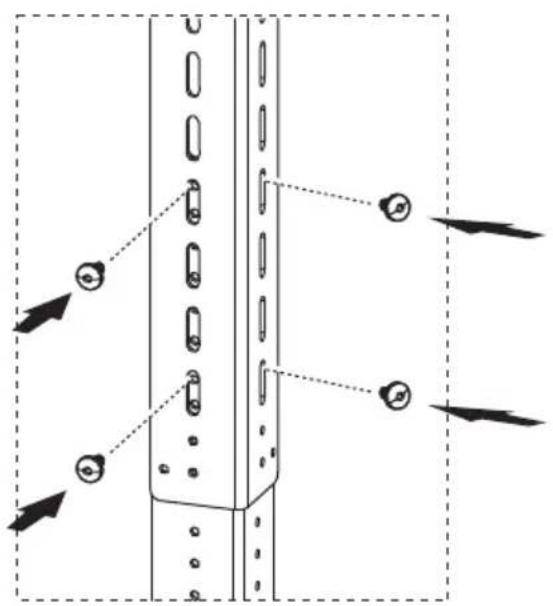

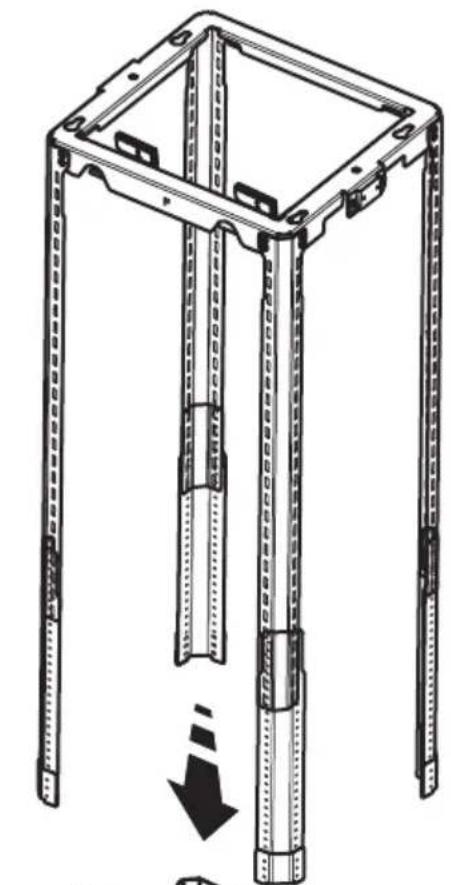

Technical diagram showing a vertical panel with multiple slots and directional arrows indicating movement or assembly.

16x
∅3,5x9,5 mm

Technical line drawing of a mechanical frame structure with mounting holes and structural supports (no text or symbols)

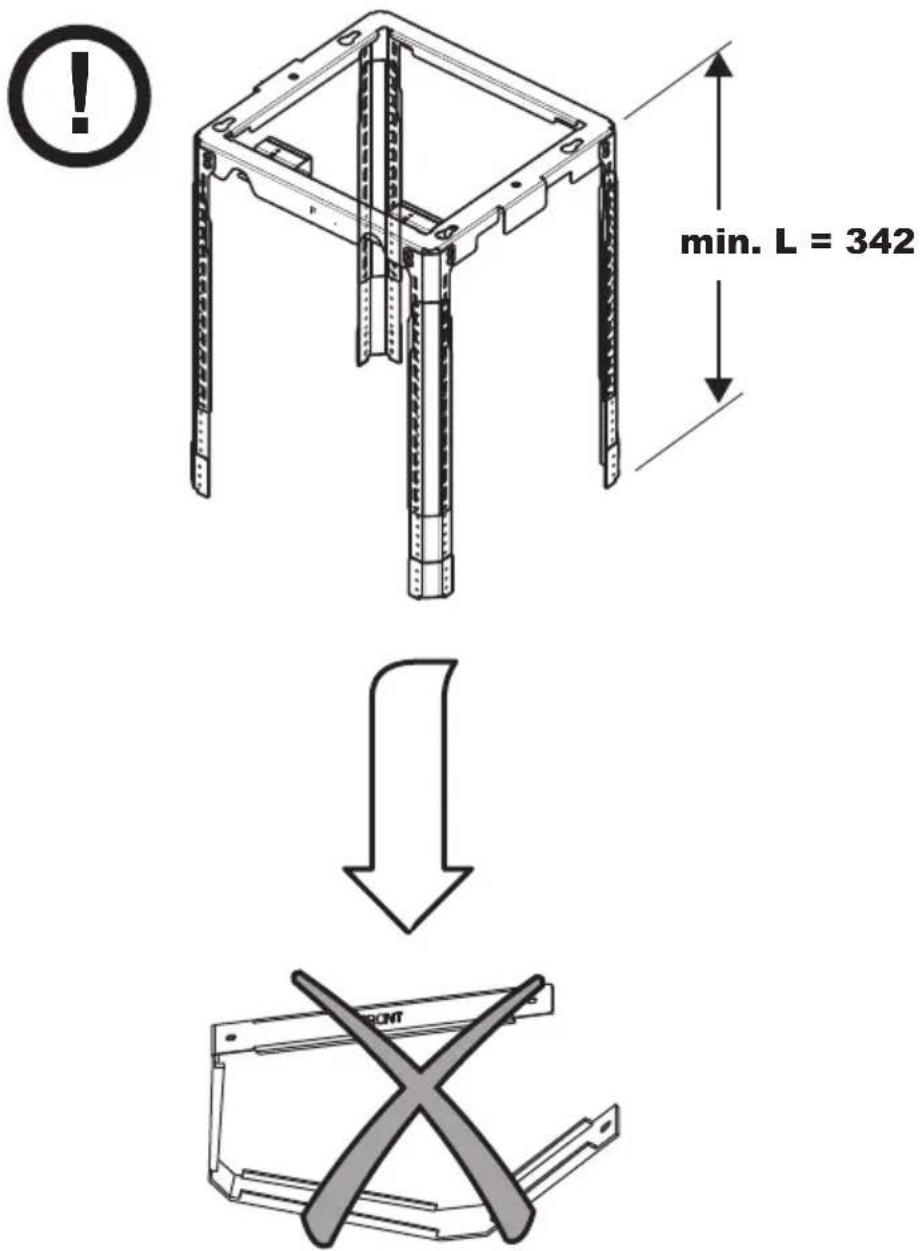

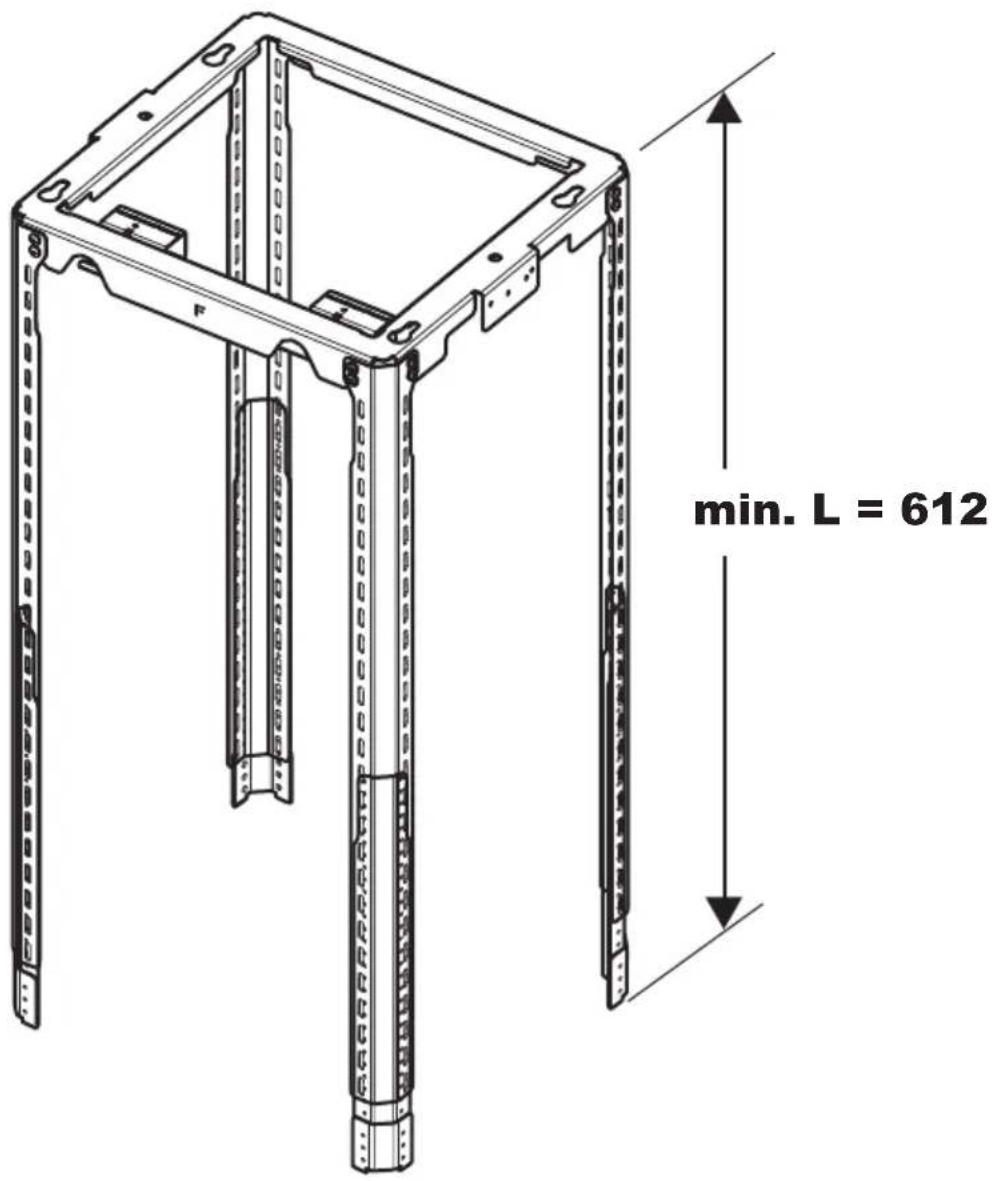

min. L = 342

10a.2

1.

Simple line drawing of a structural support frame with diagonal beams and vertical supports (no text or symbols)

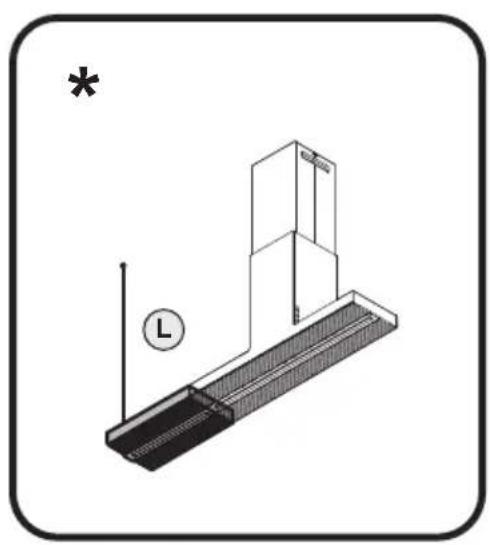

L= 110-117 (cm)

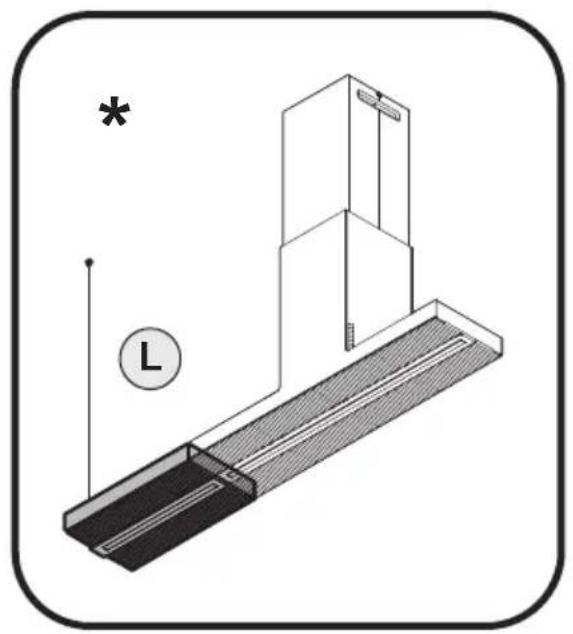

L= 110-125 (cm)

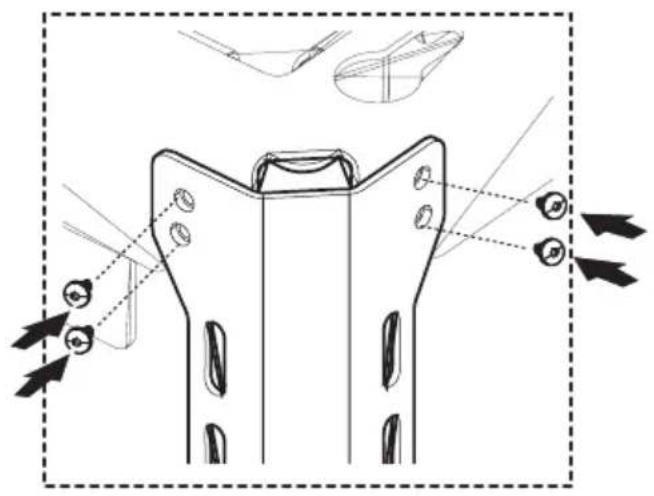

16x Ø3,5x9,5 mm H. 29,5cm 10b.1

Technical line drawing of a mechanical component with mounting holes and directional arrows indicating assembly (no text or symbols)

16x

∅3,5x9,5 mm

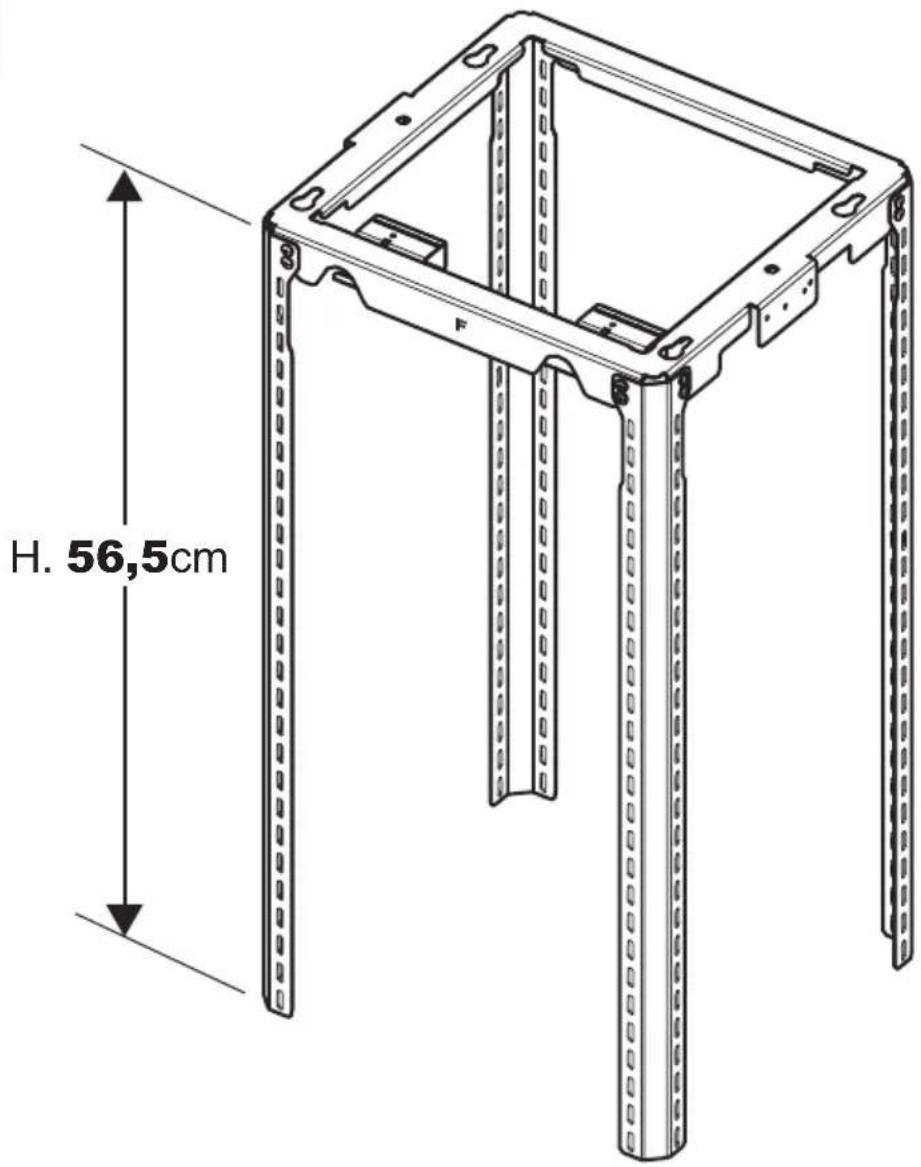

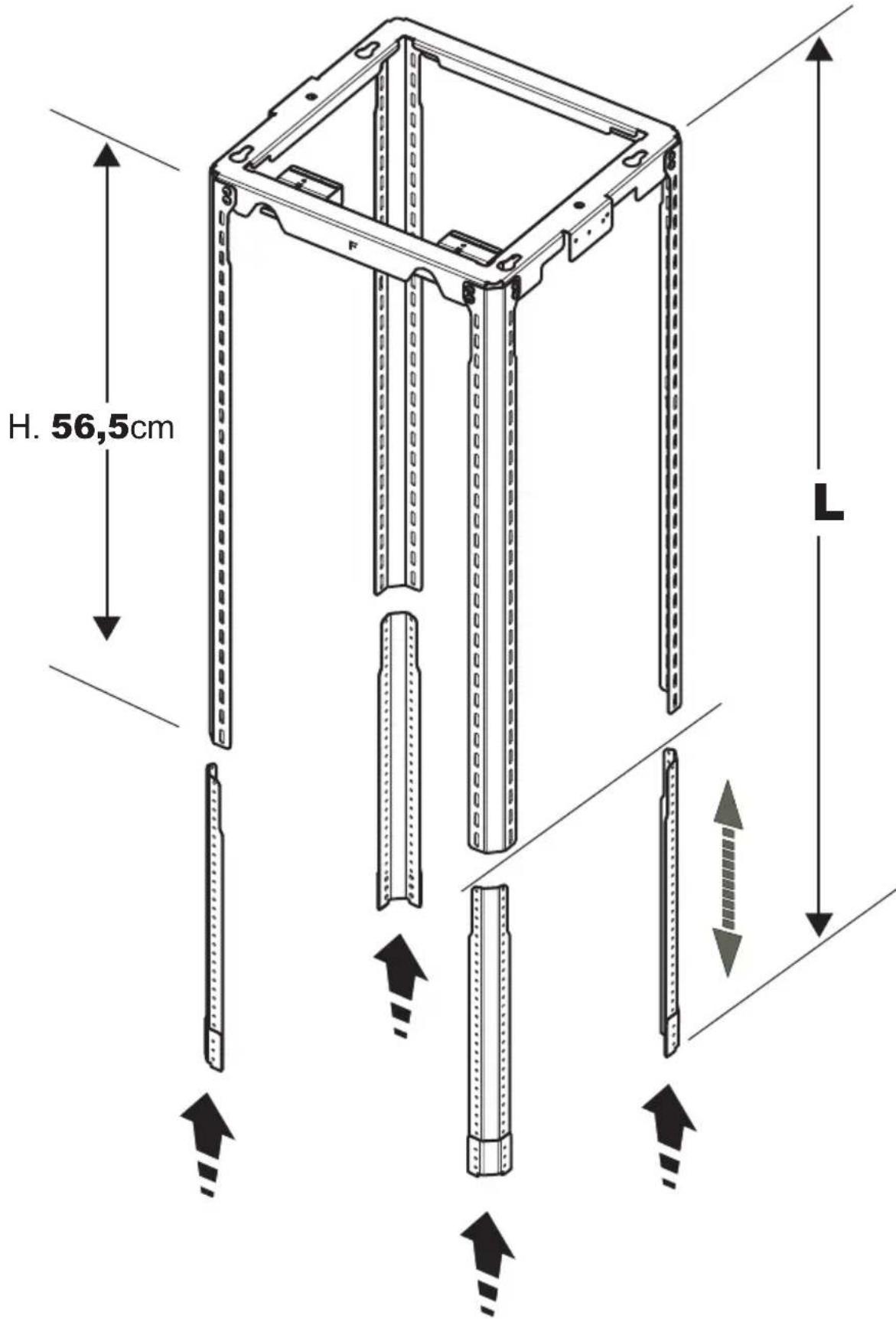

H. 56,5cm

10b.3

H. 56,5cm L

10b.4

Technical diagram of a vertical mechanical component with mounting holes and directional arrows indicating assembly (no text or symbols)

16x

∅3,5x9,5 mm

Technical line drawing of a mechanical frame structure with mounting holes and internal components (no text or symbols)

10b.5

min. L = 612

Simple line drawing of a house with a circular arrow inside, symbolizing refresh or cycle (no text or symbols)

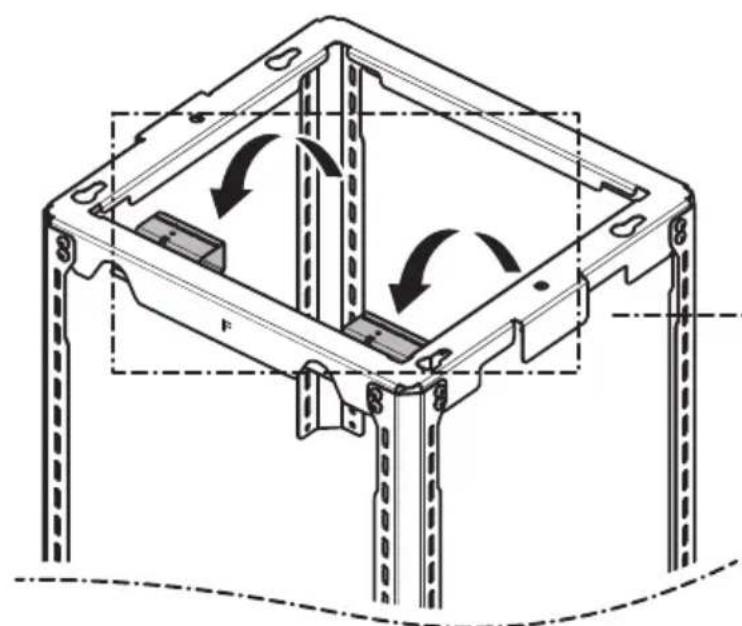

Technical line drawing of a mechanical frame assembly with circular motion arrows indicating rotation (no text or symbols)

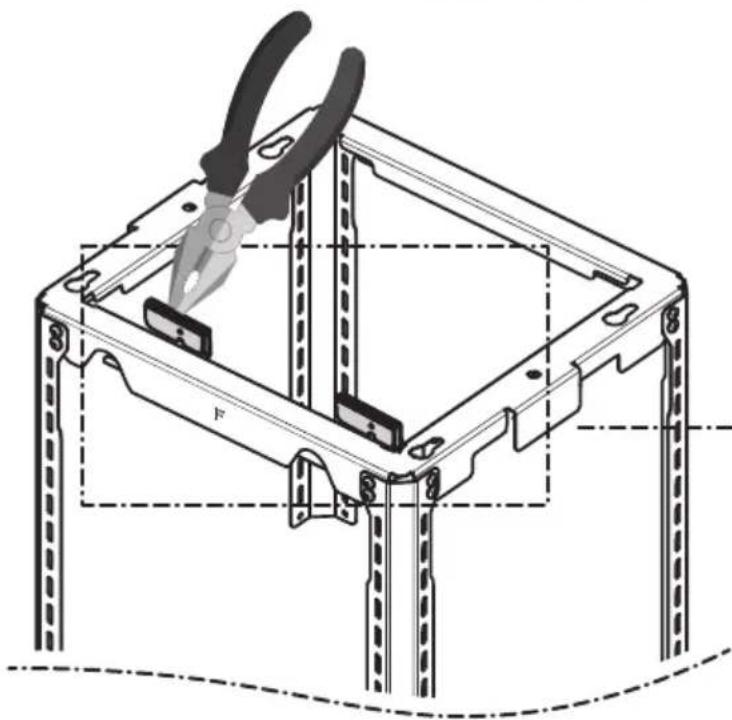

Technical line drawing of a mechanical assembly with pliers and structural supports (no text or symbols)

2x

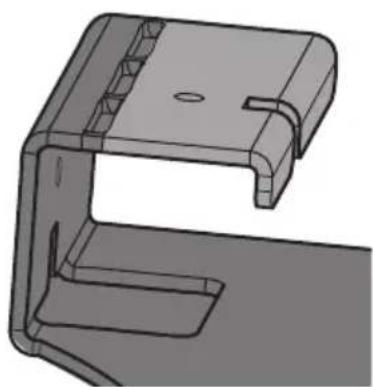

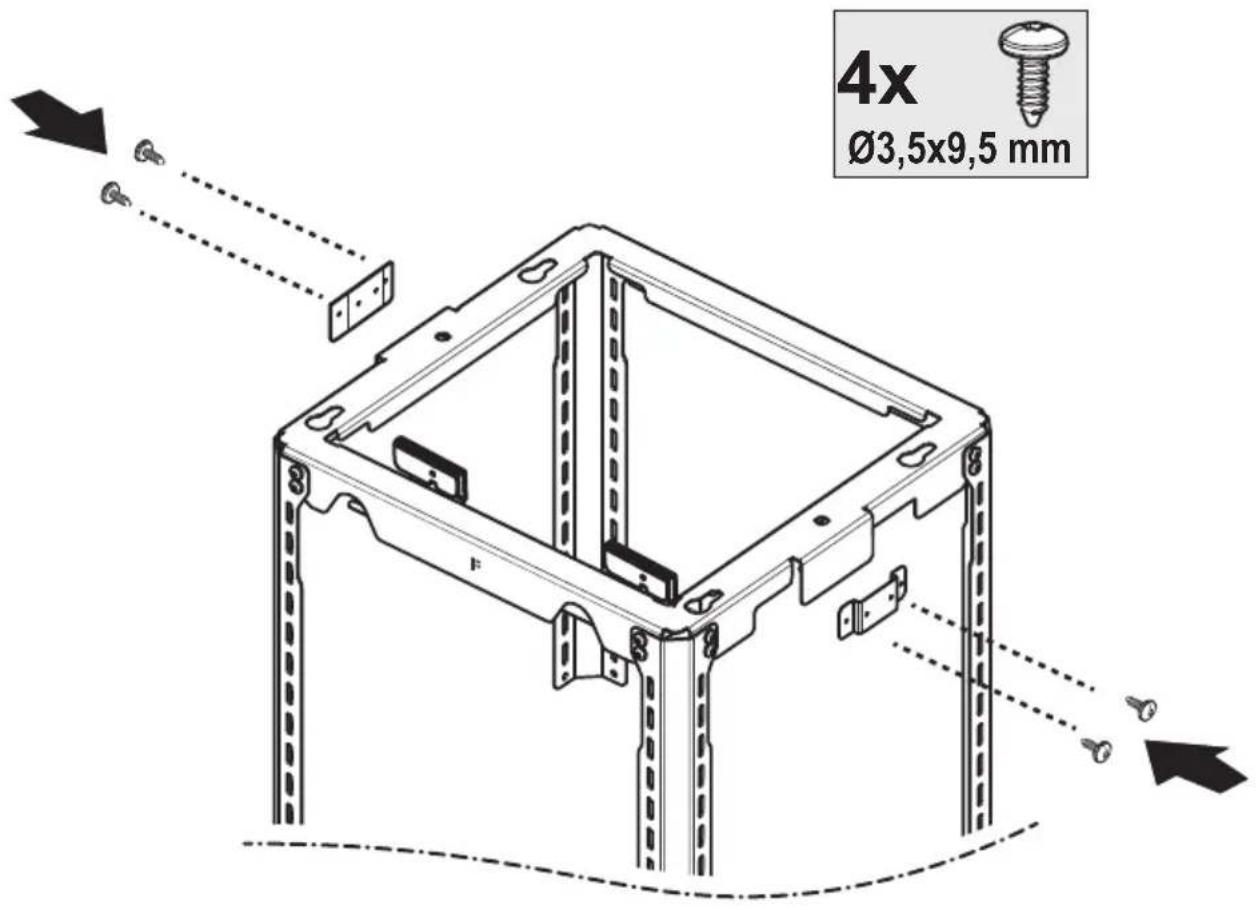

3D technical drawing of a mechanical bracket component (no text or symbols)

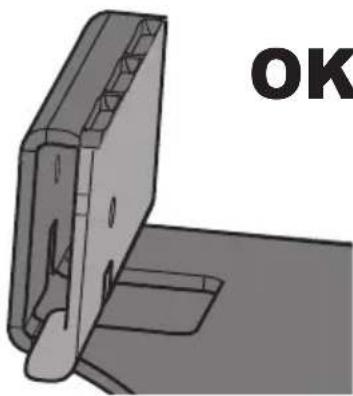

3D mechanical part with mounting holes and a labeled 'OK' (no other text or symbols)

4x Ø3,5x9,5 mm

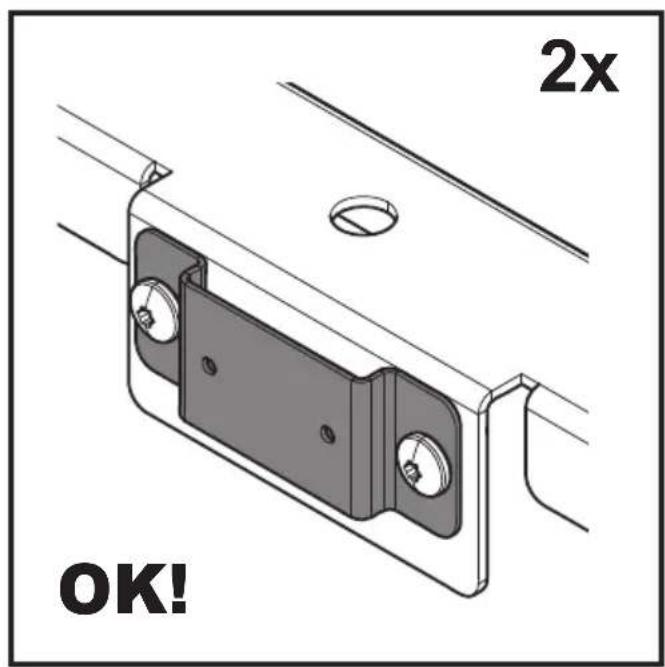

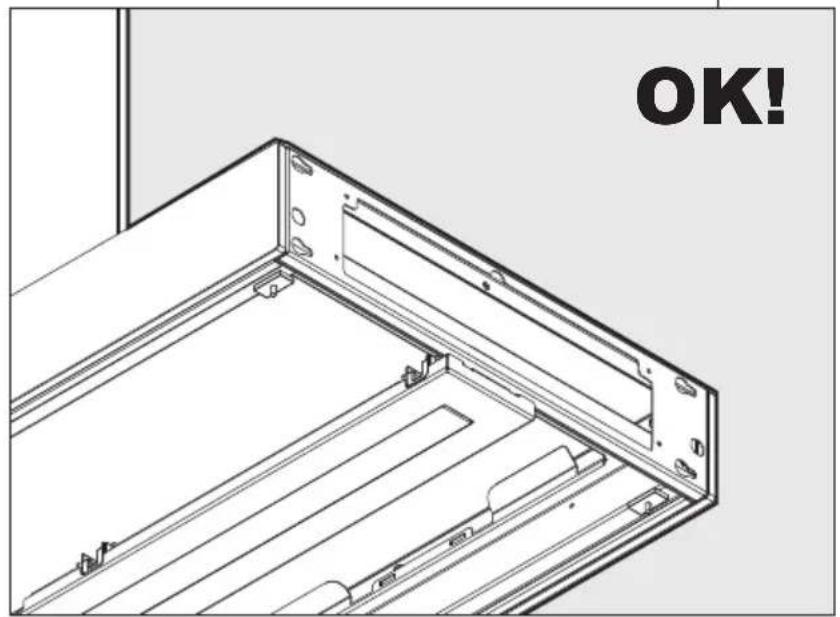

2x OK!

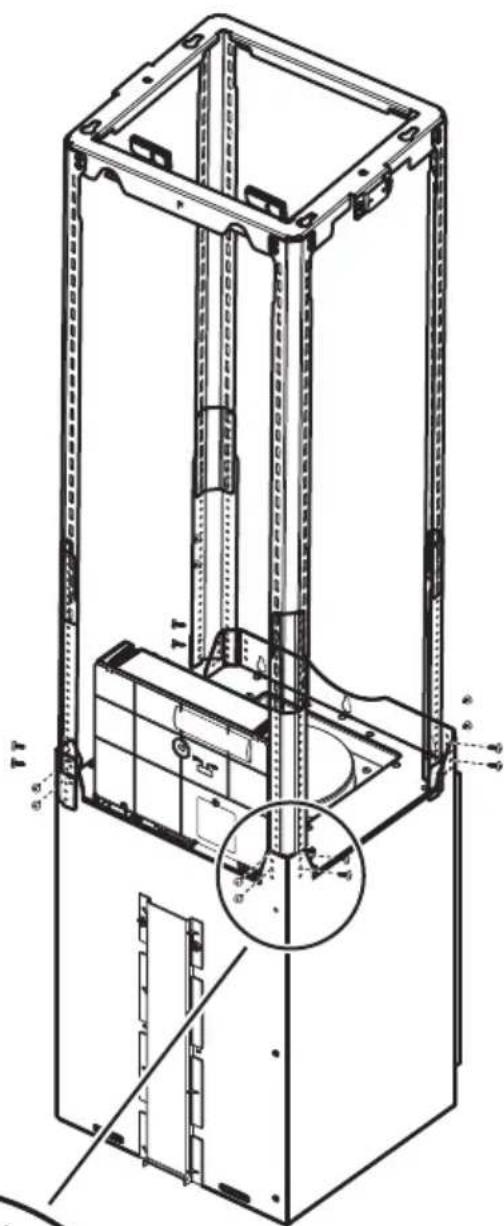

Technical diagram illustrating mechanical assembly with labeled components and directional arrows, including a magnified inset showing internal structure details.

13

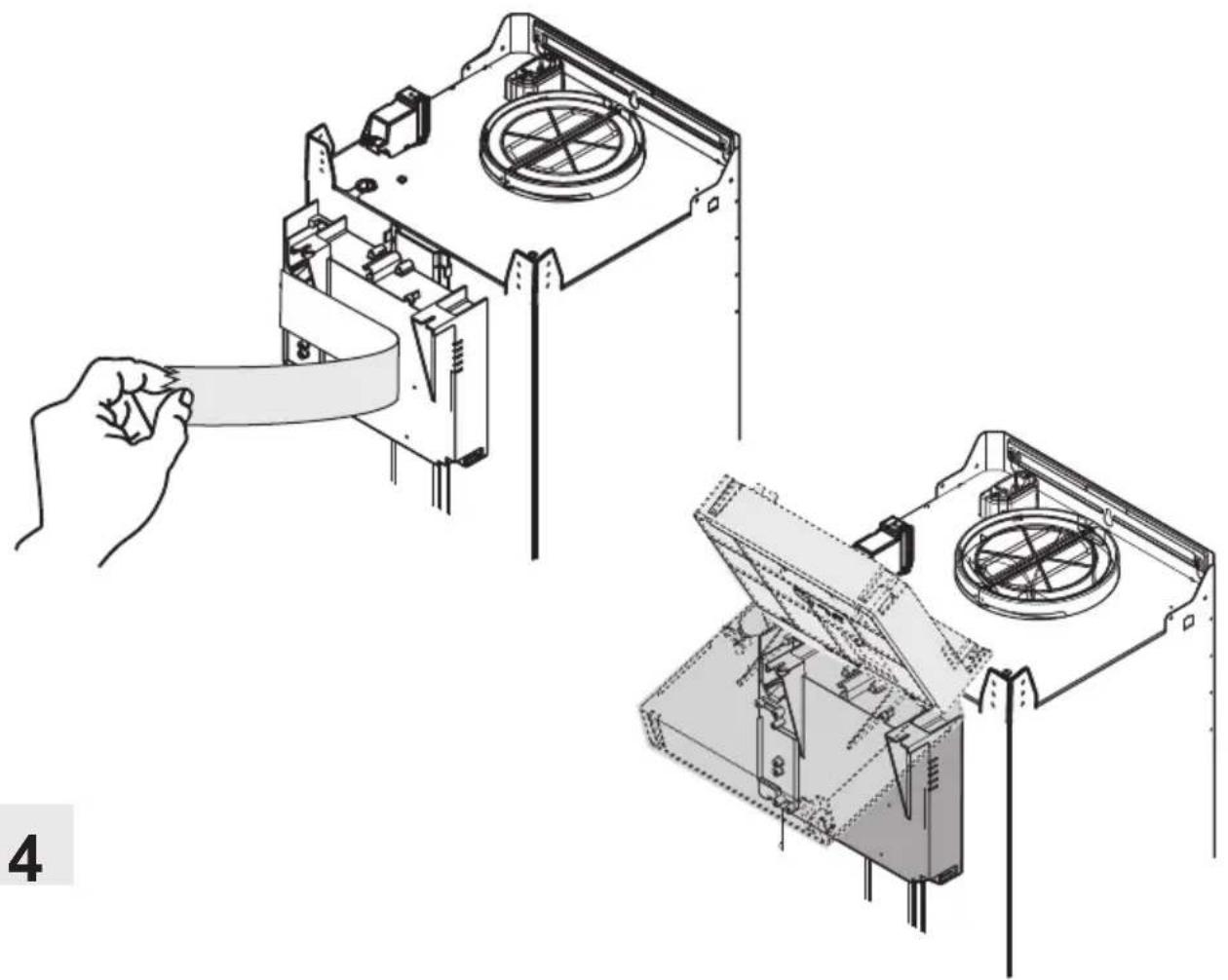

Technical illustration of a computer case with a hand holding a cable, showing internal components and assembly (no text or symbols)

14

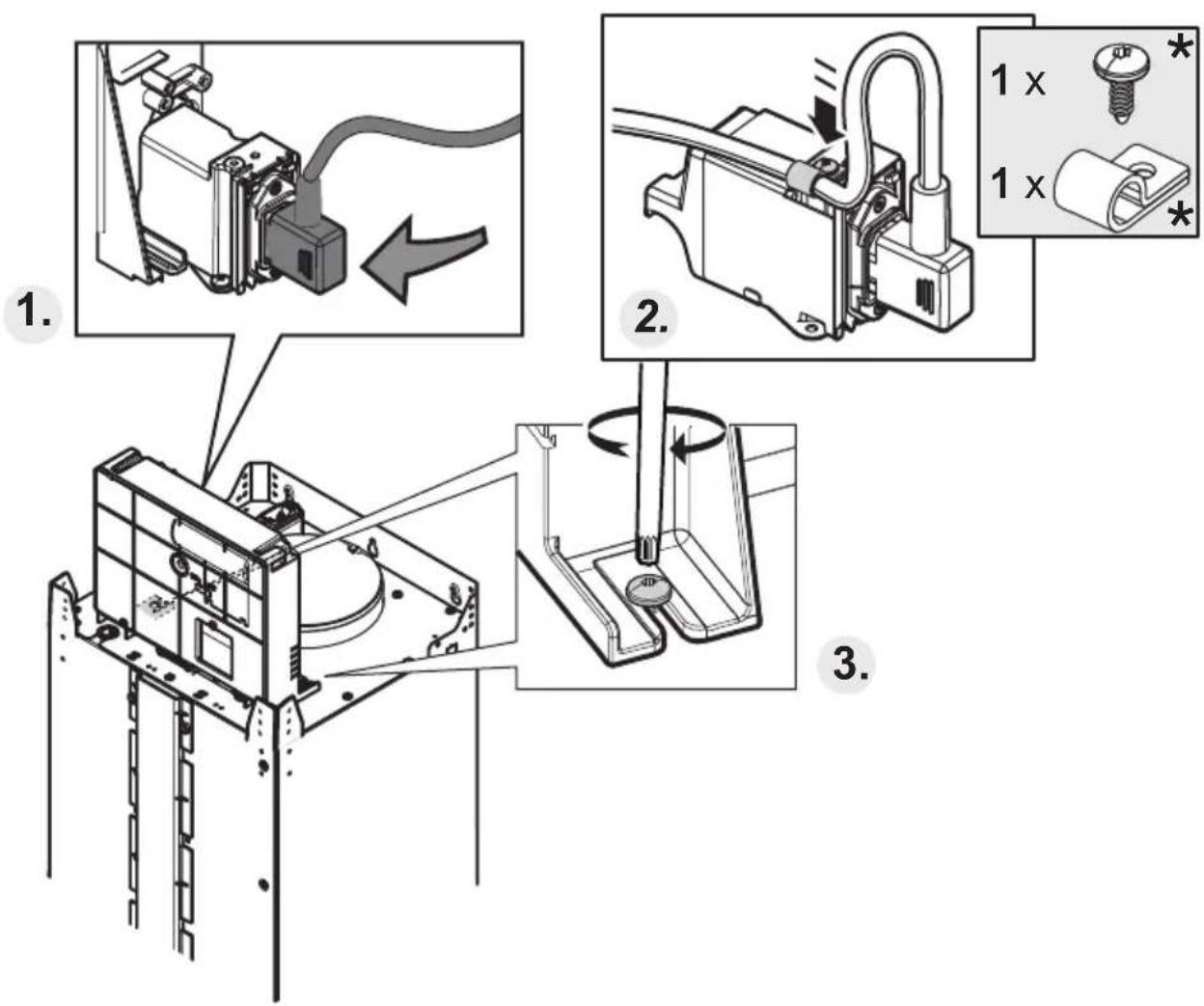

Technical diagram illustrating three-step assembly process for a device, showing component insertion, assembly steps, and tool positioning.

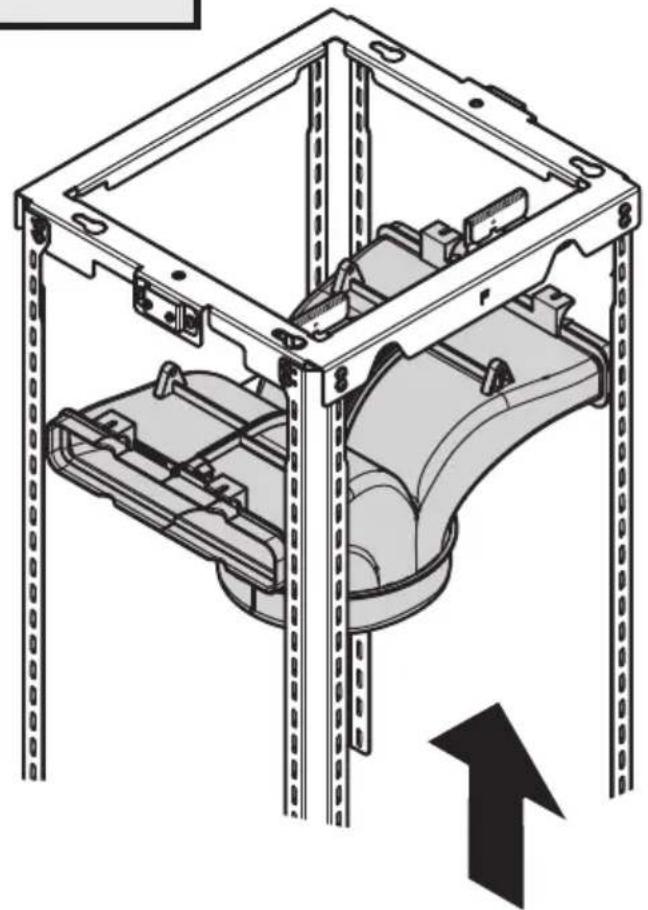

Technical line drawing of a mechanical frame structure with mounting holes and a downward arrow indicating assembly (no text or symbols)

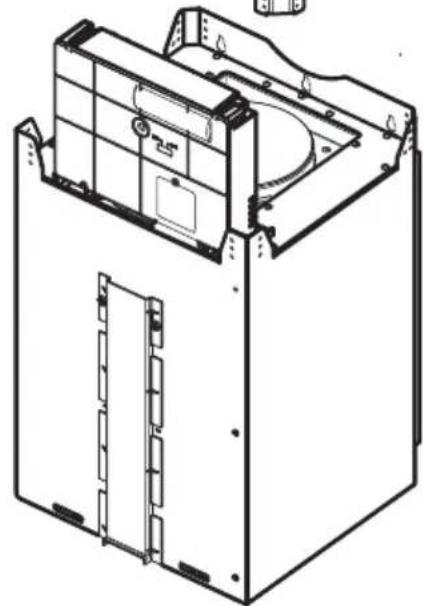

Technical line drawing of a mechanical device housing with internal components and mounting brackets (no text or symbols)

Technical diagram of a vertical-mounted device with labeled components and internal structure, showing structural details and mounting points.

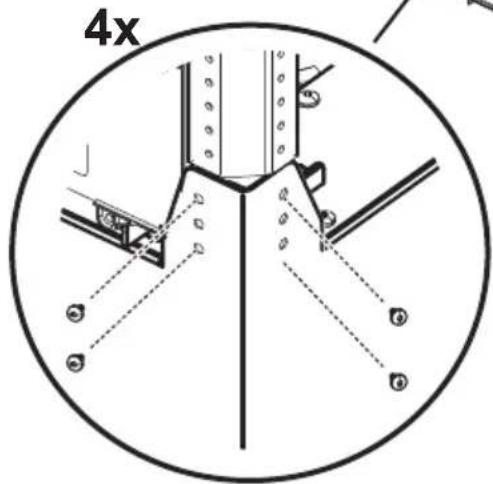

4x

16x Ø3,5x9,5 mm

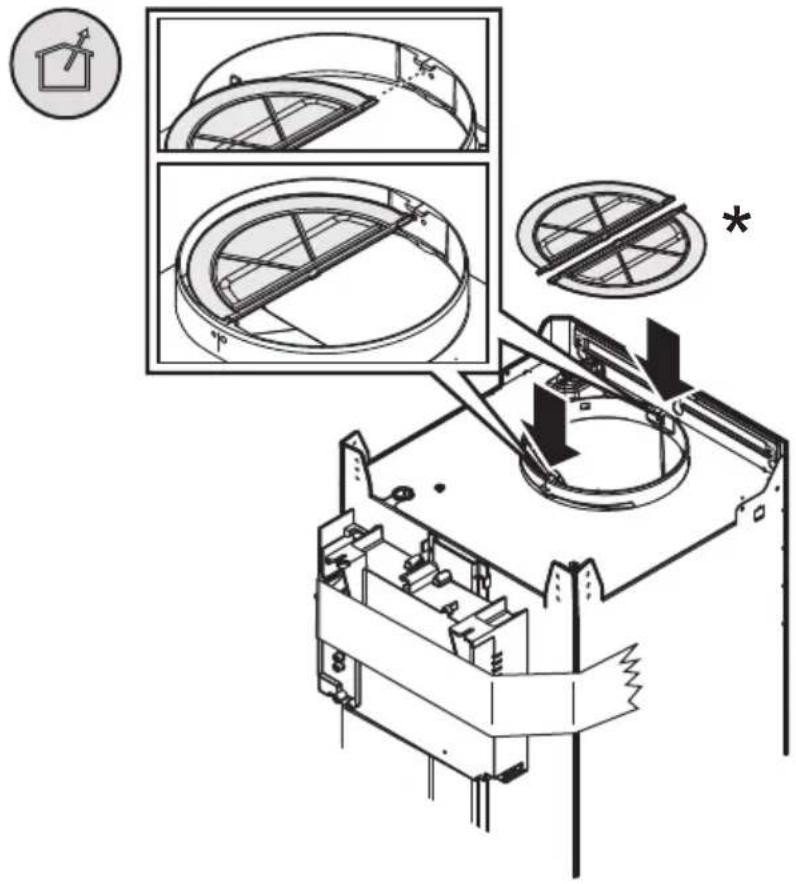

Simple line drawing of a house with an upward arrow and a diagonal line, no text or symbols present.

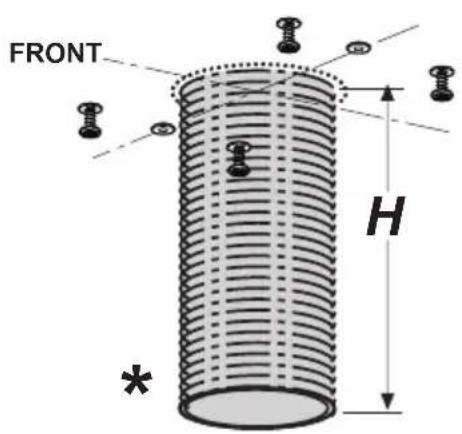

FRONT H *

F

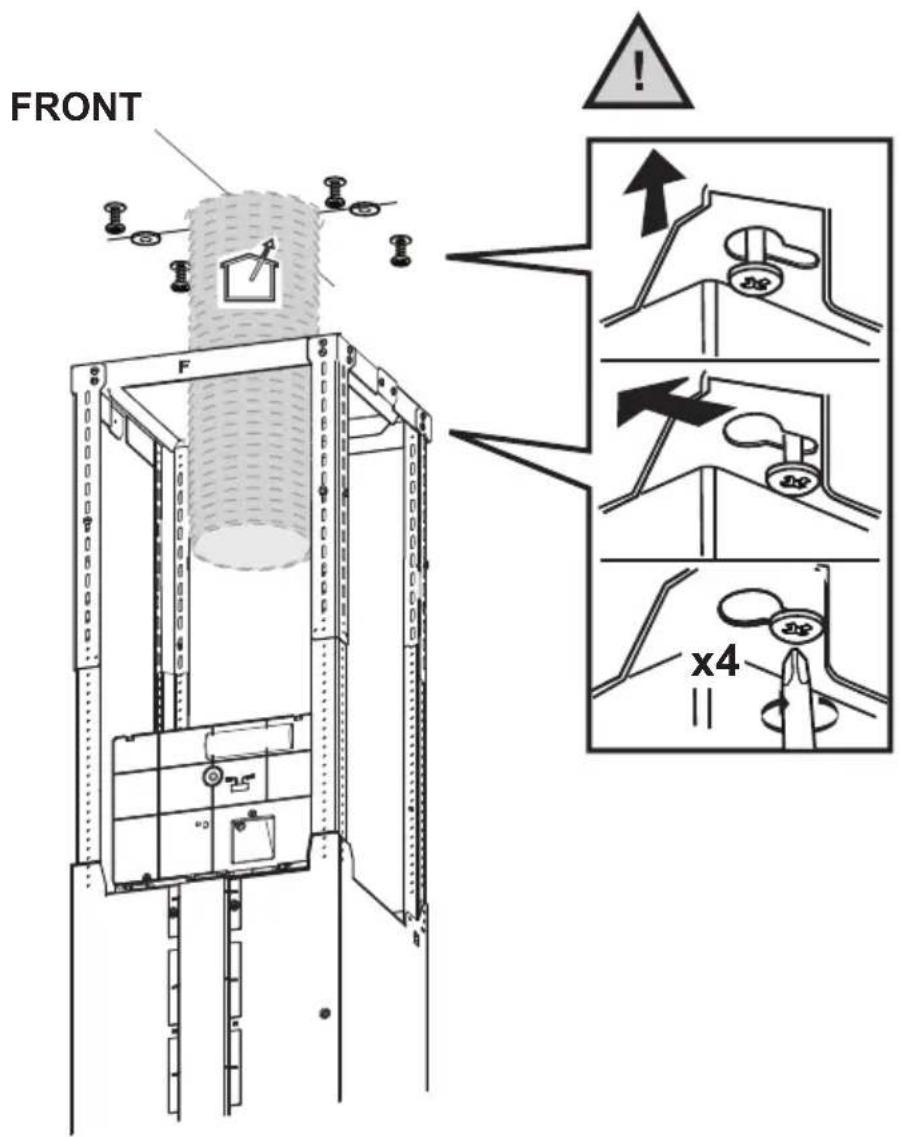

Technical line drawing of a mechanical frame structure with dimension labels H and F (no text or symbols beyond labels)

FRONT F x4

Simple line drawing of a house with a circular arrow inside, symbolizing refresh or cycle (no text or symbols)

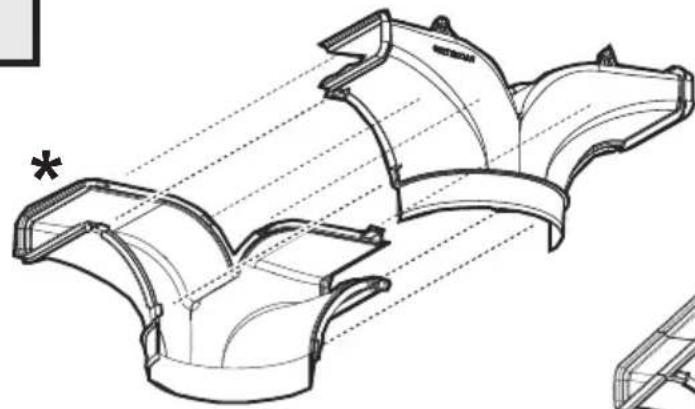

Technical line drawing of a mechanical component with multiple curved surfaces and alignment lines (no text or symbols)

Clack!

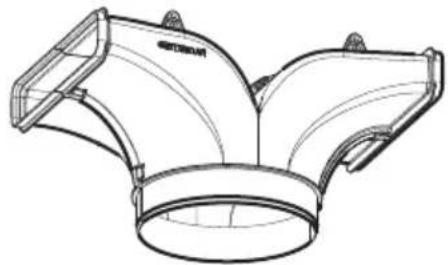

Technical line drawing of a V-groove pipe fitting (no text or symbols)

1.

FRONT 2.

Simple line drawing of a warehouse with a circular arrow inside, symbolizing refresh or move (no text or symbols)

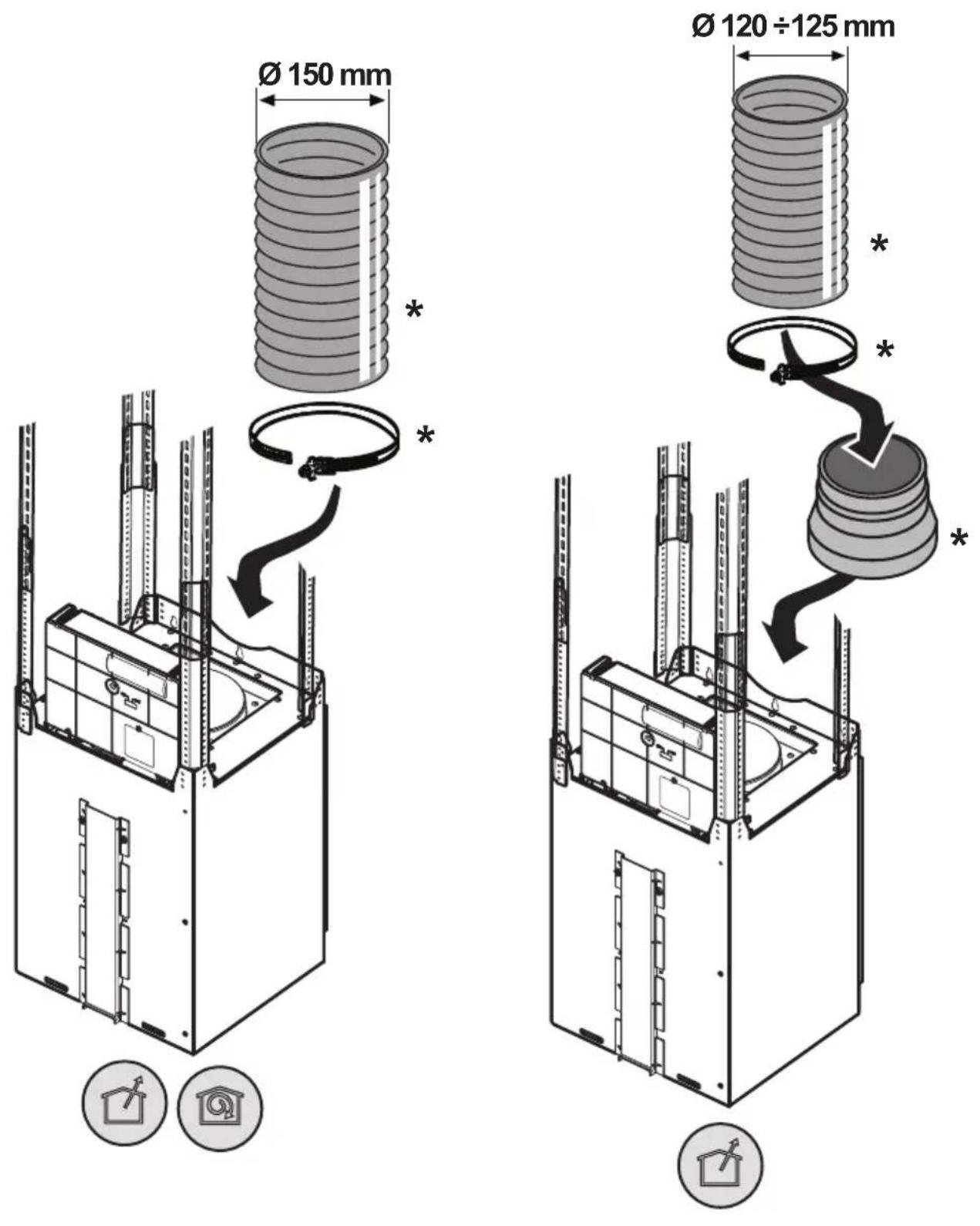

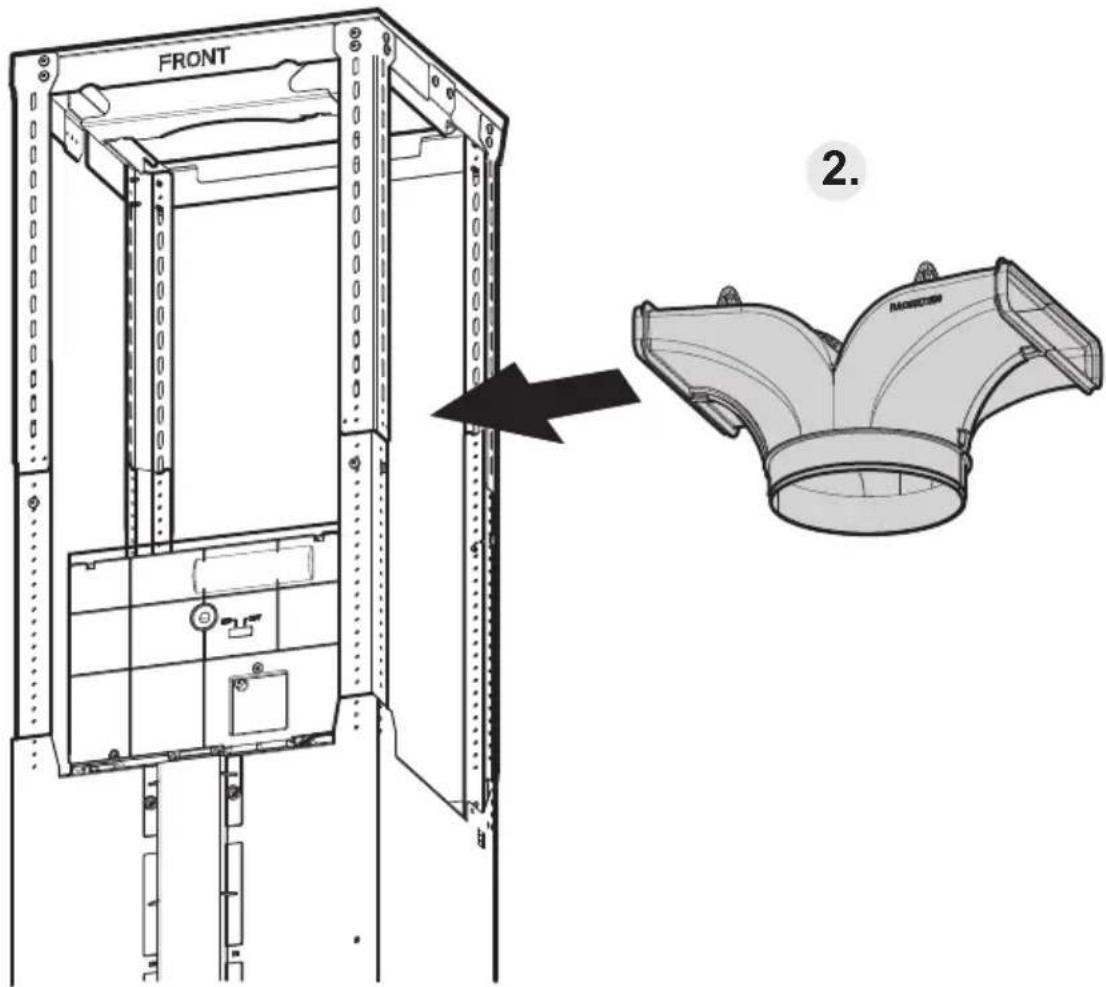

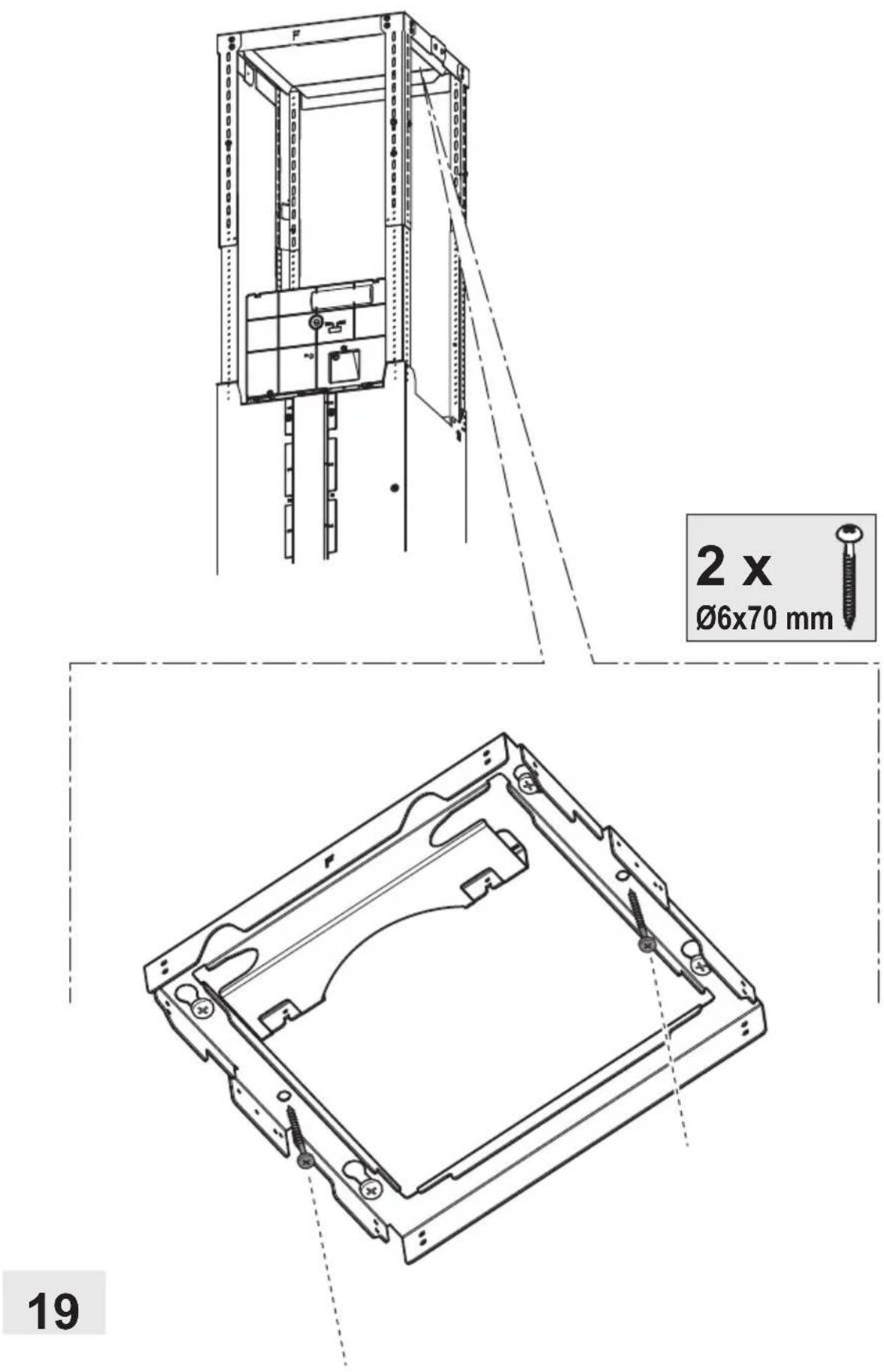

Technical diagram of a mechanical assembly with mounting brackets and a curved pipe (no text or symbols)

3.

2 x Ø3,5x16 mm

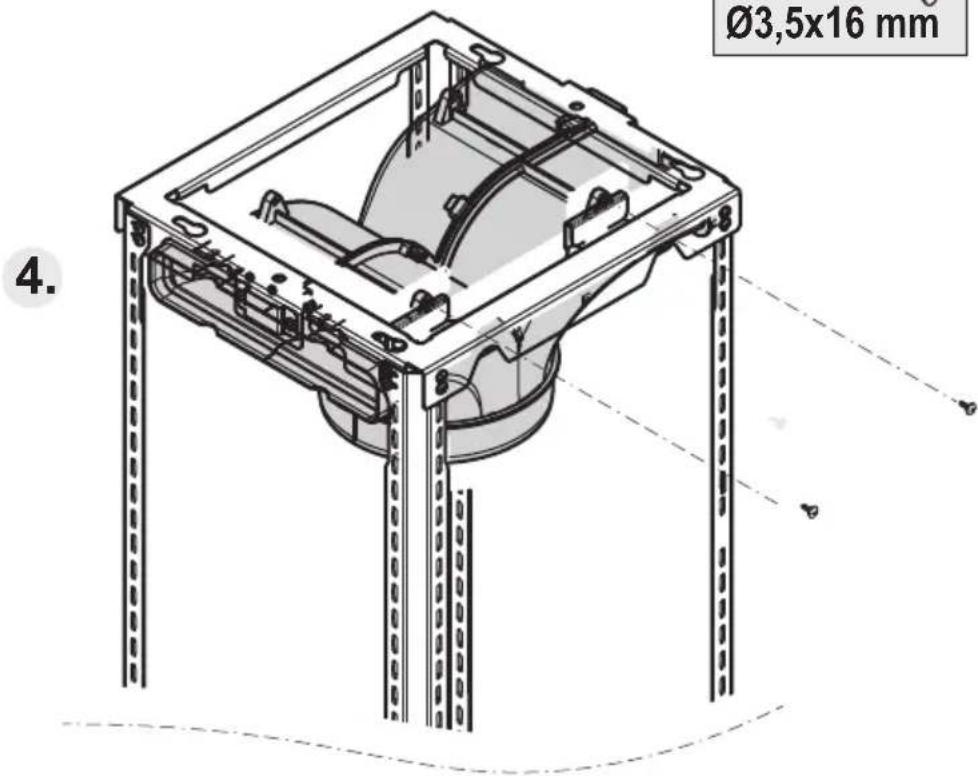

Ø3,5x16 mm 4.

20.1

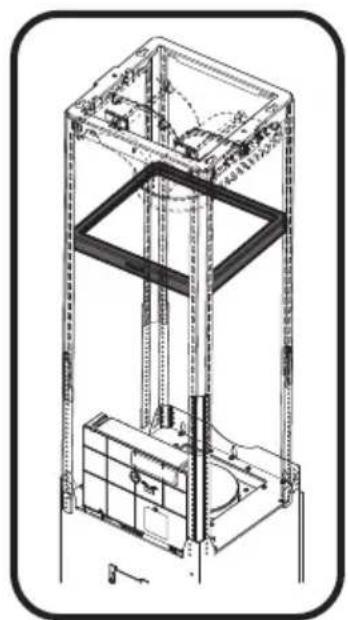

Technical line drawing of a vertical industrial lifting frame with structural components (no text or symbols)

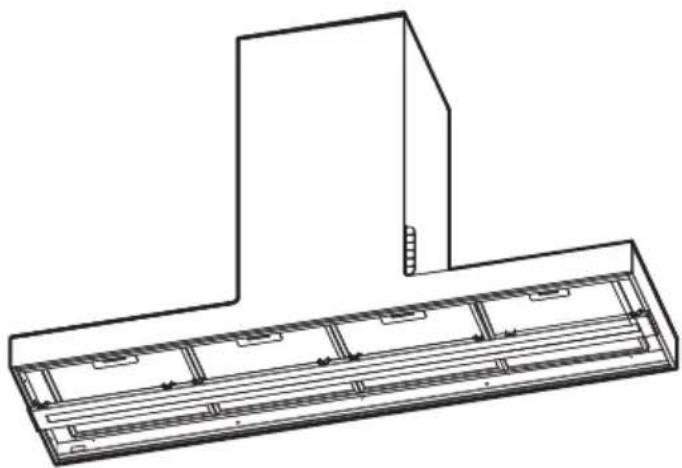

Technical diagram of a server rack with an open panel and a highlighted component, showing internal structure and wiring (no text or symbols)

Simple line drawing of a hand holding a sheet of paper within a square frame (no text or symbols)

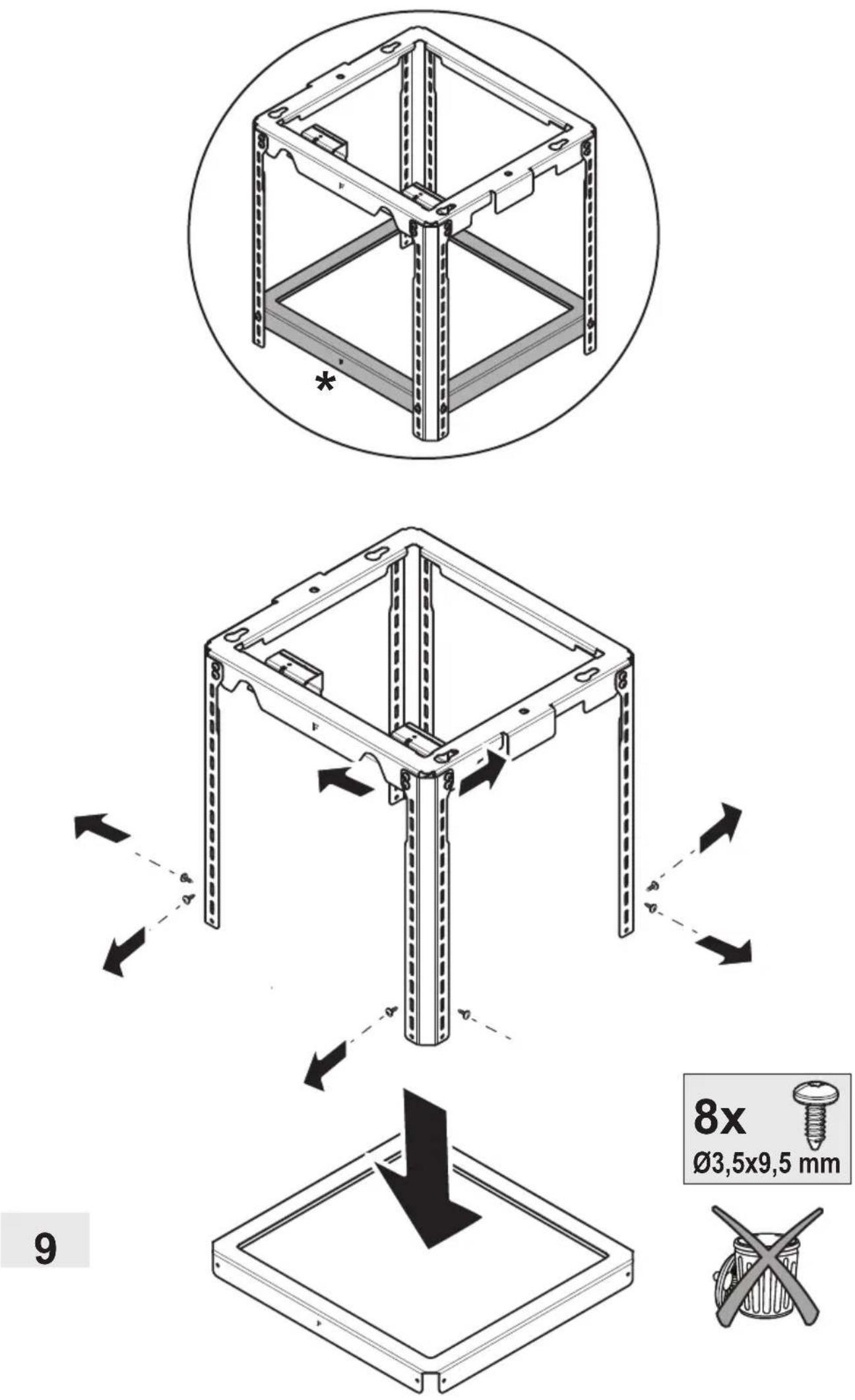

9

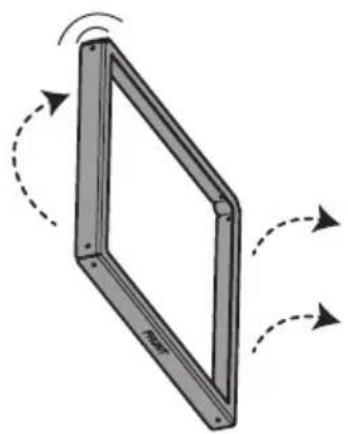

Diagram of a rectangular frame with dashed arrows indicating rotational motion (no text or symbols)

Diagram of a rectangular frame with dashed arrows indicating rotational motion (no text or symbols)

Diagram of a rectangular device with label 'PH.NET' and a downward arrow, no readable text or symbols beyond the label.

8x

∅3,5x9,5 mm

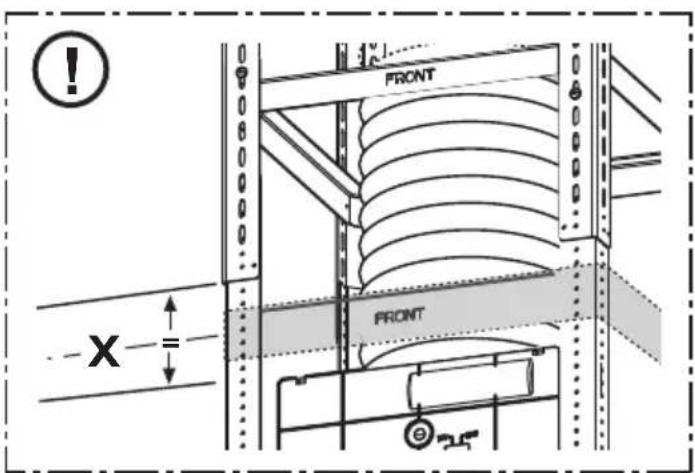

F X = = = F + - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + +

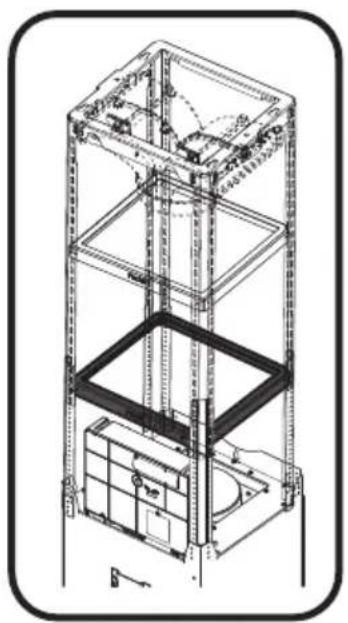

Technical line drawing of a multi-level industrial lifting or storage unit structure (no text or symbols)

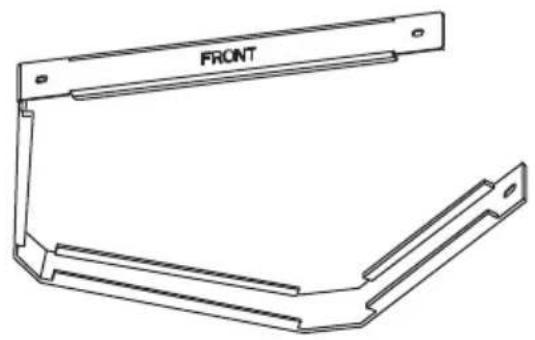

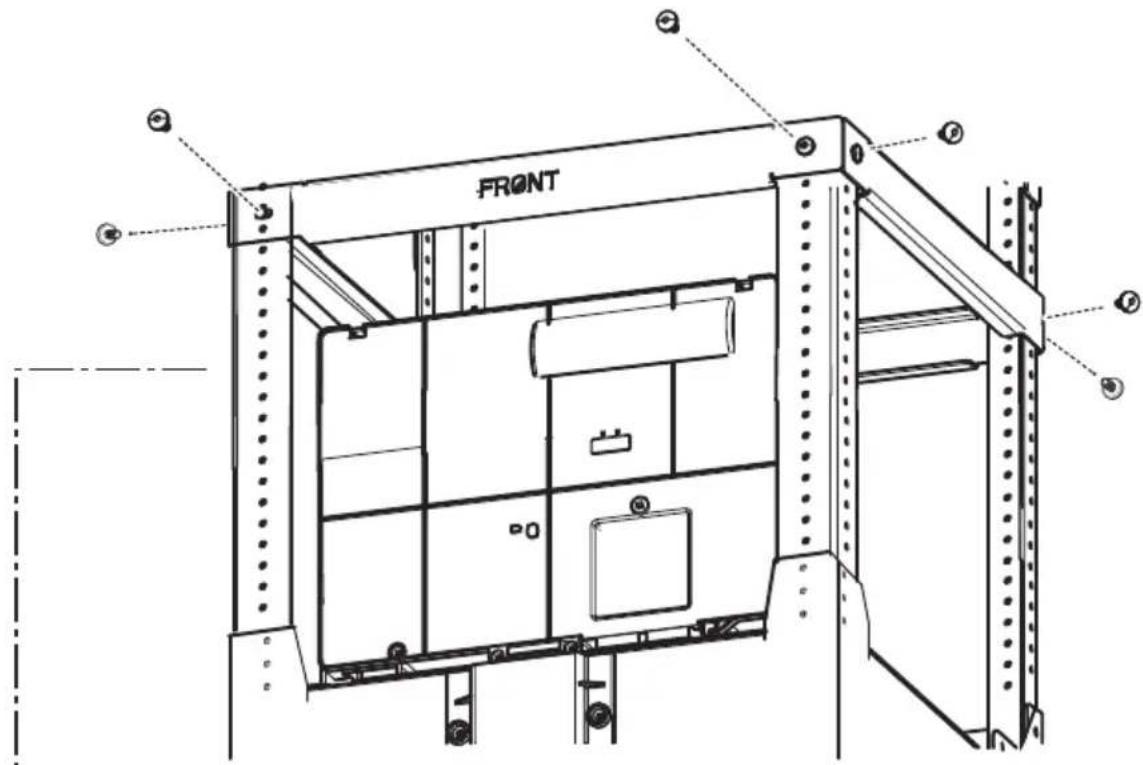

Technical line drawing of a mechanical bracket with 'FRONT' label (no other text or symbols)

8 x Ø3,5x9,5 mm

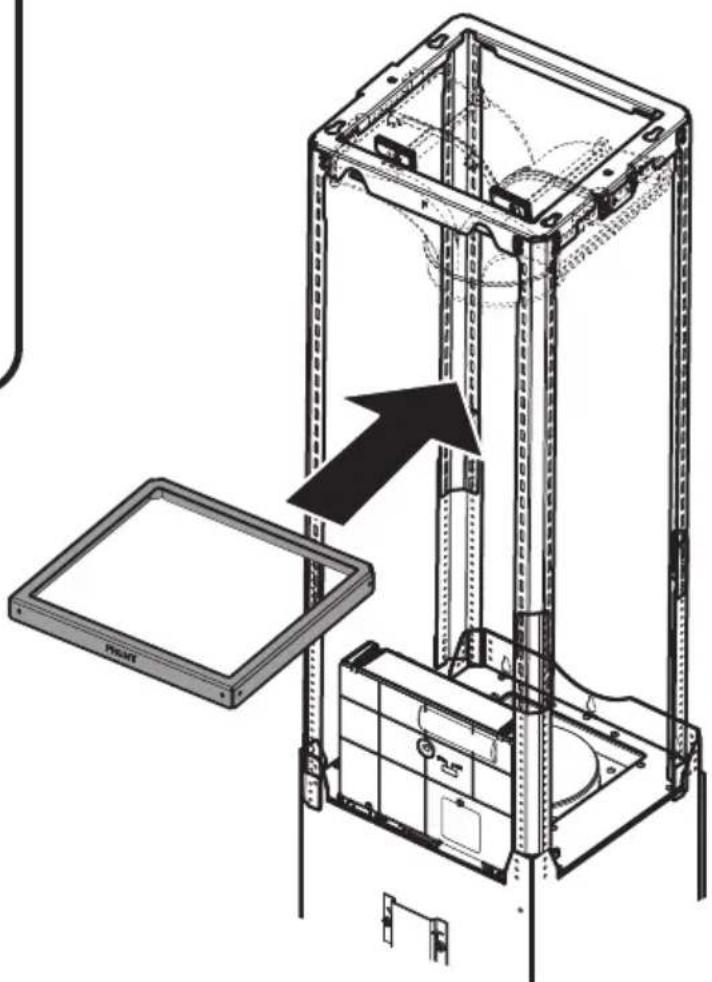

FRONT

FRONT FRONT X =

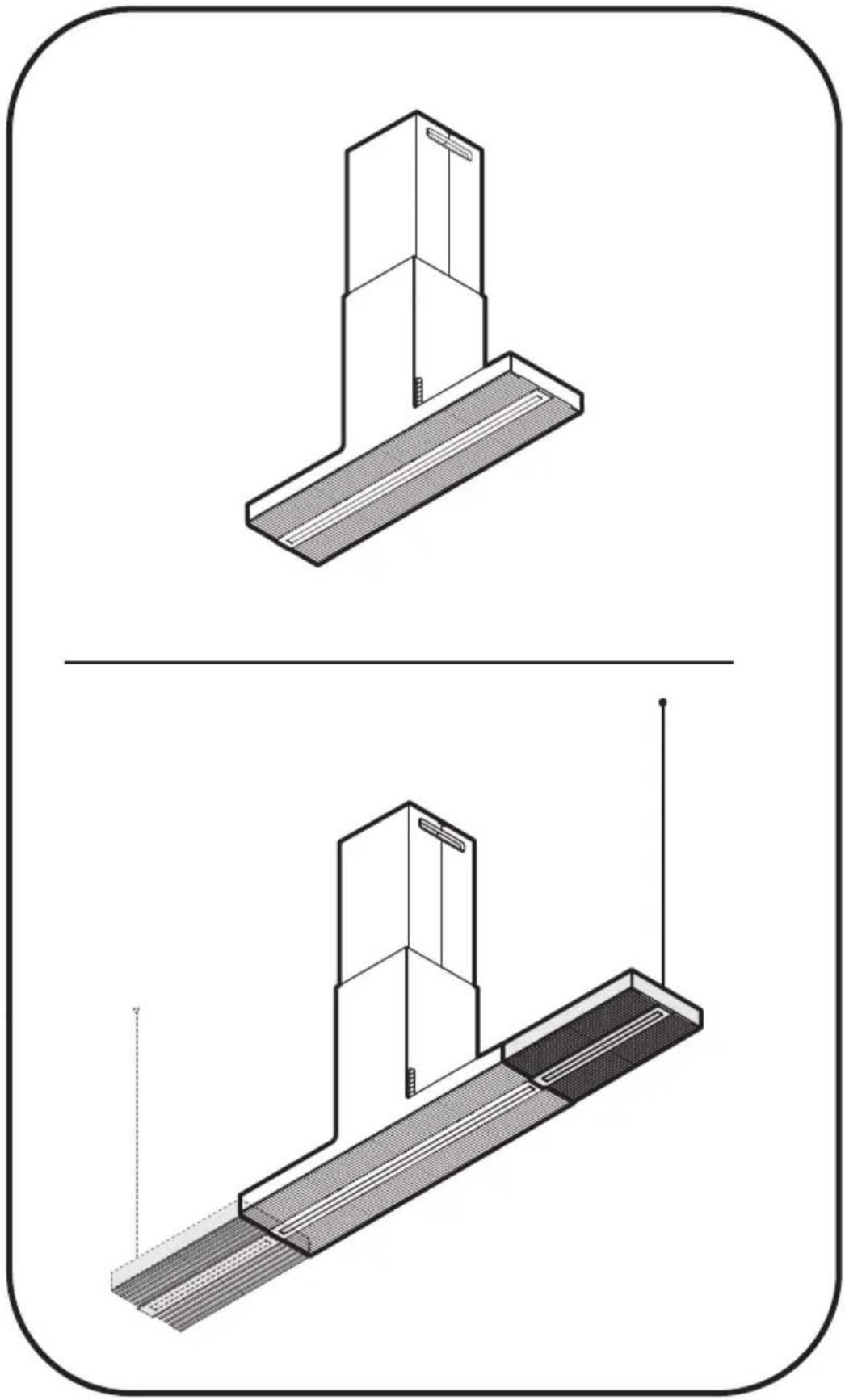

Technical diagram showing two views of a multi-level industrial cabinet or storage unit with labeled components.

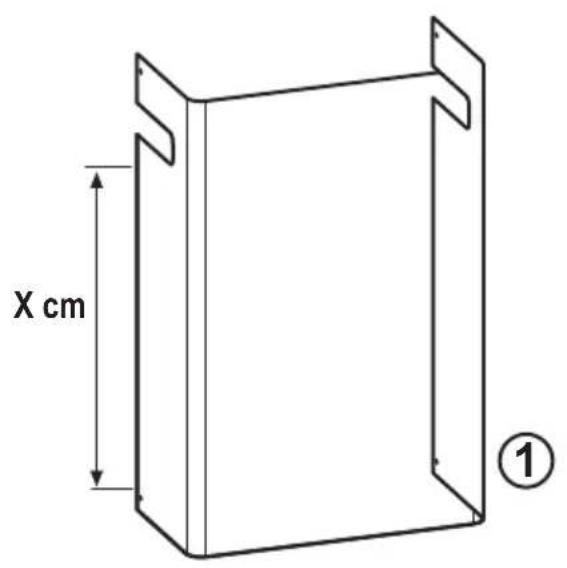

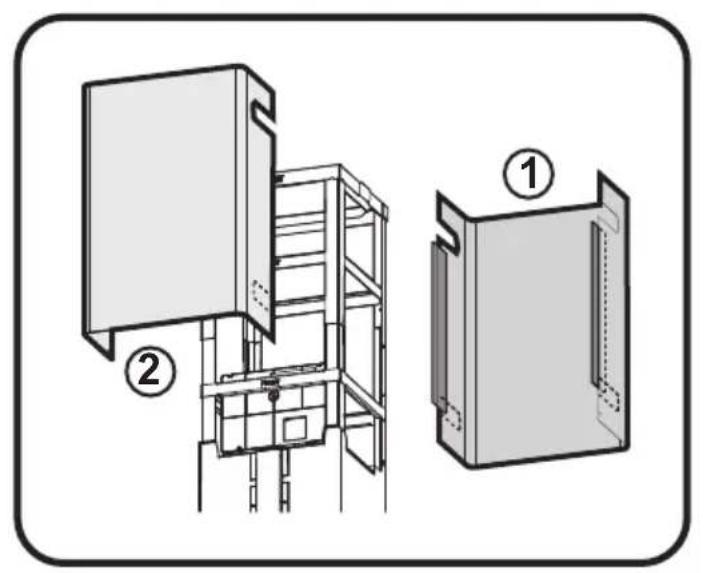

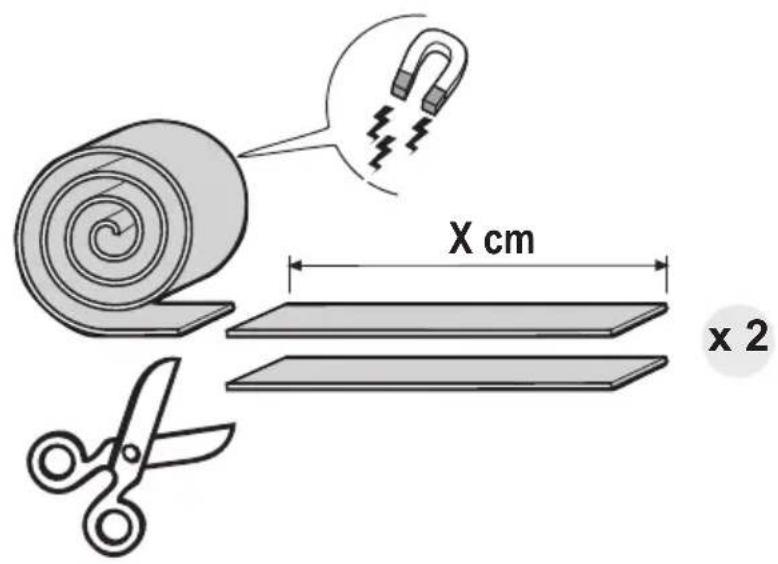

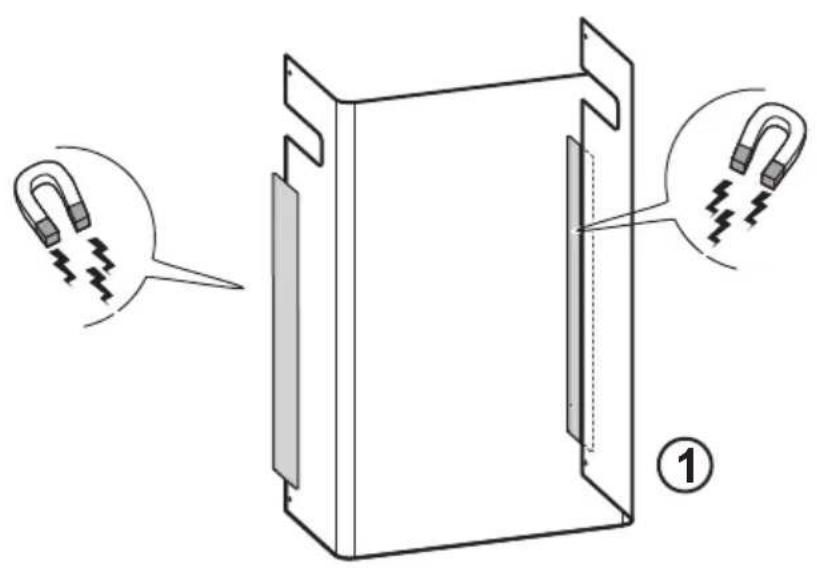

X cm ①

X cm x 2

Diagram illustrating a mechanical or electrical component with spring-loaded terminals and a magnified view showing internal structure.

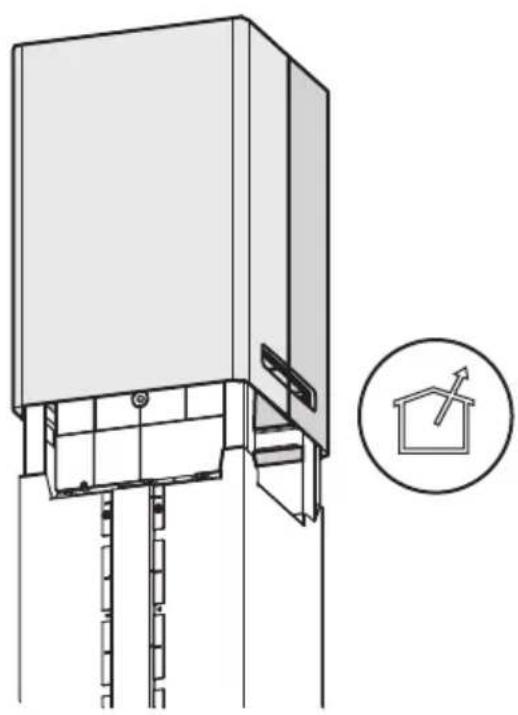

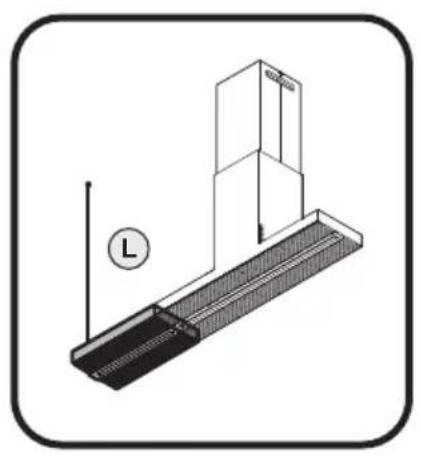

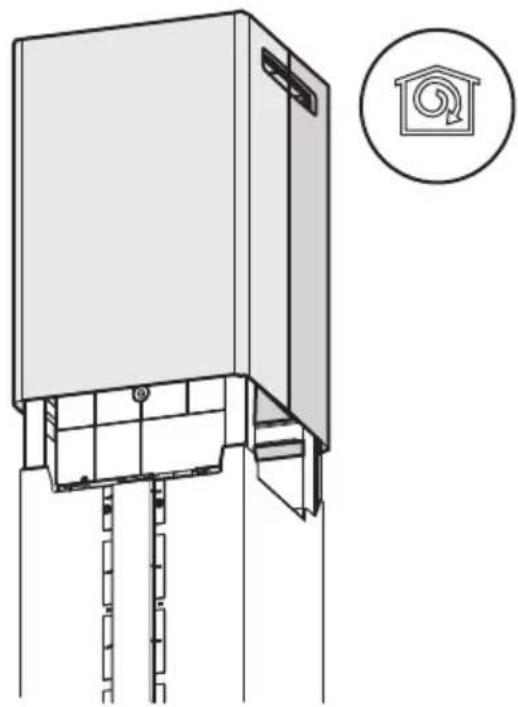

Technical line drawing of a cabinet or elevator assembly with a circular icon showing a house with a circular symbol (no text or labels present)

Technical line drawing of a mechanical device with a magnified inset showing a house symbol (no text or labels)

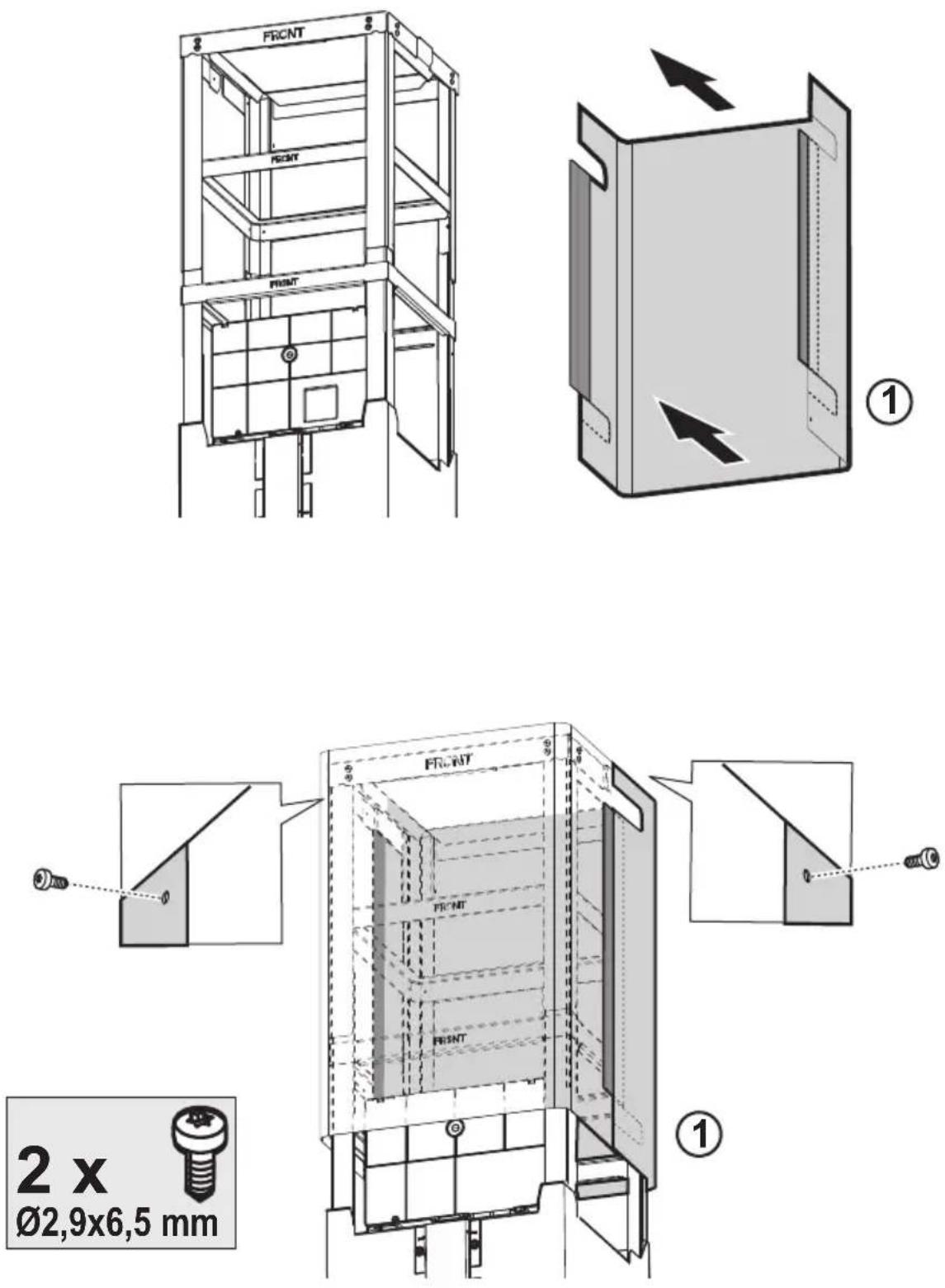

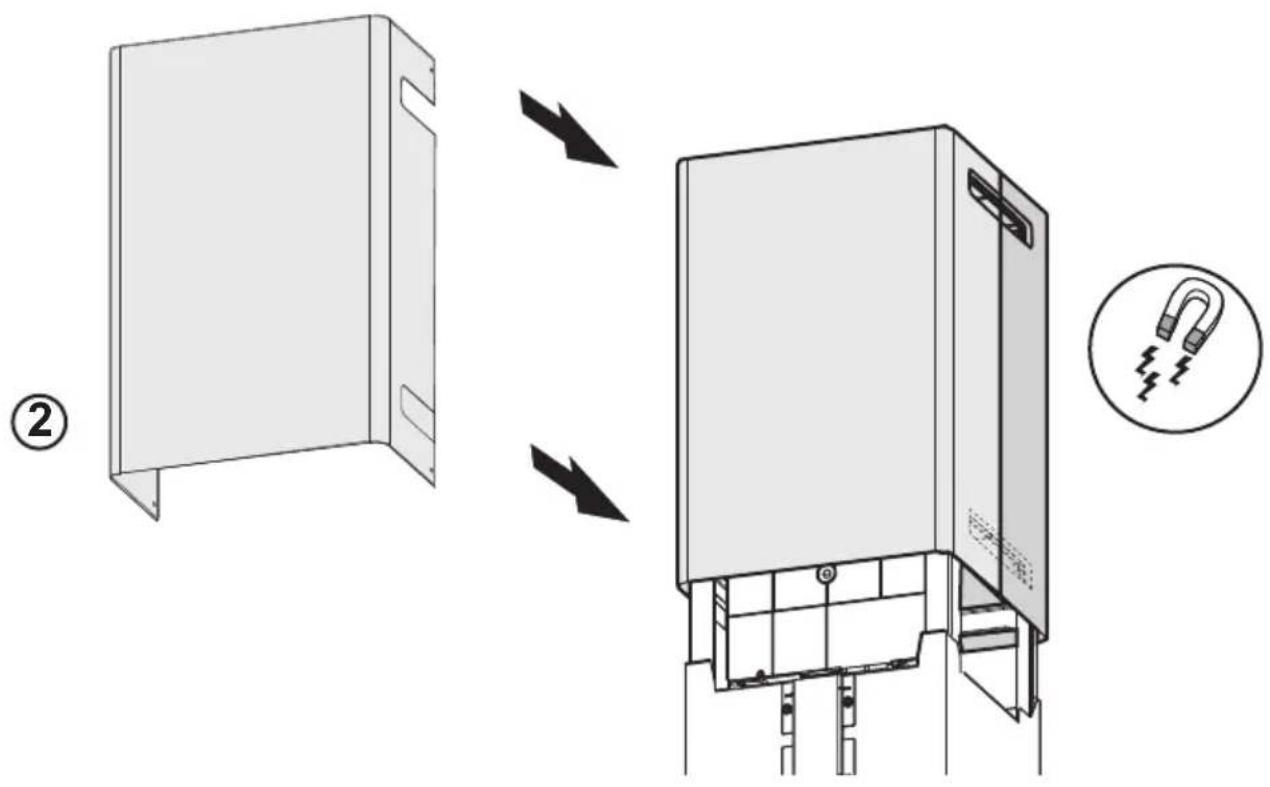

Technical diagram showing a door frame assembly and its internal structure with a U-shaped component, labeled with step number ②.

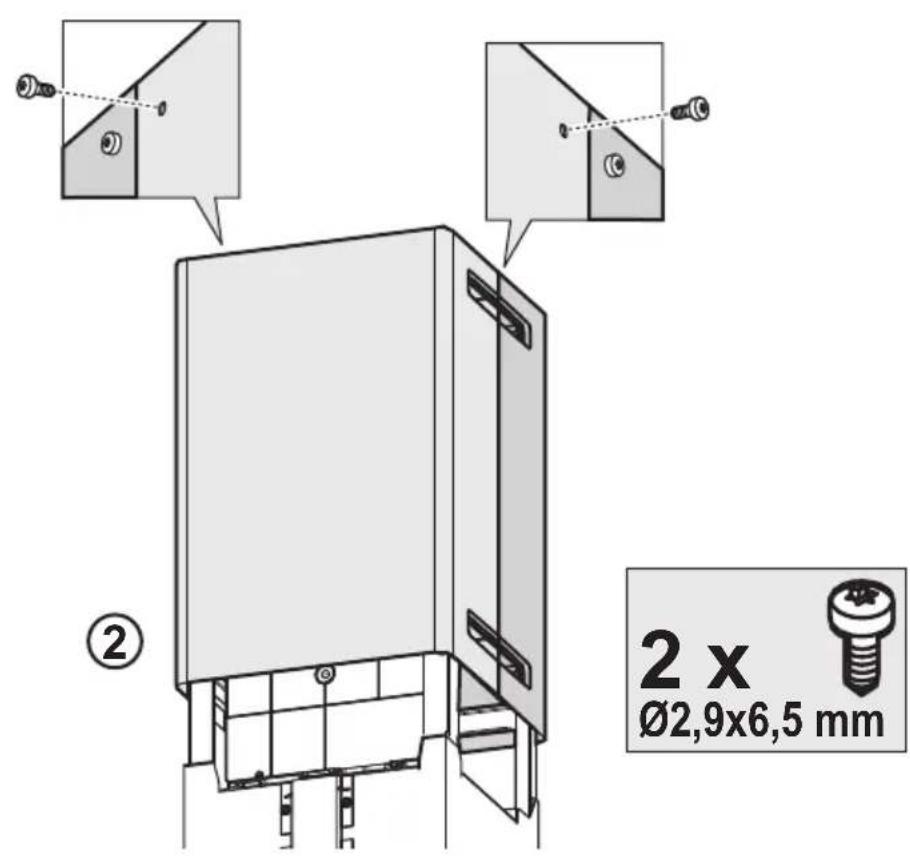

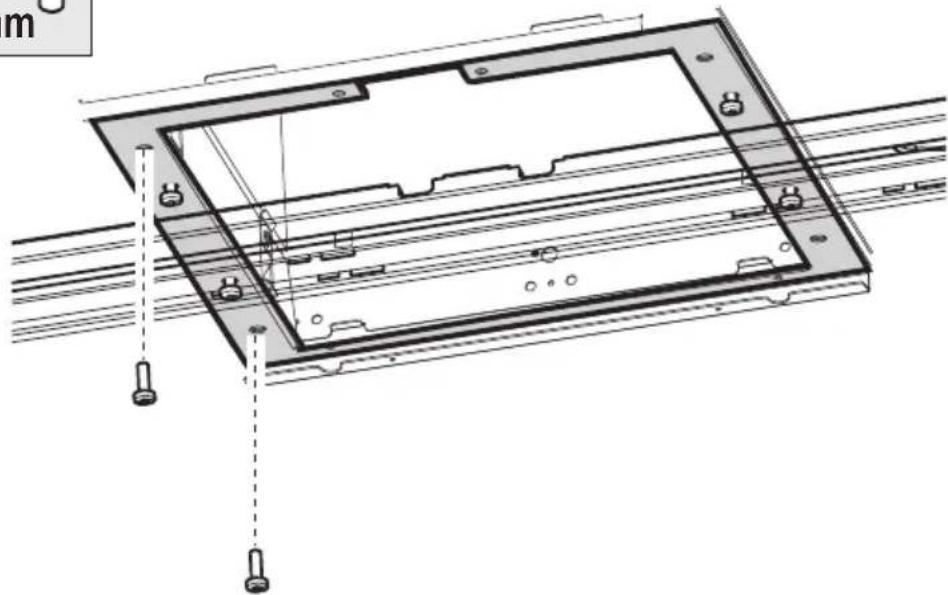

② 2 x Ø2,9x6,5 mm

Technical line drawing of a mechanical assembly with a bracket and internal components (no text or symbols)

Diagram illustrating a 4x speed limit mechanism in a refrigerator drawer, showing hand positioning and directional arrows.

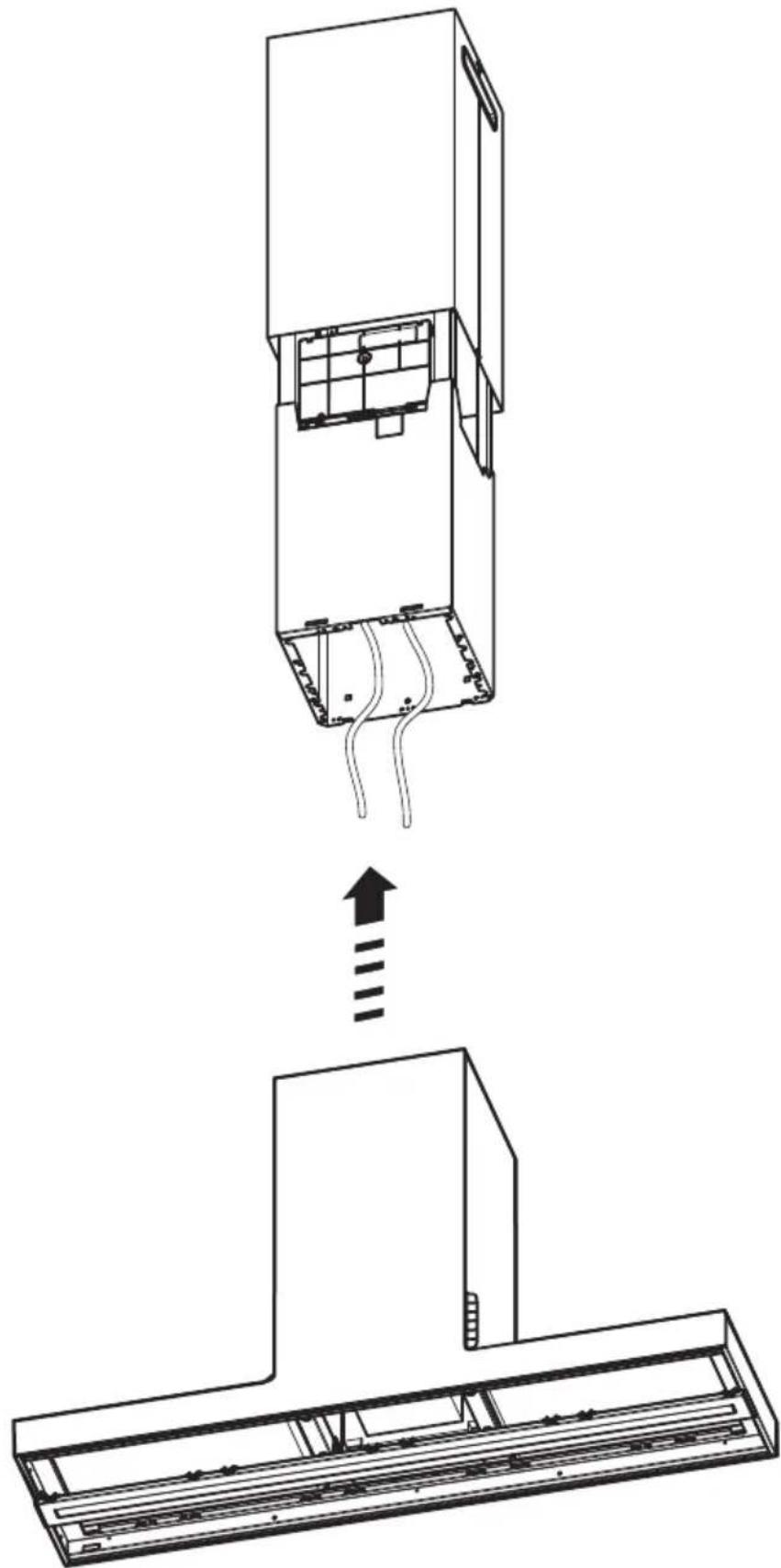

Technical line drawing of a device assembly showing internal components and a downward arrow indicating motion (no text or symbols present)

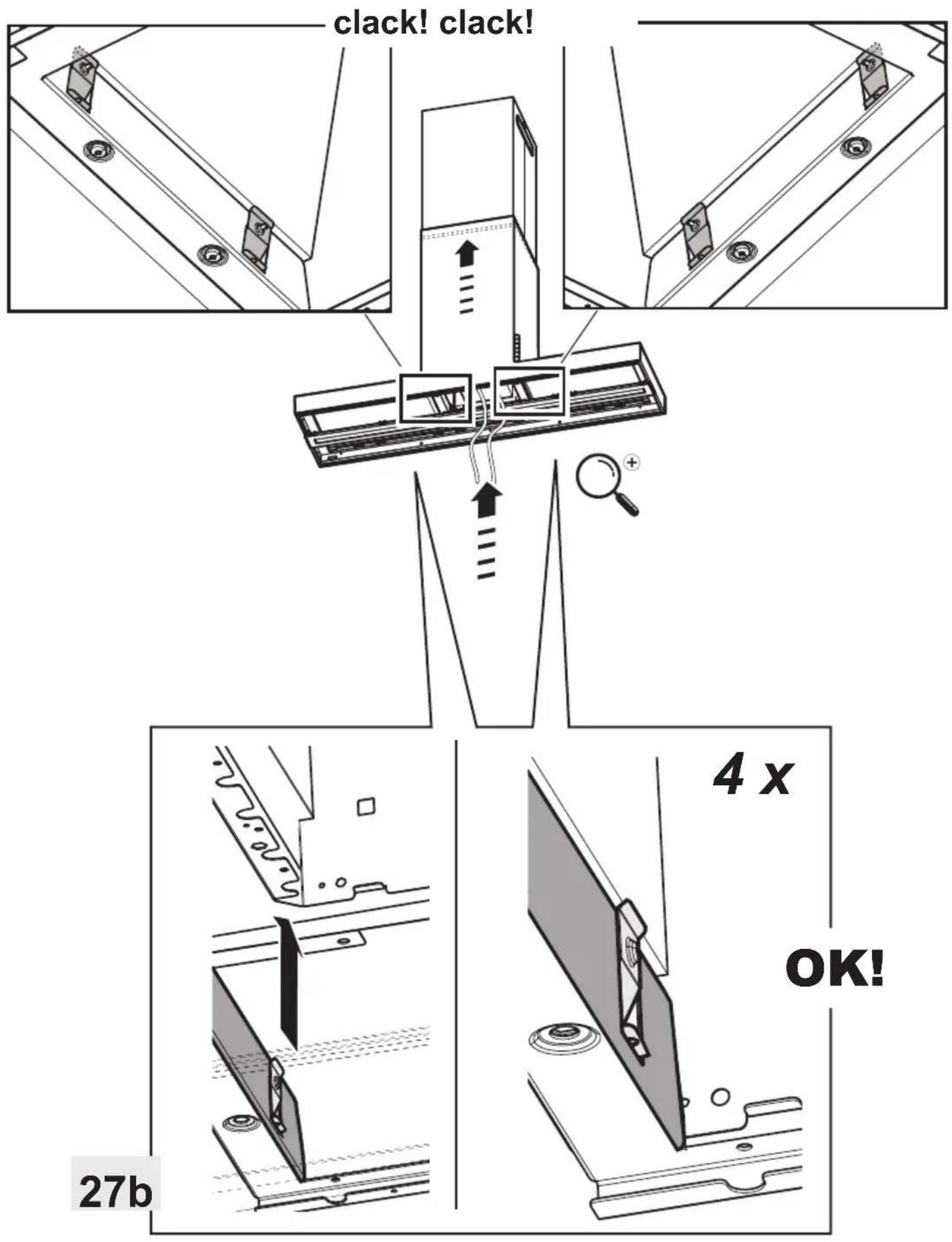

clack! clack! 4 x OK! 27b

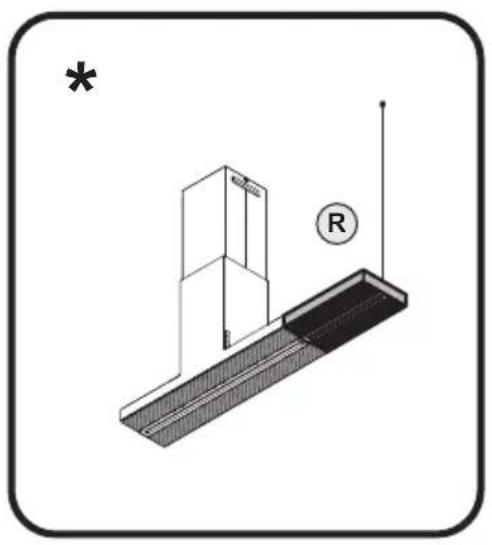

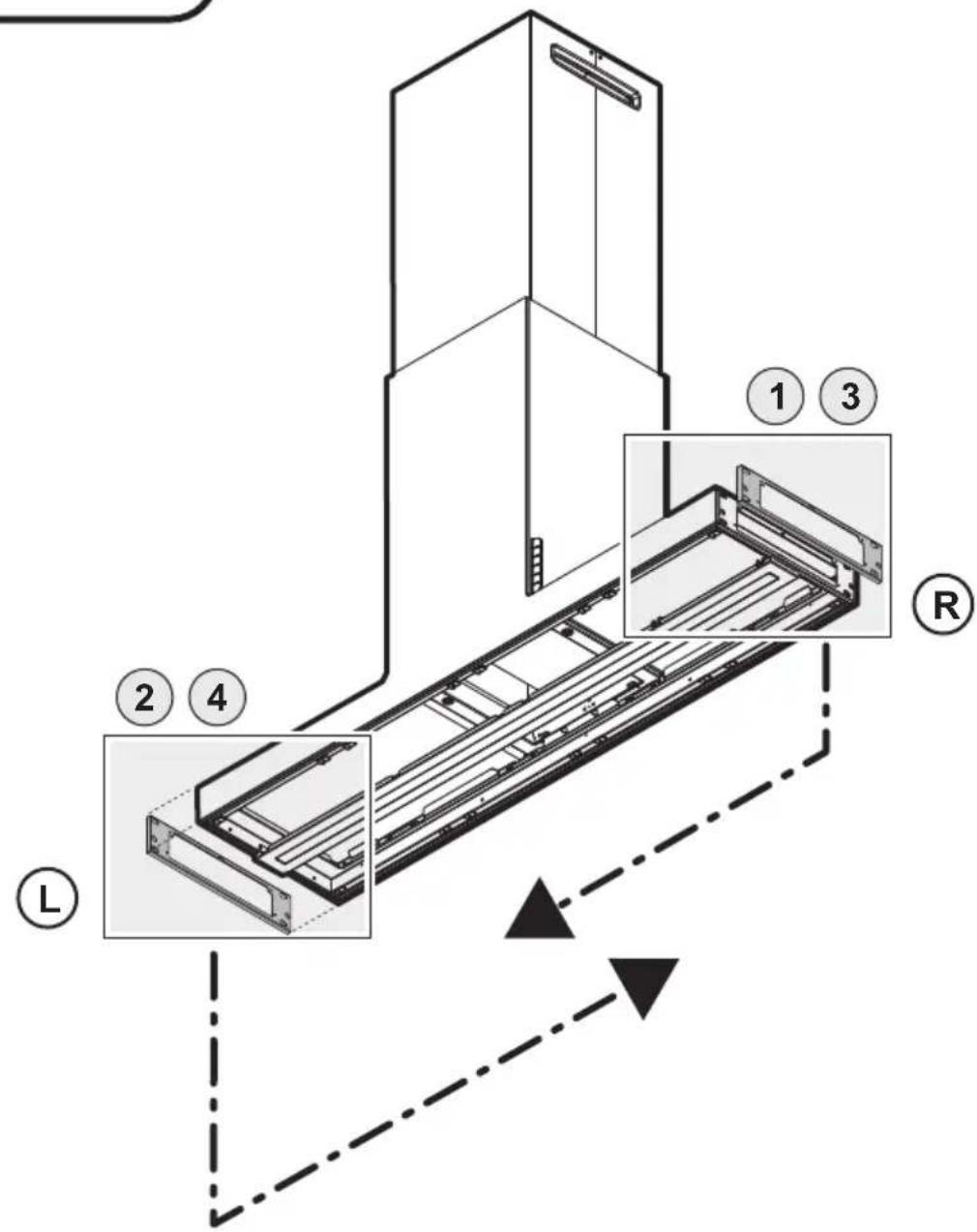

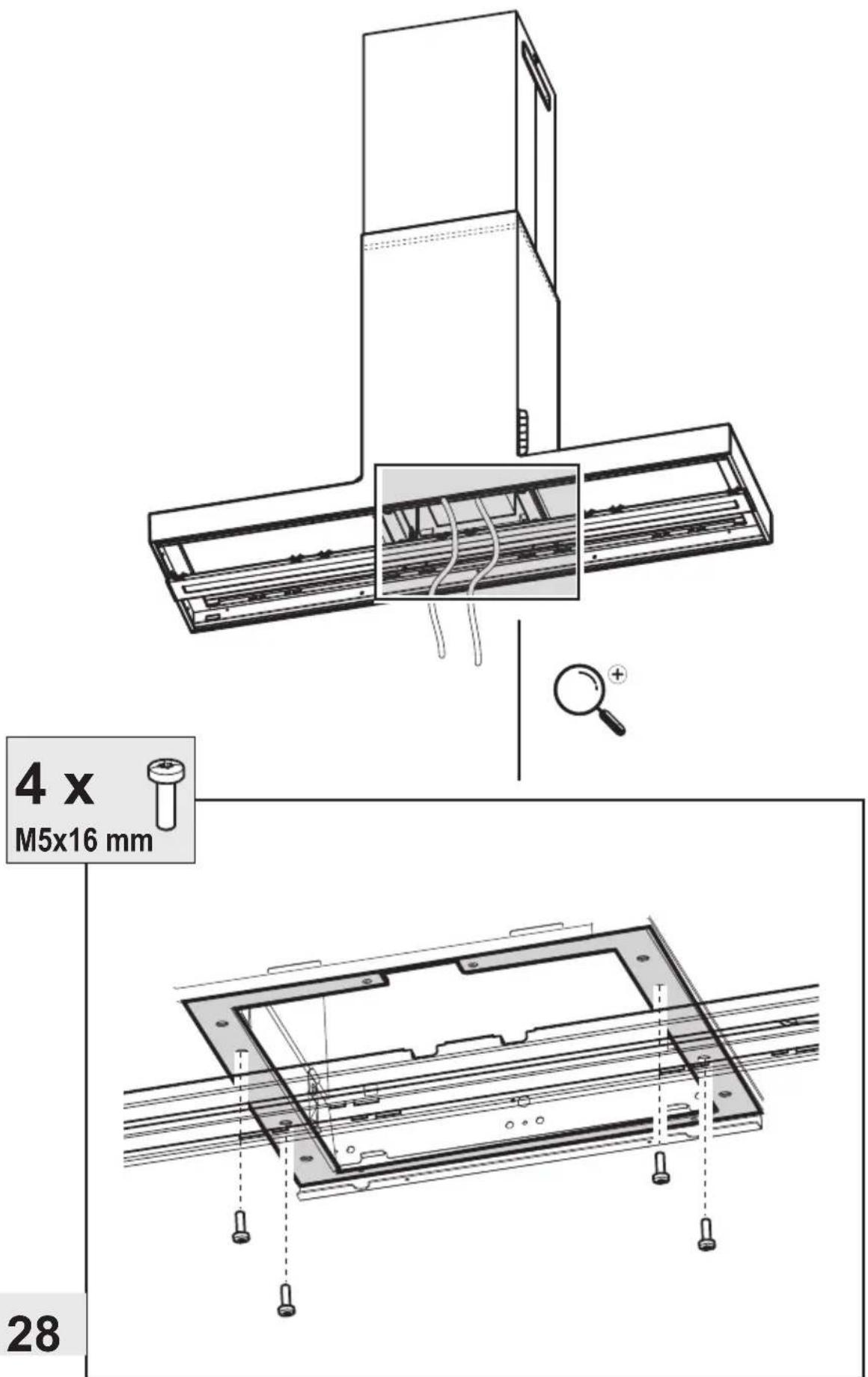

Technical diagram showing a mechanical assembly with a bracket and a labeled component R (no text or symbols present)

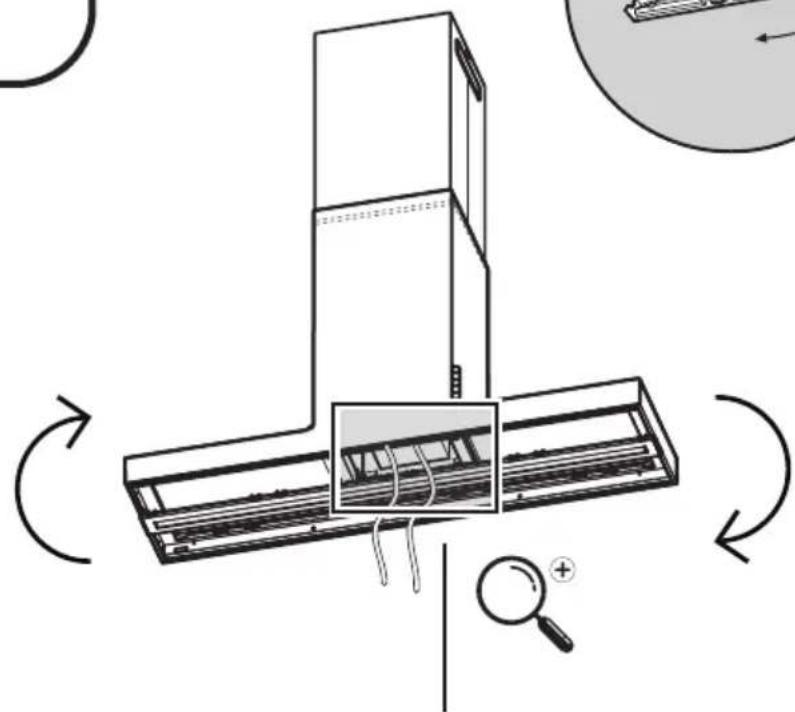

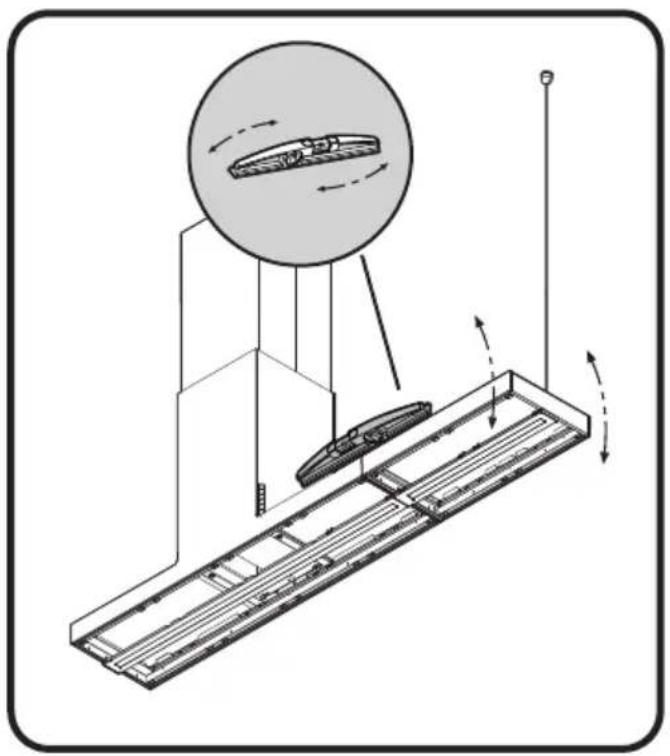

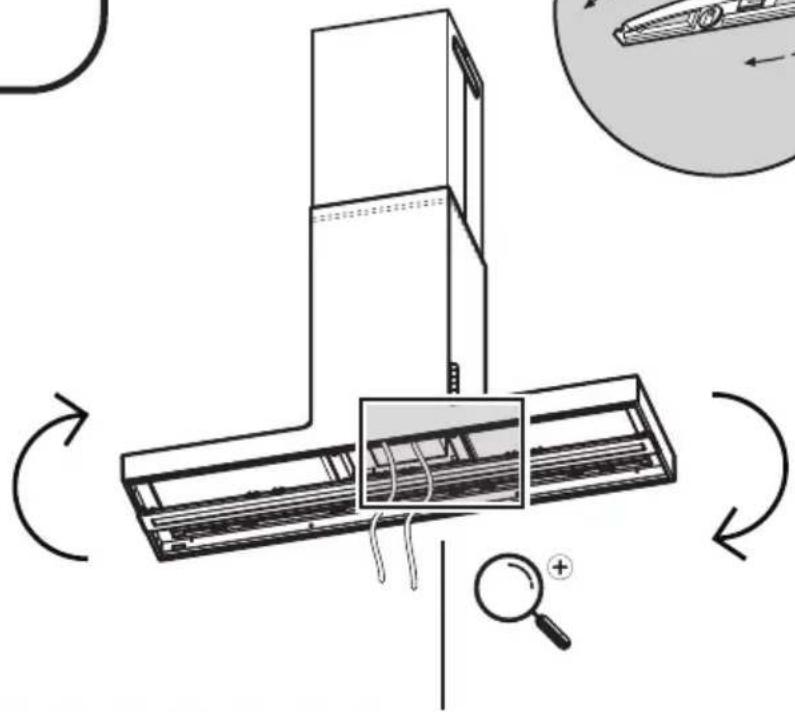

Diagram of a server rack with internal components and directional arrows indicating rotation (no text or symbols)

Simple line drawing of a vehicle inside a circle with motion arrows indicating clockwise motion (no text or symbols)

2x

M5x16 mm

29a

Technical line drawing of a mechanical assembly with mounting holes and structural ribs (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and shaft, no text or symbols present

Diagram of a server rack with internal components and directional arrows indicating rotation (no text or symbols)

Diagram of a car with motion arrows indicating speed or direction (no text or symbols)

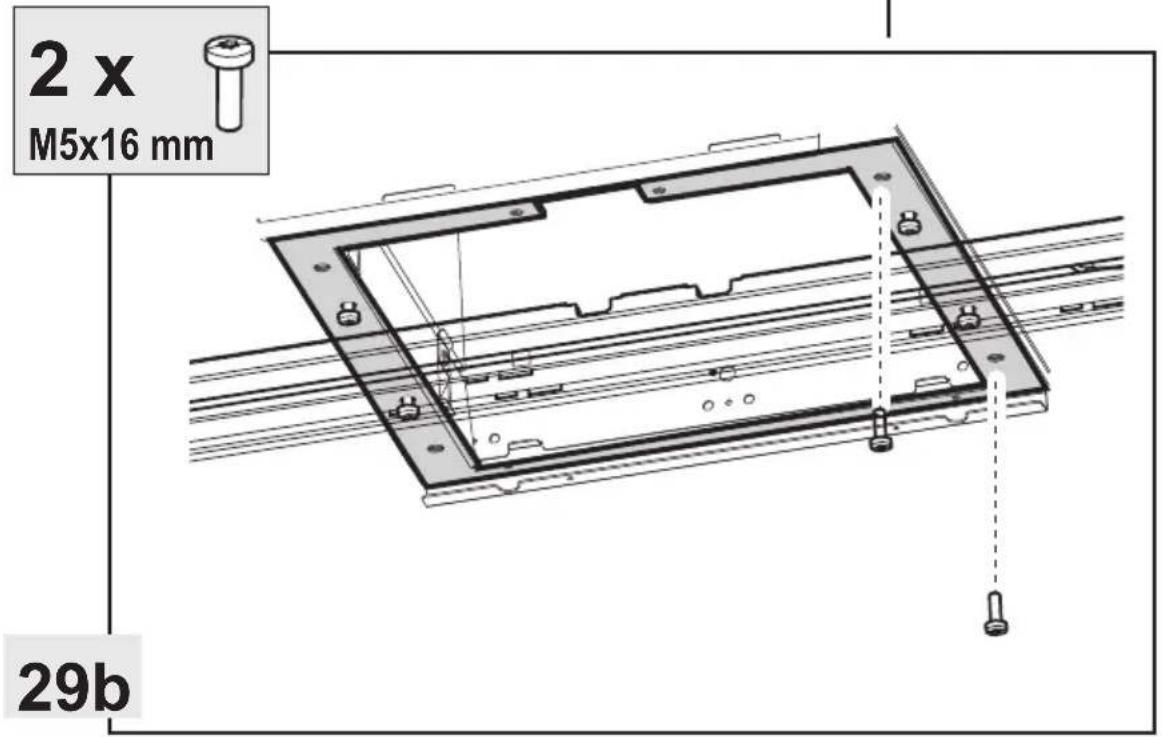

2 x M5x16 mm 29b

29b

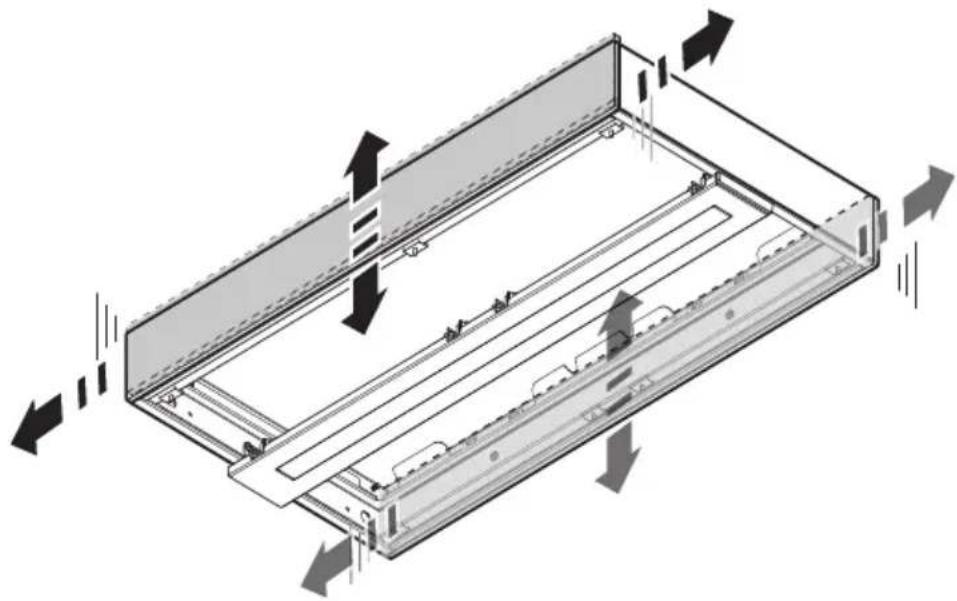

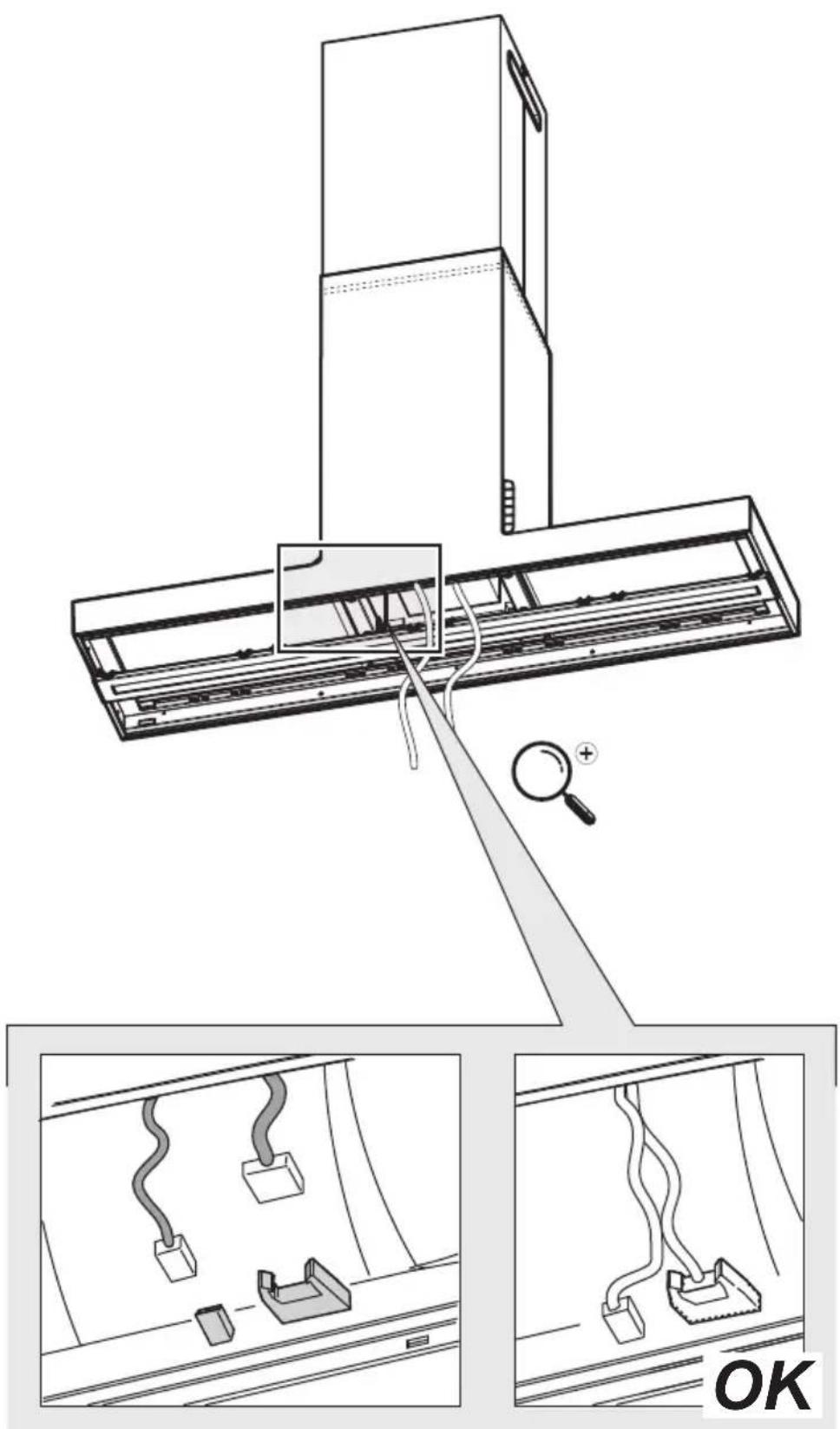

Technical diagram showing installation of an air conditioner unit with cable routing and inspection, including a magnifying glass and close-up views labeled 'OK'.

2x

∅3,5x9,5 mm

Technical diagram showing a mechanical assembly with a bracket and a vertical rod, no text or symbols present

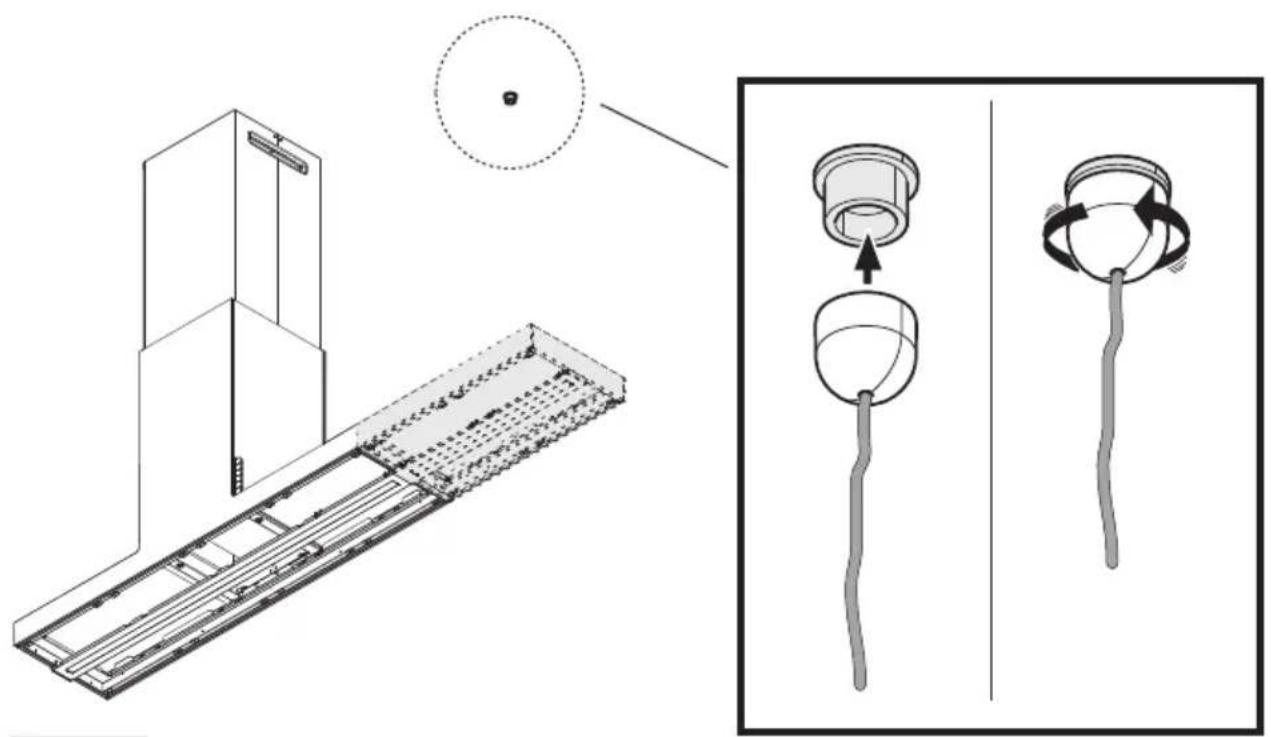

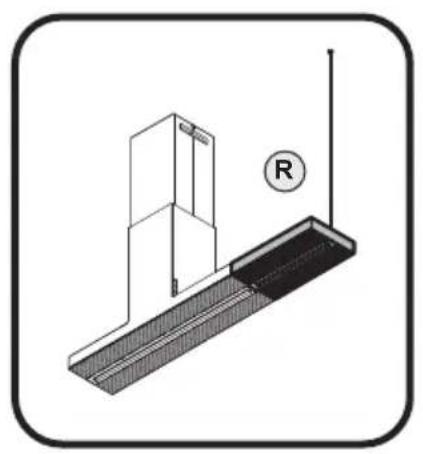

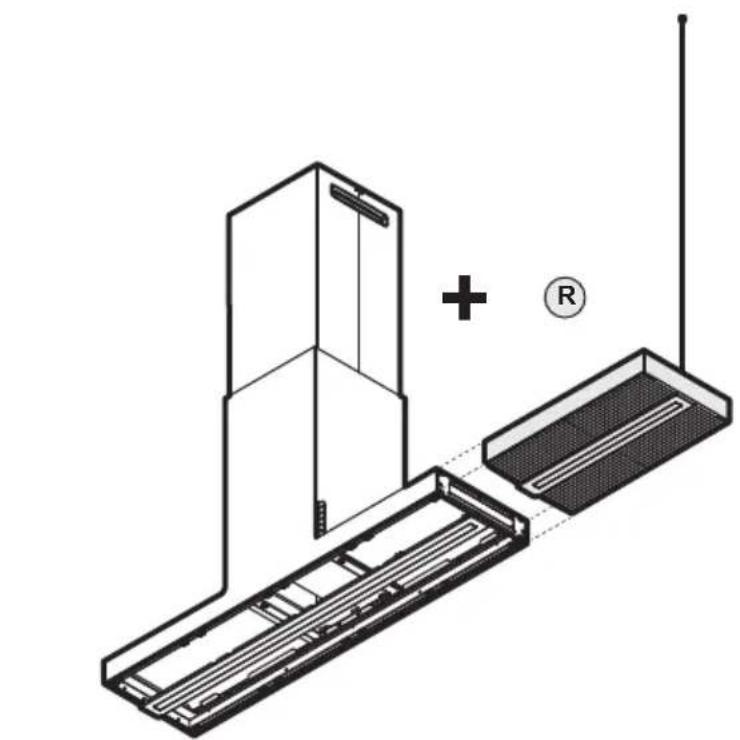

Technical line drawing of a device with a plus sign and antenna, no text or symbols present

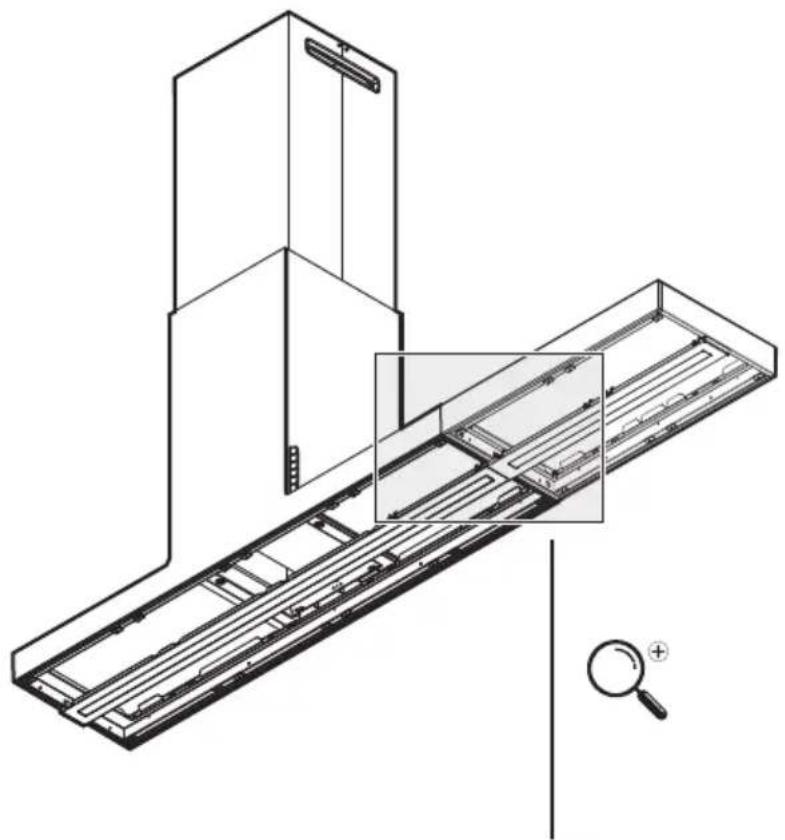

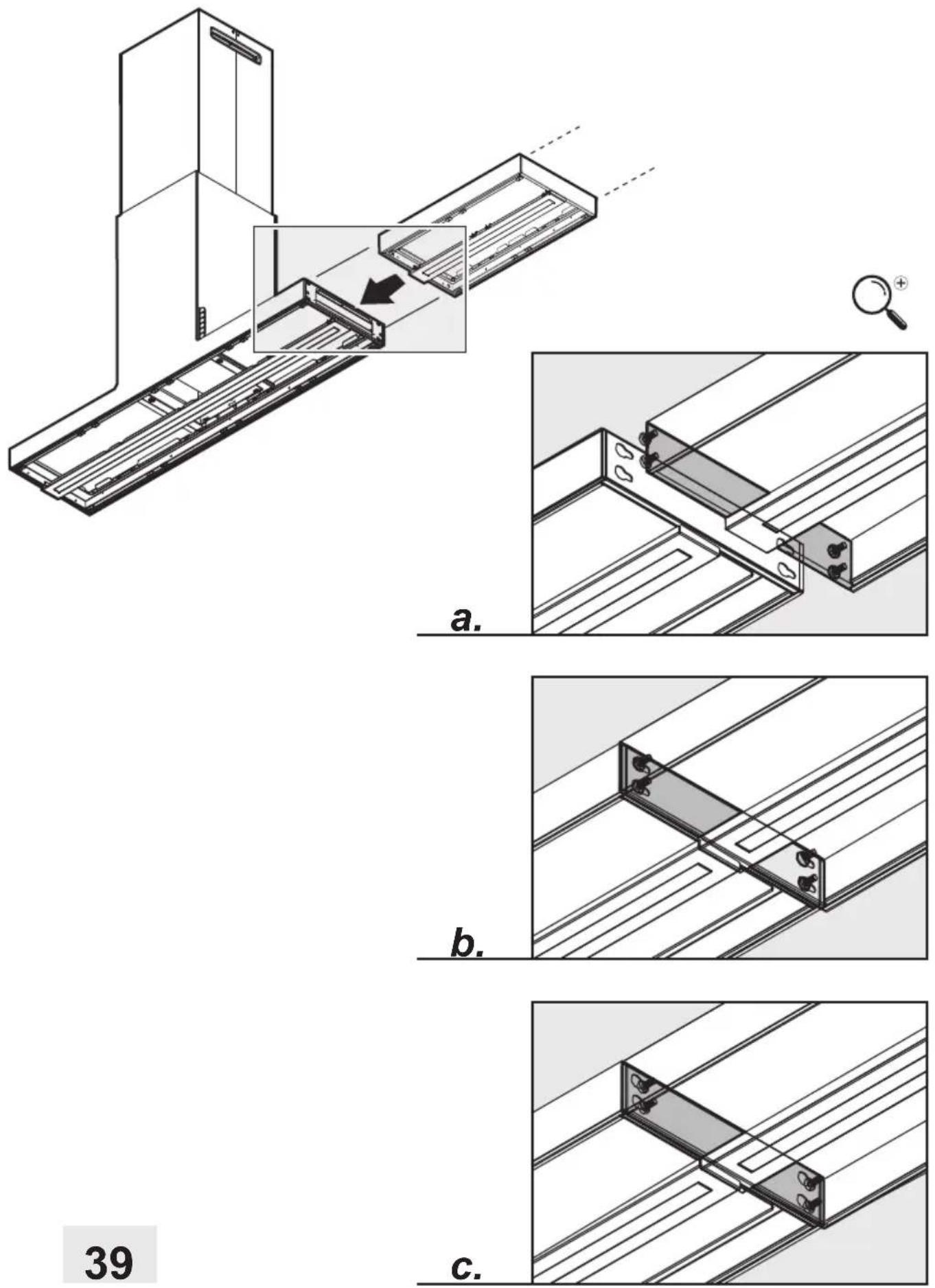

33-35-36-37-38-39-40-41-41a-42-43-44-45-46-48-49

Technical line drawing of a mechanical device with a lever and base plate (no text or symbols)

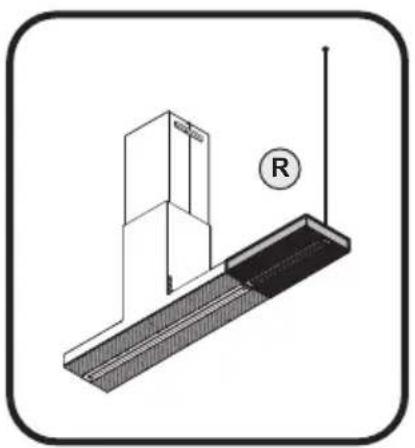

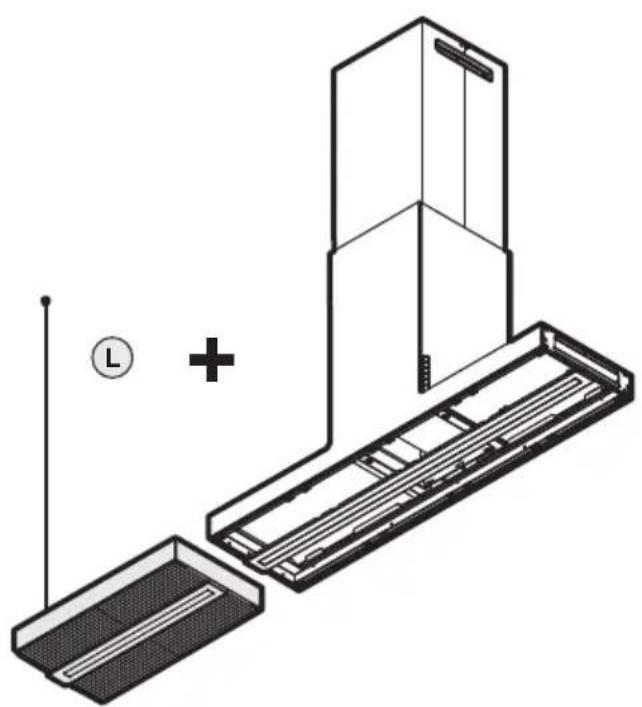

Technical line drawing of a device with an antenna, showing internal components and a plus symbol (no text or labels)

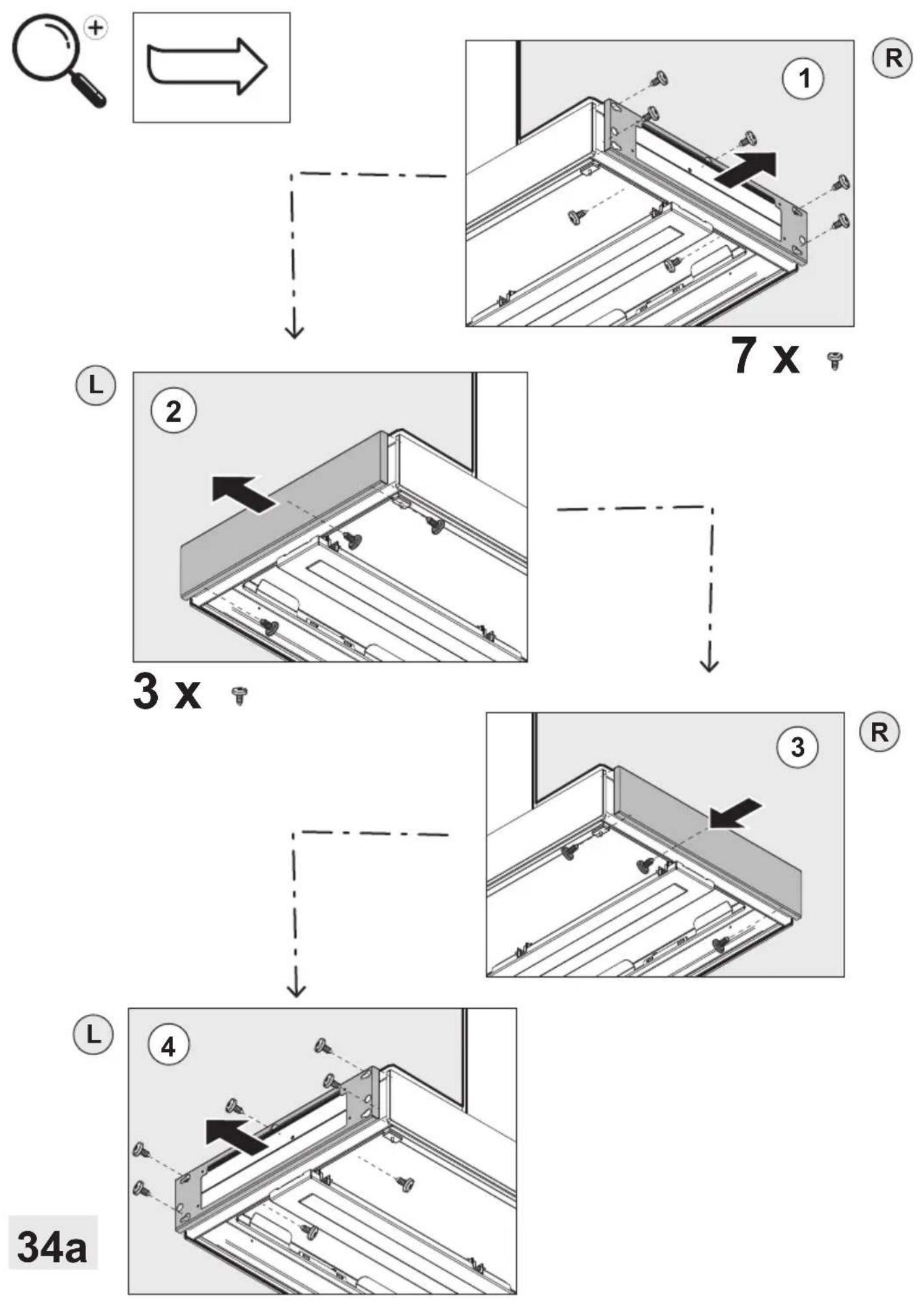

34-34a-35-36-37-38-39-40-41-41a-42-43-44-45-47-48-49

Technical diagram of a mechanical assembly with a bracket and a vertical rod, no text or symbols present

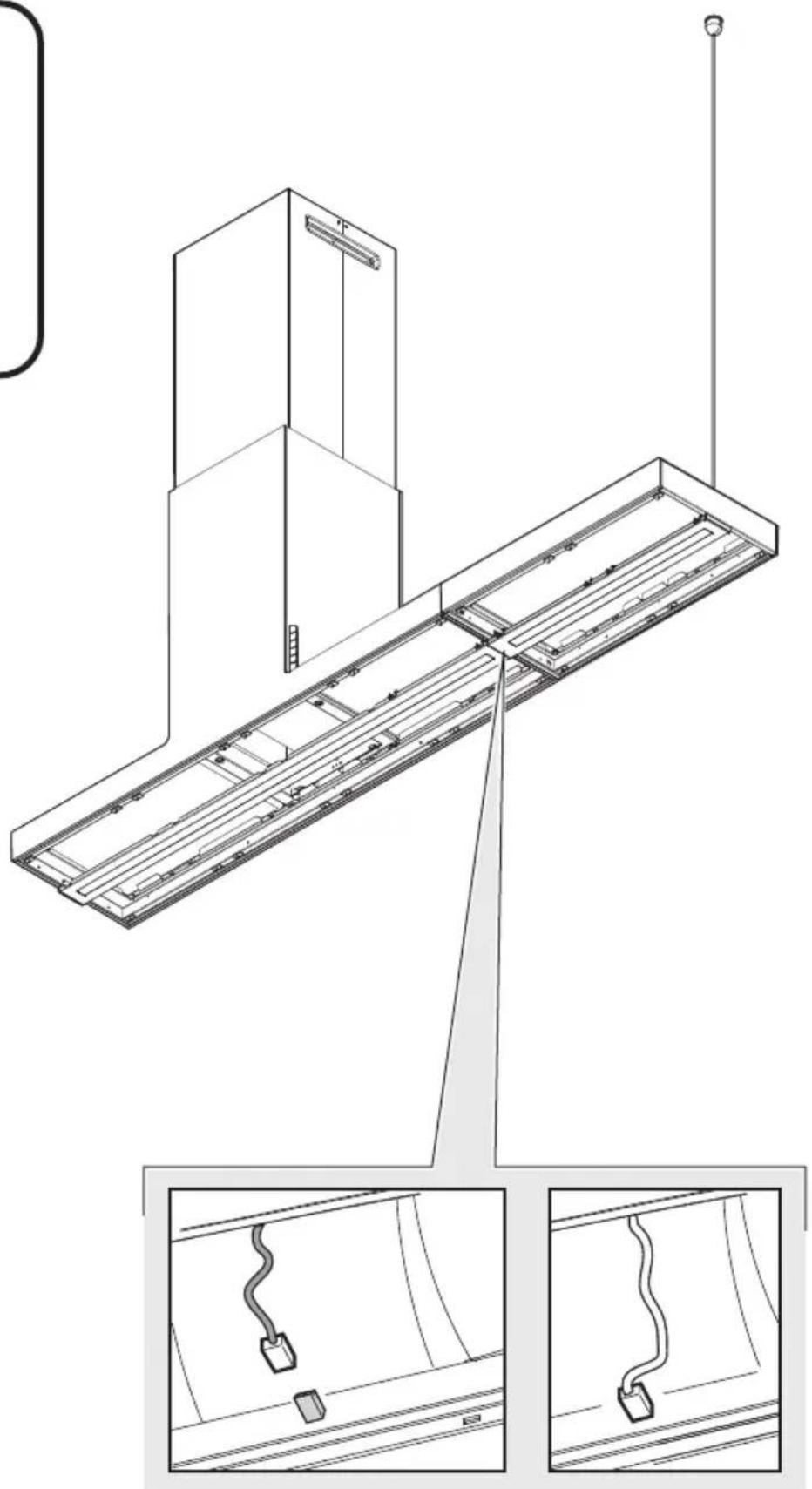

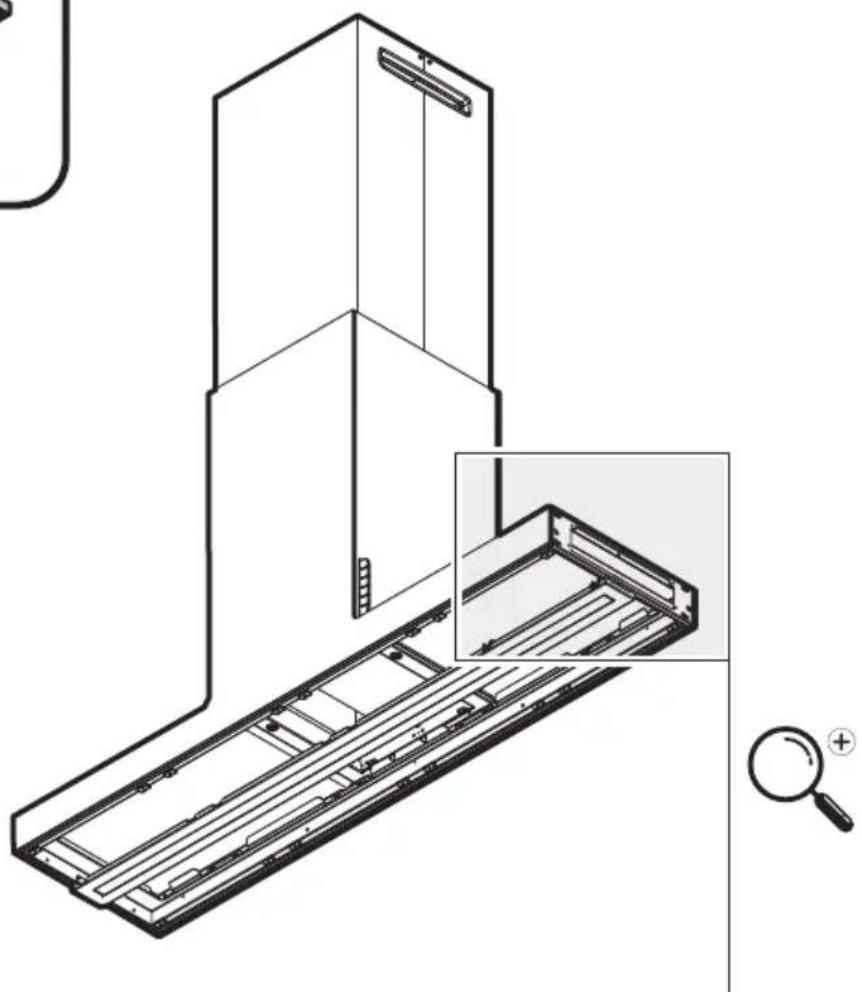

Technical line drawing of a server rack with an inset magnified view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Technical diagram of a mechanical assembly with a labeled component (no text or symbols present)

Technical diagram of a refrigerated refrigerator with labeled components and directional arrows indicating assembly or movement.

Simple black arrow pointing right on white background (no text or symbols)

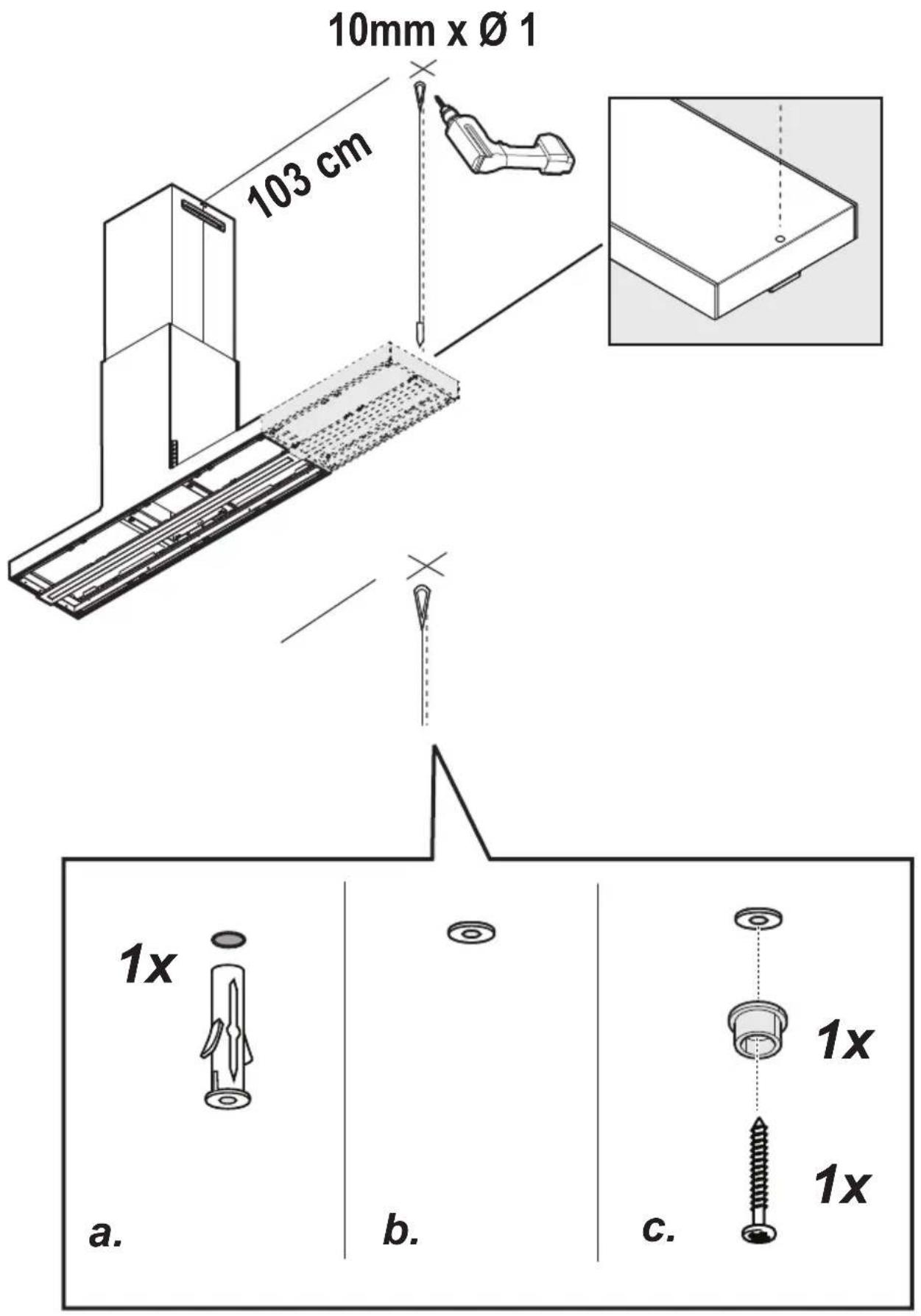

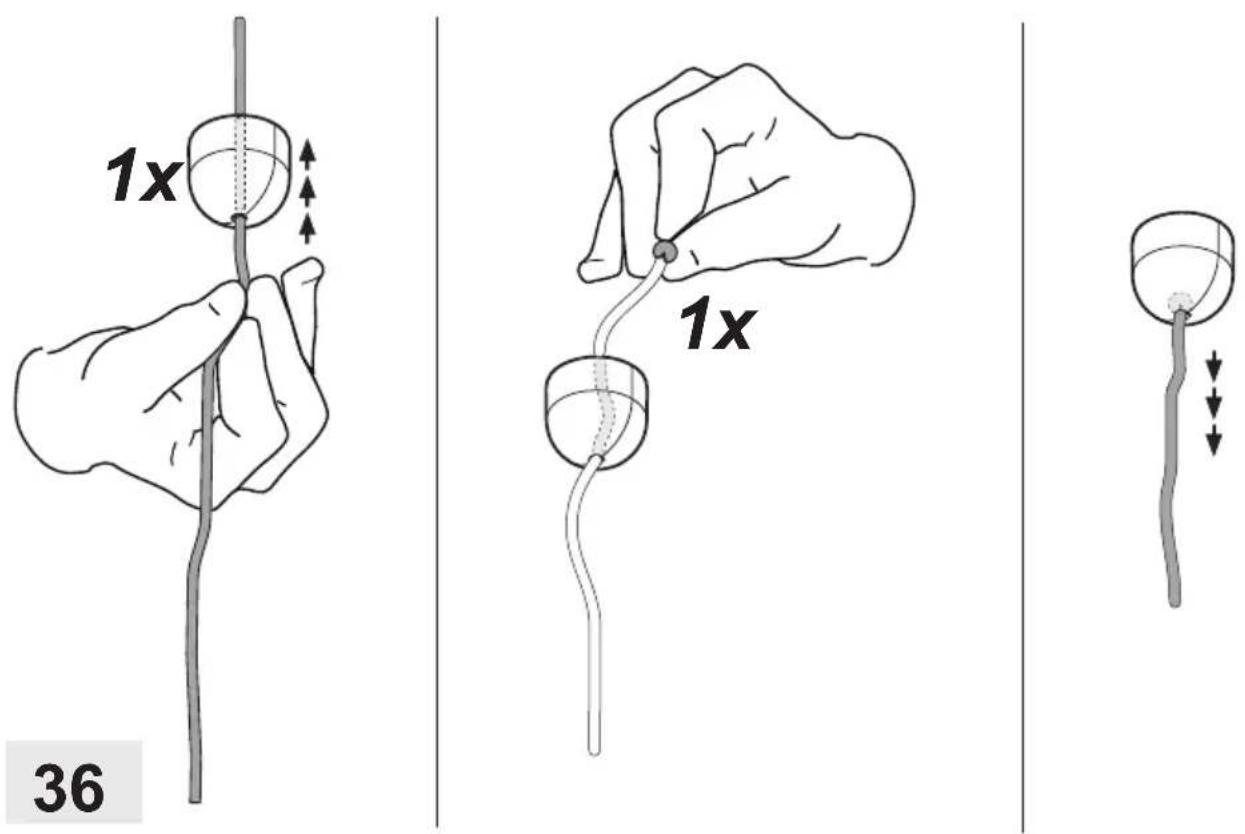

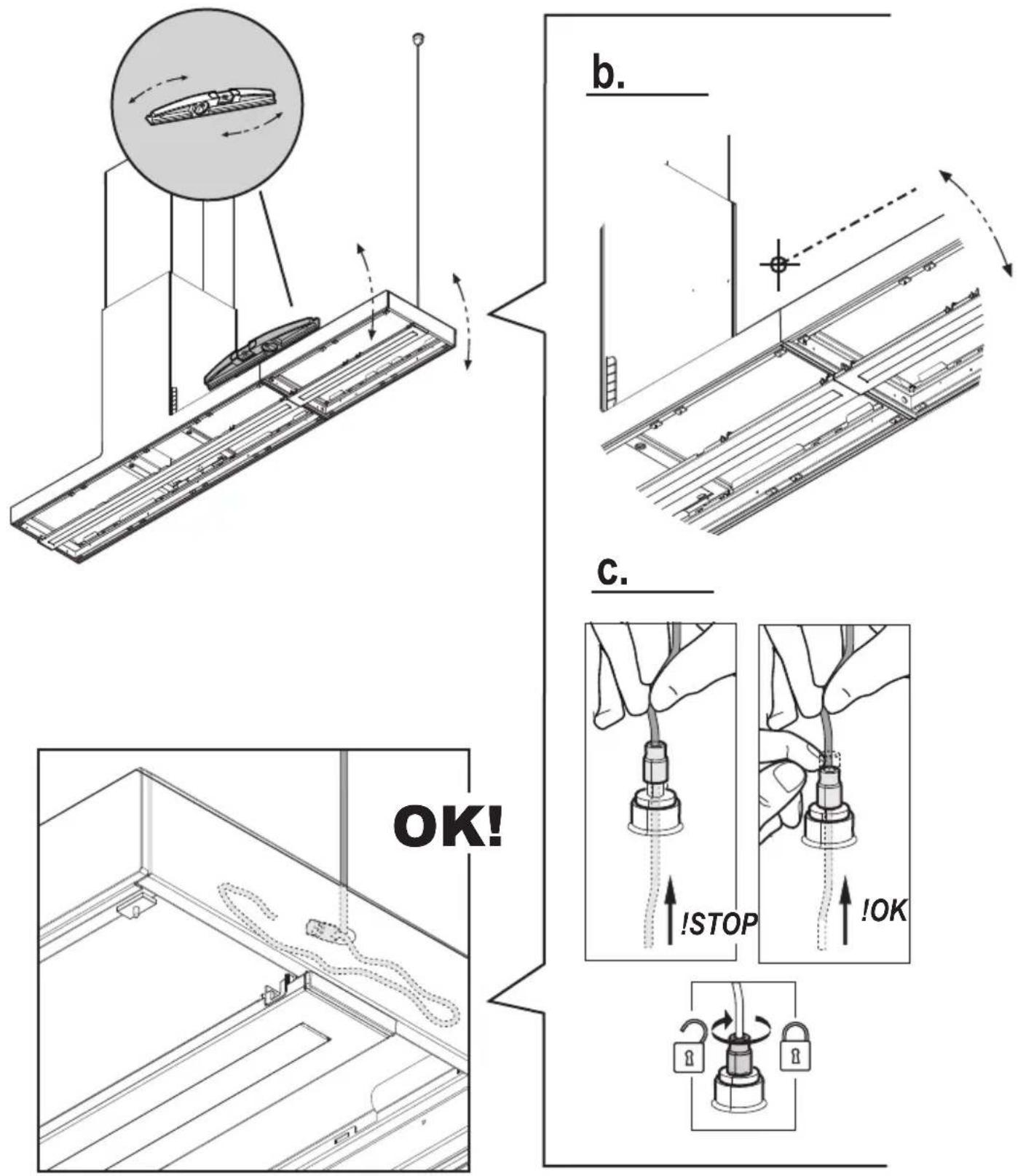

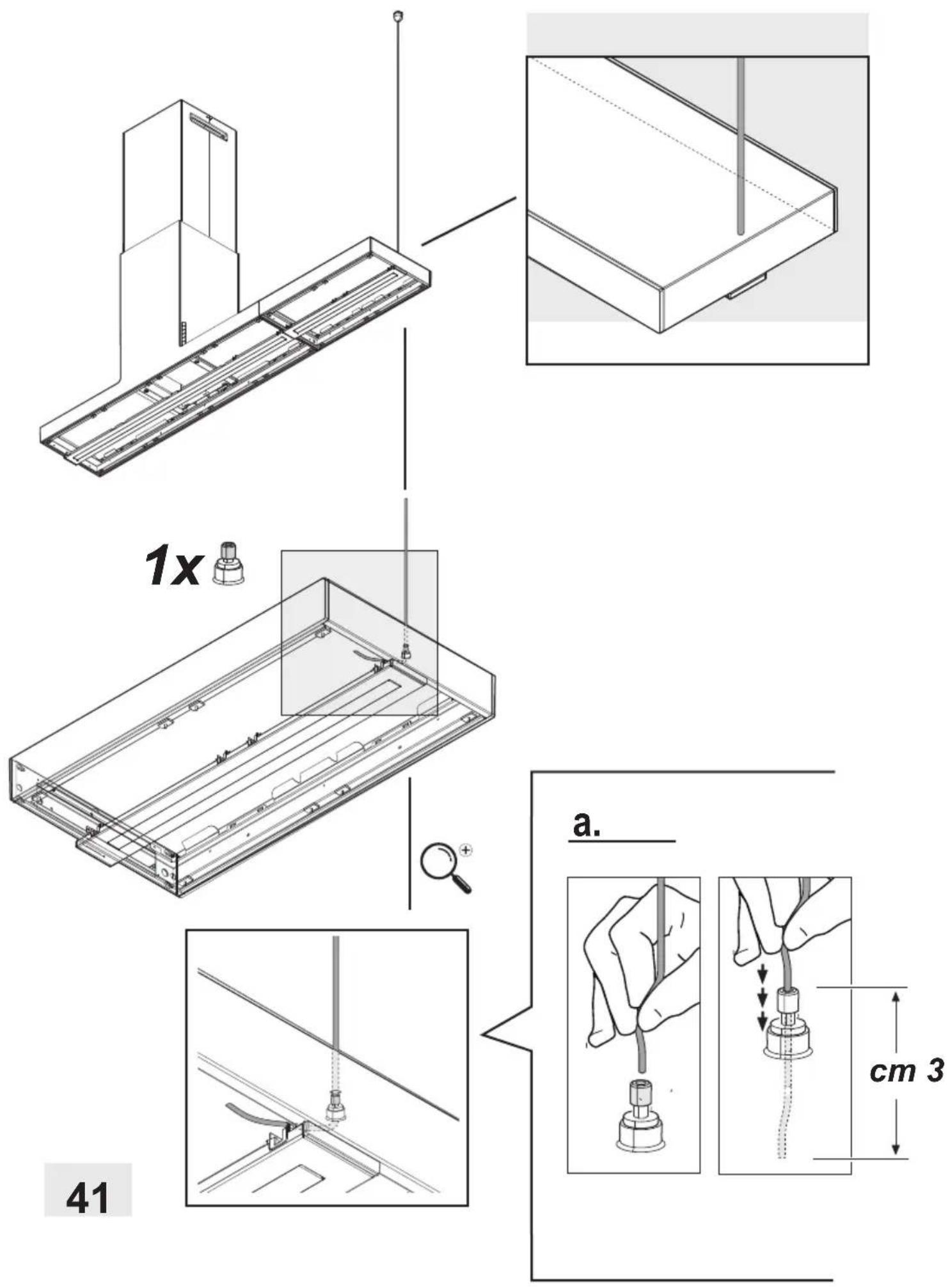

10mm x Ø 1 103 cm a. b. c. 1x 1x 1x

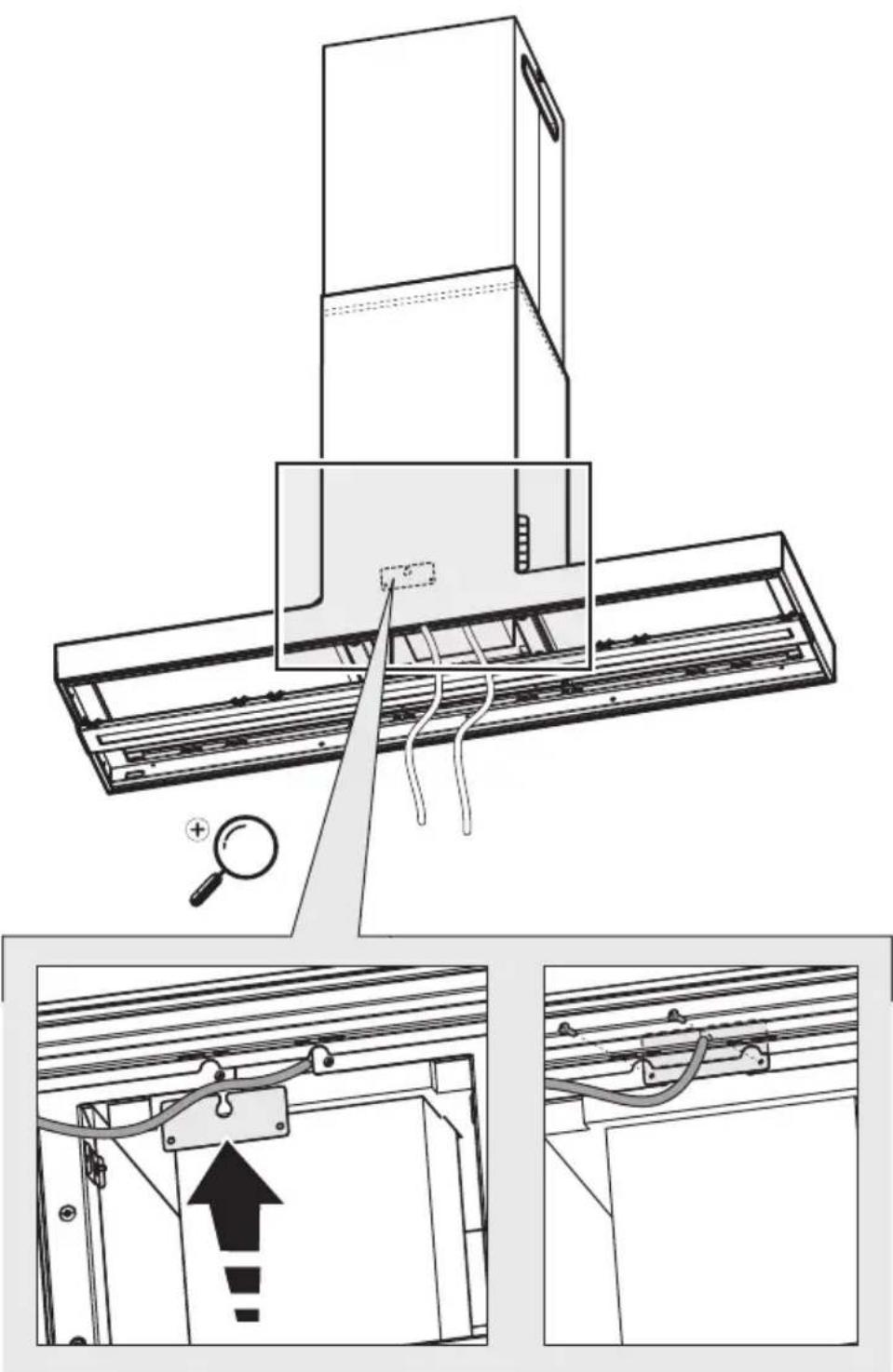

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process of lifting a component.

37

Diagram illustrating a hand operating a device with a cable, showing a cable being inserted into a rack and then being placed on a tray.

2x

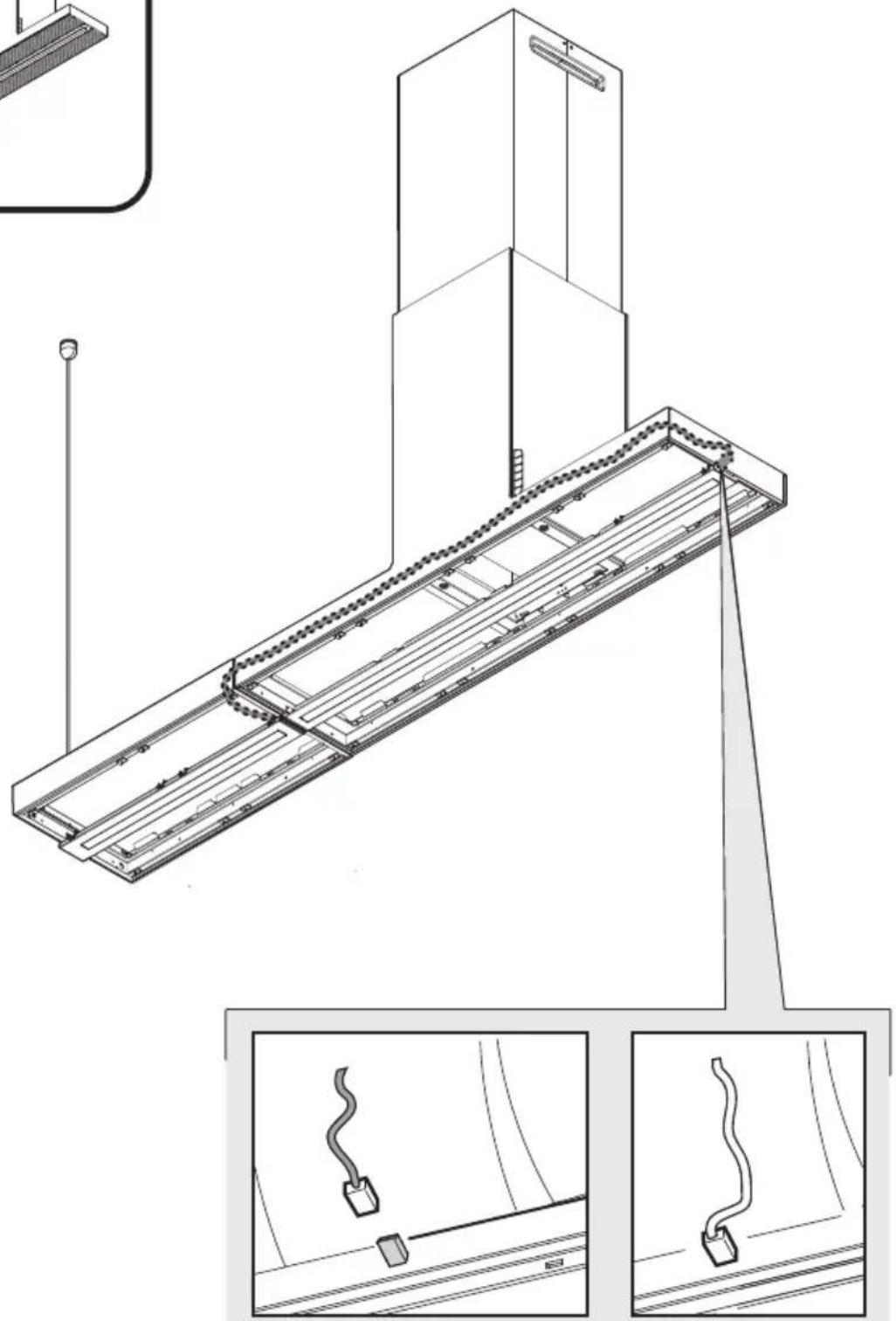

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

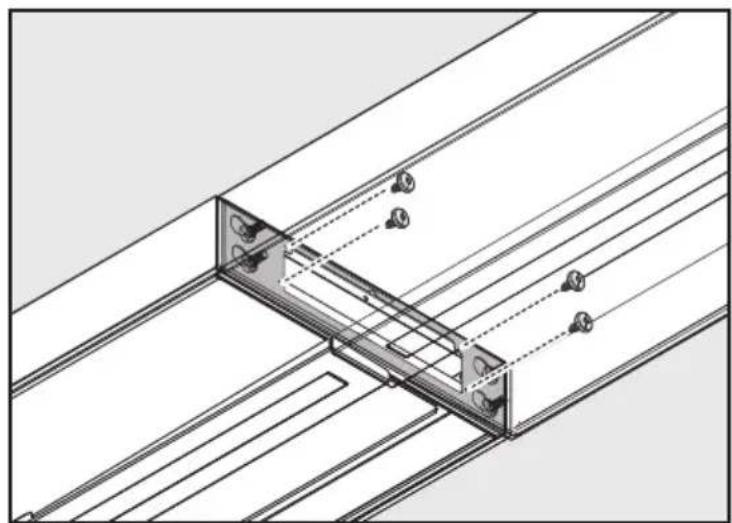

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

4 x Ø3,5x9 mm

Technical diagram of a ship's deck structure with motion arrows and a circular inset showing a boat's view (no text or symbols)

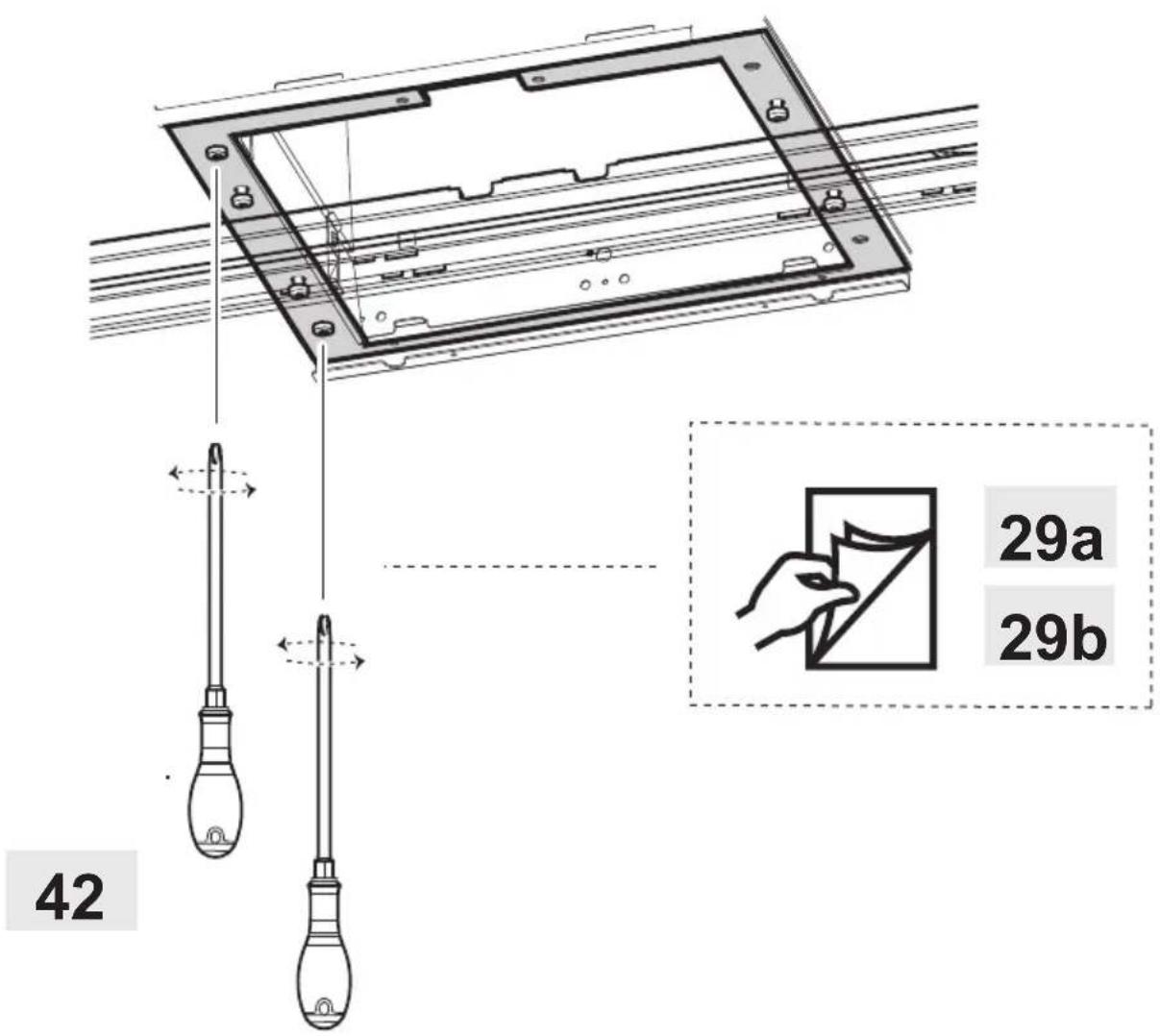

42 29a 29b

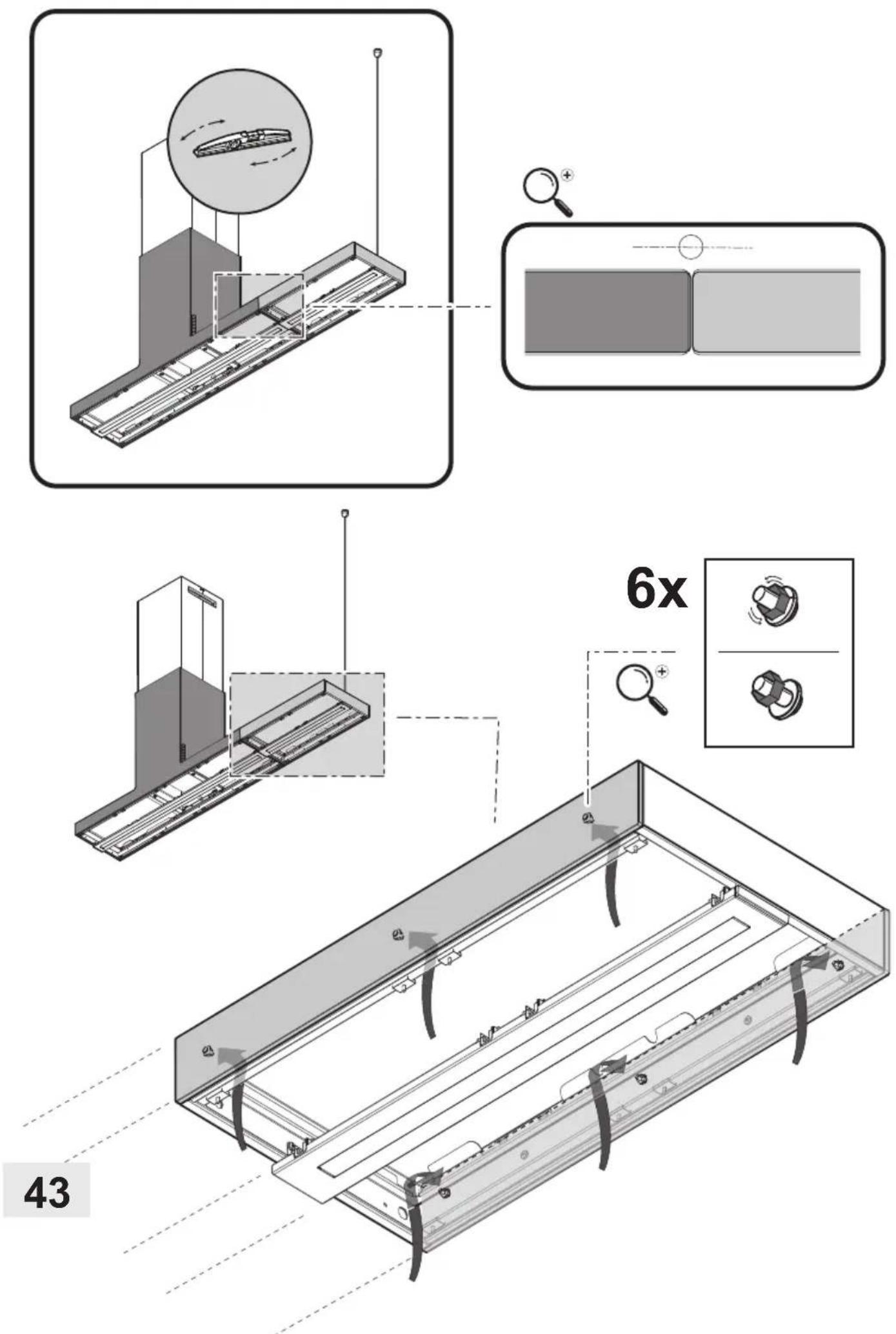

Technical diagram of a rectangular electronic device with internal components and directional arrows indicating flow or movement (no text or symbols present)

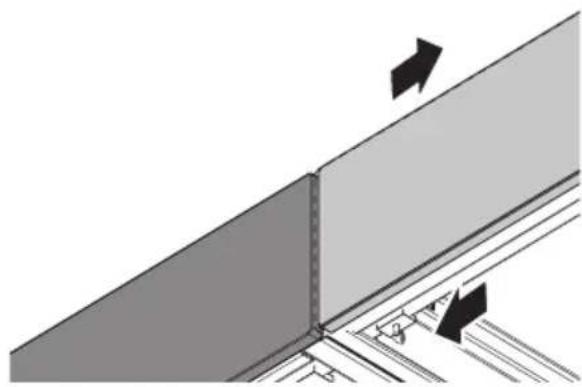

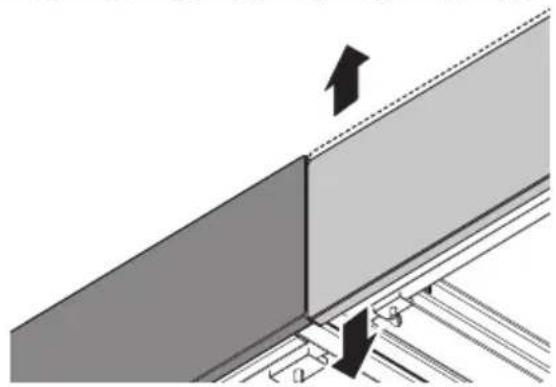

Diagram showing a structural joint with arrows indicating direction (no text or symbols present)

Diagram of a structural joint or panel connection with arrows indicating direction (no text or symbols present)

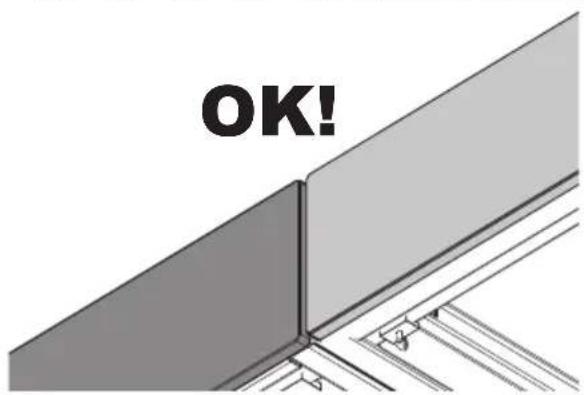

OK!

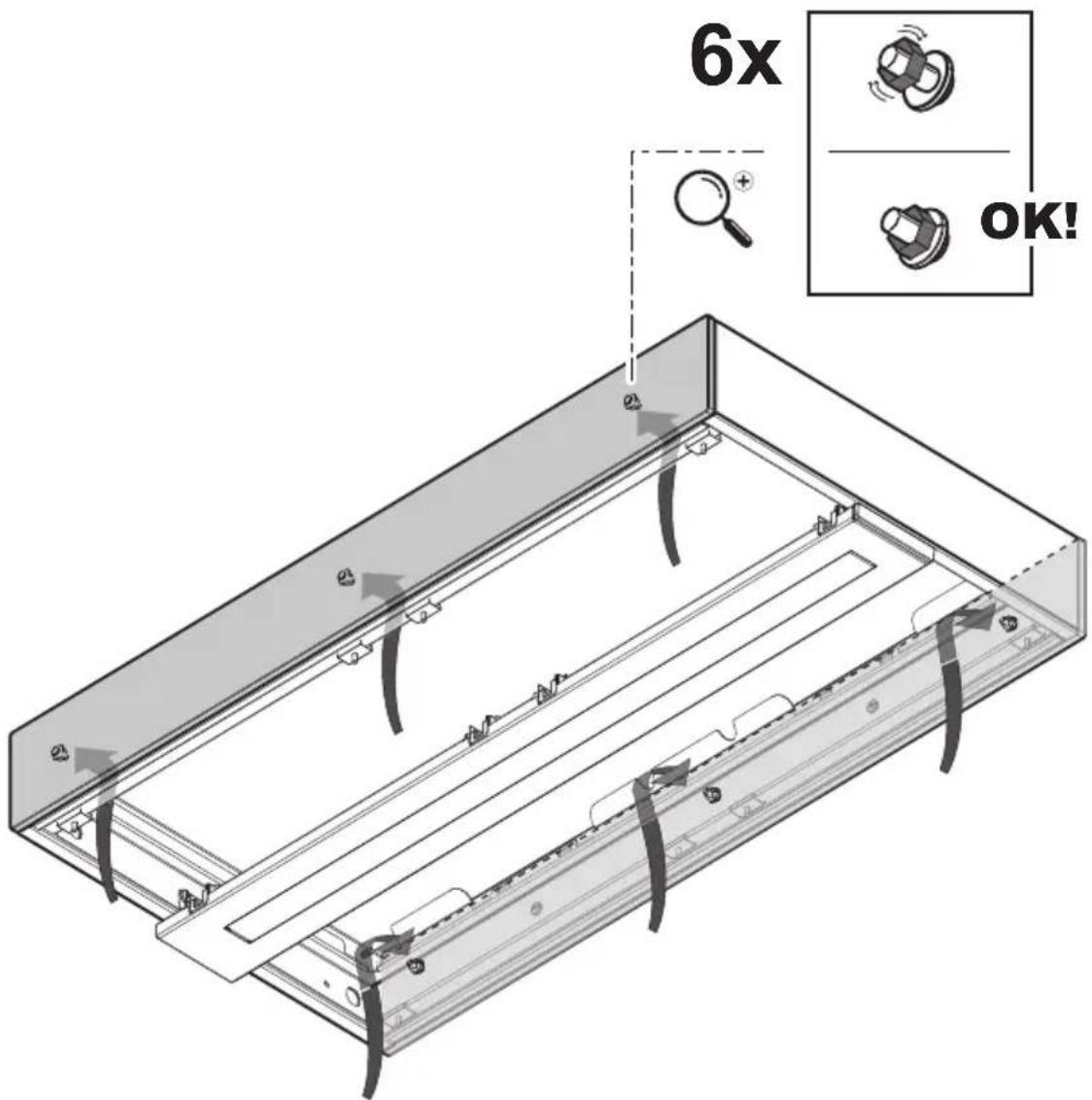

6x OK!

Technical diagram showing a mechanical assembly with a bracket and a vertical rod, no text or symbols present.

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and wiring connections without any text or symbols.

Technical line drawing of a mechanical assembly with a vertical rod and base plate, no text or symbols present

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Diagram illustrating a 2x speed limit operation on an electronic device, showing hand positioning and cutting tool path.

48

4x

Technical line drawing of a mechanical component with grooves and a central bracket (no text or symbols)

49

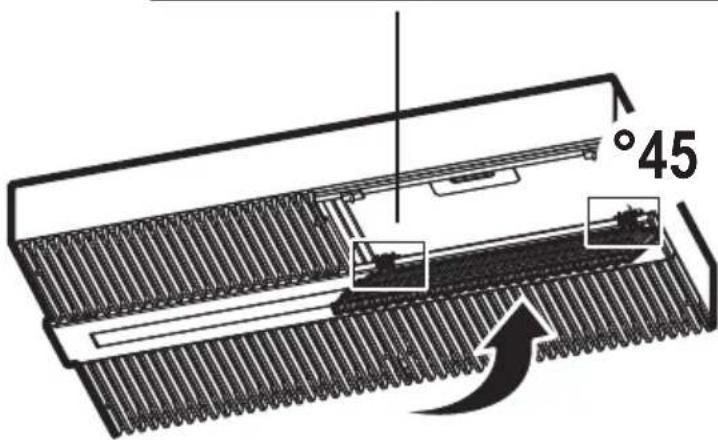

°45

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and a vertical pole (no text or symbols)

Simple line drawing of a house with a circular arrow inside, symbolizing refresh or cycle (no text or symbols)

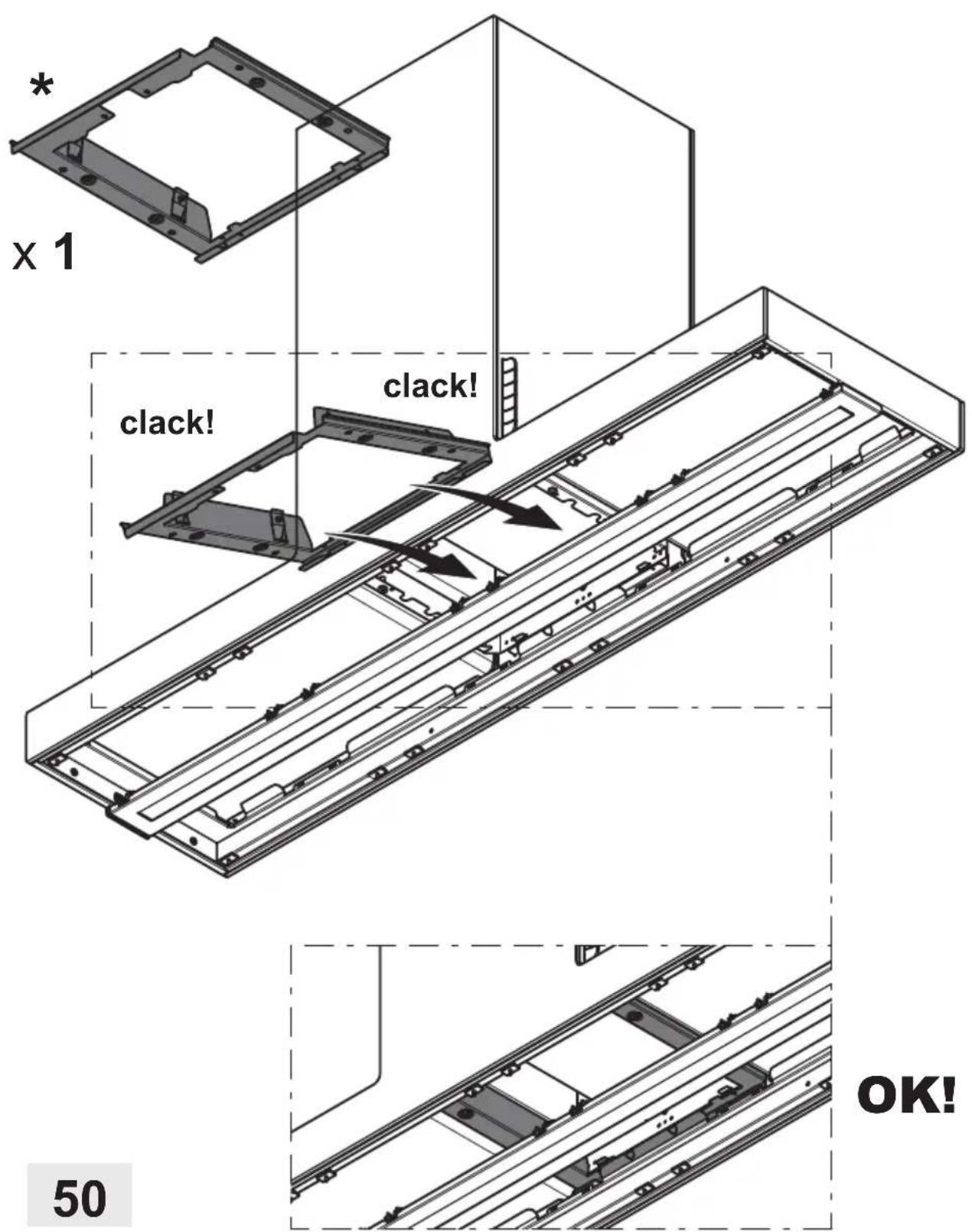

* x 1 clack! clack! 50 OK!

Simple line drawing of a house with a circular arrow inside, symbolizing refresh or cycle (no text or symbols)

Diagram illustrating a lock mechanism with labeled components and lock states, showing hand positioning and lock state selection.

52 4x

8x

Technical illustration of a mechanical assembly with a magnified inset showing a component being processed (no text or symbols present)

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

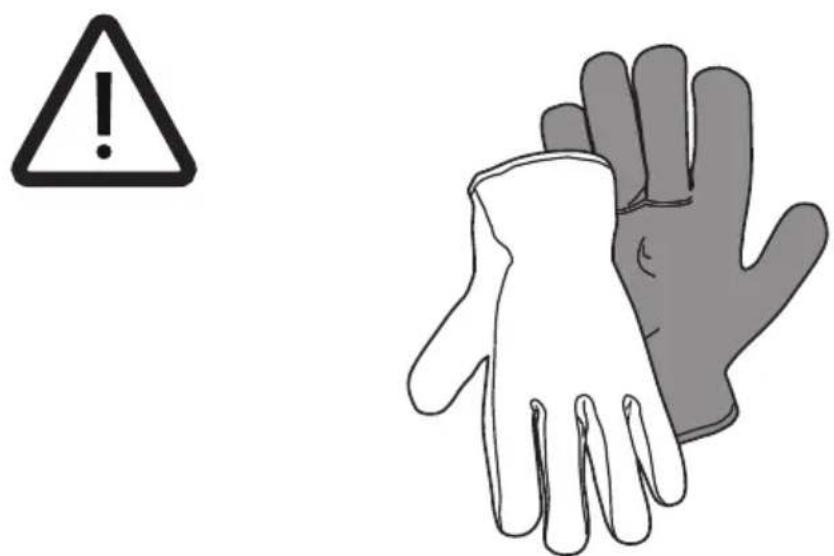

  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.

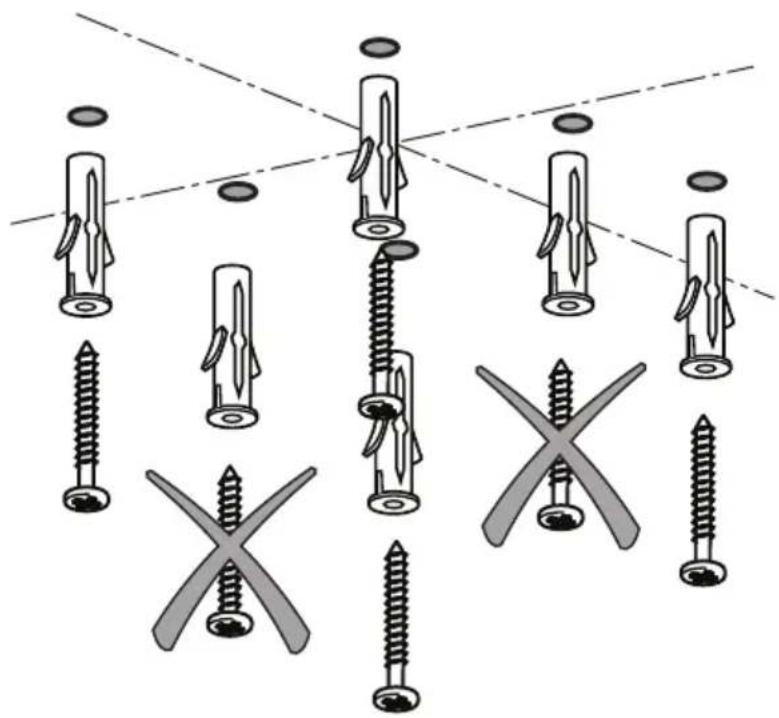

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.

• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

- This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Extraction version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.

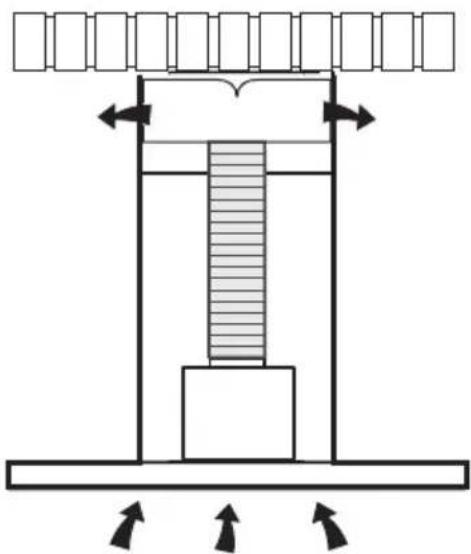

Filtration version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.

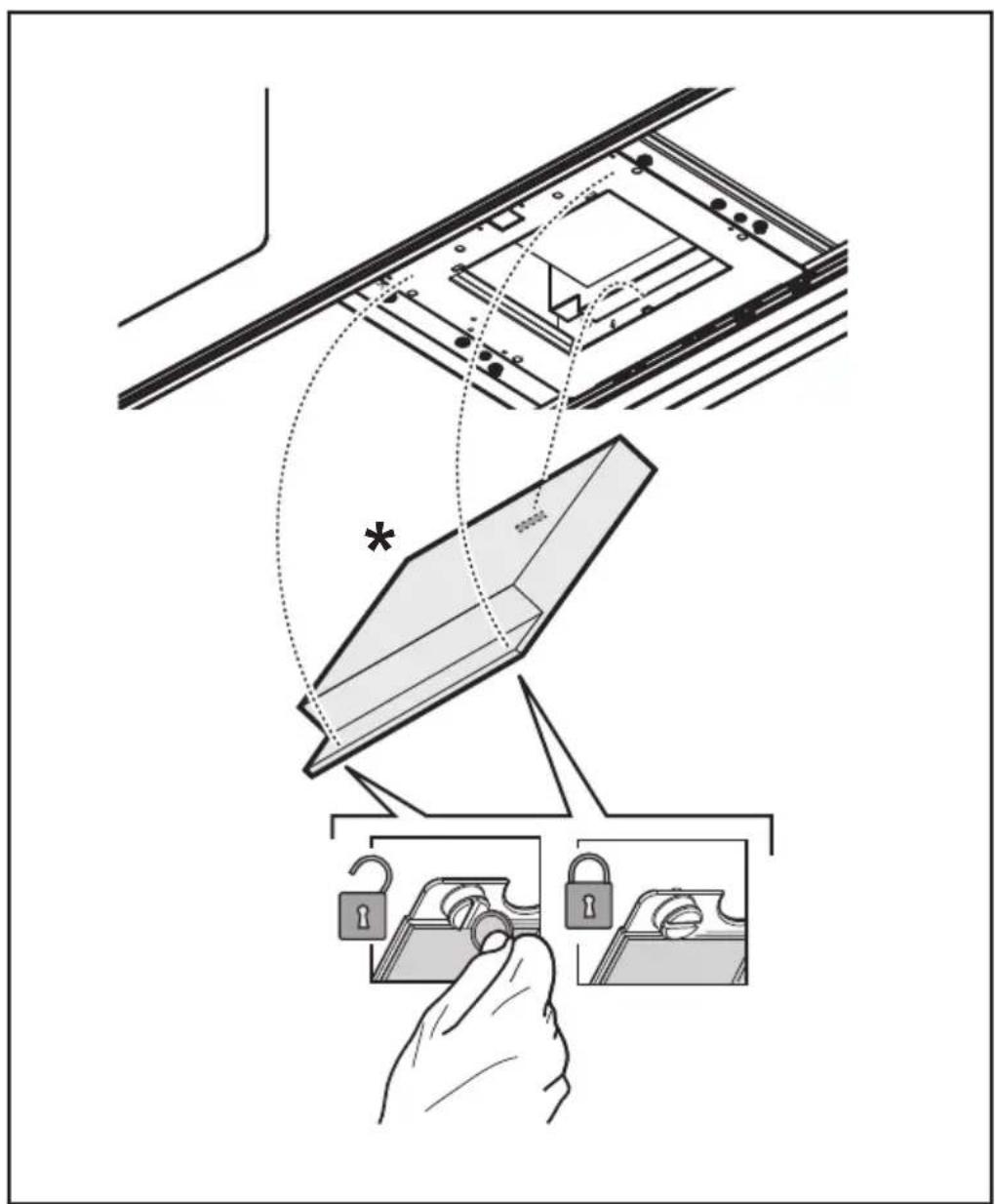

• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

Very heavy product; hood handling and installation must be carried out by at least two persons.

Operation

ON/OFF light button

Press to turn the cooktop light on or off.

"BOOST" speed selection key

1st push : to enable the intensive suction speed "BOOST 1", timed for 30 minutes this prolonged timing has been designed to guarantee a suitable cooking time for preparations that release high amounts of smoke during cooking

Note : after 30 minutes, the hood will return to the suction speed previously set

2nd push ("BOOST 1" activated): to activate the intensive suction speed "BOOST 2", timed for 7 minutes

Note: after 7 minutes, the hood will return to the previously set suction speed

3rd push ("BOOST 2" activated): to exit the function and return to the speed previously set.

Note: the speed key previously set remains lit during BOOST operation.

Speed selection key 3

Push to activate the high speed (suction power)

Speed selection key 2

Push to activate the average speed (suction power)

Speed selection key 1

Push to enable the low speed (suction power)

Power button

Push to switch on the hood and enable speed selection;

if pushed while the motor is running, the latter will stop

Note: if no function is activated within 10 seconds, the hood turns off.

Filter Saturation indicator lights

The hood signals at regular intervals that the filters must be serviced.

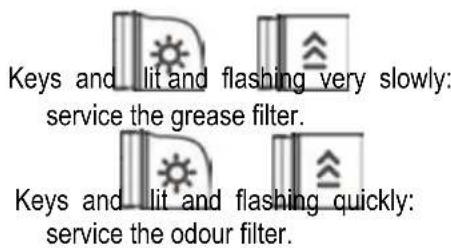

Keys and lit and flashing very slowly: service the grease filter. Keys and lit and flashing quickly: service the odour filter.

Note: The filter saturation warning signal is visible within the first 10 seconds after the hood is switched on.

Reset filter saturation indicator:

Press and hold the keys and The keys will flash quickly to confirm that reset has been completed

Activation of filter saturation indicators

Note: this operation must be performed with the hood off.

- Grease filter

Push and hold down the keys and to activate the function the keys light up flashing very slowly, indicating that the grease filter indicator can be activated

Note: Push the keys and to activate or deactivate

- Odour filter

Push and hold down the keys and to activate the function the keys light up flashing quickly, indicating that the odour filter indicator can be activated (normally deactivated)

Note: Push the keys and to activate or deactivate

Maintenance

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

Fig. 38 / 48-52

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

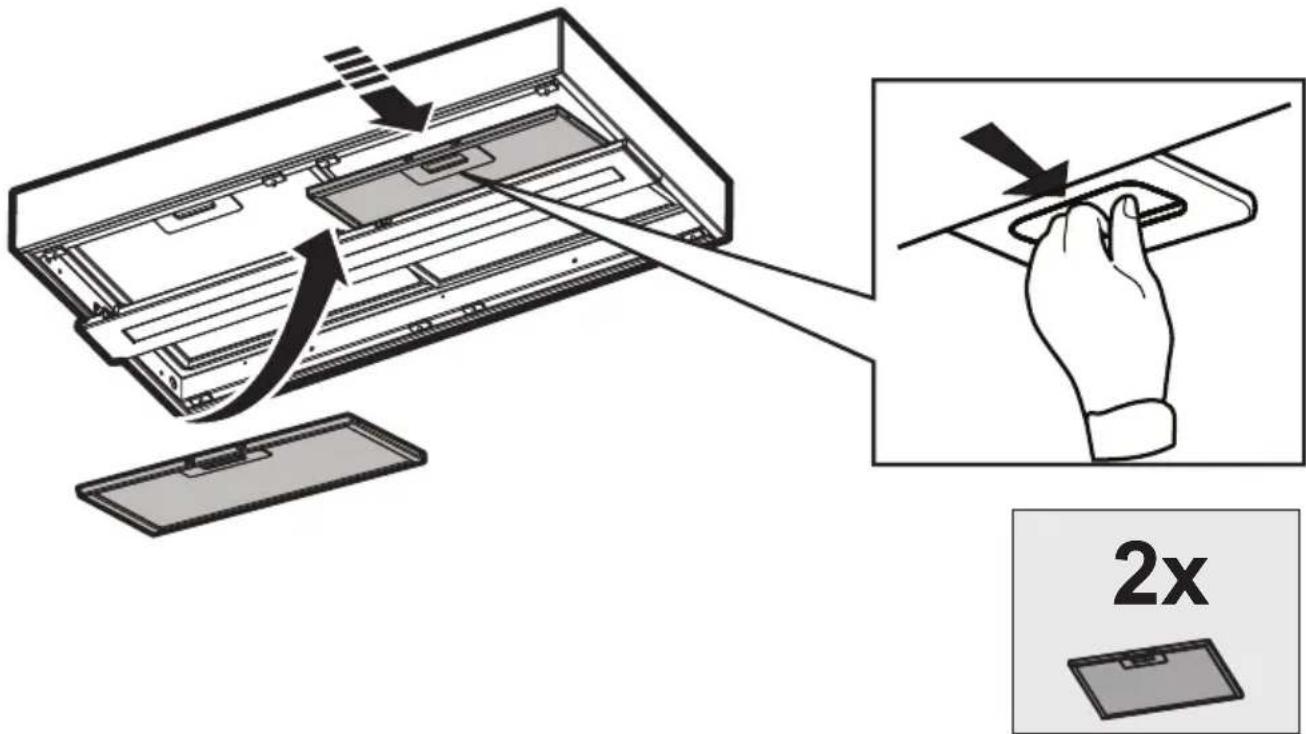

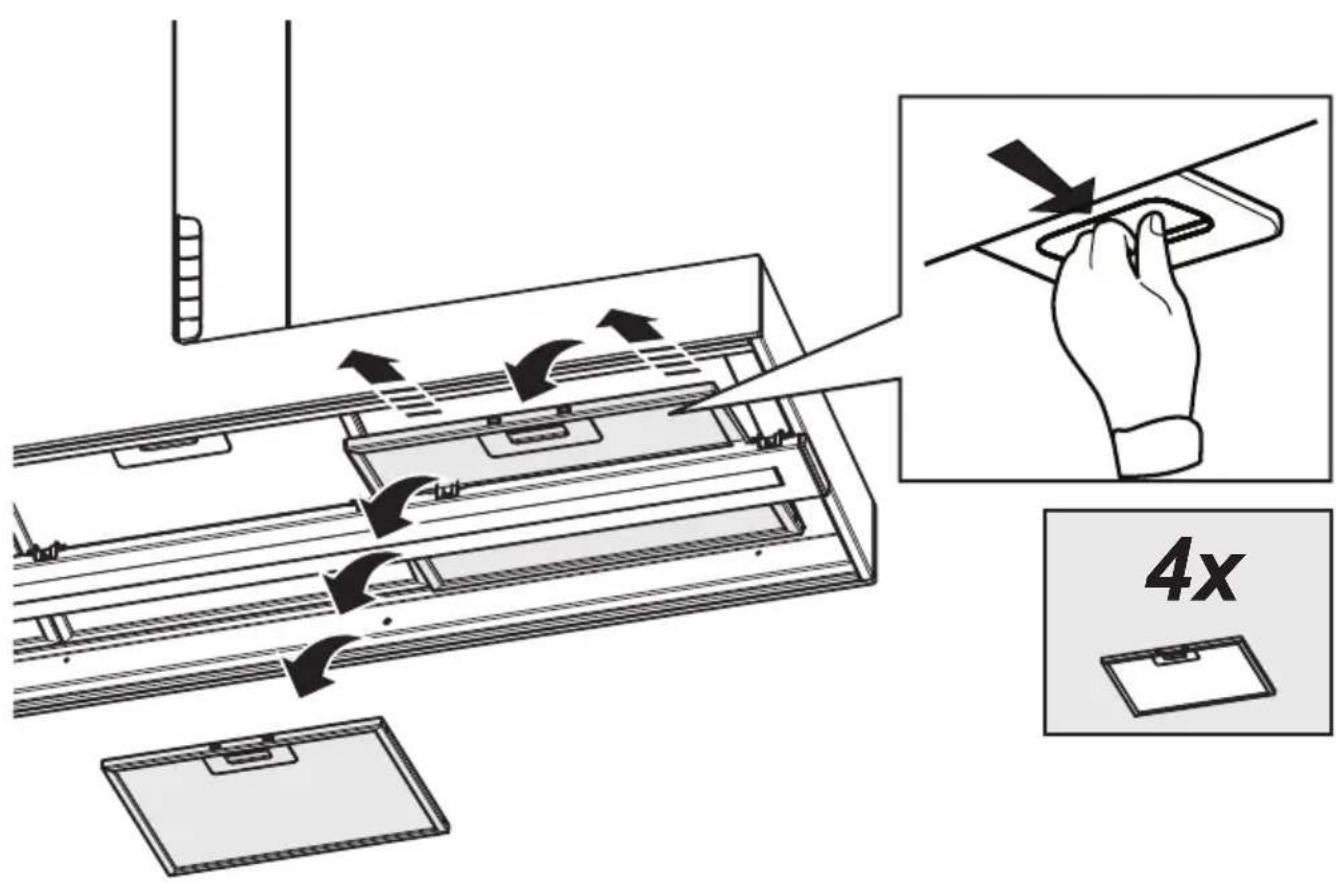

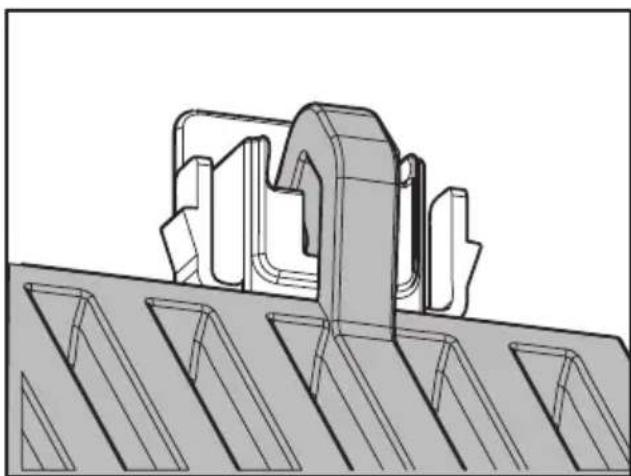

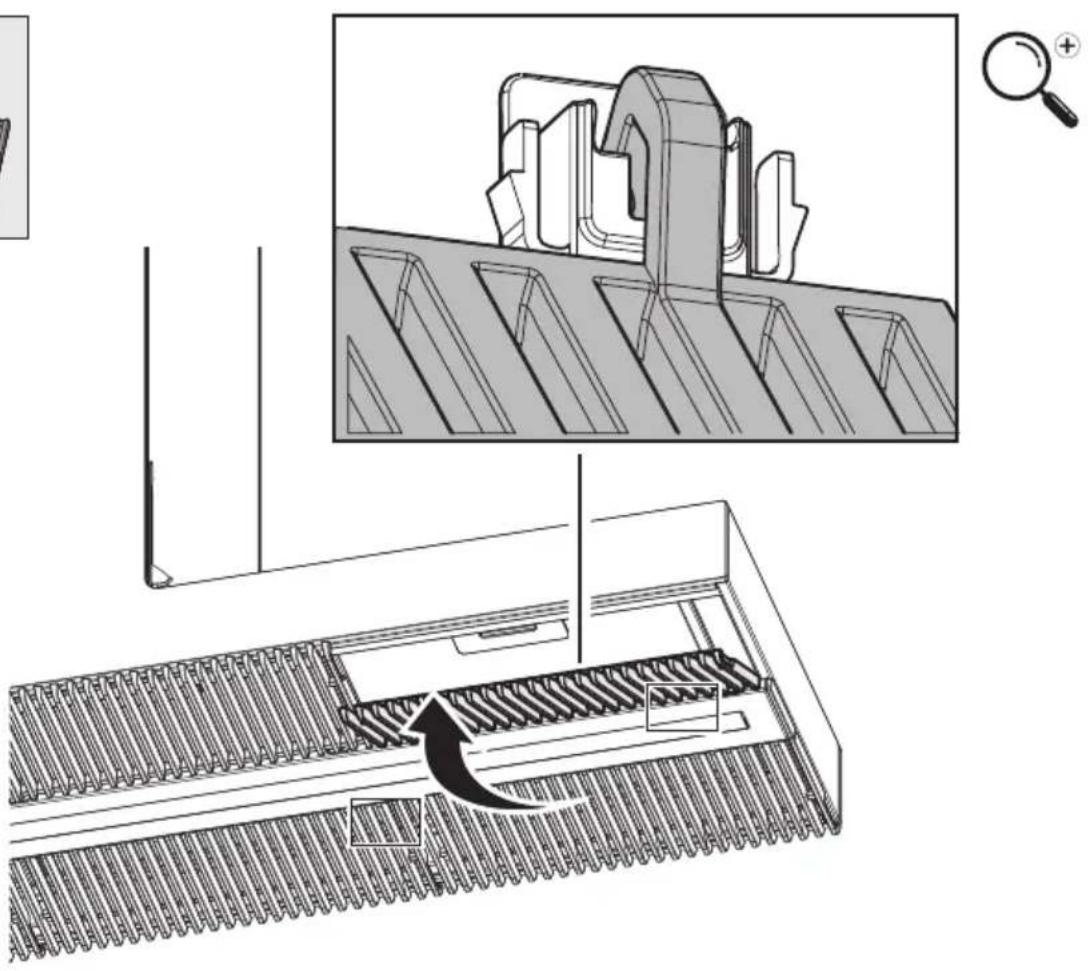

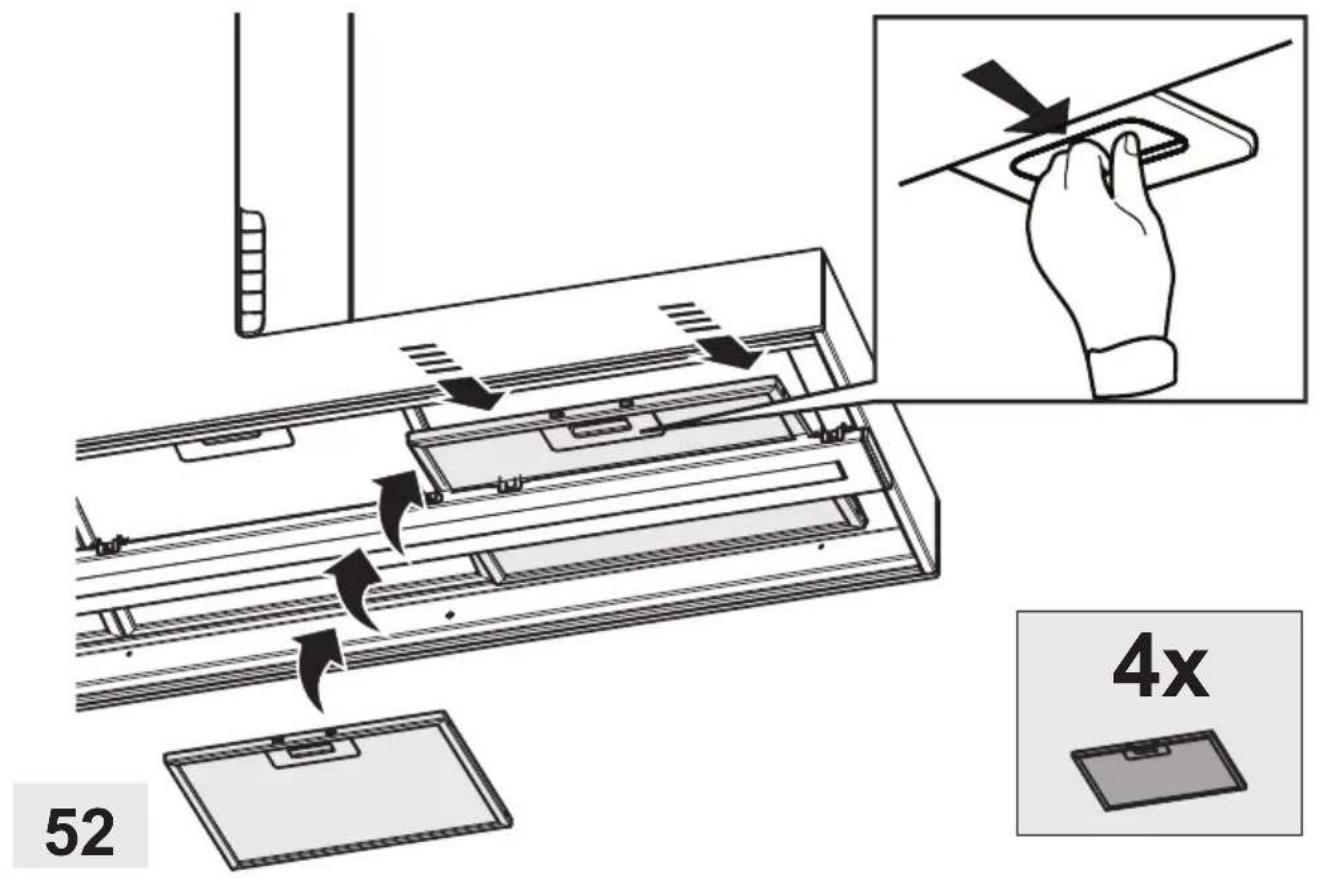

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 51

It absorbs unpleasant odors caused by cooking.

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.
