USER MANUAL DOH133 LIVOO

Black circular robotic vacuum cleaner with control knob and power button (no text or symbols visible)

Technical diagram of a device with numbered components, showing front and side views of a circular device.

Figure 1

17 18 19

Figure 2

Figure 3

Technical diagram of a circular mechanical component with internal components and a diagonal line, labeled 'Figure 4' (no text or symbols on the diagram itself)

Diagram showing a propeller and its internal components, labeled as Figure 5 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with two views (no text or symbols)

Diagram of a circular mechanical or electrical component with internal components, labeled 'Figure 7' (no text or symbols on the diagram itself)

Circular diagram with diagonal line and marked point, labeled Figure 8 (no text or symbols within the diagram itself)

Technical diagram showing two views of a circular mechanical or architectural component, one with internal components and the other with a rectangular component (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Thank you for choosing a Livoo product!

EN

Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day.

That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en.

Livoo, your daily companion till social networks

@Livoo

@livoo_officiel

@Livoo

Safety Instructions

Please, take time to read well the instruction sheet before the first use and keep them for a future use.

A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

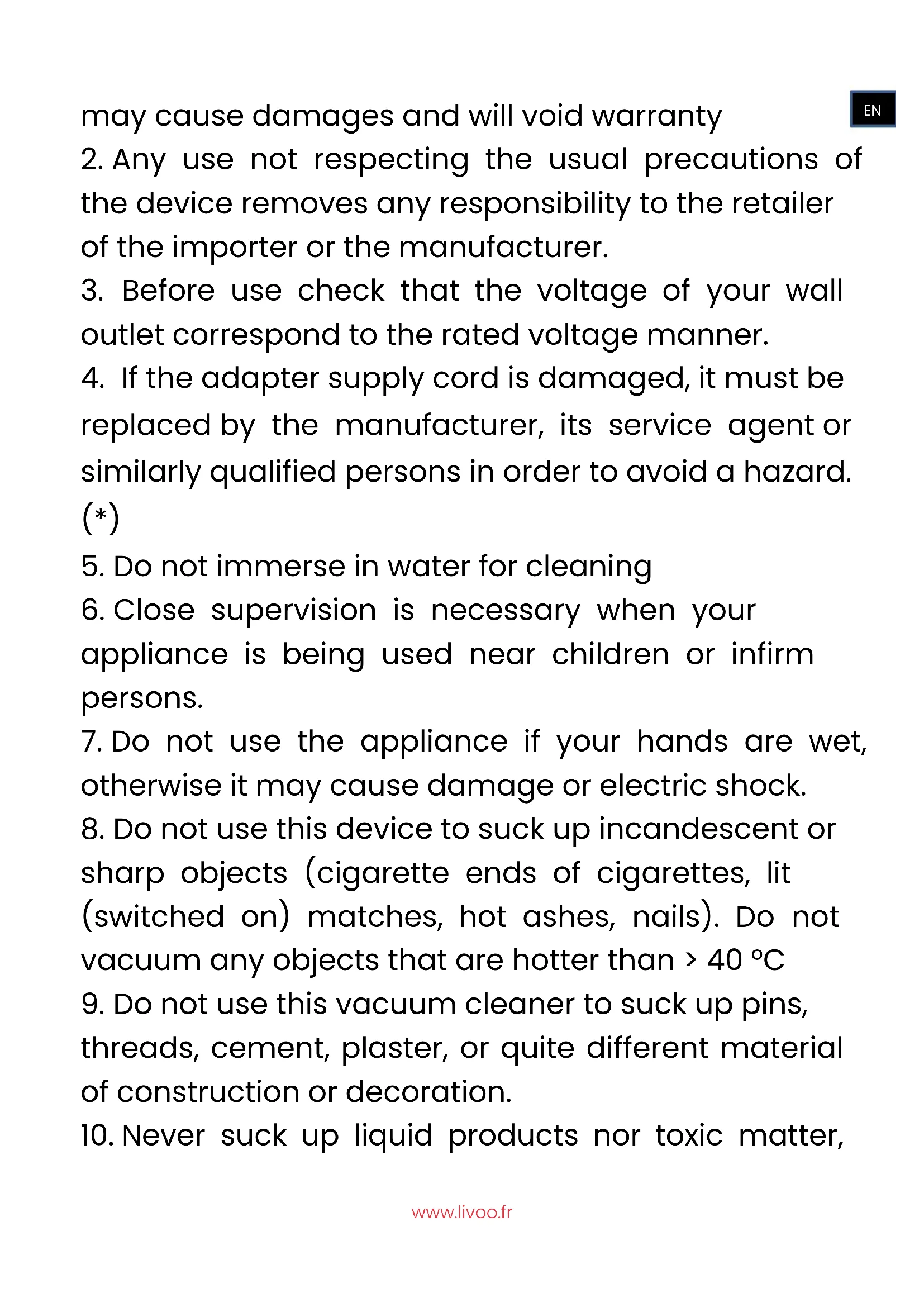

1. The appliance is intended for domestic dry vacuuming use only. Commercial and industrial use

may cause damages and will void warranty

1. Any use not respecting the usual precautions of the device removes any responsibility to the retailer of the importer or the manufacturer.
2. Before use check that the voltage of your wall outlet correspond to the rated voltage manner.
3. If the adapter supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (*)
4. Do not immerse in water for cleaning
5. Close supervision is necessary when your appliance is being used near children or infirm persons.
6. Do not use the appliance if your hands are wet, otherwise it may cause damage or electric shock.
7. Do not use this device to suck up incandescent or sharp objects (cigarette ends of cigarettes, lit (switched on) matches, hot ashes, nails). Do not vacuum any objects that are hotter than > 40 °C
8. Do not use this vacuum cleaner to suck up pins, threads, cement, plaster, or quite different material of construction or decoration.
9. Never suck up liquid products nor toxic matter,

cleaners or gasoline (essence) or dangerous or flammable products. You would risk to damage seriously your device.

1. While absorbing please do not absorb mud, gypsum material, wall powder etc. otherwise the vacuum cleaner filter can cause blockage and the motor will be burned. If these small particles were absorbed please clean the dust bag or filter
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. Never use the appliance on somebody or on animals body
5. Make sure to block never the zones of air inlets.
6. Keep the appliance away from heating surface

7. Never use the adaptor electric cable to raise, transport or disconnect the device.

8. The adapter must be removed from the socket-outlet before cleaning or maintaining the appliance.

9. The appliance is not intended to be operated by means of external timer or separate remote control system.
10. Before using the vacuum cleaner, please check if filter is properly mounted.
11. Do not use appliance for other than intended use
12. Use the accessories and spare parts only supplied by the manufacturer or its authorized service agent
13. Do not use the appliance if the filter is not installed! Do not use other filters except the ones (fire prevention filter) attached to the appliance by manufacturer.
14. Do not use the appliance to vacuum the dust harmful to health. (dust classes L, M, H).
15. Do not touch the live parts in appliance
16. Don't remove the adaptor plug by pulling the power cord. Don't press and roll the power cord by heavy objects.

17. Do not let clothes or hairs etc get involved in appliance brush or wheels, it can cause damage and personal injury.

18. Do not stand or seat on the appliance, do not put heavy object on it.

19. Do not use appliance in small space
20. WARNING: For the purposes of recharging the battery, only use the detachable supply unit JYH37-1900600-AE provided with this appliance.
21. This appliance contains batteries that are only replaceable by skilled persons
22. A hazard may occur if the appliance runs over the supply cord.
23. Dust capacity max: 350ML
24. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments

- farm houses

- by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

Technical Specifications

Voltage: 14,8V --- 16W

2000 mAh lithium battery for up to 120 minutes of operation

Suction power 450 PA

Quiet: noise level below 70dB

Information published	Value and precision	Unit
DELTA - BP61071 - 67452 Mundolsheim - France	-	-
Adaptor model identifier :	JYH37-1900600-AE	-
Input voltage	100-240	V
Input AC frequency	50-60	Hz
Output voltage	19.0	V
Output current	0,6	A
Output power	11.4	W
Average active efficiency	83.7	%
Efficiency at low load (10 %)	79.1	%
No-load power consumption	0.076	W

Logo	Description
	Insulation class logo II.
	Logo inside use only.
	The logo indicates the presence of a safety isolation transformer protected against short circuits
	Identifies an electronic device incorporating one or more transformers and electronic circuits that converts electrical power into one or more power outputs
	Logo indicating the polarity of the output.
	Energy efficiency logo from the American DOE.

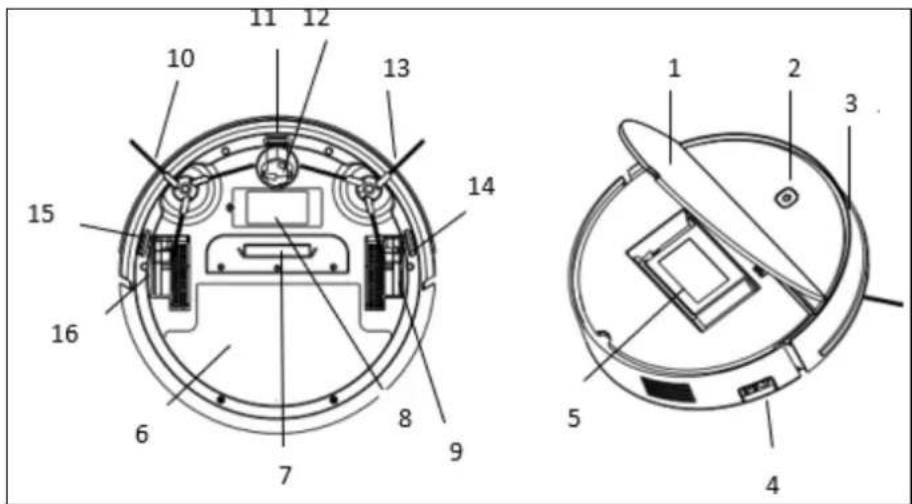

Drawing of the device

Figure 1

1	Flip cover
2	On/off button
3	Front bumper
4	Switch charging socket
5	Dust box
6	Mop
7	Vacuum inlet
8	Battery cover

9	Left wheel
10	Right brush
11	Cliff sensor
12	Universal wheel
13	Left brush
14	Right cliff sensor
15	Left cliff sensor
16	Right wheel

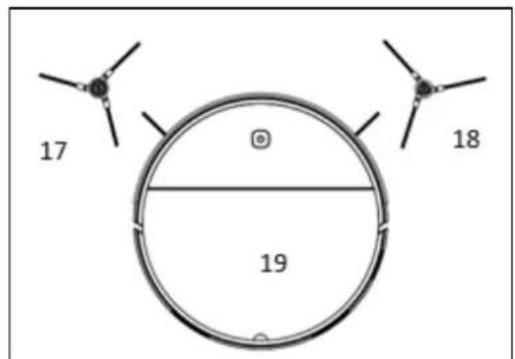

Figures 2

17	Left brush (center in grey color)
18	Right brush (center in yellow color)
19	Vacuum front

Use of the device

To charge the appliance

Plug in adaptor with power supply, the button indicator light is flashing, the charging connection is successful. Time for first charging: 8h

TIPPS

Please remove thread and other debris scattered on the ground before using avoid trip or wind the appliance.

Please remove the side brushes before using machine on the carpet

This product can be use on wood floor, tile floor and cement floor and short hair carpet(less than 1cm)

You can change the left and right brushes (use screwdriver to remove and fix the brush), they cannot be interchanged.

Use

1. Turn on the appliance switch on/off button, button indicator lights up.
2. Press the on/off button on the appliance, the appliance starts to vacuum. Press again and it stops working.(Figure 3)
3. When you want to stop vacuum, turn off power switch.
4. The appliance can also be used with the microfiber provided, which has been moistened before for more effective cleaning.

Cleaning and maintenance

Suction inlet and side brush cleaning

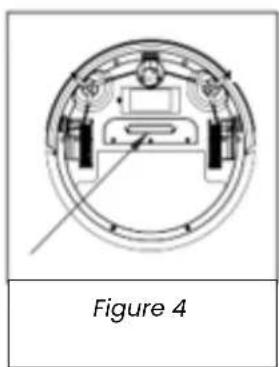

Clean suction inlet with microfiber (Figure 4)

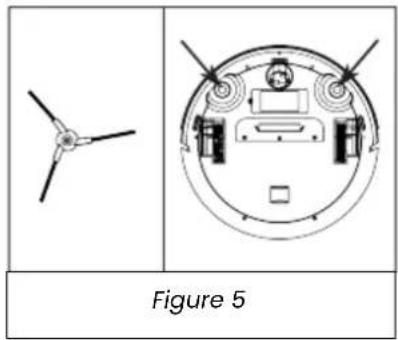

Use screwdriver to remove side brushes and clean them (Figure 5)

Microfiber cleaning

Clean and dry it after use

Dust tank cleaning

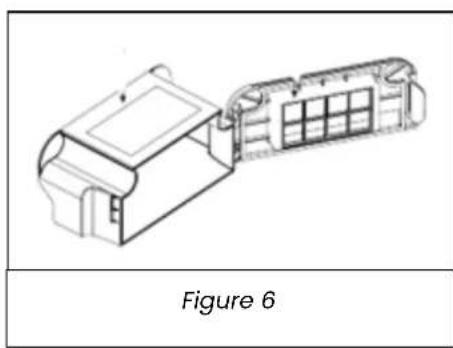

Take out dust tank and clean it with water and dry it with soft clean cloth (Figure 6)

Other parts cleaning

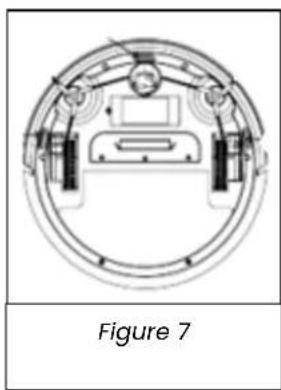

Clean the cliff sensors to keep the sensitivity (Figure 7)

Clean the gap between cover and bumper (Figure 8)

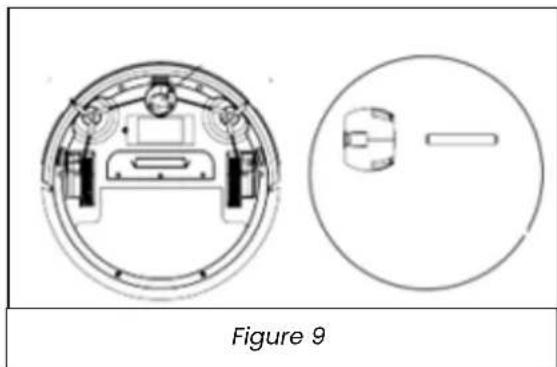

Clean universal wheel to reduce noise (Figure 9)

TROUBLEHOOTING

EN

Problems	Reasons	Solution
Appliance not works	You forgot to turn on	Turn on power swtich
	Appliance run out of battery	Charge with adapter
Appliance cannot charge	Charging connection are unreliable	Make sure adapter is reliable
		Wipe charger and charging contact
Appliance cannot charge	Charging contact fail	Ensure adaptor contact is ok
Appliance always backwards	Cliff sensors are dirty	Dry clean the sensors
Appliance can’t be backwards	Front bumper problem	Slight hit the bumper
Appliance works abnormal	The wheel is stuck by something	Clean it
Left/right brushes are abnormal	Left/right brush assembly error or stuck by something	Install the brush properly or clean it
Dust tank is abnormal	assembly error	Install the tank properly
Universal wheel error	stuck by something	Take out the wheel and clean it
other abnormal	Unknown reasons	Restart the machine (turn off power switch then turn on again)

Procedure to observe for battery's end of life

The appliance batteries must be removed before discarding the equipment. Please follow the procedure below. Ensure that your appliance is disconnected so as to reduce any risk of electrical shock. Discharge the batteries fully. Remove the protection cover situated in a location where you connect the mains voltage adapter and it is removed so as to access the batteries compartment. Carry a screwdriver to remove the screw. Remove the batteries from the equipment. Cut the cables and tab connecting the batteries in the printed circuit and remove them.

ATTENTION: THESE LI-ION CELLS MUST BE RECYCLED OR ELIMINATED IN ACCORDANCE WITH THE EQUIPMENT SCRAPPING.

Do not burn, dismantle, crush or break out the batteries because they can release toxic substances. Do not expose them to extreme temperatures. Drop them in the batteries recycling bins designed for this purpose or return them to your retailer.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Correct disposal of the unit (Electrical and Electronic Equipment).

(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed

out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)
