USER MANUAL DP289 POLAR

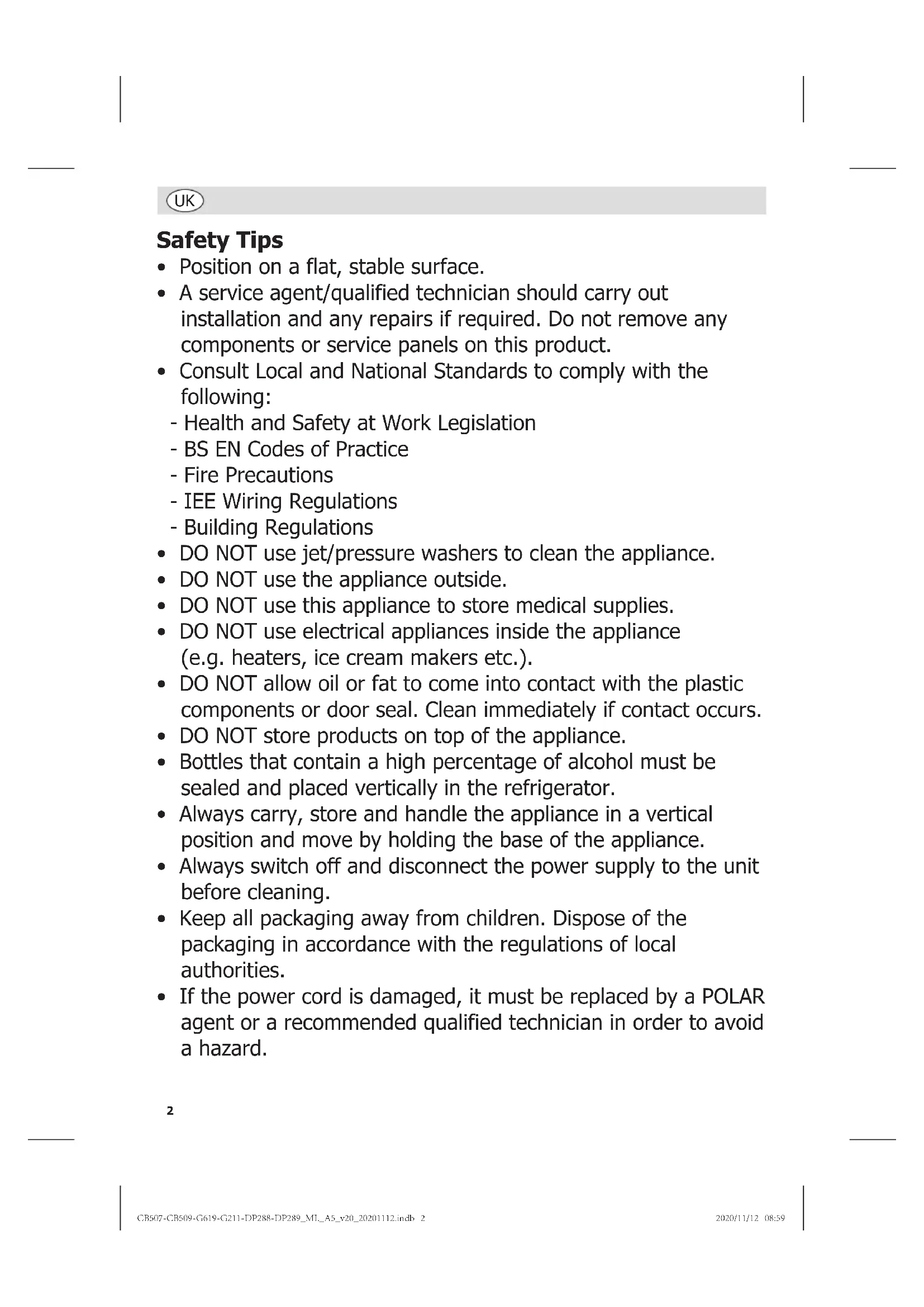

• Position on a flat, stable surface.

• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following: - Health and Safety at Work Legislation - BS EN Codes of Practice - Fire Precautions - IEE Wiring Regulations - Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT use the appliance outside.

• DO NOT use this appliance to store medical supplies.

• DO NOT use electrical appliances inside the appliance (e.g. heaters, ice cream makers etc.).

• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.

• DO NOT store products on top of the appliance.

• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.

• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.

• Always switch off and disconnect the power supply to the unit before cleaning.

• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.

• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard. CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 2CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 2 2020/11/12 08:592020/11/12 08:593

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Polar recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

• POLAR recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device). Caution: Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of

obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer. Product Description

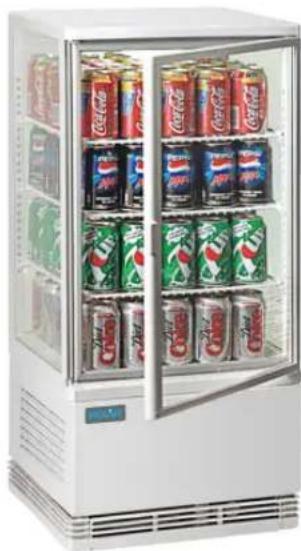

• DP289 - 235 litre Display Chiller Black Introduction Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product. CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 3CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 3 2020/11/12 08:592020/11/12 08:594

Pack Contents The following is included:

• Shelves G619/G211/CB507/DP288 x 3 CB509/DP289 x 4 POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your POLAR dealer immediately. Installation Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging.

Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.

2. Maintain a distance of 20cm (7 inches)

between the unit and walls or other objects for ventilation. Increase this distance if the obstacle is a heat source. Note: Before using the appliance for the first time, clean the shelves and interior with soapy water. Fitting the Shelves

1. Place the shelf guides on either side of the

cabinet at the desired height.

2. Lower the shelf into place, slotting the rear of

the shelf into the corresponding holes. Ensure the shelves are level.

3. Repeat for the remaining shelves.

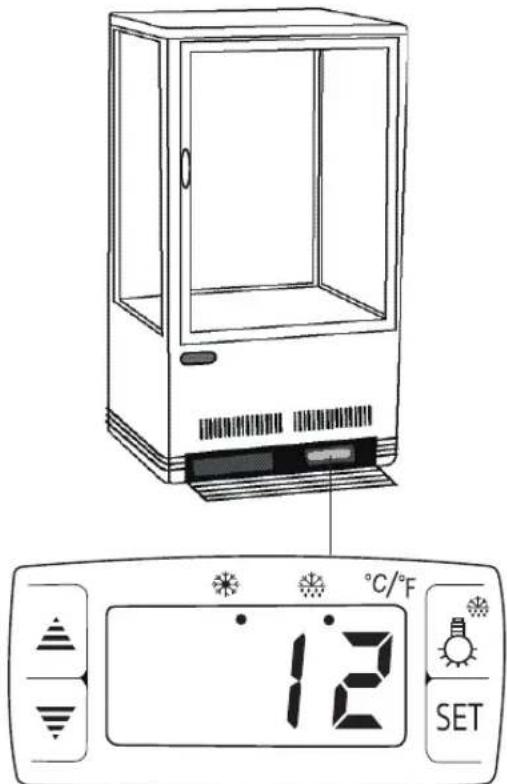

Operation Turn On (G619/G211/CB507/ DP288)

1. Close the doors of the appliance.

2. Connect the appliance to a mains power

3. Press the button to turn the light On or Off

as required. Set the Operating Temperature

required temperature.

3. Press the SET button to store the temperature.

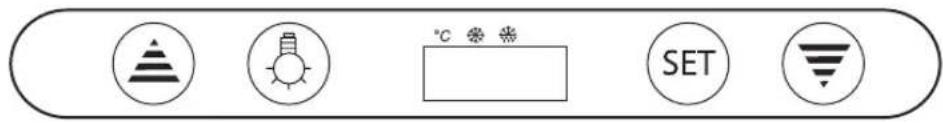

Turn On (CB509/DP289) The control panel for the CB509/DP289 is located on the front of the appliance.

1. Close the door of the appliance.

2. Connect the appliance to a mains power supply.

3. Turn the light On or Off by pressing the button.

Storing Food To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.

• Do not place uncovered hot food or liquid inside the appliance.

• Wrap or cover food where possible.

• Do not obstruct the fans inside the appliance.

• Avoid opening the doors for prolonged periods of time. Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.

• Do not use abrasive cleaning agents. These can leave harmful residues.

• Clean the door seal with water only.

• Always wipe dry after cleaning.

• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.

• Take care when cleaning the rear of the appliance. Sharp edges can cut.

• A POLAR agent or qualified technician must carry out repairs if required. Cleaning the Condenser

• Periodically cleaning the condenser can extend the life of the appliance.

• POLAR recommend that a POLAR agent or qualified technician clean the condenser. Troubleshooting If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer. Fault Probable Cause Solution The appliance is not working The unit is not switched on Check the unit is plugged in correctly and switched on Plug and lead are damaged Call POLAR agent or qualified Technician Fuse in the plug has blown Replace the fuse Power supply Check power supply Internal wiring fault Call POLAR agent or qualified Technician CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 5CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 5 2020/11/12 08:592020/11/12 08:596

Fault Probable Cause Solution The appliance turns on, but the temperature is too high/low Too much ice on the evaporator Defrost the appliance Condenser blocked with dust Call POLAR agent or qualified Technician Doors are not shut properly Check doors are shut and seals are not damaged Appliance is located near a heat source or air flow to the condenser is being interrupted Move the refrigerator to a more suitable location Ambient temperature is too high Increase ventilation or move appliance to a cooler position Unsuitable foodstuffs are being stored in the appliance Remove any excessive hot foodstuffs or blockages to the fan Appliance is overloaded Reduce the amount of food stored in the appliance The appliance is leaking water The appliance is not properly levelled Adjust the screw feet to level the appliance (if applicable) The discharge outlet is blocked Clear the discharge outlet Movement of water to the drain is obstructed Clear the floor of the appliance (if applicable) The water container is damaged Call POLAR agent or qualified Technician The appliance is unusually loud Loose nut/screw Check and tighten all nuts and screws The appliance has not been installed in a level or stable position Check installation position and change if necessary Error code EE4 • Restricted Airflow

Electrical Wiring POLAR appliances are supplied with a 3 pin BS1363 plug and lead. The plug is to be connected to a suitable mains socket. POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L

• Neutral wire (coloured blue) to terminal marked N

• Earth wire (coloured green/yellow) to terminal marked E This appliance must be earthed. If in doubt consult a qualified electrician. Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible. Disposal EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components. Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally. Alternatively call the POLAR helpline for details of national disposal companies within the EU. Compliance The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area. POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. POLAR products have been approved to carry the following symbol: All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR. Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice. CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 7CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112.indb 7 2020/11/12 08:592020/11/12 08:598

Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU
