USER MANUAL G211 POLAR

Exterior view of a black and white stainless steel refrigerator with glass doors (no visible text or symbols)

DP289

Front view of a white refrigerator with multiple side-by-side beverage cans (no visible text or labels)

G619

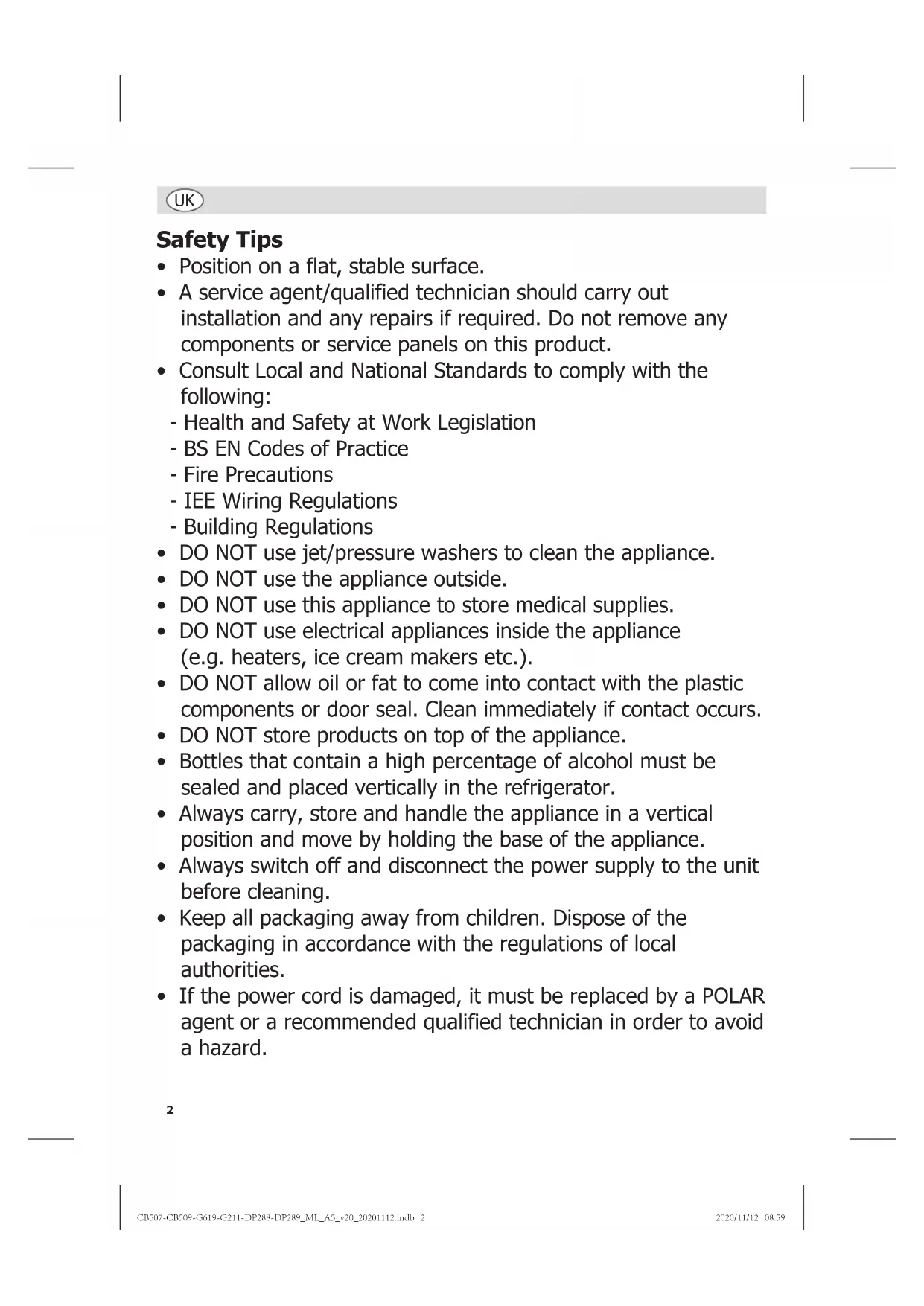

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT use electrical appliances inside the appliance (e.g. heaters, ice cream makers etc.).
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.

UK

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Polar recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.
• POLAR recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).

Caution: Risk of Fire

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• G619 - 68 litre White Display Chiller
- CB507 - 86 litre Double Door Display Chiller White
• CB509 - 235 litre Display Chiller White

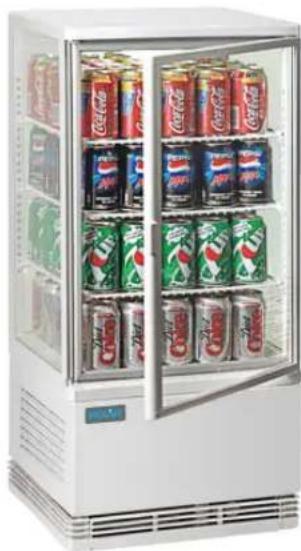

• G211 - 68 litre Black Display Chiller
- DP288 - 86 litre Double Door Display Chiller Black
• DP289 - 235 litre Display Chiller Black

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

UK

Pack Contents

The following is included:

• POLAR Display Chiller
- Instruction Manual
• Shelves G619/G211/CB507/DP288 x 3 CB509/DP289 x 4

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. Increase this distance if the obstacle is a heat source.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Fitting the Shelves

1. Place the shelf guides on either side of the cabinet at the desired height.
2. Lower the shelf into place, slotting the rear of the shelf into the corresponding holes. Ensure the shelves are level.
3. Repeat for the remaining shelves.

Operation

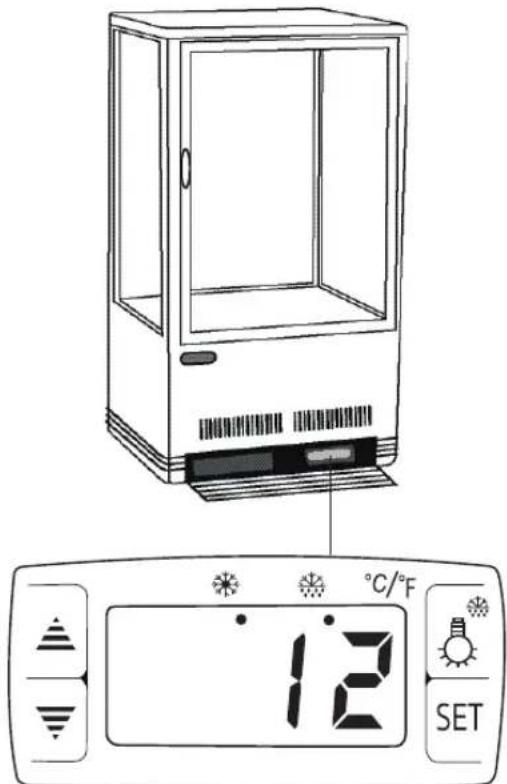

Turn On (G619/G211/CB507/DP288)

12 °C/°F SET

1. Close the doors of the appliance.
2. Connect the appliance to a mains power supply.
3. Press the Button to turn the light On or Off as required.

Set the Operating Temperature

1. Press the SET button. The display will flash.
2. Press the or button to display the required temperature.
3. Press the SET button to store the temperature.

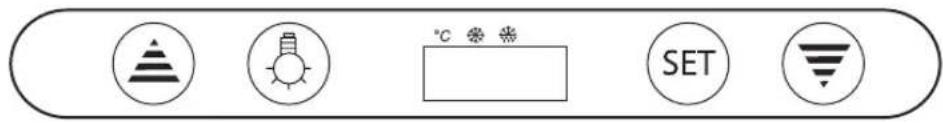

Turn On (CB509/DP289)

The control panel for the CB509/DP289 is located on the front of the appliance.

Control panel icons with symbols for triangle, light bulb, temperature display, SET, and inverted triangle

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.
3. Turn the light On or Off by pressing the Button.

Storing Food

To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Do not place uncovered hot food or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods of time.

Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with water only.
  • Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
  • Take care when cleaning the rear of the appliance. Sharp edges can cut.
• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

• Periodically cleaning the condenser can extend the life of the appliance.
- POLAR recommend that a POLAR agent or qualified technician clean the condenser.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Fault Probable Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician

UK

Fault Probable	Cause Solution
The appliance turns on, but the temperature is too high/low	Too much ice on the evaporator Defrost the appliance
	Condenser blocked with dust Call POLAR agent or qualified Technician
	Doors are not shut properly Check doors are shut and seals are not damaged
	Appliance is located near a heat source or air flow to the condenser is being interrupted	Move the refrigerator to a more suitable location
	Ambient temperature is too high Increase ventilation or move appliance to a cooler position
	Unsuitable foodstuffs are being stored in the appliance	Remove any excessive hot foodstuffs or blockages to the fan
	Appliance is overloaded Reduce the amount of food stored in the appliance
The appliance is leaking water	The appliance is not properly levelled	Adjust the screw feet to level the appliance (if applicable)
	The discharge outlet is blocked Clear the discharge outlet
	Movement of water to the drain is obstructed	Clear the floor of the appliance (if applicable)
	The water container is damaged Call POLAR agent or qualified Technician
The appliance is unusually loud	Loose nut/screw Check and tighten all nuts and screws
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary
Error code EE4 • Restricted Airflow• Blocked Condenser		• Increase airflow• Call POLAR agent or qualified Technician

Technical Specifications

Model Voltage Power Current				Temperature Range	Capacity (litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
G619 G211	220-240V 50Hz	180W	1.2A	2°C to 12°C	68	R600a 40g	885 x 428 x 386	33.2
CB507 DP288	220-240V 50Hz	180W	1.2A	2°C to 12°C	86	R600a 40g	980 x 425 x 429	36.5
CB509 DP289	220-240V 50Hz	375W	2.3A	2°C to 12°C	235	R290 90g	1690 x 515 x 485	79

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

12 °C/°F SET

Diagram showing five labeled icons: triangle, light bulb, °C, SET, and inverted triangle, arranged horizontally.

12 °C/°F SET

Diagram showing five labeled icons: triangle, light bulb, °C, rectangle, and SET with corresponding symbols.

12 C/°F SET

Diagram showing five labeled icons: tree, light bulb, °C, SET, and waveform symbol

12 °C/°F SET

Diagram showing five labeled icons: triangle, light bulb, °C, rectangle, and SET with a downward arrow symbol.

12 °C/°F SET

Diagram showing five labeled icons: triangle, light bulb, °C, rectangle, and SET with downward arrow symbol

Colocar as prateleiras

12 °C/°F SET

Control panel icons with symbols for temperature, light bulb, temperature display, SET, and waveform display

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

- Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento		Model • Modèle • Modell • Modello• Modelo • Malli
Chilled Display refrigerator:
White Curved Glass Door - 235LtrBlack Curved Glass Door - 235LtrBlack 2 Curved Glass Doors	White 2 Curved Glass DoorsBlack Cabinet - 68LtrWhite Cabinet - 68Ltr	CB509 (-E & -A)DP289 (-E & -A)DP288 (-E & -A)	CB507 (-E & -A)G211 (-E & -A)G619 (-E & -A)
Application of Territory Legislation & Council Directives(s)Toepassing van EuropeseRichtlijn(en) • Application de la/des directive(s) du Conseil •Anwendbare EU-Richtlinie(n) •Aplicazione delle Direttive• Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho	Low Voltage Directive (LVD) - 2014/35/EUEN 60335-1:2012 +A11:2014 +A13:2017EN 60335-2-89:2010 +A1:2016 +A2:2017EN 62233:2008Electro-Magnetic Compatibility (EMC)Directive 2014/30/EU - recast of 2004/108/ECEN 61000-6-3: 2007 +A1:2011EN IEC 61000-6-1: 2019Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU	Electrical SafetyIEC 60335-1:2010 +A1:2013 +A13:2017IEC 60335-2-89:2010 +A1:2012 +A2:2015Electromagnetic CompatibilityEN 61000-6-3: 2007 +A1:2011EN IEC 61000-6-1: 2019
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers• Nome del produttore • Nombre del fabricante • Nome do fabricante		Polar

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

2ndNovember 2020
DocuSigned by: Ashley Hooper B39382C9FD9C478...	DocuSigned by: Eoghan Donnella D352874F7FAB460...	DocuSigned by: Josie Holt 3582E210C4054DA...
Ashley Hooper	Eoghan Donnellan	Josie Holt
Technical & Quality Manager	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland	15 Bagdally Road, Campbelltown NSW 2560

UK	[phone]
Eire
NL 040 –	2628080
FR 01 60	34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 –	1860806
IT N/A
ES 901-100 133
PT [e-mail]

POLAR

QR code image with a central logo, likely linking to a digital resource or website.

http://www.polar-refrigerator.com/

CB507-CB509-G619-G211-DP288-DP289_ML_A5_v20_20201112
