Product type	Refrigerator (cooling bar)
Brand	POLAR
Model	GL455
Dimensions (H x W x D)	870 x 1462 x 513 mm
Weight	99 kg
Electrical supply	230V / 50Hz, 320W, 1.6A
Temperature range	0 to 10°C
Net capacity	213 litres
Refrigerant	R600a (95g)
Number of drawers	4 drawers
Defrost type	Automatic (manual possible)
Control panel	Electronic with digital display
Main functions	Cooling, temperature adjustment, manual defrost
Maintenance	Regular interior cleaning, condenser cleaning
Safety	Grounding mandatory, do not immerse, do not cover
Supplied parts	Adjustable shelf(es), key, instruction manual
Usage	Indoor use only, on a flat and stable surface
Warranty	Consult the POLAR dealer

Frequently Asked Questions - GL455 POLAR

How to adjust the temperature of my Polar GL455 refrigerator?

Press the SET button until the display flashes. Use the + and - buttons to set the desired temperature (between 0°C and 10°C). Press SET again to confirm.

How to manually defrost the appliance?

Defrosting is automatic every 6 hours. For manual defrosting, press the aux button for 6 seconds. To interrupt a defrost cycle, press the stop button for 6 seconds.

What to do if the appliance is not cooling enough?

Check that the condenser is not dirty (clean it with a soft brush), that the doors close properly, that the appliance is not too close to a heat source, and that ventilation is sufficient (20 cm clearance around).

How to clean the condenser?

The condenser is located at the back of the appliance. Use a soft brush or vacuum cleaner to remove dust without damaging the fins.

Can I store beverages or food in this appliance?

Yes, it is designed for cooling beverages and food. Follow safety instructions: do not store explosive or flammable substances.

What to do if the appliance makes an abnormal noise?

Check that it is not in contact with a nearby object and that the surface is flat and stable. Adjust the feet if necessary.

Does the appliance need to be installed by a professional?

Installation can be done by yourself, but repairs must be carried out by a qualified POLAR technician. Ensure the power socket is properly grounded.

How to clean the interior of the refrigerator?

Turn off and unplug the appliance. Clean interior surfaces with soapy water. Do not use abrasive products. Dry thoroughly.

What is the capacity of the appliance?

The Polar GL455 has a net capacity of 213 litres, with 4 drawers.

How to dispose of my old appliance?

In accordance with EU regulations, appliances containing refrigerants must be recycled by specialized companies. Contact your local waste collection authority or the POLAR support service.

USER MANUAL GL455 POLAR

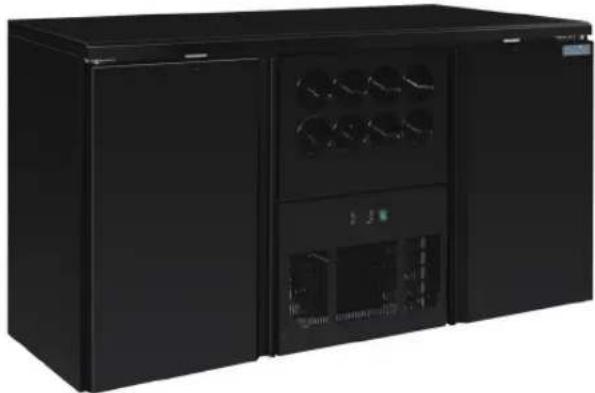

Black industrial refrigerator with two side bays filled with beverage bottles, no visible text or labels

Black industrial refrigerator with front panel and side door (no visible text or labels)

NL Barkoeler 8

Handleiding

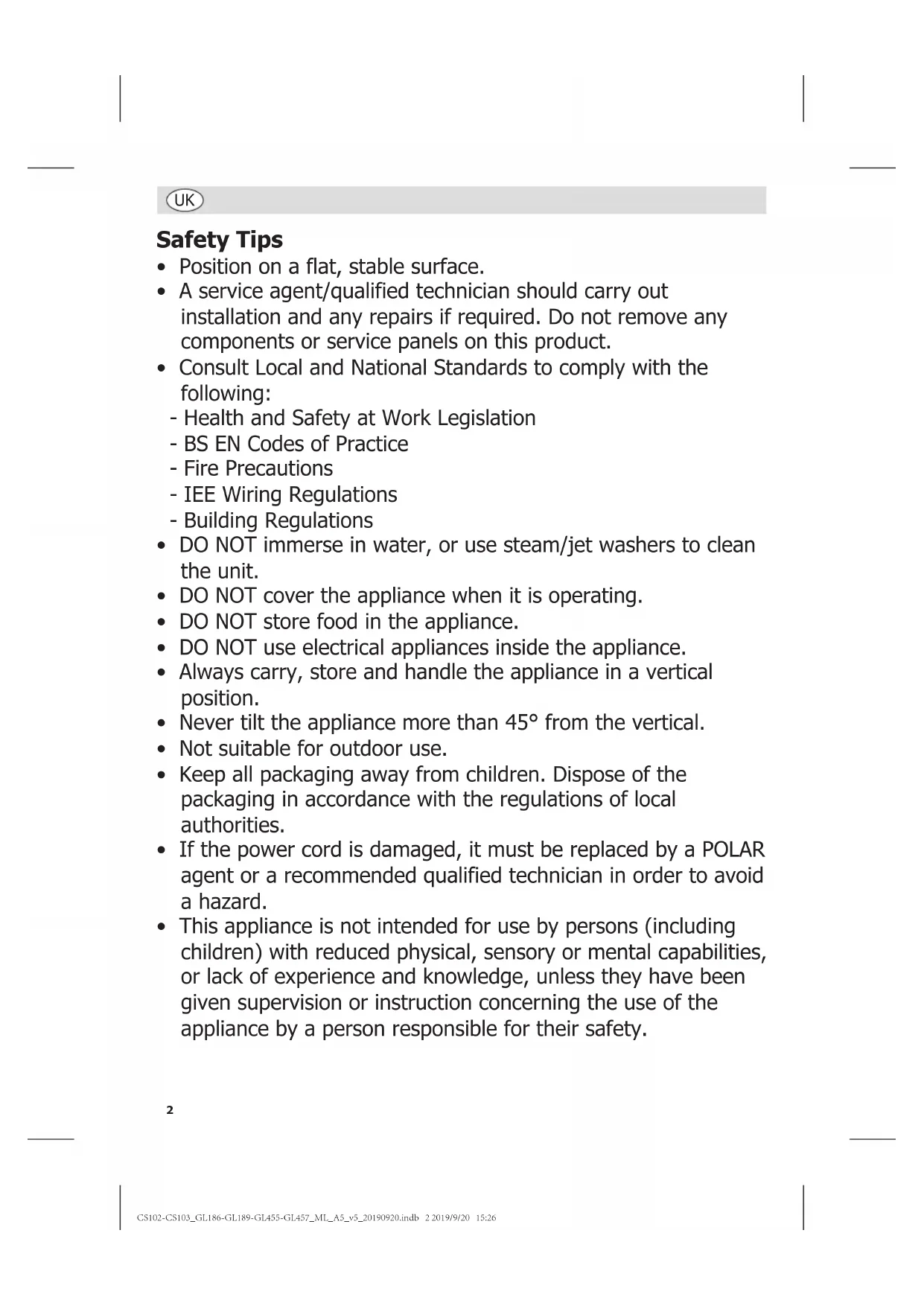

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT immerse in water, or use steam/jet washers to clean the unit.

• DO NOT cover the appliance when it is operating.
  • DO NOT store food in the appliance.
• DO NOT use electrical appliances inside the appliance.
• Always carry, store and handle the appliance in a vertical position.
• Never tilt the appliance more than 45^ from the vertical.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- Polar recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• GL455 - Bar Chiller - 4 drawers
- GL456 - Bar Chiller 2 doors plus 4 drawers
- GL457 - Bar Chiller 4 drawers plus 8 wine bottle cooler
- GL186 - Bar Chiller 1 door plus 2 drawers
• GL187 - Bar Chiller 6 drawers

• GL188 - Bar Chiller 3 doors plus 2 drawers
- GL189 - Bar chiller 2 doors plus 8 Wine Bottle Cooler
• CS102 - Back bar display chiller 2 doors
• CS103 - Back bar display chiller 4 doors

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

ALL MODELS

• POLAR Back Bar Chiller

• Key

- Instruction manual

• 1 DOOR MODEL: 2 adjustable shelves
• 2 DOOR MODEL: 4 adjustable shelves
• 3 DOOR MODEL: 6 adjustable shelves
• 4 DOOR MODEL: 8 adjustable shelves

UK

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging and the protective film from all surfaces.
2. Avoid positioning the appliance in direct sunlight or damp areas.
3. When positioning the appliance, maintain a distance of 20cm (7 inches) between the appliance and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.
4. Insert the slide-out shelf/shelves at the desired levels and place the smaller shelf/shelves on the floor of the appliance.
5. If necessary, adjust the screw feet of the appliance to make it level.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Operation

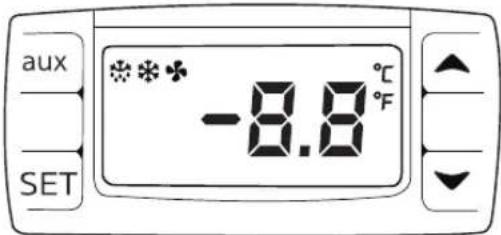

Control Panel

aux ***- -8.8°C -F SET

Turn On

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.
3. Turn the light switches On [I] or Off [O] as desired.

Note: The Cooling Light is illuminated when the appliance is chilling the interior cabinet.

Set the Operating Temperature

1. Press the SET button. The display will flash.
2. Press the 🔊 buttons to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost

• POLAR Back Bar Chillers feature an automatic defrost. However, should the appliance require an additional defrost period press and hold the "aux" button for 6 seconds.
  • Automatic defrost cycles are every 6 hours and last 20 minutes (factory defaults).
• To stop the Defrost press and hold the "aux" button for 6 seconds.

Note: If a manual defrost is started this resets the automatic defrost timer. During defrost periods the Defrost light is illuminated.

Cleaning, Care & Maintenance

Switch off and disconnect from the power supply before cleaning

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
  • Always wipe dry after cleaning.
• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance.

Note: Use a soft brush or vacuum cleaner to clean the fins of the condenser, taking care not to damage the fins.

Troubleshooting

If your appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable	Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns on, but the temperature is too high/low	Condenser blocked with dust Clean Condenser
	Doors/ drawers are not shut properly	Check doors / drawers are shut and seals are not damaged
	Appliance is located near a heat source or air flow to the condenser is being interrupted	Move the appliance to a more suitable location
	Ambient temperature is too high Increase ventilation or move appliance to a cooler position
	Insufficient airflow to the fans Remove any blockages to the fans
	Appliance is overloaded Reduce the amount stored in the appliance
	Factory default parameters adjusted	Call POLAR agent or qualified Technician
The appliance is unusually loud	The appliance is touching a neighbouring object	Check installation position and change if necessary
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary

Technical Specifications

Model	Voltage Power	Current		Temperature Range	Capacity (Litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
GL186	230V 50Hz 320	W 1.6A 0	- 10°C 213	R600a 95g 870 X	1462 X		513	99
GL187	230V 50Hz 320	W 1.6A 0	- 10°C 319	R600a		105g	870 X 2002 X 513	123
GL188	230V 50Hz 320	W 1.6A 0	- 10°C 495	R600a		115g	870 X 2542 X 513	136
GL189	230V 50Hz 272	W 1.6A 0	- 10°C 380	R290 105g 870 X	1688 X		570	95
GL455	230V 50Hz 320	W 1.6A 0	- 10°C 213	R600a 95g 870 X	1462 X		513	99
GL456	230V 50Hz 320	W 1.6A 0	- 10°C 698	.3 R600a		115g	870 X 2542 X 513	123
GL457	230V 50Hz 272	W 1.6A 0	- 10°C 380	R290 105g 870 X	1668 X		570	95
CS102	230V 50Hz 320	W 1.6A 0	- 10°C 250	R290 95g 870 X	1462 X		513	100
CS103	230V 50Hz 320	W 1.6A 0	- 10°C 518	R290 95g 870 X	2542 X		513	150

Electrical Wiring

POLAR appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

aux SET ***-8.8°C °F

Inschakelen

aux ***-8.8°C -8.8°F SET

Mise en marche

aux ***-8.8°C SET

Einschalten

aux SET ***-8.8°C °F

Accensione

aux SET ***-8.8°C °F

Encendido

aux SET ***-8.8°C °F

Ligar

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Machinery Directive (MD) 2006/42/EC

EN 60335-1:2012+ A11:2014

EN 60335-2-89:2010

EN 62233:2008

Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU

EN 55014-1:2006 +A1:2209 +A2:2011

EN 55014-2:2015

EN 61000-3-3:2013

EN 61000-3-2:2014

Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU

Polar

Fourth Way,Avonmouth,Bristol,BS11 8TBUnited Kingdom

42 North PointBusiness ParkNew Mallow RoadCorkIreland

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

20 ^th August 2019

Ashley Hooper

Technical & Quality Manager

POLAR

REFRIGERATION

QR code image with a central logo, likely linking to a digital resource or website.

http://www.polar-refrigerator.com/

CS102-CS103_GL186-GL189-GL455-GL457_ML_A5_v5_20190920
