05010 - Curling iron Maxxmee - Free user manual and instructions
Find the device manual for free 05010 Maxxmee in PDF.
| Product type | Professional 5-in-1 Curling Iron |
| Brand | Maxxmee |
| Model | 05010 |
| Model number | KS-222 |
| Power supply | 220 - 240 V ~ 50 Hz |
| Power | Max. 55 W |
| Temperature range | 80 to 230 °C |
| Number of attachments included | 5 |
| Attachment sizes | 9-18 mm, 19 mm, 19-25 mm, 25 mm, 32 mm |
| Display | LED (continuous temperature) |
| Automatic shut-off | After 30 minutes |
| Swivel joint | 360° with connection cord |
| Protection class | II |
| Included accessories | Thermal protection glove, user manual |
| Usage | Household use, on dry human hair |
| Maintenance and cleaning | Wipe attachments with a damp cloth; hand wash the glove |
| Storage | In a dry and cool place, out of reach of children |
| Safety | Overheat protection; do not use near water |
| Repairability | Do not repair yourself; contact customer service |
| Disposal | Do not dispose of with household waste (WEEE) |
Frequently Asked Questions - 05010 Maxxmee
User questions about 05010 Maxxmee
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Curling iron in PDF format for free! Find your manual 05010 - Maxxmee and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 05010 by Maxxmee.

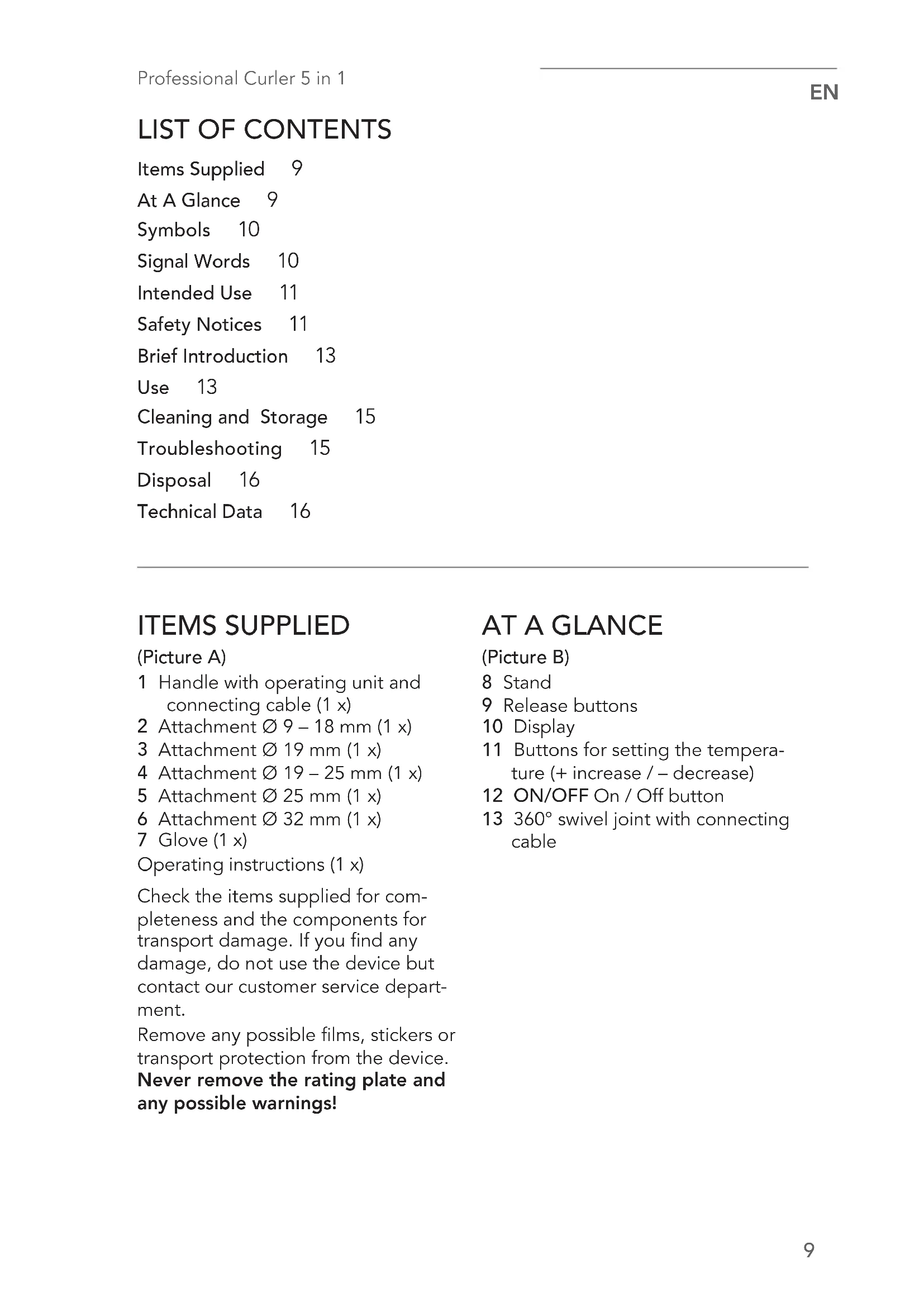

USER MANUAL 05010 Maxxmee
Cleaning and Storage 15
Troubleshooting 15
Disposal 16
Technical Data 16
ITEMS SUPPLIED
(Picture A)
1 Handle with operating unit and connecting cable (1 x)
2 Attachment ∅ 9 - 18 mm (1 x)
3 Attachment ∅ 19 mm (1 x)
4 Attachment ∅ 19 - 25 mm (1 x)
5 Attachment ∅ 25 mm (1 x)
6 Attachment ∅ 32 mm (1 x)
7 Glove (1 x)
Operating instructions (1 x)
Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.
Remove any possible films, stickers or transport protection from the device.
Never remove the rating plate and any possible warnings!
AT A GLANCE
(Picture B)
8 Stand
9 Release buttons
10 Display
11 Buttons for setting the temperature (+ increase / - decrease)
12 ON/OFF On / Off button
13 360° swivel joint with connecting cable
Dear Customer,
We are delighted that you have chosen the MAXXMEE Professional Curler 5 in 1.
This curler will allow you to magically create curls as quickly, safely and comfortably as the professionals! 5 attachments are provided to create a curly look ranging from ringlets to casual beach waves. The temperature can be individually adapted to any hair type and any hair length and read on the LED display at any time. The heat-resistant glove which is included even allows you to style areas which are difficult to reach such as the back of the head without worrying about burns.
If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:
We hope you have a lot of fun with your MAXXMEE Professional Curler 5 in 1.
Information About the Operating Instructions
Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.
SYMBOLS
Danger symbols: These symbols indicate possible dangers.
Read the associated safety notices carefully and follow them.
Supplementary information
Read the operating instructions before use!
Alternating current
Protection class II
WARNING: Do not use this device near water.
CAUTION: hot surfaces!
SIGNAL WORDS
Signal words indicate hazards if the associated notices are not followed.
DANGER – high risk, results in serious injury or death
WARNING – medium risk, may result in serious injury or death
CAUTION – low risk, may result in minor or moderate injury
NOTICE – may result in risk of damage to material
INTENDED USE
■ This device is intended to be used exclusively for styling human head hair. It is not suitable for synthetic wigs.
■ The device is for personal use only and is not intended for commercial applications.
■ Use the device only for the specified purpose and as described
in the operating instructions. Any other use is deemed to be improper.
■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.
SAFETY NOTICES
This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
■ Cleaning and user maintenance must not be carried out by children, unless they are supervised.
■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.
WARNING: Do not use this device near water.
- Do not make any modifications to the device. Also do not replace the connecting cable yourself. If the device or the connecting cable of the device are damaged, they must be replaced or repaired by the manufacturer, customer service department or a specialist workshop in order to avoid any hazards.
■ The device must always be disconnected from the mains power after use, when left unattended and before cleaning it.
DANGER – Danger of ElectricShock
■ Use and store the device only in closed rooms.
■ Do not operate or store the device in rooms with high humidity.
■ Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.
If the device falls into water while it is connected to the mains power, do not touch the device, but pull the mains adapter out of the plug socket immediately! Only after this should you retrieve the device from the water.
■ Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
■ Do not use the device if it has malfunctioned, fallen into water or if there is visible damage on the device, accessory or on the connecting cable. Have it checked in a specialist workshop before using it again.
WARNING – Danger of Fire
- Keep the device away from combustible materials and substances.
■ Do not cover the device during operation!
■ Unwind the connecting cable fully before connecting up the device.
WARNING – Danger of Injury
- Keep children and animals away from the packaging material. There is a danger of suffocation.
■ Make sure that the connecting cable is always kept out of the reach
of small children and animals. There is a danger of strangulation.
■ Make sure that the connecting cable does not present a trip hazard.
CAUTION: The attachment will get hot during use! Be careful handling the device, only ever hold it firmly by the handle. There is a danger of burns!
NOTICE – Risk of Damage to Material and Property
■ Use and store the device at room temperature. Protect the device from: fire and heat sources, extreme temperatures, temperature fluctuations or prolonged direct
■ Do not place heavy objects on the device, its connecting cable or the accessories. Protect the device from impacts.
■ Only connect the device to a plug socket that is properly installed. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the data on the rating plate of the device.
■ Lay the connecting cable so that it is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
■ Pull the mains plug out of the plug socket before a thunderstorm.
In the event of damage / faults, switch the device off immediately / disconnect it from the mains power.
■ When you disconnect it from the mains power, always pull on the mains plug and never the mains cable.
■ Do not pull or carry the device by the connecting cable.
■ Never wind the connecting cable around the device.
■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.
BRIEF INTRODUCTION
Attachments
The items supplied include 5 attachments (2 - 6) for curls of different sizes (Picture A):
- 9 – 18 mm attachment for ringlets
- 19 mm attachment for corkscrew curls
- 19 – 25 mm attachment for defined curls
- 25 mm attachment for beach waves
- 32 mm attachment for voluminous waves
As a general rule, the narrower the attachment, the tighter the curls. However, the result also depends on the structure and length of the hair and on how long the heat is applied for.
We recommend that you familiarise yourself with the device and try out the different attachments.
Temperature and Application Time
If the application time is too long or the temperature is too high, this can cause damage to the hair, particularly if the hair is fine and dry. Conversely, the result could be unsatisfactory. In general:
- high temperature (approx. 230°C) is suitable for strong hair
- medium temperature (approx. 190 – 210°C) is suitable for normal, robust hair
- low temperature (approx. 80 – 150°C) is suitable for fine or damaged hair
When you first use the device, try it out first in an inconspicuous spot to discover the right temperature and application time for the hair.
Styling Products
We recommend that you use a heat protection spray.
If necessary, hair spray or a little hair gel can be used. However, apply it sparingly and clean the attachment after each use (see the “Cleaning and Storage” chapter).
Avoid using other styling products before the treatment so that you do not damage the hair. You should definitely only ever use hair spray after using the device!
USE
Please Note!
■ Do not use the device on wet hair. It must be at least towel-dried!
- Keep the attachment away from the face, in particular the eyes. Also maintain a safe distance between the head and attachment of at least 3 – 5 cm.
■ We recommend wearing the glove which is supplied to protect the hand if it accidentally touches the hot attachment during styling.
■ When you place the hot device down, make sure that it rests on the stand.
■ Wait until the attachment has cooled down before detaching it.
EN
Attaching / Detaching the Attachment
- Plug the attachment (2 - 6) onto the handle (1) until it engages. The attachment must be oriented so that the symbol on the attachment is at the top (in line with the display (10) and the buttons) and the stand (8) is at the bottom (Picture C).
- To separate the attachment from the handle, hold down the two release buttons (9) and pull off the attachment.
Styling
-
Comb through the hair before using the device. Make sure there are no knots in the hair.
-
Attach the attachment you want to the handle (see above).
-
Fully unwind the connecting cable and connect the mains plug to an easily accessible plug socket. The display (10) then shows OFF. The device is ready to be used.
-
To switch on the device, hold down the ON/OFF button (12) until 180^ C appears on the display. The device automatically begins to heat the attachment up to 180^ C. The current (constantly rising) temperature is displayed.
-
The temperature can be set even during the heating-up phase. To do this, hold down the + or - button (11) until the temperature you want appears on the display and then let go. After you let go of the button, the current (constantly rising or falling) temperature is displayed again.
-
Wait a moment until the attachment has heated up. In the meantime, the device can be placed down on the stand (8).
-
When the temperature display stops changing, the set temperature has been reached. Styling can now begin.
If all the hair is to be treated, start at the neck and work your way strand by strand to the forehead as follows:
- Divide the hair into sections.
- Hold the attachment with the tip pointing down 3 – 5 cm away from your head. Make sure it does not touch the scalp!
- Wind a strand of hair around the attachment from top to bottom.
- Hold it briefly (approx. 2 – 4 s), then release the strand.
- Carefully pull the attachment away upwards or to the side.
- To switch off the device, hold down the ON/OFF button until OFF appears on the display.
The device automatically switches off after 30 minutes.
-
Pull the mains plug out of the plug socket and allow the attachment to cool down.
-
Allow the hair to cool and then finish styling it with styling products.
CLEANING AND STORAGE
Please Note!
■ Do not wind the connecting cable around the device.
- Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These may damage the surfaces.
- Wipe residues of styling products off the attachment (2 – 6) immediately after use. Use a damp cloth to do this.
- Wipe down the handle (1) with a damp cloth if necessary. Then wipe it with a dry cloth.
- Wash the glove (7) by hand. Do not use fabric softener.
- Store the device in a cool, dry place that is out of the reach of children and animals.
TROUBLESHOOTING
If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.
Do not attempt to repair an electrical device yourself!
The device does not work.
The mains plug is not inserted in the plug socket correctly.
▶ Correct the fit of the mains plug.
The plug socket is defective.
▶ Try another plug socket.
There is no mains voltage.
▶ Check the fuse of the mains connection.
The overheating protection has been triggered.
▶ Pull the mains plug out of the plug socket and allow the device to cool down completely. Then try again.
The fuse in the fuse box is triggered.
Too many devices connected to the same circuit.
▶ Reduce the number of devices in the circuit.
Odour produced
The attachment (2 - 6) is dirty.
▶ Clean the attachment (see the "Cleaning and Storage" chapter).
Steam produced
The device is being used on wet hair.
▶ This is moisture evaporating from your hair.
DISPOSAL
Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.
This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.
TECHNICAL DATA
Article number: 05010
Model number: KS-222
Power supply: 220 - 240 V \~ 50 Hz
Power: max. 55 W
Temperature: 80 - 230°C
Protection class: II
ID of the operating instructions: Z 05010 M DS V2 0920 md
All rights reserved.
SOMMAIRE
Composition 17
Aperçu général 17
Symboles 18
WAARSCHUWING – Brandgevaar
WAARSCHUWING – Verwondingsgevaar
De contactdoos is defect.
