YT43FTB1 - TV Yasin - Free user manual and instructions

Product type	LED TV
Brand	Yasin
Model	YT43FTB1
Screen size	43 inches (109 cm)
Resolution	Full HD (1920 x 1080)
Tuner	DVB-T / DVB-C / DVB-S2
Power supply	AC 100-240 V, 50/60 Hz
Connectivity	2 x HDMI, 1 x USB, YPbPr input, AV input, coaxial output, headphone output, RF antenna, CI+
Main functions	Electronic Program Guide (EPG), teletext, subtitles, parental control, hotel mode, USB media player
USB file formats	Photo (JPEG, BMP, PNG), Music (MP3, WMA), Video (MPEG, AVI, MKV)
Audio power	2 x 8 W
Power consumption	Approximately 65 W (estimated)
Dimensions (without stand)	Approximately 97 x 57 x 8 cm (estimated)
Weight	Approximately 8 kg (estimated)
Wall mounting	VESA 200 x 200 mm compatibility
Operating temperature	0°C to 40°C
Operating humidity	10% to 75% non-condensing
Cleaning	Soft, dry cloth, no volatile substances
Safety	Do not expose to humidity, do not open, unplug during storms
Spare parts and repairability	Manufacturer's warranty 2 years, after-sales service via www.yasin-eu.com
Included accessories	Remote control, stands, screws, quick start guide

Frequently Asked Questions - YT43FTB1 Yasin

How to connect my antenna or cable to the TV?

Connect the antenna or cable to the RF input at the back of the TV. Then, turn on the TV, press the SOURCE button on the remote control and select the corresponding source (DTV or ATV). Start a channel search via the CHANNEL menu.

How to install the wall mount?

Use a wall mount compatible with VESA 200x200 mm. Attach the bracket to the mounting screws on the back of the TV (M7 or M8 screws depending on the bracket). Make sure the wall can support the weight of the TV (approximately 8 kg).

What to do if the TV does not turn on?

Check that the power cord is properly plugged into a working power outlet. If the remote control does not work, replace the batteries. Press the power button on the TV itself to test.

How to watch satellite TV?

Connect the satellite cable to the DVB-S2 input on the back. Press SOURCE, select Satellite, then start an automatic channel search via the CHANNEL menu. Make sure the satellite dish is correctly aligned.

Can I play USB files on this TV?

Yes, connect a USB flash drive or external hard drive (FAT/FAT32 format, max 2 TB) to the USB port. Press SOURCE, select USB. You can play photos, music, and videos in supported formats (JPEG, MP3, AVI, etc.). Use the control keys on the remote for navigation.

How to arrange channels in the desired order?

Go to the CHANNEL menu, then Program Edit. Select a channel, press the yellow button to move it, then confirm. You can also use the LCN function for automatic logical ordering (not available in satellite).

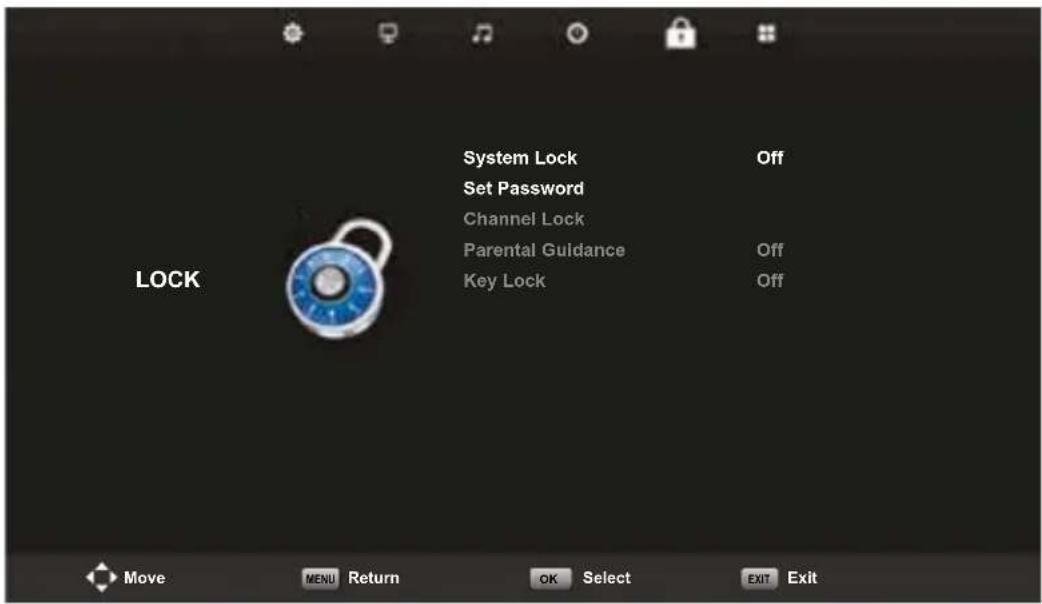

How to activate parental control?

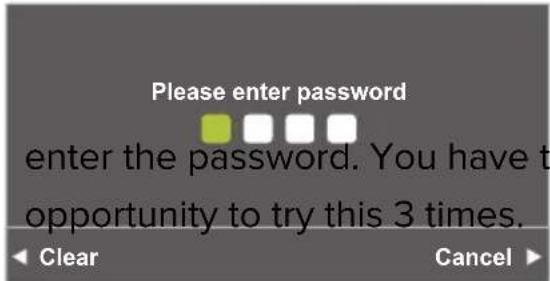

Go to the LOCK menu. Enter the default password 0000. You can lock channels or inputs. To change the password, use the administrator code 8899.

What to do if the picture quality is poor?

Check the antenna or cable connections. Try another channel. Adjust brightness and contrast in the PICTURE menu. Make sure the source is set to the correct format (PAL).

How to clean the TV screen?

Use a soft, dry cloth (microfiber). Do not use chemicals, liquids, or rough cloths that could scratch the surface. Turn off the TV before cleaning.

How to benefit from the warranty?

The manufacturer's warranty is 2 years from the date of purchase. For any request, contact customer service at www.yasin-eu.com. Keep your purchase receipt as proof. The warranty covers material and manufacturing defects, but not damage caused by misuse.

USER MANUAL YT43FTB1 Yasin

Control Panel Button Function

Power, Menu, Source, Volume up, Volume down, Channel up, Channel down

TV Aansluitingen

1. Scart

2. HDMI-1

3. Mini YPBPR

4. Coaxial

6.HDMI-2

De standard code is 0000.

NOTE:

EC directives internet address:
https://eur-lex.europa.eu/browse/summaries.html?locale=en

CE

Main unit description

Monting

CI-module

Remote control

First Time Installation

Menu Chanel 15

Channels

Auto tuning 15

Satellite 16

ATV Manual Tuning 16

DTV Manual Tuning 17

Channel edit 17

Delete channels 17

Skip channels 17

Move channels 17

LCN 18

CI card information 18

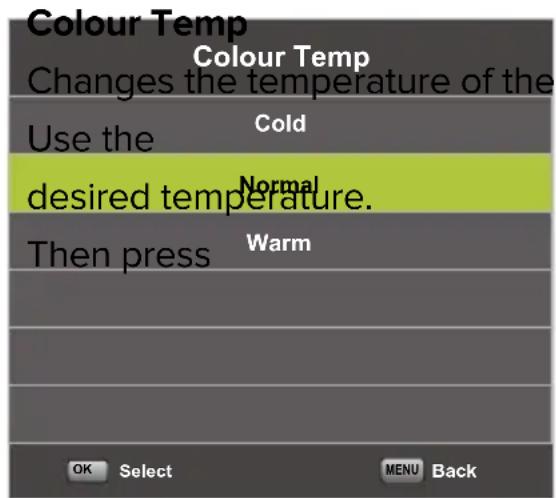

Picture settings 19

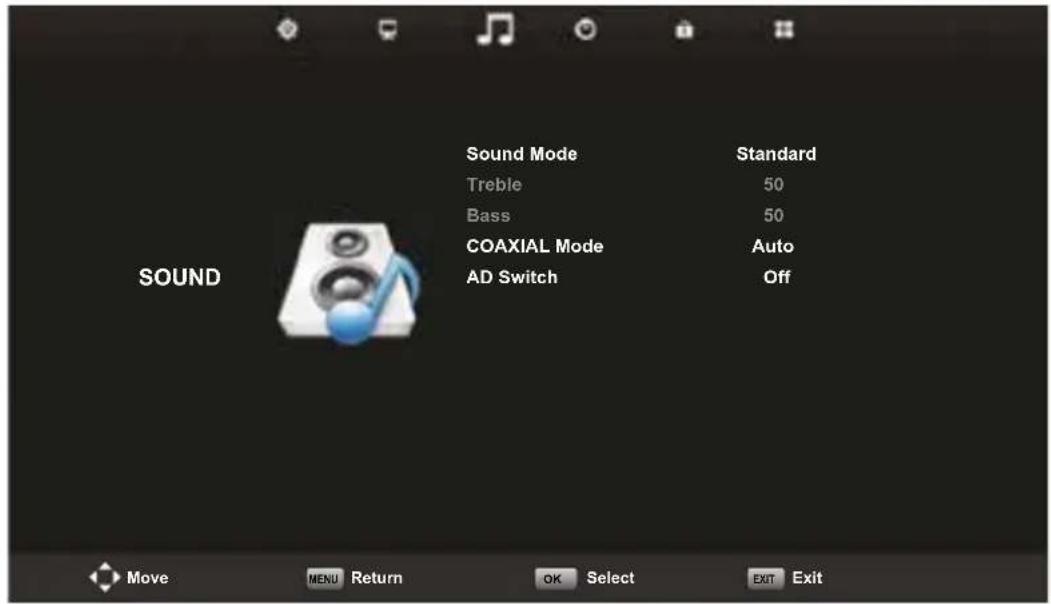

Sound settings 22

Time settings 24

Lock settings 26

Hotel Mode 28

Set-up 29

OSD-language 29

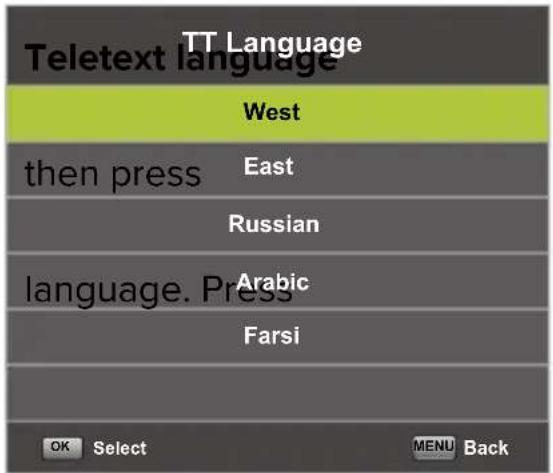

Teleteksttaal 30

Audio languages. 30

Subtitle languages 30

Useful Information and Licences 40

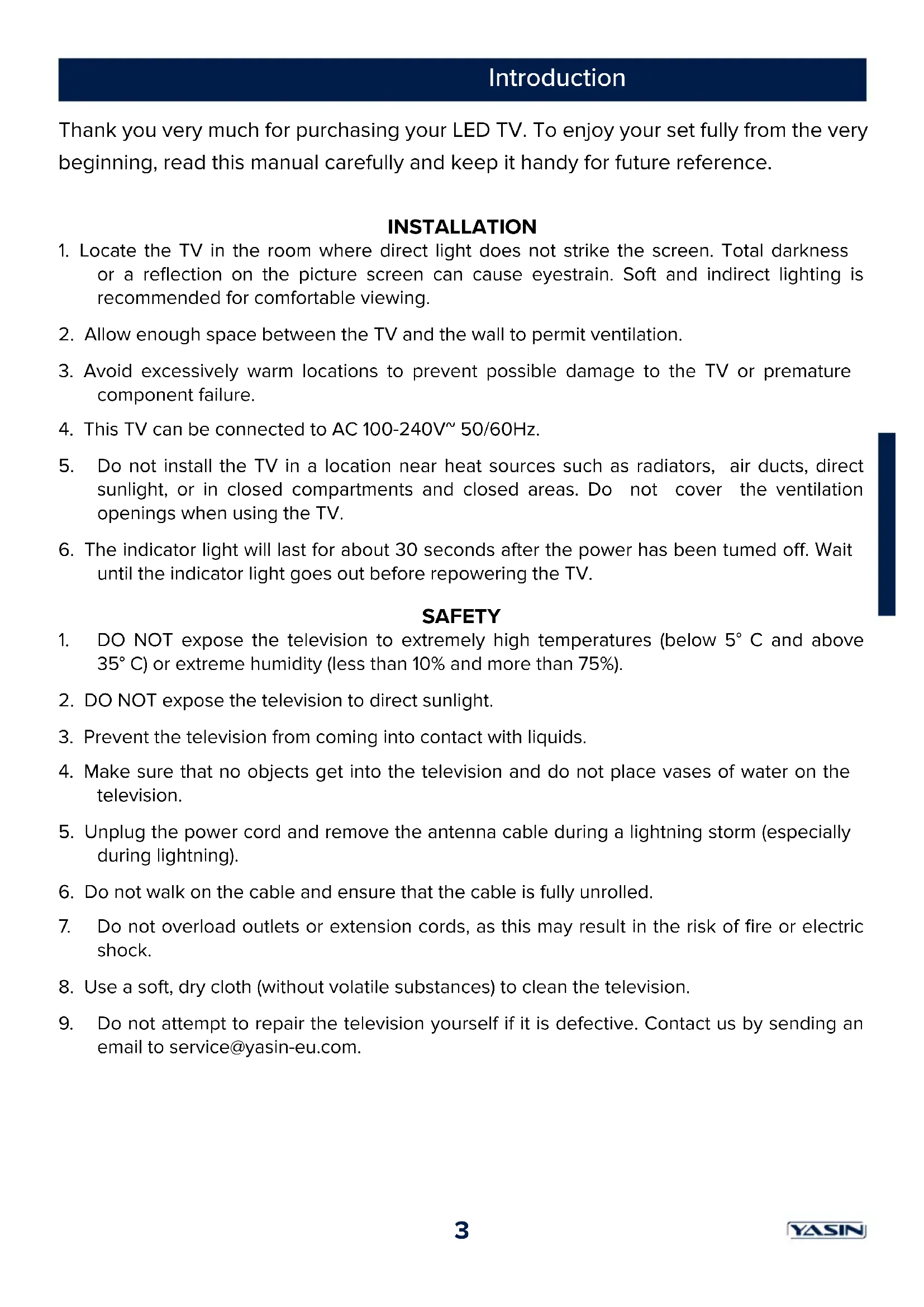

Introduction

Thank you very much for purchasing your LED TV. To enjoy your set fully from the very beginning, read this manual carefully and keep it handy for future reference.

INSTALLATION

1. Locate the TV in the room where direct light does not strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
2. Allow enough space between the TV and the wall to permit ventilation.
3. Avoid excessively warm locations to prevent possible damage to the TV or premature component failure.
4. This TV can be connected to AC 100 - 240V^50 / 60Hz
5. Do not install the TV in a location near heat sources such as radiators, air ducts, direct sunlight, or in closed compartments and closed areas. Do not cover the ventilation openings when using the TV.
6. The indicator light will last for about 30 seconds after the power has been turned off. Wait until the indicator light goes out before repowering the TV.

SAFETY

1. DO NOT expose the television to extremely high temperatures (below 5^ C and above 35^ C) or extreme humidity (less than 10% and more than 75% ).
2. DO NOT expose the television to direct sunlight.
3. Prevent the television from coming into contact with liquids.
4. Make sure that no objects get into the television and do not place vases of water on the television.
5. Unplug the power cord and remove the antenna cable during a lightning storm (especially during lightning).
6. Do not walk on the cable and ensure that the cable is fully unrolled.
7. Do not overload outlets or extension cords, as this may result in the risk of fire or electric shock.
8. Use a soft, dry cloth (without volatile substances) to clean the television.
9. Do not attempt to repair the television yourself if it is defective. Contact us by sending an email to [e-mail].

Warning

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK. DO NOT

REMOVE COVER (OR BACK).

NO USER- SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the equipment.

Class I Connect the plug to an earthed wall socket.

Caution

Caution

High voltages are used in the operation of this product.

Do not open the product's casing. Refer servicing to qualified service personnel.

Caution

To prevent fire or electrical shock hazard, do not expose the main unit to moisture. Do not place objects filled with liquids, such as vases, on the TV.

Caution

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Caution

Avoid exposing the main unit to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat: e. g. video cassette players and audio amplifiers. Do not block the ventilation holes in the back cover. Ventilation is essential to prevent failure of electrical components. Do not squash power supply cord under the main unit or other heavy objects.

Caution

Caution Never stand on, lean on or suddenly push the product or its stand. You should pay special attention to children.

Caution Do not place the main unit on an unstable cart stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Caution When the product is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Caution The LED panel used in this product is made of glass and is therefore breakable. This product must not be dropped or banged. If the LED Panel breaks be careful ofbeing injured by broken glass.

Control Panel Button Function

Display\ hidden button menu: press the button in the pop-up menu, as shown below. The button menu will be closed automatically after the button is not operated for 5 seconds.

Button function selection: press the button shortly, move the focus to the right, and select the corresponding function, such as the short press on the button for 6 times the focus position as shown in the belowpicture. Press the button for a short time, and the focus is back to the position shown in the above picture.

Key function operation: longly press key can perform focus function, such as focus in the position shown above, will perform channel reduction.

Power, Menu, Source, Volume up, Volume down, Channel up, Channel down.

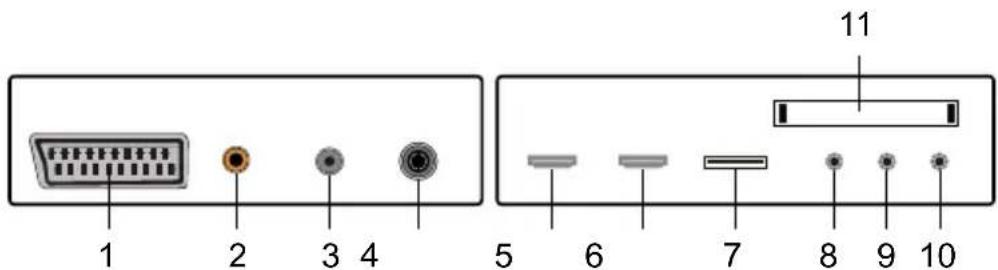

TV Connections

1. Scart

2. HDMI-1

3. Mini YPBPR

4. Coaxial

6.HDMI-2

1. Earphone

2. DVB-S2

3. USB

4. Cl-slot

5. RF antenna C/T2

6. Mini AV & AUDIO

NOTE

• It is only 500mA MAX of DC current output when you connect with USB jack.
• To ensure the mobile HD works well, you should use other power supply for the mobile HD and don't use the USB jack in the same time.
• It supports mobile HD by connecting with USB jack (must be more than 2 Gb). The partitions of the mobile HD can't be more than 4 partitions. The max partition is 2 Tb. It supports FAT/FAT32 files. The max FAT file is 4Gb and the max FAT32 file is 2Tb.

Mounting

The TV on a surface

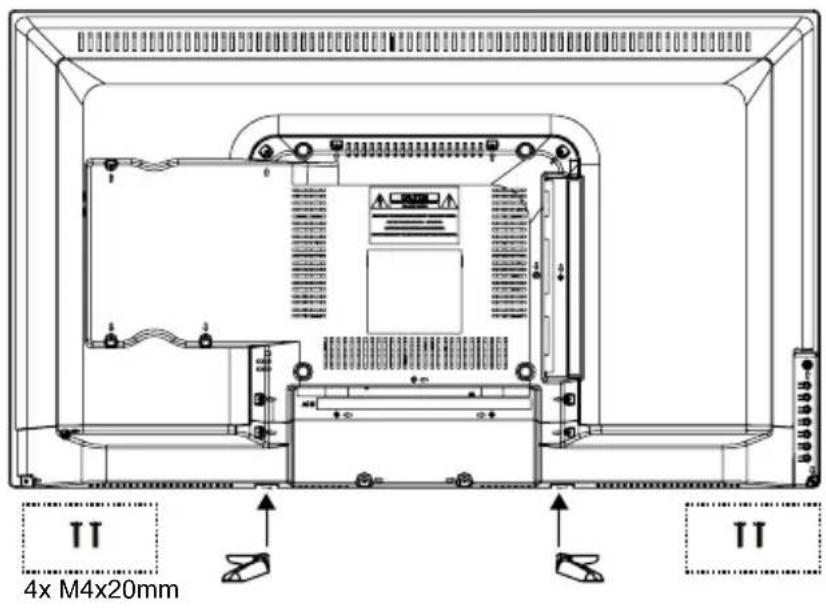

Attach the feet to the device as described in the illustration and screw them down with the supplied mounting screws.

Hang the TV on the wall

Attach your wall bracket to the appropriate threads on the back and pay attention to the distance between the holes with screws M7/ M8.

Cl+ module

This device is equipped with a CI + slot for using a smart card module that enables digital display without a decoder (provider box). We recommend the SMIIT module for our TVs.

Installing a CI + module

1. Make sure the TV is in the factory settings. If the TV has not been used, it is automatically set to the correct setting. If you have been using the TV for some time, you must first reset it to the factory setting. Then turn your TV off again.

2. Connect your TV to the coaxial cable. This cable transmits the

digital channels.

1. Turn the TV back on. Let him automatically search for the digital channels (see page 14). Don't forget to turn LCN on here. This may take a while.
2. Check if channels have been found.
3. Turn the TV off again.
4. Now insert your smart card into the Cl module. Now insert the module with smart card into the Cl slot. Now turn on the TV again. The TV and Cl module will now check each other. This can sometimes take more than 20 minutes.
5. Your TV is now ready for use.

Removing the Cl+ module

1. Turn off your TV.
2. Carefully remove the module.

If a module is available, more options are available on the CI information page of the OSD.

1. Press MENU to enter the system setting.
2. Use / to select the CI information and press OK to enter the settings.
3. Wait until the submenu is closed.
4. Use / to select an option and press OK to edit or open the selected function.
5. Press EXIT to save the changes and exit the menu.

Some menu options and settings depend on the corresponding CA module. We recommend the SMI T module.

The CA module (not included) is required when using a smart card (not included) to receive encrypted channels.

Ensure that the CA module and the smart card are compatible with each other. This device can read Cl+ compatible modules.

The available channels depend on the CA module used, the Smart Card and of course your provider.

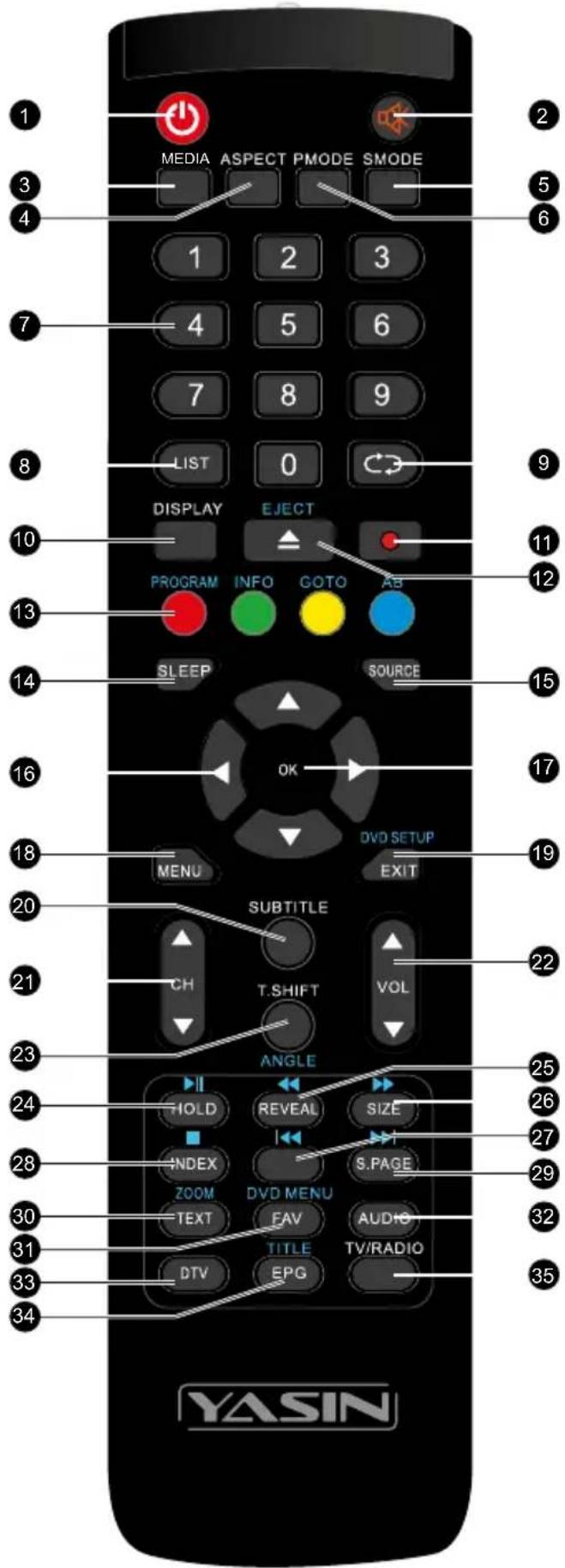

Remote Control

1 Switch the TV between on and standby mode.
2 MUTE: Mute and restore your TV sound.

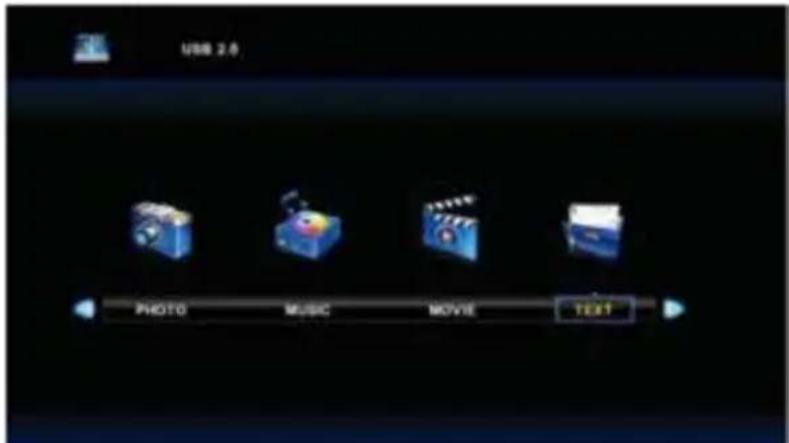

3 MEDIA: USB media player, for playback from USB stick.
4 ASPECT: Watch the screen in various formats: Auto/4:3/16:9/Zoom/Subtitels/Smart-zoom.
5 SMODE.: Sound settings menu.
6 PMODE.: Picture settings menu.
7 0-9 numbers. Press to select a programme.
8 List. Display the channel list (ATV/DTV mode).
9 Repeat. Return to the previous viewing channel (ATV/DTV mode)

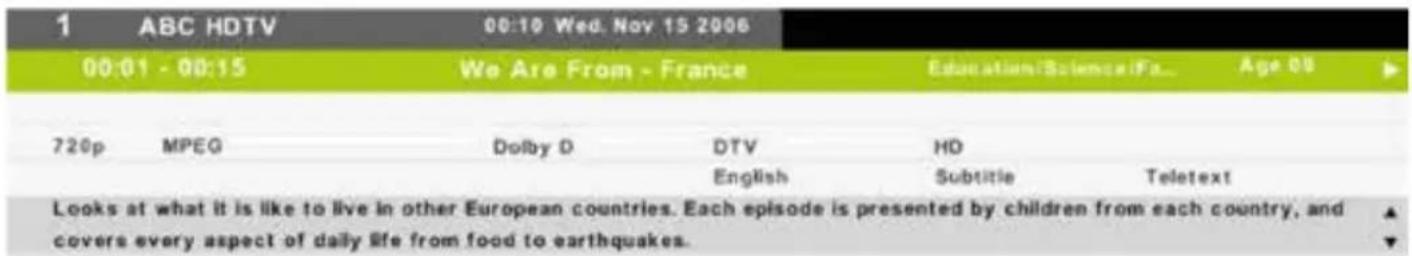

10 DISPLAY: More information about the program (DTV mode).
11 No function.
12 No function.
13 Various functions in Teletext and program edit.

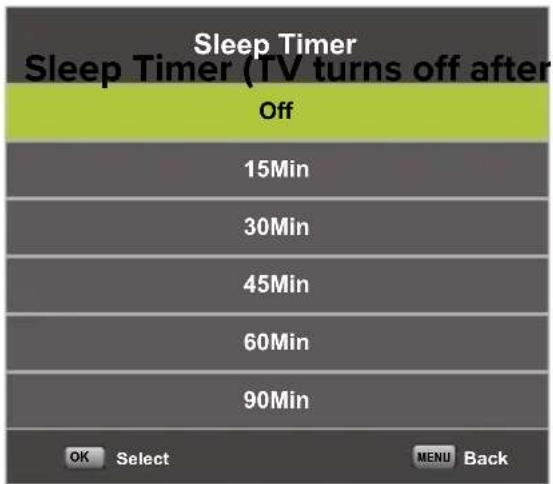

14 SLEEP: Set the time for the standby mode.
15 SOURCE: Select among the different input signal sources: DTV / ATV / AV / SCART / YPbPr / HDMI1 / HDMI2 / USB.
16 Allows you to navigate through the OSD menus and adjust the system settings to your preference.
17 OK: confirm the selection in the OSD menus.
18 MENU: Displays the OSD menu (On Screen Display).
19 EXIT: Exit the OSD menu.
20 SUBTITLE: Display subtitles which are broadcast with the programme (DTV mode).
21 CH: Select a channel (up/down).
22 VOL: Adjust the volume (+ higher, - lower).
23 T.SHIFT: No function.

Remote Control

24 HOLD: Freeze a multi-page passage on screen in Teletekst (TV teletekst mode).

Start playing or pause (USB).

25 REVEAL: Shows the top, bottom or entire page for easy reading in video text mode.

Fast rewind (USB).

26 SIZE: To enlarge the picture on the TV in teletext (TV teletex mode).

Fast forward (USB).

27 No function. To skip to the beginning of the previous chapter/track/photo (USB)

28 INDEX: To select the page number of the index in teletext (TV Teletex mode).

Stop the playback (USB)

29 S.PAGE: To open a subpage if existing in teletext (TV teletext mode).

▶Go to the beginning of the next chapter/ track/photo (USB)

30 TEXT:
Turn on and off the teletext function (TV mode).
ZOOM:
Zoom in on the displayed frame (USB).

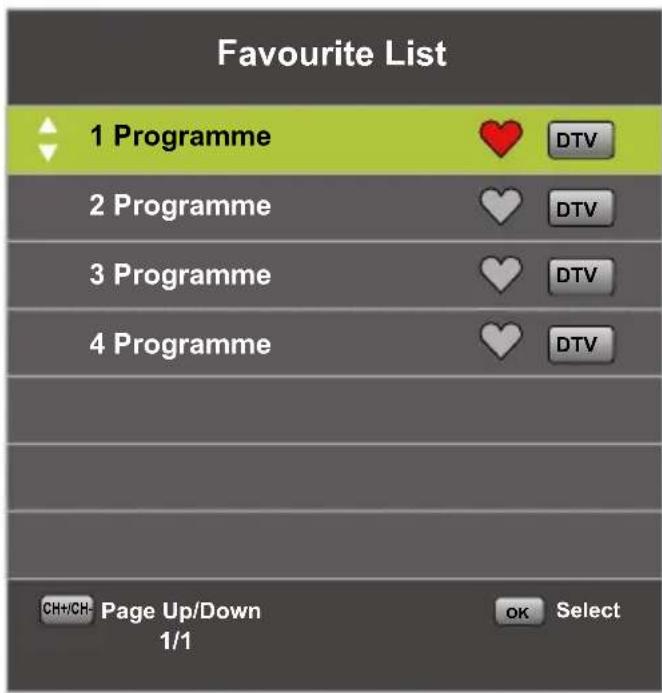

31 FAV: Display the favourite channel list (ATV/DTV mode).

32 AUDIO: Turn on/off the Audio Description (AD) function (DTV mode). Select stereo/dual sound reception (ATV mode).

33 DTV: Enter DTV mode

34 EPG: Displays the EPG (Electronic Programme Guide) (DTV mode).

35 A short cut to switch input source tot TV/Digital radio channels.

Input source and channel reception

Use the TV

Make the connection with the desired receiving mode. The connection for DVB-C (cable / Coax) and DVB-T (antenna) can be found at the rear. For DVB-S reception (satellite), use the corresponding connection on the rear panel.

DVB-T (antenna)

Whether and how many DVB-T channels can be received by this device is highly dependent on the location and DVB-T signal strength in the area. DVB-T radio in particular is very limited and not available at most locations. Please note that if you use the TV in a different area than before, you must reset the channels. This is because the frequencies of the channels are very different from region to region. Channels marked with (internet) are linked to the internet and cannot be used.

DVB-C (cable / coax)

The programs can be received analogue or digital via DVB-C. If possible, prefer the digital receive mode. In this mode, more channels are available with better picture quality.

Coded channels (via provider or satellite)

You can also receive coded TV channels via satellite or DVB-C. That is why you need a box or Cam module and a SMART CARD from your service provider. Which programs can be used depends on the contract.

Module and smart card are not included in the delivery. Activating the card can take a few minutes when it is used for the first time. The device controls the module after each activation. Note the manual for Cl + module and smart card. Only Cl + modules and cards can be used. Other models are not supported.

Indication for Cl+

Please note that the recording and time shift function may be limited on some channels. Recorded files from channels encoded via CI + Card can only be played on this device. This is limited by the program and we as the manufacturer are not responsible for this.

Source

Select the correct input source on your TV (eg antenna, satellite cable, HDMI port) by pressing the SOURCE button on your remote control.

Confirm your choice with OK

Input source and channel reception

Input Source
Satellite	●
DVB-T/C	●
ATV	●
AV	●●●
SCART	●●●●
YPbPR	●●●●
HDMI1	●
HDMI2	●
USB	●
	OK E Select ExitMove

First time installation

Installation Guide

If this is the first time you are turning on the TV and there are no programs in the TV memory, the installation Guide menu will appear on the screen.

1. Press the / buttons to select the language.
2. Press the / buttons to select the local country
3. Press the / om hem op Home mode te zetten. Indien de tv in een omgeving met veel Licht gebruikt worden (bv winkel)zet hem dan in store mode.

First Time Installation

OSD Language English

Country Netherlands

Environment

Home mode

OK

Auto Tuning

Note:

Searching for platform will take a long time, please be patient and don't turn off the TV.

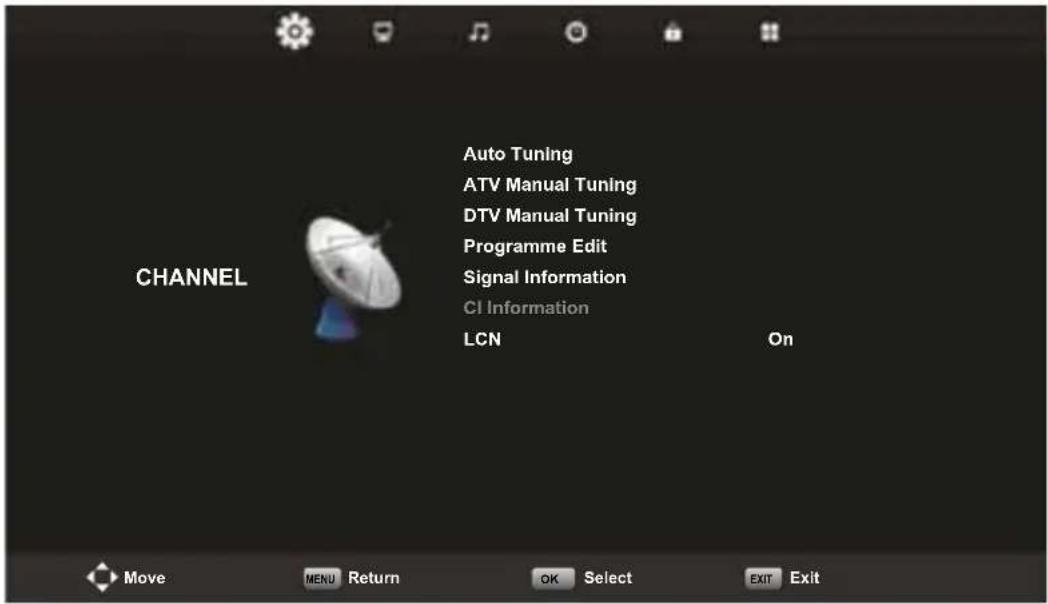

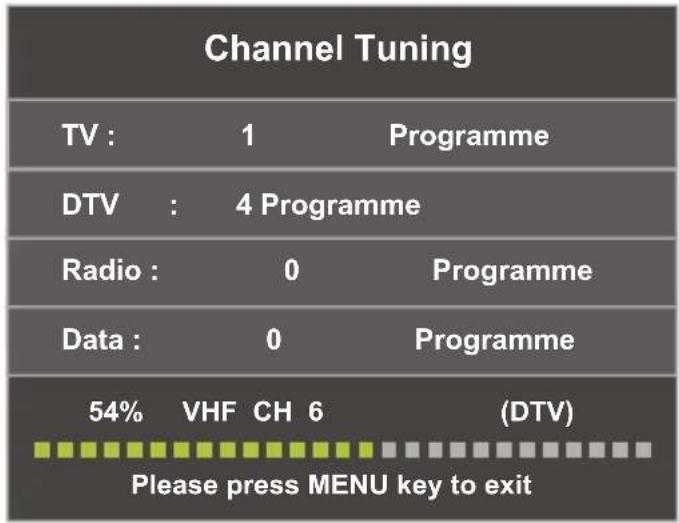

OSD Menu CHANNEL

Channels

Press to display the main menu. Press to select 'CHANNEL' in the main menu.

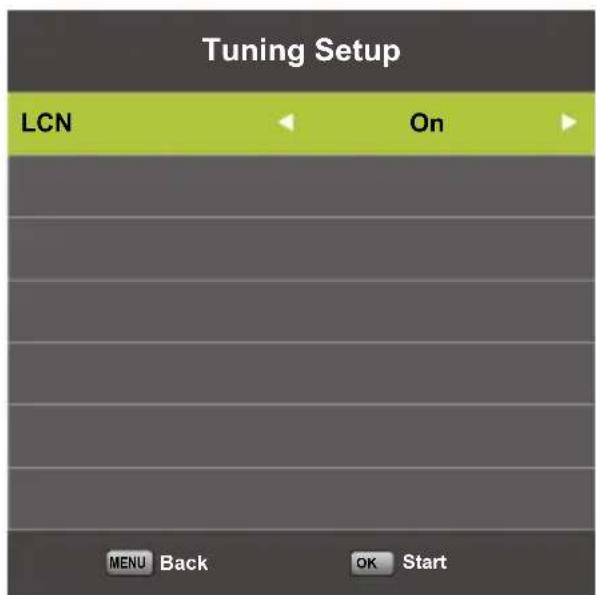

Auto Tuning

Press ▲▼ to select 'Auto Tuning'.

Press to select the country and use to select 'Tune Type' and 'Digital Type'. Put this on DTV + ATV. Select the type (DVB-T / S / C). Press OK to start the search. Press MENU to skip EXIT to stop. Turn on "LCN" to put the channels in logical order (not possible with Satellite).

OSD Menu CHANNEL

Note:

Searching for platform will take a long time, please be patient and don't turn off the TV.

Satellite

If you are going to watch TV via your satellite, you must first search for the Satellite source input source (see page 13) before searching for channels. Then you can choose your satellite at Autotuning.

Press to select 'Manual scan' and press to 'ATV Manual Tuning'.

Press OK to start with searching.

Press to return to the previous EXIT to exit the menu.

OSD Menu CHANNEL

Press ▲▼ to select 'Digital Manual

OK to start.

Press to return to the previous

EXIT to exit the menu.

Channel Edit

Press ▲▼ to select 'Programme Edit' and pres OK to select.

Press to select the channel and channel.

Move channels

Press to select the channel and press the yellow button to move the channel. Press the yellow button again to confirm.

OSD Menu CHANNEL

The 3 colored buttons are shortcut keys.

Press to select the channel to change, and then press the colored buttons to:

Delete	Delete the selected channel
Move	Change the order of the selected channel
Skip	Skip the selected channel

Press the FAV button to add or remove the channel from your favorite list. (Your TV connection will automatically skip the channel while CH +/- is used to watch the channels).

LCN (Logical channel number)

Turn on "LCN" to put the channels in logical order (not possible with Satellite).

CI information

Press ▲▼ to select 'CI info'. Presok to check CI card information.

OSD Menu PICTURE

The second item in the OSD menu is "PICTURE". You can adjust the image effect here, such as contrast, brightness, etc.

Press to enter the OSD menu. Then press to select the 'PICTURE' menu. Press to select 'Picture Mode'. PresOK to select.

Picture Mode

Press to select the picture mode and then pres OK to enter the submenu. You can change the contrast, brightness, color, sharpness and hue values when the image is in Personal mode.

Contrast/Helderheid/Kleur/Tint/Scherpte. You select the item with the buttons that you want to change. By the

to confirm.

OSD Menu PICTURE

Contrast Adjust	just the light intensity of the image, but the shadow of the image is not variable.
Brightness Adjusts the brightness of the image, making the dark area brighter
Colour Adjusts the saturation of the color.
Tint The use of color compensation has changed with the sending of the NTSC code.
Sharpness Adjusts the level of the details in the image

buttons to select the

to confirm.

Cold Increases the blue tone in the white.

Normal Increases the average colors in white.

Warm Increases the red color in the white.

OSD Menu PICTURE

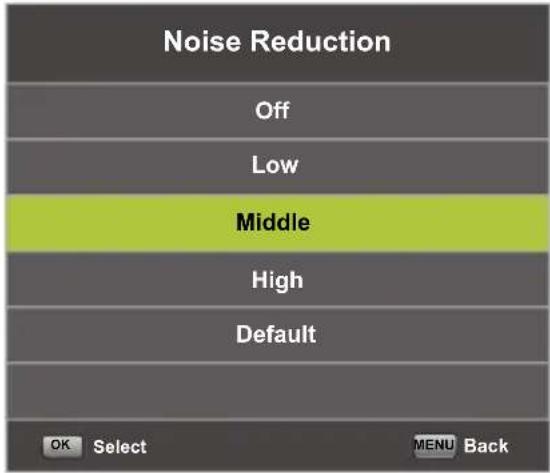

Noise Reduction

Filters and reduces image noise and improves image quality.

You select the desired quantity with the buttons. Then press OK to confirm.

Off Switch off noise reduction

Low Detect and reduce low image noise

Middle Detect and reduce moderate image noise

High Detect and reduce increased image noise

Default Set as Default

OSD Menu SOUND

The third item in the OSD menu is "SOUND".

Press to open the OSD menu.

Press o select the SOUND item in the OSD menu.

Press to select the option that you want to adjust in the SOUND menu. Press OK to adjust. After editing, press OK to confirm and return to the previous menu.

Sound Mode

Press to select the Sound mode and then presok to enter the submenu. Press to select the item.

You can change the value of Treble and Bass when the sound is in Personal mode.

OSD Menu SOUND

Standard Produces a balanced sound in all environments.

Music Retains the original sound. Good for music programs.

Movie Improves treble and bass for a rich sound experience.

Sports Improves sound for sports broadcasts

Personal The selection of personal sound settings

Coaxial Mode

A PCM connection makes it possible to transfer two audio channels (ie stereo sound) in uncompressed digital form. Only intended for output. With digital transmission, the audio signal does not have to be converted from digital to analogue (and vice versa), so you do not have a loss of audio quality.

Press to select the Coaxial mode menu and then press to choose between PCM / Auto.

OSD Menu TIME

The fourth item in the OSD menu is the "TIME" menu.

Press to open the OSD menu. Press to select the 'TIME' item in the OSD menu.

Press to select the option that you want to adjust in the TIME menu. Press OK to adjust. After adjusting, press OK to confirm the selection and return to the previous menu.

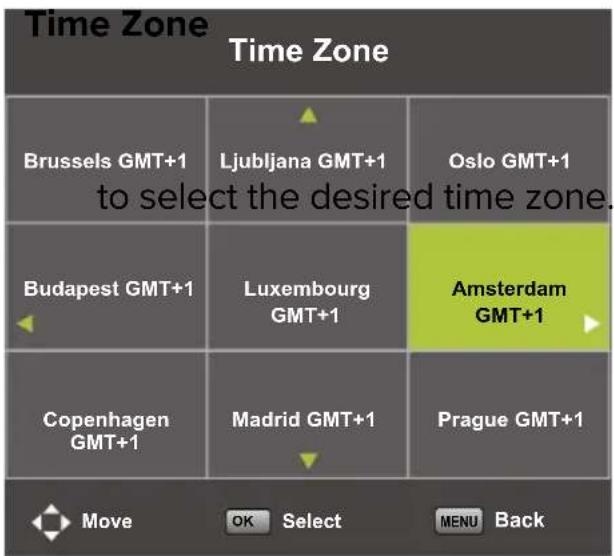

Press to select Time zone and then

press OK to enter the submenu. Press

ess

to confirm the selection.

OSD Menu TIME

this time)

Press to select Sleep Timer and then press OK to enter the submenu. Press to select the desired time. Press OK to confirm the selection.

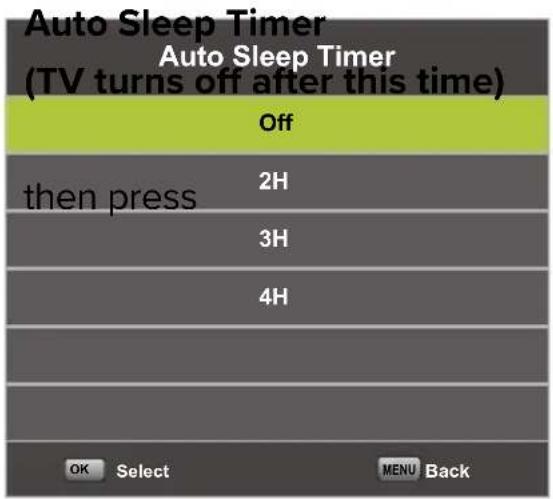

Press to select Auto Sleep Timer and OK to enter the submenu. Press to select the desired time. Press OK to confirm the selection.

Press to select OSD Timer and then press OK to enter the submenu. Press to select the desired time. Press OK to confirm the selection.

OSD Menu LOCK

The fifth item in the OSD menu is the 'LOCK' menu.

Press to open the OSD menu.

Press to select the LOCK item in the OSD menu.

Press to select the option that you want to adjust in the LOCK menu. Press OK to adjust. After editing, press OK to save and return to the previous menu.

Password

Press to select System Lock. Then

The default code is 0000.

NOTE:

The administrator code is 8899. This is required to enable Parental Guidance or Channel Lock.

OSD Menu LOCK

Press to select set password and

OK to enter the submenu.

Press to select Channel Lock and

OK to enter the submenu.

Press to select Parent Guidance, and

OK to enter the submenu.

Press to select the channel number,

and then press to turn it on or off.

HOTEL MODE

Hotel Mode

To open this option, first press MENU on the remote control and then the number buttons "8888".

The "HOTEL" menu will open.

Press to select the Hotel mode option that you want to adjust in the HOTEL menu. Press OK to adjust to enter the submenu. After editing, press OK to save and return to the previous menu.

Here you can set various settings by default that cannot be adjusted without a password. For example, maximum volume.

OSD menu CONFIGURATIE

The sixth item in the OSD MENU is the “CONFIGURATION” menu.

Press to open the OSD menu.

Press o select the CONFIGURATION item in the OSD menu.

Press to select an option that you want to adjust in the CONFIGURATION menu. Press OK to open the submenu. After editing, press OK to save and return to the previous menu.

OSD-Language

the default language. Press / to OK to confirm.

OSD menu CONFIGURATIE

Press ▲▼ to select Teletext language and

OK to enter the submenu. Press / to select the desired

to confirm.

Press to select Audio Language OK to enter the submenu. Press / to select the desired OK to confirm.

Press to select Subtitle Language OK to enter the submenu. Press / to select the desired OK to confirm.

Hearing impaired

Press ▲▼ to select this menu and pres OK to turn this function on or off. You can select the type of sound that best suits your personal preference.

OSD menu CONFIGURATIE

Favourite List

When the source is selected as DTV, users can enter the favorite channel list by pressing the 'FAV' button. The "Favorite list" window looks like this:

Press the buttons to select a list number.

Program information

If the source is selected as DTV, you can press the 'DISPLAY' button to display the channel information. The program information window looks like this:

Electronic Program Guide (EPG) contains program information that is broadcast now or in the future. The system will display the EPG window by pressing the "GUIDE" button. DATE and TIME information is displayed on the right side of the window. The left side shows all channels. The right side shows the programs in the channel. The selected program is also displayed at the top of the screen.

Press the YELLOW button to view the previous day. Press the BLUE button to view the next day.

Press▲▼ to select a channel. Press the “i” button on the remote control for more information about the program. Press EXIT to exit the guide.

USB Features

The TV is equipped with a USB port to upgrade software and play media files.

Pay attention:

1. If possible, connect USB devices directly to a USB slot.
2. If possible, do not use USB cables that are longer than 25~cm
3. Before using the Media menu, connect the USB device and then press the INPUT button to set the input source to the media.

Press the INPUT button on your remote control and select USB as the input source.

Use the keys to select your choice and confirm wit OK.

USB Features (Photo)

Use the buttons to select menu PHOTO and confirm with OK. Press MENU to return to the previous menu. Press EXIT to exit the menu.

Press to select the file you want to view in the selection menu, and then press OK to display the image.

When you use the selected option, the file information appears on the right side of the image.

USB Features (Music)

Use the buttons to select menu MUSIC and confirm with OK. Press MENU to return to the previous menu. Press EXIT to exit the menu.

Press to select the hard drive you want to view, and then press OK to open. Press MENU to return to the previous menu.

USB Features (Movie)

Use the buttons to select menu MOVIE and confirm with OK. Press MEN to return to the previous menu. Press EXIT to exit the menu.

Press to select the hard drive you want to view, and then press OK to open. Press OK to select the movie that you want to see.

Press the DISPLAY button to select the menu that you want to run in the background, and then press OK to confirm the selection.

Press to return to the previous menu. Press EXIT to exit the menu.

Note:

The images related to the function are only for reference.

Specifications

HDMI-input

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (KHz)
480i 720	x 480i 15.73 59.94/60
576i 720	x 576i 15.63 50
480p 720	x 480p 31.47 59.94/60
576p 720	x 576p 31.26 50
720p 1.28	0 x 720p	37.50	50
		44.96	59.94/60
1.080i	1.920 x 1.080i	28.13	50
		33.75	59.94/60
1.080p	1.920 x 1.080p	56.25	50
		67.5	59.94/60

Component video (YPbPr) input

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (KHz)
480i 720	x 480i 15.73	59.94/60
576i 720	x 576i 15.63 50
480p 720	x 480p 31.47 59.94/60
576p 720	x 576p 31.26 50
720p 1.28	0 x 720p	37.50	50
		44.96	59.94/60
1.080i	1.920 x 1.080i	28.13	50
		33.75	59.94/60
1.080p	1.920 x 1.080p	56.25	50
		67.5	59.94/60

Due to continuous product development, specifications are subject to change without prior notice.

Troubleshooting

Before contacting our service department you can go through the following for possible solutions.

Problem Solution
TV will not turn on · Make sure the power cord is plugged in. · The batteries in the remote control may be drained; replace the batteries.
No picture, no sound · Check the cable between TV and antenna/external AV device. · Press the power button on the remote. · Press the SOURCE button the remote, then press the ▼▲ button repeatedly to select the TV source.
Poor picture, sound OK · Check the cable between TV and antenna/ external AV device. · Try another channel, the station may have broadcast difficulties. · Adjust the brightness/contrast in the Video menu. · Check that the unit is set to PAL
Audio noise · Check if the cables are connected properly. · Move any infrared equipment away from the TV.
No audio · Make sure the volume is not turned off or set to minimum.
Photos, videos and music from a USB device are not displayed	· Check if the USB storage device is capable of mass storage, as described in the documentation that came with the storage device. · Check if the USB storage device is compatible with the TV · Check if the audio and image file formats are supported by the TV.
USB files are played jerkily · The speed of the USB storage device can affect the speed of data transfer to the TV, preventing image and / or sound from being smoothly displayed.

Troubleshooting

The TFT LED panel uses a panel consisting of sub pixels which requires sophisticated technology to produce. However, there may be a small number of bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Guarantee

We regret it when a product doesn't work as it should, despite our careful quality control. That is why we offer a 2-year manufacturer's warranty after the date of purchase on all our models. This guarantee is a pick-up and return guarantee. This means that we take care of the return of the product to our repair and service center. We will thoroughly check the product and solve the problem. We will send the product back to your home within 7 working days.

If the product can no longer be repaired, we will send you a new one.

Warranty conditions

1. Factory warranty is only given if you can present the purchase invoice.
2. This manufacturer's warranty applies to all Yasin products.
3. Manufacturer's warranty applies only to material and manufacturing defects. Problems caused by improper use, incorrect installation, external factors and normal wear and tear are not covered by this manufacturer's warranty.
4. The factory warranty expires as soon as changes or repair work on the product are carried out by yourself or third parties. The same applies if the serial number is changed or removed.
5. The decision on repair or replacement of the product is exclusively reserved to Yasin. The warranty period is not extended due to repair or replacement.

Customer service

To use the Manufacturer's warranty or other questions, you can contact Yasin Customer Service via the customer service mail [e-mail].

Due to the continuous product development, the manual can change without prior notice. Typing and printing errors reserved.

EC directives internet address:
https://eur-lex.europa.eu/browse/summaries.html?locale=en

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Notes for Battery Disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

MPEG-2 NOTICE

Any use of this product in any matter other than personal use that complies with the MPEG-2 standard for encoding video information for packaged media is expressly prohibited without a license under applicable patents in the MPEG-2 Patent Portfolio, which license is available from MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado, 80111 U.S.A.

Inhaltsverzeichnis

Einleitung

Aufstellort 3

EC directives internet address:

https://eur-lex.europa.eu/browse/summaries.html?locale en

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Notes for Battery Disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

MPEG-2 NOTICE

Any use of this product in any matter other than personal use that complies with the MPEG-2 standard for encoding video information for packaged media is expressly prohibited without a license under applicable patents in the MPEG-2 Patent Portfolio, which license is available from MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado, 80111 U.S.A.

Table des matieres

Introduction

Installation 3

Premiere installation 14

OSD-Menu CANAL 15

OSD-Menu IMAGE 19

OSD-menu SON 22

OSD-menu HEURE 24

OSD-menu VERROUILAGE 26

OSD-menu HOTEL 28

OSD-menu PARAMÉTRES 29

Electronic Program Guide (EPG) 32

USB 33

Foto 34

Muziek 35

Film 36

1. VGA

2. HDMI-1

3. Mini YPBPR

4. PC audio

7.HDMI-2

1. CI-slot

2. Scart

8.HDMI-3

DVB-C (cable / coaxial)

EC directives internet address:
https://eur-lex.europa.eu/browse/summaries.html?locale=en

Any use of this product in any matter other than personal use that complies with the MPEG-2 standard for encoding video information for packaged media is expressly prohibited without a license under applicable patents in the MPEG-2 Patent Portfolio, which license is available from MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado, 80111 U.S.A.

About Yasin

Yasin has their sales office in Eindhoven and serve the European market from there.

The range consists of monitors an TVs.

So Yasin has the right screen for every user and every occasion.

Customer service

Send an email with your question:

[e-mail]

or phone +31 (0)24 - 34 34 230

(monday-friday 09.00 - 17.00 aur).

For product information: www.yasin-eu.com
