| Product type | LCD projector |
| Brand | InFocus |
| Model | LightPro IN1039 |
| Native resolution | WUXGA (1920 x 1200) |
| Number of colors | 1.07 billion |
| Power supply | AC 100-240 V, 50/60 Hz |
| Video inputs | VGA, HDMI (x2), Composite video, USB-A, USB-B, LAN |
| Audio outputs | Audio out (3.5 mm jack) |
| Built-in speaker | Yes |
| Keystone correction | Vertical, horizontal, corner correction and curved |
| Digital zoom | Yes (forward/backward) |
| Focus function | Manual (wheel) |
| Standby mode | ECO or Network |
| Security function | PIN code, keyboard lock, Kensington slot |
| Multilingual menu | 26 languages including French |
| USB display function | Yes (via USB-B) |
| Memory Viewer | Play files from USB drive (USB-A) |
| Lamp management | Counter, accessible replacement |
| Air filter | Cleanable, filter counter |
| Dimensions (W x D x H) | Approx. 315 x 244 x 108 mm (estimated) |
| Weight | Approx. 3.5 kg (estimated) |
| Operating temperature | 0°C to 40°C |
| Included accessories | Power cord, remote control (without batteries), VGA cable, quick start guide |
Frequently Asked Questions - LightPro IN1039 INFOCUS
How to turn the projector on and off?
Plug in the power cord, press the POWER button to turn on. To turn off, press POWER again, then confirm within 4 seconds. Wait for cooling before unplugging.
How to connect a computer to the projector?
Use a VGA cable (included) or HDMI cable (not included). Connect one end to the projector (COMPUTER IN or HDMI ports) and the other to the computer. Select the corresponding input source with the INPUT button.
How to correct a keystone image?
Press the KEYSTONE button on the remote. Use the arrow keys to adjust vertical/horizontal correction, corner, or curvature. You can also enable automatic correction via the AUTO button.
Can I project files directly from a USB drive?
Yes, using the Memory Viewer function. Insert a USB drive into the USB-A port, then select the Memory Viewer input. Use the remote to navigate files.
How to clean the air filter?
Turn off and unplug the projector. Remove the filter (see manual) and clean it with a vacuum cleaner or warm water. Let it dry completely before reinstalling. Reset the filter counter in the menu.
When should I replace the lamp?
The lamp is a consumable. Replace it when the WARNING indicator blinks red or the image becomes dim. Check the lamp counter in the menu. Use only InFocus-approved lamps.
How to lock the projector to prevent unauthorized use?
Enable the Security function in the Settings menu. You can set a PIN code (3 digits) and/or lock the keyboard. Also use the Kensington slot for a physical lock.
What if the image does not display?
Check cable connections, select the correct input source. Press AUTO for automatic adjustment. Ensure the projector is on (green light). If nothing works, see the troubleshooting section of the manual.
How to adjust the volume of the built-in speaker?
Use the VOLUME + and - buttons on the remote or control panel. You can also mute with the MUTE button. Volume can be adjusted in Settings > Sound.
Does the projector support ceiling mounting?
Yes, in the Display menu > Projection method, select Ceiling/Front or Ceiling/Rear. For ceiling installation, use a suitable mount and call a qualified technician.
User questions about LightPro IN1039 INFOCUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Projector in PDF format for free! Find your manual LightPro IN1039 - INFOCUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LightPro IN1039 by INFOCUS.
USER MANUAL LightPro IN1039 INFOCUS
Copyright © 2020 by InFocus Corporation
https://infocus.com/support/contact/
Closed caption....61
Verrouillage 61
Iris....62
Son....62
Réglages HDMI 63
Étendre....64
Langue....64
Réglages auto....65
Trapèze 65
Logo 70
Sécurité 72
Contacter InFocus....122


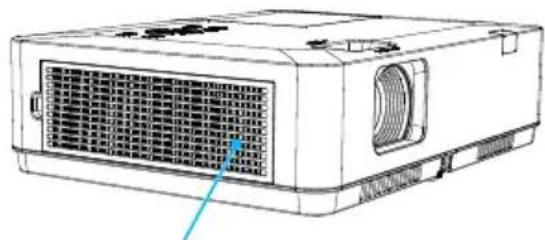

Technical diagram of a projector with labeled ports and internal structure, showing front panel and rear panel layout.Entrée d'air
Diagram of a projector with a hand using a screen, showing no label or symbols on the device.text_image
Diagram of a projector with a red prohibition symbol indicating no protection, showing mechanical components and label text.natural_image
Line drawing of a projector with a hand holding the lens and a warning symbol (no text or labels)FCC
Note


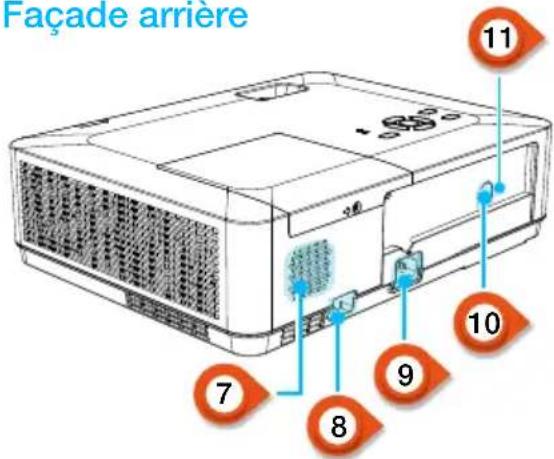

Diagram of a projector with labeled parts including front panel, screen, and indicator lightsFaçade arrière
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
Terminaux


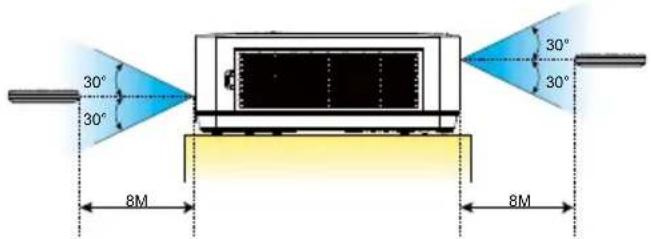

8M 30° 30° 30° 8M 30° 30°
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6100.457 0.8 | 121.347 0.8 | 85 1.467 | ||||
| 60” 1.2190.9141.63 | 2.702 1.7 | 76 2.944 | ||||
| 80” 1.6261.2192.17 | 3.610 2.3 | 73 3.933 | ||||
| 100” 2.032 1.524 | 2.728 4.523 | 2.972 4.927 | ||||
| 150” 3.048 2.2864 | 1146.8204.4 | 827.430 | ||||
| 200” 4.0643.048 5 | 514 9.1416 | 0089.959 | ||||
| 250” 5.080 3.810 | 6.92911.486 | 7.549 12.513 | ||||
| 300” 6.0964.572 8 | 358 13.855 | 9.10615.094 | ||||
IN1026
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6460.4040.94 | 2 1.137 | 0.969 1.169 | ||||
| 60” 1.2920.8081.91 | 0 2.299 | 1.963 2.363 | ||||
| 80” 1.723 1.077 2 | 554 3.073 | 2.626 3.159 | ||||
| 100” 2.154 1.346 | 3.199 3.848 | 3.289 3.956 | ||||
| 150” 3.231 2.0194 | 811 5.785 | 4.946 5.946 | ||||
| 200” 4.308 2.6926 | 423 7.721 | 6.602 7.937 | ||||
| 250” 5.385 3.365 | 8.035 9.658 | 8.259 9.927 | ||||
| 300” | 6.462 | 4.039 | 9.647 | 11.595 | 9.916 | 11.917 |
IN1046, IN1039, IN1059
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6460.4040.81 | 2 1.347 0 | 835 1.384 | ||||
| 60” 1.2920.8081.63 | 0 2.702 1 | 675 2.777 | ||||
| 80” 1.723 1.077 2 | 178 3.610 | 2.239 3.711 | ||||
| 100” 2.154 1.346 | 2.728 4.523 | 2.804 4.648 | ||||
| 150” 3.231 2.0194 | 114 6.820 | 4.228 7.009 | ||||
| 200” 4.308 2.6925 | 520 9.150 | 5.673 9.405 | ||||
| 250” 5.385 3.365 | 6.936 11.49 | 8 7.129 11.817 | ||||
| 300” 6.4624.039 8 | 367 13.869 | 8.599 14.255 | ||||
IN1036, IN1029, IN1049
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6460.4040.87 | 2 1.053 0. | 896 1.082 | ||||
| 60” 1.2920.8081.76 | 9 2.129 1. | 818 2.188 | ||||
| 80” 1.723 1.077 2 | 365 2.845 | 2.431 2.924 | ||||
| 100” 2.154 1.346 | 2.962 3.563 | 3.044 3.662 | ||||
| 150” 3.231 2.0194 | 455 5.356 | 4.578 5.505 | ||||
| 200” 4.308 2.6925 | 947 7.149 | 6.113 7.348 | ||||
| 250” 5.385 3.365 | 7.440 8.943 | 7.647 9.191 | ||||
| 300” 6.4624.039 8 | 932 10.736 | 9.181 11.035 | ||||


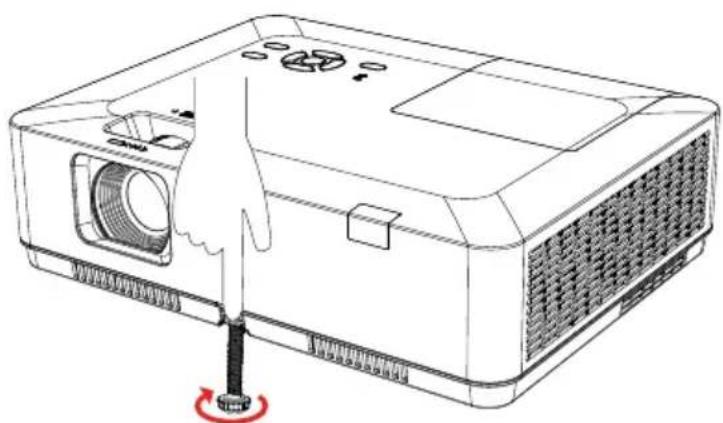

Line drawing of a projector with a hand inserting a screwdriver into the base (no text or symbols)Figure (2)
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
