Product Type	Induction Cooktop
Brand	Dacor
Model	DTI36P876BB
Dimensions	36 inches (91.4 cm) wide
Weight	Approximately 40 kg (estimated)
Power Supply	209 V – 240 V AC, 60 Hz
Maximum Power	Front zone: 2600 W (Boost), rear zone: 2600 W, center: 4800 W, front right: 3200 W, rear right: 2000 W
Main Functions	Power Boost, Flex Zone, Timer, Pause, Lock, IQ Connect (Wi-Fi), Bluetooth Hood Control, Simmer, Melt, Power Management
Safety	Auto shut-off, residual heat indicator, lock, pan detection
Surface Material	Ceramic glass
Care and Cleaning	Special ceramic glass cleaner, razor blade scraper for burnt residues
Warranty	1 year parts and labor (USA and Canada)
Connectivity	Wi-Fi (IQ Connect), Bluetooth (hood control)

Frequently Asked Questions - DTI36P876BB Dacor

How to activate the Power Boost function on my Dacor DTI36P876BB cooktop?

Press the Power Boost key corresponding to the desired cooking zone. Maximum power is available for a limited time (8 min for the 11-inch zone, 10 min for others). The zone then returns to level 15.

What does error code C1 displayed on the screen mean?

Code C1 indicates an abnormally high internal temperature of a burner. Turn off the zone, wait for it to cool, then restart. If the problem persists, contact Dacor service.

How to use the Flex Zone for large cookware?

Press the Flex Zone key to synchronize the two left zones. Use one of the zone controls to adjust the power. The Flex Zone Plus can accommodate oval dishes up to 9.4 inches long.

Can I use aluminum cookware on this induction cooktop?

No, only ferromagnetic bottom cookware (steel, cast iron, induction-compatible stainless steel) works. Aluminum, copper, glass, or ceramic are not suitable.

How to clean burnt residues on the glass surface?

Let it cool, apply a special ceramic glass cleaner and scrub with an appropriate pad. For stubborn residues, use a razor blade scraper at a 45° angle.

Does the timer automatically turn off the cooking zone?

No, the timer sounds a beep after the set time but does not turn off the zone. You need to turn it off manually.

How to connect the cooktop to the SmartThings app?

Turn on the cooktop, open the SmartThings app, follow the instructions, and hold the IQ Connect key for 3 seconds. The indicator flashes then becomes steady once connected.

What to do if the cooktop does not turn on?

Check if the circuit breaker has tripped or the fuse is blown. Also ensure the cooktop is properly plugged in.

How to deactivate the key sound?

Press the POWER key, then within 10 seconds, hold the Timer key for 3 seconds. The display shows 'OFF' or 'ON' to confirm.

What is the minimum cookware size for each zone?

Zones require a minimum bottom diameter: 140 mm for front/rear Flex Zone, 160 mm for center zone, 100 mm for front right zone, and 140 mm for rear right zone.

USER MANUAL DTI36P876BB Dacor

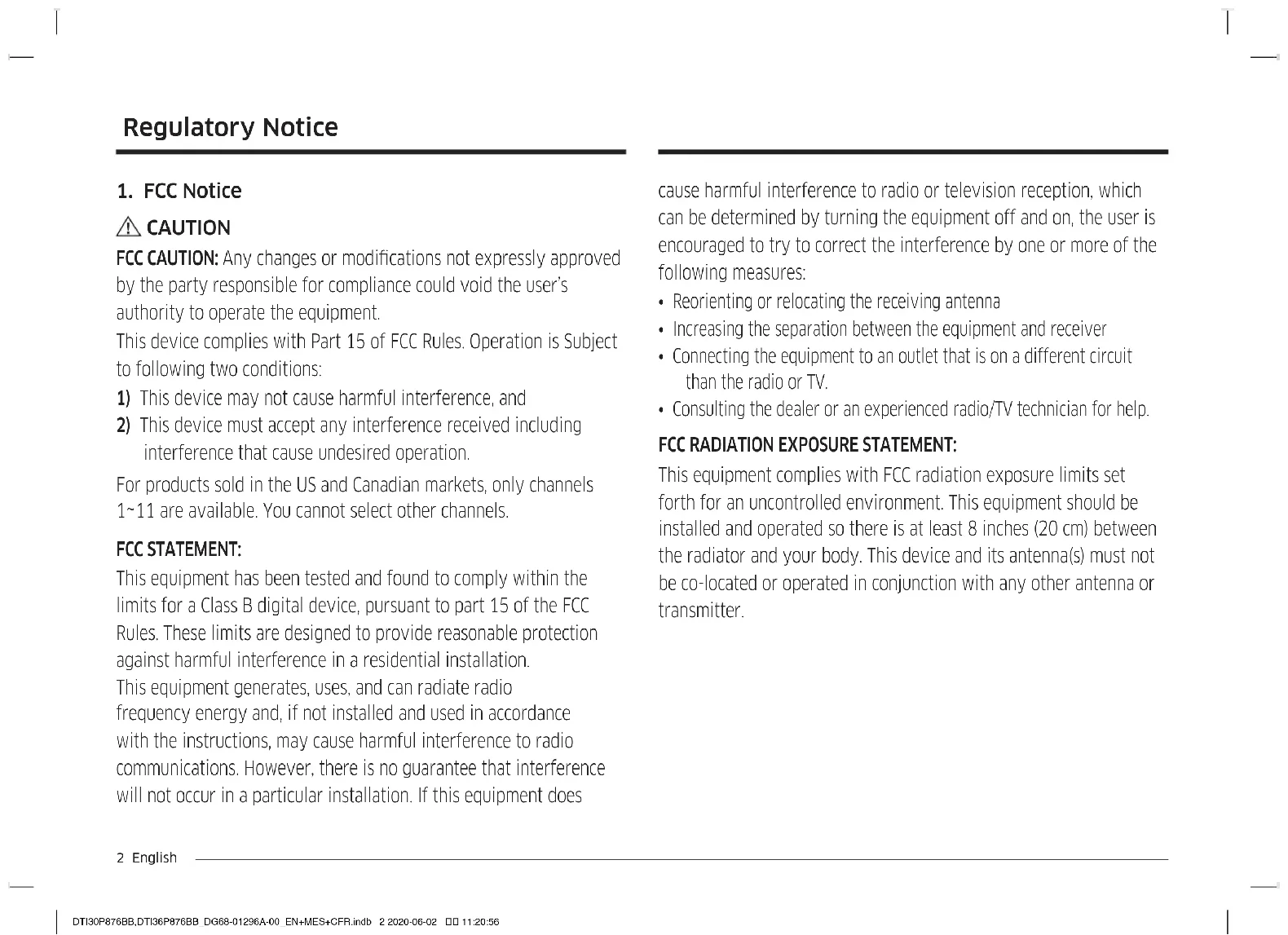

FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:

1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna
- Increasing the separation between the equipment and receiver
- Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
- Consulting the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

2. IC Notice

The term "IC" before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003. For products sold in the US and Canadian markets, only channels 1\~11 are available. You cannot select other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

General safety instructions

This unit has been tested and found to comply with the limits for a class B digital device, pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antennae.
• Increasing the distance between the unit and receiver.
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.

ContentsContents

Important safety instructions 6

Before you start 16

About induction cooktop cooking 16

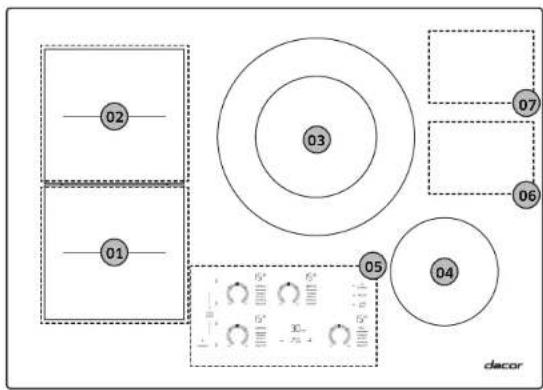

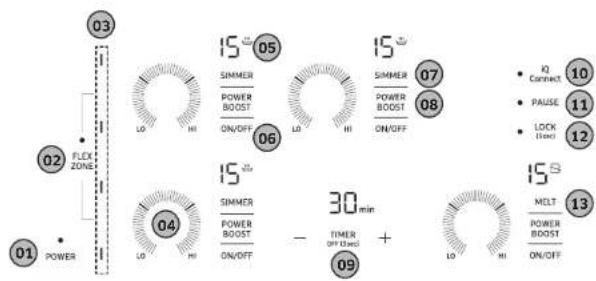

Location of the induction cooktop elements and controls 17

Residual heat indicator 19

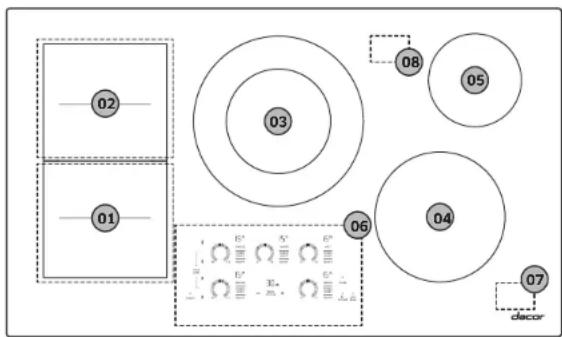

Cooking areas 19

Initial cleaning 20

Digital display 20

Safety shutoff 20

Operation 20

Switching the appliance on 20

Selecting a cooking zone and power setting 20

Switching the appliance off 21

Using the Lock 22

Timer 22

Power boost control 23

Power management 23

Pause 24

Flex zone 24

Sound on/off 26

Before using the cooktop 26

Cookware for induction cooking zones 27

Using the correct size cookware 28

Pot and pan sizes 28

Operating noises 28

Using suitable induction cookware 29

Temperature detection 29

Protecting the cooktop surface 30

Using the iQ Connect feature 30

Using the hood control feature 31

Maintaining your appliance 31

Care and cleaning of the glass cooktop 31

Troubleshooting 33

Troubleshooting 33

Information codes 35

Warranty and Service 35

Warranty 35

Appendix 37

Model name & serial number 37

4 English

To Our Valued Customer:

Congratulations on your purchase of the very latest in Dacor™ products! Our unique combination of features, style and performance make us The Life of the Kitchen™, and a great addition to your home.

In order to familiarize yourself with the controls, functions and full potential of your new Dacor Appliance, read this use and care manual thoroughly, beginning with the Important Safety Instructions section.

All Dacor appliances are designed and manufactured with quality and pride, while working within the framework of our company value. Should you ever experience a problem with your product, please first check the Troubleshooting section of this manual for guidance. It provides useful suggestions and remedies prior to calling for service.

Valuable customer input helps us to continuously improve our products and services, so please feel free to contact our Customer Service Team for assistance with any of your product support needs.

Dacor Customer Service Team

14425 Clark Avenue

City of Industry, CA 91745

Telephone: 833-35-ELITE (833-353-5483). USA and Canada

Fax: [phone]

Hours of Operation: Monday through Friday 5:00 A.M. to 5:00 P.M. Pacific Time

Website: www.Dacor.com

Thank you for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor product will deliver a high level of performance and enjoyment for many years to come.

Sincerely,

The Dacon Customer Service Team

Important safety instructions

Read and follow all instructions before using your cooktop to prevent the risk of fire, electric shock, personal injury, or damage when using the cooktop. This guide does not cover all possible conditions that may occur. Always contact your service agent or the manufacturer about problems that you do not understand.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important safety instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your cooktop.

Important safety symbols and precautions

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

CAUTION

To reduce the risk of fire, explosion, electric shock, or personal injury when using your cooktop, follow these basic safety precautions.

Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
★ Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
☐ Call a Dacor service center for help.
Note

These warning signs are here to prevent injury to you and others. Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

6 English

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

FOR YOUR SAFETY

When using electrical appliances, you should follow basic safety precautions, including the following:

CAUTION

• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Potentially hot surfaces include cooktop, the cooktop facing, and areas near the cooktop.

User servicing - Do not repair or replace any part of the appliance unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

Always disconnect the power to the appliance before servicing by removing the fuse or switching off the circuit breaker.

• Do not store items of interest to children in cabinets above the cooktop surface. Children climbing on the cooktop to reach items could be seriously injured.
• Do not leave children alone. Never leave children alone or unattended in an area where this appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
• Never use your appliance for warming or heating the room.
• Do not use water on grease fires. Turn off the cooktop to avoid spreading the flames. Smother the fire or flames or use a dry chemical, baking soda, or foam-type extinguisher.
• Storage in or on the appliance. Do not store flammable materials near the surface units. Be sure all packing materials are removed from the appliance before operating it. Keep plastics, clothes, and paper away from parts of the appliance that may become hot.
• Wear proper apparel. Never wear loose-fitting or hanging garments while using the appliance.
• Use only dry potholders. Placing moist or damp potholders on hot surfaces may result in burns from steam. Do not let the potholder touch hot heating elements. Do not use a towel or other bulky cloth.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

English 7

Important safety instructions

• Teach children not to play with the controls or any other part of the cooktop.
• Be sure your appliance is properly installed and grounded by a qualified technician.
• Avoid scratching or striking the cooktop. Doing so may lead to glass breakage. Do not cook on a cooktop with broken glass. Shock, fire, or cuts may occur.
• For your safety, do not use high-pressure water cleaners or steam jet cleaners to clean any part of the cooktop.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid creating a hazard.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not lean on the cooktop as you may turn the control knobs inadvertently.

SURFACE COOKING UNITS

• Never leave surface units unattended at high heat settings. Boilovers cause smoking and greasy spillovers that may ignite.
• Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock or fire.
• Do not lift the cooktop. Lifting the cooktop can damage the cooktop and cause the cooktop to malfunction.
• Never use the glass cooktop surface as a cutting board.
• Use care when touching the cooktop. The glass surface of the cooktop will retain heat after the controls have been turned off.
• Use proper pan sizes. This appliance is equipped with surface units of different size. Select pots and pans that have flat bottoms large enough to cover the surface area of the heating element. Using undersized cookware will expose a portion of the heating element to direct contact and may result in the ignition of clothing. Matching the size of the pot or pan to the burner will also improve efficiency.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

8 English

• Cookware Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, or spillage due to unintentional contact with cookware, position cookware handles so that they are turned inward and do not extend over adjacent surface units.
• Glazed cookware. Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed cookware can be used for rangetop service without breaking due to sudden changes in temperature.
  • Always turn the surface units off before removing cookware.
• Keep an eye on foods being fried at high or medium high heat settings.
• To avoid oil spillover and fire, use a minimum amount of oil when shallow pan-frying and avoid cooking frozen foods that have excessive amounts of ice.
• Do not operate the cooktop without cookware. If the cooktop operates without cookware, the control knobs will become hot.
• Do not move the container and bowl in a horizontal position on cooktop surface.

• Be careful when placing spoons or other stirring utensils on the glass cooktop surface when it is in use. They may become hot and could cause burns.
• Cleaning. Read and follow all instructions and warnings on the cleaning cream labels.
• Be sure you know which control knob operates each surface unit. Make sure you have turned on the correct surface unit.
• When preparing flaming foods under the hood, turn the fan on.
• Do not store heavy items above the cooktop surface that could fall and damage it.
• Do not Use Decorative Surface Element Covers – If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop.
• Appliance is not intended to be operated by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

English 9

Important safety instructions

ELECTRICAL SAFETY

Use factory installed flexible cord to connect to power supply only, do not use power supply cord kit.

• The cooktop should be serviced only by qualified service personnel. Repairs carried out by unqualified individuals may cause injury or a serious malfunction. If your appliance is in need of repair, contact a Dacor authorized service center. Failure to follow these instructions may result in damage and void the warranty.
• Flush - mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards. This ensures that the appliances are installed in compliance with the appropriate safety standards.

• If your appliance malfunctions or if fractures, cracks, or splits appear:

• switch off all cooking zones

• unplug the cooktop from the AC wall outlet
• contact your local Dacor service center.

WARNING

If the surface is cracked, switch off and unplug the appliance to avoid the possibility of electrical shock. Do not use your cooktop until the glass surface has been replaced.

CHILD SAFETY

WARNING

• This appliance is not intended for use by young children or infirm persons without the adequate supervision of a responsible adult.
• Young children should be supervised to ensure that they do not play with the appliance.
• The cooking zones will become hot when you cook. To keep small children from being burned, always keep them away from the appliance while you are cooking.

WARNING

Accessible parts may become hot during use. To avoid burns, young children should be kept away.

SAVE THESE INSTRUCTIONS

VENTILATING HOOD

• Clean ventilating hoods frequently. Do not let grease accumulate on the hood or filter.
• When flaming foods under the hood, turn the fan on.

GLASS/CERAMIC COOKING SURFACES

• DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.

Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact the surface units or areas near the units until they have had sufficient time to cool. Among these areas are the cook-top and the facing of the cooktop.
- Do not cook on a broken cooktop. If the cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. If your cooktop breaks, contact an authorized Dacor service center immediately.

Clean the cooktop with caution. If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface.

CRITICAL INSTALLATION WARNINGS

WARNING

- This appliance must be installed by a qualified technician or service company.

- Failing to have a qualified technician install the cooktop may result in electric shock, fire, an explosion, problems with the product, or injury.

• Unpack the cooktop, remove all packaging material and examine the cooktop for any damage such as dents. If there is any damage, do not operate the cooktop and notify your dealer immediately.
• Plug the power cord into a properly grounded outlet with the proper configuration. Your cooktop should be the only item connected to this circuit.
• Keep all packaging materials out of the reach of children. Children may use them for play and injure themselves.

• Install the cooktop on a sturdy, level cabinet that can support its weight.

- Failing to do so may result in problems with the cooktop.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

Important safety instructions

• This appliance must be properly grounded.
- Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

- This may result in electric shock, fire, an explosion, or problems with the product.

• Do not cut or remove the grounding prong from the power cord under any circumstances.
• Connect the cooktop to a circuit that provides the correct amperage.

- Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water (rain drops).

- This may result in electric shock or fire.

- Do not use a damaged power cord or loose wall socket.

- This may result in electric shock or fire.

• Do not pull or bend the power cord excessively.
• Do not twist or tie the power cord.

- Do not hook the power cord over a metal object, place a heavy object on the power cord, or insert the power cord between objects.

- This may result in electric shock or fire.

If the power cord is damaged, contact your nearest Dacor service center.

CRITICAL USAGE WARNING

CAUTION

• If the appliance is flooded by any liquid, please contact your nearest Dacor service center. Failing to do so may result in electric shock or fire.
• If the appliance produces a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest Dacor service center.

- Failing to do so may result in electric shock or fire.

• In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not touch the power cord. Do not touch the appliance.
• A spark may result in an explosion or fire.

• Take care not to contact the cooktop surface with your body while cooking or just after cooking.
- Failing to do so may result in burns.
- Always observe safety precautions when using your cooktop. Never try to repair the cooktop on your own - there is dangerous voltage inside. If the cooktop needs to be repaired, contact an authorized Dacor service center near you.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

12 English

• If you use the appliance when it is contaminated by foreign substances such as food waste, it may result in a problem with the appliance.
• Do not attempt to repair, disassemble, or modify the appliance yourself.
• Since a high voltage current enters the product chassis, it may result in electric shock or fire.
• When a repair is needed, contact your nearest Dacor service center.
• If any foreign substance such as water has entered the appliance, contact your nearest Dacor service center.
• Failing to do so may result in electric shock or fire.
• Do not touch the power cord with wet hands.
• This may result in electric shock.
• Do not turn the appliance off while an operation is in progress.
• This may cause a spark and result in electric shock or fire.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
• If a child places a plastic bag over his or her head, the child can suffocate.

• Do not let children or any person with reduced physical, sensory, or mental capabilities use this appliance unsupervised.

• Keep pets away from the appliance because pets may step on the controls of the appliance, causing a malfunction.

• Make sure that the appliance's controls and cooking areas are out of the reach of children.
• Failing to do so may result in electric shock, burns, or injury.
• Do not use or place flammable sprays or objects near the cooktop.
• Flammable items or sprays can cause fires or an explosion.

- Do not insert fingers, foreign substances, or metal objects such as pins or needles into inlets, outlets, or holes. If foreign substances are inserted into any of these holes, contact your product provider or nearest Dacor service center.

- Never use this appliance for purposes other than cooking. - Using the appliance for any purpose other than cooking may result in fire.

- Never heat plastic or paper containers and do not use them for cooking. - Failing to do so may result in a fire.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

English 13

Important safety instructions

• Do not heat food wrapped in paper from magazines, newspapers, etc.
• This may result in a fire.
• Do not hold food in your bare hands during or immediately after cooking.
• Use cooking gloves. The food may be very hot and you could burn yourself.
• As the handle and cooktop surfaces may be hot enough to cause burns after cooking, use cooking gloves to protect your hands from burns.

USAGE CAUTIONS

CAUTION

• If the surface is cracked, turn the appliance off.
• Failing to do so may result in electric shock.
• Dishes and containers can become hot. Handle with care.
• Hot foods and steam can cause burns. Carefully remove container coverings, directing the steam away from your hands and face.
• Remove lids from baby food jars before heating. After heating baby food, stir well to distribute the heat evenly. Always test the temperature by tasting before feeding the baby. The glass jar or the surface of the food may appear to be cooler than the interior, which can be hot enough to burn an infant's mouth.
• Take care as beverages or food may be very hot after heating.
• Especially when feeding a child, make sure that the food or beverage has cooled sufficiently.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

14 English

• Take care when heating liquids such as water or other beverages.

• Make sure to stir during or after cooking.
• Avoid using a slippery container with a narrow neck.
• Wait at least 30 seconds after heating before removing the heated liquid.
• Failing to do so may result in an abrupt overflow of the contents and cause burns.

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

This may result in electric shock, fire, problems with the product, or injury.

• Do not operate the appliance with wet hands.
• This may result in electric shock.
• Do not spray volatile substances such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, fire, or problems with the product.

- Do not put your face or body close to the appliance while cooking.

• Take care that children do not come too close to the appliance.

• Failing to do so may result in children burning themselves.

• Do not scratch the glass of the cooktop with a sharp object.

• This may result in the glass being damaged or broken.
• Do not store anything directly on top of the appliance when it is in operation.
• Do not over-heat food.
• Overheating food may result in a fire.

SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

English 15

Important safety instructions

CRITICAL CLEANING WARNINGS

CAUTION

Do not clean the appliance by spraying water directly on to it.

- Do not use benzene, thinner, or alcohol to clean the appliance.

- This may result in discoloration, deformation, damage, electric shock, or fire.

• Take care not to hurt yourself when cleaning the appliance (externally or internally).

- You may hurt yourself on the sharp edges of the appliance.

- Do not clean the appliance with a steam cleaner.

- This may result in corrosion.

- Keep the cooktop surface clean. Food particles or spattered oils stuck to the cooktop surface can cause paint damage and reduce the efficiency of the cooktop.

Before you start

About induction cooktop cooking

CAUTION

BEFORE COOKING

• Do not use the Induction cooktop surface as a cutting board.
• Do not place or store items that can melt or catch fire on the induction cooktop, even when it is not being used.
• Turn the induction cooktop on only after placing the cookware on it.
• Do not store heavy items above the cooktop surface. They could fall and damage it.

CAUTION

DURING COOKING

• Metallic objects such as knives, forks, spoons, and lids should not be placed on the induction cooktop surface since they can get hot.
• After use, switch off the induction element using its control. Do not rely on the pan detector.
• Use this appliance for normal cooking and frying in the home only. It is not designed for commercial or industrial use.
• Never use the induction cooktop to heat the room.
• Take care when plugging electrical appliances into a power outlet near the cooktop. Power cords must not come into contact with the cooktop.
• Overheated fat and oil can catch fire quickly. Never leave surface units unattended when preparing foods in fat or oil, for example, when cooking french fries.
• Turn the cooking zones off after use.
• Never place combustible items on the induction cooktop. It may cause a fire.
• Do not use the induction cooktop to heat aluminium foil, products wrapped in aluminium foil, or frozen foods packaged in aluminium cookware.
• There is the risk of burns from the appliance if used carelessly.

• Do not let cables from electrical appliances touch hot cookware or the hot surface of the induction cooktop.

• Do not use the induction cooktop to dry clothes.

• Never store flammable materials such as aerosols and detergents in the drawer or cupboards under the induction cooktop.
• Users with Pacemakers or Active Heart Implants must keep their upper body at least 1 ft. (30 cm) from the induction cooking zones when they are turned on. If in doubt, you should consult the manufacturer of your device or your doctor.

CAUTION

AFTER COOKING

• Do not touch the induction elements until they have cooled down.
• The surface can stay hot for some time after cooking is complete. If you touch the surface before it has had time to cool down sufficiently, you can burn yourself.
• Immediately clean spills on the cooking area to prevent a tough cleaning chore later.
• After you have activated elements on the cooktop, the internal fan may come on for cooling purposes.
• The fan activation time may differ depending on the temperature of the internal sensor. (10 minutes or 20 minutes)
• If you have cabinet storage directly above the cooking surface, make sure that the items in the cabinet are infrequently used and can be safely stored in an area subjected to heat. Temperatures may be unsafe for items such as volatile liquids, cleaners, or aerosol sprays.

CAUTION

If the cooktop is installed above an oven, do not use the cooktop while the oven's Self-cleaning function is on.

Location of the induction cooktop elements and controls

Cooking zones

36" full-touch cooktop

02 01 03 06 04 05 08 07 decor

01 Induction front Wide Flex zone: 1800 W. With Power Boost, 2600 W.
03 Center: 11", 3600 W. With Power Boost, 4800 W
05 Right rear: 6", 1400 W. With Power Boost, 2000 W.
07 Wi-Fi communication area 08 Bluetooth communication area
06 Control Panel

02 Induction rear Wide Flex zone: 1800 W. With Power Boost, 2600 W.
04 Right front: 8", 2200 W. With Power Boost, 3200 W.

NOTE

Do not put cookware either on the Bluetooth or Wi-Fi communication area.

Before you start

30 ^+ full-touch cooktop

02 01 03 04 05 06 07 dacor

01 Induction front Wide Flex zone: 1800 W. With Power Boost, 2600 W.
03 Center: 11", 3600 W. With Power Boost, 4800 W.
05 Control Panel 06 Wi-Fi communication area
07 Bluetooth communication area
02 Induction rear Wide Flex zone: 1800 W. With Power Boost, 2600 W.
04 Right front: 6", 1400 W. With Power Boost, 2000 W.

NOTE

Do not put cookware either on the Bluetooth or Wi-Fi communication area.

Control Panel
36" cooktop

03 02 FLEX ZONE 01 POWER 15° 05 SIMMER POWER BOOST ON/OFF 06 15° 07 SIMMER POWER BOOST ON/OFF 15° MELT POWER BOOST ON/OFF 10 04 SIMMER POWER BOOST ON/OFF 15° - 30 min TIMER OFF (2nd) + 15° SIMMER POWER BOOST ON/OFF 11 PAUSE IQ Connect LOCK (1st) 1213

01 Power 02 Flex Zone selector
03 Flex zone indicator 04 Heat setting selector
05 Indicators for heat settings and residual heat
07 Simmer selector (☐)
09 Timer
11 Pause 12 IQ Connect
13 Lock
06 Cooking Zone selector
08 Power Boost selector
10 Melt selector (☐)

18 English

30" cooktop

03 15° 05 SIMMER POWER BOOST ON/OFF 06 15° SIMMER POWER BOOST ON/OFF 07 08 IQ Connect 10 PAUSE 11 LOCK (Open) 12 04 SIMMER POWER BOOST ON/OFF 15° - 30 min TIMER OFF (Open) + 09 10 MELT POWER BOOST ON/OFF 13 01 POWER FLEX ZONE

01 Power 02 Flex Zone selector
03 Flex zone indicator 04 Power setting selector
05 Indicators for power settings and 06 Cooking zone selector residual heat
07 Simmer selector ( )
09 Timer 10 iQ Connect
11 Pause 12 Lock
13 Melt selector (☐)

06 Cooking zone selector

08 Power Boost selector

Residual heat indicator

When an individual cooking zone or the cooktop is turned off, the presence of residual heat is shown with an H, (for "not") in the digital display of the appropriate cooking zones. Even after the cooking zone has been switched off, the residual heat indicator goes out only after the cooking zone has cooled. You can use the residual heat for thawing or keeping food warm.

NOTE

The uppercase 'H' indicates higher temperatures than the lowercase 'h

WARNING

As long as the residual heat indicator is illuminated, there is a risk of burns.

WARNING

If the power supply is interrupted, the H, symbol will go out and information about residual heat will no longer be available. However, it may still be possible to burn yourself. This can be avoided by always taking care when near the cooktop.

Cooking areas

• The cooking areas on your cooktop are identified by permanent circles on the glass cooking surface. For the most efficient cooking, fit the pan size to the element size.
• Pans should not extend more than 12 to 1" beyond the cooking area.
• For more information on selecting proper types of cookware, refer to the section "Use quality cookware in good condition". See page 26.

Before you start

Initial cleaning

Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner.

WARNING

Do not use caustic or abrasive cleaners. The surface could be damaged.

Digital display

• 1 to 15 selected heat settings
  • H Residual heat (Still Hot)
• h Residual heat
  • L The Lock is activated.
• d0 message. A touch key has been touched and held for more than 8 seconds.
• [1] message. The cooktop has overheated because of abnormal operation. (Example: An element was turned on with empty cookware on top.)
• The cookware is unsuitable or too small or no cookware has been placed on the cooking zone.
• message. The power applied to the cooktop is too high or low.

Safety shutoff

• If the cooktop overheats because of abnormal operation, [ I will be displayed and the cooktop will turn off.
• If cookware is unsuitable or too small or no cookware has been placed on the cooking zone, U will be displayed.
  After 1 minute, the corresponding cooking zone will turn off.

Other reasons why a cooking zone will switch itself off

All cooking zones will switch themselves off if liquid boils over and lands on the control panel.

The automatic shutoff will also be activated if you place a damp cloth on the control panel. In both of these instances, you will need to turn the cooktop on again using the main POWER key after the liquid or the cloth has been removed.

Operation

Switching the appliance on

POWER L0 H1

Turn the cooktop on by touching the POWER key for approximately 1 second.

NOTE

After you have touched the POWER key to switch on your cooktop, you must select a cooking zone or element and a power setting within approximately 20 seconds. Otherwise, the cooktop will switch itself off for safety reasons.

Selecting a cooking zone and power setting

SIMMER POWER BOOST ON/OFF

1. To select an element or cooking zone, touch the ON/OFF key of the zone or element.

- The digital displays will show . 0

SIMMER POWER BOOST ON/OFF LO HI SIMMER POWER BOOST ON/OFF

1. To set or adjust the power level, run your finger clockwise or counterclockwise along the surface of the element or zone control as shown in the illustration.

- If you do not set a power level after selecting an element, the element will turn off automatically after 10 seconds.

Recommended settings

The power levels in the table below are guidelines. The power settings required for various cooking methods depend on a number of variables, including the quality of the cookware being used and the type and amount of food being cooked.

SETTING POWER LEVELS TYPE OF COOKING
HIGH/BOOST	14-15Boost	Bringing water to a boilStart food cookingQuickly scaring meat
MEDIUM HIGH 10-13		Holding a rapid boilDeep fat frying, pan frying, stir frying
MEDIUM 7-9		Cooking sauces and graviesSteaming vegetables
MEDIUM LOW 4-6		Maintaining a slow boilKeeping foods cooking, poaching,stewing
LOW	1-3Melt, Simmer	Melting chocolate or butterKeeping foods warmSimmering

Griddle (Flex zone)

Preheat the griddle (MEDIUM HIGH or HIGH).

Type of cooking Setting
Pancakes MEDIUM LOW
Fried eggs MEDIUM LOW
French toast MEDIUM
Bacon, sausages MEDIUM - cook to desired browness
Hamburgers MEDIUM HI - cook to desired doneness

NOTE

• The power settings indicated in the table above are provided only as guidelines for your reference.
• You will need to adjust the power settings according to specific cookware and foods.

Switching the appliance off

POWER LD HI

To completely switch off the appliance, touch the POWER key for 1 second.

NOTE

After you switch off a single cooking zone or the entire cooking surface, the presence of residual heat will be indicated in the digital displays of the corresponding cooking zones by an H or h (for "hot").

Operation

Using the Lock

You can use the Lock to safeguard against a child unintentionally turning on a cooking zone and activating the cooking surface. Also, the control panel, with the exception of the POWER key, can be locked to prevent the settings from being changed unintentionally, for example, by wiping over the panel with a cloth.

Switching the Lock On/Off

30" LOCK BEER MELT

LO HI POWER BOOST ON/OFF 15Ω

1. Touch the Lock key for approximately 3 seconds

An acoustic signal will sound as confirmation.

1. Touch any control key.

L will appear in the displays, indicating the Lock has been activated.

1. To switch the Lock off, touch the Lock key again for 3 seconds. An acoustic signal will sound as confirmation.

NOTE

• If you activate the Lock while the cooktop is operating, touch the POWER button to turn the cooktop off for safety reasons.
• If the Lock is enabled when the cooktop is not operating, all buttons will be disabled including the POWER button.

22 English

Timer

10min - TIMER OFF (3 sec) + +

1. Press the Timer key. The number 10 will be displayed above the timer display.

15min — TIMER OFF (3sec)

1. Use the Timer setting selectors (+ or -) to set the desired amount of time. Then, press Timer key again.

NOTE

The timer can be adjusted from 0 to 99.

15min - TIMER OFF (3sec) + +

1. To cancel the timer settings, hold down the Timer key for 3 seconds.

NOTE

• To change the settings quicker, touch and hold any of the + or - control keys until the desired value is reached.
• When the timer is terminated, it sounds a beep 4 times. However, the cooking zone will not be turned off.

Power boost control

The Power Boost P function makes additional power available to each cooking zone (for example, when you want to bring a large volume of water to a boil). 36"

Cooking zones Max Boost time
11" 8 min
8" 10 min
6" 10 min
Front or Rear Flex Plus 10 min
Complete Flex Plus 5 min

30"

Cooking zones Max Boost time
11" 8 min
6" 10 min
Front or Rear Flex Plus 10 min
Complete Flex Plus 5 min

When the Max Boost times expire, the cooking zones automatically return to power level 15.

NOTE

In certain circumstances, the Power Boost P function may be deactivated automatically to protect the internal electronic components of the cooktop.

Power management

The cooking zones have a maximum power available to them.

If this power range is exceeded in a cooking zone when you switch on the Power

Boost P function, Power Management automatically reduces the power setting of the cooking zone.

36"

A. Paired cooking zone
B. Paired cooking zone

30"

A. Paired cooking zone
B. Paired cooking zone

The indicator for the cooking zone alternates for some seconds between the set power setting and the maximum possible power setting. Then, the indicator changes from the set power setting to the maximum possible power setting.

The indicator for the cooking zone alternates for some seconds between the set power setting and the maximum possible power setting. Then, the indicator changes from the set power setting to the maximum possible power setting.

Operation

Pause

36"

15 SIMMER POWER BOOST ON/OFF PAUSE IQ Connect LOCK (Load)

30"

The Pause function simultaneously switches all cooking zones that are switched on to the low power setting. This function can be used to briefly interrupt and then continue the cooking process e.g. to take a telephone call.

when the Pause function is activated, all touch keys except for the Pause, Lock, ON/OFF, and POWER keys are disabled. To resume cooking, touch the Pause button.

The cooking zones return to their previous setting.

	Control Panel Display
To Switch On	Touch Pause key	2
To Switch Off	Touch Pause key	Return to previous power level

NOTE

Timer functions are not stopped by the Pause function.

Flex zone

You can use the Flex Zone function to operate and control the two elements on the left side simultaneously, as a single cooking zone, and then use the zone for large cookware. (Examples: oval cookware, large spaghetti pots, etc.)

FLEX ZONE LO HI POWER 15 SIMM POW ROO ON/O LO HI ON/O

1. Touch the Flex Zone selector. The two left elements are synched and will now work together.

2. Use an element control as shown to adjust the power level of the two left elements. The power setting displays of the two left elements (front and rear) will change together.

3. To disable the Flex Zone function, touch the Flex Zone selector.

Flex zone Indicator

FLUX ZONE POWER 15 UNIMED POWER BOOST ON/OFF 15 SPINHER POWER BOOST ON/OFF

The Flex Zone indicator uses pan detection to display the active zone when the Flex Zone function is enabled.

NOTE

If an inappropriate pot or pan is placed on the cooking zone, the indicator blinks. If the pot or pan is not removed, the cooking zone turns off.

Any one element of the Flex zone may not operate properly with a small pan or pot if it slants to one element even slightly.

POWER BOOST ON/OFF 15 SUMMER POWER BOOST ON/OFF

NOTE

To turn the synched elements off, touch the ON/OFF key for any synched element. The two synced elements will turn off simultaneously.

Size of pans

Induction cooking zones adapt automatically to the size of the bottom of the cookware up to a certain limit. However the magnetic part of the bottom of the cookware must have a minimum diameter depending upon the size of the cooking zone.

Cooking zones Minimum diameter of the bottom of the cookware
Front or Rear Flex zone plus	5.5 inch (140 mm)
Flex zone plus 9.4 inch (240 mm) (long side dimension), oval, fish kettle

Flex zone Plus

The Flex zone is the large cooking area located on the left side of the hob (see the figure below) that is specially designed to accommodate multiple pots and pans of varying shapes and sizes at once. The Flex zone has four zones that are operated by individual inductors, allowing you to cook regardless of where cookware is placed on a cooking zone.

With Flex zone Plus, you can use a combination of different cooking zones to enlarge the cooking area. See the table below for the corresponding sensor to touch to activate the different combinations.

Cooking Zone 1 burner 2 burner 3 burner 4 burner
1
2
3
4

NOTE

• When using only one cooking zone, the diameter of the bottom of the cookware must be less than 14 cm.
• The hob may take 5-10 seconds to recognize the position of cookware.
• Noises may occur while the hob recognizes the cookware.
• Do not remove cookware during cooking. For safety purposes, the hob automatically stops if cookware has been removed for more than 5 seconds.

Operation

Sound on/off

POWER LO

1. Touch the POWER key for approximately 1 second.

88 min TIMER OFF (3 sec) + +

1. Touch the key for 3 seconds within 10 seconds of pressing the POWER key.

OF - TIMER + OFF (3sec) +

1. Sound will turn off and QAI appear in the Timer display.

On - TIMER OFF (3 sec) +

1. To change the Sound setting, repeat Steps 1 and 2. Sound will turn ON and ON will appear in the Timer display.

NOTE

To change the Sound On/Off setting, you must operate the Sound On/Off function within 10 seconds of turning the power on.

Before using the cooktop

Use quality cookware in good condition

Illustration of hands holding a plate with a tool, showing a curved arrow indicating rotation (no text or symbols)

The cookware used with the cooktop surface should have flat bottoms that make good contact with the entire surface of the Cooking Zone. Check for flatness by rotating a ruler across the bottom of the cookware. Be sure to follow all the recommendations for using cookware.

Also remember to

• Use cookware made with the correct material for induction cooking. See "Cookware for induction cooking zones" on page 27.
• Use quality cookware with heavier bottoms for better heat distribution. This provides for more even cooking results.
• The pan size should match the amount of food being prepared.
• Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marring that can affect the ceramic cooktop. (This type of damage is not covered by your warranty).
• Do not use dirty pans with grease buildup. Always use pans that are easy to clean after cooking.

CAUTION

• The Cooking Zones may appear to be cool while turned ON and after they have been turned OFF. The glass surface may be HOT from residual heat transferred from the cookware and burns may occur.
• DO NOT TOUCH HOT COOKWARE or PANS directly with your hands. Always use oven mitts or pot holders to protect your hands from burns.
• DO NOT SLIDE cookware across the cooktop surface. Doing so may permanently damage the appearance of the ceramic cooktop.

CORRECT INCORRECT

Flat pan bottom & straight sides.

Curved or warped pan bottoms or sides.

Pan size meets or exceeds the recommended minimum size for the Cooking Zone. See "Using the correct size cookware".

Pan does not meet the minimum size required for the Cooking Zone used. See "Using the correct size cookware".

Pan rests completely on the Cooktop surface.

Pan bottom rests on cooktop trim or does not rest completely on the cooktop surface.

Pan is properly balanced.

Heavy handle tilts pan.

NOTE

ANY one of the incorrect conditions listed above may be detected by the sensors located below the ceramic cooktop surface. If the cookware does not meet one or more of these conditions, one or more of the Cooking Zones will not heat, and settings will flash in the affected Cooking Zone display. Correct the problems before attempting to activate the cooktop.

Cookware for induction cooking zones

The induction element can only be turned on when cookware with a magnetic base is placed on one of the cooking zones. You can use the cookware identified as suitable below.

Cookware material

Cookware material Suitable
Steel, Enamelled steel Yes
Cast iron Yes
Stainless steel if appropriately labelled by the manufacturer
Aluminium, Copper, Brass No
Glass, Ceramic, Porcelain No

NOTE

• Cookware appropriate for induction cooking is labelled as suitable by the manufacturer.
• Certain cookware can make noise when being used on induction cooking zones. These noises do not indicate that the cooktop is malfunctioning and do not affect its operation in any way.

Operation

Using the correct size cookware

• The Induction Cooking Zones require that you use pots and pans of a minimum size or larger at each location. The inner ring of each Cooking Zone is your guide to the correct minimum pan size. The pan bottom must fully cover the inner ring for proper cooking to occur.
• The thicker outer ring at each Cooking Zone is helpful to determine the maximum pan size. After centering the cookware on the cooktop, make sure the cookware does not extend more than 1/2" beyond the thicker line on the Cooking Zone. The pan must fully contact the glass surface.

NOTE

• If a pan made of the correct material is centered properly on any of the active Cooking Zones but is too small, the affected Cooking Zone display will flash and the pan will not heat.
• If cookware is unsuitable or too small or no cookware has been placed on the cooking zone, will be displayed. After 1 minute, the corresponding cooking zone will turn off.

Pot and pan sizes

Induction cooking zones adapt automatically to the size of the bottom of the cookware up to a certain limit. However the magnetic part of the bottom of the cookware must have a minimum diameter depending upon the size of the cooking zone.

36"

Diagram showing four circular components labeled ① to ④, with numbered labels ② and ③ on their respective sides.

Cooking zones	Minimum diameter of the bottom of the cookware
1 Front or Rear Flex zone plus 5.5 inch)(140 mm)(Long side diameter 9.4 inch (240 mm))
2 6.3	inch (160 mm)
3 3.9	inch (100 mm)
4 5.5	inch (140 mm)

30"

Pure diagram of three circles with numbered labels, no text or symbols present

Cooking zones	Minimum diameter of the bottom of the cookware
1 Front or Rear Flex zone plus 5.5 inch (140 mm) (Long side diameter 9.4 inch (240 mm))
2 6.3 inch (160 mm)
3 3.9 inch (100 mm)

Operating noises

You may hear the following operational noises:

• Cracking noises: You may hear a cracking noise when you are using cookware made of two or more materials.
• Whistling: A whistling noise occurs when both back burners are in use. This is caused by vibrations. Whistling can vary depending on the weight or material of the cookware or the type of food you are cooking. (The noise can be reduced by using thicker cookware.)
• Humming. You may hear a low humming when you set an element to a high power setting. This sound is generated by energy transmission, and it will disappear when cooktop is turned off.
• Clicking: Electric switches are operating.
• Hissing, Buzzing: You may hear a fan noise during cooktop operation. You may continue to hear it even after the cooktop is turned off. This is normal. The fan runs to cool down the temperature inside the cooktop. It will automatically shut itself off after a short period of time.

These noises are normal and do not indicate any defects.

28 English

Using suitable induction cookware

Suitability test

Simple line drawing of a frying pan with a U-shaped magnet above it (no text or symbols)

Cookware is suitable for induction cooking if a magnet sticks to the bottom of the cookware and the cookware is labelled as suitable by the cookware manufacturer.

Better pans produce better results

• You can recognize good pots and pans by their bases. The base should be as thick and flat as possible.
• When buying new pots or pans, pay particular attention to the diameter of the base. Manufacturers often give only the diameter of the upper rim.
• Do not use pans which have damaged bases with rough edges or burrs. You can scratch the ceramic cooktop permanently if you slide a pot or pan with a damaged base across the surface.
• When cold, pan bases are normally bowed slightly inwards (concave). They should never be bowed outwards (convex).
• If you want to use a special type of pot or pan, for example, a pressure cooker, a simmering pan, or a wok, please follow the manufacturer's instructions.

Energy saving tips

Right!

You can save valuable energy by observing the following points:

• Always position pots and pans before switching on the cooking zone.
• Dirty cooking zones and pan bases increase power consumption.
• When possible, position lids firmly on pots and pans so that the lids cover them completely.
• Switch the cooking zones off before the end of the cooking time and use the residual heat to keep food warm.

Wrong!

Wrong!

Temperature detection

If for any reason the temperatures on any of the cooking zones exceeds the safety level, then the cooking zone will automatically reduce the heat to a lower power level.

When you have finished using the cooktop, the cooling fan will continue to run until the cooktop's electronics have cooled down. The cooling fan switches itself on and off depending upon the temperature of the electronics.

NOTE

If the induction cooktop overheats because of abnormal operation, CI will be displayed and the induction cooktop will turn off.

OperationOperation

Protecting the cooktop surface

Cleaning

• Clean the cooktop before using it for the first time.
• Clean your cooktop daily or after each use. This will keep your cooktop looking good and can prevent damage.
• If a spillover occurs while you are cooking, immediately clean the spill while it is hot to prevent a tough cleaning chore later. Using extreme care, wipe the spill with a clean, dry towel.
• Do not allow spills to remain on the cooking area or the cooktop trim for a long period of time.
• Do not use abrasive cleansing powders or scouring pads, which will scratch the cooktop.
• Do not use chlorine bleach, ammonia, or other cleansers not specifically recommended for use on a glass ceramic surface.

Preventing marks and scratches

• Do not use glass cookware. It may scratch the cooktop.
• Do not place a trivet or wok ring between the cooktop and a pan or wok. These items can mark or scratch the cooktop.
  • Make sure the cooktop and the pan bottom are clean.
• Do not slide metal pans across the cooktop.

Preventing stains

• Do not use a soiled dish cloth or sponge to clean the cooktop surface. A film will remain, which may cause stains on the cooking surface after the area is heated.
• Continuously cooking on a soiled surface can result in a permanent stain.

Preventing other damage

• Do not allow plastic, sugar, or foods with high sugar content to melt onto the hot cooktop. Should this happen, clean immediately.
• Do not let a pan boil dry as this will damage the cooktop and the pan.
• Do not use the cooktop as a work surface or cutting board.
• Do not cook food directly on the cooktop. Always use the proper cookware.

30 English

Using the iQ Connect feature

The cooktop has built in a Wi-Fi module that you can use to sync the cooktop with the SmartThings app. On the smartphone app, you can:

• monitor the operating status and the power level settings of the cooktop elements.

- check and change the timer settings.

Functions that can be operated from the SmartThings app may not work smoothly if communication conditions are poor or the product is installed in a place with a weak Wi-Fi signal.

How to connect the cooktop

Before you can use the remote features of your Dacor cooktop, you must pair it to the SmartThings App.

1. Download and open the SmartThings app on your smart device.
2. Press the POWER key to turn the cooktop on.
3. Follow the app's instructions, and then touch and hold the IQ Connect key for 3 seconds.
4. While the connection is being made, the LED indicator above the IQ Connect key blinks. Once the process is complete, the indicator glows without blinking. Now the cooktop is connected successfully.
5. If the IQ Connect LED indicator does not turn on, follow the instruction in the app to reconnect.

NOTE

Make sure to set the IQ Connect function only when no hob operation is in process.

Wi-Fi On/Off

- Touch the IQ Connect key to turn on or turn off the Wi-Fi connection.

Maintaining your appliance

Using the hood control feature

This product features a Bluetooth device that you can use to connect the cooktop to Dacor hood control models. Through the Bluetooth connection, you can use the hood control function on the SmartThings app.

	Induction Hood
Model	DT136P876BBDT130P876BB	DHD30M967W*DHD36M987W*DHD48M987W*DHD36M967F*DHD48M967F*DHD36M867W*DHD30M867W*

To connect to a hood control model

1. Download and run the SmartThings App on your smartphone. Then, complete the IQ connect procedure to connect to the cooktop.
2. Follow the Bluetooth instructions of the hood control model and activate the Bluetooth connection.
3. Touch and hold the IQ connect and Lock buttons simultaneously to make the Bluetooth connection. When the Bluetooth connection is successfully established, be appears on the display.
4. Follow the instructions in the user manual of the hood control model and the App guide to use the hood control.

NOTE

• If the IQ connect connection is not successful, you cannot use the SmartThings App to monitor and control the hood.
• Without a IQ connect connection to the cooktop, you can use a Bluetooth connection to pair the cooktop with the hood and sync them. To do this, follow steps 2 and 3 above.

Care and cleaning of the glass cooktop

Normal daily use cleaning

Use only a ceramic cooktop cleaner. Other creams may not be as effective. By following these steps, you can maintain and protect the surface of your glass cooktop.

1. Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner.

• This helps protect the top and makes cleanup easier.
- Daily use of a ceramic cooktop cleaner will help keep the cooktop looking new.

1. Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
2. Use a paper towel or a cleaning pad for ceramic cooktops to clean the entire cooktop surface.
3. Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.

WARNING

DAMAGE to your glass surface may occur if you use scrub pads other than those recommended.

Maintaining your appliance Maintaining your appliance

Removing burned-on residue

Line drawing of a kitchen appliance with a hand holding a tool on top (no text or symbols)

Removing heavy, burned-on residue

Line drawing of a kitchen appliance with a hand placing food into a pan (no text or symbols)

1. Allow the cooktop to cool.
2. Spread a few drops of ceramic cooktop cleaner on the entire burned residue area.
3. Using a cleaning pad for ceramic cooktops, rub the residue area, applying pressure as needed.
4. If any residue remains, repeat the steps listed above as needed.

5. For additional protection, after all residue has been removed, polish the entire surface by applying ceramic cooktop cleaner with a paper towel.

6. Allow the cooktop to cool.

7. Use a single-edge razor-blade scraper at approximately a 45" angle against the glass surface and scrape the soil. It will be necessary to apply pressure to remove the residue.
8. After scraping with the razor scraper, spread a few drops of ceramic cooktop cleaner on the entire burned residue area. Use a cleaning pad to remove any remaining residue. (Do not scrape the seal around the edges of the cooktop.)
9. For additional protection, after all residue has been removed, polish the entire surface by applying ceramic cooktop cleaner with a paper towel.

Removing metal marks and scratches

1. Be careful not to slide pots and pans across your cooktop. It will leave marks on the cooktop surface. You can remove these marks by applying ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop. You should remove this discoloration immediately or it may become permanent.

WARNING

Carefully check the bottoms of pans for roughness that may scratch the cooktop.

Cleaning the cooktop seal

Line drawing of a kitchen appliance with four circular cutouts and a handle (no text or symbols)

To clean the seal around the edges of the glass, lay a wet cloth on it for a few minutes, then wipe clean with a nonabrasive cleaner.

Troubleshooting

Potential for permanent damage to the glass surface

• Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting of the surface of your cooktop. This is not covered under the warranty. You should clean the spill while it is still hot. Take special care when removing hot substances. Refer to the section below.
• When using a scraper, be sure it is new and the razor blade is still sharp. Do not use a dull or nicked blade.

Cleaning sugary spills and melted plastic

1. Turn off all surface units. Remove hot pans.
2. Wearing an oven mitt, use a single-edge razor-blade scraper to move the spill to a cool area of the cooktop. Remove the spill with paper towels.
3. Any remaining spillover should be left until the surface of the cooktop has cooled.
4. Don't use the surface units again until all of the residue has been completely removed.

NOTE

If pitting or indentations in the glass surface have already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.

Troubleshooting

Dacor works hard to ensure that you don't have problems with your new electric cooktop. If you run into unexpected trouble, look first for a solution in the tables below.

Symptom Possible cause Solution
The burners heat up slowly or cannot maintain a rolling boil.	You may be using incorrect cookware.	Place the cookware in the center of the cooking zone.Use cookware with ferromagnetic bottoms whose diameter is appropriate for the cooking zone.See the Cookware section on page 27.
The cooktop will not turn on.	There is a blown fuse or tripped circuit breaker.	Replace the fuse or reset the circuit breaker.
The burners do not turn on.	There is a blown fuse or tripped circuit breaker.	Replace the fuse or reset the circuit breaker.
	The cooktop controls are not set correctly.	Make sure the controls are set correctly for the respective surface unit.
The cooktop has streaks or specks.	Spillovers have cooked onto the cooktop.	Wait until the cooktop is cool.Use a single-edge razor-blade scraper to remove the streaks or specks.For more information, see the Cleaning section on page 31.
The cookware is not detected.	Inappropriate cookware was used, or the cookware is not placed on the cooking zone.	Place the cookware in the center of the cooking zone.Use cookware with ferromagnetic bottoms whose diameter is appropriate for the cooking zone.See the Cookware section on page 27.

TroubleshootingTroubleshooting

Symptom Possible cause Solution
The boost function has been deactivated or cannot be activated.	A cooking position is already paired, and the cooktop is too hot.	You can activate the boost function only once for a single burner.If a second cooking position is switched on or is already in operation, the boost function will not be available or is deactivated, and the cooking position returns to power level 15.The cooktop may be hot. Wait until the cooktop cools down.
The cooktop responds unusually or can no longer be operated correctly.		Disconnect the appliance from the electric supply by switching the circuit breaker off to the off position for 15 seconds.
There are cracking or popping sounds.	The power level is set between 1.0 and 3.0.And two pots are put on the Flex Zone.	This is normal. The strength of sound depends on the number and the size of the pots.
There are beeping sounds.	Occurs if buttons are repeatedly pressed.	Cookware is on the touch buttons, and hot cookware can damage the buttons.Remove the cookware.
The cooktop has stains or discoloration.	Food spills/stains were not cleaned.	See the Cleaning section on page 31.
	The cooktop is hot. The cooktop may appear discolored if it is hot.This is temporary, and the discoloration will disappear as the cooktop cools.

Symptom Possible cause Solution
The cooktop has scratches or abrasions.	The cooktop is not being correctly cleaned.	Scratches cannot be removed. However, tiny scratches will become less visible with cleaning. Use glass ceramic cleaning cream. Do not use chemical or corrosive agents. These agents may damage the cooktop.
	Cookware with rough bottoms were used. There were coarse particles such as salt between the cookware and cooktop.	To avoid scratches, follow the recommended cleaning instructions. Before using, make sure cookware bottoms are clean. Only use smooth, flat-bottomed cookware.
	Cookware may have slid across the cooktop.
The cooktop has metallic discolorations.	Mineral deposits from water and food have stained the cooktop.	To remove the stains, use a glassceramic cooktop cleaning cream. For best results and care, clean the cooktop weekly. Only use clean, dry cookware.

34 English

Warranty and Service

Information codes

Displayed code	Possible cause Solution
C0	The top sensor is open when the burner is operating.	Turn off the cooktop and then restart. If the problem continues, unplug the power cord for 30 seconds or more and then reconnect. If the problem is not fixed, please contact a local Dacor service center.
	The top sensor is short when the burner is operating.
C1	This code appears if the internal temperature of a burner rises abnormally high.
C2	The IGBT sensor is open when the burner is operating.
	The IGBT sensor is short when the burner is operating.
d0	The key is pressed for more than 8 seconds.	Check if the key pad is wet or a key is depressed. If the problem continues, restart the appliance using the POWER button. If the problem still continues, contact a local Dacor service center.
F0	Communications between main and sub PCBs failed.	Restart the appliance using the POWER button. If the problem continues, disconnect power for more than 30 seconds. Then, restart the appliance. If the problem still continues, contact a local Dacor service center.
F1	Communications between main and EEP-ROM failed.
F2	The touch-enabled IC communicates abnormally.
UP The voltage is too high or low.		Check the power connection and make sure to turn the appliance on after regulating the voltage (208 V to 240 V).
A2 DC Motor Locking Information		It occurs when DC Motor cannot operate due to defects of PCB, wiring or blockage of on motor blade.

Warranty

Review this section to learn the warranty and non-warranty terms and conditions concerning this product. For details/clarifications, contact Dacor.

What Is Covered-Certificate of Warranties: Dacor Cooktops
Within the 50 States of the USA, District of Columbia, and Canada*
Full 1 Year Warranty	The warranty applies only to the Dacor appliance sold to the first use purchaser, starting from the date of original retail purchase or closing date for new construction, whichever period is longer. The warranty is valid on products purchased brand new from a Dacor Authorized Dealer or other Dacor authorized seller.If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will remedy it without charging you.All cosmetic damage (e.g., scratches on stainless steel, paint/porcelain blemishes, etc.) to the product or included accessories must be reported to Dacor within 60 days of the original purchase date to qualify for warranty coverage.
Coverage Limitations	Service will be provided by a Dacor-designated service company during regular business hours. (Service providers are independent entities and are not agents of Dacor.)These types of products carry a one-year parts warranty only:Dealer-display and model-home-display products with a production date greater than 5 yearsProducts sold "As Is"Products installed for non-residential use (e.g., religious organizations, fire stations, bed and breakfast, spas, etc).All delivery, installation, labor costs, and other service fees are the purchaser's responsibility.The warrant is null and void if the product's serial numbers and/or tags are altered/dofaced/missing.The owner must provide proof of purchase or a closing statement for new construction upon request.All Dacor products must be accessible for service.

English 35

Warranty and Service

Outside the 50 States of the USA, District of Columbia, and Canada*

Limited 1st-Year Warranty

If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish a new part, FOB Factory**, to replace the defective part. All delivery, installation, labor costs, and other service fees are the buyer's responsibility.

What Is Not Covered

· Slight color variations (due to differences in painted parts, kitchen lighting, product placement, etc)

· Service calls (to teach the user proper use and care of the product)

· Travel fees to islands/remote areas (ferries, toll roads, etc)

· Consequential/incidental damage (food/medicine loss, time away from work, restaurant meals, etc)

· Product failure (when product is used for commercial, business, rental, or any application other than residential use)

· Product failure (caused by improper product installation)

· Replacement of house fuses, fuse boxes, or resetting of circuit breakers)

· Product damage (caused by accident, fire, flood, power interruption, power surges, or other "acts of God")

· Liability or responsibility for damage to surrounding property (cabinetry, floors, ceilings, and other structures/objects)

· Breakage, discoloration, or damage to glass, metal surfaces, plastic parts, trim, paint, or other cosmetic finish from improper use/abuse/care/neglect

· Consumable parts (e.g., filters, light bulbs).

Out of Warranty

Contact us if you experience a service issue beyond the standard warranty period. Dacor reviews each issue and customer concern to provide the best possible solution under the circumstances.

THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES; THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES, THE DISTRICT OF COLUMBIA AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES. IN THE EVENT DACOR PREVAILS IN ANY LAWSUIT, DACOR SHALL BE ENTITLED TO REIMBURSEMENT OF ALL COSTS AND EXPENSES, INCLUDING ATTORNEY'S FEES, FROM THE DACOR CUSTOMER. NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE.

Some states do not limit the length of an implied warranty, or do not exclude/limit inconsequential damages; therefore, the above exclusions/limitations may not apply to you. This warranty gives you specific legal rights. You may also have other/additional rights depending on the state in which you reside.

MemoAppendix

Model name & serial number

Both the model name and the serial number are labeled underneath the cooktop base.

For later use, write down the information onto the current page.

Model Name

Serial Number

Warranty

Please visit www.Dacor.com to activate your warranty online.

WARRANTY INFORMATION

IMPORTANT:

Your warranty will not begin until you activate it online or return this form to Dacor. If you have purchased more than one Dacor product, please return all forms in one envelope, or activate the warranty for each product online.

Please rest assured that under no conditions will Decor sell your name or any of the information on this form for mailing list purposes. We are very grateful that you have chosen Decor products for your home and we do not consider the sale of such information to be a proper way of expressing our gratitude!

Owner's Name:

Last (Please Enter or Type) First Mobile

Street:	10th Place, 4th St. 2nd St. 3rd St. 4th St. 5th St. 6th St. 7th St. 8th St. 9th St. 10th St. 11th St. 12th St. 13th St. 14th St. 15th St. 16th St. 17th St. 18th St. 19th St. 20th St. 21st St. 22nd St. 23rd St. 24th St. 25th St. 26th St. 27th St. 28th St. 29th St. 30th St. 31st St. 32nd St. 33rd St. 34th St. 35th St. 36th St. 37th St. 38th St. 39th St. 40th St. 41st St. 42nd St. 43rd St. 44th St. 45th St. 46th St. 47th St. 48th St. 49th St. 50th St. 51st St. 52nd St. 53rd St. 54th St. 55th St. 56th St. 57th St. 58th St. 59th St. 60th St. 61st St. 62nd St. 63rd St. 64th St. 65th St. 66th St. 67th St. 68th St. 69th St. 70th St. 71st St. 72nd St. 73rd St. 74th St. 75th St. 76th St. 77th St. 78th St. 79th St. 80th St. 81st St. 82nd St. 83rd St. 84th St. 85th St. 86th St. 87th St. 88th St. 89th St. 90th St. 91st St. 92nd St. 93rd St. 94th St. 95th St. 96th St. 97th St. 98th St. 99th St. 100th St.
City: State:
Zip:

Purchase Date: Email:

Telephone:

Dealer:
City State:
Zip:

Your willingness to take a few seconds to fill in the section below will be sincerely appreciated. Thank you.

1. How were you first exposed to Dacor products? (Please check one only.)

A.TV Cooking Show
F. Builder
B. Magazine
□ G. Architect/Designer
□ C. Appliance Dealer Showcom
H. Another Dacor Owner
D. Kitchen Dealer Showroom
□ | Model Home
□ E. Home Show

J. Other

1. Where did you buy your Dacor appliances?

□ A. Appliance Dealer
B. Kitchen Dealer
□ D. Builder
E. Other

□ C Builder Supplier

1. For what purpose was the product purchased?

A. Replacement only

B. Part of a Remode

□ C. New Home

D. Other

1. What is your household income?

A. Under \$75,000

D. \150,000 - \200,000

B. \75,000 - \100,000

E. \200,000 - \250,000

C. \100,000 - \150,000

F. Over \$250,000

1. What are the brands of appliances that you have in your kitchen?

A. Cooktop C. Dishwasher

D. Refrigerator

B. Oven

1. Would you buy or recommend another Dacor product?

□ Yes

□ No

Comments:

Thank you very much for your assistance. The information you have provided will be extremely valuable in helping us plan for the future and giving you the support you deserve.

Place Serial Number Label Here

Website: www.Dacor.com

Phone: 833-35 ELITE (833-353-5483)

English 39

NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES

BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE

DACOR

ATTN: WARRANTY PROCESSING DEPT

PO BOX 90070

CITY OF INDUSTRY, CA 91715-9907

Dacor • 14425 Clark Avenue, City of Industry, CA 91745

• Phone: 833-35 ELITE (833-353-5483) • Fax [phone] • www.daccr.com

Dacor Customer Service Team

14425 Clark Avenue

City of Industry, CA 91745

The Dacon Customer Service Team

Switching the lock On/Off

Illustration of a hand holding a plate with a tool, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing four circular components labeled ① to ④, likely representing a control or layout panel.

Pure diagram of three circular components with numbered labels, no text or symbols present

Simple line drawing of a frying pan with a U-shaped magnet above it (no text or symbols)

Line drawing of a kitchen appliance with a hand holding a tool on top (no text or symbols)

Line drawing of a kitchen appliance with a hand placing food into a pan (no text or symbols)

Line drawing of a kitchen appliance with a stove and circular cutouts (no text or symbols)

B. \75,000 - \100,000

C. \100,000 - \150,000

D. \150,000 - \200,000

E. \200,000 - \250,000

F. Més de \$250,000

BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE

DACOR

ATTN: WARRANTY PROCESSING DEPT

PO BOX 90070

CITY OF INDUSTRY, CA 91715-9907

Dacor • 14425 Clark Avenue, City of Industry, CA 91745

• Teléfonix: 833-35-ELITE (833-353-5483) • Fax: [phone] • www.dacor.com

City of Industry, CA 91745

The Dacon Customer Service Team

11 Pause 12 iQ Connect (iQ Connect)

13 Lock (Verrouillage)

18 Français

Table de cuisson de 30"

03 02 FLEX ZONE 01 POWER 04 15 05 SIMMER POWER BOOST ON/OFF 06 15 07 SIMMER POWER BOOST ON/OFF 04 15 08 SIMMER POWER BOOST ON/OFF - 30 min TIMER OFF (Max) 09 + 15 13 MOLT POWER BOOST ON/OFF

Gril (Zone Flex zone)

Illustration of hands performing a circular motion exercise with arrows indicating rotation (no text or symbols)

APPROPRIÉ NON APPROPRIÉ

Diagram showing four circular components labeled ① to ④, likely representing a layout or control panel.

Pure diagram of three circular components with numbered labels, no text or symbols present

Simple line drawing of a frying pan with a U-shaped magnet above it (no text or symbols)

Line drawing of a kitchen appliance with a hand holding a tool on top (no text or symbols)

Line drawing of a kitchen appliance with a hand placing food into the pan (no text or symbols)

Line drawing of a kitchen appliance with four circular ovens and a handle (no text or symbols)

BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE

DACOR

ATTN: WARRANTY PROCESSING DEPT

PO BOX 90070

CITY OF INDUSTRY, CA 91715-9907

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

fold here

DG68-01296A-00

dacor.

Dacor • 14425 Clark Avenue, City of Industry, CA 91745

• Téléphone : 833-35-ELITE (833-353-5463) • Télécopie : [phone] • www.dacor.com
