USER MANUAL HDCT304 Dacor

To Our Valued Customer:

Congratulations on your purchase of the very latest in Dacor® products! Our unique combination of features, style, and performance make us a great addition to your home.

To familiarize yourself with the controls, functions, and full potential of your new Dacor cooktop, read this manual thoroughly, starting at the Important Safety Instructions section (Pg. 2).

Dacor appliances are designed and manufactured with quality and pride, while working within the framework of our company values. Should you ever have an issue with your cooktop, first consult the Troubleshooting section (Pg. 14), which gives suggestions and remedies that may pre-empt a call for service.

Valuable customer input helps us continually improve our products and services, so feel free to contact our Customer Assurance Team for assistance with all your product-support needs.

Dacor Customer Assurance

14425 Clark Avenue

City of Industry, CA 91745

Telephone: 833-35-ELITE (833-353-5483) USA, Canada

Fax: [phone]

Hours of Operation: Mon – Fri, 5:00 a.m. to 5:00 p.m. Pacific Time

Website: www.dacor.com/customer-care/contact-us

Thanks for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor cooktop will deliver a top-level performance and enjoyment for decades to come.

Sincerely,

The Dacor Customer Assurance Team

Contents

Important Safety Instructions 2

Important Information About Safety Instructions 2 General Safety Precautions 3

Getting to Know Your Cooktop 5

Parts of the Cooktop / Other Features 5

Setting Up Your Cooktop 6

Burner and Grate Assembly / Grates 6

Operating Your Cooktop 7

Selecting the Cookware / Lighting a Burner 7 Burner Knob Icons and Operation / Cooking Tips 8

Care and Cleaning 9

Cleaning the Cooktop / Disassembly 9 Cleaning the Grates, Spill Trays and Wok Ring 9 Cleaning the Burners and Igniters / Cleaning Stainless Steel Surfaces 10 Cleaning the Knobs and Trim Rings / Cleaning the Griddle Accessory 11 Replacement Parts List 12 Replacement Parts Diagram 13

Troubleshooting 14

Warranty 15

Warranty Card Back Cover

Important Safety Instructions

Installer: Leave these instructions with the owner.

Customer: Read this manual completely before using the cooktop. Save this manual for future reference, it contains important use and care information. Proof of original purchase date is required for warranty service.

For warranty information, see page 15.

If you have questions, call Dacor Customer Assurance (see previous page).

Have available the model and serial numbers, which are on the product data label on the bottom of the chassis. Record these numbers here:

Model Number

Serial Number

Date of Purchase

Important Information About Safety Instructions

The Important Safety Instructions and warnings in this manual are not meant to cover all possible problems and situations that can occur. Use common sense and caution when installing, maintaining, and operating this cooktop.

Always contact the Dacor Customer Service Team about problems or situations that you do not understand.

Safety Symbols, Labels, and Alerts

DANGER

Immediate hazards that WILL result in severe personal injury or death.

WARNING

Hazards or unsafe practices that COULD result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that COULD result in minor personal injury or property damage.

DANGER

IMPORTANT: If you smell gas:

• Do not use or light any appliance.
• Do not touch any electrical switch or use any electrical devices including the telephone in your building.
• From a neighbor's phone, immediately call the gas supplier. Follow the gas supplier's instructions.
• If you cannot contact the gas supplier, call the fire department.

IMPORTANT: To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans away from the cooktop. Do not store flammable or explosive materials in adjacent cabinets or areas.

WARNING

NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the appliance.

WARNING

NEVER cover the slots between the burner control knobs and the trim rings on the cooktop. Doing so blocks air flow through the cooktop and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a fire hazard. Keep all the slots clear of grease and grime.

CALIFORNIA PROPOSITION 65 WARNING

The burning of gas cooking fuel generates some by-products that are on the list of substances which are known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure to such substances. To minimize exposure to these substances, always operate this unit according to the use and care manual, ensuring you provide good ventilation when cooking with gas.

READ AND SAVE THESE INSTRUCTIONS

Important Safety Instructions

General Safety Precautions

To reduce the risk of fire, electric shock, serious injury or death when using your cooktop, follow basic safety precautions, including the following:

WARNING

• If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a damaged appliance.
• Make sure that the cooktop has been properly installed and grounded by a qualified installer according to the accompanying installation instructions. Have the installer show you the location of the gas shut off valve and the power cord so that you know where and how to turn off the gas supply and disconnect power to the cooktop.
• Do not install, repair or replace any part of the cooktop unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other service.
• Before performing any type of service, make sure that the gas supply is turned off and the power cord to the cooktop is disconnected.
• Only use this cooktop for cooking tasks expected of a home appliance as outlined in this manual. This cooktop is not intended for commercial use.
• DO NOT TOUCH THE SURFACES OF THE COOKTOP DURING OR IMMEDIATELY AFTER USE. After use, make sure these surfaces have had sufficient time to cool before touching them.
• Make sure individuals who use the cooktop are able to operate it properly.
• Never allow anyone, including children to sit, stand or climb on any part of the cooktop. Doing so may cause damage, serious injury, or death.
• Do not leave children alone or unattended in the area around the cooktop. Do not allow children to play with the controls, pull on the handle or touch other parts of the cooktop.
• Do not store items of interest to children on top of or above the cooktop. Children could be burned or injured while climbing on the appliance.
• Do not attempt to use this appliance in the event of a power failure. If a power failure occurs while operating the cooktop, turn all control knobs to the OFF position.
• Do not tamper with the controls. Do not adjust or alter any part of the cooktop unless specifically instructed to do so in these instructions.
• Do not cover the burners and grates with anything except properly selected cookware. Decorative covers may cause a fire hazard or damage to the cooktop if a burner is accidentally turned on with the cover in place.

WARNING

• Do not leave the cooktop unattended while in use to avoid the possibility of fire.
• Do not heat unopened food containers such as baby food jars and cans. Pressure build up may cause the container to burst and cause injury.
• Clean the cooktop thoroughly before operating it for the first time.
• Keep flammable items, such as paper, cardboard, plastic and cloth away from the burners and other hot surfaces. Do not allow pot holders to touch hot surfaces or gas burners.
• Do not wear loose or hanging apparel while using the cooktop. Do not allow clothing to come into contact with the cooktop and surrounding areas during and immediately after use.
• Do not use towels or bulky cloth as pot holders.
• Do not hang flammable or heat sensitive objects over the cooktop.
• If the cooktop is near a window, do not use long curtains as window treatment. The curtains could blow over the cooktop and create a fire hazard.
• Clean and maintain the cooktop regularly as instructed in this manual. Keep the entire cooktop, ventilation filters and cooktop hoods free of grease that could catch fire.
• Use cookware only for its intended purpose. Check the manufacture's recommendations before use to determine if a utensil is suitable for use on a cooktop. Certain types of glass, ceramic and earthenware are not suitable for use on a cooktop. Personal injury or damage may result from the improper use of cookware.
• Select cookware carefully. Use cookware of the proper size, material and construction for the particular type of cooking being done. Cookware needs to be large enough to contain the desired quantity of food without boil-overs or spill-overs. Choose pans with easy to hold handles that will stay cool while cooking. Do not use cookware with loose handles. Avoid using pans that are too heavy to lift safely.
• Do not allow pots or pans to boil dry.
• Use extreme caution if adding water to food on a hot cooktop. The steam can cause serious burns or scalds.

Important Safety Instructions

WARNING WARNING

• Use only dry pot holders when removing food and cookware from the cooktop. Wet pot holders can cause steam burns.
• Make sure that all the cooktop parts are dry before lighting a burner.
• Turn the knobs to the OFF position prior to removing them from the valve stems.
• The cooktop should never be operated without the knobs in place.
• Non-stick coatings, when heated, can be harmful to pet birds. Relocate pet birds to a separate, well-ventilated room while using the appliance.
• When deep fat frying:

◇ Be certain that the pan is large enough to contain the desired volume of food without overflow caused by the bubbling of the fat. Never leave a deep fat fryer unattended.
◇ Avoid frying moist or frost-covered foods. Foods with high water content may cause splattering or spilling of the hot fat.
◇ Heat fat slowly and stir together any combination of oils and fats prior to applying heat. Use a deep fat frying thermometer to avoid heating the fat to temperatures above the flash point.

- This appliance is equipped with a three-prong grounding plug for your protection against possible electric shock hazards. If only a two-prong outlet is available, it is the customer's responsibility to have it replaced by a licensed electrician with a dedicated, grounded three-prong electrical outlet.

Under any circumstances:

• DO NOT cut or remove the third (ground) prong from the power cord.
  • DO NOT use an adapter plug.
  • DO NOT use an extension cord.
• DO NOT use a power cord that is frayed or damaged.
• DO NOT plug the cooktop into an electrical outlet with a ground fault interrupter (GFI).

Power cord with three-prong grounding plug

Three-prong electrical outlet

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A COOKTOP GREASE FIRE:

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN - you may be burned.
c. DO NOT USE WATER, including wet dish cloths or towels - a violent steam explosion may result.
d. Use a fire extinguisher ONLY if:

You have a Class ABC extinguisher and you already know how to operate it.
◇ The fire is small and contained in the area where it started.
◇ The fire department is being called.
◇ You can fight the fire with your back to an exit.

PROLONGED POWER FAILURE

Do not attempt to use this appliance during a continuous power failure.

CAUTION

• Do not allow acids (citrus juices, tomato sauces, etc.) to remain on the cooktop's surfaces. The porcelain finish may stain.
• Never use the cooktop surface as a cutting board.
• Do not try to remove heavy spills with a sharp object such as a knife or metal spatula. Sharp objects may scratch the cooktop's surfaces.
• Do not expose the knobs or trim rings to direct flame, hot utensils or other sources of heat.

Getting to Know Your Cooktop

Parts of the Cooktop

SimmerSear™ Burners: Dacor's exclusive precision burner control system. Models HDCT304 and HDCT365 are equipped with SimmerSear™ Burners. The SimmerSear™ burner has a wider range of heat settings than the single burners. The wider range allows you precise heat control from simmer (low) to sear (high).

Sealed Burners: Gaskets around the underside of all burner bases prevent spilled liquids from leaking into the cooktop's internal parts.

Long-Life Grates: The porcelain coated cast iron grates support the cookware during use. They are removable to allow the area below and around the burners to be cleaned easily.

Spill Tray: This easy-clean tray catches all food that falls through the grates. The tray also protects the cooktop from boil-overs and drips.

Illumina™ Burner Control Knobs: Intuitive control knobs glow with Dacor's signature flame-white light to always let you know when the burner is on.

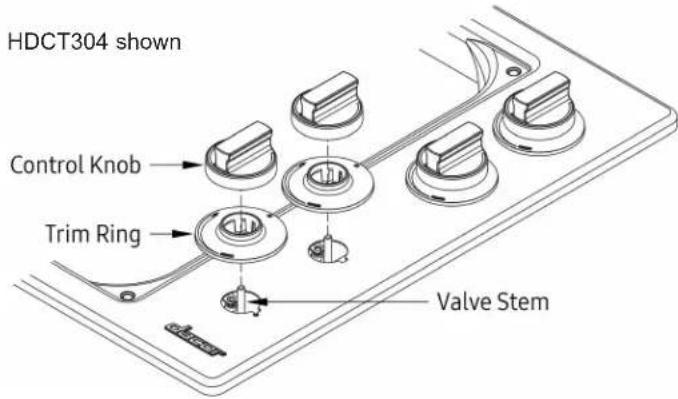

Trim Rings: Located under the control knobs, trim rings display the burner and flame settings. The trim rings around SimmerSear knobs display the simmer settings. See Operating Your Cooktop.

Other Features

Flameless Ignition: The cooktop generates a spark that ignites a burner when you turn the knob to the flame icon.

Perma-Flame™: Instant re-ignition feature that automatically and quickly relights a burner. Experience uninterrupted cooking from continuous heating.

LF SimmerSear™ Dual Burner: 15,000 BTU

RR SimmerSear™ Dual Burner: 12,500 BTU

LR, RF SimmerSear™ Dual Burner: 9,500 BTU

HDCT 304

LR LF Grate Spill Tray Dual-Burner Control Knob (4) Trim Ring

LF SimmerSear™ Dual Burner: 18,000 BTU

CF SimmerSear™ Dual Burner: 12,500 BTU

CR SimmerSear™ Dual Burner: 12,500 BTU

LR SimmerSear™ Dual Burner: 9,500 BTU

RR Single Burner: 5,000 BTU

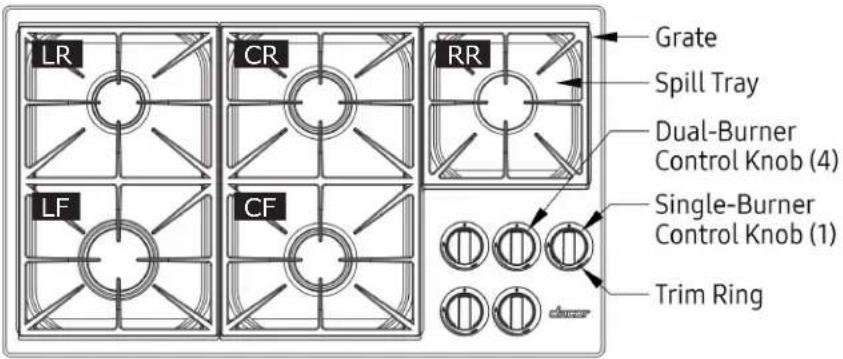

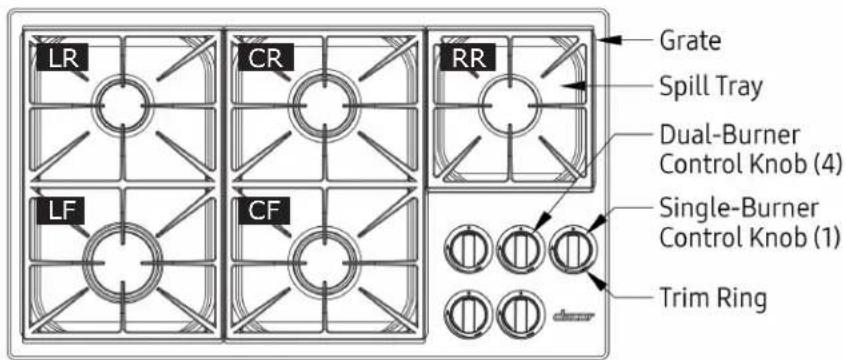

HDCT 365

LR CR RR Grate Spill Tray Dual-Burner Control Knob (4) Single-Burner Control Knob (1) Trim Ring

Setting Up Your Cooktop

Burner and Grate Assembly

WARNING

Assemble the burners and grates only when the cooktop is cool.

SimmerSear™ Dual and Single Burners

Burner components consist of the burner assembly, which is attached to the spill tray, and the burner cap.

To assemble the burner components, place the cap over the burner assembly. A ridge around the bottom of the cap fits around the top of the assembly.

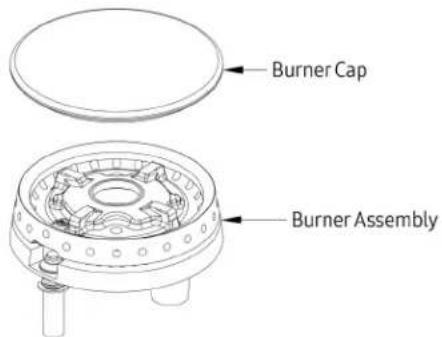

Burner Cap Burner Assembly

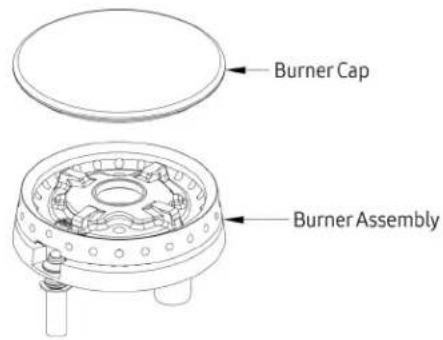

Dual-Burner Assembly

Burner Cap Burner Assembly

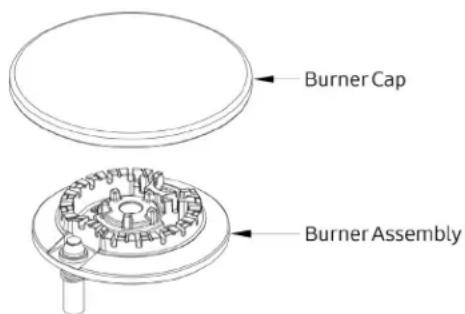

Single-Burner Assembly

Grates

Gently set the grates on the spill tray so the feet rest in the corresponding dimples in the spill tray.

Technical line drawings of a two-tiered electrical heating unit with mounting holes and control knobs (no text or symbols)

Operating Your Cooktop

Selecting the Cookware

WARNING

• NEVER cover the slots between the burner control knobs and the trim rings on the cooktop. Doing so blocks air flow through the cooktop and may cause carbon monoxide poisoning. Keep all the slots clear of grease and grime.
• To avoid burns and scalding, always turn pan handles to a position where they cannot be easily hit. Also, handles should not extend over adjacent burners. Always set cookware gently onto the grates and center them so that they are well-balanced.
• Do not drag cookware across the grates. Sliding may damage the finish on the grates. Lift cookware to reposition it. Do not drop it on the grate.
• Cookware with rough bottoms can cause permanent damage to the coated surfaces on the grates.
• To avoid burns or fire hazard, reduce the flame level if it extends beyond the bottom of the cookware. A flame that extends up the sides of the pan is potentially dangerous.

For overall safety and best cooktop performance, select the correct cookware for the food being prepared. Improperly selected cookware will not cook food evenly or efficiently.

Simple line drawing of a pot on a stove with a handle (no text or symbols)

Simple line drawing of a pot on a stove with a black handle (no text or symbols)

Use cookware that:

• Has flat, smooth bottoms.
• Is well balanced.
• Has tight fitting lids to keep heat, odors, and steam inside.

IMPORTANT: Avoid spills as much as possible.

The porcelain surfaces of the grates, spill trays, and burner caps are acid-resistant but not acid-proof. Some foods can cause permanent damage if allowed to remain on porcelain surfaces.

Lighting a Burner

WARNING

• To avoid the chance of fire, explosion or carbon monoxide poisoning, do not attempt to use your cooktop without the burners completely and correctly assembled (see page 6). The burner rings spread the flame evenly around the burner cap. The burner rings must be fully seated for correct burner lighting and performance.
• In the interest of safety, always light the burner before putting the cooking utensil on the grate. Turn the burner knob to the off position before removing cookware. Always check the position of the control knobs to make sure the cooktop is off when you are finished cooking.
• Do not turn the knob past the HIGH flame mark until lit. Doing so may result in a burst of flame that could cause burns or damage to the surrounding area.
• Do not touch any part of the burner while the igniter is sparking. An electrical shock could result.
• Never light the burners with a match or other open flame.
• If the gas does not ignite after four seconds or if the flame goes out and gas escapes, turn the knob to OFF. Open a window and allow at least five minutes for the gas to dissipate. Repeat the lighting procedure.

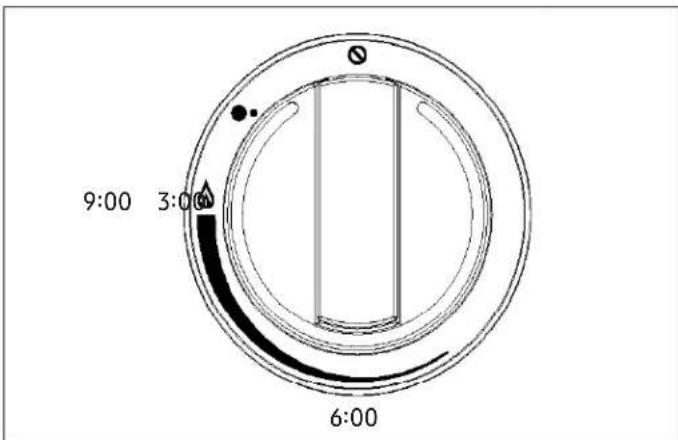

Refer to the illustrations to the right while following these instructions.

1. Press the knob that controls the burner (refer to the burner indicator icon) and turn it slowly toward the light FLAME icon. As you turn the knob, the igniter will spark until the flame ignites. The igniter will stop sparking when ignition occurs.
2. Once the burner is lit, adjust the flame height by turning the control knob.
3. The thickness of the black line under the flame on the trim ring corresponds with the flame height.
4. The flame height lowers as the knob moves away from the flame icon.

SimmerSear™ Burners

When turning the knob to the SIMMER flame level, only one of the two burners is used.

Operating Your Cooktop

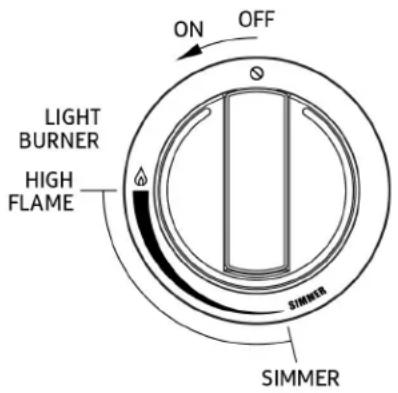

Burner Knob Icons and Operation

The icons that surround the knobs help show how to use and control the burner.

ON OFF LIGHT BURNER HIGH FLAME SIMMER LOW SIMMER HIGH SIMMER

ON OFF LIGHT BURNER HIGH FLAME SIMMER SIMMER

IMPORTANT:

• When the cooktop is cool, the igniter may continue to spark if the burner knob is set to the LOW position. The burner will stop sparking when warm.
• The tendency to spark when cold can be reduced by using the burner at a higher flame for 60 seconds. Then lower the flame to cook. The burner will warm up faster if cookware is placed on the grate.
• The igniter sparks automatically if the flame is distorted by a draft or by a household ventilation system. Eliminate any drafts or reduce the ventilation blower speed to reduce this type of problem.
• To keep the burners operating properly, keep the burner igniters, burner rings, and burner caps clean and dry. See Care and Cleaning starting on page 9. Dirty or wet igniters will result in constant sparking, even if there is a flame present.
• The flame should burn evenly around the perimeter of the burner.

- A normal flame burns steady and blue. Foreign material in the gas line, especially in new construction, may cause an orange flame during initial use. The orange color will disappear with further usage. Small yellow tips on the ends of the flames are normal when using LP gas.

Cooking Tips

For superior cooking performance and to save energy:

• Boil at the lowest flame necessary. Food cooks just as quickly at a gentle boil as it does at a vigorous, rolling boil. A stronger boil than is necessary wastes energy, cooks away moisture, and causes a loss in food flavor and nutrients.
• Use low or medium flame when cooking in cookware that is a poor conductor of heat, such as glass, ceramic, and cast iron cooking vessels. Reduce the flame until it spreads approximately 1/3 of the underneath area of the cookware to ensure even heating and to reduce scorching.
• Minimize the amount of liquid or fat to reduce cooking times.
• Use a timer rather than repeatedly removing the lid to check food. Doing so will decrease cooking time and save energy.
• Dacor's SimmerSear™ feature allows you precision control of the flame. The larger the burner size, the wider the range of control.
• See page 5 for the heat ranges of the different burners.

Accessories

Wok Ring (Part# AWR4): This wok ring is a safe, convenient way to stir fry. Place the ring on top of the grate, aligning the wok ring feet with the grate fingers. It will hold most standard-sized woks.

Griddle (Part# AG13): The AG13 easy clean griddle is coated with a non-stick finish. It is great for cooking pancakes, eggs, bacon, steaks, and various other pan-fried foods. It is designed to sit on top of your cooktop burner grates. A maximum setting of medium is recommended to avoid damage to the cooktop. See the instructions included with the griddle or at www.dacor.com for further information.

Care and Cleaning

WARNING

• Clean only the parts of the cooktop listed in this manual. Clean them only in the manner specified.
• To avoid dangerous fumes or damage to your cooktop's surfaces and accessories, use only the types of cleaning solutions specified in this manual.
• To avoid electrical shock or burns, turn off the burners and make sure that all parts are cool before cleaning. DO NOT turn the burners on during cleaning.
• Do not use a steam cleaner to clean the cooktop. Steam could penetrate the electrical components and cause a short circuit. After cleaning the burners, reassemble all of the burner parts before attempting to operate the cooktop.
  • After cleaning the burners, always dry and reassemble the cooktop parts completely before use. See page 6.

CAUTION

• Do not try to remove heavy spills with a sharp object such as a knife or metal spatula. Sharp objects may scratch your cooktop's surfaces.
• To prevent damage, do not use abrasive or corrosive cleaners or applicators such as steel wool or scouring pads, on any part of the cooktop unless instructed to do so. Use only a sponge, soft cloth, fibrous or plastic brush, or nylon cleaning pad for cleaning the surfaces of your cooktop.
  • Take care when cleaning around the control valve stems. If you get moisture inside the holes in the chassis, damage to the cooktop can occur.
• Do not soak the knobs in water or put them in the dishwasher.

Cleaning the Cooktop

To keep the cooktop looking and operating its best, clean it after every use. Also, quickly wipe up spills that occur while cooking. Be careful not to touch any hot areas.

If you allow spills to sit on hot burner parts, they will burn and be very difficult to clean. Certain types of food, such as tomatoes, citrus juices, vinegar, alcohol and milk can damage the finishes if you allow them to stand for any length of time.

IMPORTANT: The cooktop is exposed to extremely high temperatures. The grates are under high stress when hot cookware is placed on them. Also, the cooktop parts are occasionally exposed to acidic food spill-overs. These severe conditions cause the porcelain enamel parts on your cooktop to undergo a change in appearance over time. If you care for and clean these parts carefully, you will slow down—but not eliminate—the aging process.

Disassembly

1. For safety, disconnect the cooktop power cord from the electrical outlet.
2. When the cooktop is cool, remove the grates from the top of the cooktop.
3. Disassemble the burners:

Technical line drawing of a grid-based structure with circular components, no text or symbols present

SimmerSear™ Burner Disassembly

Lift the burner cap off of the burner assembly. Please note, the burner assemblies are not removable.

Cleaning the Grates, Spill Trays, and Wok Ring

WARNING

Do not clean the cooktop grates, burner parts or Wok ring in a dishwasher. They will be damaged.

IMPORTANT: DO NOT use any of the cleaners listed below to clean the burners and igniters. See the facing page for burner and igniter cleaning instructions. Also, if your cooktop is equipped with stainless steel spill trays, see the Cleaning Stainless Steel Surfaces section for spill tray cleaning instructions.

The grates, the spill tray (on some models) and optional Wok ring are coated with a porcelain finish.

• For everyday cleaning, use a soft cloth or non-abrasive pad with warm soapy water to clean all of the porcelain parts.
• If necessary, tough stains may be removed by applying full-strength sprays such as Simple Green™, Ajax™ All-Purpose Cleaner or Formula 409™. To minimize wear, use the mildest cleaner needed to get the surface clean.
• For extremely stubborn stains, you may use a mildly abrasive cleaner or applicator, such as Soft Scrub™, Bon Ami™, S.O.S.® pads or other soap-filled steel wool pads. Use these cleaners carefully and only occasionally. Aggressive or extensive use of these types of abrasives will damage the finish. Damage to the finish due to the use of abrasives is not covered under your warranty.

Care and Cleaning

Cleaning the Burners and Igniters

WARNING

Use care while cleaning the igniters. The porcelain is fragile and can crack or break.

IMPORTANT: The igniters will not work properly if the other burner parts or the igniters themselves are not clean. Dirty or wet igniters may not spark at all.

After dissembling the burners, check for any dirt or grime deposited on the individual parts, including the igniters.

1. Clean completely around the igniter, including over and under the edge of the metal top and porcelain base. A firm toothbrush is also ideal for this task. Use care while cleaning because the porcelain is fragile and can crack or break. Do not use water to clean the igniters. If necessary, use a small amount of rubbing alcohol to help dissolve grime.
2. Examine the burner heads. Remove anything stuck in the holes with a straightened paper clip, wire or needle. Be careful not to scratch or damage the ring and head. Do not distort the shape of the burner head holes. Because the SimmerSear™ burner heads are not removable, they must be cleaned in place.
3. Clean all the burner parts, including the burner bases, with window cleaner or rubbing alcohol. Use a cleaning brush with plastic bristles or a firm toothbrush. When done, thoroughly rinse all parts with clean water. Completely dry all the parts before re-assembling them.
4. Assemble the cooktop according to the Burner and Grate Assembly Instructions on page 5. Test the burners after reassembling them (pages 6-7).
5. If the flame is uneven, be sure that all the burner parts are correctly positioned, then check for any remaining dirt or grime on the burner parts or igniter. If erratic clicking still occurs, make sure the igniter is completely dry. If the unit still exhibits problems after drying, call your local Dacor Authorized Service Agent.

Burner Cap Burner Assembly

Dual-Burner Assembly

Burner Cap Burner Assembly

Single-Burner Assembly

Cleaning Stainless Steel Surfaces

WARNING

Always wipe stainless steel (silver colored) surfaces with the grain. To prevent scratching, do not use abrasive cleaners or scrubbers on stainless steel surfaces.

• Clean only stainless steel surfaces with the Dacor Stainless Steel Cleaner included with your cooktop. Use it according to the directions on the package. You may order additional stainless steel cleaner at www.everythingdacor.com. Order part number A302.
• You can also clean stainless steel surfaces with a mild solution of detergent and warm water. Rinse and dry with a soft, lint-free cloth.

Care and Cleaning

Cleaning the Knobs and Trim Rings

HDCT304 shown Control Knob Trim Ring Valve Stem

1. Turn the knobs to the OFF position.
2. Disconnect the cooktop power plug from the electrical outlet.
3. Grasp each knob and pull straight up to remove.
4. The trim rings can be removed for cleaning if necessary: Grasp each trim ring and pull straight up to remove.
5. Wash the knobs and trim rings with liquid dish-washing soap.
6. Lay the trim rings over the valve stems. Move the flame icon to the 9 o'clock position.
7. Gently twist until the clasps align inside the cylinder and the ring seats into place.

9:00 3:00 6:00

1. Push firmly into position. Repeat for each trim ring.
2. To replace the knobs, align the "D-shaped" opening on the bottom of the knob with the end of the valve stem. Carefully push the knob until it stops.
3. With dry hands, plug the cooktop power cord into an electrical outlet.

Cleaning the Griddle Accessory

Clean the griddle after each use. Wash it thoroughly in hot soapy water to avoid stains from grease build-up. The griddle is coated with a non-stick coating to help with easy cleaning. Warm water and liquid detergent are all that is needed. Remove stubborn spots with a non-abrasive plastic mesh pad. To prevent scratching, do not use abrasives or abrasive cleaners. Use the soft side of a sponge to scrub. Dry with a lint-free cloth.

Ordering Replacement Parts

The rubber feet on the bottom of the grate can be replaced if they are lost or damaged.

If necessary, you may use a pair of needle nose pliers to pull and remove the feet from the grate.

If any other parts need to be replaced, please refer to the next page for part numbers and contact information.

Technical illustration of two structural supports with triangular cutouts, labeled 'Grates and Support Feet' (no other text or symbols)

Diagram of a knob and trim rings assembly with no text or symbols

Care and Cleaning

Replacement Parts List

Replacement parts can be obtained by contacting Dacor Customer Assurance Team.

Dacor Customer Assurance Team

Phone: [phone] (U.S.A. and Canada)

Mon — Fri 5:00 A.M. to 5:00 P.M. Pacific Time

Cooktop	Model HDCT304	Model HDCT365
Hold-Down Bracket w/Screws (set of 2)	PN 12269 PN	12269
Regulator (Natural Gas Models)	PN 62834 PN	62834
Regulator (LP Gas Models)	PN 72980 PN	72980
Knobs PN 109321	PN 109321
Dual Burner Trim Rings	PN 108924-05	PN 108924-05
Single Burner Trim Ring	-- PN 108924-04
Grate: Large PN 108900	PN 108900
Grate: Small -- PN	108901
Grate Support Feet (4)	PN 103712 PN	103712
Stainless Steel Cleaner	PN A302 PN	A302

Burner Cap Burner Assembly

Dual-Burner Assembly

Burner Cap Burner Assembly

Single-Burner Assembly

Care and Cleaning

Replacement Parts Diagram

Cooktop Layout

Burner Location

LR

Left Rear

RR

Right Rear

CR

Center Rear

LF

Left Front

RF

Right Front

CF

Center Front

HDCT 304

LR LF Grate Spill Tray Dual-Burner Control Knob (4) Trim Ring

HDCT 365

LR CR RR Grate Spill Tray Dual-Burner Control Knob (4) Single-Burner Control Knob (1) Trim Ring

Troubleshooting

Problem May Be Caused By What to Do (Solution)
Nothing works. Cooktop is not connected to electrical power.		Check to make sure power cord is connected to an electrical outlet.
		Turn on power at circuit breaker or fuse box. Check for tripped breaker or blown fuse.
		Power outage. Contact your power company.
Igniters do not spark. Power	not supplied to unit. See Nothing Works above.
	Wet or dirty igniter. Clean and dry igniter and burner assembly according to Care and Cleaning section.
No flame. Igniter not working	(no clicking sound).	See Igniters Do Not Spark above.
	Wet or dirty igniter. Clean and dry according to Care and Cleaning section.
	Gas is turned off. Make sure the gas supply valve is in the ON position.
	Gas supply is interrupted. Contact your gas company.
Burner goes out at low setting.	Low gas pressure. Contact your gas company to have gas pressure tested.
Flame is distorted, yellow or very large.	Burner parts are dirty or clogged.	Clean and dry according to Care and Cleaning section.
	Burner parts are not properly positioned or seated.	Make sure burner is assembled according to the Setting Up Your Cooktop section.
	Cooktop is for a different type of gas (Natural or LP) or set up for different altitude.	Have a qualified service technician check to make sure that the cooktop is set up for the type of gas and the correct altitude.
	Gas regulator is not installed or faulty.	Have a qualified service technician check the gas regulator.
Igniter continues to spark (click) after flame ignites.	Burner is cold.	Burners may continue to spark for up to 60 seconds when cold and set to low. See Operating Your Cooktop section for more information on how to minimize.
	Flame distorted by air draft.	Minimize any air drafts around the cook-top. Close nearby windows.
	Wet or dirty igniter. Clean and dry according to Care and Cleaning section.
	Burner parts are wet or dirty.	Clean and dry according to Care and Cleaning section.
	Burner parts not properly positioned.	Make sure burner is assembled according to the Setting Up Your Cooktop section.
	Power supply polarity is reversed.	Have a licensed electrician check the electrical outlet.

Warranty

What Is Covered

CERTIFICATE OF WARRANTIES DACOR GAS COOKTOPS

WITHIN THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA\*:

FULL ONE-YEAR WARRANTY

The warranty applies only to the Dacor appliance sold to the first use purchaser, starting from the date of original retail purchase or closing date for new construction, whichever period is longer. Warranty is valid on products purchased brand new from a Dacor Authorized Dealer, or other seller authorized by Dacor.

If your Dacor product fails to function within one year of the original date of purchase, due to a defect in material or workmanship, Dacor will remedy it without charge to you.

All cosmetic damage (such as scratches on stainless steel, paint/porcelain blemishes, etc.) to the product or included accessories must be reported to Dacor within 60 days of the original purchase date to qualify for warranty coverage.

Consumable parts such as filters and light bulbs are not covered and are the responsibility of the purchaser.

LIMITATIONS OF COVERAGE

Service will be provided by a Dacor designated service company during regular business hours. Please note: service providers are independent entities and are not agents of Dacor.

Dealer display and model home display products with a production date greater than 5 years, products sold "As Is," and products installed for non-residential use, which include but are not limited to religious organizations, fire stations, bed and breakfast and spas carry a one year parts warranty only. All delivery, installation, labor costs and other service fees are the responsibility of the purchaser.

Warranty will be null and void on product that has been altered, defaced, or missing serial numbers and tags.

The owner must provide proof of purchase or closing statement for new construction upon request. All Dacor products must be accessible for service.

* Warranty is null and void if non-ETL or non-CUL approved product is transported from the U.S.A.

Warranty

OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA:

LIMITED FIRST YEAR WARRANTY

If your Dacor product fails to function within one year of the original date of purchase due to a defect in material or workmanship, Dacor will furnish and ship a new part to replace the defective part.

All delivery, installation, labor costs and other service fees are the responsibility of the purchaser.

What Is Not Covered

- Slight color variations may be noticed because of differences in painted parts, kitchen lighting, product placement and other factors; this warranty does not apply to color variation.

- Service calls to educate the customer on proper use and care of the product.

- Service fees for travel to islands and remote areas, which include but are not limited to, ferries, toll roads or other travel expenses.

- Consequential or incidental damage, including but not limited to food or medicine loss, time away from work or restaurant meals.

- Failure of the product when used for commercial, business, rental or any application other than for residential consumer use.

- Failure of the product caused by improper product installation.

- Replacement of house fuses, fuse boxes or resetting of circuit breakers.

- Damage to the product caused by accident, fire, flood, power interruption, power surges or other acts of God.

- Liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings and other structures or objects around the product.

- Breakage, discoloration, or damage to glass, metal surfaces, plastic components, trim, paint or other cosmetic finish caused by improper usage, care, abuse, or neglect.

Out of Warranty

Should you experience a service issue beyond the standard warranty period, please contact us. Dacor reviews each issue and customer concern to provide the best possible solution based on the circumstances.

THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES. THEREFORE, NO OTHER EXPRESS WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY STATES OF THE UNITED STATES, THE DISTRICT OF COLUMBIA AND CANADA, ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR CONSEQUENTIAL DAMAGES. IN THE EVENT DACOR PREVAILS IN ANY LAWSUIT, DACOR SHALL BE ENTITLED TO REIMBURSEMENT OF ALL COSTS AND EXPENSES, INCLUDING ATTORNEY'S FEES, FROM THE DACOR CUSTOMER. NO WARRANTIES, EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER FOR RESALE.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of inconsequential damages, therefore the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

Notes

Notes

fold here

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

BUSINESS REPLY MAIL

FIRST-CLASS MAIL CITY OF INDUSTRY CAPERMIT NO 1600

POSTAGE WILL BE PAID BY ADDRESSEE

DACOR

ATTN WARRANTY PROCESSING DEPT

PO BOX 90070

CITY OF INDUSTRY CA 91715-9907

IMPORTANT:

Your warranty will not be activated until you activate it online or return this form to Dacor. If you have purchased more than one Dacor product, please return all forms in one envelope, or activate the warranty online for each product.

Please be assured that Dacor will never sell your name or any information on this form for mailing-list purposes, as we do not consider it a proper way of expressing our gratitude for your having chosen Dacor products for your kitchen!

Owner Last Name (please print) ____ First ____ Middle Init. ____

Street

City ____ State ____ Zip ____

Purchase Date Email Phone

Dealer

City ____ State ____ Zip ____

Your willingness to take a few seconds to complete the section below will be sincerely appreciated. Thank you.

1. How were you first exposed to Dacor products? (Please check one.)

□ A. T.V. Cooking Show □ F Builder

□ B. Magazine

□ G. Architect/Designer

☐ C. Appliance Dealer Showroom

□ H. Another Dacor Owner

D. Kitchen Dealer Showroom

□ 1. Model Home

□ E. Home Show

□ J. Other

1. Where did you buy your Dacor appliances?

□ A. Appliance Dealer

D. Builder

B. Kitchen Dealer

□ E. Other

□ C. Builder Supplier

1. For what purpose was the product purchased?

□ A. Replacement only

□ C. New Home

B. Part of a Remodel

D. Other

1. What is your household income?

□ A. Under \$75,000

D. \150,000 - \200,000

B. \75,000 - \100,000

☐ E. \200,000 - \250,000

C. \100,000 - \150,000

□ F. Over \$250,000

1. What other brands of appliances do you have in your kitchen?

A. Cooktop ____ C. Dishwasher ____

B. Oven ____ D. Refrigerator ____

1. Would you buy or recommend another Dacor product?

□ Yes □ No

Comments

Thank you very much for your assistance. The information you have provided will be extremely valuable in helping us plan for the future and in giving you the support you deserve.
