USER MANUAL 1580 AA SKIL

Illustration of a SKIL power tool with handle and control panel (no text or symbols)

EAC

GB ORIGINAL INSTRUCTIONS 9

F NOTICE ORIGINALE 11

G J K F D E A SKIL L M

Technical line drawing of a mechanical component with labeled point N (no text or symbols beyond label)

Simple line drawing of a toothpaste tube with label P (no text or symbols on the tube itself)

③④⑤

⑥

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

b

C B B C

C

Illustration of hands operating a mechanical device with a tool, showing no text or symbols.

d

Technical line drawing of a mechanical assembly with no visible text or symbols

e

R

f

C B B C

⑦

D E 0.20 1.5 1.0 0.5 1 E

8

Technical diagram showing two views of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

⑨ H

Technical line drawing of a manual power tool with no visible text or symbols

Technical line drawing of a mechanical assembly with a close-up view showing internal components (no text or symbols)

12

Architectural floor plan showing wood grain patterns and a cross-section with a labeled section 'L' (no text or symbols beyond labels)

13

Technical line drawing of a power tool with a bracket and mounting bracket (no text or symbols)

GB

Planer 1580

INTRODUCTION

• This tool is intended for planing wooden materials such as beams and boards; it is also suitable for chamfering edges and rabbeting
  • This tool is not intended for professional use
• Read and save this instruction manual ③

TECHNICAL DATA①

TOOL ELEMENTS ②

A Storage for key
B Securing bolt
C Cutter block screws
D Knob for setting planing depth
E Planing depth indicator
F Chip outlet switch
G Chip outlet (left/right)
H Park rest
J Safety switch
K On/off switch
L V-groove
M Ventilation slots
N Parallel guide
P Dust bag
Q Rabbeting depth adjuster
R Cutter support plate

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR PLANERS

• Wait for the cutter to stop before setting the tool down (an exposed rotating cutter may engage the surface leading to possible loss of control and serious injury)
• Hold the power tool by insulated gripping surfaces, because the cutter may contact its own cord (cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)
• Use clamps or another practical way to secure and support the workpiece to a stable platform (holding the workpiece by your hand or against the body leaves it unstable and may lead to loss of control)

GENERAL

• This tool should not be used by people under the age of 16 years
• The noise level when working can exceed 85 dB(A); wear ear protection
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust

mask and work with a dust extraction device when connectable

• Follow the dust-related national requirements for the materials you want to work with
• SKIL can assure flawless functioning of the tool only when original accessories are used
• Never use the tool when the cord is damaged; it must be replaced by a specially prepared cord available through the service organization.
• Always disconnect plug from power source before making any adjustment or changing any accessory

BEFORE USE

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool
• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Before using the tool check that the knives do not brush anywhere
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)

DURING USE

• Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• Keep your fingers away from the rotating knives
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• If any chip should get jammed in the chip outlet, you should switch off the motor, ensure that all moving parts have come to a complete standstill, disconnect the plug, and remove the jammed chip

EXPLANATION OF SYMBOLS ON TOOL

③ Read the instruction manual before use
④ Double insulation (no earth wire required)
⑤ Do not dispose of the tool together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

- Changing/reversing knives ⑥

This planer is equipped with non-grindable knives with cutting edges on both sides; so if one side has become blunt, the other side can be used

! switch off the tool and disconnect the plug
-remove guiding devices, if mounted

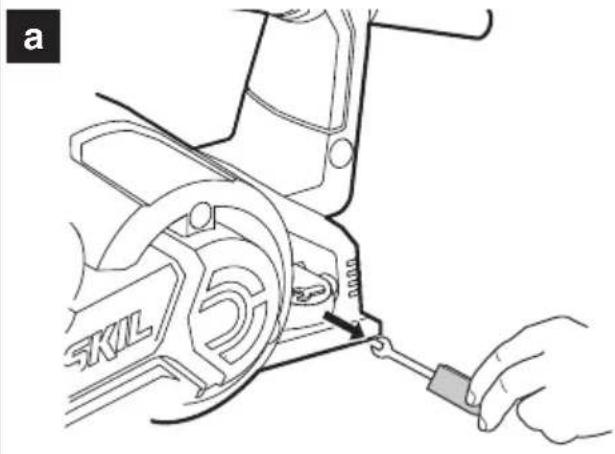

-take wrench from storage A ⑥ a
-turn tool upside down

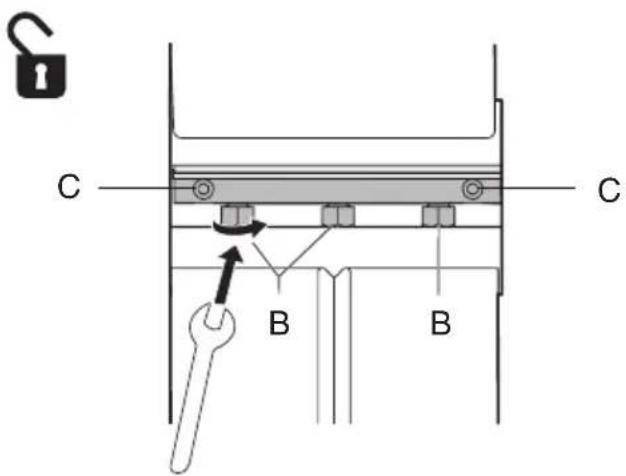

-loosen 3 bolts B with wrench (do not remove bolts) ⑥ b

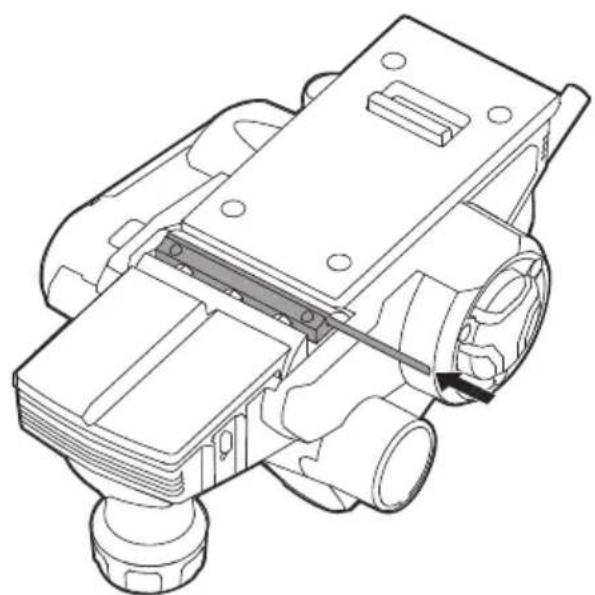

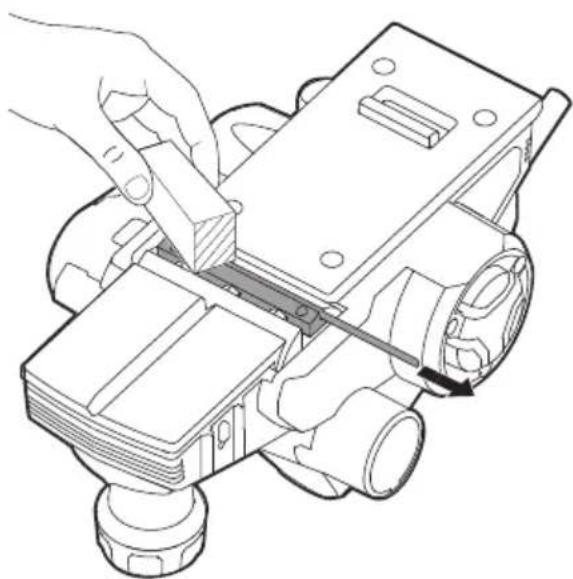

-push knife out of cutter block with piece of wood ⑥ c
-put knife back in cutter block in reversed position, or use new knife⑥ d
! groove in knife should match ledge in cutter block

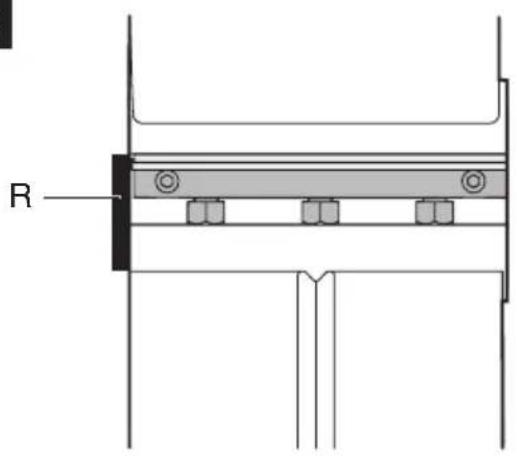

! place knives against support plate R⑥ e

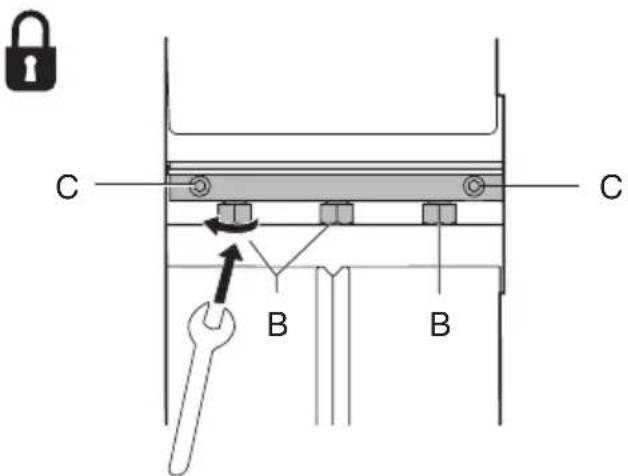

-firmly tighten 3 bolts B with wrench ⑥ f
! change/reverse knives in time; only use sharp knives
! always change/reverse both knives at the same time

! do not attempt to adjust the knives with cutter block screws C, which are pre-set at manufacturing

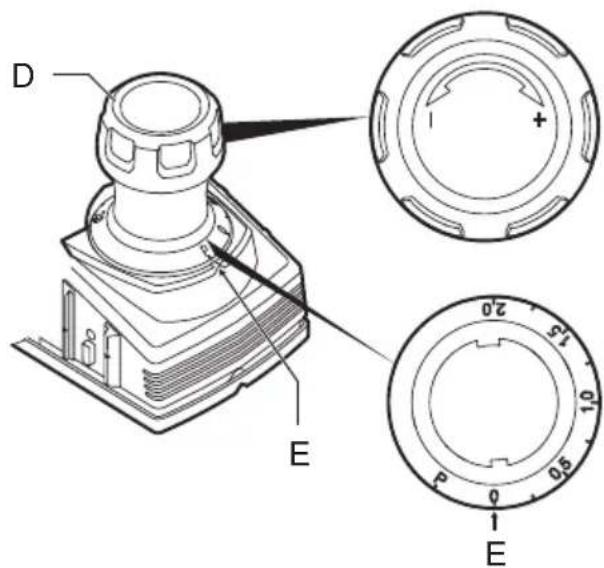

- Adjusting planing depth ⑦

-turn knob D in “+”/“-” direction for increasing/decreasing planing depth

-use indicator E as reference

-always select a shallow planing depth and repeat the planing and adjusting process until the required depth is reached

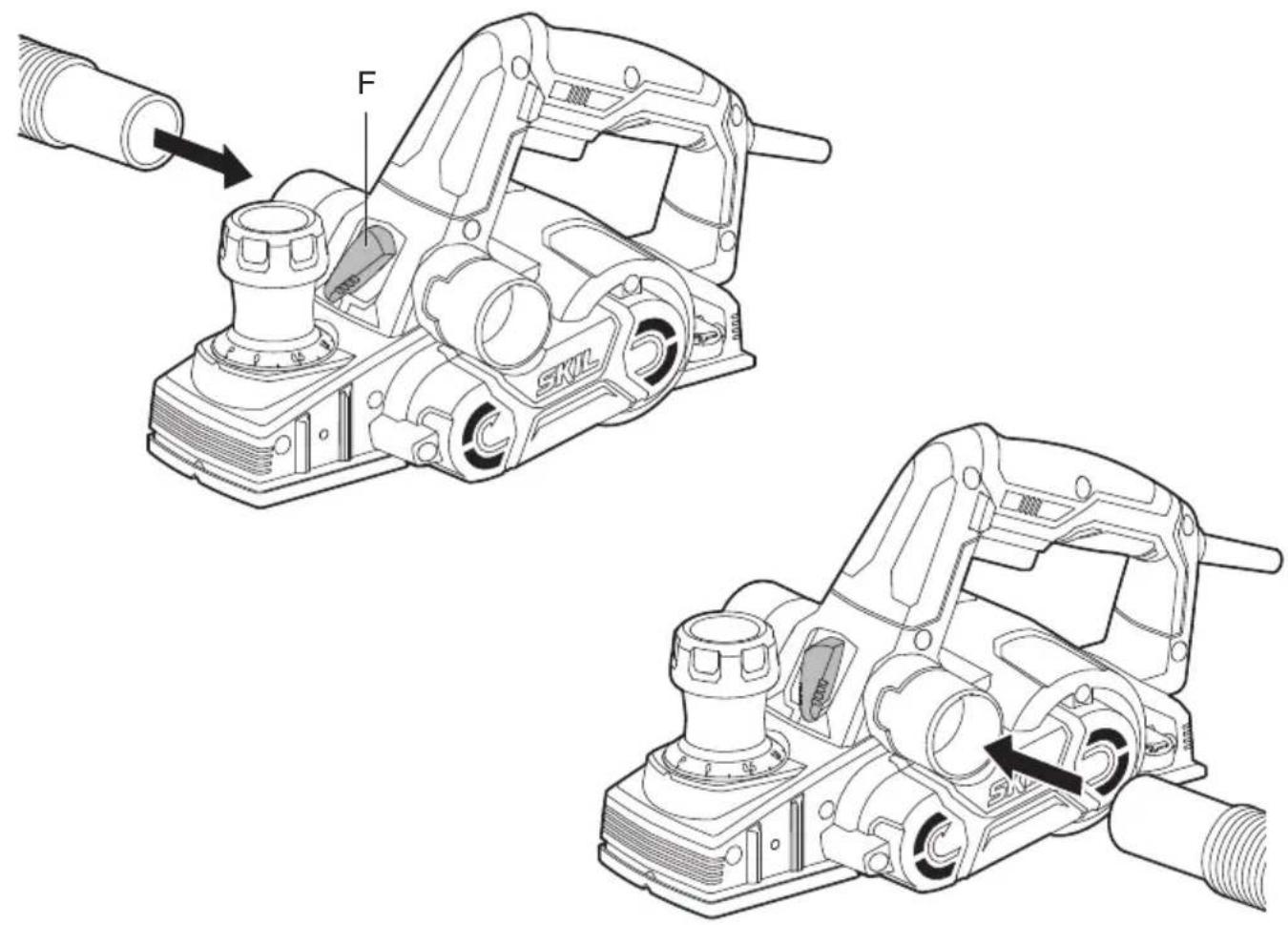

- Chip outlet ⑧

-select desired chip outlet side (left or right) with switch F

-connect vacuum cleaner to selected chip outlet G as illustrated

! do not attempt to remove any obstructions from the chip outlet while knives are rotating

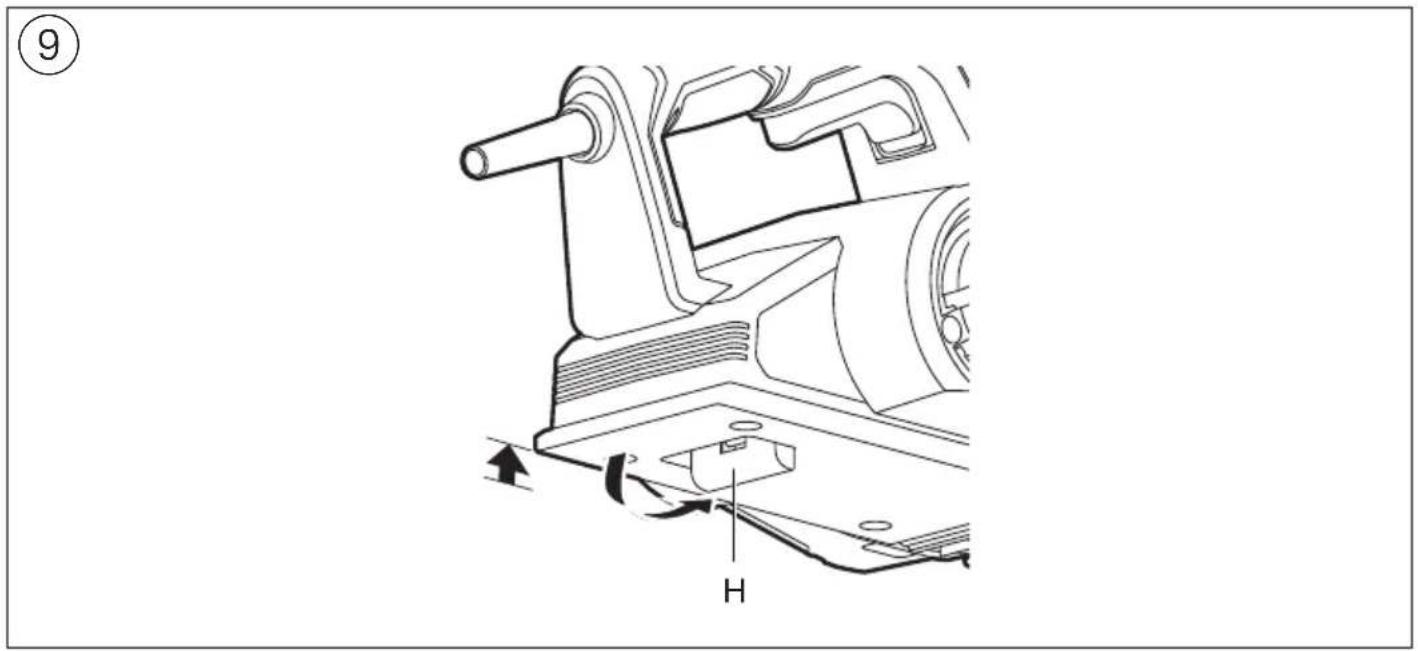

- Park rest H ⑨

-protects workpiece from damage when tool is put aside -will automatically fold backwards when planing

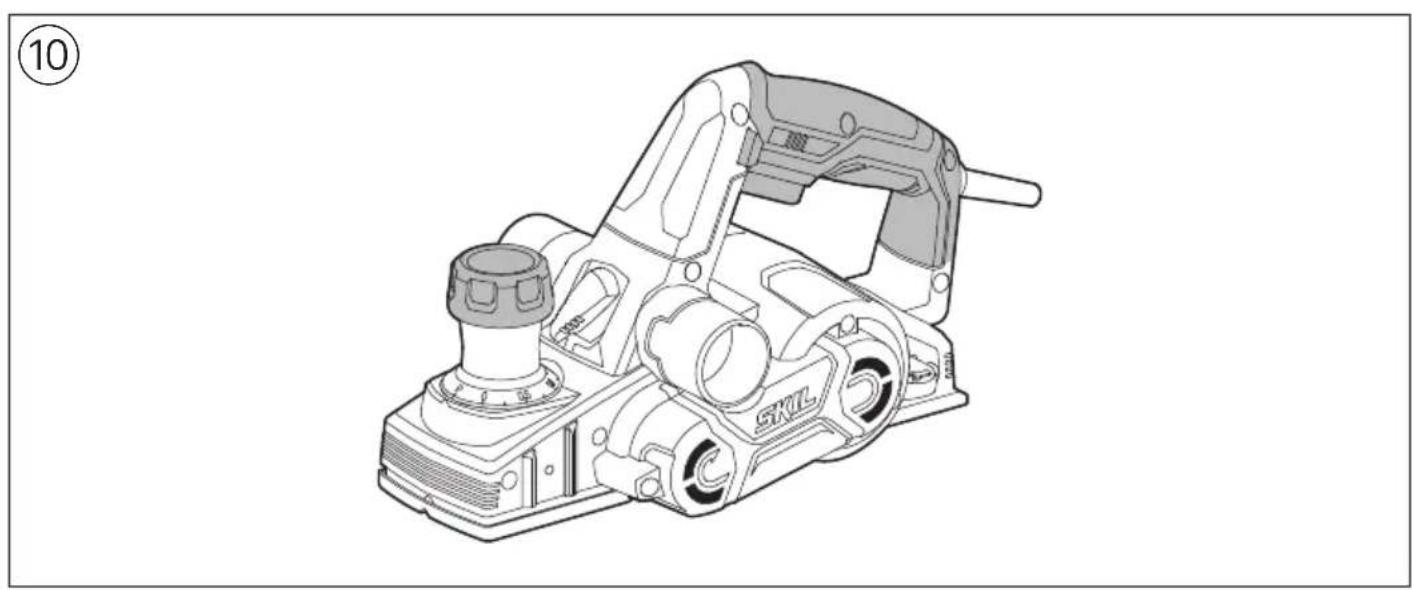

- Operating the tool

-adjust planing depth

-connect plug to power source

-place tool on workpiece

! ensure that only the front shoe rests on the workpiece and that the knives do not touch it

-switch on the tool by first pressing knob J② (= safety switch which cannot be locked) and then pulling trigger K②

! before the knives reach the workpiece, the tool should run at full speed

! while working, always hold the tool at the grey-coloured grip area(s) ⑩

-hold the tool firmly with both hands and guide it forward in a continuous stroke

-use the tool with its base-plate on the workpiece

-do not tilt the tool in order to avoid unwanted planing marks

! before switching off the tool, you should lift it from the workpiece

-switch off the tool by releasing trigger K

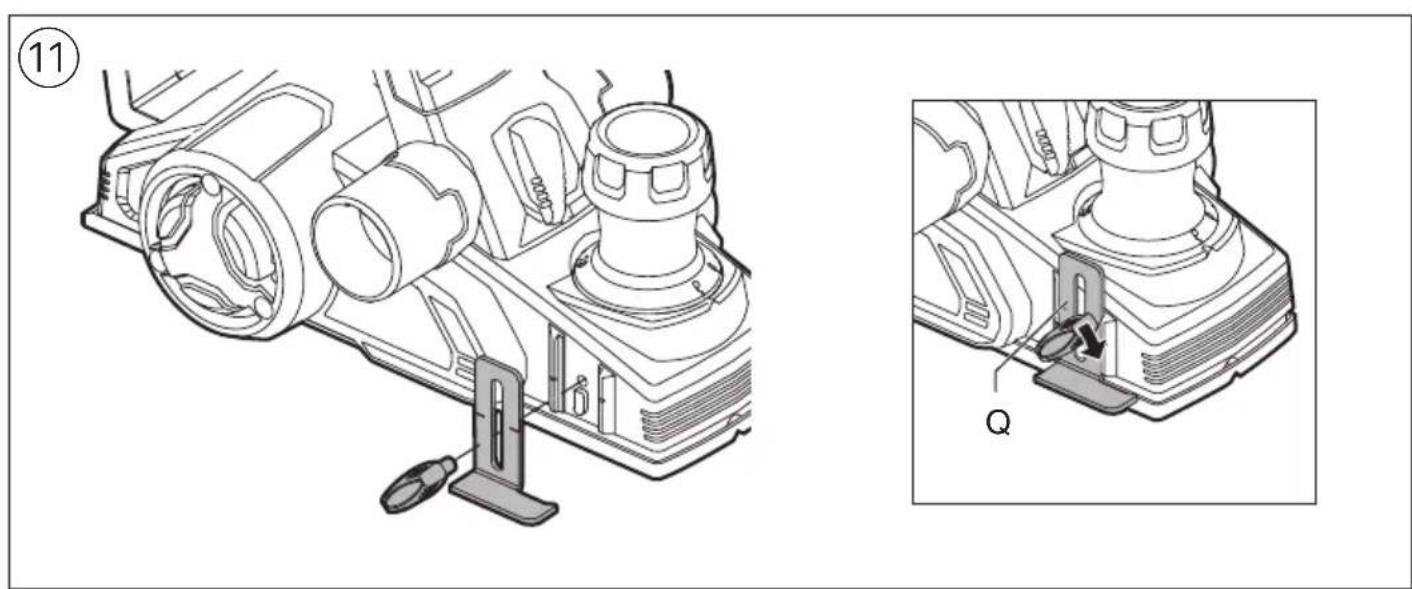

- Planing rabbets ⑪

-select required planing depth

-select rabbeting depth by using rabbeting depth adjuster Q

-place tool on workpiece

-start planing

-maximum rabbeting width 82 mm

-maximum rabbeting depth 8 mm

APPLICATION ADVICE

- When planing one may use a dust bag

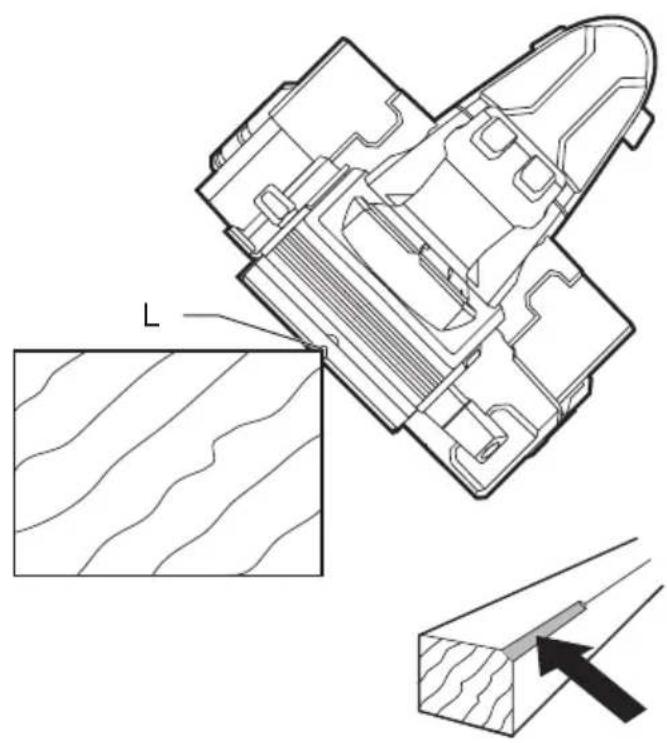

- For chamfering edges use the V-groove L in the front shoe ⑫

-set knob D to position "0" for chamfering edges similar to selected groove

-for larger grooves turn knob D to select the required planing depth

! always test out first on a piece of scrap material

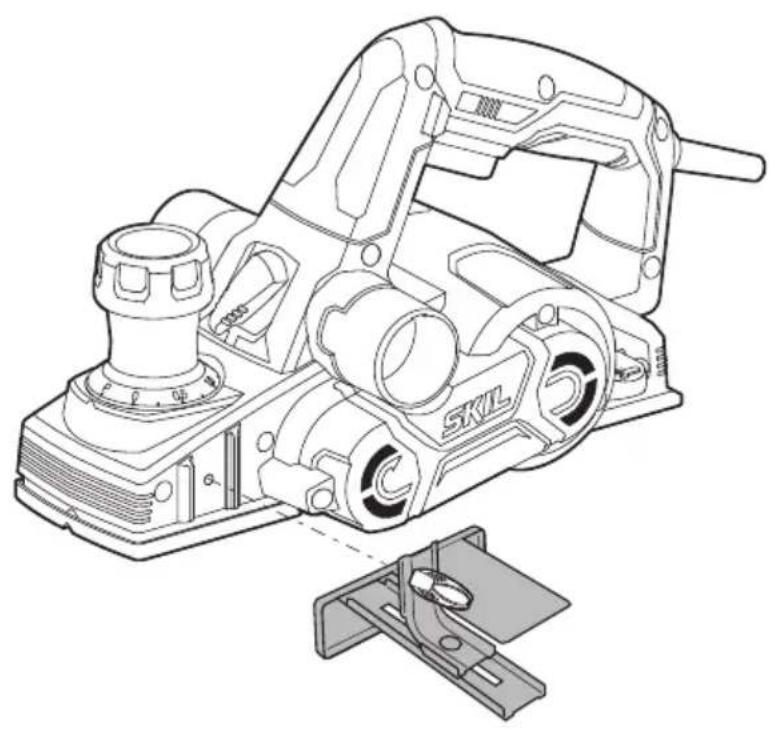

- When planing rabbets you will achieve better results by using a parallel guide to adjust rabbeting width ⑬

• For more information see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use

- Always keep tool and cord clean (especially ventilation slots M ②)

! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, please send the tool undismantled together with proof of purchase to your dealer.

- Be aware that damage due to overload or improper handling of the product will be excluded from the warranty (for the warranty conditions please ask your dealer).

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

-symbol ⑤ will remind you of this when the need for disposing occurs

NOISE / VIBRATION

- Measured in accordance with EN 62841 the sound pressure level of this tool is 88.0 dB(A) and the sound power level 99.0 dB(A) (uncertainty K = 3 dB), and the vibration < 2.5 m/s ^2 (triax vector sum; uncertainty K = 1.5 m/s ^2 )

- The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns
