VLP64B - Projector HQ Power - Free user manual and instructions

Product type	Professional projector
Brand	HQ Power
Model	VLP64B
Dimensions (L x W x H)	460 x 225 x 225 mm
Power supply	230 VAC, 50 Hz
Protection class	I (grounded)
Socket	GX-16D
Compatible bulb	PAR64, 500 W or 1000 W (not included)
Housing material	Aluminum, black finish
Power cord length	1 m with Schuko connector
Filter frame included	Yes (replacement: VLP64B/FF)
Minimum distance from illuminated surface	1 m
Lamp temperature (max)	700 °C (caution, risk of burns)
Intended use	Indoor, discotheques, theaters
Installation	By qualified technician, with safety cable
Cleaning	Damp lint-free cloth, no alcohol or solvent
User-replaceable parts	Bulb only
Warranty	24 months (consumer), 6 months (professional use)

Frequently Asked Questions - VLP64B HQ Power

Which bulb to use with the VLP64B projector?

The VLP64B projector accepts PAR64 bulbs of 500 W or 1000 W. Consult the list of compatible bulbs in the manual, for example: LAMP500P64NSP (narrow beam 500 W) or LAMP1000P64NSPS (narrow beam 1000 W). The bulb is not included.

How to replace the bulb of the VLP64B?

First unplug the device and let it cool (the lamp can reach 700 °C). Pull the spring to open the housing, remove the old bulb, insert the new one without touching the glass with bare hands (use a cloth), then close the housing.

Can the VLP64B projector be used outdoors?

No, this projector is designed for indoor use only. It must be protected from rain, moisture and water splashes.

What is the safety distance between the projector and the illuminated surface?

Maintain a minimum distance of 1 meter between the light output of the projector and the illuminated surface to avoid risk of overheating or fire.

How to clean the VLP64B projector?

Unplug the device and let it cool. Wipe it with a damp lint-free cloth. Never use alcohol or solvents that could damage the housing.

What type of safety cable to use for installation?

Use a suitable safety cable such as VDLSC7N or VDLSC8N to securely fix the projector and prevent falls.

Is the VLP64B projector compatible with a dimmer?

No, do not connect the device to a power block or dimmer, even used as an on/off switch (0% to 100%). This could damage the projector.

What to do if the projector emits an unusual odor during first use?

This is normal. The first use may produce a particular odor which will gradually disappear after a few hours of operation.

What is the warranty for the HQ Power VLP64B projector?

The warranty is 24 months for consumer use and 6 months for professional use. It covers manufacturing and material defects, but not damage due to misuse.

Can I replace parts other than the bulb myself?

No, the only user-replaceable part is the bulb. For any other repair or maintenance, contact a qualified technician.

USER MANUAL VLP64B HQ Power

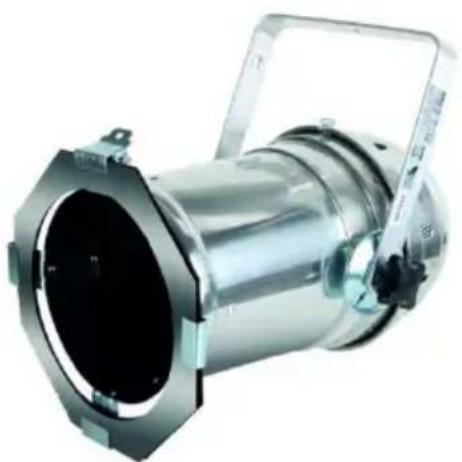

Black industrial lamp or optical component with adjustable handle and mounting bracket (no visible text or symbols)

VLP64B VLP64C

Exterior view of a metallic cylindrical mechanical component with hexagonal base and mounting bracket (no visible text or symbols)

USER MANUAL 2

GEBRUIKERSHANDLEIDING 5

MODE D'EMPLOI 9

MANUAL DEL USUARIO 13

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

Be very careful during the installation: touching live wires can cause life-threatening electroshocks.

Do not touch the device during operation as the housing heats up.

Do not stare directly at the light source, as this may cause

• epileptic seizure in sensitive people

• temporarily loss of sight (flash blindness)

• permanent (irreversible) eye damage.

• Always disconnect mains power when device not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.
• This device falls under protection class I. It is therefore essential that the device be earthed. Have a qualified person carry out the electric connection.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
• Respect a minimum distance of 1 m between the device's light output and any illuminated surface.
• Use an appropriate safety cable to fix the device (e.g. VDLSC7N or VDLSC8N).

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified people. Any damage that may occur will most probably be due to unprofessional use of the device.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

VLP64B - VLP64C

• A qualified technician should install and service this device.
- Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
- This device is designed for professional use on stage, in discos, theatres, etc. The device should only be used indoors with the appropriate current and power supply (see Technical Specifications).
- Lighting effects are not designed for permanent operation: regular operation breaks will prolong their lives.
- There may be a particular smell when the device is activated for the first time. This is normal and any smell will gradua lly disappear.
- Do not connect the device to a dimming pack, even if the dimmer channel is used solely for 0% to 100% switch.
- Use the original packaging if the device is to be transported.
- Keep this manual for future reference.

4. Features

• lightweight aluminium construction with black finish
• complete with ceramic socket, cable and filter holder
• for lamps PAR64, 500 W or 1000 W, or for reflector and 500 W halogen lamp
• 1 m power cable with Schuko plug
- spare filter frame: VLP64B/FF

5. Installation

Lamp

• Only fit or replace a lamp when the device is unplugged from the mains.
• Let a lamp cool down before replacing it as the temperature of a lamp can reach 700^ C during operation.
• When handling a halogen lamp, do not touch it with your bare hands. Use a cloth to insert or remove it.
• Do not install lamps with a higher wattage. They get hotter than this device was designed for.
• Do not operate the device as long as the lamp is not securely fastened or the cover still opened.
• Replace any deformed or damaged lamp with a lamp of the same type (see Technical Specifications).

To replace the lamp:

1. Pull the extension spring and open the housing.
2. Remove the old and insert a new one.
3. Fix the socket and close the device.

Mounting guidelines

• Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable no rms.
• The construction to which the device is attached should be able to support 10 times the weight of the device for one hour without deformation.
• The installation must always be secured with a secondary attachment e.g. a safety cable.
• Never stand directly below the device when it is being mounted, removed or serviced.
• Have a qualified technician check the device once a year and once before you bring it into service.
  • Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
• Overhead mounting requires extensive experience: calculating work load limits, determining the installation material to be used. Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in injuries.
  • Make sure there is no flammable material within a 0.5 m radius of the device.
• Connect the device to the mains with the power plug.
• The installation has to be approved by an expert before the device is taken into service.

6. Cleaning and Maintenance

• Disconnect the device from the mains prior to maintenance activities. Let the device cool down.
• All screws should be tightened and free of corrosion.
• The housing, visible parts, mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with e.g. do not drill extra holes in mounting supports, do not change the location of the connections...
• Mechanically moving parts must not show any signs of wear and tear.
• The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
• Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
  • There are no user-serviceable parts apart from the lamp.
• Contact your dealer for spare parts if necessary.

7. Technical Specifications

power supply	230 Vac 50 Hz
lamp socket	GX-16D
dimensions	460 x 225 x 225 mm
lamp (no t incl.)	Sylvania	narrow spot 500 W: LAMP500P64NSP
		narrow spot 1000 W (CP60): LAMP1000P64NSPS
		spot 1000 W (CP61): LAMP1000P64NSPS
		medium flood 1000 W (CP62): LAMP1000P64MFLS
	GE Lighting	narrow spot 500 W: LAMP500P64VNSP
	spot 500 W: LAMP500P64S
		medium flood 500 W: LAMP500P64MFL
		wide flood 500 W: LAMP500P64WFL
		narrow spot 1000 W (CP60): LAMP1000P64VNSP
		spot 1000 W (CP61): LAMP1000P64S
		medium flood 1000 W (CP62): LAMP1000P64MFL
	wide flood 1000 W (CP95): LAMP1000P64WFL
	Philips	7389/A1/244 500 W: LAMP500P with reflector
		6877P 500 W: LAMP500P2 with reflector
		6820P 500 W: LAMP500T with reflector
available bo dy co lours	black	VLP64B
	chrome	VLP64C

Use this device with original a cccessories only. Ve lleman nv cannot be he ld responsible in the event of damage or injury resulting from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu.

The information in this manual is subject to change without prior not ice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
