RP120 - Turntable Fenton - Free user manual and instructions

Product type	Vinyl record turntable
Brand	Fenton
Model	RP120
Speeds	33, 45 and 78 RPM
45 RPM adapter	Yes, included
Automatic stop	Yes, switchable ON/OFF
Tonearm	With raise/lower lever and locking
Cartridge (stylus)	With removable protection
USB port	Yes, for connection to a computer
Audio output	Line output (line level, coaxial)
Power supply	220-240 V ~ 50 Hz
Included software	Audacity (on CD or downloadable)
Operating temperature	5 °C to 35 °C
Use	Indoor only
Dimensions (estimated)	Approximately 420 x 350 x 120 mm
Weight (estimated)	Approximately 3.5 kg
Warranty	Subject to compliance with instructions
Repairability	Repair by qualified technician only
Cleaning	With a dry cloth, no chemicals

Frequently Asked Questions - RP120 Fenton

How to connect the turntable to a computer?

Connect the turntable to the computer via the USB port. Turn the main switch to ON. The computer installs the drivers automatically. Then install the Audacity software (provided on CD or downloadable).

How to record a vinyl record on PC?

After connecting the turntable via USB and installing Audacity, launch the software. In Preferences, select the USB Bus audio device as the recording source. Place the record and click Record.

Why doesn't the turntable stop at the end of the record?

Check the Autostop ON/OFF switch. If it's set to OFF, the turntable will not stop automatically. Set it to ON. If the problem persists, some records may not trigger the automatic stop; in that case, leave autostop on OFF.

What to do if the needle skips or crackles?

Make sure the needle is not damaged and the record is clean. Clean the needle with a soft brush or dry cloth. Also check that the selected speed matches the record (33, 45, or 78 RPM).

Can I connect the turntable to a phono input on my amplifier?

No, the output of this turntable is a line output (line level). Connect it to a line input (AUX, CD, etc.) on your amplifier. Do not connect it to a phono input, as this would cause distortion.

How to clean the needle?

Use a dry cloth or a special needle brush. Do not use chemicals. If necessary, apply a drop of isopropyl alcohol to a cotton swab and gently clean the needle from back to front.

The turntable does not turn on, what to do?

Check that the power cord is properly connected and the wall outlet is powered. Make sure the main switch on the back is set to ON. If the problem persists, contact a specialized technician.

How to change the playback speed?

Use the 33/45/78 RPM switch located next to the platter. Select the speed matching your record (usually indicated on the record label).

Can I use the turntable continuously?

No, the device is not designed for continuous use. After a listening session, turn off the turntable and unplug it if not used for an extended period.

How to transport the turntable safely?

Keep the original packaging for transport. Before moving the device, turn it off, disconnect all cables, and lock the tonearm with the locking clip.

USER MANUAL RP120 Fenton

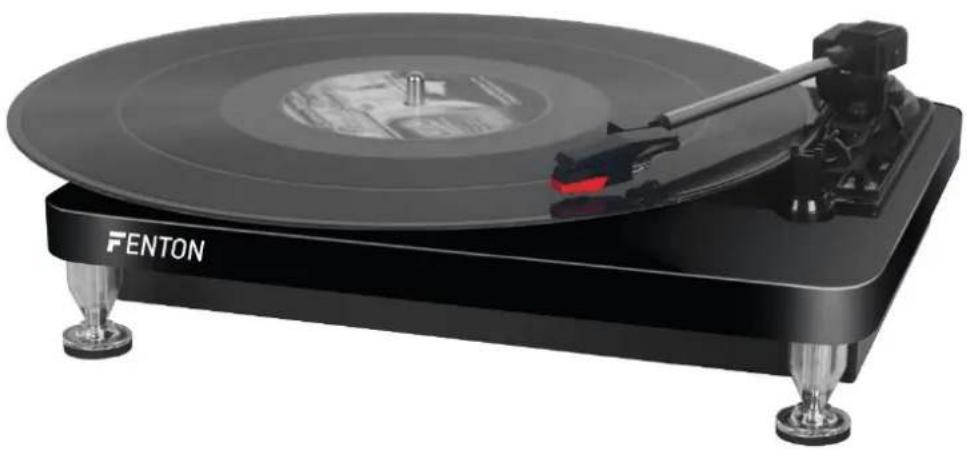

RP120 Record Player Piano finish Black/Chrome

Ref. nr.: 102.109

Black FENTON radio with visible track and base, no text or symbols on the device itself

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS

V1.2

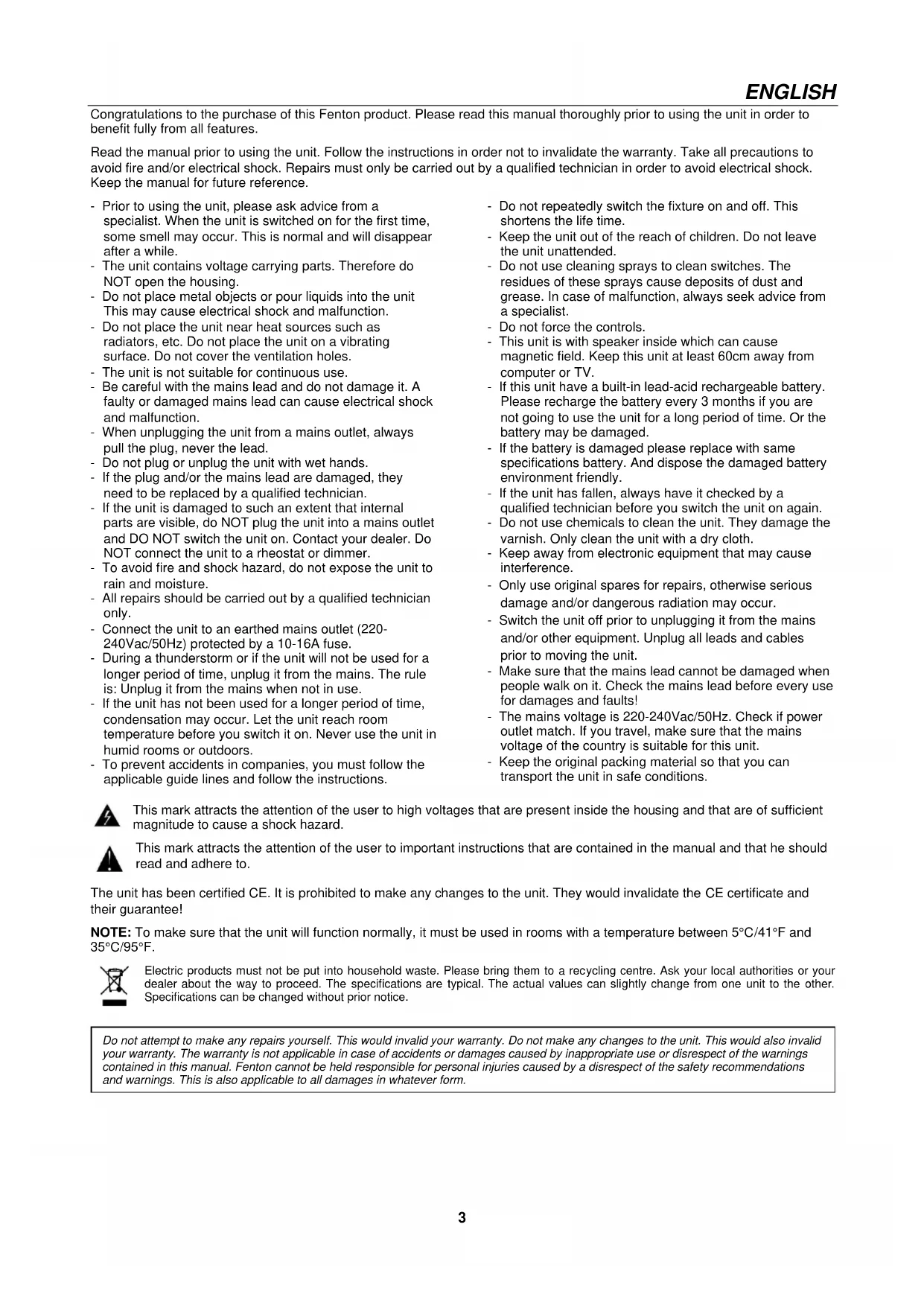

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this unit have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

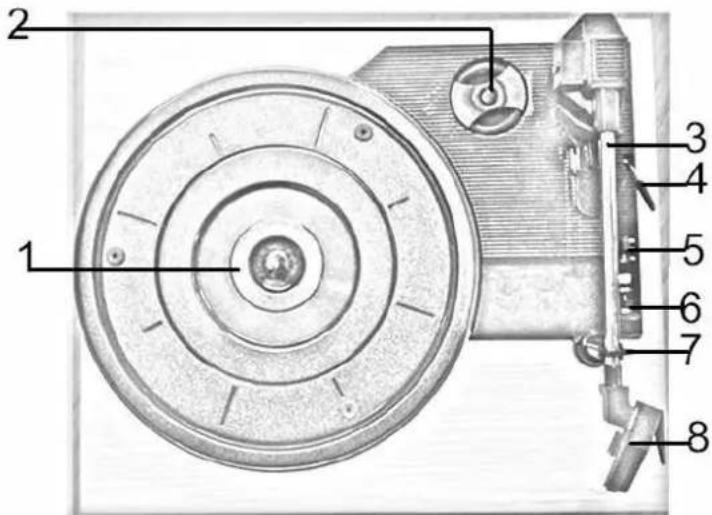

1. Platter

Place your record here.

1. 45RPM Adaptor

This adaptor allows you to play 45RPM records.

1. Tone arm

The fixed tonearm can be raised and lowered by hand, or by pressing the raise / lower lever.

1. Tone arm Lever

Raises and lowers the tonearm.

1. 33 / 45 / 78 RPM Switch

This switch controls the RPM of the turntable platter.

1. Autostop Switch ON/OFF

This switch turns auto stop on or off. When the automatic stop is enabled, the platform will start rotating as soon as the tone arm is placed over the record and will stop rotating when it has reached the end of the record. Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop to OFF.

Technical diagram of a mechanical device with numbered parts for identification

1. Arm Clip

This specially designed arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked.

1. Cartridge with needle

When the turntable is not in use, it is recommendable to place the removable protection cover on the stylus.

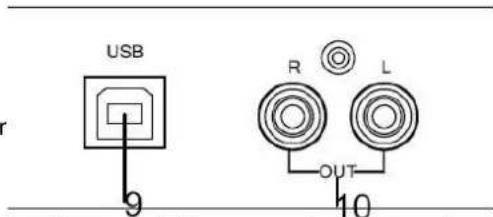

1. USB port

Use the included USB cable to connect your turntable to your computer. The USB connection will send audio from the turntable to your computer

USB 9 R L OUT 10

1. Line output

The audio from a playing vinyl record is sent to this line-level coaxial audio output. This must not be connected to phono level devices.

OPERATION

1. Connect the record player with the power adapter and plug the other end into a wall power outlet.
2. Remove white protective needle cover by gently pulling towards the front of the unit.
3. Place a vinyl record on the turntable platter and select the desired speed (33/45RPM) according to the record.
4. Open the tone arm clip to release the tone arm. Gently move the tone arm and put the cartridge onto the desired position of the record and the turntable player starts to play.

Noted: If the AUTO STOP ON/OFF Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control is turned OFF, record will NOT stop automatically when finished.

CONNECTING WITH COMPUTER

Before you connect the turntable to a computer, unplug it from your mixer or Hi-Fi system.

The included software is a third party application and therefore Fenton does not handle any questions or problems regarding the software.

1. Turn the computer on
2. If the computer is booted, connect the turntable. The computer will now install the drivers.
3. After the drivers are installed, you must now install the Audacity software.

Windows users: insert the CD or download the newest software via http://audacity.sourceforge.net

MAC users: download the newest software via http://audacity.sourceforge.net

To Install Software (PC)

1. Plug in your turntable to an power supply and connect the USB port on the Turntable to the USB port of your computer.
2. Turn on the power switch to your turntable.
3. The Windows system will detect a new device and indicate that it is available to use.
4. Insert the CD that came with your USB turntable.
5. Run the file to install the Audacity software. Once installed, run the Audacity program.

To Install Software (MAC)

1) Insert the included CD.
2) Open the CD icon on the desktop.
3) Drag the installation folder for audacity to your hard drive. We recommend that you move the folder to your "Applications" folder.
4) A window will come up which shows the files copying.
5) EJECT the CD.
6) Open "Audacity" from where you moved it to on your hard drive.

SOFTWARE CONFIGURATION

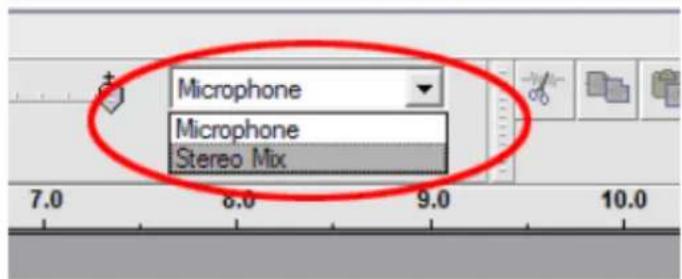

1. Click on Microphone in the drop down menu and select "Stereo Mix".

Microphone Microphone Stereo Mix

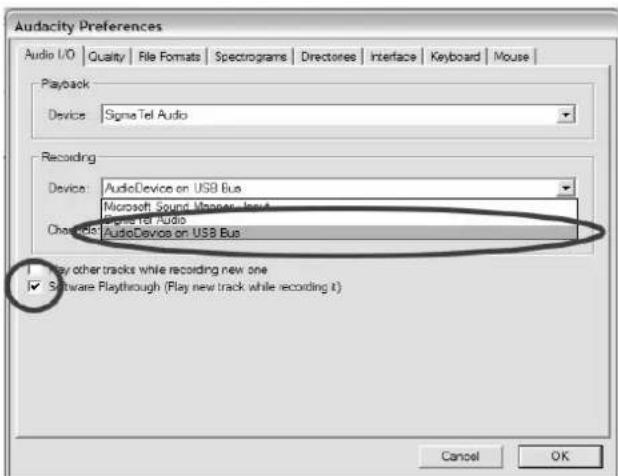

1. Select the "Edit" menu and then "Preferences"

Select the USB audio device under the "Recording" selection as shown. Select "Software Playthrough" to hear the audio while recording.

Audacity Preferences Audio I/O | Quality | File Formats | Spectrograms | Directree | Interface | Keyboard | Mouse | Playback Device: Sigma Tel Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Manager - Input Sigma Tel Audio Chord: AudioDevice on USB Bus Play other tracks while recording new one ✓ Software Playthrough (Play new track while recording it) Cancel OK

1. After the above settings are completed, you are ready for recording. If you are still having difficulties in finding the USB Turntable, try to check your system settings or control panel to adjust the audio input settings from the sound control panel.

Note: The attached Audacity software is for reference only. For more information and latest software version, please check the website: http://www.audacity.com

Technical diagram of a mechanical device with numbered parts for identification

WERKING

Microphone Microphone Stereo Mix

Audioency Preferences Audio I/O | Quality | File Format | Spectrograms | Disclosures | Interface | Keyboard | Mouse | Reback Device: Signal To Audio Recording Device: AudioDevice on USB Bus Microsoft Word Records - Book Operating Device: AudioDevice on USB Bus Play other back or while recording new user Software Playthrough (Play now track while recording it) Cancel OK

Technical diagram of a mechanical device with numbered parts for identification

7. Tonarm-Klammer

USB 9 R L OUT 10

BENUTZING

Microphone Microphone Stereo Mix

Audacity Preferences Audio U/D | Quality | File Format | Spectrograms | Directories | Interface | Keyboard | Mouse | Playback Device: SigmaTel Audio Recording Device: Audio Devices on USB Bus Microsoft Sound Masters - Book Playthrough: USB AudioDevice on USB Bus Play out other tracks while recording new one Software Playthrough (Play new track while recording U) Cancel OK

Labeled diagram of a mechanical device with numbered parts for identification

USB 9 R L OUT 10

OPERACIÓN

Microphone Microphone Stereo Mix

Audacity Preferences Audio I/O | Quality | File Format | Spectrogram | Direction | Interface | Keyboard | Mouse | Playback Device: SigmaTel Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Manager - Book SigmaTel Audio Channels: AudioDevice on USB Bus Play other tracks while recording new one Software Playthrough (Play new track while recording it) Cancel OK

Technical diagram of a mechanical device with numbered parts for identification

USB 9 R L OUT 10

FONCTIONNEMENT

Microphone Microphone Stereo Mix

Audacity Preferences Audio I/O | Quality | Rilo Format | Spectrogram | Directorate | Interface | Keyboard | Mouse | Playback Device: Sigma Tel Audio Recording Device: AudioDevice on USB Bus Microsoft Sound Manager, Joint SignalTel Audio Channels: AudioDevice on USB Bus □ May other tracks while recording new one ☑ Software Playthrough (Play new track while recording it) Cancel OK

Stylus: Ceramic Stereo cartridge with stylus

Speed: 3-speeds for 33 1/3, 45 and 78 RPM

Power supply: 5VDC / 1000mA

Dimesions: 325 x 265 x 95mm

Weight: 3.0kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

• Low Voltage (LVD) 2014/35/EU
  • Electromagnetic Compatibility (EMC) 2014/30/EU
  • Restriction of Hazardous Substances (RoHS) 2011/65/EU

Specifications and design are to change without prior notice..

www.tronios.com

Copyright © 2019 by TRONIOS the Netherlands
