USER MANUAL SC32S1FJORD SCHNEIDER

Screen Size	Resolution	No. of Bright or Dark Sub-Pixels (Color Pixels)	No. of Bright or Dark Pixels (White or Black)	Continuous Line
32	1366x768	5	2	0

Technical data sheet

Information for Electronic Displays for Commission Regulation 2019/2013/EU

Important Safety Instructions. 2

Control Panel. 10

Connecting Cables. 11

Remote Control. 13

Base Installation. 15

Wall Mounting Instructions. 16

Operations

Basic Operation 17

Live TV. 18

Connection 21

Multi-screen 24

Scart Functions 26

Picture and Sound. 29

Accessibility. 33

System and Support 34

For Reference

Troubleshooting 37

Cleaning instruction 39

Technical data. 40

Important safety instructions - please read carefully and keep for future reference

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.

CAUTION!

Dangerous tension inside the product! Do not open. Risk of electric shock! No parts can be

repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller).

Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire).

Where to install the product

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
  -Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

• Place the product in a sufficiently-aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.

• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

• The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.

• Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).

• No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

• Please unplug the product in case of prolonged non-use.
  -If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.
• This product must be connected to an electrical supply 100 - 240 ~V 50 / 60 ~Hz .
• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable
• The use of apparatus in moderate climates.
• The appliance must be connected to a power socket with ground connection.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
• In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.

Technical Specification:

Name: Television Product

Net Weight: 3.66 Kg

Operation Temperature: 0^ 35^

TV Reception System: DVB-T/T2

EU Declaration of conformity

This appliance is Television complies with the essential requirements and other provisions of Directive 2014/35/EU & 2014/30EU and the Radio Equipment Directive (RED) 2014/53/EU that goes into effect on 12 June 2016. The declaration of conformity is available on website:

http://www.schneiderconsumer.com

C E

• This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4, 2012 concerning the waste on electrical and electronic equipment (WEEE).

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.

• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.
• As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set specific procedures for the purpose of collecting and recycling this product.
• You have the obligation to use the selective waste collection systems put in place by your local authorities.

----	This symbol indicates DC Voltage (for USB only).
~	This symbol indicates AC Voltage.
	This symbol indicates “Indoor use only”.

Auto Standby

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

Product Introduction

Congratulations! You have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products!

Accessories

User manual x1

Remote control x1

Terms and options may change depending on the models.

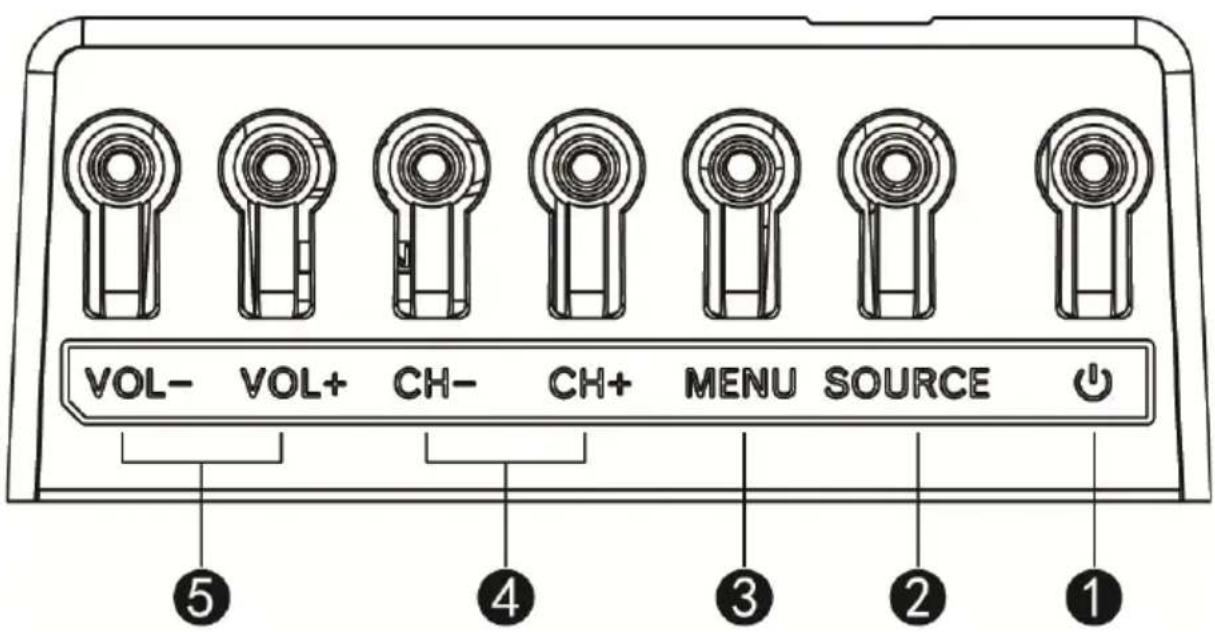

Control Panel

1. Standby : To turn ON/OFF the TV.
2. Source : To select the input source.
3. Menu : To enter menu setting page.
4. CH + / - : To select next/previous channel or move up/down.
5. VOL + / - : To increase/decrease the volume level or move left/right.

Connecting Cables

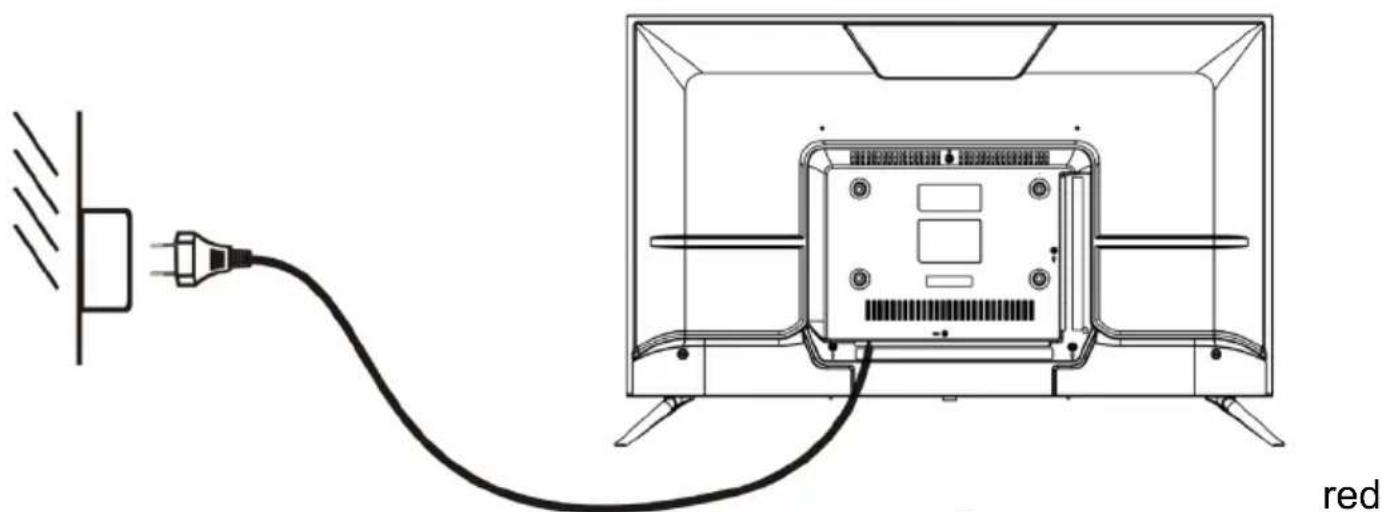

Connecting to power source

indicating lamp shines.

1. Press the standby button again on the remote control for the television the indicating lamp becomes blue.

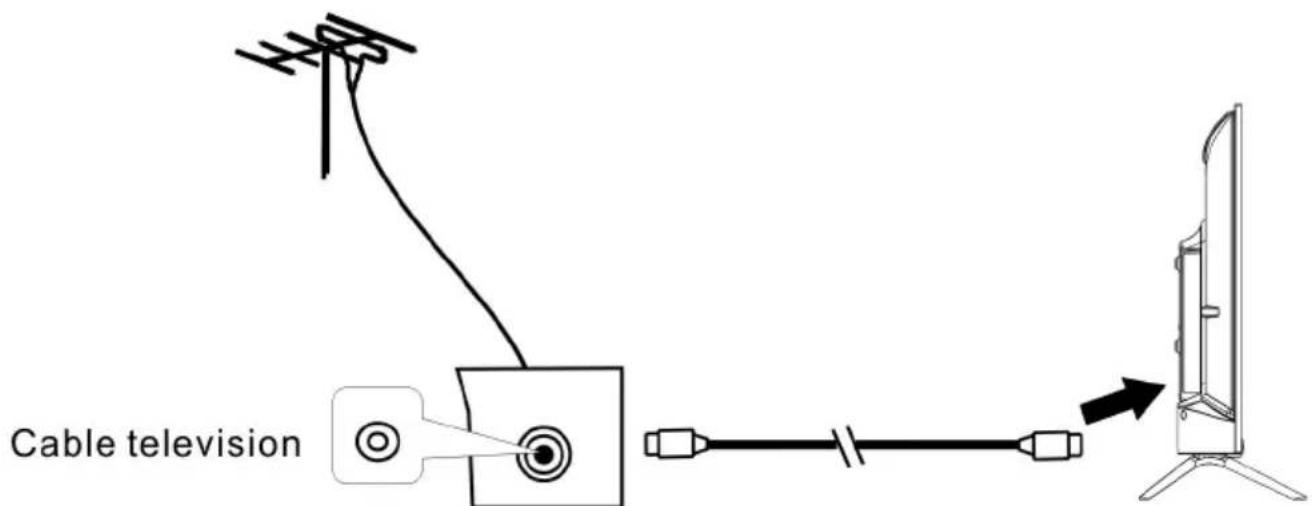

Connecting external antenna to the unit

We recommend you use a 75 antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord.

Directly insert the 75 antenna cable plug into the antenna socket when applying cable television.

Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna.

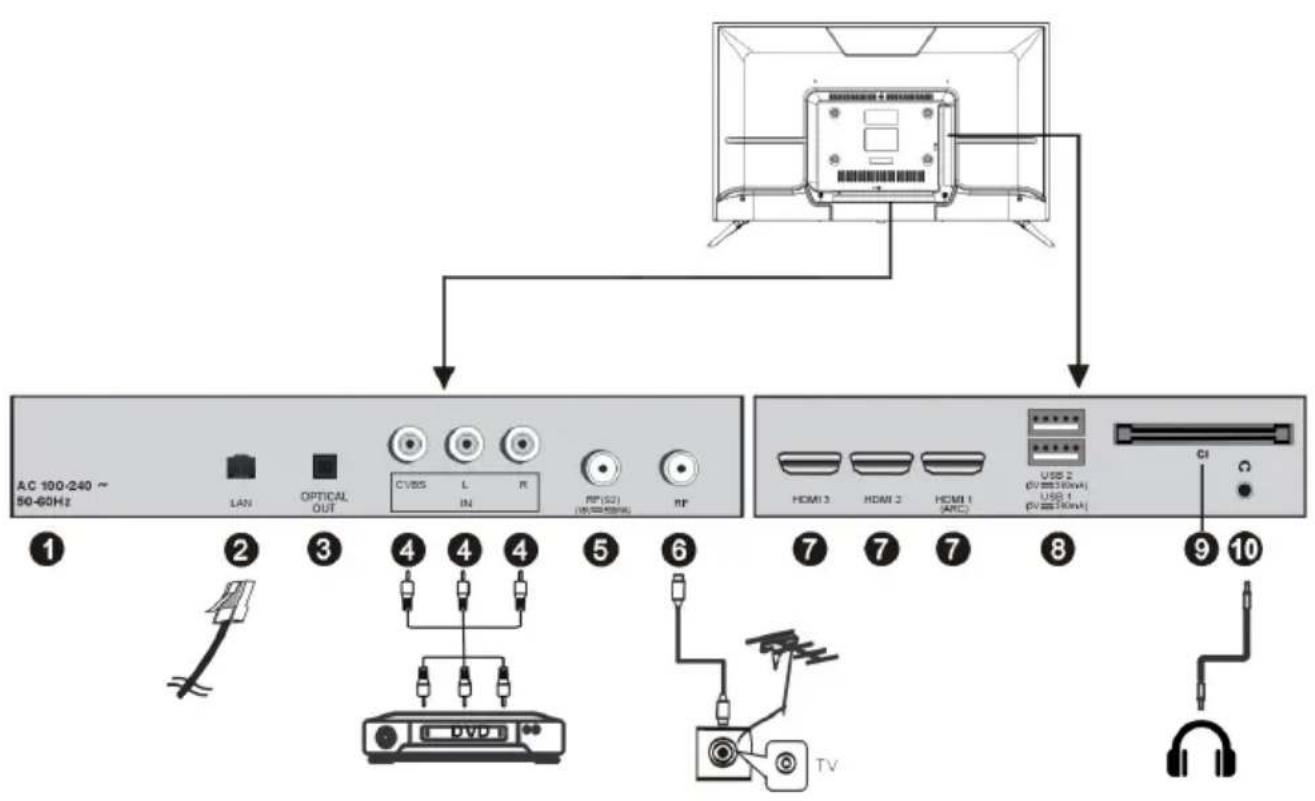

Connecting Cables

This TV has digital multimedia performance and can be connected to multiple external devices. The following diagram presents the connections.

1.AC IN
2. LAN input terminal
3. OPTICAL output terminal
4. CVBS and Audio L/R input terminal
5. FR IN : Connect to the external Satellite TV Antenna(DVB-S2).
6. RF IN : Connect to the external TV antenna.
7. HDMI1/2/3 IN : High-definition multimedia interface. ARC is in HDMI 1 only..

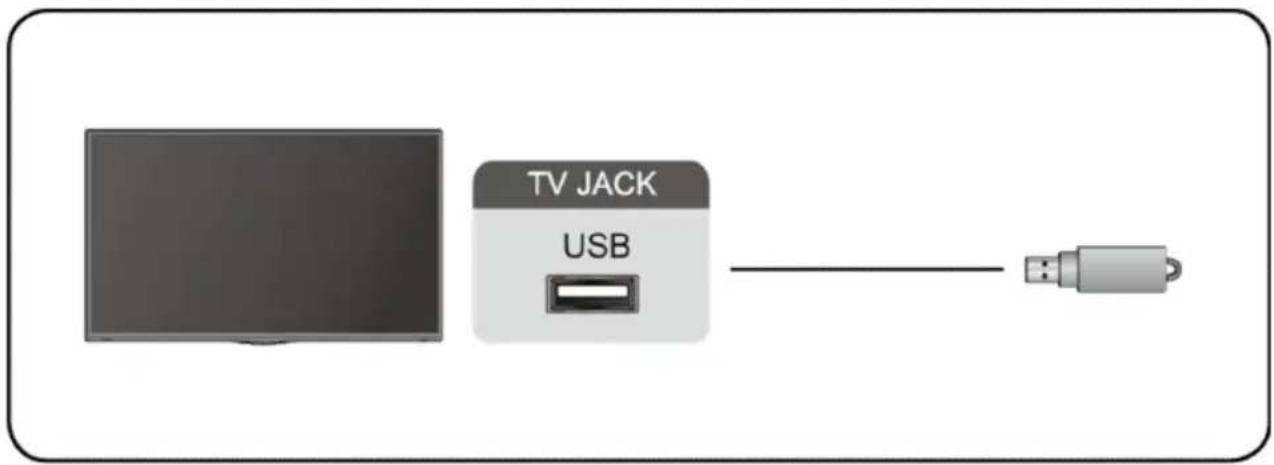

8. USB IN
Access multi-media files stored in the USB device.
9. CI SLOT : Insert a CI (common interface) card.
10. EARPHONE OUTPUT.

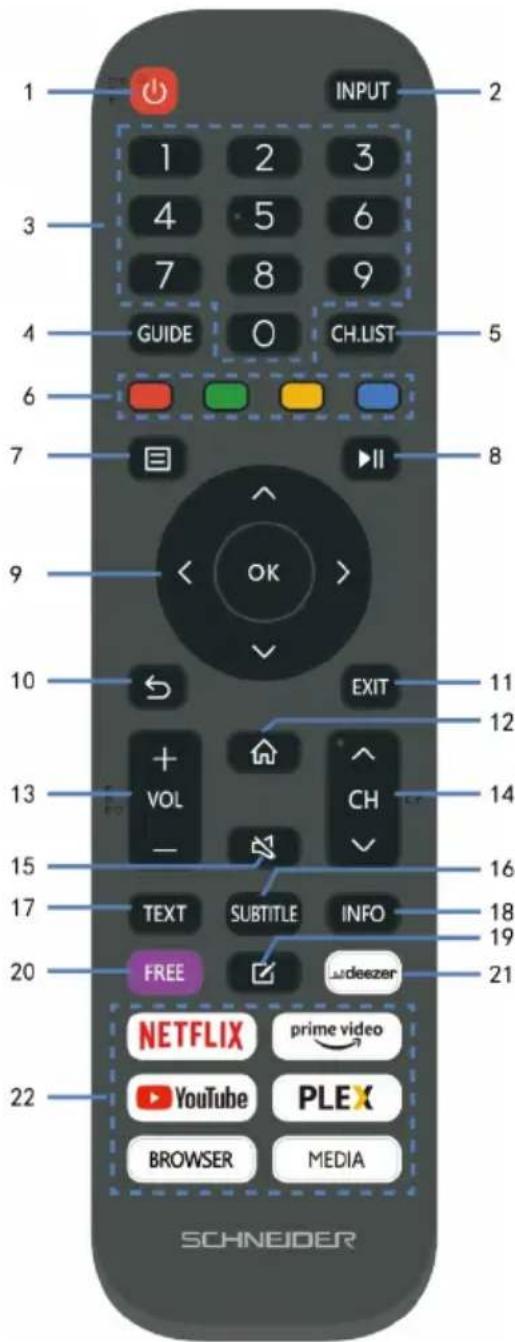

Remote Control

1 STANDBY(POWER)

Set the unit in standby mode; press it again to switch

2 INPUT

Select desired input source.

3 Number buttons (0-9)

Input the number information, such as channel number and so on.

4 GUIDE

Launch the Program Guide.

5 CH.LIST

Press to show channel list.

64Color

Customized in different page.

7 (MENU)

Call out the main menu or return to previous menu.

8

Press to operate start/pause playing; Move fast forward; Move fast backward.

9 DIRECTION/OK

Move up, down, left, right/Confirm.

10

Return to the previous interface or menu.

11 EXIT

Exit the current interface or menu.

12 (HOME)

Press to enter home page.

Notes:

The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight.

Be careful to use the remote control. avoid falling off or being trampled or splashed with liquids.

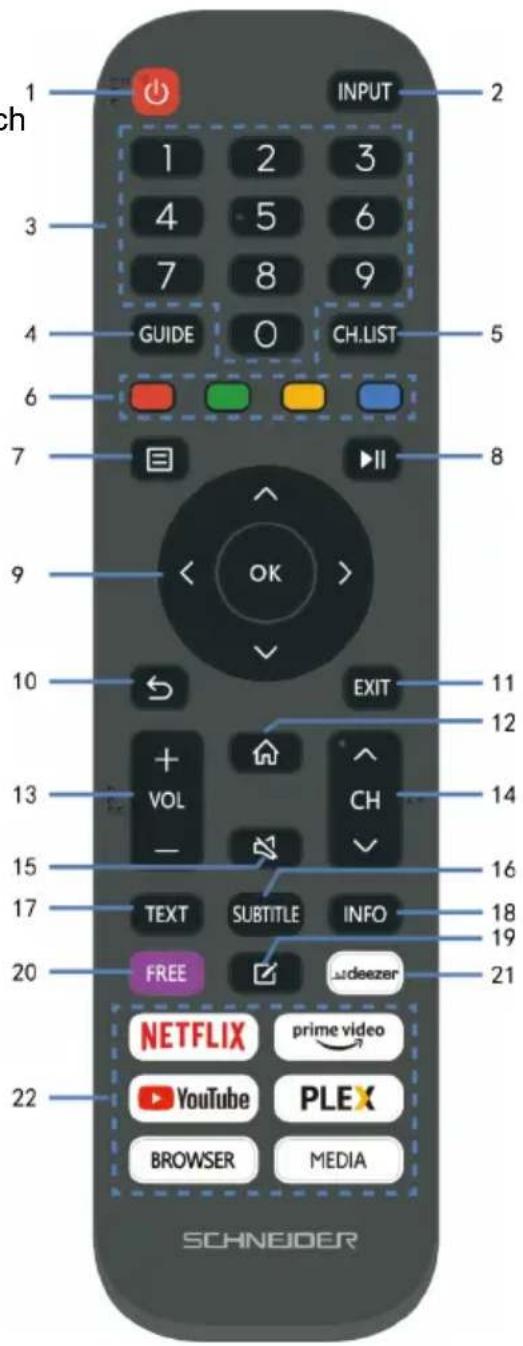

Remote Control

13 VOL +/-

Increase/decrease the volume level.

14 CH +/-

Play the next/previous program.

15 (MUTE)

Mute the sound.

16 SUBTITLE

Select available subtitles.

17 TEXT

Turn on/off the Teletext.

18 INFO

Display the available program information.

19

Set up APP shortcut key.

20 Free

Enter to the free video.

21 DEEZER

Enter to the deezer directly.

22 Content area

Six buttons for CSP Apps.

Note: The marks and positions of remote control may vary depending on the model.

Prepare the remote control

Insert 2 AAA batteries in the remote control following the polarities signs (+/-) as indicated. (Batteries are not provided)

Base Installation

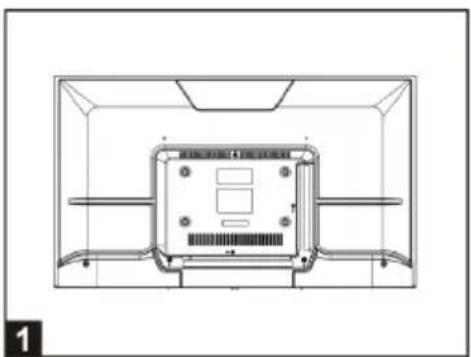

Mounting of the stand

1. Place the machine flat on a desktop (Caution: put a foam cushion under the machine to avoid it from scratching.)

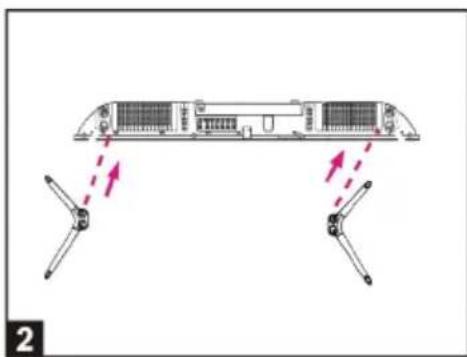

2. Align the screw holes on stand and TV bottom (Figure 2)
3. Fix the stand and the screen with 4pcs provided screws. (Figure 3)

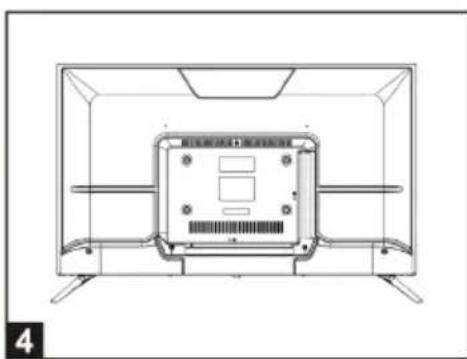

4. The rendering after installed. (Figure 4)

Disassembly of the stand

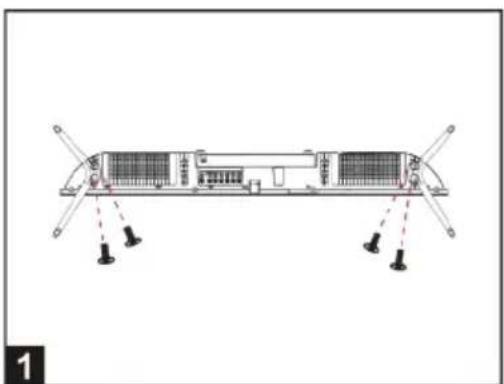

1. Loose the screws between the machine and stand (Figure 1).

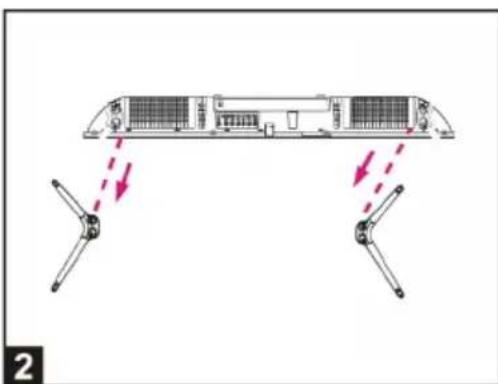

2. Remove the 2 stands from the machine (Figure 2).

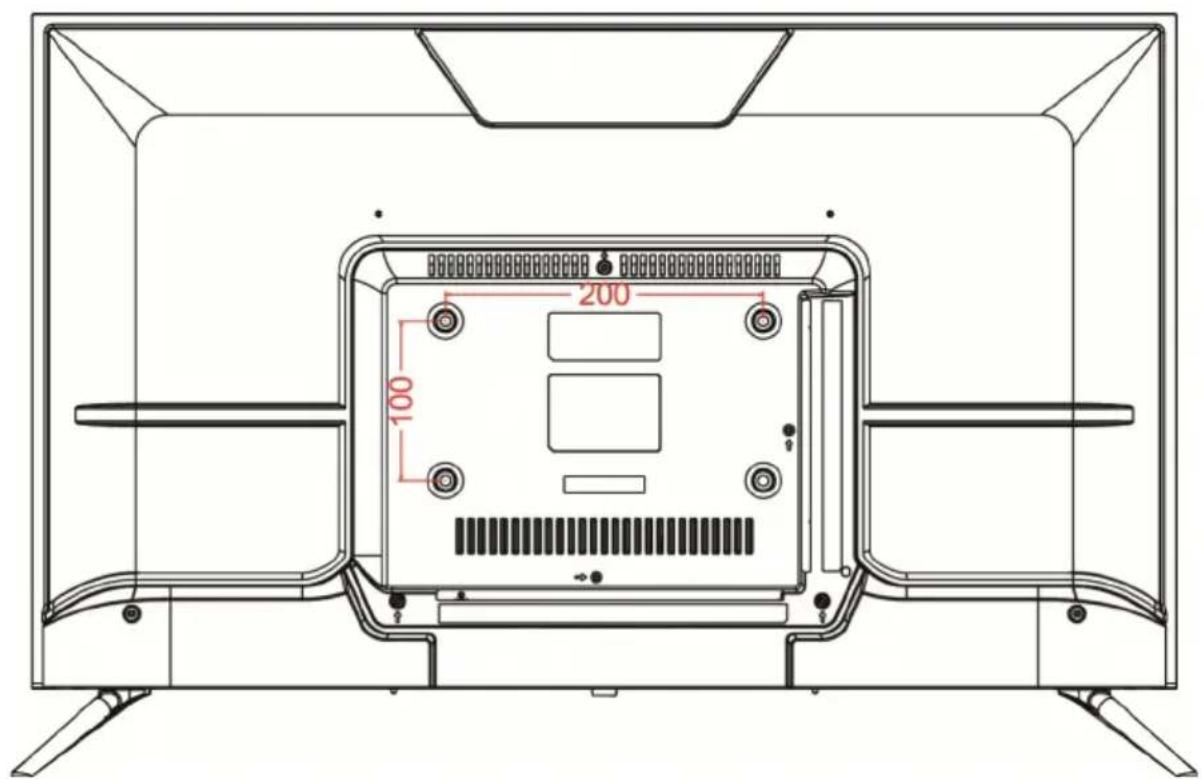

Wall Mounting Instructions

• Use standard M6*10mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee.
• Contact a professional technician for assistance when wall mounting your TV.
• Do not wall mount the TV while TV is turned on.
  Refer to the instruction of your wall mounting bracket.

MAKE SURE ALL THE EQUIPMENTS AND POWER CORD ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS.

BASIC OPERATION

• Press STANDBY button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red).

SELECT DESIRED PROGRAM

1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.

VOLUME CONTROL

• Press VOL+ or VOL- to adjust the level of current volume.

Available range: 0-100.

MUTE CONTROL

• Press MUTE button to mute the sound, press it again to turn on the sound.

INPUT SETTING

• Press INPUT button on the remote control to display the sources list.
• Press UP or DOWN navigation button to select desired input source, and then press OK button to confirm selection.

MULTIAUDIO SETTING

• Press MENU button on remote control and use navigation buttons to select Audio Language, choose the desired audio language.

NOTE: To enable this function, make sure that the channel you are viewing supports multi-audio languages.

INFORMATION DISPLAY

• Press INFO button on remote control to display information of current program.

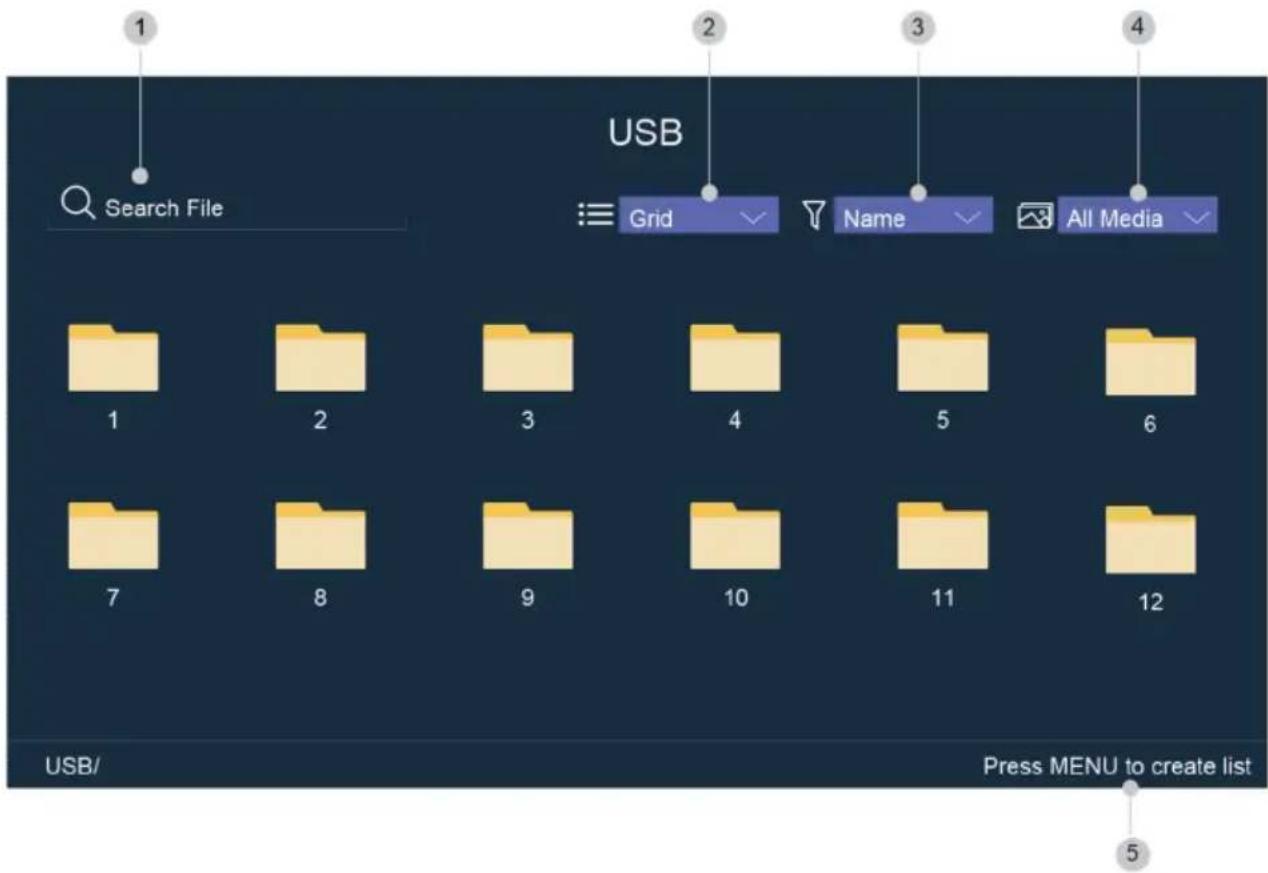

MEDIA PLAYBACK

• Press INPUT button on remote control to switch the unit to USB mode.
• Insert a USB memory device into USB slot before following operations.
• Press UP/DOWN/LEFT/RIGHT navigation button to move the cursor.
• Press BACK button to return to previous menu page.

LIVE TV

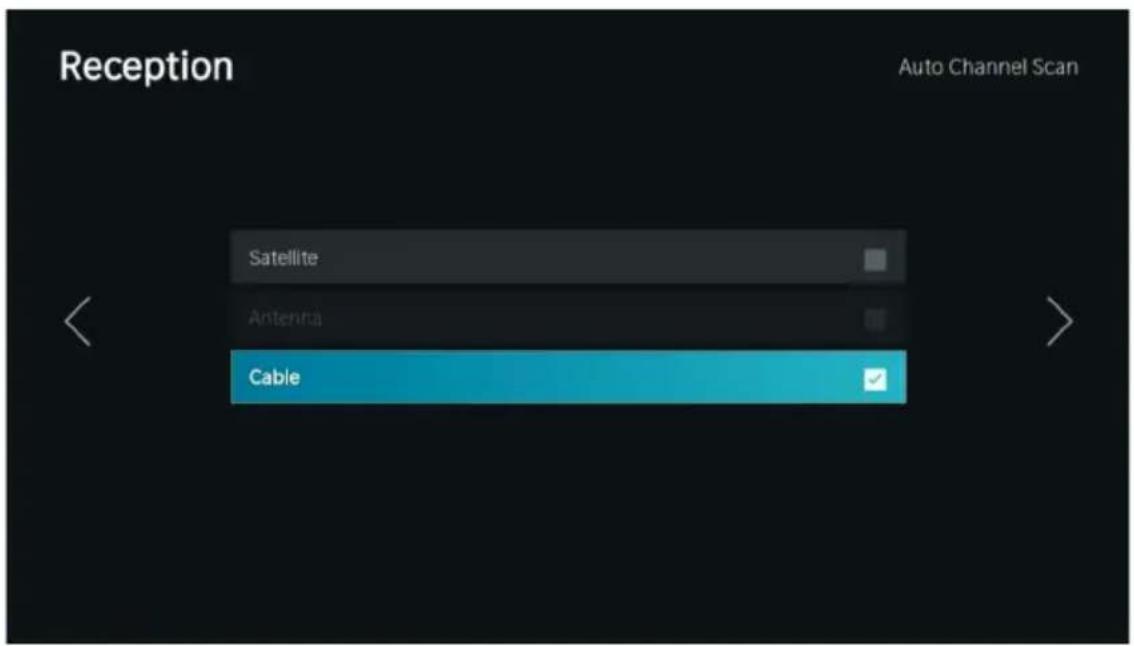

Channel Scan

Auto Channel Scan

Settings > Channel > Auto Scan

Note:

• Before you select Auto Channel Scan, you can press 口 > Settings > Channel > Auto Scan, press OK button into the submenu, select Change Setup and press OK button to select Satellite, Antenna or Cable.

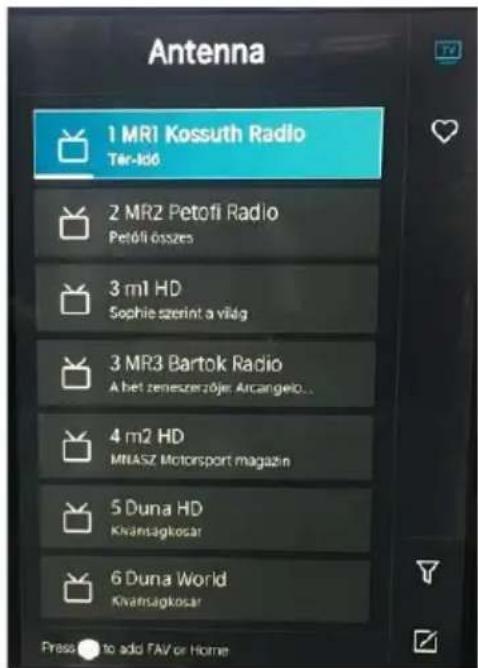

Channel List

• Display the channel list
  In Live TV, press button on the remote control to display the channel list menu.

EN-18

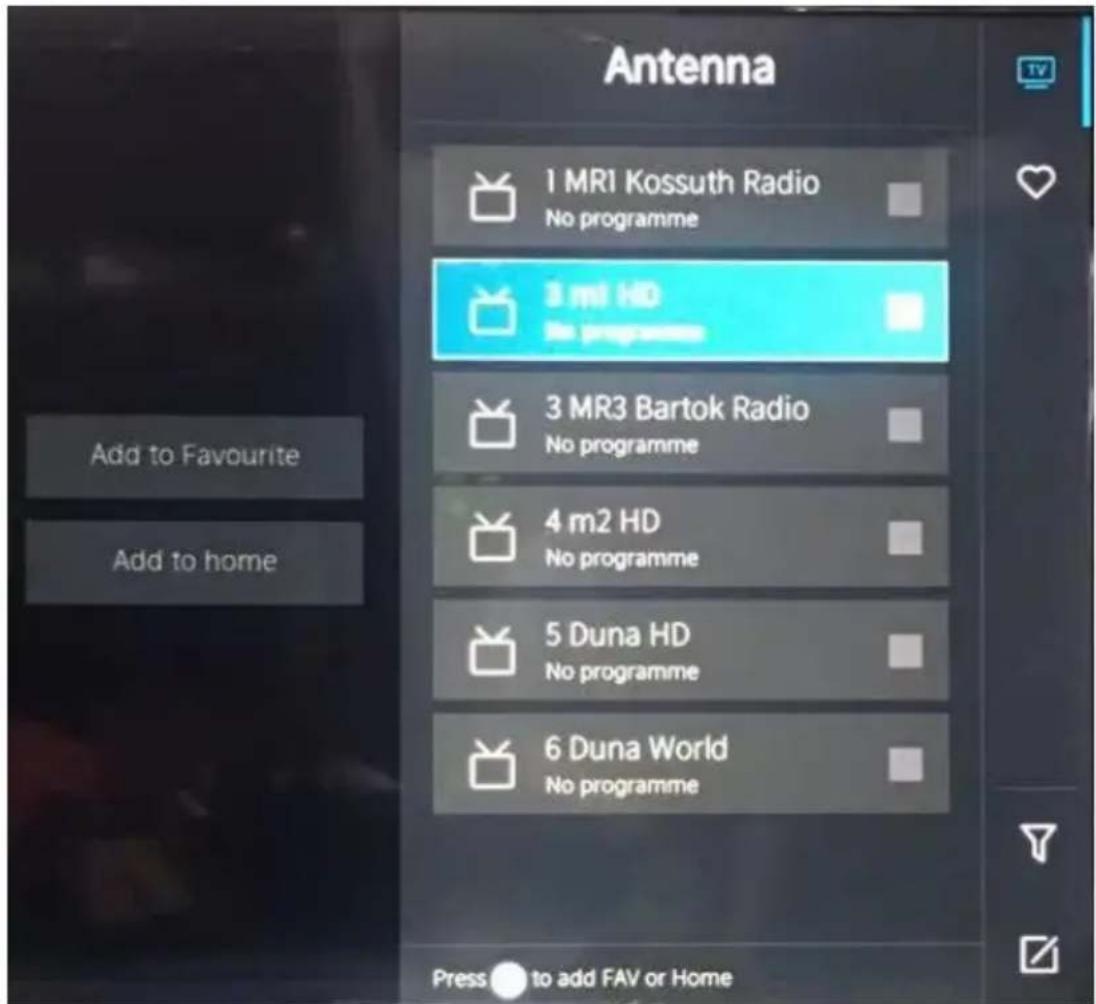

Favorite

• Adding channels to your 'Favorites' list
• Press on to call out the channel list, the channel list appears on the right side of the screen.
  Press > sel your favorite channel.
• Press a Choose Add to Favorite, a heart-shaped icon will appear next to your favorite channel.

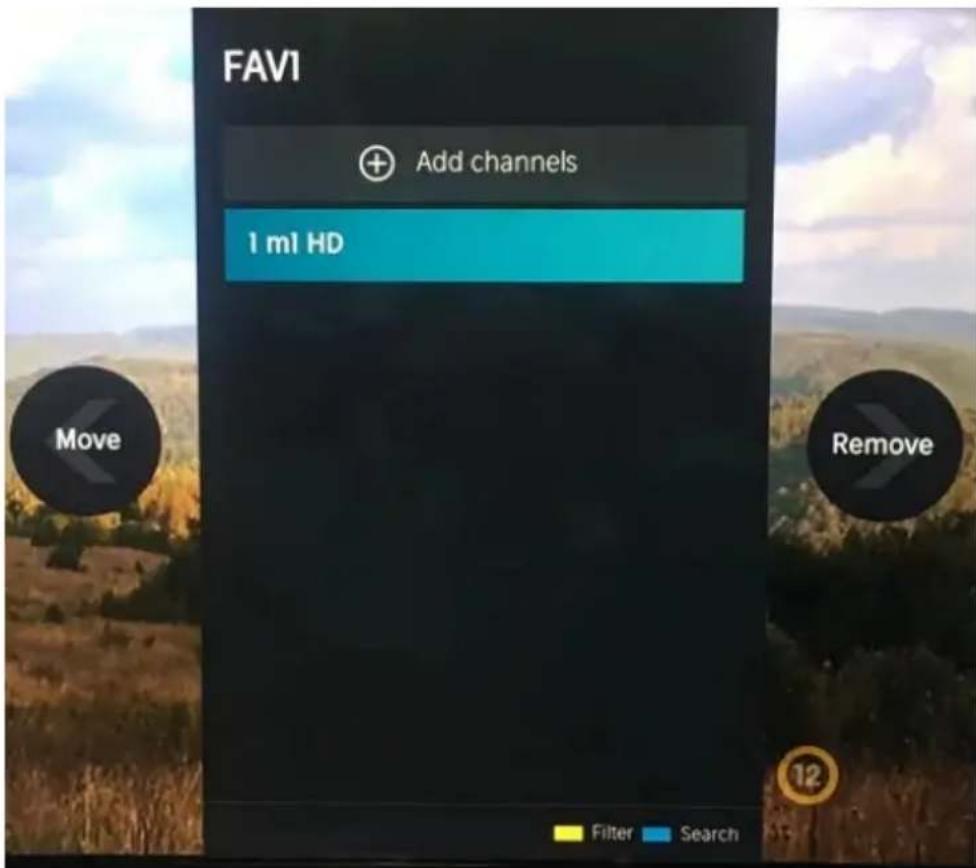

Viewing your 'Favorites' list

Press to call out the channel list, the channel list appears on the right side of the screen.

Press favorite> , press the Navigation button select FAV1,FAV2,FAV3 or FAV4 press ok and your favorite channel with a heart-shaped icon will appear on the favorite list.

Deleting channels from your 'Favorite' list

Press to call out the channel list, the channel list appears on the right side of the screen.

Press >Favorite, using the Navigation button to select (Edit) into the submenu, select the FAV channel that you want to delete.

Press delete.

Note:

• These steps should be operated under TV inputs.
• Before you edit the fav lists, complete channel scan first.

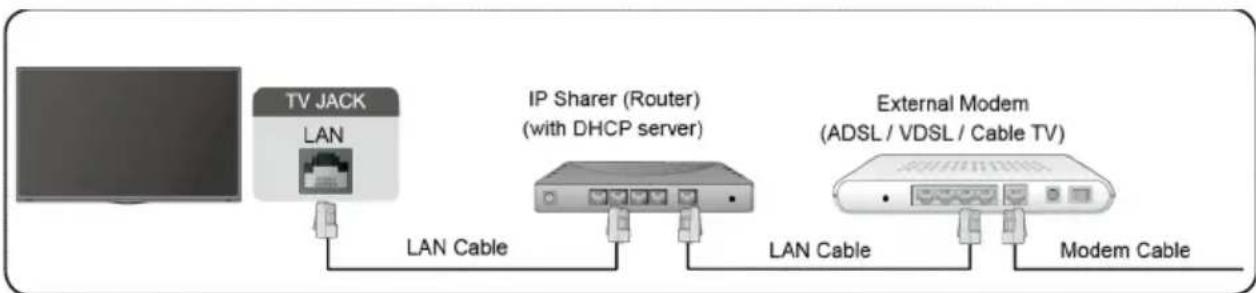

Wired LAN

Connecting to the Internet

Settings > Network > Network Configuration

You set the TV network by selecting Configuration and press the OK button to enter the submenu.

Automatically obtain an IP address

1. If you connect to the wired network, the TV will automatically obtain an IP address and connect to the network.
2. If the connection fails, disconnected message will display for the Ethernet status. Retry or enter the IP settings, and select Manual to input the information again.

Manually enter the IP address

1. Enter the IP settings to select Manual.
2. Enter the IP Address, Netmask, Gateway, DNS Server 1 and DNS Server 2 in the menu.

Note:

This section is only for 4K models.
You get access to the Internet through your TV.
The default option of IP Settings Mode is DHCP.

Wireless

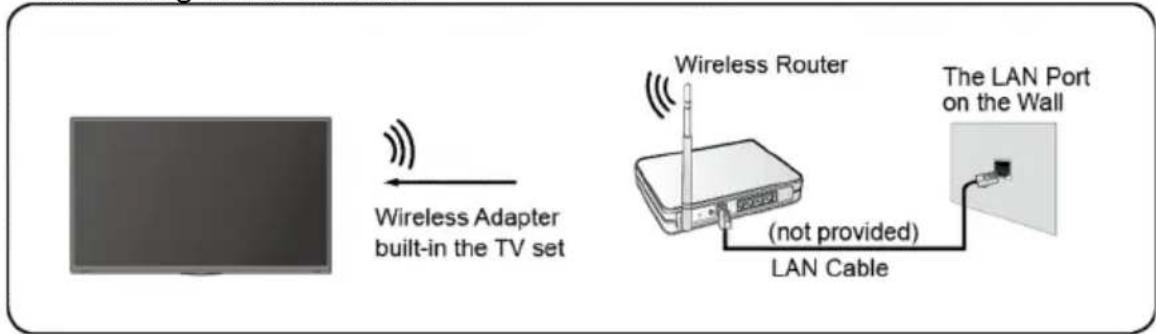

Connecting to the Internet

Note:

You get access to the Internet through your TV.
- Connect to an available wireless network.
- Make sure that you have the wireless router's SSID and password before attempting to connect.

Connecting to a Wireless Network

> Settings > Network > Network Configuration

You set the TV network by selecting Configuration and press the OK button to enter the submenu.

• Connection Type

Choose a wireless network connection to access the Internet.

Refresh

Refresh wireless network.

Advanced Settings

Configure the advanced wireless network settings for the TV.

Add

You can add wireless network.

Note:

If no wireless router is found, select Add and enter the network name in the SSID.
If no wireless router is found, select Refresh.

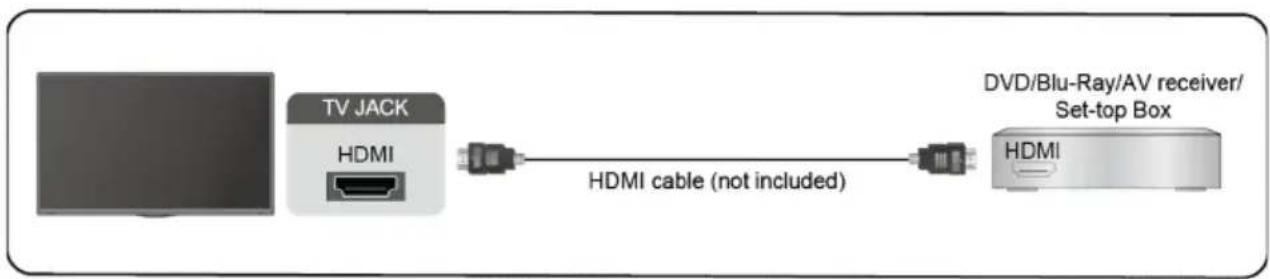

HDMI-CEC

You can use your TV remote to control the external devices that are connected to the TV by HDMI cable. The external devices need to support HDMI & CEC Function (HDMI-CEC).

Connecting an external device through HDMI-CEC Function >

Settings > System > HDMI-CEC

1. Set HDMI-CEC to On.
2. Connect an HDMI-CEC-compliant device to the TV.
3. Turn on the connected external device. The device is automatically connected to the TV. After connection is finished, you can access the menu of the connected device on your TV screen using your TV remote and control the device.

Note:

HDMI cables must be used to connect HDMI CEC-compatible devices to your TV.

The HDMI CEC feature of the connected device must be turned on.
- If you connect an HDMI device that is not HDMI CEC-compatible, all the HDMI-CEC control features do not work.
Depending on the connected HDMI device, the HDMI-CEC Control feature may not work.
- The HDMI CEC feature are supported One Touch Play, Routing Control, System Standby, Device OSD Name Transfer, Remote Control Pass Through, Give Device Power Status, System Audio Control.

HDMI Device

Connect an HDMI cable from an external A/V equipment.

Some devices such as DVD player require HDMI signal to be set to output in the device's settings. Please consult your device user manual for instructions.

Please note that the HDMI connector provides both video and audio signals, it's not necessary to connect an audio cable.

USB Device

Connect the USB devices such as hard drives, USB sticks and digital cameras for browsing photos, listening to music.

Support format: FAT32.

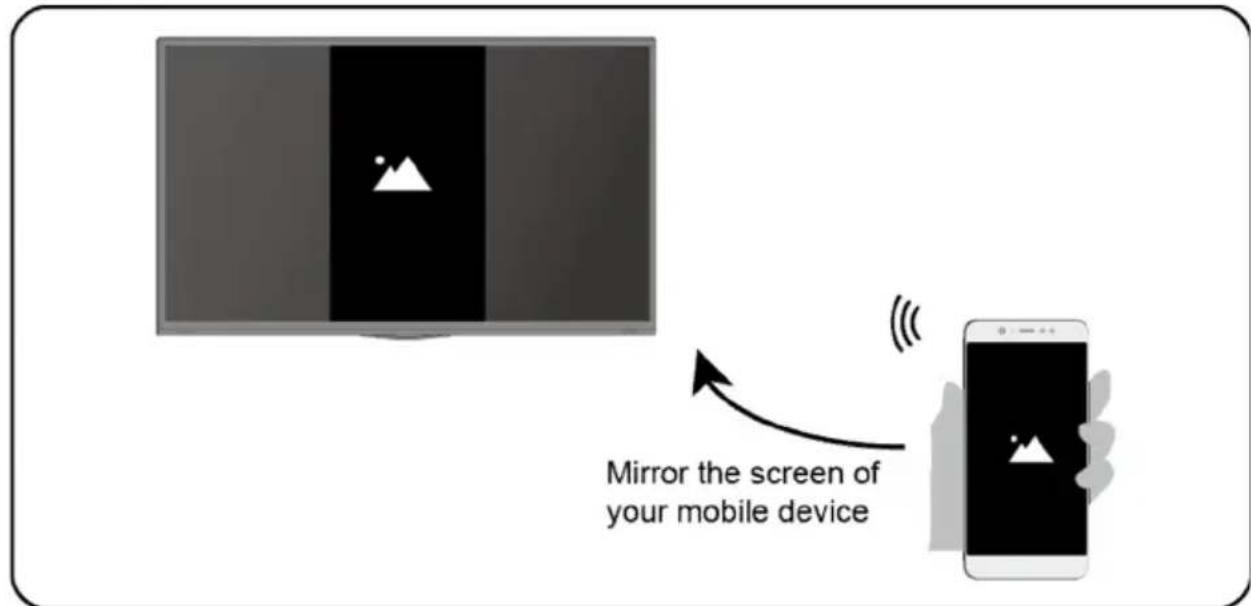

Screen Sharing

Mirror content from your device to the TV.

Screen Sharing

• Turn on the casting function of your Android/Windows10 device.
• Find the TV name in the searching list of your device and select it. Wait for the connection progress to complete and the content on your device will be displayed on the TV.

Note:

Some Android devices may not support casting.

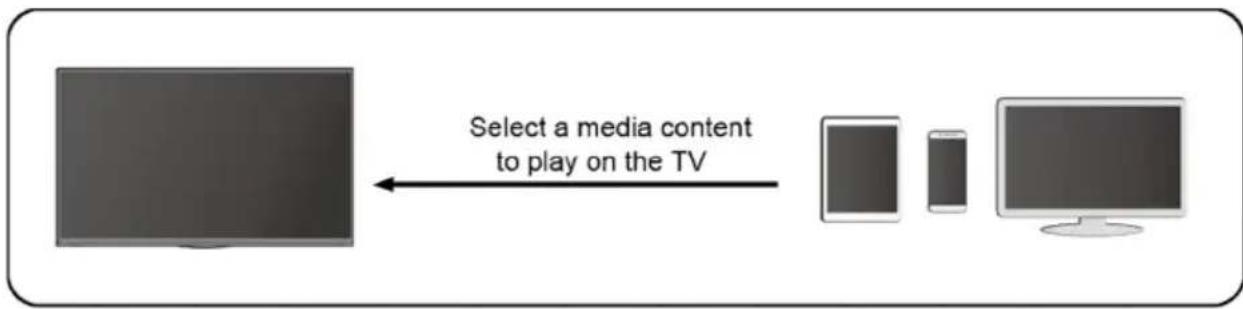

Content Sharing

Share media content, like videos, music or photos, from your device to the TV screen.

Before you use this function, turn on Content Sharing at > Settings >

System > Application Settings > Content Sharing.

• Establishing Content Sharing connection between the TV and your device

• Turn on the content sharing function of your device.

• Find the TV name in the searching list of your device and select it.
• Wait for the connection progress to complete, and select the content you want to share

Viewing media content of your device

Press INPUT button on your remote, and select a media content on the screen.

Note:

Make sure your device and the TV are connected to the same network.
- Some devices may not support content sharing. If your device doesn't support content sharing, you can download an app that supports the function.
If you want to mirror content from your device, go to INPUT > Screen Sharing.

Media

Playing Media contents

MyApps >Media

By default, there are Content Sharing displayed on the Media screen. If your mobile device is connected to the TV, its name also appears on the Media screen.

Note:

For more information about Content Sharing, refer to its detailed introduction.

MyApps > Media > connected device

Select the content you want to play on the screen, like pictures, videos and music.

1 Input the content name you want to play.
2 Arrange the content list by Grid, List.
3 Arrange the content list by Name, Date Modified, Size.
4 Filter the content list by All Media, Photo, Video, Music.
5 Create a photo, music, or video playlist.

Playing background music during viewing pictures

You need to:

• Choose a picture to playback.
  Press A button Y call out playbar.
• Select Background Music and choose your music to create a Music Playlist.
• Play the background music during viewing pictures.

Note:

The TV may be support the following file formats:

Medium	File Format
Video	.MP4, .MOV, .MPG, .MPEG, .FLV
Picture	.jpg, .BMP, .PNG, .GIF
Music	.MP3, .AAC, .wav

• For more information about connection to other device, refer to the detailed introduction of each part.

Home

Getting familiar with the Home screen

Run the TV more conveniently by selecting the corresponding sections. Press button.

You can always view the current time at the top of the Home screen.
- If your TV is connected to the Internet through a wireless connection, then the icon will be at the top right corner of the screen.
- Manage apps

Select the item you want to move, press button to manage.

Search

Search the app you want.

Inputs

Select the input you want.

Settings

Display the Settings menu.

Notifications

Allow pop-up notifications to appear for useful information and events that occur with your TV.

• Select Notifications on the Home screen, and select Settings then display Advertising, New Arrivals,Warnings And Legal Statements, System Message, from which you can choose the types of notifications you would like to receive.

VIDAA Account

Sign in your VIDAA account.

A VIDAA account gives you all the best feature of your smart TV and always keeps it up to date.

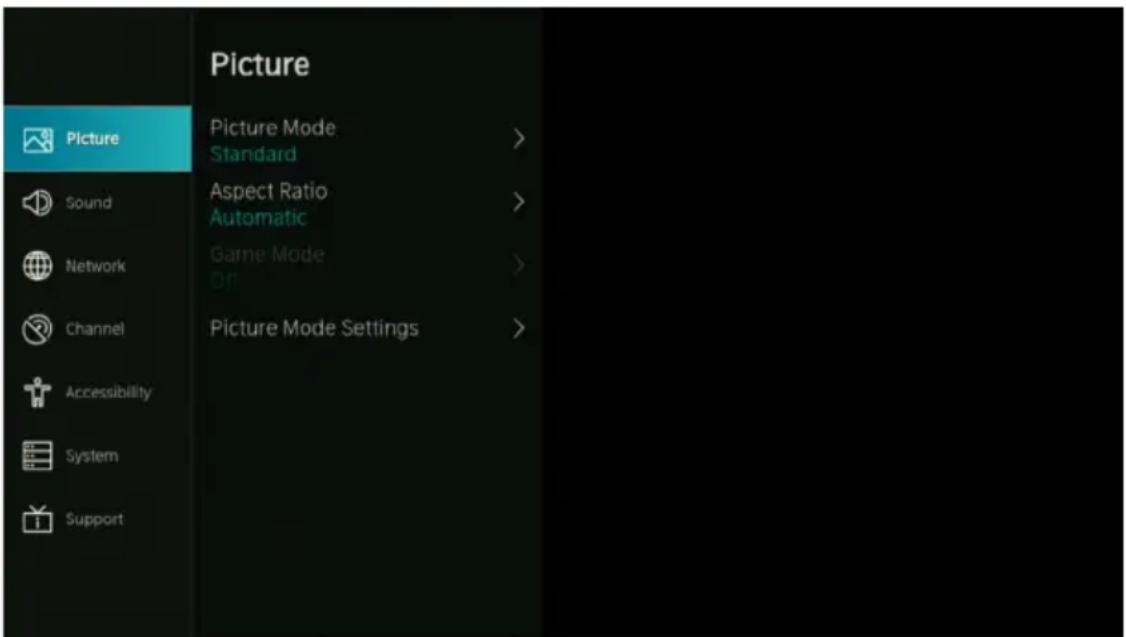

Adjusting the Picture Quality

Adjust current picture mode to apply to all sources or just current source.

The menu is only for reference. The following modes may differ from the actual product.

Choosing a picture mode

> Settings > Picture > Picture Mode

You can select the Picture Mode that provides the best viewing experience.

• Standard: The default mode, to make users experience high-quality images under normal light.
• Cinema Day: Enhance the contrast, color and clarity of the screen to make the color more vivid.
• Cinema Night: Reduce the screen contrast, color and clarity to make the screen looks soft.
• Dynamic: Enhance the contrast, color and clarity of the screen, so that the picture in the dynamic will balance the color.
  Sports: This mode is more suitable for watching sport video.

Choosing a Aspect Ratio

> Settings > Picture > Aspect Ratio

You can adjust the Aspect Ratio to stretch or zoom the picture.

Automatic
16:9
4:3
Panoramic
- Movie Zoom
- Direct

Choosing the Game Mode under ON/OFF

Settings > Picture > Game Mode

Optimised for PC or Games consoles. Reduces Input Lag and improves responsiveness.

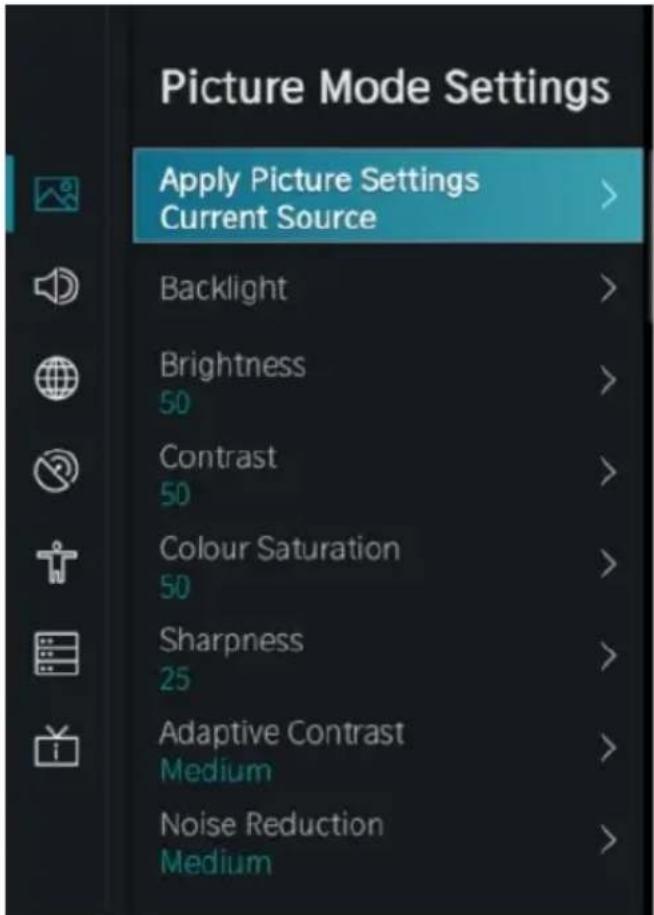

Configuring advanced picture settings

Settings > Picture > Picture Mode Settings

Adjust display setting for each Picture Mode.

• Apply Picture Settings: Adjust current picture mode to apply to all sources or just current source.
• Backlight: Adjust image backlight. (Optional: Off/Low/High)
• Brightness: Adjust image brightness.
• Contrast: Adjust image contrast.
  Color Saturation: Adjust image color density.
• Sharpness: Adjust the image edge sharpness.
• Adaptive Contrast: Automatically adjust dark areas and light areas of the image to see more details. Press navigation button to select Off/Low/Medium/high.
• Noise Reduction: Improve the picture quality by reducing noise. (Optional: Off/Low/Medium/High)
• MPEG Noise Reduction: Reduces MPEG block noise to provide clearer edge transitions. (Optional: Off/Low/Medium/High)
• Colour Temperature: Adjust the overall color of the image. (Optional: Warm1/Warm2/Standard/Cool)
• Expert Settings: Adjust the colour space and Gamma to best suit the content you're viewing.
• Overscan: Change the video size setting to crop the edges of the displayed image.

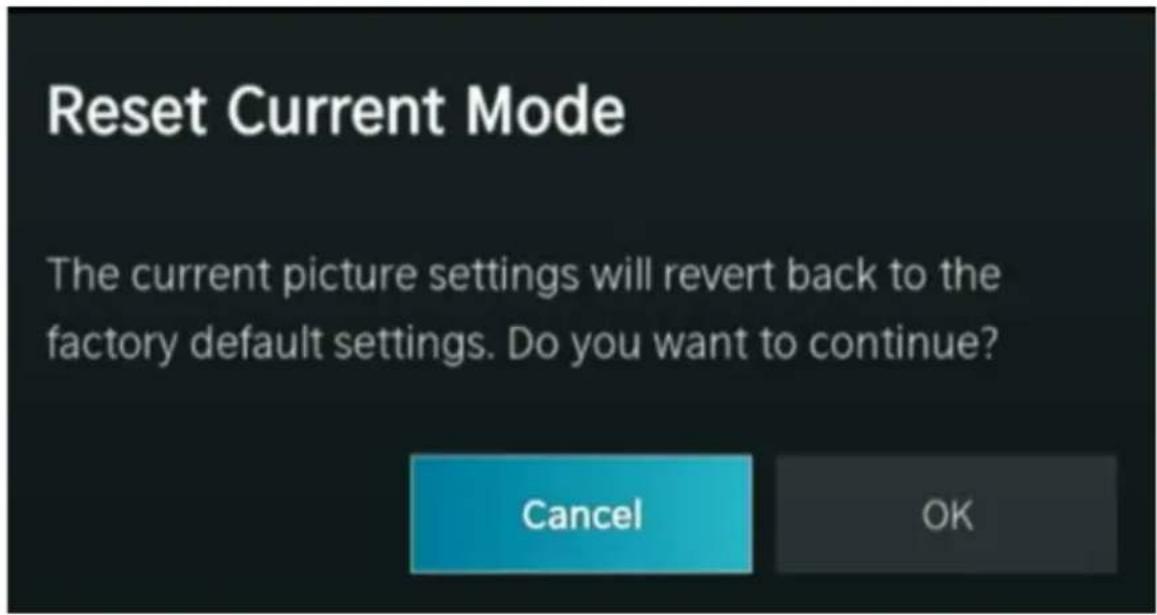

• Reset Current Mode: Restore all the picture settings in the current picture mode to the factory default values.

Adjusting the Sound Quality

Adjust current sound mode to apply to all sources or just current source.

The menu is only for reference. The following modes may differ from the actual product.

Choosing a sound mode

Settings > Sound > Sound Mode

You can select a favorite sound mode suitable for the content type or the listening environment.

• Standard: Produced a balanced sound in all environment.
• Theater: Increased the surround sound effect and provides a more prominent bass response.
  Music: Preserves the original sound. Good for musical programs.
• Speech: Low and high frequencies are attenuated to improve the reproduction and clarity of the human voice.
• Late Night: Improve the reproduction and clarity of the human voice with a low volume level.
• Sport: Optimised sound for watching Sports events.

Settings > Sound > Headphone

Set the sound out mode for headphones.

Settings > Sound > Sound Mode Settings

Adjust the audio settings of the TV: Apply Audio Settings/Equalizer/Wall Mount Setup/Auto Volume Control/Reset Current Mode.

Settings > Sound > Speakers

Select the speakers which you want to use.

Accessibility

Press Navigation button to select Accessibility

Settings > Accessibility

• Menu Scheme: Set the scheme of menu. (Optional: Dark/Light)
  High Contrast Menu: Turn High Contrast Menu On or Off.
• Menu Transparency: Set the transparency of menu. (Optional: Off/Medium/High)
• Hard of Hearing Subtitles: Set the subtitles for the hard of hearing. Press OK button to select ON/OFF.
  Audio Type: Accessibility audio settings.
• Dialogue Enhancement: Enable or disable dialogue enhancement.

System and Support

Setting Time

Settings > System > Time

Set the current time based on your location.

Time Format

Set the time to display in a 12 or 24-hour format.

Date/Time

Set the date and time.

Time Zone

Set the time zone.

Daylight Savings

Select whether to apply Daylight Savings Time to the TV.

Using the timer

Settings > System > Timer Settings

Adjust the timer settings to suit your preference.

- Sleep Timer

Set the sleep timer to automatically turn the TV Off within a specified time: Off, 15 Minutes, 30 Minutes, 60 Minutes, 90 Minutes, 120 Minutes, User Defined.

Power On Timer

Set the clock for the time you want the TV to turn on automatically. You can set the time only once or set the time in specified date weekly.

Power Off Timer

Set the clock for the time you want the TV to turn off automatically. You can set the time only once or set the time in specified date weekly.

- Menu Timeout

Set the amount of time that you would like for the menu to display: Off, 10s, 20s, 30s, 60s, 5min.

- Auto Sleep

Set the amount of time that you would like the TV to auto power off after a period of no activity : Off,3H, 4H.

- Auto Standby with No Signal

TV will go to standby if there is no signal after the set time: Off, 15min.

Set Usage Mode

Home Mode

Select Home Mode for normal TV usage.

If you want to switch to Home Mode when the TV is in Store Mode

1. Change the inputs selection
2. Settings > System > Advanced Settings > Usage Mode > choose Home Mode

Upgrade

> Settings > Support > System Update

Set your TV to receive the latest firmware.

• Auto Firmware Upgrade
  Set your TV to automatically receive the latest firmware.
  Check Firmware Upgrade

Check to ensure that your TV has received the latest

firmware.

Note: Please ensure your TV is connected to the Internet.

- System App Auto Upgrade

App auto upgrade will be done in the background. May need your confirmation on new Privacy Notices to complete upgrade in the progress.

- Upgrade From USB

Upgrade TV software from USB device.

Note:

• Please ensure the USB flash drive insert to USB2.0 port of the TV.
• The updating files must be available in root directory.

The format of the USB must be FAT32 and the partition table type must be MBR.

E-Manual

> Settings > Support > E-Manual

Launch the E-Manual and get to know more about your TV: Live TV, Connection, Multi-screen. Smart Functions, Picture and Sound, Accessibility and System, Troubleshooting, Using the E-Manual.

Troubleshooting

No image and voice

Possible causes:

• Power cord, antenna or input devices are not connected;
  The TV set is not powered on.

Solutions:

• Check Power cord, antenna and input devices;
• Press Power key on the remote control;
• Press Power key on the set to power it off for 5 seconds and then re-power it on.

No voice

Possible causes:

• The volume is too low; Muted or cancelled;
• Incorrect sound system.

Solutions:

• Press Volume key to turn up the volume;
• Press Mute key to cancel Mute mode.
• Well connect connection to the background sound;
• Change the sound system in the menu.

Snows and noises

Possible causes:

• The cable is damaged or gets loose;
  Incorrect channel preset;
• Improper antenna positioning.

Solutions:

• Check whether the connection of the antenna cable, DVD and the cables is correct;
• Reset channels or fine tune the channel;
• Adjust the direction of the antenna.

Achromatic colour

Possible causes:

• Incorrect Colour system settings; Low chroma level setting;
• Improper antenna positioning.

Solutions:

• Change the colour system into the local system in the menu;
• Increase chroma level;
• Adjust the direction of the antenna.

Remote control has no response

Possible causes:

• Battery runs up;
  Incorrect battery loading;

Solutions:

• Check the battery electricity or replace the battery;
• Check if the poles of the battery are correct.

Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m.

Scaling problem

Possible causes:

Incorrect display scaling

Solutions:

• Change the mode zoom to Fit by pressing (MENU) > mode zoom > Fit. The size will be tuned automatically.

Important Notice

The display of this television is made up of a large number of colour. Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal.

Cleaning Instruction

• Before cleaning this product, press STANDBY button to turn it to the standby mode and wait for a few minutes to disconnect the power plug.
• Wipe this product with a dry, soft cloth. Do not spray water directly onto the TV, but apply a small amount of water on the corner of the cloth and wipe as gently as possible. Never use cleaning fluids, wax, or chemicals.
• Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.
• If the surface is extremely dirty, wipe it with a cloth which

has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

• Before you plug in the TV back, let the screen dry completely.

Note on Defective Pixels

Your product has been manufactured with great care. Nevertheless, it is possible that some pixels remain constantly on or unlit. Please refer to the table below about the tolerance level for defective pixels on this product.

Screen Size	Resolution	No. of Bright or Dark Sub-Pixels (Color Pixels)	No. of Bright or Dark Pixels (White or Black)	Continuous Line
32	1366x768	5	2	0

Technical data sheet

Information for Electronic Displays for Commission Regulation 2019/2013/EU

	Value	Unit
Model identification	SC-32S1FJORD
Manufacturer's name or trade mark	Schneider
Energy efficiency class for standard Dynamic Range (SDR)	F	A-G
On mode power demand for Standard Dynamic Range (SDR)	31 kWh/1000h	W
Energy efficiency class	N/A	A-G
(HDR)
On mode power demand in High Dynamic Range (HDR) mode	N/A	W
Off mode, power demand	0W	W
Standby mode power demand	Max. 0.5W	W
Networked standby mode power demand	0.38	W
Electronic display category	television	television/monitor/signag e/other
Size ratio	16:9	Integer
Screen resolution (pixels)	1366x768	Pixels
Screen diagonal	81.3cm	cm
Screen diagonal	32"	Inches
Visible screen area	2900.72cm²	cm2
Panel technology used	LED	E.g. LCD/LED LCD/QLED LCD/OLED/MicroLED/Q DLED/SED/FED/EPD, etc.
Automatic Brightness Control (ABC) available	No	Yes/No
Voice recognition sensor available	No	Yes/No
Room presence sensor available	No	Yes/No
Image refresh frequency rate	60Hz	Hz
Power supply type:	Internal	Internal/External/Standardised external
WiFi (Wireless) Frequency	2400 - 2483.5 MHz
	5150 - 5350 MHz 5470 - 5825 MHz
Maximun transmitted Wi-Fi power	19dBm

Note:

1. Energy efficiency class: A (most efficient) to G (lease efficient)
2. Annual energy consumption in kWh per 1000 hr, based on the power consumption of the television operating 1000 hours. The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode....etc.

Product Information sheet according to EU Regulation No. 2019/2013 Energy labelling for Electronic Display & Television can be found below URL or QR code indicated on Energy label URL:

https://eprel.ec.europa.eu/qr/1037654

Technical data sheet

Trade Mark	SCHNEIDER
Reference	SC-32S1FJORD
Model	DVB-PM1320302HCATSI
Viewing angle	Typical: 178(H) \ 178(V)
Resolution	1366*768
Display Colour	16.7M
Contrast	1200:1 (typical)
Ratio	16:9
Life time	30,000 hours
Tuner	DVB-T
TV power supply	AC 100-240V, 50/60Hz
Consumption	Max.60W
Dimensions	720(W)×205(D)×478(H)
Weight	3.66 kg
Socle	2pcs, removable
Operating temperature	0°C et 35°C
Remote control power supply	AAA*2pcs (not included)
USB port power supply	5V,500mA
Hotel mode	yes
Loud speaker	2*8W
Input	RF, HDMI*3, CVBS&L/R, LAN, CI, USB*2
Output	Earphone out, Optical out
Reading formats	Vidente: .mp4
Multimedia via USB	Musique: .mp3
	Photos: .jpg
	Texte: .txt

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Position: Quality Assurance Engineer

Signature:

Date: 15 December 2021

SCHNEIDER

[1]

FR - Manuel d'utilisation / Veuliez line attentivement ce manuel avant de l'utiliser et conservez-le pour toute reference ultérieure.
IT - Manuale d'uso / Si prega di leggere attentamente quello manuale prima dell'uso e di conservario per riferimento futuro.
ES - Manual del usuario / Por favor, lee estemanual cuidadosamenteantes de uso y guardelo para futuras referencias
PT - Manual do ucaario / Por favor, laia este manuallcuidadocamente antecde ucar, e quarde-o para referencia futura
AL - Benutzerhandbuch /itte lessen Sie dieses Handbuch vor dem Gebrauch sorgfaltig durch und bewahren Sie es zum spateren Nachschlagen auf.
NL - Gebruiksaanwijzig / Lees deze handeiding zorgvuldig door voordat u hem gebruikt en bewaar hem voor toekomstig gebruik.
GR - Exyepio 0 npn / Diaopae npoeeknta to npapv Eeyepipieipn npv ano tm npon kquladte to yia eovtnk avapcpa.
RO - Citiu atenbe manualul deutilizare sipastrati-1 pentru consultari utericoare
