USER MANUAL 2382056 RUSSELL HOBBS

Black and white photo of a modern kitchen blender with visible liquid and foam, no text or symbols on the device itself.

1 2 3 4 5 6 7

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children must not use or play with the appliance. Keep the appliance and cable out of reach of children.

⚠️ To avoid injury, take care when handling the blades, emptying the jug, and cleaning.
Don't add hot liquid (over 40^ ) as it may be ejected due to sudden steaming.

Misuse of the appliance may cause injury.

Unplug the appliance before assembly, disassembly, or cleaning.

Don't leave the appliance unattended while plugged in.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified to avoid a hazard.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Switch off (O) before fitting the jug to the motor unit.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't operate the appliance if it's damaged or malfunctions.
• Don't run the motor continuously for more than 2 minutes, it may overheat. After 2 minutes switch off for at least 2 minutes, to recover.

HOUSEHOLD USE ONLY

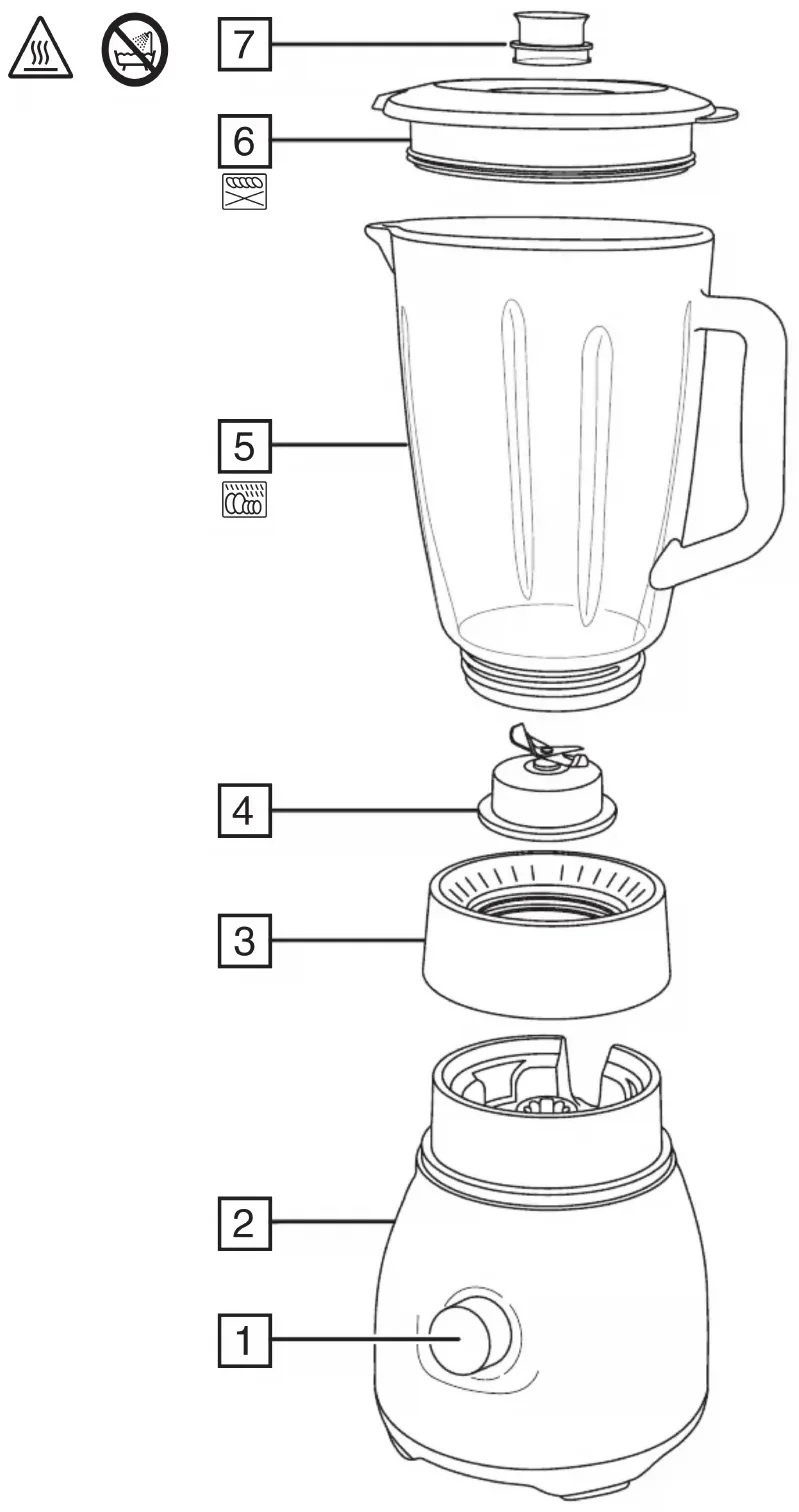

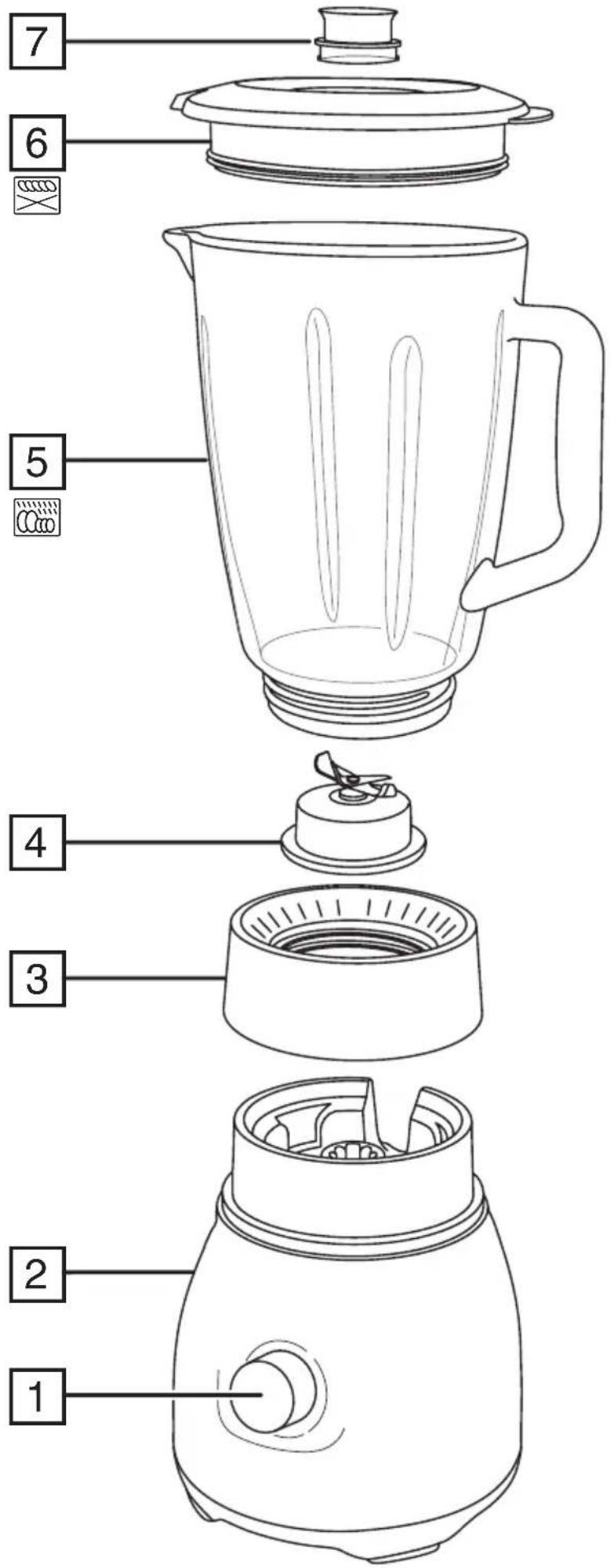

PARTS

1. Speed control
2. Motor unit
3. Collar

4. Blade unit

5. Jug

6. Lid
7. Cap

BEFORE USING FOR THE FIRST TIME

Turn to "CARE AND MAINTENANCE" and clean the appliance, to remove manufacturing dust, etc.

PREPARATION

In use, treat the jug, blade unit, and collar as a single unit.

1. Sit the motor unit on a stable, level surface.
2. Lower the jug on to the motor unit.
3. Remove the lid.
4. Put the ingredients into the jug. Don't fill past the 1.50 L mark. If you do, the contents may force the lid off when you start the motor.

5. Replace the lid.

6. Align the pips on the cap with the slots in the hole in the lid, fit the cap, and turn it clockwise to lock it. Don't run the appliance without fitting the cap.

7. Check that the speed control is set to O.

8. Put the plug into the power socket.

9. Turn the speed control to the speed you want (1 = low, 2 = high).

10. Turn the speed control back to 0 to turn the motor off.

11. Generally, large quantities, thick mixes, and a high ratio of solids to liquids require longer timings and slower speeds.

12. Smaller quantities, thinner mixes, and more liquids than solids require shorter timings and higher speeds.
13. Turning the speed control anti-clockwise to Ⓞ will give you a short burst at high speed. In this direction, the knob is spring-loaded. When you let go, it'll return to O.
14. To add ingredients while the blender is working, remove the cap, pour the new ingredients through the hole then replace the cap.

When you have finished:

- Switch the appliance off (O) and unplug it.

CRUSHED ICE

For best results, full the jug with between 150ml and 500ml of ice cubes.

Put the lid on the blender, then:

1. Turn the speed control to Ⓞ for a second or two, then release it.

2. Check the results and repeat as required.

CARE AND MAINTENANCE

1. Switch the appliance off (O) and unplug it.
2. Wipe the outside of the motor unit with a clean damp cloth.
3. Hand wash the removable parts.

You may wash these parts in the top rack of a dishwasher.

You may wash these parts in the dishwasher.

If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not affect the operation of the appliance.

OVERLOAD PROTECTION

If your blender becomes overloaded it will automatically stop operating to protect the motor from damage. Overloading may be caused by operating your blender for too long or processing ingredients that are thick and difficult to blend.

1	If the overload protection system operates:
2	Set the speed control to 0.
3	Unplug your blender from the supply socket.
4	Allow your blender to cool down for 30 minutes.

After it has cooled, you can plug your blender back in and operate it normally again. To prevent this happening again, we recommend reducing the quantity of thicker ingredients or add a little liquid to make them easier to blend.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
