2170256 - Coffee machine RUSSELL HOBBS - Free user manual and instructions

Product type	Filter coffee machine
Brand	Russell Hobbs
Model	2170256
Maximum capacity	Approximately 10 cups (1.25 L)
Filter type	Paper filter No. 4 (not included)
Carafe	Glass, with graduations
Hot plate	Yes, keeps warm for 40 minutes
Automatic shut-off	After 40 minutes
Brew status gauge	Indicates brewing progress and keep-warm time
Power supply	Mains, 220-240 V, 50/60 Hz
Power	Approximately 1000 W
Child safety	Use from age 8 under supervision
Cleaning	Wipe with a damp cloth; carafe and filter holder dishwasher safe
Descaling	Regularly with a special descaling agent
Recycling	Do not dispose with household waste; take to a collection center
Included accessories	Carafe, filter holder, coffee scoop

Frequently Asked Questions - 2170256 RUSSELL HOBBS

How to use the Russell Hobbs 2170256 coffee machine?

Fill the water tank up to the max mark (minimum 2 cups). Place a No. 4 paper filter in the filter holder and add one scoop of coffee per cup. Close the lid, place the carafe on the hot plate, plug in and set the switch to I. The coffee brews and stays hot for 40 minutes. After that, the appliance turns off.

How to descale the coffee machine?

Use a special descaling agent for coffee machines. Follow the instructions on the descaling product. Regular descaling is recommended to avoid defects under warranty.

What to do if the machine does not turn on?

First check that the appliance is plugged into a working mains socket. Make sure the switch is in the I position. If the problem persists, contact customer service.

Why does coffee overflow from the filter holder?

This can happen if you remove the carafe for too long during brewing. Replace the carafe within 20 seconds to prevent overflow. Also check that the tank is not overfilled.

Can I use reusable filters?

The instructions recommend using No. 4 paper filters. Reusable filters can be used, but make sure they are compatible with the filter holder and do not obstruct the flow.

How long does the coffee stay hot?

The hot plate keeps the coffee warm for approximately 40 minutes after brewing ends. After that, the appliance shuts off automatically.

How to clean the carafe and filter holder?

Wash the carafe and filter holder by hand or on the top rack of the dishwasher. Wipe external surfaces with a damp cloth. Do not immerse the appliance in water.

What type of filter to use?

Use No. 4 paper filters (cone shaped). They are not included with the appliance.

Does the machine shut off automatically?

Yes, the machine shuts off automatically after 40 minutes of keep-warm. You can also turn it off manually with the switch on 0.

Can I remove the carafe during brewing?

Yes, you can remove the carafe at any time to quickly serve a cup. However, replace it within 20 seconds to prevent the filter holder from overflowing.

USER MANUAL 2170256 RUSSELL HOBBS

Exterior view of a modern black and silver coffee maker with glass mug and control panel (no visible text or symbols)

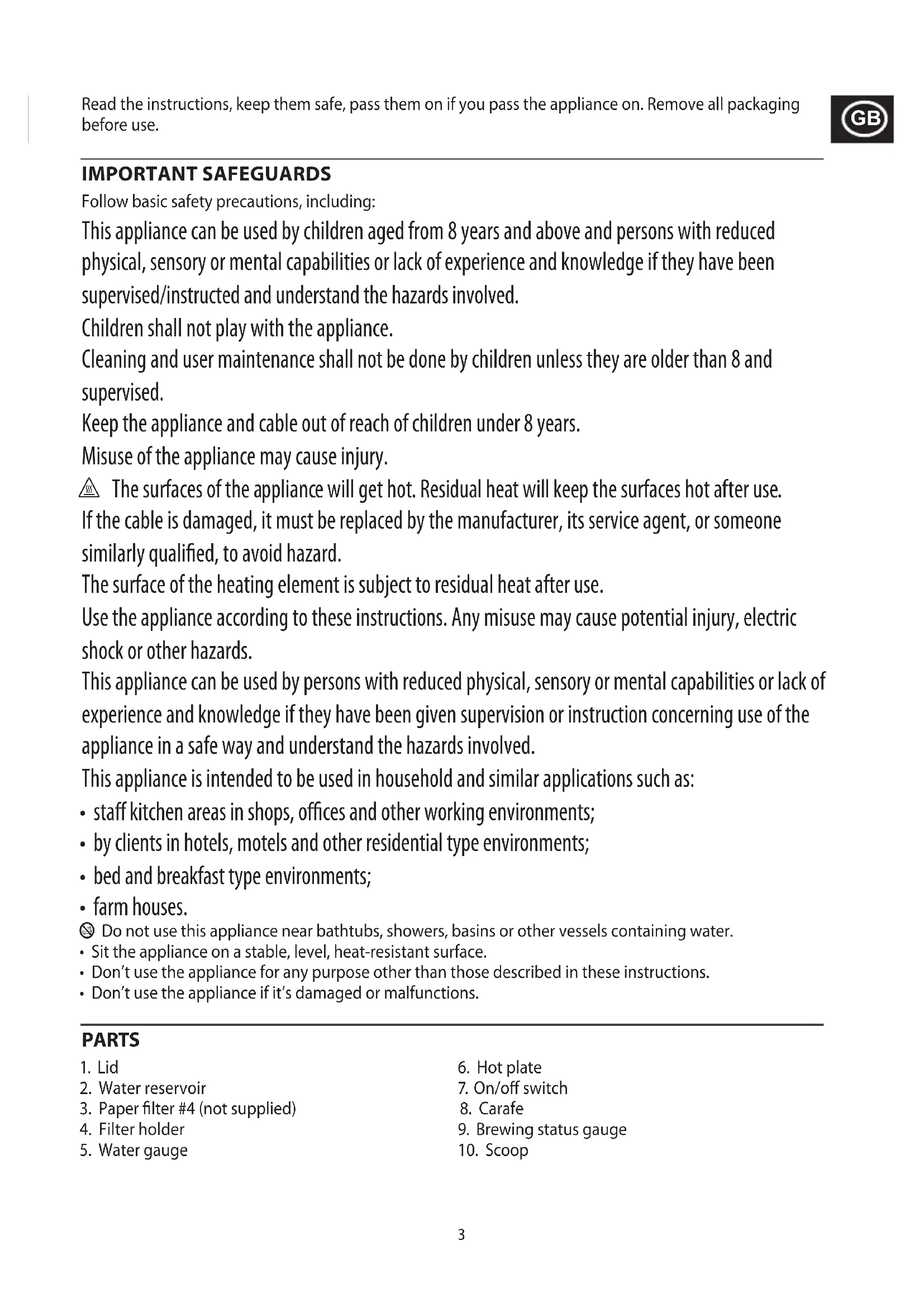

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use. If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surface of the heating element is subject to residual heat after use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• farm houses.
  Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• Sit the appliance on a stable, level, heat-resistant surface.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

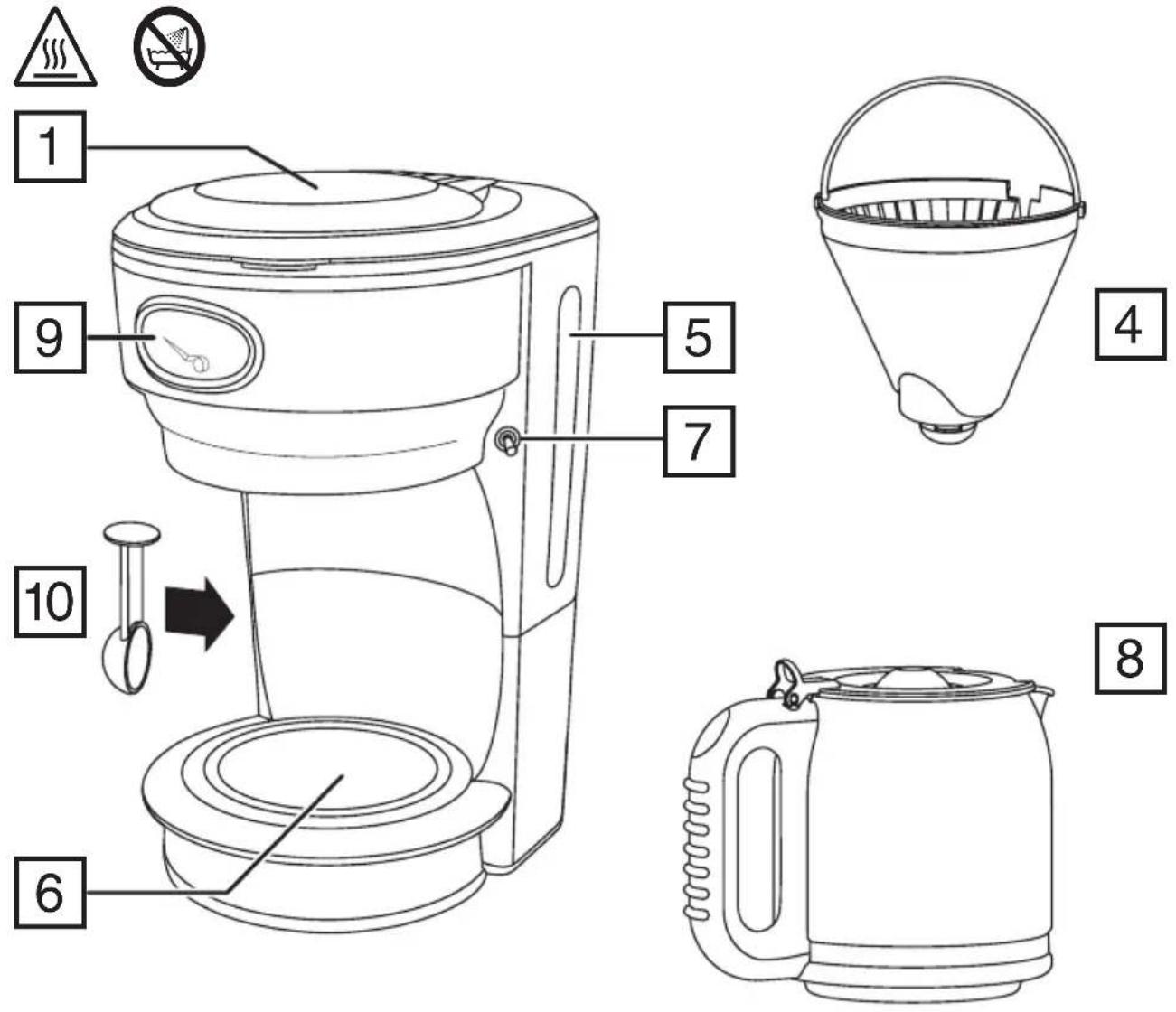

PARTS

1. Lid
2. Water reservoir
3. Paper filter #4 (not supplied)
4. Filter holder

5. Water gauge

6. Hot plate

7. On/off switch
8. Carafe
9. Brewing status gauge
10. Scoop

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

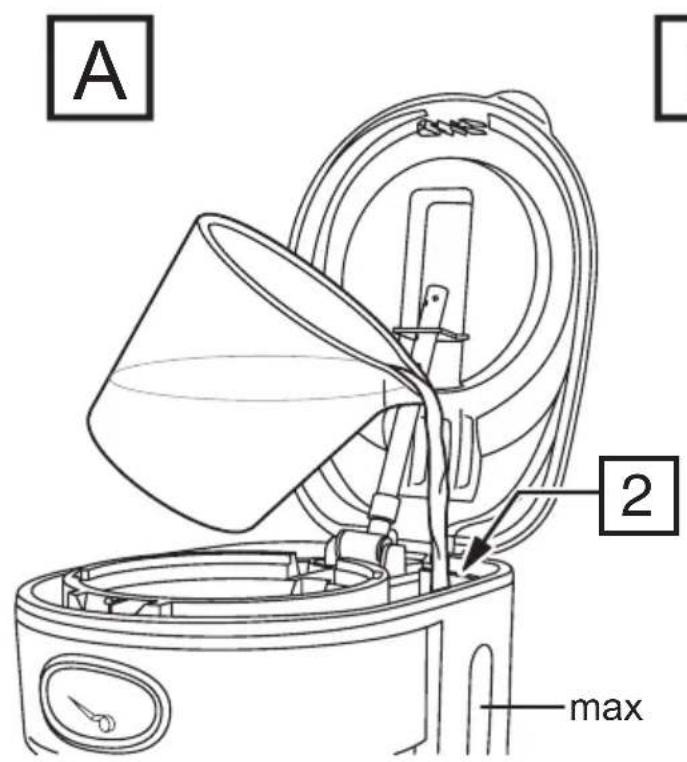

FILLING

1. Remove the carafe from the hotplate.
2. Use the grip to open the lid, and expose the reservoir.
3. Fill with at least 2 cups of water, but not above the max mark.

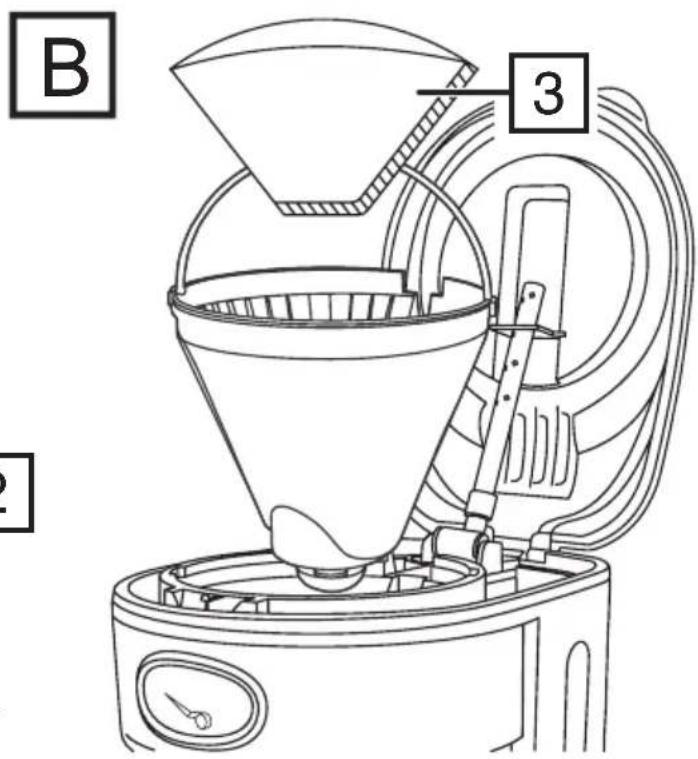

4. Open up a #4 paper filter, and put it into the filter holder.
5. Put 1 scoop of filter-ground coffee into the filter for each cup.
6. Close the lid.
7. Replace the carafe on the hotplate.

SWITCH ON

CAUTION: DO NOT open the lid during brewing as there is the potential risk of scalding.

1. Put the plug into the power socket.
2. Move the switch to I. The light will come on.
3. Shortly afterwards, coffee will start to drip into the carafe.
4. When it's done, the hotplate will keep the carafe warm. After 40 minutes, the hotplate and appliance will shut down.
5. Move the switch to O.
6. Unplug, and let the appliance and carafe cool down fully before cleaning, or for about 10 minutes before refilling.
7. For the best flavour, drink the coffee within 40 minutes of brewing.

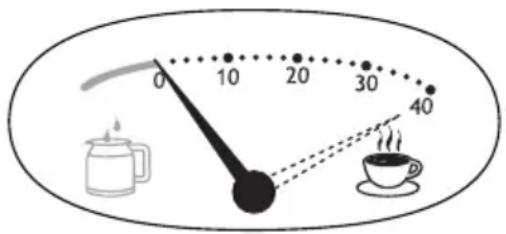

BREWING STATUS GAUGE

The gauge shows the status of your coffee machine.

- The pointer will first show the brewing stage as your coffee is being made. The pointer will move slowly clockwise within the first (long) segment during brewing.

- Once brewing has finished, the pointer will move to the 0 marking. It will then show, in minutes, how long the coffee has been kept warm by the hot plate (0 to 40 mins). After about 40 minutes, chemical changes will affect the taste of the coffee.

- When the appliance shuts down, the pointer will move to the rest position.

A QUICK CUP

You can remove the carafe at any time. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Clean the outside surfaces of the appliance with a damp cloth.
4. Hand wash the carafe and filter holder.

Descale regularly, (at least monthly).

Descale the appliance at least monthly with a proprietary descaler. Follow the instructions on the package of descaler.

Products returned under guarantee with faults due to scale will be subject to a repair charge.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
