Fast Brew 2375056 - Coffee machine RUSSELL HOBBS - Free user manual and instructions

Product type	Drip coffee maker
Brand	Russell Hobbs
Model	Fast Brew 2375056
Carafe capacity	1 liter (8 large cups of 125 ml or 12 small cups of 83 ml)
Filter type	Paper filter #4 (not included)
Functions	Programmable brewing (timer), automatic shut-off, pause and serve function (carafe removal up to 20 seconds)
Power	1000 W (estimated)
Power supply	220-240 V, 50/60 Hz (estimated)
Material	Plastic
Dimensions (L x W x H)	Approximately 30 x 20 x 30 cm (estimated)
Weight	Approximately 2 kg (estimated)
Display	LED screen with clock (24-hour format) and timer
Maintenance	Descaling recommended after 60 cycles; dishwasher-safe parts (top rack for carafe and filter holder)
Safety	Hot surfaces; use by children over 8 years old under supervision; automatic shut-off (likely)
Included accessories	Carafe, filter holder
Descaling indicator	Display 'CL' after 60 brews

Frequently Asked Questions - Fast Brew 2375056 RUSSELL HOBBS

How to set the clock on the coffee maker?

Plug in, then use the hr and min buttons to set the time in 24-hour format. The clock retains its settings as long as the coffee maker is plugged in.

How to use the timer to program coffee?

First set the clock. Press the ⏻ button, then use hr and min to choose the start time. Press ⏻ again to activate. The ⏻ icon appears on the screen.

Why does the display show 'CL'?

'CL' means the machine has completed 60 cycles and needs descaling. Use a special plastic descaler and follow the instructions. After descaling, press and hold ⏻ for 3 seconds to turn off the indicator.

What type of filter to use?

Use a #4 paper filter (not included). Open the filter holder compartment by pressing the ▲ button, place the filter, add ground coffee, then close.

Can I use ground coffee other than drip grind?

It is recommended to use drip ground coffee. For a large cup (125 ml), add 6 g of coffee; for a small cup (83 ml), add 4 g.

How to clean the machine?

Unplug and let cool. Empty the filter holder, wipe the exterior with a damp cloth. Wash the carafe and filter holder by hand or in the dishwasher (top rack).

Can I remove the carafe during brewing?

Yes, the pause and serve function allows you to remove the carafe. Replace it within 20 seconds to avoid overflow from the filter holder.

Is the carafe compatible with a stovetop?

No, the base of the carafe gets hot but it is not designed for direct heat. Place it on an insulated trivet.

How to stop the machine during brewing?

Press the ⏻ button to immediately stop coffee brewing.

What to do if the coffee is not hot enough?

Rinse the carafe with hot water before use to preheat it. Also ensure the machine is properly descaled.

USER MANUAL Fast Brew 2375056 RUSSELL HOBBS

Black and silver model of a Russell Hobbs coffee maker with digital display and control buttons (no visible text or symbols on the device itself)

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.

Don't immerse the appliance in liquid.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

• Sit the appliance on a stable, level, heat-resistant surface.
• Keep the appliance and cable away from the edges of worktops.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

HOUSEHOLD USE ONLY

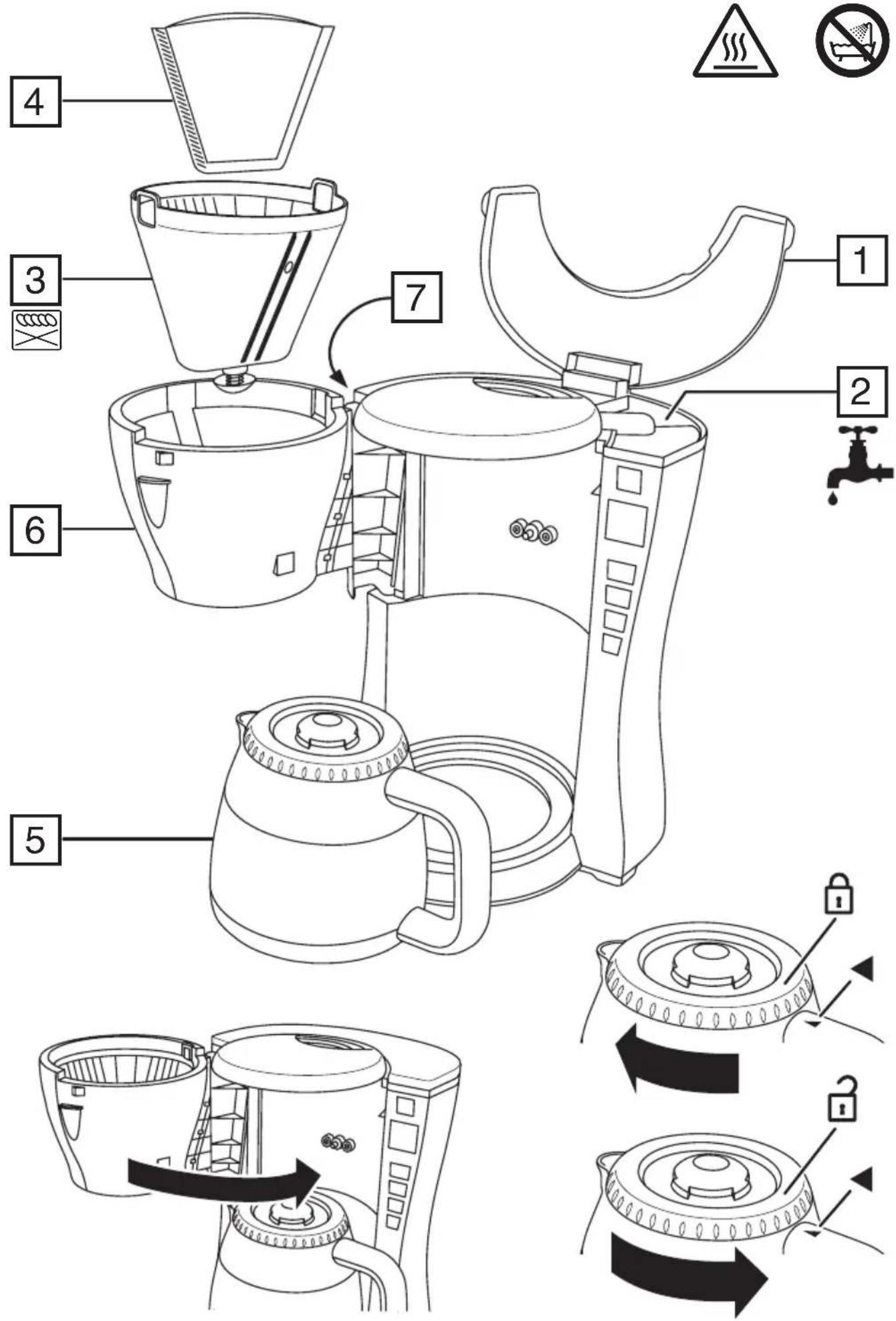

PARTS

1. Lid
2. Water reservoir
3. Filter holder

4. Paper filter #4 (not supplied)

5. Carafe

6. Filter holder chamber
7. Water level gauge
   Dishwasher - top rack

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1. Open the lid.
2. Fill the reservoir with the exact amount of water required. Note that the brewing process will use all of the water that you put in the reservoir.
3. Press the ▲ button to open the filter holder chamber.
4. Put a #4 paper filter into the filter holder.
5. The reservoir is calibrated to give 8 large cups (at 125ml per cup) and 12 small cups (at 83ml per cup). For each large cup, add 6g of ground filter coffee and for each small cup add 4g.
6. Close the filter holder chamber until it clicks.
7. Replace the carafe on the rest.

CARAFE

• The bottom of the carafe will be hot. Set it down on an insulated placemat.

• Rinse the carafe with hot water, to prewarm it so it doesn't take heat from the coffee.

• To remove the lid, turn it to align the ⏻ with the ▲.

• Replace the lid in the same position, then turn it to align the ⏻ with the ▲.
• The 🔒 should be aligned with the ▲ when pouring.

SET THE CLOCK

It isn't necessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.
2. Use the hr and min buttons to set the correct time in 24 hour format.
3. The clock will retain its settings until the coffee maker is unplugged.

MAKING COFFEE

1. Press the ⏻ button – the 🔊 icon will appear on the display.
2. Shortly afterwards, coffee will start to drip into the carafe.
3. If you want to stop the coffee maker while it's brewing, press the ⏻ button.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the hr and min buttons.

1. Set the timer to the time you want to start brewing.

a) Press the ⏻ button.
b) Use the hr and min buttons to set the time you want brewing to start. If you don't press either the hr or min buttons within 5 seconds, the coffee maker will revert to "normal", and the current time will show. Press the ⏻ button to start again.

1. When the time is programmed, press the ⏻ button. The Ⓐ icon will appear on the display. Your coffee maker is now set to make coffee at the selected time.

• If you want to cancel the timer before brewing has started, press the ⏻ button.
- If you want to stop the coffee maker while it's brewing, press the ⏻ button.

A QUICK CUP

You can remove the carafe at any time. To prevent the filter holder overflowing, replace the carafe on the rest within about 20 seconds.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Hand wash the carafe and filter holder.
5. Replace the filter holder.
   You may wash these parts in the top rack of a dishwasher.

DESCALING

• After 60 brewing cycles, the display will show CL, to indicate that the appliance needs descaling.
- When descaling is complete, hold the ⏻ button for 3 seconds to turn off the CL indicator.
- Use a proprietary brand of descaler suitable for use in plastic-bodied products. Follow the instructions on the package of descaler. Products returned under guarantee with faults due to scale will be subject to a repair charge.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn't be disposed of with unsorted municipal waste, but recovered, reused, or recycled.
