USER MANUAL 602 GU KBS

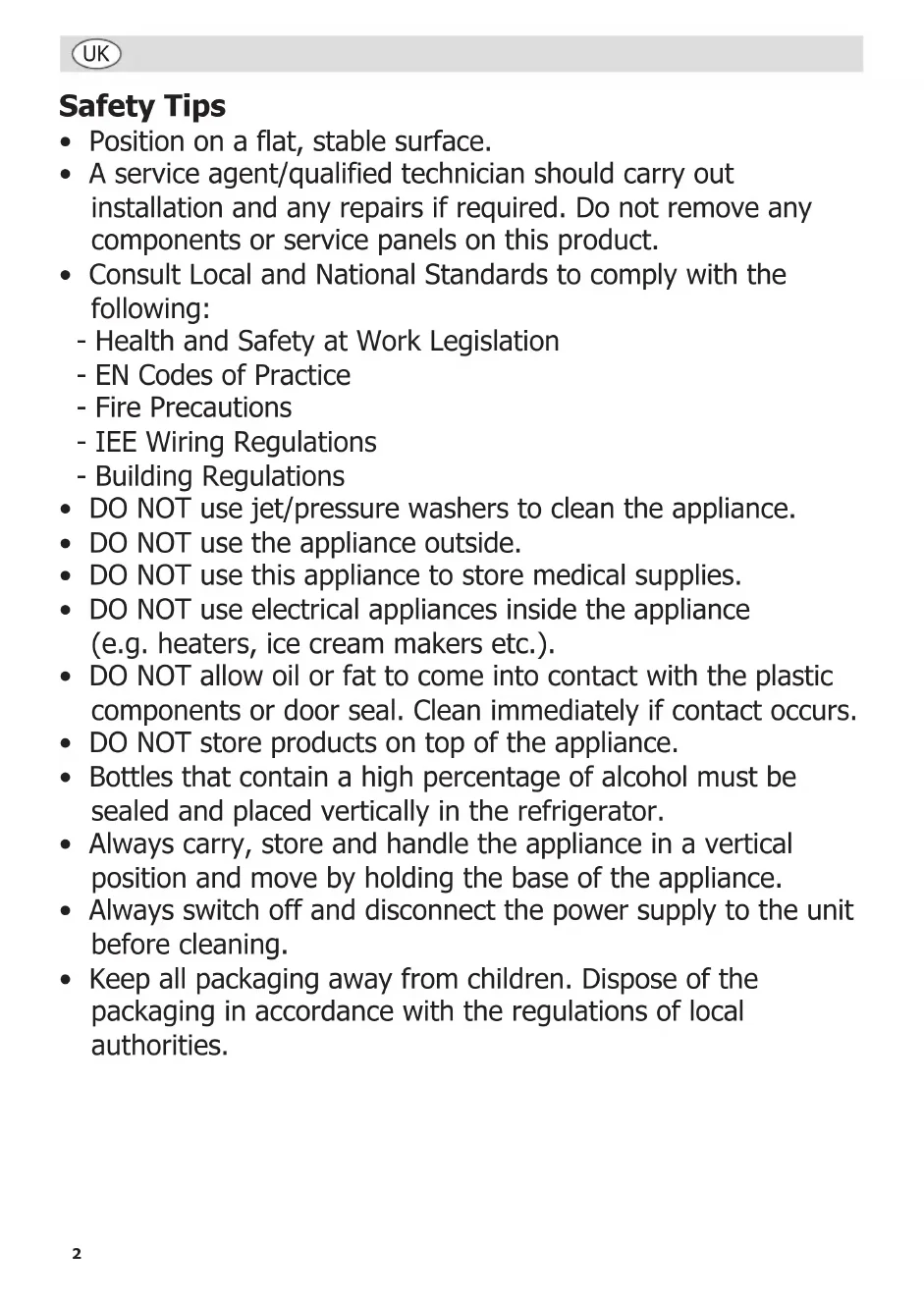

• Position on a flat, stable surface.

• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following: - Health and Safety at Work Legislation - EN Codes of Practice - Fire Precautions - IEE Wiring Regulations - Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT use the appliance outside.

• DO NOT use this appliance to store medical supplies.

• DO NOT use electrical appliances inside the appliance (e.g. heaters, ice cream makers etc.).

• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.

• DO NOT store products on top of the appliance.

• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.

• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.

• Always switch off and disconnect the power supply to the unit before cleaning.

• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.3

• If the power cord is damaged, it must be replaced by a agent or a recommended qualified technician in order to avoid a hazard.

• This appliance is not attended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Warning: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.4

Introduction Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your product. Pack Contents The following is included:

• Refrigerator / Freezer

• Shelves - Refrigerator only

• Instruction Manual Prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your dealer immediately. Installation Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging.

Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.

2. Maintain a distance of 20cm (7 inches)

between the unit and walls or other objects for ventilation. Increase this distance if the obstacle is a heat source. Note: Before using the appliance for the first time, clean the shelves and interior with soapy water. Operation Control Panel The control panel is located on the front of the appliance. Turn On

1. Close the door of the appliance.

2. Connect the appliance to a mains power

3. Set the temperature to the desired setting:

0 (Off), 1 (Cool) to 7 (Cold) Storing Food To get the best results from your appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.

• Do not place uncovered hot food or liquid inside the appliance.

• Wrap or cover food where possible.

• Do not obstruct the fans inside the appliance.

• Avoid opening the doors for prolonged periods of time. Lock/Unlock the Doors

• A lock is fitted to the doors to ensure foodstuffs are kept secure within your appliance.

• Use the keys provided to lock/unlock the door. Cleaning, Care & Maintenance Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.

• Do not use abrasive cleaning agents. These can leave harmful residues.

• Clean the door seal with water only.

• Always wipe dry after cleaning.

• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.5

• Take care when cleaning the rear of the appliance. Sharp edges can cut.

• A agent or qualified technician must carry out repairs if required. Cleaning the Condenser Periodically cleaning the condenser can extend the life of the appliance. Replacing the Lamp

1. Switch Off and disconnect the appliance from the power supply

2. Remove the plastic cover

3. Twist the lamp in its socket and release

4. Remove the lamp and replace the new one of the same power rating

5. Replace the plastic cover

Troubleshooting If your appliance develops a fault, please check the following table before making a call to the Helpline or your dealer. Fault Probable Cause Solution The appliance is not working The unit is not switched on Check the unit is plugged in correctly and switched on Plug and lead are damaged Call agent or qualified Technician Fuse in the plug has blown Replace the fuse Power supply Check power supply Internal wiring fault Call agent or qualified Technician The appliance turns on, but the temperature is too high/low Too much ice on the evaporator Defrost the appliance Condenser blocked with dust Clean the condenser Doors are not shut properly Check doors are shut and seals are not damaged Appliance is located near a heat source or air flow to the condenser is being interrupted Move the refrigerator to a more suitable location Ambient temperature is too high Increase ventilation or move appliance to a cooler position Unsuitable foodstuffs are being stored in the appliance Remove any excessive hot foodstuffs or blockages to the fan Appliance is overloaded Reduce the amount of food stored in the appliance The appliance is leaking water The appliance is not properly levelled Adjust the screw feet to level the appliance (if applicable) The discharge outlet is blocked Clear the discharge outlet6

Fault Probable Cause Solution The appliance is leaking water Movement of water to the drain is obstructed Clear the floor of the appliance (if applicable) The water container is damaged Call agent or qualified Technician The drip tray is overflowing Empty the drip tray (if applicable) The appliance is unusually loud The safety band has not been removed Remove the safety band Loose nut/screw Check and tighten all nuts and screws The appliance has not been installed in a level or stable position Check installation position and change if necessary The display lamp does not light Replace lamp Call agent or qualified Technician Electrical Wiring The plug is to be connected to a suitable mains socket. Appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L

• Neutral wire (coloured blue) to terminal marked N

• Earth wire (coloured green/yellow) to terminal marked E All appliances must be earthed, using a dedicated earthing circuit. If in doubt consult a qualified electrician. Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible. Disposal EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components. Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally. Alternatively call the helpline for details of national disposal companies within the EU.7

Compliance The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area. Parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. Products have been approved to carry the following symbol:8
