USER MANUAL ICMW400 Nostalgia

• HELPFUL TIPS p. 7
• CLEANING & MAINTENANCE p. 8
• RECIPES p. 9
• RETURNS & WARRANTY SAFETY Appliance Specications: 120 Volts, 60 Hz 50 Watts, ETL Approved THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY. Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.ENGLISH p. 14

1. NEVER immerse in water.

2. NEVER use near water.

3. NEVER use an abrasive sponge or cloth on the unit.

4. NEVER leave unit unattended while in use.

5. NEVER add nuts, candy, fruit or other chunky ingredients to the unit. They

may clog the dispenser and prevent ice cream from churning properly.

6. Unplug unit from outlet when not in use and when cleaning.

7. DO NOT operate this appliance with a damaged cord or plug

or in the event the appliance ever malfunctions.

8. DO NOT put in dishwasher.

9. Keep out of reach of children.

10. This appliance is NOT A TOY.

11. This appliance is not intended for use by unsupervised young

children or cognitively challenged individuals.

12. Young children should be supervised while product is in use

to ensure that they do not play with the appliance. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.

2. To protect against electrical shock do not immerse cord, plug

or any part of this unit in water or other liquids.

3. Close supervision is necessary when any appliance is used by or near children.

4. To avoid re or shock hazard, or damage to the unit, this unit should

be plugged into a polarized 120 Volt AC outlet ONLY.

5. Unplug from outlet when not in use and before removing parts for cleaning.

6. DO NOT operate any appliance with a damaged cord or plug or if the

appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination or repair.

7. The manufacturer does not recommend the use of accessory

attachments. Use of attachments may cause injuries.

8. NEVER operate the unit dry. Always have ice cream mixture

inside of the container while plugged in.

9. DO NOT use hot oil or liquids in the Bucket. Always chill mixture before churning.

10. DO NOT use outdoors.

11. DO NOT let the cord touch hot surfaces.

12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.ENGLISH

13. This unit must be on a level surface to operate properly.

14. DO NOT use this appliance for other than its intended use.

15. DO NOT leave unit unattended while in use or when plugged into an outlet.

16. A short power supply cord is provided to reduce the risk resulting

from becoming entangled or tripping over a long cord.

17. Extension cord can be used if care is exercised in use.

18. The marked electrical rating of an extension cord should be at

least as great as the electrical rating of the appliance.

19. This appliance has a polarized plug (one blade is wider than the other). To reduce the

risk of electrical shock, this plug is intended to t into a polarized outlet only one way.

20. DO NOT put hands or any foreign objects into this appliance

while it is plugged in and operating. SAVE THESE INSTRUCTIONS! INTRODUCTION Thank you for purchasing the VINTAGE COLLECTION™ OLD FASHIONED ICE CREAM MAKER from Nostalgia™. The VINTAGE COLLECTION™ OLD FASHIONED ICE CREAM MAKER provides a homemade ice cream experience with modern convenience. Simply place the aluminum canister lled with ingredients in the center of the bucket, ll the Bucket with ice, and the electric motor does the churning for you. Soon, delicious ice cream is ready to serve! Makes 4 quarts of ice cream per batch.ENGLISH

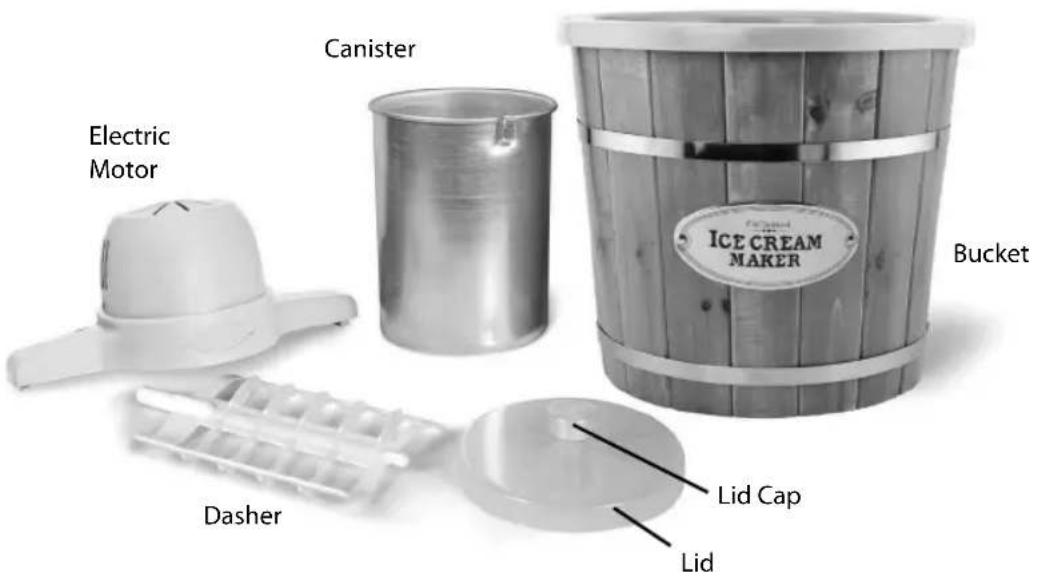

PARTS & ASSEMBLY Take the VINTAGE COLLECTION™ OLD FASHIONED ICE CREAM MAKER out of the box and wash the Bucket, Canister, Lid and all accessories (except for Electric Motor and plug) with warm, soapy water. Carefully wipe down the Electric Motor with a non-abrasive cloth or sponge. NEVER immerse the Electric Motor in water. Dry thoroughly. Now you are ready to enjoy creamy, delicious ice cream from your VINTAGE COLLECTION™ OLD FASHIONED ICE CREAM MAKER. NOTE: The pictures in this manual may dier slightly from your purchased model. However, the function and operating methods should be the same. Bucket Canister Dasher Electric Motor Lid Lid CapENGLISH

1. First, nd a stable surface near an electrical outlet before starting. Make sure the cord

is away from any water source. It is acceptable to use an extension cord if needed.

2. Chill ice cream Canister until cold to the touch.

3. Choose your favorite recipe and prepare ice cream mixture per recipe instructions.

4. Pour chilled ice cream mixture into the chilled Canister. Make sure that you do not

ll Canister more than ²/3 full, as mixture will expand during freezing process.

5. Insert the Dasher into the Canister and make sure the bottom of the

Dasher is properly aligned in the center of the Canister.

6. Place the Lid on the Canister.

7. Place the Canister into the bottom center of the Bucket.

8. Slide the two rectangular ends of the Electric Motor into the

two rectangular holes on the rim of the bucket.

9. Before adding ice, be sure that the ice you put into the bucket is broken into small,

rough pieces. You may use a mallet or hammer to break into smaller pieces if needed. For each batch of ice cream, expect to use 1-2 medium bags of ice.

10. Fill the Bucket with a small layer of ice (about 6 cups) evenly

distributed around the base of the Canister.

11. Cover the rst layer of ice evenly with a thin layer of rock salt (about ½ cup). Regular

table salt or kosher salt can also be used. Salt is necessary for the freezing process. It may take a total of 2 - 4 cups of salt to freeze ice cream mixture properly (1 lb. salt = 2 cups / 2 lbs. salt = 4 cups). The more salt that you use, the better.

12. Repeat steps 10 and 11, layering the ice and salt until it reaches the top of the Canister.

Stop when the top of the mixture reaches the bottom of the drainage hole on the side of the Bucket. Adding more ice may cause the mixture to leak out of the drainage hole.

13. As the ice melts down 2 to 3 inches, you may add more ice and more rock salt to the Bucket.

14. Plug the power cord attached to the Electric Motor into an outlet to turn unit on.

15. As the Canister turns, stir and mix the salt and ice together every 10-15

minutes, or as needed, while the ice cream maker is in use.

16. Turn o and unplug Electric Motor once ice cream has churned for about

30 minutes, or once the Electric Motor has stopped. If the motor stops prematurely, turn it o, break up any ice blockages, and start again.

17. With one hand on the Canister Lid, remove the Electric Motor from the

Bucket. Be careful as the Canister may oat in the ice water.

18. Clear the ice and salt away from the top of the Canister. Wipe carefully

to remove the salt and water before removing the cover.

19. Take the Dasher out and scrape o excess ice cream with a spatula.

20. Transfer ice cream to a freezer-safe container and freeze, or serve straight from the Canister.

Lid and Lid Cap are included for the option of storing the Canister in the freezer.

HELPFUL TIPS Taste Finished ice cream will always taste less sweet than the initial mixture. You may adjust the amount of sugar in the recipe to suit your taste. Articial sweeteners may be used in place of sugar. Use the following measurements for reference:

• 1 packet of sweetener = 2 tsp. of sugar

• 6 packets of sweetener = ¼ cup of sugar

• 8 packets of sweetener = ¹/3 cup of sugar

• 12 packets of sweetener = ½ cup of sugar Texture To ensure that ice crystals do not form in ice cream mixture, do not stop the churning process at any time until the ice cream is ready. If the texture of ice cream is hard or grainy, make sure that you do not have too much rock salt in the ice water. Too much salt can cause the mixture to freeze too quickly, which can also cause ice crystals to form in the ice cream. Consistency Homemade ice cream generally has a thick, milkshake texture. If you prefer a thicker, or rm consistency try one of the following:

• Remove the Dasher and place the Lid and Cap on the Canister. Place Canister in freezer to harden.

• Remove the Dasher and add more ice to the ice-salt mixture. Cover with a towel and let sit until ice cream becomes rm.

• Too little salt may inhibit the freezing of the ice cream mixture. Try adding more salt.

• Recipes that call for alcohol may inhibit the freezing process. Be sure to add any alcohol during the last few minutes of the freezing cycle. Jamming If the Dasher gets jammed or Electric Motor stops prematurely, try the following:

• Ice may cause a blockage in the Bucket. Turn o the Electric Motor and make sure that the ice is broken up into small pieces. You may use a plastic stirrer to do this.

• Make sure that the consistency of the ice cream is not thicker than soft serve ice cream or the Dasher may get stuck.

• Ice Cream recipes that include hard ingredients like nuts or chocolate chips may cause the Dasher to become lodged in the Canister. DO NOT add hard ingredients until the churning process is done.

• DO NOT stop the churning process until ice cream is nished. Stopping in the middle of the process can cause the ice cream to harden and restrict the movement of the Dasher.ENGLISH

• DO NOT operate the unit longer than required. If after 30 minutes the mixture has not yet achieved the slush consistency or has thawed again, do not continue. Possible reasons for mixture not chilling or freezing:

• The Canister was not cold enough. Try adding more ice and salt. Salt is a critical part of the freezing process and you will need plenty of salt added to the ice for the ice cream to freeze properly.

• The mixture was too warm. Make sure that the ingredients that you add are chilled and not warm, lukewarm or of room temperature before adding to the Canister. CLEANING & MAINTENANCE

1. Make sure the Electric Motor is turned o and the unit is unplugged.

2. Remove Electric Motor and wipe with slightly damp, non-abrasive cloth.

NEVER immerse the Electric Motor in water or any other liquid.

3. Wash Bucket in warm, soapy water to thoroughly remove all salt water residue.

4. Wash Canister, Lid and Dasher in warm, soapy water and dry thoroughly.

DO NOT replace Lid until the Canister is completely dry.

5. DO NOT use harsh or abrasive cleaners.

6. DO NOT place Canister or any other parts in a dishwasher. Hand wash only.

7. DO NOT freeze the Canister when it is wet.ENGLISH

RECIPES The VINTAGE COLLECTION™ OLD FASHIONED ICE CREAM MAKER makes rich, creamy ice cream anytime! Try these delicious recipes and tips:

• To reduce the risk of salmonella poisoning caused by raw eggs, heat mixtures with eggs to a temperature of 160° F, but DO NOT bring to a boil. You may also use pasteurized eggs in place of raw eggs.

• Be sure to add ice cream mixture to Canister and chill for 30 minutes prior to use.

• For ice cream recipes that require cooking, it is recommended that you cook one day in advance. The mixture will then have time to cool completely and expand.

• 3 Large Cans Condensed Milk

• 15 Tbsp. Cocoa In a large mixing bowl, combine milk and condensed milk. Dissolve the cocoa in a bit of hot water. Once dissolved, stir cocoa into the milk mixture until completely blended. Pour ingredients into the Canister and follow directions in HOW TO OPERATE section. Do not ll the Canister more than ²/ 3 full, as the mixture will expand during freezing.

• 4 ½ Cups Half and Half

• 1 ½ Tbsp. Vanilla Combine all ingredients in Canister. Do not ll the Canister more than ²/ 3 full, as the mixture will expand during freezing. Stir well until sugar has dissolved. Freeze until Canister is cold to touch. Follow directions in HOW TO OPERATE section.RICH & CREAMY CHOCOLATE ICE CREAM

• 2 ²/ 3 Cups Granulated Sugar

• 6 Squares Semi-Sweet Chocolate, melted

• 2 Tbsp. Vanilla Extract

• 1 ¹/3 Cups Half and Half

• 2 Cups Heavy Cream Mix the sugar, corn starch, and salt in a large saucepan over medium heat. Slowly pour in the milk, stirring constantly until the milk begins to simmer. Very slowly add the beaten eggs and continue to stir. Reduce heat to low and cook until mixture thickens slightly. Slowly stir in the melted chocolate and whisk until all chocolate is combined and mixture is smooth. Slowly add vanilla, half and half, and heavy cream. Pour into a large glass bowl and refrigerate for 2-4 hours or until mixture has chilled. Remove from refrigerator. Pour ingredients into the Canister and follow directions in HOW TO OPERATE section. Do not ll the Canister more than ²/3 full, as the mixture will expand during freezing.

OLD FASHIONED VANILLA ICE CREAM

• 2 Cups Granulated Sugar

• 1½ Cups Half and Half

• 2 ¾ Cups Heavy Cream Mix the sugar, corn starch, and salt in a large saucepan over medium heat. Slowly pour in the milk while stirring constantly. Very slowly add the beaten eggs and continue to stir. Reduce heat to low and cook until mixture thickens slightly. Slowly add vanilla, half and half and heavy cream. Pour into a large glass bowl and refrigerate for 2-4 hours or until mixture has chilled. Remove from refrigerator. Pour mixture into the Canister and follow directions in the HOW TO OPERATE section. Do not ll the Canister more than ²/ 3 full, as the mixture will expand during freezing.ENGLISH

• 1 Cup Mini Chocolate Chips

• 1 Cup Chocolate Chip Cookie Dough, crumbled into small pieces Place the cookie dough and the chocolate chips in a separate bowl. Cover and chill until cold. Whisk the eggs in a mixing bowl 1-2 minutes until light and uy. Slowly add sugar, whisking until completely blended. Slowly add cream and milk and whisk until blended. Pour mixture into the Canister and follow directions in the HOW TO OPERATE section. Do not ll the Canister more than ²/ 3 full, as the mixture will expand during freezing. When the mixture has nished churning, add cookie dough and chocolate chips and stir in evenly.

• 1 ¾ Cup Granulated Sugar

• 2 Cups Half and Half

• 1 Tbsp Vanilla Extract

• 1 Cup Chopped Pecans

• 2 Cups Mini Marshmallows Mix the milk and chocolate chips in a large saucepan over medium heat until the chocolate has completely melted. Remove from heat and slowly add sugar and salt, mixing well, until dissolved. Stir in the remaining ingredients except the marshmallows, pecans and chocolate chips. Cover and refrigerate for about 30 minutes or until mixture has chilled. Pour mixture into the Canister and follow directions in the HOW TO OPERATE section. Do not ll the Canister more than ²/ 3 full, as the mixture will expand during freezing. When mixture has nished churning, add marshmallows, pecans, and chocolate chips and stir in evenly.ENGLISH

• 2 ²/ 3 Cups Granulated Sugar

• 1 Cup Peanut Butter or Melted Peanut Butter Morsels

• 1 ¹/3 Cups Half and Half

• 1 ½ Cup Chocolate Chips Mix the sugar, corn starch, and salt in a large saucepan over medium heat. Slowly pour in the milk while stirring constantly. Very slowly, add the beaten eggs and continue to stir. Reduce heat to low and cook until mixture thickens slightly. Slowly stir in peanut butter and whisk until all peanut butter is combined and mixture is smooth. Slowly add vanilla, half and half, and heavy cream. Pour mixture into a large glass bowl and refrigerate for 2-4 hours or until mixture has chilled. Remove from refrigerator. Pour mixture into the Canister and follow directions in the HOW TO OPERATE section. Do not ll the Canister more than ²/3 full, as the mixture will expand during freezing. When mixture has nished churning, add chocolate chips and stir evenly.

• 4 ½ Cups Half and Half

• 4 ½ Tbsp. Instant Coee Powder Combine all ingredients in Canister. Do not ll the Canister more than ²/ 3 full, as the mixture will expand during freezing. Stir well until both sugar and instant coee powder have dissolved. Freeze until Canister is cold to touch. Follow directions in HOW TO OPERATE section.ENGLISH

• 2 (12-oz.) Bags of Frozen Mixed Berries

• 2 Cups Granulated Sugar

3 Cup Fresh Lemon Juice

• 4 Cups Cranberry & Raspberry Juice Mixture Finely puree the berries in a blender with apple juice and water. Strain mixture into a large saucepan to remove seeds. Discard seeds. Add sugar to the seedless berry mixture, bring to a boil for 3-4 minutes. Stir in remaining juices. Pour into a large glass bowl and refrigerate for 2-4 hours. Pour mixture into the Canister and follow directions in the HOW TO OPERATE section. Do not ll the Canister more than ²/3 full, as the mixture will expand during freezing. PINEAPPLE SORBET

• 2 Cups Granulated Sugar

Cup Fresh Lemon Juice

• 4 ½ Cups Pineapple Juice Finely puree the pineapple in a blender with apple juice and water. Strain mixture into a large saucepan to get a smooth consistency. Add sugar to the pineapple mixture, bring to a boil for 3-4 minutes. Stir in remaining juices. Pour into a large glass bowl and refrigerate for 2-4 hours. Pour mixture into the Canister and follow directions in the HOW TO OPERATE section. Do not ll the Canister more than ²/3 full, as the mixture will expand during freezing.ENGLISH

RETURNS & WARRANTY SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY. VINTAGE COLLECTION™ OLD FASHIONED ICE CREAM MAKER / ICMW400 Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time. Distributed by: Nostalgia Products LLC 1471 Partnership Dr. Green Bay, WI 54304-5685 Customer Service Phone: [phone] Web: www.nostalgiaproducts.com Customer Service Inquiry To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and ll out the Customer Service Inquiry form and click the Submit button. A representative will contact you as soon as possible. Product Warranty Terms Nostalgia Products LLC (the “Company”) hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benets. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by lling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada. This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and tness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you. This warranty does not apply to re-manufactured merchandise. Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty. For more information, visit us online at www.nostalgiaproducts.com. Like us on Facebook at www.facebook.com/NostalgiaElectrics. Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx. Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.15 ESPAÑOL
