USER MANUAL Powersocket 505 Oehlbach

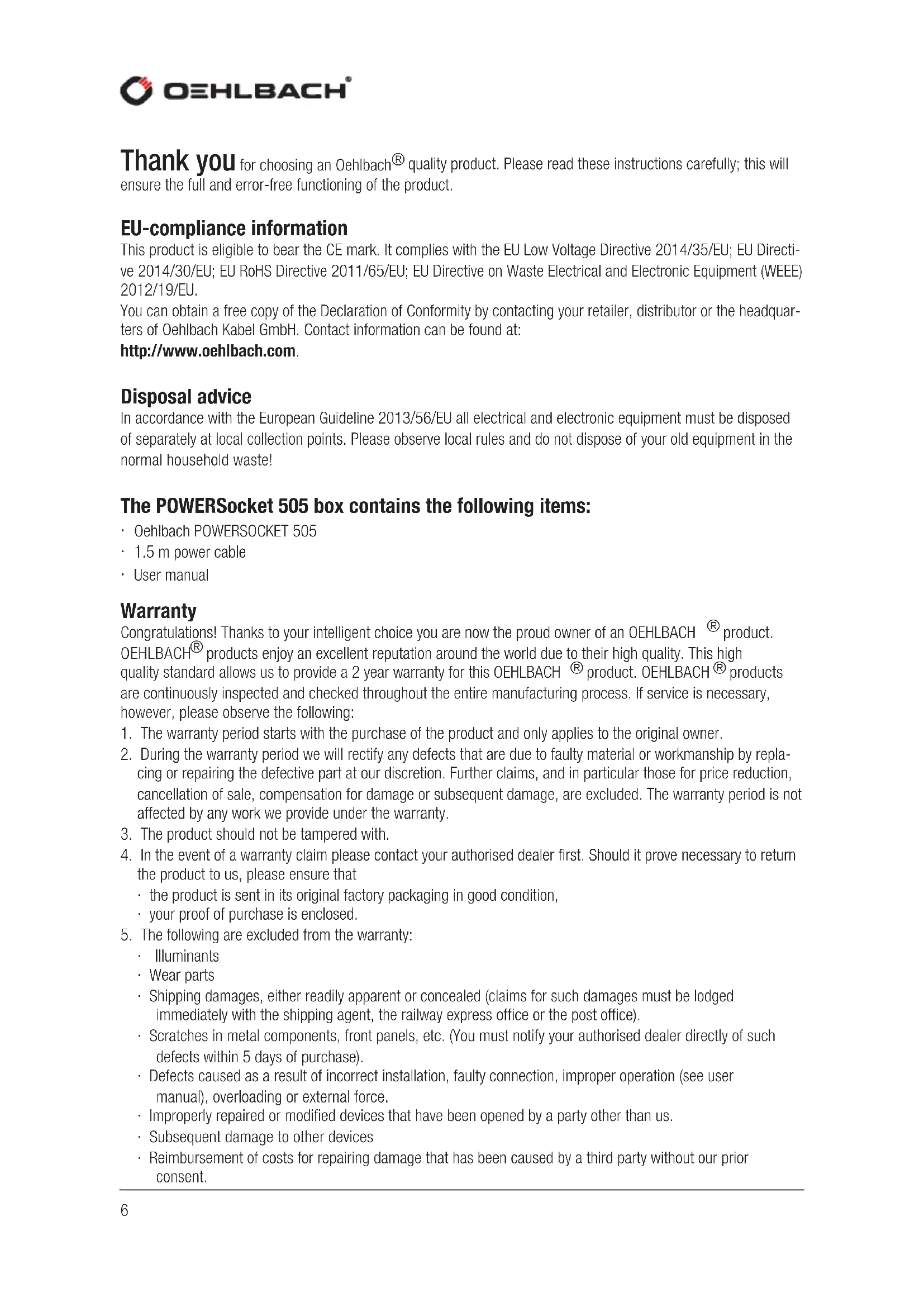

quality product. Please read these instructions carefully; this will ensure the full and error-free functioning of the product. EU-compliance information This product is eligible to bear the CE mark. It complies with the EU Low Voltage Directive 2014/35/EU; EU Directi- ve 2014/30/EU; EU RoHS Directive 2011/65/EU; EU Directive on Waste Electrical and Electronic Equipment (WEEE) 2012/19/EU. You can obtain a free copy of the Declaration of Conformity by contacting your retailer, distributor or the headquar- ters of Oehlbach Kabel GmbH. Contact information can be found at: http://www.oehlbach.com. Disposal advice In accordance with the European Guideline 2013/56/EU all electrical and electronic equipment must be disposed of separately at local collection points. Please observe local rules and do not dispose of your old equipment in the normal household waste! The POWERSocket 505 box contains the following items:

• User manual Warranty Congratulations! Thanks to your intelligent choice you are now the proud owner of an OEHLBACH

products enjoy an excellent reputation around the world due to their high quality. This high quality standard allows us to provide a 2 year warranty for this OEHLBACH

products are continuously inspected and checked throughout the entire manufacturing process. If service is necessary, however, please observe the following:

1. The warranty period starts with the purchase of the product and only applies to the original owner.

2. During the warranty period we will rectify any defects that are due to faulty material or workmanship by repla-

cing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damage or subsequent damage, are excluded. The warranty period is not affected by any work we provide under the warranty.

3. The product should not be tampered with.

4. In the event of a warranty claim please contact your authorised dealer first. Should it prove necessary to return

the product to us, please ensure that

• the product is sent in its original factory packaging in good condition,

• your proof of purchase is enclosed.

5. The following are excluded from the warranty:

• Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with the shipping agent, the railway express office or the post office).

• Scratches in metal components, front panels, etc. (You must notify your authorised dealer directly of such defects within 5 days of purchase).

• Defects caused as a result of incorrect installation, faulty connection, improper operation (see user manual), overloading or external force.

• Improperly repaired or modified devices that have been opened by a party other than us.

• Subsequent damage to other devices

• Reimbursement of costs for repairing damage that has been caused by a third party without our prior consent.ENG

POWERSOCKET 505 IMPORTANT SAFETY INSTRUCTIONS: This manual contains important information concerning operation and safety. It is imperative you observe all of the information. Keep the manual in a safe place for future reference. According to DIN VDE 0620 portable multiple socket outlets should not be

• operated under a cover,

• used as a substitute for fixed installations - The Powersocket should only be connected to a mains socket which has the required connection values. - The Powersocket should not be used if there is any liquid in or on the device. - The Powersocket should not be used in areas where there is a very high degree of humidity. - Do not touch or connect the mains cable with damp hands. - Keep the Powersocket and mains cable away from heating appliances. - The device should no longer be operated if there is visible damage to the Powersocket or mains cable. - A damaged Powersocket should not be repaired, but replaced. - No heavy objects should be placed on the Powersocket or the mains cable. - The mains plug should be easily accessible at all times. - If the devices that are connected to the Powersocket are not going to be used for a pronged period (e.g. while on holiday), the Powersocket should be disconnected from the mains by removing the plug. - Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface. - Repairs should always be conducted by qualified specialists, as you could be exposed to dangerous high voltage levels or other hazards. - During a thunderstorm we always recommend disconnecting the Powersocket from the mains. Cleaning Before cleaning the Powersocket disconnect the mains plug. The Powersocket should only be dusted. Do not use any liquid cleaners or sprays. Initial operation Connect the supplied power cord to the Oehlbach Powersocket 505 and insert the mains plug into a wall outlet. The multi-socket outlet can now be activated via the power switch. USB ports The Powersocket 505 is equipped with two USB ports, which can be used to charge multimedia devices (MP3 play- ers, smartphones, etc.). The USB ports are only active when the Powersocket is switched on via the power switch.8 Features

• 6 safety sockets arranged at a 45° angle with child safety feature

• Two USB charging sockets with 2.4 amp charging current

• Two USB charging sockets with 2.4 amp charging current

• High-quality and sturdy aluminum housing

• Compact design for flexible set-up options

• Illuminated safety switch for switching the strip on and off Technical specifications Ambient temperature: -5°C to +35°C Mains voltage: 230V / 50Hz Rated current: 10 A USB voltage 5 V / 2.4 A Dimensions (w x h x d in mm): 480 x 45 x 73 Weight: 0.720 kgFRA
