Product Type	True Wireless Earbuds
Model	Endurance Peak 3
Brand	Harman Kardon
Speaker	10 mm Dynamic
Earbud Weight (each)	12.5 g
Charging Case Weight	76 g
Power Supply	5 V, 1 A
Earbud Battery	Lithium-ion 70 mAh (3.85 V)
Charging Case Battery	Lithium-ion 950 mAh (3.7 V)
Charging Time	2 hours
Talk Time	5.5 hours
Music Playback Time	Up to 10 hours (with Bluetooth active)
Frequency Response	20 Hz - 20 kHz
Impedance	16 ohms
Sensitivity	102 dB SPL at 1 kHz
Microphone Sensitivity	-38 dBV/Pa at 1 kHz
Bluetooth Version	5.2
Bluetooth Profiles	A2DP V1.3, AVRCP V1.6, HFP V1.7
Fit Technology	TwistLock™
Audio Features	Ambient Aware, TalkThru, voice assistant (Bixby, Siri, etc.)
Compatible App	JBL Headphones (Android 6.0+, iOS)
Max Operating Temperature	45 °C

Frequently Asked Questions - Endurance Peak 3 HARMAN KARDON

How to turn on and connect the earbuds to my phone?

Take the earbuds out of the case, they turn on automatically and enter pairing mode. On your phone, enable Bluetooth and select JBL ENDURANCE PEAK 3 from the list of devices.

What is the battery life of the earbuds?

Music playback time can reach 10 hours with Bluetooth active, and up to 5.5 hours for talk time. The charging case provides additional charge.

How to charge the earbuds and the case?

Place the earbuds in the case to charge automatically. Connect the case to a power source via a USB cable (5V, 1A). Full charging time is approximately 2 hours.

How to use Ambient Aware mode?

Ambient Aware mode lets you hear surrounding sounds while listening to music. Activate this feature via the JBL Headphones app or by holding a button on the earbud (depending on configuration). Available only on Android.

How to activate TalkThru?

TalkThru lowers the music volume and amplifies voices for a quick conversation without removing the earbuds. Activate it via the app or a dedicated button on the earbud.

How to switch to mono mode with a single earbud?

Mono mode allows you to use a single earbud. To activate, place the other earbud in the case. Controls and voice assistant remain available.

How to reset the earbuds to factory settings?

To reset, place the earbuds in the case, then press and hold the buttons on both earbuds for about 10 seconds until the LEDs flash. Refer to the user manual for more details.

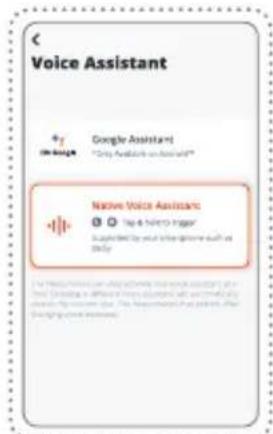

How to activate the voice assistant (Siri, Bixby, Google Assistant)?

From the JBL Headphones app, you can assign your preferred voice assistant to an earbud (left or right). Then press the corresponding button to launch the assistant.

How to choose the right ear tips for optimal fit?

The earbuds come with multiple sizes of ear tips and fins. Try each size for a secure fit and good sound isolation. TwistLock technology ensures stable fit during sports.

My phone can't find the earbuds via Bluetooth, what should I do?

Make sure the earbuds are in pairing mode (LED flashing). Reset the earbuds if necessary. Check that your phone's Bluetooth is enabled and no other device is connected. Try restarting the earbuds by placing them back in the case.

USER MANUAL Endurance Peak 3 HARMAN KARDON

Line drawing of a UBL-branded smartwatch case with striped cover (no text or symbols)

S/M/L

L

B

SCAN ME

APP

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

HOW TO WEAR

1 ATTACH EAR TIPS AND ENHANCERS

MIX AND MATCH FOR A PERFECT FIT AND AUDIO PERFORMANCE

S/M/L

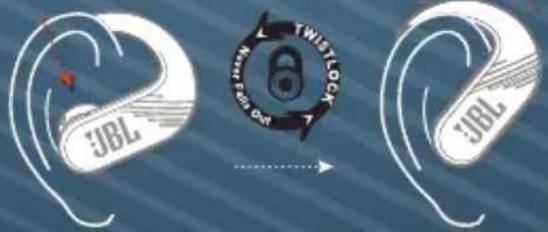

2 TWISTLOCK™ TECHNOLOGY

FIRST TIME USE

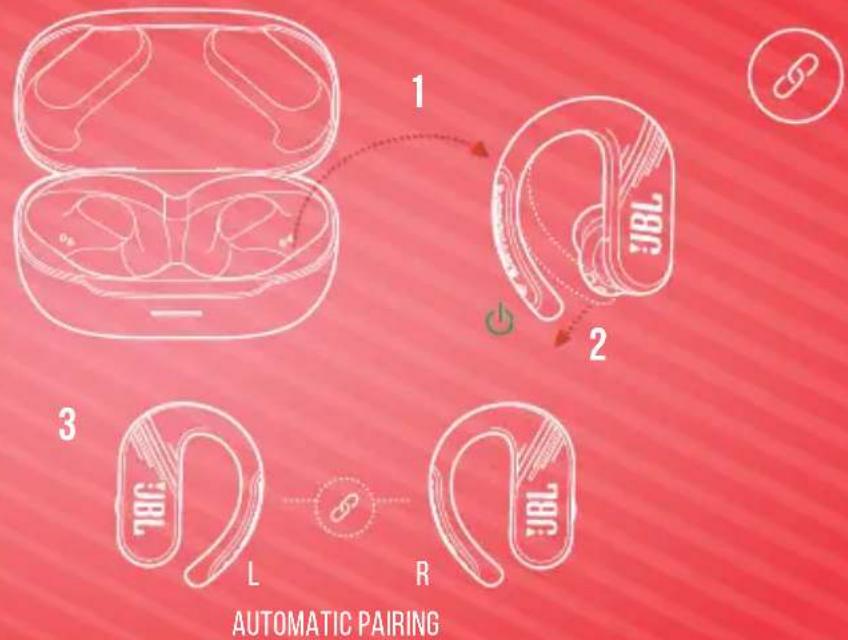

POWER ON & CONNECT


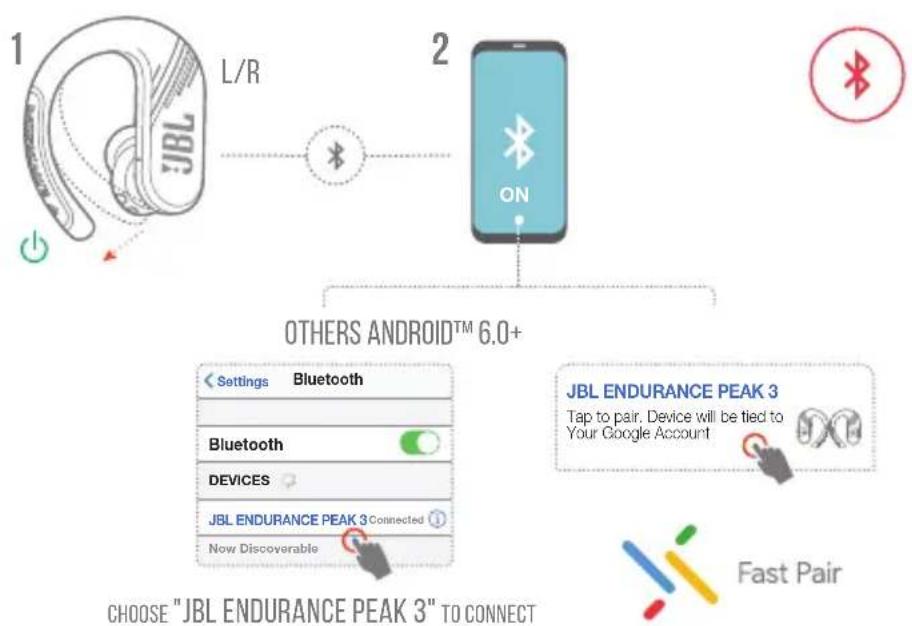

POWER ON & CONNECT

CHOOSE "JBL ENDURANCE PEAK 3" TO CONNECT

DUAL CONNECT

STEREO MODE

L

R

Line drawing of a JBL-branded VR headset with striped background (no text or symbols)

MONO MODE

L/R

Line drawing of an outdoor electronic device with a logo on the front panel (no readable text or symbols)

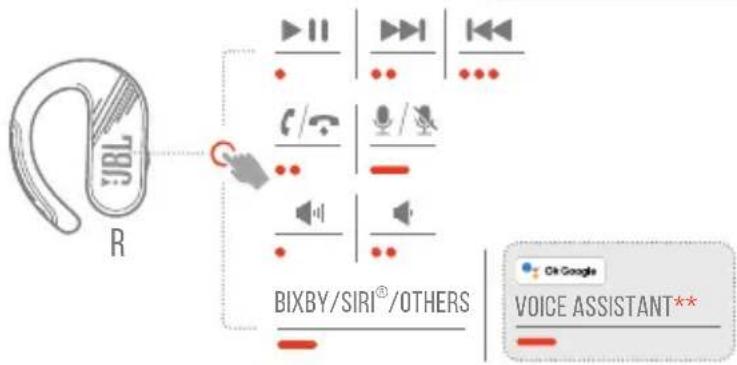

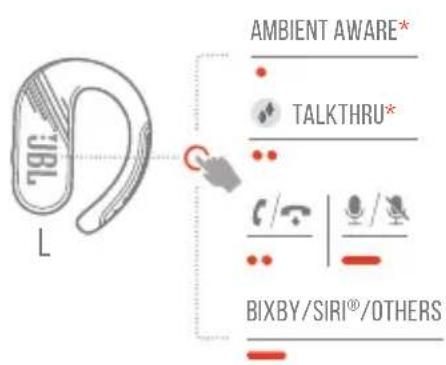

CONTROLS

* ENABLE ADVANCE CONTROLS BY CONNECTING YOUR JBL ENDURANCE PEAK3 TO JBL HEADPHONES APP 📄 ** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

VOICEAWARE

Silhouette of a human head with earphones and sound waves, no text or symbols present

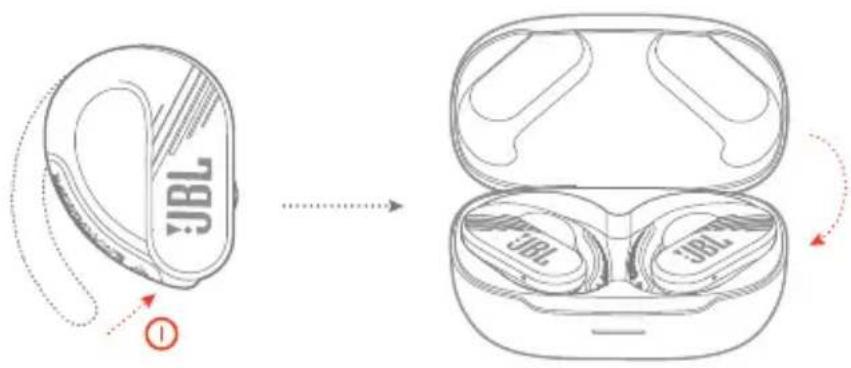

POWER OFF

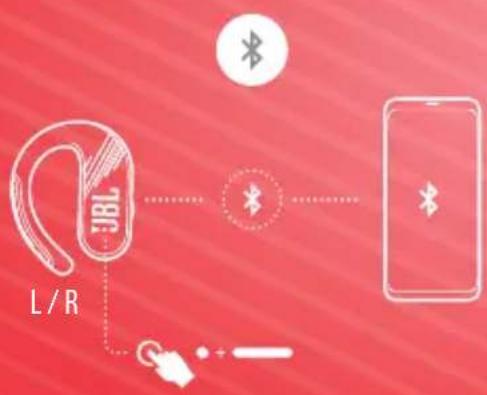

MANUAL SETUP

TAP × 1

TAP×2

HOLD (5s)

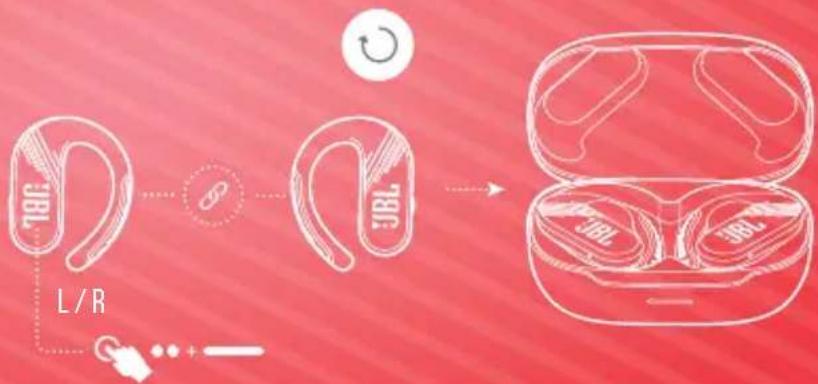

FACTORY RESETCONNECT TO A NEW BLUETOOTH DEVICE


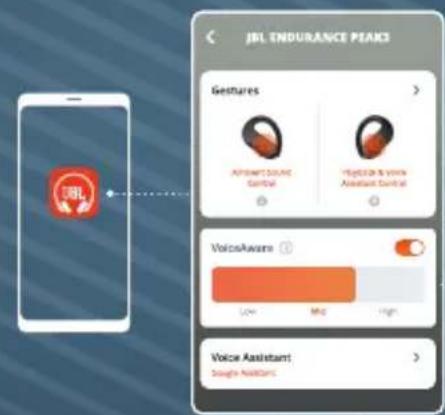

DO MORE WITH THE APP

*ONLY AVAILABLE ON ANDROID™

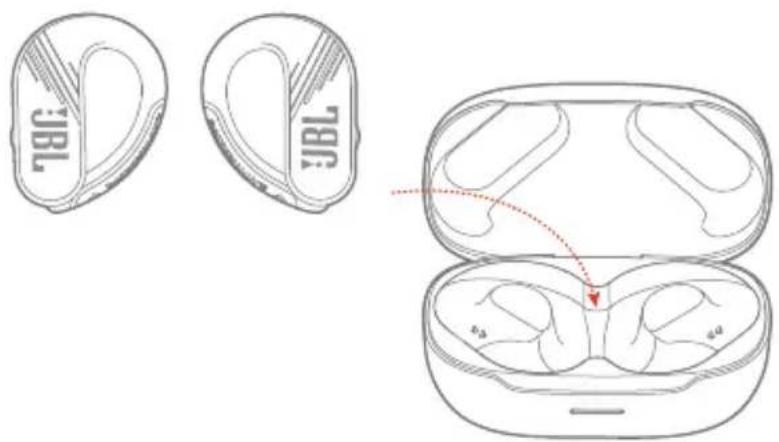

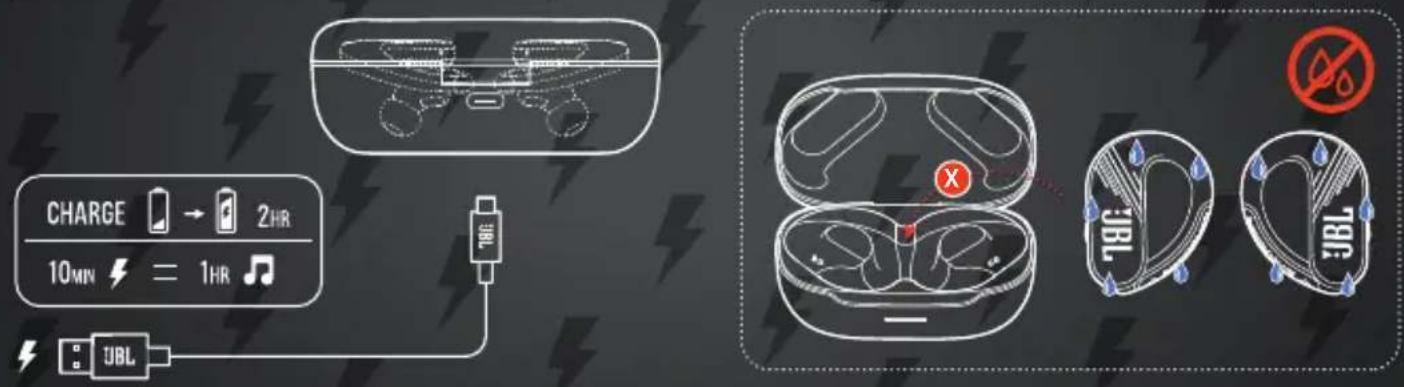

CHARGING

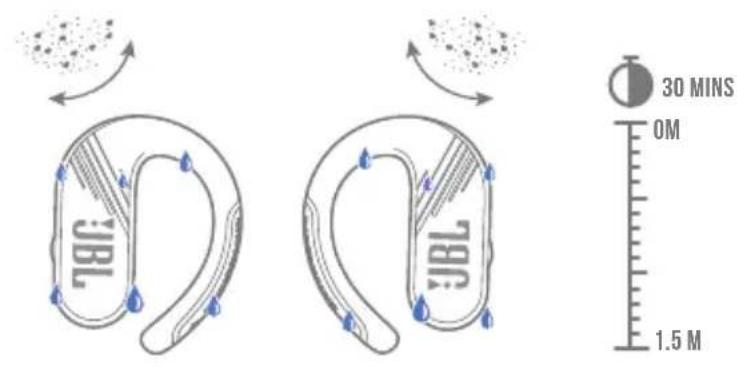

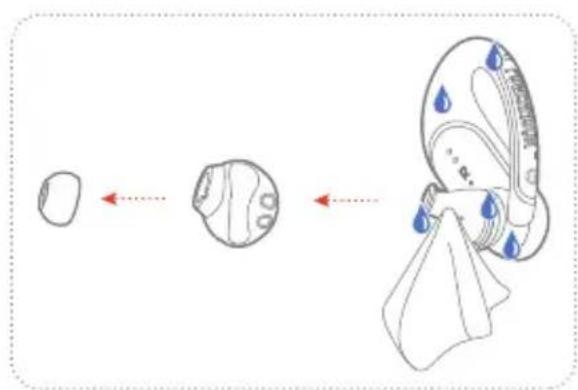

WATERPROOF & DUSTPROOF IP68

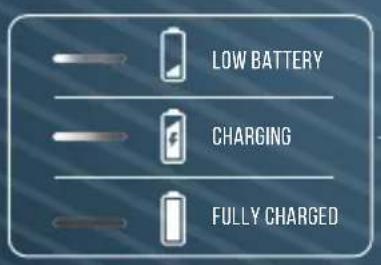

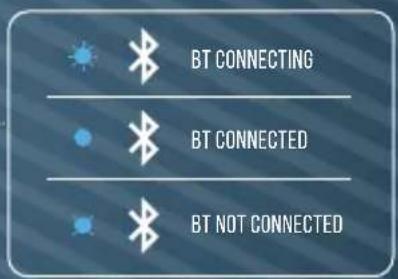

LED BEHAVIORS

Line drawing of a JBL earband device (no text or symbols)

Line drawing of a JBL (JBL) VR headset with no text or symbols on the body

TECH SPEC

Model: ENDURANCE PEAK3

Driver size: 10 mm/0.39" Dynamic Driver

Power supply: 5 V —1 A

Earbud: 12.5 g per pc (25 g combined)/0.0275 lbs per pc (0.055 lbs combined)

Charging case: 76 g/ 0.167 lbs

Earbud battery type: Lithium-ion polymer (70 mAh/ 3.85 V)

Charging case battery type: Lithium-ion polymer (950 mAh/ 3.7 V)

Charging time: 2 hrs from empty

Talk time: 5.5 hrs

Music playtime with BT on: up to 10 hrs

Frequency response: 20 Hz - 20 kHz

Impedance: 16 ohm

Sensitivity: 102 dB SPL@1 kHz

Maximum SPL: 93 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter frequency range: 2.400 GHz - 2.4835 GHz

Bluetooth transmitter power: < 14 dBm

Bluetooth transmitter modulation: GFSK, π/4 QPSK, 8DPSK

Maximum operation temperature: 45 °C

FRD

CONTENU DE LA BOÎTE APPLICATION

HVAD ER DER I AESKEN

APPEN

Bluetooth-Profilversion: A2DP V1.3, AVRCP V1.6, HFP V1.7

'Ekdoşn proφil Bluetooth: A2DP V1.3, AVRCP V1.6, HFP V1.7

LED-MERKKIVALON TOIMINNOT

Akun varaus vähissä

Latautuu

Täysin ladattu

Bluetooth-profiliversio: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth-lähettimen

taajuusalue: 2,400 GHz -2,4835 GHz

WATERPROOF & DUSTPROOF IP68

MANUELL KONFIGURERING

Koble til en ny Bluetooth-enhet

Tilbakestilling til

fabrikkinnstillinger

GJ∅R MER MED APPEN

Bluetooth-sender: 2,400–2,4835 GHz

Bluetooth-senderens strøm: < 14 dBm

sender: GFSK, π/4 QPSK, 8DPSK

ODPORNE NA WODE I PYŁ, KLASA

OCHRONY IP68

DZIAŁANIE DIODY LED

Bluetooth-profilens version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth-sändarens

Ambient Aware (Ortam

Farkındalığı)*

Talkthru

KEGUNAAN LAIN APLIKASI

*Hanya tersedia di Android™

MENGISI DAYA

IP68 TAHAN AIR & DEBU

POLA LED

Daya baterai lemah

Mengisi daya

Daya terisi penuh

BT menyambungkan

BT Tersambung

BT tidak tersambung

SPESIFIKASI TEKNIS

Model: ENDURANCE PEAK3

Ukuran driver: Driver Dinamis 10 mm/0,39"

Catu daya: 5 V ===1 A

A2DP V1.3、AVRCP V1.6、HFP V1.7

2.400GHz-2.4835GHz

<14dBm

GFSK、π/4 QPSK、8DPSK

45℃

-

구성품

안

해당 앤을 통해 천취 경

현은 더욱 효과적으로 제

어하고 개이하한 슈의

습니다

참여다. 참요 바버

이어티 민 이해서 자차

와병하 차요가과 오디오

서느으 의하 미스 애 매치

Twistlock™ 기술

처은 사유

전원켜기&연결

자동 페어링

기타

Android™ 6.0+

연결할 "JBL ENDURANCE PEAK 3"

선택

이중연결

스테레오 모드

모노 모드

제어

탭하기|누르고있기

Ambient Aware(주변 소

리 듣 기)*

Talkthru*

Bixby/Siri®/기타

음성 비서**

* JBL ENDURANCE PEAK3을 JBL

Headphones 앤에 연결하

여고급컨트롤을활성화

합니다.

**JBL Headphones 앱을 통해

음성 비서를 활성화하여 기

본설정 이어버드(L/R)에 지

정합니다.

VOICEAWARE

전워 끄기

수동 설정

새 Bluetooth 장치 연결

공장 초기화

앱으로 더 많은 기능 즐기기

*Android™에서만 사용 가능

충전

방수 및 방진 IP68

LED 동작

배터리 부족

충전중

완전 충전됨

BT연결중

BT연결됨

RT연결안됨

기술사양

모델: ENDURANCE PEAK3

한쪽 0.0275lbs(양쪽 0.055lbs)

충전 케이스:76q/0.167lbs

acceleration: 0.1500

Sensitivity: 102 dB SPL@1 kHz

Maximum SPL: 93 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter

frequency range: 2.400 GHz -2.4835 GHz

Bluetooth transmitter power: < 14 dBm

Bluetooth transmitter

modulation:

GFSK, π/4 QPSK, 8DPSK

###

The image is too blurry to recognize any text content.

תָאַע

הַרְשׁ

תַרְשָׁ

תָרֵ

TIN

D

かや

057

仿注

הַרְא

6.0+

17の

EAK 3

תְבָר

コメカ

בִרְשָׁ

TPS

שְׁרָה

n)\*

Aware

ENDURANCE PEAK3

תְקָרִיַעֹתְשָׁה

5V=1A

12.5

0.0275

(コナビュ)

76 g/0.167 lbs

5 (70 mAh/ 3.85 V)

(No text)

(950 mAh/ 3.7 V)

הַלְרָׁ-הַלְרָׁ 2

הכלה 5.5

תְבַרָה

:D27

תְבָרִיַעֹתָה

:בַרְשָׁה

:

:תְקַרָה בְּרָה

תְרָׁא בַלְהָם

תְקָרִי (בַלְׁה)

:

תְבָרִיּוֹם

:

הכלה

:בְרָה, אַרִיּוֹתָם

תְרָה בְּרָה

:

:

תְבָרִי SPL

תְבָרִיֹת אַלְה

:Bluetooth

:Bluetooth

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

IC RF Exposure Information and Statement

The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-JBLENPEAK3) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.99 W / kg.

The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user's head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation

The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC: 6132A-JBLENPEAK3

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
