BA2240T - Battery EGO - Free user manual and instructions

Product type	Lithium-ion battery
Brand	EGO
Model	BA2240T
Rated voltage	50.4 V
Capacity	4.0 Ah
Weight	1.90 kg
Battery designation	14INR22/70 14INR22/71
Optimal recharge temperature	5 °C – 40 °C
Optimal storage temperature	10 °C – 26 °C
Charge level indicator	5 LEDs (green/red) with button
Compatible chargers	CH2100E, CH3200E, CH5500E, CH7000E, CH7000E-T
Built-in protection	Overheating, overcharge, deep discharge
Self-maintenance function	No (advanced lifetime extension technology)
Intended use	EGO POWER+ 56 V tools
Recycling	Do not dispose of with household waste – mandatory recycling
Safety symbols	Read the manual, wear eye protection, do not expose to fire or water

Frequently Asked Questions - BA2240T EGO

How to check the charge level of the BA2240T battery?

Press the button on the battery to turn on the 5-LED indicator. The number of green LEDs indicates the charge level (5 LEDs = 80-100%, 1 LED = 10-20%). If the last LED flashes red, the charge is below 10%. If all 5 LEDs flash red, the battery is nearly discharged and must be recharged immediately.

Which chargers are compatible with the BA2240T battery?

Compatible chargers are the EGO CH2100E, CH3200E, CH5500E, CH7000E, and CH7000E-T models. Use only these chargers to recharge the battery.

What is the recommended charging temperature?

The optimal charging temperature is between 5 °C and 40 °C. Do not charge the battery below or above these temperatures.

How to maintain the battery during extended non-use?

For non-use exceeding 30 days, store the battery in a dry place below 26 °C, with a charge between 30% and 50%. Recharge it fully every six months. Clean the outer surfaces with a soft, non-metallic cloth.

What to do if the battery becomes too hot during use?

If the 5-LED indicator lights up red (overheating), stop the tool immediately and let the battery cool until its temperature drops below 67 °C. It will resume normal operation automatically.

Does the BA2240T battery have a self-maintenance function?

No, unlike other EGO models, the BA2240T does not have a special self-maintenance indicator. It is equipped with advanced technology to extend its lifespan without a visible self-maintenance cycle.

How to recycle the battery at end of life?

Do not throw the battery with household waste. In accordance with European directives, it must be collected separately. Cover its terminals with thick adhesive tape and take it to a lithium-ion battery collection point.

Can I use the BA2240T battery with tools other than EGO?

The BA2240T battery is designed exclusively for EGO POWER+ 56 V tools. Using it with other brands or incompatible tools may result in risk of injury or fire.

How to interpret the red LED indicators?

A red flash of the last LED means charge below 10%. If all 5 LEDs flash red, the battery is low voltage and must be recharged immediately. If all 5 LEDs are solid red, the battery is overheating and must cool down.

What are the important safety precautions?

Always wear eye protection, read the manual, do not short-circuit the terminals, do not expose the battery to fire or water, recharge only with the specified chargers, and if liquid escapes, avoid contact and rinse with plenty of water.

USER MANUAL BA2240T EGO

Five technical line drawings of industrial sensor modules, no text or symbols present

BA1400T/BA2240T/

BA2242T/BA2800T/BA3360T/

BA4200T/BA5600T/BA6720T

56 VOLT BATTERY

2.5AH/4.0AH/5.0AH/6.0AH/7.5AH/10.0AH/12.0AH

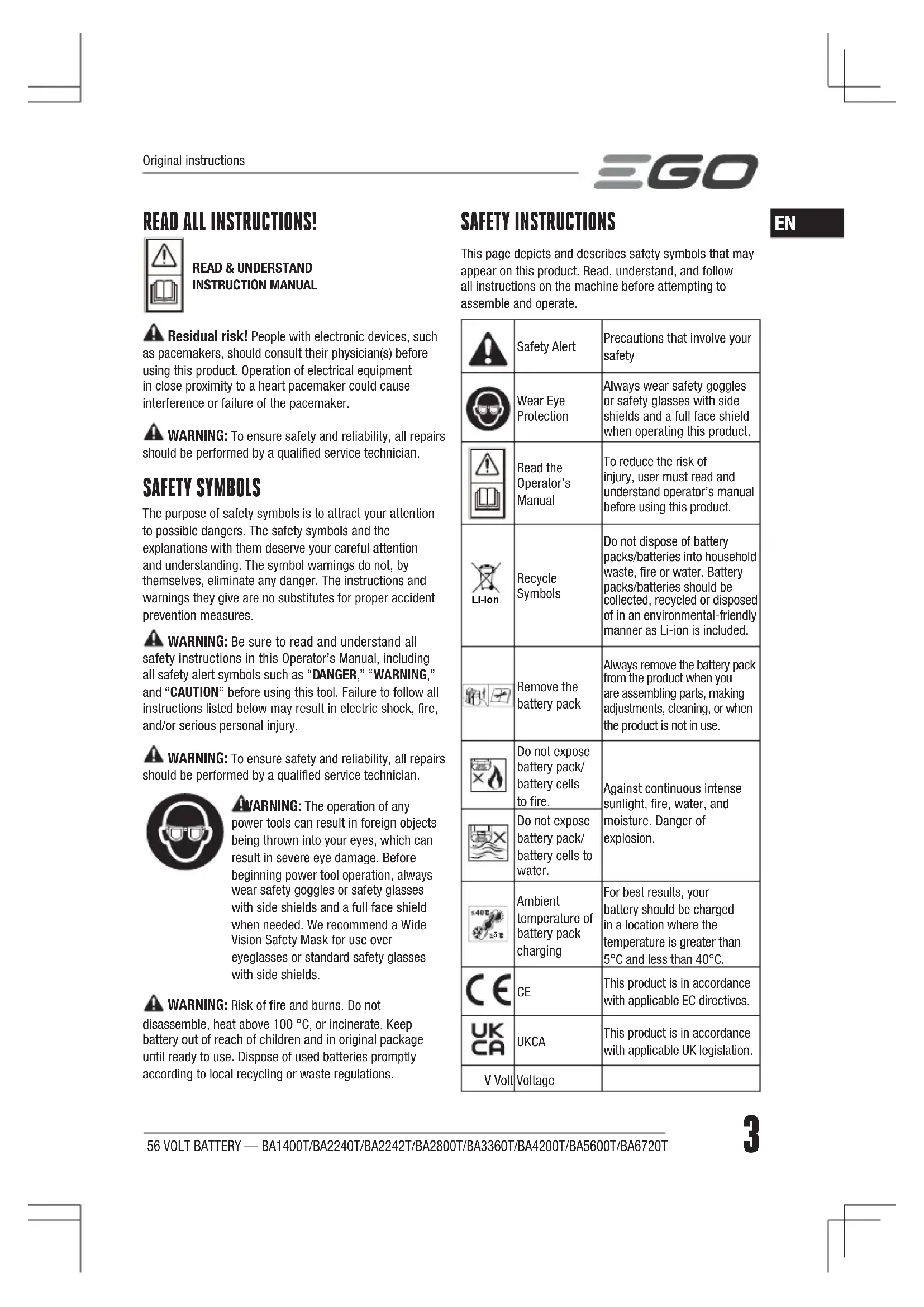

Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all repairs should be performed by a qualified service technician.

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.
WARNING: To ensure safety and reliability, all repairs should be performed by a qualified service technician.

WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

WARNING: Risk of fire and burns. Do not disassemble, heat above 100 °C, or incinerate. Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly according to local recycling or waste regulations.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

	Safety Alert	Precautions that involve your safety
	Wear Eye Protection	Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
	Read the Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Recycle Symbols	Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner as Li-ion is included.
	Remove the battery pack	Always remove the battery pack from the product when you are assembling parts, making adjustments, cleaning, or when the product is not in use.
	Do not expose battery pack/ battery cells to fire.	Against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
	Do not expose battery pack/ battery cells to water.
	Ambient temperature of battery pack charging	For best results, your battery should be charged in a location where the temperature is greater than 5°C and less than 40°C.
	CE	This product is in accordance with applicable EC directives.
	UKCA	This product is in accordance with applicable UK legislation.
V Volt	Voltage

EN

A Amperes Current
Hz Hertz		Frequency(cycles per second)
W Watt Power
min Minutes Time
Ah Ampere-hours Battery capacity
~	AlternatingCurrent	Type of current
---	Direct Current	Type or a characteristic ofcurrent

WARNING: Read and understand all instructions.

Failure to follow all instructions may result in electric shock, fire and/or serious personal injury. The term "power tool" in all of warnings listed refers to EGO Power+ battery operated (cordless) Lawn & Garden machines.

WORK AREA SAFETY

- Keep the work area clean and well lit. Cluttered or dark areas invite accidents.

■ Do not operate power tools in explosive environments, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks, which may ignite the dust or fumes.

ELECTRICAL SAFETY

■ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

BATTERY TOOL USE AND CARE

■ Recharge only with the chargers specified by the manufacturer. A charger that is suitable for one type of battery pack may create a rise of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

■ Do not dismantle, open or shred secondary cells or batteries.
■ Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.

- Do not short-circuit a cell or a battery. Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.

■ Do not remove a cell or battery from its original packaging until required for use.
■ Do not subject cells or batteries to mechanical shock.

In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
■ Do not use any charger other than that specifically provided for use with the equipment.
■ Do not use any cell or battery which is not designed for use with the equipment.
■ Do not mix cells of different manufacture, capacity, size or type within a device.
■ Keep cells and batteries out of the reach of children.
- Seek medical advice immediately if a cell or a battery has been swallowed.
■ Always purchase the correct cell or battery for the equipment.
■ Keep cells and batteries clean and dry.
■ Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
■ Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
■ Do not leave a battery on prolonged charge when not in use.
■ After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
■ Secondary cells and batteries give their best performance when they are operated at normal room temperature (20 °C ± 5 °C).
■ Retain the original product literature for future reference.
■ Use only the cell or battery in the application for which it was intended.
■ When possible, remove the battery from the

equipment when not in use.

■ Dispose of properly

SERVICE

■ Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.

SPECIFIC SAFETY RULES

- Know your power tool. Read the operator's manual carefully. Learn the applications and limitations, as well as the specific potential hazards related to the tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.

■ Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool. Always remove the battery before changing accessories. Following this rule will reduce the risk of electric shock, fire or serious personal injury.

■ Do not place the battery tools or battery pack near fire or heat. This will reduce the risk of explosion and possibly injury.

- Do not dispose of the batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions.

- Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

- Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.

■ Batteries vent hydrogen gas and can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.

■ Do not charge the battery in a damp or wet location. Following this rule will reduce the risk of electric shock.

- For best results, your battery should be charged in a location where the temperature is greater than 5°C and less than 40°C. Do not store it outside or in vehicles.

■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact

with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets in your eyes, flush them with clean water for at least 10 minutes, and then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.

- Do not let gasoline, oils, petroleum-based products, etc. come in contact with plastic parts. These substances contain chemicals that can damage, weaken or destroy plastic.

- Have your battery pack serviced by a qualified repairperson using only identical replacement parts. This will ensure that the safety of the battery pack is maintained.

Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you lend someone this tool, lend them these instructions also to prevent misuse of the product and possible injury.

SAVE THESE INSTRUCTIONS!

SPECIFICATIONS

Battery	BA1400T: 56 V 2.5 Ah Lithium-ionBA2240T: 56 V 4.0 Ah Lithium-ionBA2242T: 56 V 4.0 Ah Lithium-ionBA2800T: 56 V 5 Ah Lithium-ionBA3360T: 56 V 6 Ah Lithium-ionBA4200T: 56 V 7.5 Ah Lithium-ionBA5600T: 56 V 10 Ah Lithium-ionBA6720T: 56 V 12 Ah Lithium-ion
Battery Designation	BA1400T: 14INR19/65BA2240T: 14INR22/70 14INR22/71BA2242T: 14INR19/66-2BA2800T: 14INR19/66-2BA3360T: 14INR19/66-3BA4200T: 14INR19/65-3BA5600T: 14INR19/65-4BA6720T: 14INR19/65-4 14INR19/66-4
Nominal Voltage	BA1400T: 50.4 VBA2240T: 50.4 VBA2242T: 50.4 VBA2800T: 50.4 VBA3360T: 50.4 VBA4200T: 50.4 VBA5600T: 50.4 VBA6720T: 50.4 V
Optimum Charging Temperature	5°C-40°C

EN

Optimum Storage Temperature In Use	10°C-26°C
Battery weight	BA1400T: 1.30 kgBA2240T: 1.90 kgBA2242T: 2.20 kgBA2800T: 2.25 kgBA3360T: 2.92 kgBA4200T: 2.90 kgBA5600T: 3.50 kgBA6720T: 3.65 kg
Matched Charger	CH2100ECH3200ECH5500ECH7000ECH7000E-T

* Below tools must be used with either BH1000 or BHX1000 harness when the battery weight more than 3kg.

BCA1200 STA1500

RTA2300 ST1400E-ST

DESCRIPTION

KNOW YOUR LITHIUM-ION BATTERY PACK (Fig. A)

1. Cooling Air Port
2. Positive Contact
3. Negative Contact
4. Power Button
5. 5-LED Indicator

OPERATION

5-LED INDICATOR ON BATTERY PACK

This lithium-ion battery pack is equipped with a 5-LED indicator, press the power button to display the charge level or its working condition, the LED indicator will be illuminated for 10 seconds

Battery charge level/Working condition	5-LED indicator	Remarks
80% ≤ Charge level ≤ 100%		5-LED shining green
60% ≤ Charge level <80%		4-LED shining green

40% ≤ Charge level < 60%		3-LED shining green
20% ≤ Charge level < 40%		2-LED shining green
10% ≤ Charge level < 20%		1-LED shining green
Charge level < 10%		1-LED flashing red.
Low voltage		5-LED flashing red.The battery pack is nearly depleted and needs to be charged immediately.
Over temperature		5-LED shining red.Cool the batter pack until the temperature drops below 67°C.
Self maintenance	-	For BA1400T/BA2242T/BA2800T/BA3360T/BA4200T/BA5600T/BA6720T 5 LEDs shine solid red for 10 seconds, then go out and remain off for 10 seconds, then shine solid red for 10 seconds again or 5 LEDs flash green every two seconds based on different battery version.Both indications, the LEDs will run the cycle until the self-maintenance is finished.For BA2240T no special indicator.

BATTERY PROTECTION

The battery circuitry protects the battery pack from extreme temperature, over-discharge, and over-charge. To protect the battery from damage and prolong its life, the battery pack circuitry will turn off the battery pack if it becomes overloaded or if the temperature becomes too high during use. This may happen in extremely high torque, binding, and stalling situations. The battery pack will shut down with power indicator shining red for 10s when its operating temperature exceeds 70°C, and will begin normal operation when it returns to 67°C.

Notice: A significantly reduced run time after fully charging

the battery pack indicates that the batteries are near the end of their usable life and must be replaced.

This Lithium-Ion battery pack will provide optimal performance in temperatures between 10°C and 26°C. When the battery pack is very cold, it may "pulse" for the first minute of use to warm itself. Put the battery pack on a tool and use the tool in a light application. After about a minute, the battery pack will have warmed itself and will operate normally.

WHEN TO CHARGE THE BATTERY PACK

NOTICE: Lithium-Ion battery packs are shipped partially charged. Before using it the first time, fully charge the battery pack.

NOTICE: This battery pack is equipped with an advanced self-maintenance function to extend the battery life. Depending on the battery charge, it will automatically perform a self-discharge operation after one month of storage. After this self-maintenance, the battery pack will enter sleep mode and maintain 30% of its charge capacity. If stored for a month or longer, fully recharge the battery before the next use. (Not applicable to BA2240T which is equipped with other advanced technology to extend the battery life.)

It is not necessary to run down the battery pack charge before recharging. The Lithium-Ion battery can be charged at any time and will not develop a "memory" when charged after only a partial discharge. Use the power indicator to determine when the battery pack needs to be recharged.

HOW TO CHARGE THE BATTERY PACK

Follow the instructions in the Operator's Manual for the EGO Charger CH2100E, CH3200E, CH5500E, CH7000E & CH7000E-T.

TO ATTACH AND DETACH THE BATTERY PACK

Follow the instructions in the Operator's Manual for the individual EGO product.

MAINTENANCE

⚠ WARNING: To avoid serious personal injury, always remove the battery pack from the tool when changing accessories, cleaning or performing any maintenance.

WARNING: When servicing, use only identical EGO replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING: It is not recommended to use compressed dry air as a cleaning method for the battery pack. If cleaning with compressed air is the only method to apply, always wear safety goggles or safety glasses with side shields. If the operation is dusty, also wear a dust mask.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean clothes to remove dirt, dust, oil, grease, etc.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc. come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

WARNING: TO REDUCE THE RISK OF FIRE, PERSONAL INJURY, AND PRODUCT DAMAGE DUE TO A SHORT CIRCUIT, NEVER IMMERSE YOUR TOOL, BATTERY PACK OR CHARGER IN FLUID OR ALLOW A FLUID TO FLOW INSIDE THEM. CORROSIVE OR CONDUCTIVE FLUIDS, SUCH AS SEAWATER, CERTAIN INDUSTRIAL CHEMICALS, AND BLEACH OR BLEACH CONTAINING PRODUCTS, ETC., CAN CAUSE A SHORT CIRCUIT.

BATTERIES

The battery pack is equipped with Lithium-Ion rechargeable batteries. The duration of use from each charge will depend on the type of work performed.

The batteries in this tool have been designed to provide maximum trouble-free life. Like all batteries, they will eventually wear out.

Do not disassemble the battery pack or attempt to replace the batteries. Handling of the batteries, especially when wearing rings and jewelry could result in a serious burn.

To obtain the longest possible battery life, read and understand the operator's manual.

■ It is good practice to unplug the charger and remove the Lithium-Ion battery pack when not in use.

For Lithium-Ion battery pack storage longer than 30 days:

Store the Lithium-Ion battery pack where the temperature is below 26°C and free of moisture.

■ Store Lithium-Ion battery packs in a 30%-50% charged condition.

■ Every six months of storage, fully charge the Lithium-Ion battery pack.

EN

■ Exterior may be cleaned with a cloth or soft non-metallic brush.

BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING

Do not dispose of battery charger and batteries/rechargeable batteries into household waste!

Li-ion

According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Consult your local waste authority for information regarding available recycling and/or disposal options.

WARNING: Upon removal of the battery pack for disposal or recycling, cover the battery pack's terminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble the battery pack or remove any of its components. Lithium-Ion batteries must be recycled or disposed of properly. Also, never touch the terminals with metal objects and/or body parts as a short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and/or serious injury.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The battery pack charge is reduced after more than one month of non-use.	The battery pack has automatically performed self-maintenance to extend its life.	Fully recharge the battery pack before use.
The 5-LED indicator shines red when the battery pack is working.	The battery is too hot.	Cool the battery pack until the temperature drops below 67°C.
The battery (BA1400T/BA2242T/BA2800T/BA3360T/BA4200T/BA5600T/BA6720T) endcap gets warm during storage. Either 5 LEDs shine solid red for 10 seconds, then go out and remain off for 10 seconds, then shine solid red for 10 seconds, or the 5 LEDs flash green for every two seconds. This difference is based on battery version.	The battery pack is automatically performed self-maintenance to extend battery life.	No action is required; this is normal. Press the power indicator the self-maintenance process will stop.
The battery will not charge correctly on the charger (Charger doesn't work and shines the cold/heat battery indicator.).	The battery pack is too hot /cold during charging	Reinsert the battery pack (Only for BA2240T) Cool down or warm up the battery pack. Charging will begin when battery pack returns to the normal temperature.

EN

WARRANTY

EGO WARRANTY POLICY

Please visit the website egopowerplus.eu for full terms and conditions of the EGO Warranty policy.

⚠️ WARNING: Risk of fire and burns. Do not disassemble, heat above 100 °C, or incinerate. Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly according to local recycling or waste regulations.

SICHERHEITSHINWEISE

SIKKERHET I ARBEIDSOMRÅDET

GENERELT VEDLIKEHOLD

BEZPIECZEŃSTWO W MIEJSCU PRACY

POLITYKA GWARANCYJNA EGO

■ =OLNYLGXMWH VSUiYQH

2SUDYD

MyQ PHJYLOHWFWW A U&VDN D VSHFLIOLVDQ PHOOpNHOW W|OWeW KDV]C IHOV]HUHOpVVHO

Č & VDN D IHOV|HUHOv KDV|QiODWiKR| WHUYH|HWV RNDW JREEDQIVL DNNXPXOIWRUW YDJ\ DNNXPXOiWRUW KDV|QiOMRQ OGIXO ROAD G1H NHYHUMH D N O|QE|]e J\UWyNWyO YDOy N C RN YDJN NDSDFI|WiV\~ PpUHWh YDJ\ WtSXV\~ DNNXPXOiWRURN Np|LV|HOUV|IPRN

a készülékben.

HOGYAN KELL FELTÖLTENI AZ

AKKUMULÁTOREGYSÉGET

JÄTKE SEE KASUTUSJUHEND ALLES!

am sādādān gān dān gān bān bān bān bān sādān dān gān dān gān bān bān bān sādān dān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān bān

gāngdōngyāng yuāngmāngdōng

ṣādmybān gāndāyān bān yān fān gān dō dōmēng bāngoēn gāndāyān sāgān dō sāgān gāndāyān bān yān fān gān dō sādmybāndā yāndāyān bān yān fān dō qasbōsghāndā yāndāyān bān yān fān dō

Sb5g6d0g0g2g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g0g35g6d0g0g2g0g0g0g2g0g0g0g0g2sSb5g6d0g1g2g2h2h2sSb5g6d0g2sSb5g6d0g3sSb5g6d0g4sSb5g6d0g5sSb5g6d0g6sSb5g6d0g7sSb5g6d0g8sSb5g6d0g9sSb5g6d0g10sSb5g6d0g11sSb5g6d0g12sSb5g6d0g13sSb5g6d0g14sSb5g6d0g15sSb5g6d0g16sSb5g6d0g17sSb5g6d0g18sSb5g6d0g19sSb5g6d0g20sSb5g6d0g21sSb5g6d0g22sSb5g6d0g23sSb5g6d0g24sSb5g6d0g25sSb5g6d0g26sSb5g6d0g27sSb5g6d0g28sSb5g6d0g29sSb5g6d0g30sSb5g6d0g31sSb5g6d0g32sSb5g6d0g33sSb5g6d0

g m d e r a s b s g d o f o s o c d y m g d y m g d o h o h o h o h o h o h o h o ^ ,

^3 Gd3gmsOgms 26°C-60 6s3cm80s.

30-50%-om cosd-gb-gym dugndsngmdso.

^1 gbsb30bgyngqm gds gdsb30b30b40d0ndo l6yncwq csdgbgga cnomogtd-ombi s3ydngmsgmbdo.

Power Power Power Power Power Power

BS

ZAŠTITA BATERIJE

Strujni krug baterije štiti komplet baterija od ekstremnih temperatura, prekomjernog pražnjenja i prekomjernog punjenja. Radi zaštite baterije od oštećenja i produžetka njenog životnog vijeka, strujni krug kompleta baterija isključit će komplet baterija u slučaju preopterećenja ili previsoke temperature tokom upotrebe. To se može desiti u slučaju ekstremno visokog okretnog momenta, stezanja i zastoja. Komplet baterija će se isključiti, a indikator napajanja će svijetliti 10 s u crvenoj boji kada radna temperatura kompleta baterija prekorači 70°C. Komplet baterija počet će s uobičajenim radom kada se temperatura spusti na 67°C.

.EGO ل Collaborate the correct information of the following:

AR

196

56%-BA1400T/BA2240T/BA2242T/BA2800T/BA3360T/BA4200T/BA5600T/BA6720T

EGO

הכלה,הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

EGO

Five technical line drawings of cylindrical electronic components with no visible text or symbols

BA1400T/BA2240T/

BA2242T/BA2800T/BA3360T/

BA4200T/BA5600T/BA6720T

הַרְׁ 56 בַרְׁ HE

بطارية 56 فوق AR

FR NOTICE BAC DE TRI
