Product Type	Multifunction Built-in Oven
Brand	Fulgor Milano
Model	FCO 9615 TEM 2F
Dimensions (W x H x D)	595 x 710 x 545 mm (60 cm model)
Capacity	Approx. 70 L (depending on model)
Electrical Supply	230 V ~ 50/60 Hz, single phase
Maximum Power Consumption	See rating plate (left side)
Cooking Modes	Bake, European Convection, Convection Bake, Broil, Double Broil, Pizza, AirFry, Dehydrate, Bottom Heat, Top Heat, Eco Bake, Hydrolytic Cleaning, Defrost, Sabbath
Quick Preheat	Yes, available for Bake, Convection and Pizza modes
Temperature Probe	Yes, optional (range: 40 °C to 100 °C)
Timer	Yes, programmable up to 12 h 59 min
Delayed Cooking	Yes, with cooking time and stop time
Interior Light	230 V - 25 W bulb, type G9
Cleaning	Hydrolytic cleaning (steam): 10 min + 5 min rest + 10 min cooling
Removable Door	Yes, removable for cleaning (removable inner glass panels)
Safety	Key lock, automatic shut-off, error code memory
Sabbath Function	Yes, compliant with Jewish laws (max duration 72 h)
Demonstration Mode	Yes, can be activated from system menu
Spare Parts	G9 25W bulb, meat probe, grids, AirFry tray (optional)

Frequently Asked Questions - FCO 9615 TEM 2F Fulgor Milano

How to use the oven for the first time?

Before first use, remove all packaging and clean the interior with soapy water. Run the oven empty at maximum temperature (250 °C) for about 30 minutes to burn off any grease residues. Then let it cool and wipe.

What does error code F*0117 mean?

Error code F*0117 appears if the ambient room temperature is below 3 °C. As soon as the room warms up, the message disappears. If the problem persists, contact customer service.

How to clean the oven with the hydrolytic function?

Remove all accessories, pour 250 ml of distilled water into the bottom of the oven. Close the door and activate the Hydrolytic cleaning mode from the menu. The cycle lasts 10 minutes, then keep the door closed for an additional 5 minutes, then open it a crack for 10 minutes to cool. Wipe residues with a damp cloth.

The fan continues to run after the oven is turned off, is this normal?

Yes, it is normal. The cooling fan remains on until the electronic components are sufficiently cooled. It turns off automatically.

How to use the AirFry function?

Place food on the special AirFry tray (supplied or optional). Select the AirFry mode on the control panel and set the temperature between 150 °C and 290 °C (default 180 °C). The hot air flow provides crispy cooking with very little oil.

How to set the oven clock?

Turn on the oven, press the menu icon (settings), select User settings then Time. Choose 12h or 24h format, then set the hours and minutes with the arrows. Confirm with OK.

The oven does not heat, what should I check?

First check the circuit breaker or fuse of your home. Make sure the oven is properly plugged in and the selected temperature is correct. If the problem persists, note the error code displayed and contact customer service.

How to lock the oven keypad?

Press and hold the ○ key for 3 seconds. A key icon appears to confirm locking. Repeat to unlock. Note that it is always possible to turn off the oven even when locked.

Which utensils to use for convection cooking?

Preferably use shiny metal or aluminum pans for even cooking. Heat-resistant glass or ceramic pans can be used by reducing the temperature by 25 °F (15 °C). Avoid aluminum foil on racks or bottom.

How to replace the oven bulb?

Turn off the main power supply. Remove the glass cover by turning it, then unscrew the defective bulb (230 V - 25 W, type G9). Replace with an identical bulb without touching the glass with fingers. Screw the cover back on and restore power.

USER MANUAL FCO 9615 TEM 2F Fulgor Milano

Simple geometric diagram with two black rectangles inside a larger rectangle (no text or symbols)

FCO 6215 TEM

FCOS 6215 TEM

FCLO 6215 TEM

FCO 7515 TEM

FCO 9615 TEM 2F

FCLO 9615 TEM 2F

FORNI ELETTRONICI

ELECTRONIC OVENS

FOURS ELECTRONIQUES

Diagram of a kitchen appliance with a white arrow pointing to a component, no text or symbols present

IMPORTANTE

Technical line drawing of a rectangular device with internal compartments and an inset close-up view (no text or symbols)

Isometric line drawing of a rectangular oven with internal grating and ventilation slots (no text or symbols)

GUIDE ESTRAIBILI

Technical line drawing of a multi-tiered rack or storage unit with an inset magnified detail (no text or symbols)

Isometric line drawing of a rectangular metal cage with internal structure (no text or symbols)

Line drawing of a metal rack or cage structure with no text or symbols

Technical line drawing of a refrigerator with two circular insets showing internal components (no text or symbols)

Tastiera

Volume

Luminosità

Technical line drawing of a door frame with internal compartments and a circular component on the left (no text or symbols)

Technical line drawing of a rectangular frame with internal parallel strips, no text or symbols present

Griglia 3

Simple line drawing of two circular plates placed on a metal rack (no text or symbols)

Griglia 1

Technical line drawing showing two steps of a hand holding a bracket, with arrows indicating movement direction (no text or symbols)

Line drawing of two open-framed electronic devices with no text or symbols

Technical line drawing of two views of a rectangular frame with internal components and mounting brackets (no text or symbols)

Diagram showing two open panels with a circular arrow icon on the left panel, no text or symbols present.

Technical line drawing of a mechanical component with dimension lines and mounting brackets (no text or symbols)

Two-panel black-and-white photo showing a robotic arm interacting with a device panel, no visible text or symbols.

Close-up of gloved hands holding a transparent rectangular device with visible internal components (no text or symbols)

Close-up of a hand using a tool to cut or trim a metal sheet (no text or symbols visible)

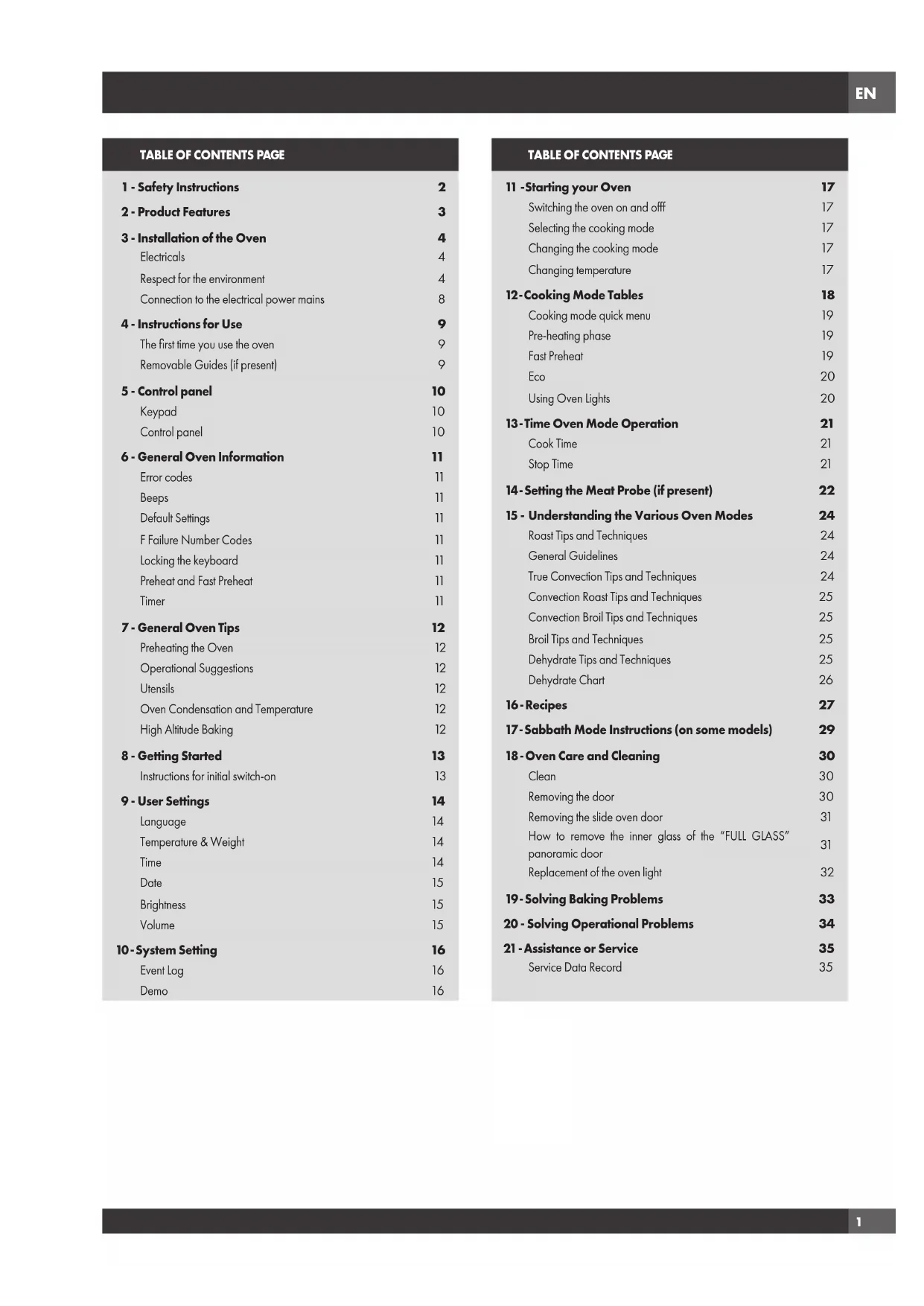

1 - Safety Instructions 2

2 - Product Features 3

3 - Installation of the Oven 4

Electricals 4

Respect for the environment 4

Connection to the electrical power mains 8

4 - Instructions for Use 9

The first time you use the oven 9

Removable Guides (if present) 9

5 - Control panel 10

Keypad 10

Control panel 10

6 - General Oven Information 11

Error codes 11

Beeps 11

Default Settings 11

F Failure Number Codes 11

Locking the keyboard 11

Preheat and Fast Preheat 11

Timer 11

7 - General Oven Tips 12

Preheating the Oven 12

Operational Suggestions 12

Utensils 12

Oven Condensation and Temperature 12

High Altitude Baking 12

8 - Getting Started 13

Instructions for initial switch-on 13

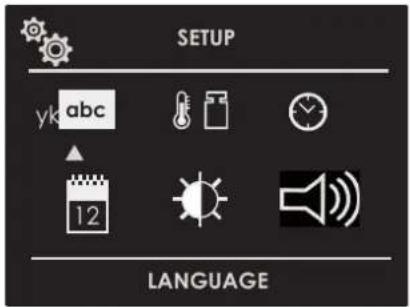

9 - User Settings 14

Language 14

Temperature & Weight 14

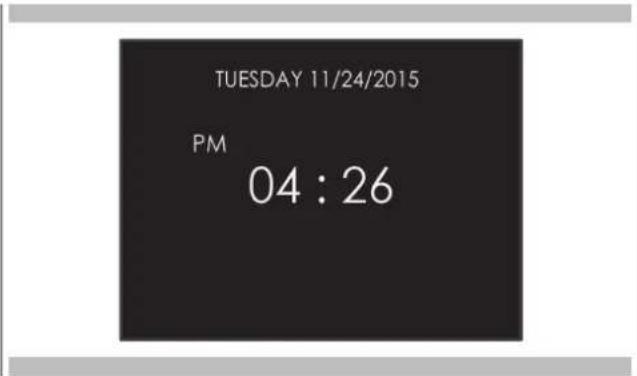

Time 14

Date 15

Brightness 15

Volume 15

10-System Setting 16

Event Log 16

Demo 16

TABLE OF CONTENTS PAGE

11 - Starting your Oven 17

Switching the oven on and off 17

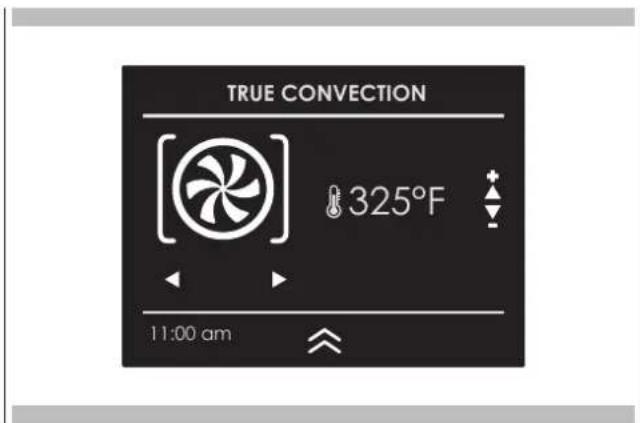

Selecting the cooking mode 17

Changing the cooking mode 17

Changing temperature 17

12-Cooking Mode Tables 18

Cooking mode quick menu 19

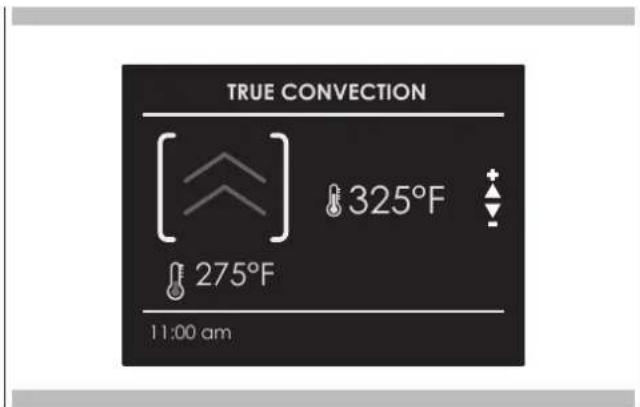

Pre-heating phase 19

Fast Preheat 19

Eco 20

Using Oven Lights 20

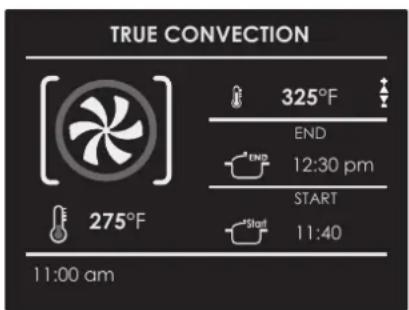

13-Time Oven Mode Operation 21

Cook Time 21

Stop Time 21

14-Setting the Meat Probe (if present) 22

15 - Understanding the Various Oven Modes 24

Roast Tips and Techniques 24

General Guidelines 24

True Convection Tips and Techniques 24

Convection Roast Tips and Techniques 25

Convection Broil Tips and Techniques 25

Broil Tips and Techniques 25

Dehydrate Tips and Techniques 25

Dehydrate Chart 26

16-Recipes 27

17-Sabbath Mode Instructions (on some models) 29

18-Oven Care and Cleaning 30

Clean 30

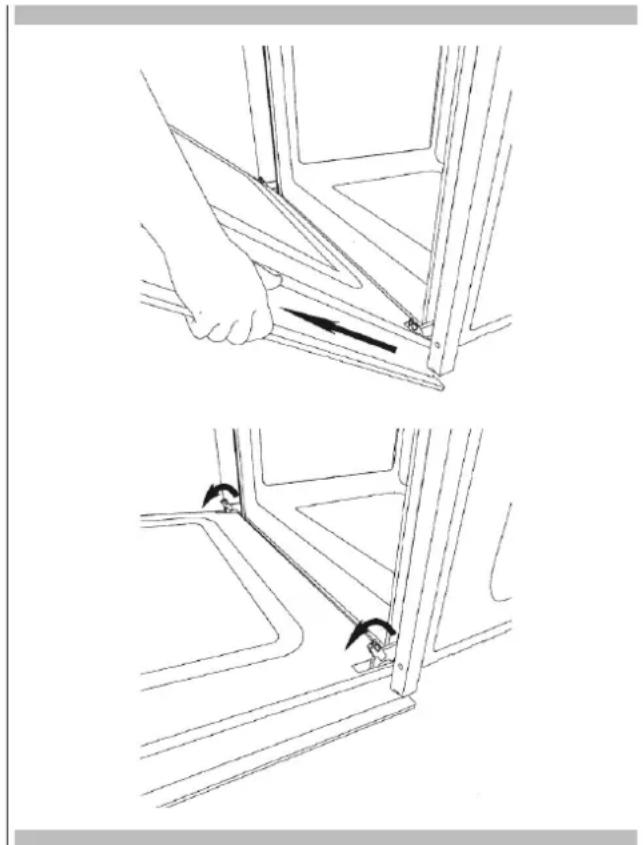

Removing the door 30

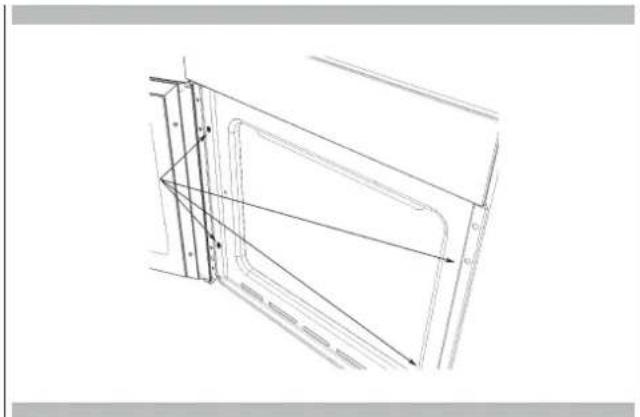

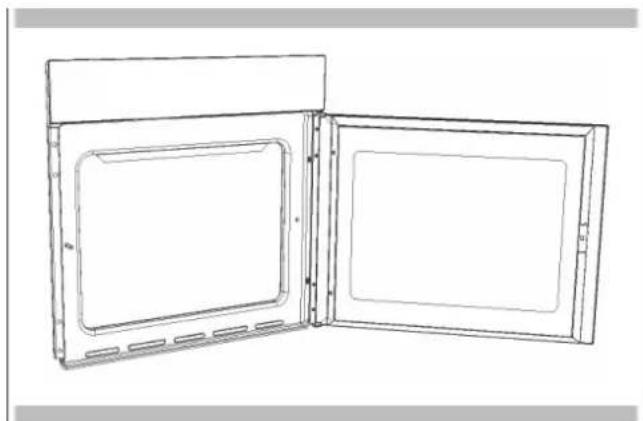

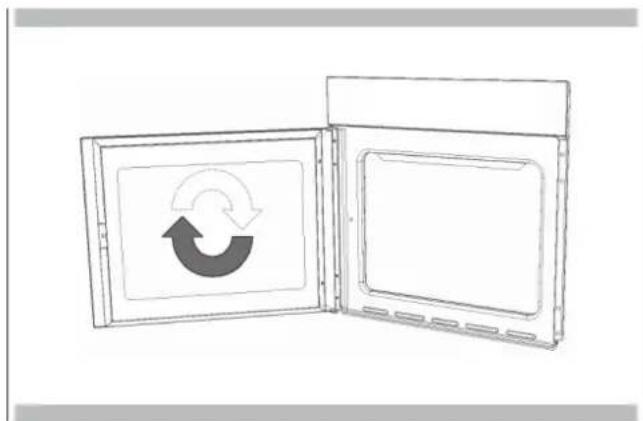

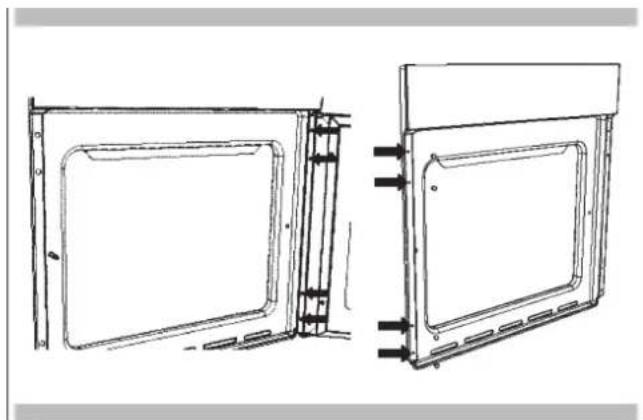

Removing the slide oven door 31

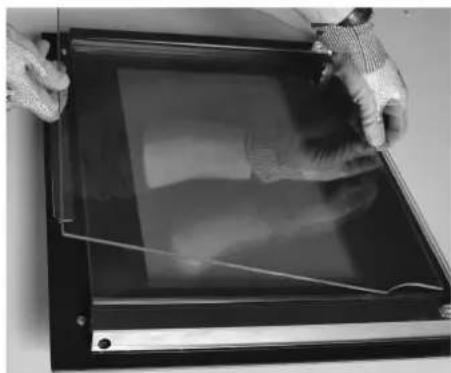

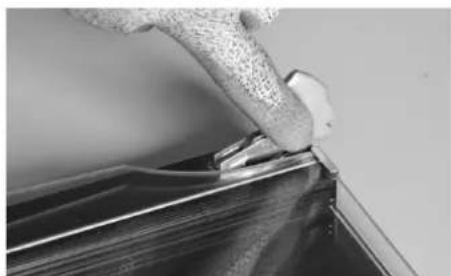

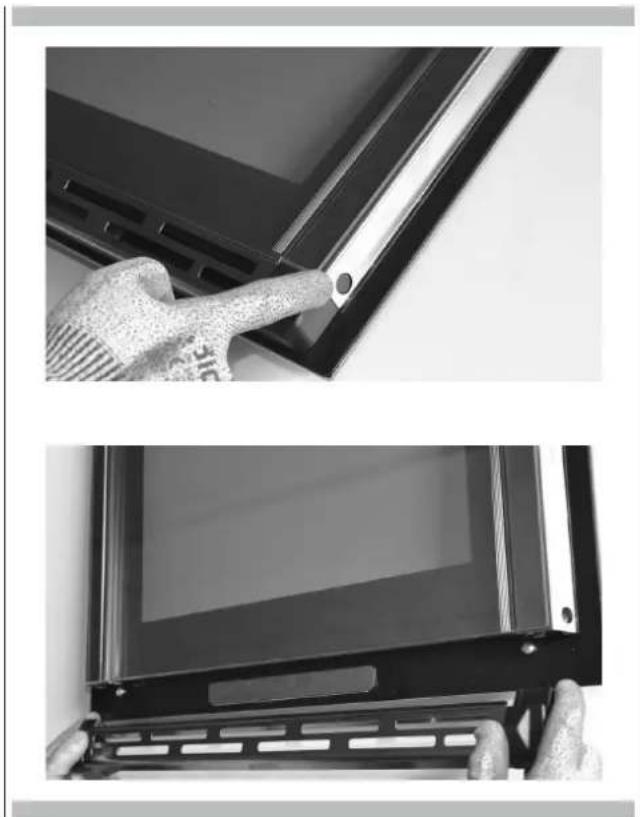

How to remove the inner glass of the "FULL GLASS"

panoramic door

Replacement of the oven light 32

19 - Solving Baking Problems 33

20 - Solving Operational Problems 34

21 - Assistance or Service 35

Service Data Record 35

Diagram of a device interior with a white arrow pointing to a component, no text or symbols present

IMPORTANT

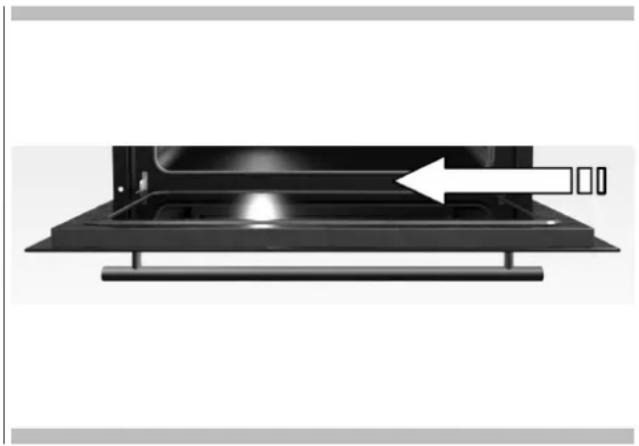

The oven's data plate is accessible even with the oven fully installed. The plate is visible simply by opening the door. Always quote the details from it to identify the appliance when ordering spare parts.

• Do not disassemble any parts prior to having disconnected the oven from the mains.
• Do not use the appliance if any part is broken (for example a glass). Disconnect it from the mains and call service.
• Before using the oven, it is recommended to make it operate at no load at the maximum temperature for an hour to eliminate the insulating material odour.
• In all models, leave the door closed when the grill is used.
• The cooling fan may remain in operation so long as the oven is hot, even after it has been switched off.
• During the use the appliance becomes very hot; don't touch the heating elements inside the oven.

• Parents and adults should pay particular attention when using the product in presence of children.

• Children should be overseen so as to ensure that they don't play with the equipment.

• Keep children under age 8 away, unless constantly supervised.
• This appliance is not intended for use by persons (including children over age 8) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children may not perform cleaning and maintenance unsupervised.
• In order to avoid damage to the oven enamel coat, do not cover the oven muffle sole with any item (e.g. aluminum foil, pans and the likes).
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• Abrasive detergents and steam cleaning equipment should not be used for cleaning.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• The oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns.
• Use only the meat probe supplied with the appliance.

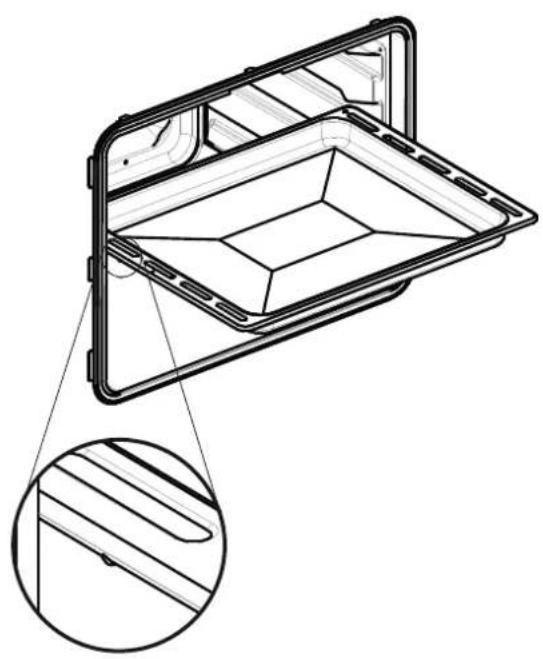

IMPORTANT

If the oven is installed in an ambient temperature below 37 °F (3 °C), F*0117 may appear; when a higher ambient temperature is reached, the error will no longer appear.

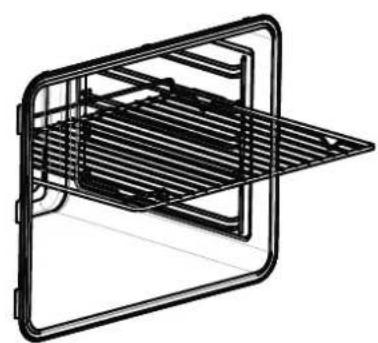

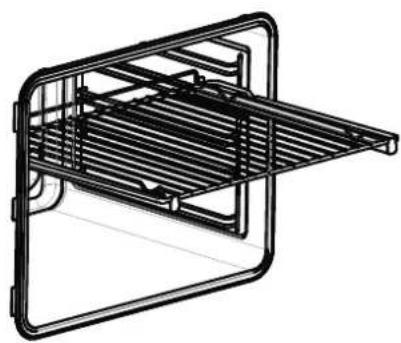

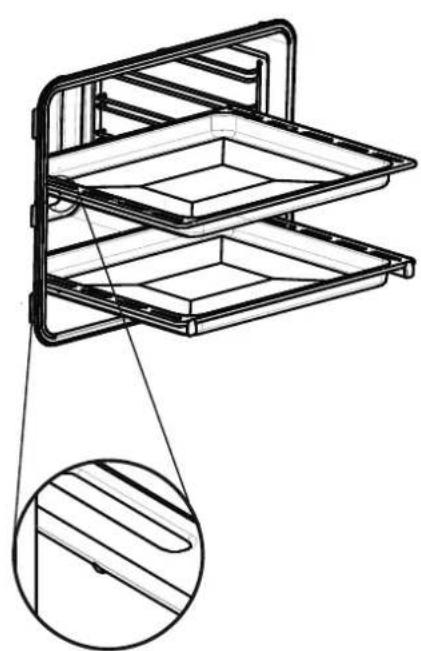

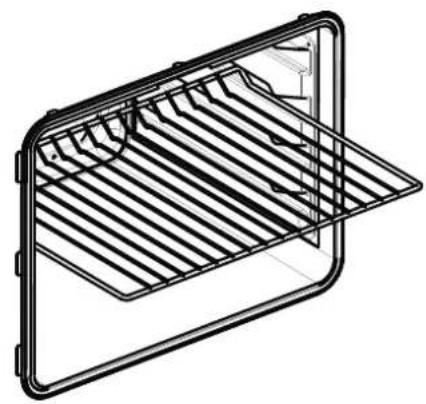

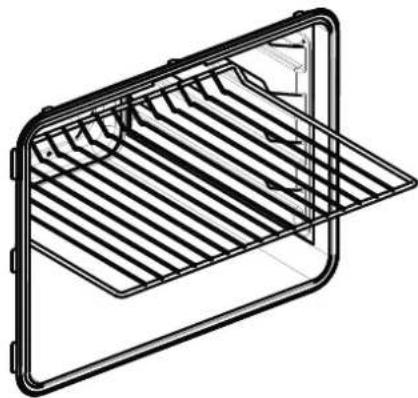

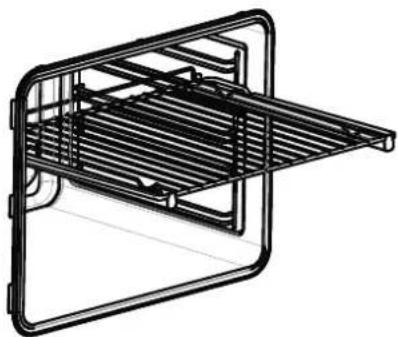

Refer to the figures below for the correct placement of the grills

EMBOSSED GUIDES

Technical line drawing of a rectangular device with internal compartments and an inset close-up view (no text or symbols)

Isometric line drawing of a rectangular oven with internal grating and ventilation slots (no text or symbols)

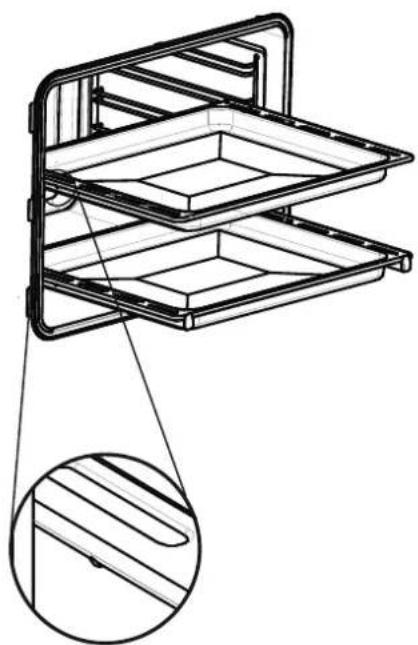

REMOVABLE GUIDES

Technical line drawing of a multi-tiered rack or storage unit with an inset magnified detail (no text or symbols)

Isometric line drawing of a rectangular metal cage with internal structure (no text or symbols)

Line drawing of a metal rack or cage structure with no text or symbols

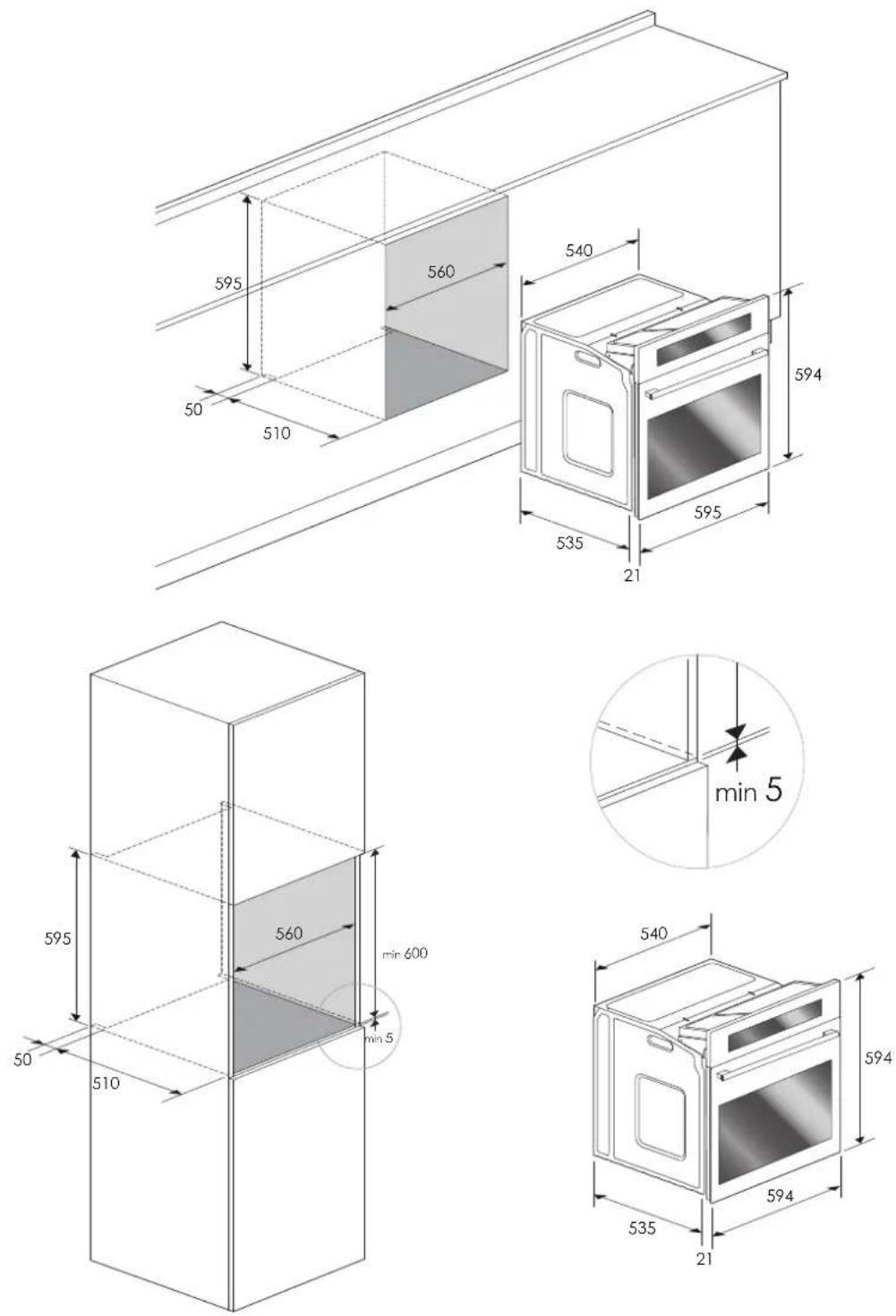

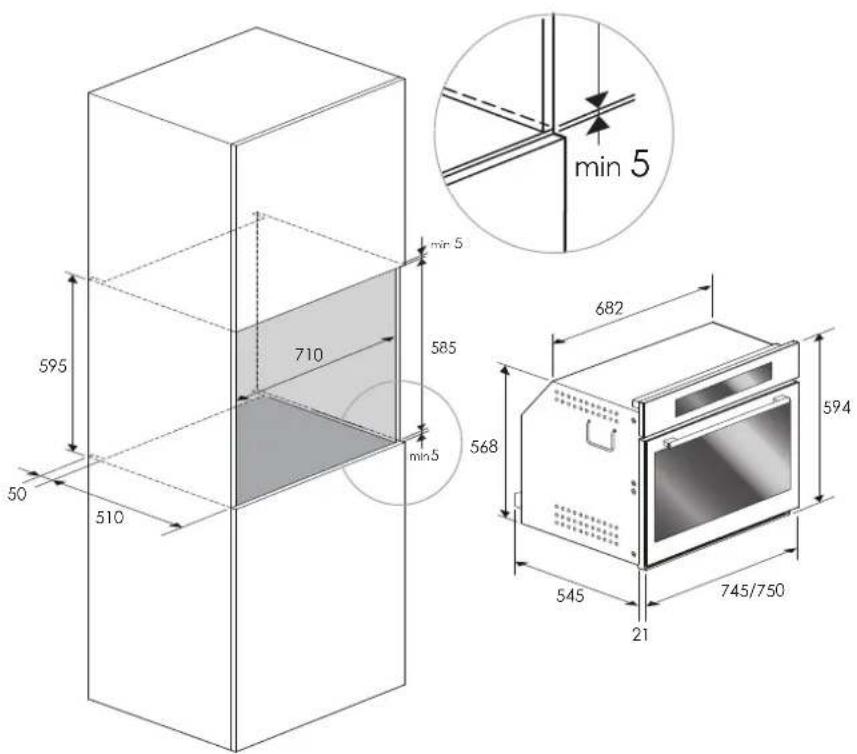

To install the oven into the kitchen a cutout should be made in accordance with the dimensions shown in the Cutout & Dimensions figure.

The apparatus is to be fastened to the top by means of the two screws provided in the kit through the holes made on the oven uprights.

The cabinet in which the apparatus is installed shall be open on the back side to ensure a sufficient air circulation and prevent overheating.

WARNING

As the apparatus is to be fitted in your kitchen furniture, make sure that all surfaces in contact with the oven can resist a temperature of approx 90^ C.

Electricals

Maximum absorbed power: (see data plate).

Supply voltage: (see data plate).

Respect for the environment

The documentation for this appliance is printed on paper bleached without chlorine or recycled paper to contribute to protecting the environment. The packaging was designed to prevent damage to the environment; they are ecological products that can be recovered or recycled.

Recycling the packing saves raw materials and reduces the volume of industrial and domestic waste.

THE PACKING MATERIAL is 100% recyclable and marked with the recycling symbol. Dispose of in conformity with local law. The packing material (plastic bags, polystyrene parts, etc.) must be kept out of the reach of children because it is potentially dangerous. THIS APPLIANCE is marked in conformity with European Directive 2012/96/UE, Waste Electrical and Electronic Equipment (WEEE). By making sure that this product is disposed of correctly, the user contributes to preventing potential negative consequences for the environment and health.

THE SYMBOL on the product or accompanying documentation indicates that this product must not be treated as domestic waste but must be delivered to a suitable collection point for the recycling of electrical and electronic equipment.

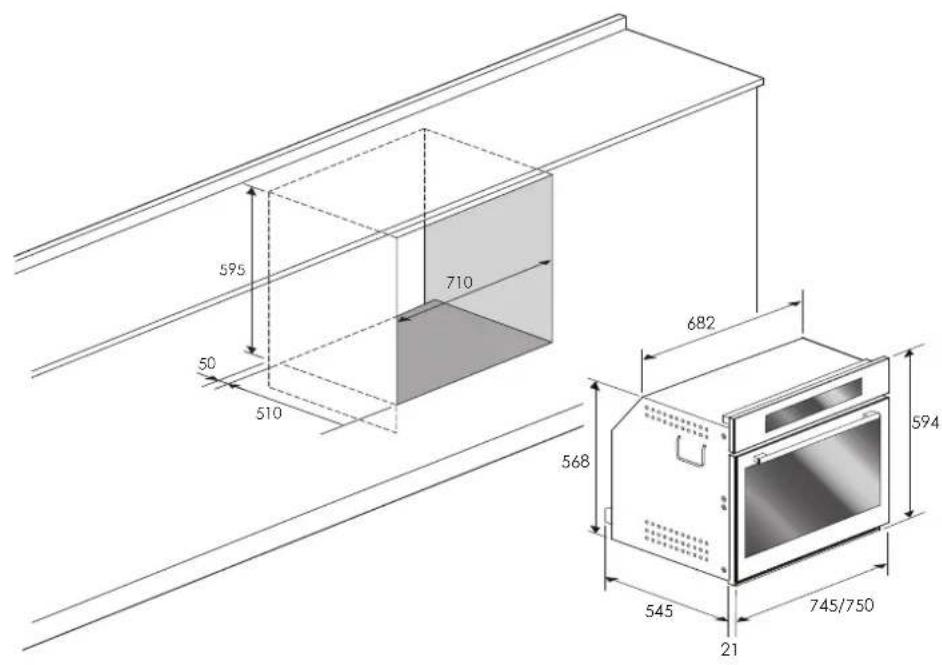

MOD.60

Dimensions are in millimeters

MOD.75

Dimensions are in millimeters

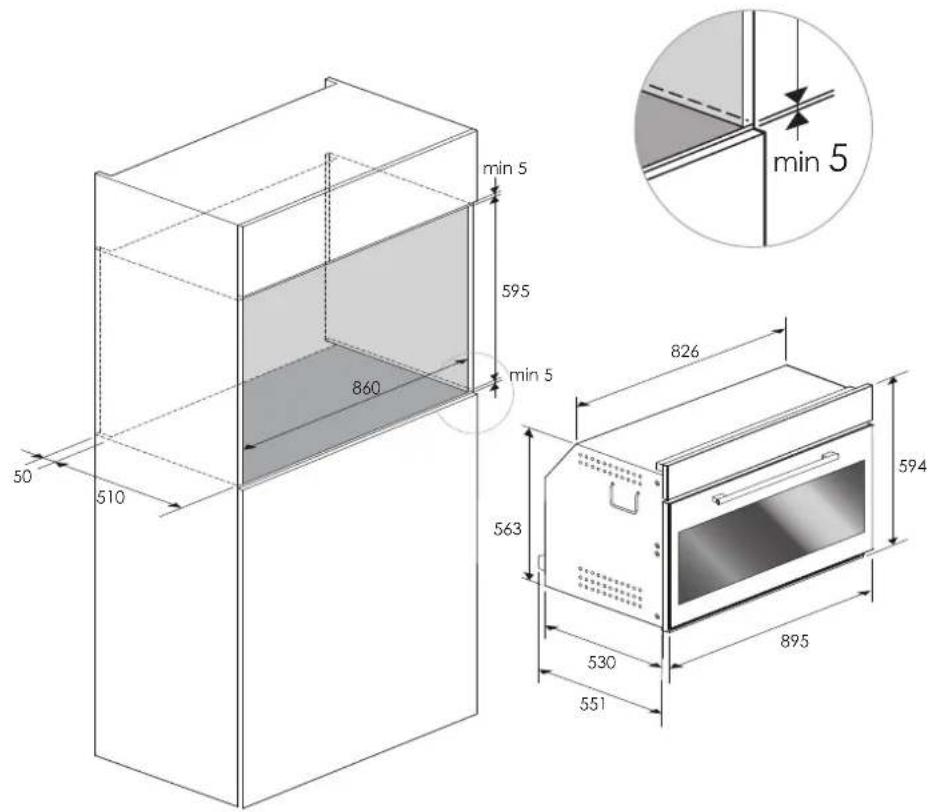

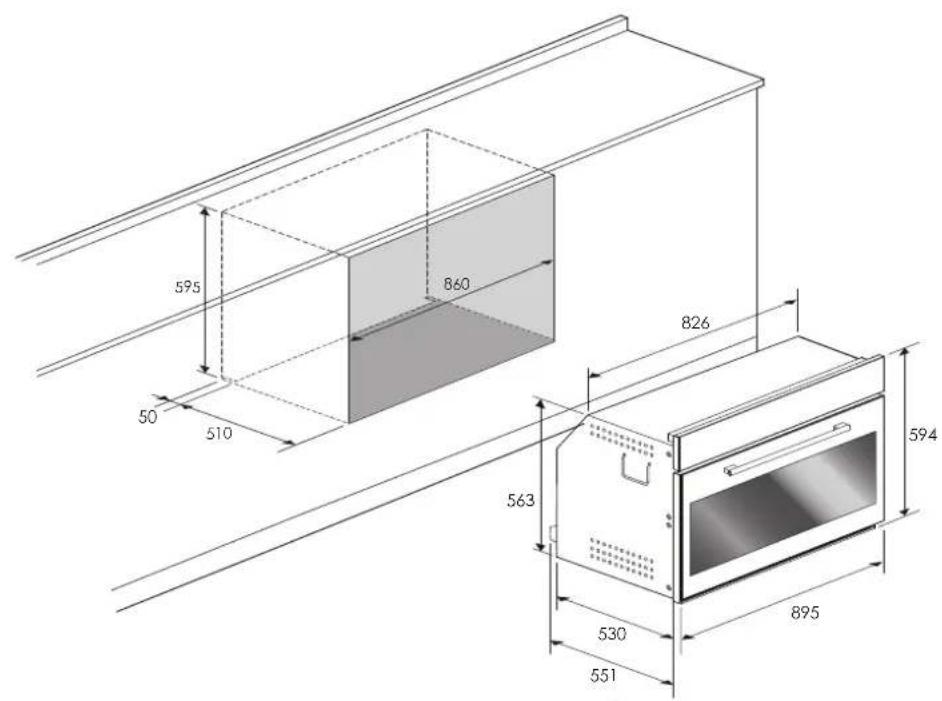

MOD. 90x60

Dimensions are in millimeters

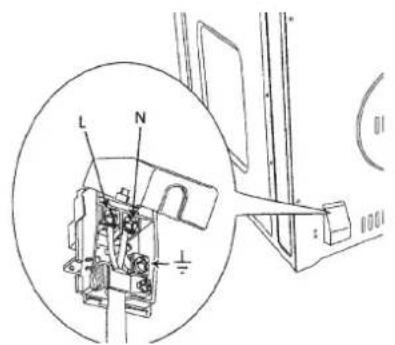

Connection to the electrical power mains

WARNING

This apparatus must be earthed.

The oven is only for domestic use.

The feed voltage and the absorbed power are as indicated on the data plate attached to the left-hand side upright, which can be seen when the oven door is open.

Connecting must be carried out by qualified personnel and in accordance with the regulations currently in force.

The manufacturer can not be held responsible for any damages to persons or objects caused by failure to observe these instructions.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The oven must be connected to the mains through a multipole circuit breaker with a contact-to-contact gap of at least 3 mm, making sure that the earth wire is not disconnected. For connecting use a flexible cable remembering to make it long enough to allow the oven to be removed from its housing unit when maintenance work is required.

Such a device must be fitted to the power supply in compliance with the regulations

governing electrical installations.

The socket or switch must be easily reachable with the oven fully installed.

CABLE TYPES AND MINIMAL DIAMETERS

	SASO
H05RR-F 3x1,5 mm ^2 H05RR-F 3x2,5 mm ^2
H05VV-F 3x1,5 mm ^2 H05VV-F 3x2,5 mm ^2
H05RN-F 3x1,5 mm ^2 H05RN-F 3x2,5 mm ^2
H05V2V2-F 3x1,5 mm ^2 H05V2V2-F 3x2,5 mm ^2

The first time you use the oven

Clean the oven thoroughly with soapy water and rinse well.

Operate the oven for about 30 minutes at maximum temperature to burn off all traces of

grease which might otherwise create unpleasant smells when cooking.

WARNING

Never use aluminum foil to cover the oven racks or to line the oven. It can cause damage to the oven liner if heat is trapped under the foil.

WARNING

Make sure you do not force it to avoid damage to the enamel.

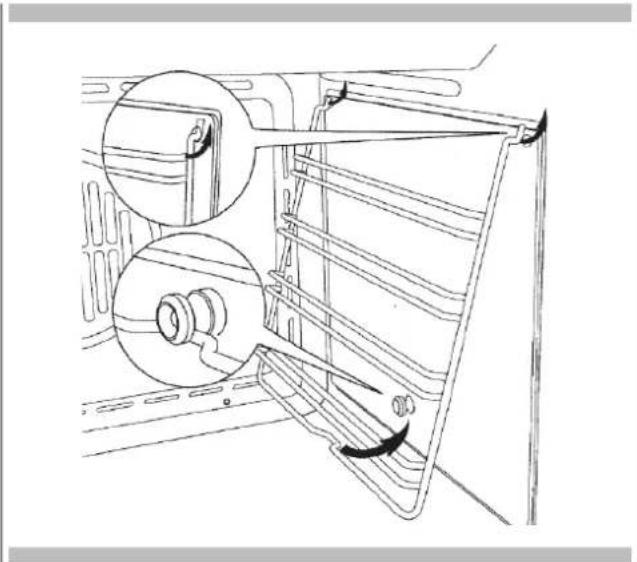

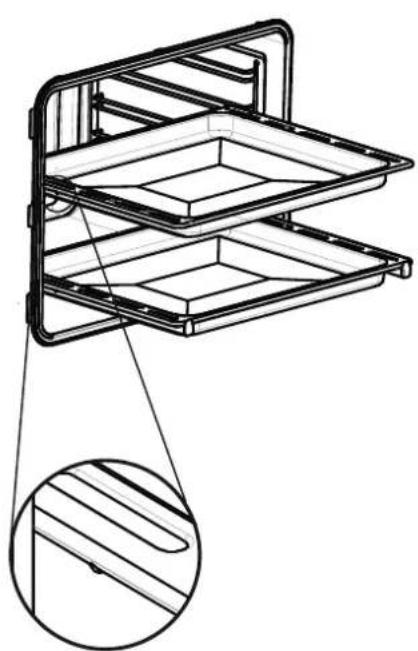

Removable Guides (if present)

To remove the lateral frames from smooth-walled ovens, proceed as shown in the figure.

Technical line drawing of a refrigerator with two circular insets showing internal components (no text or symbols)

Your appliance could vary slightly compared to the illustrations below.

A - Function keypad
B - Display screen
C - Shortcut keypad

Keypad

To operate the key, press gently. The keypad will not work if more than one key is pressed at the same time.

	- Movement arrows
	- To set the timer.- Enter the functions menu during cooking.
	- Switches the inner oven light on and off. The light cannot be switched on during the self-cleaning cycle.
	- Switches the oven on and off.
	- Confirms the settings and starts cooking operations. When pressed during a cooking operation, the function is placed in pause. Press again to restart.
	- Return to previous display page. Keep pressed to return to Home page

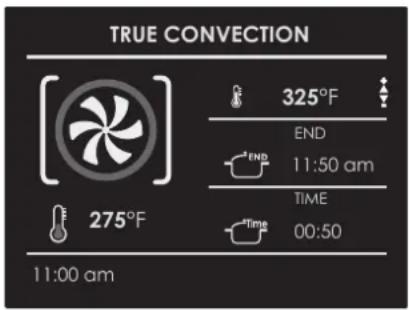

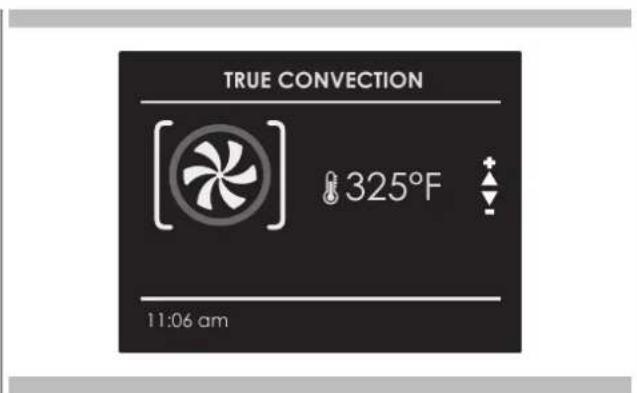

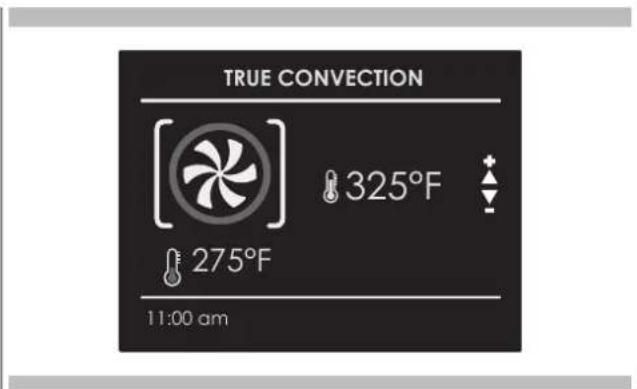

Control panel

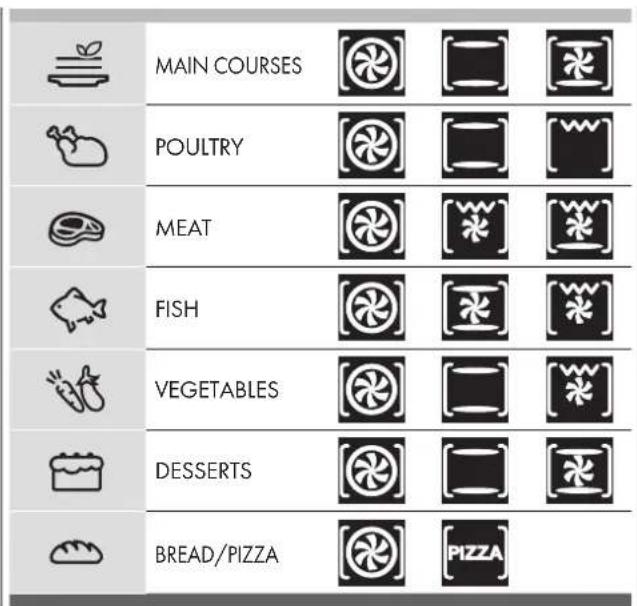

	Cooking mode quick menu
	Locking the keyboard
	Timer

Before using your oven for the first time remove all packing and foreign materials from the oven(s). Any material of this sort left inside may melt or burn when the appliance is used.

Error codes

This code appears in the event of the electronic control indicating a fault. When the error appears, the current function is blocked. If the type of error is related to a safety function, the oven becomes unusable and every time a start attempt is made, the same error appears (in which case call in the after-sales service), while if the error relates to a minor fault, after being restarted the oven can be used for the functions that do not involve the faulty part (e.g., a heating element).

Beeps

Confirms that the command has been received after a key has been pressed.

It also indicates that a time function has been completed (e.g. Timer or Timed Cooking). During the execution of a recipe, an acoustic signal warns the user that the oven is waiting for operation by the user (e.g., insert the dish or turn it over).

Beeps also signal an oven fault.

Default Settings

The cooking modes automatically select a suitable temperature when the cooking mode is selected, these can be changed when a different one is needed.

F Failure Number Codes

These codes are displayed when the electronic control detects a problem in the oven or in the electronics.

The error code is recorded in the Error Log in the Setup menu. This error can be communicated to the service technician so he/she can understand the possible cause of the problem in advance.

Locking the keyboard

Hold the Key for 3 seconds. Commands are now locked and a "Key icon" will be displayed.

Repeat the same operation for 3 seconds to unlock the keyboard.

NOTE: The power off operation is always available.

Preheat and Fast Preheat

Whenever a cooking mode is set and the oven is heating, the preheating starts, during this period, the instantaneous temperature is displayed together with the thermometer icon.

As soon as the 100% is reached, the control sounds an "end of preheat" tone and the current temperature value disappears.

When it's necessary to heat up the oven rapidly, a Fast Preheat mode is available: it uses the heating elements and the convection fan in a special way, in order to reduce the heating time as long as possible.

After having set one of the cooking functions for which the fast preheat is available and set the desired temperature value touch the key, after entering the functions menu, select the icon by means of the keys and confirm by means of the key. OK

As soon as the set-point temperature is reached, the control sounds a and both "Fast Preheat Icon" and "current temperature" disappear. The oven switches automatically to the desired cooking mode that was previously set: put the food inside now.

Timer

WARNING

The timer on your oven does not turn the appliance on or off, its only purpose is to alert you through the buzzer. When you want to turn off the oven automatically, use the end-of-cooking or delayed cooking function.

NOTE Pressing the OFF button does not reset or stop the timer.

1. Press the button ⬇ and set the desired time using the arrows △ ▽ and confirm with the button ⬆ no switch the selection between hours and minutes use the arrows ◀ ▶

2. The time can be set from 1 minute to 12 hours and 59 minutes and, when set, the remaining time is always visible in the bottom status bar until the time expires or is reset.

3. To change or cancel the time set, you must reset the timer by pressing and holding the button √ for a few seconds.

4. Timer format is usually HR:MIN, switching into MIN:SEC during the last minute.

5. When the time expires, the display shows 00:00 and the buzzer will sound for one minute or until the button ⏻ is pressed.

Preheating the Oven

• Preheat the oven when using the Bake, Convection Bake and Convection Roast modes.
• Use Fast Preheat mode when a shorter time is desired to preheat the oven.
• Selecting a higher temperature does not shorten the preheat time.
• Preheating is necessary for good results when baking cakes, cookies, pastry and breads.
• Preheating will help to sear roasts and seal in meat juices.
• Place oven racks in their proper position before preheating.
• During preheating, the selected cooking temperature is always displayed.
• A beep will confirm that the oven is preheated and the "detected temperature" will turn off.

Operational Suggestions

• Do not set pans on the open oven door.
• Use the interior oven lights to view the food through the oven door window rather than opening the door frequently.

Utensils

• Glass baking dishes absorb heat. Reduce oven temperature 25^ (15°C) when baking in glass.
• Use pans that give the desired browning. The type of finish on the pan will help determine the amount of browning that will occur.
• Shiny, smooth metal or light non-stick / anodized pans reflect heat, resulting in lighter, more delicate browning. Cakes and cookies require this type of utensil.
• Dark, rough or dull pans will absorb heat resulting in a browner, crisper crust. Use this type for pies.
• For brown, crisp crusts, use dark non-stick / anodized or dark, dull metal utensils or glass bake ware. Insulated baking pans may increase the length of cooking time.
• Do not cook with the empty broiler pan in the oven, as this could change cooking performance.
  • Store the broil pan outside of the oven.

Oven Condensation and Temperature

• It is normal for a certain amount of moisture to evaporate from the food during any cooking process. The amount depends on the moisture content of the food. The moisture may condense on any surface cooler than the inside of the oven, such as the control panel.
• Your new oven has an electronic temperature sensor that allows maintaining an accurate temperature. Your previous oven may have had a mechanical thermostat that drifted gradually over time to a higher temperature. It is normal that you may need to adjust your favorite recipes when cooking in a new oven.

High Altitude Baking

- When cooking at high altitude, recipes and cooking time will vary from the standard.

Instructions for initial switch-on

Once the oven has been connected to the power supply for the first time, the control automatically prepares for setting a number of user settings, which remain stored in case of any subsequent switch-on.

• Language
  • Temperature & Weight
• Time
• Date

Refer to the USER SETTING paragraph for setting instructions.

After making the user settings, the control moves automatically to the "Standby" display page.

With the oven on, select the icon and confirm with the key took enter the SETTINGS menu. This menu permits personalizing the settings of your oven. To make access, no active cooking or any set time functions must be in progress.

NOTE The Setting menu can never be set if any time function is already set: first delete all the active time functions.

1. Press the keys ◀ to select the sub menu and confirm by means of the clay.

1. Use this menu to change the following settings: Press the keys ◀ or △▽ to select the setting or change a sub menu from among the six available ones and confirm by means of the key.

Language

Press the arrow key to select a language from among those available, and confirm with the key.

Temperature & Weight

Press the arrow key and to select one of the two temperature options "°C/°F" or weight options Kg/ib and confirm with the OK key.

Time

Press the arrow key △ to select the time format between the options "12h AM/PM or 24h" and confirm with the OK key. Subsequently, set the time using the arrows △ and confirm with the key OK

Date

Press the arrow key △ to select the date format from among the options "D.M.Y. - Y.M.D. - M.D.Y." and confirm with the ok key. Subsequently set the value using the arrows △ and confirm with the okay.

Brightness

Press the arrow key ◀to choose which luminosity setting to change between ON or STANDBY, then by means of the arrows △▼ select the required degree of luminosity and confirm with the key.

Volume

Press the arrow △to select the desired volume level and confirm by pressing the Ⓞk key.

With the oven on, select the icon 📋 and confirm with the key OK to enter the SETTINGS menu. This menu permits setting a number of parameters or special functions. It also permits accessing the error events list.

1. Press the keys ◀▶ to select the sub menu and confirm with the Ⓞ key.

1. Use this menu to change the following settings: Press the keys select the item to be set or to be displayed from among the three available ones and confirm with the key.

Event Log

The menu permits checking any recorded errors. These codes can be notified to the after-sales service.

Demo

The purpose of this function is to set the DEMO mode, which makes the oven useless for cooking but automatically performs a demonstration of functions.

1. Press the keys ◀ to select the item ON.
2. Confirm with the Ⓞ key.
3. Press the ① key.

After about 30 seconds, the oven starts to operate in this mode. To temporarily stop the DEMO function, simply keep any key pressed for a few seconds until the oven switches to standby. To start it again, press the Key. To disable the function, enter the DEMO display page and set OFF. Confirm using the OK key.

NOTE Once set, the function remains enabled even if the oven is disconnected from the power mains.

Switching the oven on and off

IMPORTANT

• The key does not stop the function.
• After switching off the oven, the cooling fan could continue to operate until the inner parts of the oven have cooled down.

Press ① to switch the oven on and press again to switch it off. The oven returns to standby mode.

Selecting the cooking mode

IMPORTANT

• Do not leave the door open for a long time during cooking.
• The door must be kept closed during the BROIL functions.
• Position the grill or grills on an appropriate level.

OVEN 60 cm - 75 cm - 90X60 cm

	TRUE CONVECTION (FAN HEAT)
	CONVECTION ROAST (TURBO CONVENTIONAL HEAT)
	CONVECTION GRILL (TURBO GRILL & BASE HEAT)
	CONVECTION BAKE (TURBO BASE HEAT)
	ECO BAKING
	BROIL (ECO GRILL)
	DOUBLE GRILL (FULL GRILL)
	DOUBLE CONVECTION GRILL (TURBO GRILL)
	UPPER BAKING
	PIZZA
	AIRFRY
	HYDROLYTIC CLEANING
	DEFROST
	DEHYDRATE
	BAKE (BASE HEAT)
	ROAST (CONVENTIONAL HEAT)
	SABBATHOn some models

1. Select the icon 🎨 and press the key ⏻ select the appropriate cooking mode according to the food to be cooked using the arrows ⏻ and confirm with the key . OK
2. On this display page, it is still possible to change the cooking mode by using the ◀ keys.
3. If the proposed temperature is correct, confirm with the OK key to start cooking, otherwise, if the OK key is not pressed within 10 seconds, the oven switches to automatic mode and the cooking mode icon becomes animated.

Changing the cooking mode

1. During untimed cooking, a cooking pause can be set by pressing the . All the settings of the suspended cooking operation remain stored and can be reactivated by pressing the same key again.
2. To change the cooking mode while the oven is working, press the OK key and then the , key. At this point, another cooking mode can be selected from among those available in the group by means of the arrows ◀ ▶

AirFry function

The AirFry function or frying of food in the oven, thanks to a perfectly distributed air flow, promises to cook crunchy and perfectly cooked food with very little oil and, in some cases, without oil.

Eating healthy, cooking dishes in a tasty way and without exaggerating with fats and condiments, is possible.

AirFry by Fulgor Milano allows you to set the function and temperature from the control panel, from 150 to 290°C, with a default temperature of 180°C. The special tray, supplied or sold separately, is equipped with small openings which allow the air to circulate uniformly throughout the oven.

Changing temperature

IMPORTANT

• In all the cooking modes where the temperature is fixed, this is not shown on the screen.

• At the end of a function, the display screen shows the residual compartment heat temperature from the standby page.

• From the cooking mode preview display page, the temperature can be changed by means of the arrows △ subsequently confirming by means of the key.

• Once cooking has started, the temperature can in any case be changed, at any time, by means of the arrows .

OVEN 60 cm - OVEN 75 cm - OVEN 90X60 cm
COOKING MODE ICON FAST PREHEAT MEAT PROBE TEMPERATURE				Min. Preset Max.
DEFROST *** *** ***
DEHYDRATE				50°C 60°C 70°C
BAKE(BASE HEAT)			n	50°C 50°C 250°C
ROAST(CONVENTIONAL HEAT)			n	50°C 190°C 250°C
ECO BAKING			n	50°C 165°C 250°C
TRUE CONVECTION(FAN HEAT)			n	50°C 165°C 250°C
PIZZA			n	50°C 230°C 250°C
CONVECTION ROAST(TURBO CONVENTIONAL HEAT)			n	50°C 165°C 250°C
CONVECTION GRILL (*)(TURBO CONVENTIONAL HEAT)			n	50°C 165°C 250°C
DOUBLE CONVECTION GRILL (*)(TURBO GRILL)			n	50°C 165°C 250°C
CONVECTION BAKE(TURBO BASE HEAT)			n	50°C 165°C 250°C
BROIL (*)(ECO GRILL)			n	50°C 230°C 250°C
DOUBLE GRILL (*)(FULL GRILL)			n	50°C 230°C 250°C
UPPER BAKING			n	50°C 180°C 250°C
AIRFRY				150°C	180°C	290°C
SABBATH (if present)				25°C	60°C	60°C
HYDROLYTIC CLEANING				75°C

(*) Some ovens can even have a motorised rod for cooking on a spit.

Cooking mode quick menu

The quick menu function allows you to rapidly select the most suitable cooking modes for the type of dish you want to cook.

Pre-heating phase

While the oven is in pre-heating phase, the instantaneous temperature is displayed underneath the cooking mode icon.

Just as soon as the set temperature is reached, an acoustic signal is heard and the instantaneous temperature indication disappears.

Fast Preheat

The FAST PREHEAT function permits reaching the desired temperature quicker compared to standard preheating. The function can be enabled for all the cooking modes in the BAKE (except the Sabbath and ECO), CONVECT and PIZZA groups.

To select FAST PREHEAT:

1. Select the cooking mode as previously indicated and press the Ⓞ key to display the cooking mode preview display page.
2. Press the √ key.

Select the icon by means of the arrows and confirm with the key OK. The symbol appears in the lower part of the screen.

1. Press the key again to run the function.

The display page shows the icon of the active functions until the set temperature has been reached. Afterwards, the function switches to automatic in the selected cooking mode.

Eco

This mode is intended to save energy.

Ideal for frozen or precooked food, and small portions-meals. The preheat time is very short and cooking tends

to be slower. It is not recommended for heavy loads e.g. large portions or big meal preparation.

Using Oven Lights

A single light key activates the lights.

Touch 🙏 to turn lights on or off.

Oven lights turn on automatically when the door is opened.

When an oven is in use, oven lights turn on automatically when a mode is started.

Oven lights will turn off automatically when the oven mode is cancelled.

NOTE: Once switched on, the lights go off automatically after 3 minutes. To switch them back on, press the key or open the door.

Be sure that the time-of-day clock is displaying the correct time.

The timed mode turns off the oven at the end of the cook time.

CAUTION

Never leave food in the oven for more than one hour before and after cooking. This could deteriorate the properties of the food itself.

NOTE The time functions cannot be used if the meat probe is on. The maximum cooking time that can be set is 12 h.

Cook Time

Use the "Cook Time" function to operate the oven for a determinate period of time. The oven starts immediately and switches off automatically once the time has expired.

To Set a Timed Mode

1. Select the cooking mode and temperature.
2. There are two ways to set the function.

a) Select 📋 to set the duration and press OK
b) Select 📋 to set the stop time and press OK

1. After selecting one of the two above options, set the time by means of the arrows and confirm with the key

2. After pressing the OK key, cooking starts and the time cooking information is shown on the display page.

3. Cooking mode

4. Temperature
5. Cooking time
   • End of cooking time

5 After cooking, the oven switches off and an acoustic signal warns that cooking has terminated.

To change the cooking time when the oven is already operating, simply press the ⏰key and enter the new cooking time before pressing the ⏻key again.

Stop Time

Use the "Stop Time" function to delay the start of timed cooking. Enter the cooking stop time and the oven will automatically calculate the start time. The oven switches on and off automatically.

To Delay the Start of a Timed Mode

1 First of all set the required timed cooking as indicated in the "COOK TIME" paragraph.
2 Select 📋 to set the stop time and press OK
3 Set the cooking stop time by means the arrows △ and confirm by means of the key.
4 After pressing the OK key, the function positions in standby and the postponed cooking details are shown on the screen.

• Cooking mode
• Temperature
• Cooking stop time
• Cooking start time

• After cooking, the oven switches off and an acoustic signal warns that cooking has terminated.

To change the cooking time and stop time when the oven is already operating, simply press the key and enter the new cooking time or cooking stop time and press the key again.

When roasts, steaks or poultry are being cooked, this is the best way to tell when the food is correctly cooked.

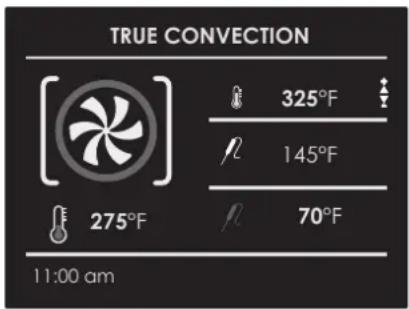

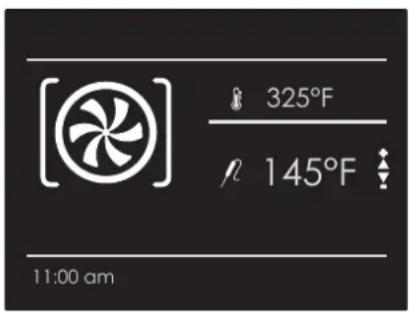

This oven is optionally provided with the meat probe feature to sense the temperature inside meat and stop cooking as soon as the set value is reached.

When the probe is used, the oven automatically checks the cooking time.

NOTE: the food probe is an accessory available only in some versions of the product.

Tenderness, aroma and flavour are the result of precise, functional control.

The food probe is a thermometer which, when inserted into the food, makes it possible to check the internal temperature and use it to establish the end of cooking.

For example, meat may look like it is cooked on the outside, but still be pink on the inside!

The temperature reached by food during cooking is closely linked to problems relating to health and hygiene. Bacteria can be contained in every kind of meat, poultry and fish, as well as raw eggs.

Certain types of bacteria make food go off, while others, such as Salmonella, Campylobacter jejuni, Listeria monocytogenes, Escherichia coli and Staphylococcus aureus can be seriously harmful to human health. Bacteria multiply very quickly above a temperature of 4.4^ up to 60^ C. Mince is particularly at risk from this point of view. To prevent bacteria from multiplying, it is necessary to take the following measures:

• Do not defrost food at room temperature, always in the fridge or in the oven using the specific function. In the latter case, cook the food immediately afterwards.
• Stuff chicken just before eating it. Never buy pre-packed ready-stuffed chicken and only buy ready-cooked stuffed chicken when you intend to eat it within 2 hours.
  • Marinate food in the fridge, not at room temperature.
• Use a food probe to check the temperature of meat, fish and poultry if they are more than 5 cm thick, to ensure that the minimum cooking temperatures are reached.
• The greatest hazards are posed by poorly cooked chicken, particularly at risk from Salmonella.
• Avoid interrupting the cooking process, i.e., partially cooking food, storing it and completing the cooking process later. This sequence encourages the growth of bacteria due to the "warm" temperatures reached inside the food.
• Roast meat and poultry in the oven at temperatures of at least 165^ .

NB: Use only the meat probe supplied with the appliance.

In any case, we recommend that you consult the following table taken from the National Food Safety Database (USA).

Food Minimum internal temperature
Mince
Hamburger 71°C
Beef, veal, lamb, pork 74°C
Chicken, turkey 74°C
Beef, veal, lamb
Roasts and steaks:
Rare	The cooking temperature for rare meat is not indicated by the NFSD as it is unsafe for health reasons
Medium-rare 63°C
Medium 71°C
Well done	77°C
Pork
Chops, roasts, ribs:
Medium 71°C
Well done	77°C
Fresh ham	71°C
Fresh sausages	71°C
Poultry
Whole chicken or chicken pieces	82°C
Duck	82°C
Whole turkey (not stuffed)	82°C
Turkey breast	77°C

WARNING

• To avoid burns, use a kitchen glove to fit and remove the meat probe when the oven is hot.
• Always remove the probe using the grip. If it is removed by pulling the cable, it could suffer damage.
• Make sure the food is completely de-frozen when the probe is fitted. Otherwise it could suffer damage.

NOTE: The meat probe is not enabled for all functions (meat probe function not available also for Recipes). If it is fitted during one of these functions, a probe removal message appears on the screen.

If the meat probe is accidentally removed during operation, a warning message appears on the screen.

The temperature of the probe can be set between 104°F and 212°F (40°C - 100°C).

The oven stores the last temperature set by the user.

Insert the tip of the probe in the central and thickest part of the meat.

Make sure the probe is not in contact with the fat, bone, oven parts or dishes.

The meat probe is automatically recognised when it is inserted and the icon 🔒 appears on the screen.

When a cooking mode is started with the probe inserted, the display page for setting the function appears automatically.

1. Set the required probe temperature by means of the arrows and confirm with the OK key.

1. After pressing the ⓗkey, cooking starts and all probe cooking details appear on the screen.

2. Cooking mode

3. Oven temperature
4. Set probe temperature

• Instantaneous probe temperature

Once the set probe temperature is reached, the oven switches off and an acoustic signal warns that cooking has terminated.

NOTE: After cooking has started, the oven temperature can in any case be changed at any time by means of the arrows .

To change the probe temperature, press the okey and then the key and finally, the key again.

Roast Tips and Techniques

Roasting is cooking with heated air. Both upper and lower elements in the oven are used to heat the air but no fan is used to circulate the heat. Follow the recipe or convenience food directions for baking temperature, time and rack position. Baking time will vary with the temperature of ingredients and the size, shape and finish of the baking utensil.

General Guidelines

• For best results, bake food on a single rack with at least 1" - 1 ½" (2,5 - 3cm) space between utensils and oven walls.
  • Use one rack when selecting the bake mode.
• Check for doneness at the minimum time.
• Use metal bake ware (with or without a non stick finish), heatproof glass, glass-ceramic, pottery or other utensils suitable for the oven.
• When using heatproof glass, reduce temperature by 25^ (15^) from recommended temperature.
  • Use baking sheets with or without sides or jelly roll pans.
• Dark metal pans or nonstick coatings will cook faster with more browning. Insulated bake ware will slightly lengthen the cooking time for most foods.
• Do not use aluminum foil or disposable aluminum trays to line any part of the oven. Foil is an excellent heat insulator and heat will be trapped beneath it. This will alter the cooking performance and can damage the finish of the oven.
• Avoid using the opened door as a shelf to place pans.
  • Tips for Solving Baking Problems are found on Page 33.

True Convection Tips and Techniques

• Reduce recipe baking temperatures by 25^ (15°C).
• For best results, foods should be cooked uncovered, in low-sided pans to take advantage of the forced air circulation. Use shiny aluminum pans for best results unless otherwise specified.
• Heatproof glass or ceramic can be used. Reduce temperature by another 25°F (15°C) when using heatproof glass dishes for a total reduction of 50°F (30°C).
• Dark metal pans may be used. Note that food may brown faster when using dark metal bake ware.
• The number of racks used is determined by the height of the food to be cooked.
• Baked items, for the most part, cook extremely well in convection. Don't try to convert recipes such as custards, quiches, pumpkin pie, or cheesecakes, which do not benefit from the convection-heating process. Use the regular Bake mode for these foods.
• Multiple rack cooking for oven meals is done on rack positions 1, 2, 3, and 4. All four racks can be used for cookies, biscuits and appetizers.

- 2 Rack baking: Use positions 1 and 3.

• When baking four cake layers at the same time, stagger pans so that one pan is not directly above another. For best results, place cakes on front of upper rack and back of lower rack (See graphic at right). Allow 1" - 1 ½" (2,5 - 3cm). air space around pans.
• Converting your own recipe can be easy. Choose a recipe that will work well in convection.
• Reduce the temperature and cooking time if necessary. It may take some trial and error to achieve a perfect result. Keep track of your technique for the next time you want to prepare the recipe using convection.
  • Tips for Solving Baking Problems are found on Page33.

Foods recommended for Convection Bake mode:

Appetizers Biscuits Coffee Cakes

Cookies (2 to 4 racks) Yeast Breads

Cream Puffs

Popovers

Casseroles and One-Dish Entreés

Oven Meals (rack positions 1, 2, 3)

Air Leavened Foods (Soufflés, Meringue, Meringue- Topped Desserts,

Angel Food Cakes, Chiffon Cakes)

RACK POSITION

Technical line drawing of a door frame with internal horizontal slats and a circular component on the left (no text or symbols)

Technical line drawing of a rectangular frame with internal compartments and a curved arrow indicating direction (no text or symbols)

Rack 3

Simple line drawing of two circular plates placed on a grid-lined rack (no text or symbols)

Rack 1

Quick and easy recipe tips

Converting from standard BAKE to CONVECTION BAKE:

• Reduce the temperature by 25^ (15°C).
• Use the same baking time as Bake mode if under 10 to 15 minutes.
• Foods with a baking time of less than 30 minutes should be checked for doneness 5 minutes earlier than in standard bake recipes.
• If food is baked for more than 40 to 45 minutes, bake time should be reduced by 25%.

Convection Roast Tips and Techniques

• Do not preheat for Convection Roast.
• Roast in a low-sided, uncovered pan.
• When roasting whole chickens or turkey, tuck wings behind back and loosely tie legs with kitchen string.
  • Use the 2-piece broil pan for roasting uncovered.
• Use the probe or a meat thermometer to determine the internal doneness on "END" temperature.
• Double-check the internal temperature of meat or poultry by inserting meat thermometer into another position.

- Large birds may also need to be covered with foil (and pan roasted) during a portion of the roasting time to prevent over-browning.

Quick and easy recipe tips

Converting from standard BAKE to CONVECTION ROAST:

• Temperature does not have to be lowered.
- Roasts, large cuts of meat and poultry generally take 10-20% less cooking time. Check doneness early.
- Casseroles or pot roasts that are baked covered in CONVECTION ROAST will cook in about the same amount of time.
- The minimum safe temperature for stuffing in poultry is 165°F (75°C).
- After removing the item from the oven, cover loosely with foil for 10 to 15 minutes before carving if necessary to increase the final foodstuff temperature by 5^ to 10^ (3° to 6°C).

Cooking times are indicative and also depend on the thickness and the starting temperature of the meat before cooking.

Convection Broil Tips and Techniques

• Place rack in the required position needed before turning on the oven.
  • Use Convection Broil mode with the oven door closed.
• Do not preheat oven.
  • Use the 2-piece broil pan.
• Turn meats once halfway through the cooking time (see convection broil chart).

Broiling and convection broiling times are approximate and may vary slightly.

Cooking times are indicative and also depend on the thickness and the starting temperature of the meat before cooking.

Broil Tips and Techniques

• Place rack in the required position needed before turning on the oven.
  • Use Broil mode with the oven door closed.
  • Preheat oven for 5 minutes before use.
  • Use the 2-piece broil pan.
• Turn meats once halfway through the cooking time (see convection broil chart).

Broiling and convection broiling times are approximate and may vary slightly.

Cooking times are indicative and also depend on the thickness and the starting temperature of the meat before cooking.

Dehydrate Tips and Techniques

• Dehydrating can be done using the Dehydrate mode. A lower temperature is used and the circulating heated air slowly removes the moisture for food preservation.
• The Dehydrate mode temperature is pre-programmed at 140^ (60°C).
• The Dehydrate mode temperatures available are 120°F (50°C) to 160°F (70°C).
  • Multiple racks can be used simultaneously.
• Some foods require as much as 14-15 hours of time to fully dehydrate.
• Consult a food preservation book for specific times and the handling of various foods.
• This mode is suitable for a variety of fruits, vegetables, herbs and meat strips.
  • Drying screens can be purchased at specialty kitchen shops.
• By using paper towels, some food moisture can be absorbed before dehydrating begins (such as with sliced tomatoes or sliced peaches).

Dehydrate Chart
FOOD PREPARATION APPROXIMATE		DRYING TIME* (hrs)	TEST FOR DONENESS
FRUIT
Apples	Dipped in 1⁄4 cup lemon juice and 2 cups water, 1⁄4 slices		11 - 15 Slightly pliable
Bananas	Dipped in 1⁄4 cup lemon juice and 2 cups water, 1⁄4 slices		11 - 15 Slightly pliable
Cherries	Wash and towel dry.For fresh cherries, remove pits		10 - 15 Pliable, leathery, chewy
Oranges Peels and slices	1⁄4 slices of orange;orange part of skin thinly peeled from oranges	Peels:	2 - 4Orange peel: dry and brittle
		Slices:	12 - 16Orange slices: skins are dry and brittle, fruit is slightly moist
Pineapple rings	Towel dried	Canned:	9 - 13Soft and pliable
		Fresh:	8 - 12
Strawberries	Wash and towel dry.Sliced 1⁄2" thick,skin (outside) down on rack		12 - 17 Dry, brittle
VEGETABLE
Peppers	Wash and towel dry.Remove membrane of pepper, coarsely chopped about 1" pieces		16 - 20Leathery with no moisture inside
Mushrooms	Wash and towel dry.Cut of stem end.Cut into 1/8" slices		7 - 12 Tough and leathery, dry
Tomatoes	Wash and towel dry.Cut this slices, 1/8" thick, dry well		16 - 23 Dry, brick red color
HERBS
Oregano, sage parsley and thyme, and fennel	Rinse and dry with paper towel	Dry at 120°F(60°C)	3 - 5Crisp and brittle
Basil	Use basil leaves 3 to 4 inches from top. Spray with water, shake off moisture and pat dry	Dry at 120°F(60°C)	3 - 5Crisp and brittle

The Recipe function of your oven gives you the chance to cook food without having to set the oven manually every time. By selecting a "SET" recipe, the cooking mode, the temperature and the time are automatically set according to the recipe selected from the menu.

Recipe List Type of Food Food condition Recipes List Information displayed
PRESET OR PERSONAL		FRESH	BREAD PIZZA FIRST	TYPE OF ACCESSORYLEVEL POSITIONFOOD WEIGHTCOOKING TIMEPREHEAT REQUIRED(YES/NO)
		FROZEN
		WHOLE	MEAT
		IN PEICES
		WHOLE	POULTRY
		IN PEICES
		WHOLE	FISH
		IN PEICES
		-	VEGETABLES
		-
		-	PIES
		-

Select an already-set recipe:

1. Switch the oven, select the icon and press the button. OK
2. Using the arrows △ ▽ select the list between "PRESET" or "PERSONAL" and confirm by means of the key.

3. Choose the type of food to be cooked using the arrows △ and the arrows ◀ and confirm by means of the key OK

4. Using the arrows choose between "FRESH" or "FROZEN" or in other cases between "WHOLE" or "IN PEICES" and confirm with the key.

5. Select the required recipe by means of the arrows △ and confirm using the ⓚkey.

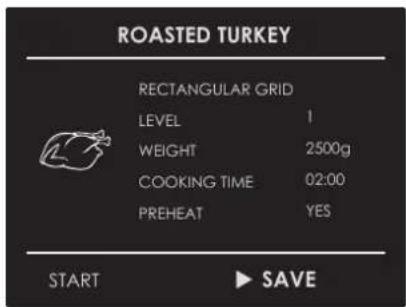

6. When the recipe is selected, the following display page appears on the screen:

1. To start the recipe, confirm with the key.

During a recipe, a number of acoustic and visual messages will ask you to perform the following operations. Simply follow the instructions on the screen.

1. Upon termination, the oven switches off and an acoustic and visual signal warns that the recipe has terminated.

Saving a personalized recipe:

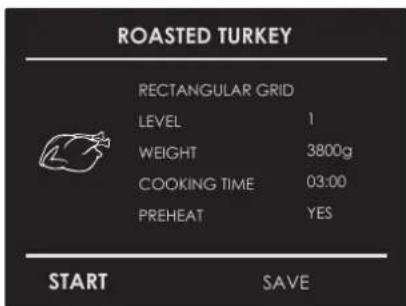

Once a recipe has been selected, the "Time" and "Weight" setting can be changed and the recipe can be saved among the "PERSONAL" ones.

1. Once a recipe has been selected, press the key △ and confirm by means of the OK key.
2. To change the weight, enter the desired weight by means of the arrows △ and confirm by means of the key

1. The oven switches automatically to the cooking time. To change this time, use the arrows and confirm again by means of the key.

1. At this point, the recipe can be saved in the list of "PERSONAL" recipes by selecting "SAVE" and confirming by means of the OK key.

NOTE If the time and weight values are changed and not saved straight away, at the end of the recipe, a message appears which asks whether you want to save it.

1. To start the recipe press the key.

Cancelling a Personalized recipe:

1. To eliminate a recipe from the list of personalized recipes, select the recipe.
2. Press the key ◀ and select the choice and confirm with the ⓚkey.

The Sabbath Mode function of your oven complied with Jewish laws. This function allows the oven to perform only the static function.

When the Sabbath function is selected, the following functions are disabled:

• Oven lights
  • All the keys except ON/OFF
• Meat Probe Function
• Timed cooking function
• Timer function
• The icon on the display screen is steady and not animated as in the case of traditional cooking modes.
  • Display screen and key acoustic warnings.

To set the Sabbath Mode function, switch on the oven and select the icon 🎨 and press the key ⏻ select the Sabbath function by means of the arrows ◀ and confirm twice with the key .OK

The function starts by showing the icon on the display screen.

NOTE The function lasts at most 72 hours.

The temperature can be set between 75^ F ( 25^ C) and 140^ F ( 60^ C). The function can be disabled at any time by pressing the OFF key.

Abrasive detergents and steam cleaning equipment should not be used for cleaning.

WARNING

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Hydrolytic cleaning

This methodology exploits the natural degreasing and sanitizing function of steam to clean the oven cavity.

Advantages

• Ease
• Low costs
• Eco-sustainability: it is the most natural and ecological solution that allows you to have a clean oven at the end of the cycle without the use of aggressive chemical detergents. It's good for the environment, it's good for your health and it's good for the oven.
• Reduced times

Method

After removing all internal accessories, pour 250 ml of distilled water into the bottom of the oven. Close the door and activate the Clean function from the menu, lasting 10 minutes. After this time, the oven will switch off automatically by emitting an acoustic signal. Leave the door closed for another 5 minutes: in this time the steam begins to soften the fat particles deposited on the parts of the internal cavity of the oven. Then open the oven door slightly to let the heat flow out (10 minutes): this allows the cavity to cool down and dry.

After these last 10 minutes, you can proceed with a damp cloth to remove any residue of grease, dirt and liquid: cleaning the appliance has become easier.

The oven light is activated and can be switched off and on again at any time.

Removing the door

WARNING

Make sure that:

• The oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns.
• The oven door is heavy and fragile. Use both hands to remove the oven door. The door front is glass. Handle care-fully to avoid breakage.
• Grasp only the sides of the oven door. Do not grasp the handle as it may swing in your hand and cause damage or injury.
• Failure to grasp the oven door firmly and properly could result in personal injury or product damage.

Removing the standard oven door

The oven door can be removed quickly and easily. To do so, proceed as follows:

• Open the door fully.
• Lift the two levers shown below.
• Close the door as far as the first stop (caused by the raised levers).
• Lift the door upwards and outwards to remove it from its mountings.

To replace fit the door, fit the hinges in their mountings and lower the two levers

Technical line drawing showing two steps of a mechanical assembly with a hand holding a bracket and a tool inserted, no text or symbols present.

Removing the slide oven door

1. Decide whether you want the door to open to the left or right before positioning the appliance in the oven recess.

2. Fully open the door.

Line drawing of two open-framed rectangular panels with internal compartments (no text or symbols)

1. Remove the four fixing screws from the door hinge.

Technical line drawing of two views of a rectangular frame with mounting flanges and structural details (no text or symbols)

1. Remove the four plastic caps from the opposite side and unscrew the locking pin.

2. Turn the door 180°.

Diagram showing two open panels with a circular arrow icon on the left panel, no text or symbols present.

1. Secure the door in its new position using the 4 screws removed previously.

NOTE: Make sure that the oven door is perfectly parallel with the front panel. If it is not, adjust it by means of the screws you have just inserted.

1. Fix the oven in the oven recess using the 4 screws and the plastic spacers provided.

Technical line drawing of a door frame with mounting brackets and structural ribs (no text or symbols)

How to remove the inner glass of the "FULL GLASS" panoramic door

1. Wear protective gloves.
2. Place the door on a flat horizontal surface face down on a soft cloth to avoid scratching the visible part.
3. Remove the two lateral caps and pull out the top strip.

Two-panel black-and-white photo showing a hand holding a textured object, next to a close-up of a device with a screen (no visible text or symbols)

1. Slide out the internal glass as shown below. Pull out the second and third glass panels (intermediate panels) to clean them.

Close-up of gloved hands holding a transparent rectangular device with visible internal components (no text or symbols)

1. Replace the middle panes after cleaning in reverse order, checking that they are oriented so the words INTERNAL SIDE are properly legible.

NOTE: a slight gap between the middle panes and the side supports is normal because it allows for the heat expansion of the glass.

1. Place the inner glass between the two uprights and put the upper strip back in place.

Close-up of a hand using a tool to cut or trim a metal strip (no visible text or symbols)

Replacement of the oven light

WARNING

Make sure that:

• The oven and lights are cool and power to the oven has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.
  • The lenses must be in place when using the oven.
  • The lenses serve to protect the light bulb from breaking.
• The lenses are made of glass. Handle carefully to avoid breakage. Broken glass could cause an injury.

1 Turn off power at the main power supply (fuse or breaker box).
2 Remove the lens (1).
3 Remove the light bulb (2) from its socket (3).
4 Replace the bulb (2) with a new one. Avoid touching the bulb with fingers, as oils from hands can damage the bulb when it becomes hot.
5 Use one with the same Volt and Watt (see figure).
6 Screw the lens (1) back on.
7 Turn power back on at the main power supply (fuse or breaker box).

With either Bake or Convection Bake, poor results can occur for many reasons other than a malfunction of the oven. Check the chart below for causes of the most common problems. Since the size, shape and material of baking utensils directly affect the baking results, the best solution may be to replace old baking utensils that have darkened and warped with age and use.

Baking Problem Cause
Food browns unevenly - Oven not preheated	- Aluminum foil on oven rack or oven bottom- Baking utensil too large for recipe- Pans touching each other or oven walls
Food too brown on bottom - Oven not preheated	- Using glass, dull or darkened metal pans- Incorrect rack position- Pans touching each other or oven walls
Food is dry or has shrunk excessively - Oven temperature too low	- Oven not preheated- Oven door opened frequently- Tightly sealed with aluminum foil- Pan size too small
Food is baking or roasting too slowly - Oven temperature too low	- Oven not preheated- Oven door opened frequently- Tightly sealed with aluminum foil- Pan size too small
Pie crusts do not brown on bottom or have soggy crust - Baking time	not long enough- Using shiny steel pans- Incorrect rack position- Oven temperature is too low
Cakes pale, flat and may not be done inside - Oven temperature too low	- Incorrect baking time- Cake tested too soon- Oven door opened too often- Pan size may be too large
Cakes high in middle with crack on top - Baking temperature too high	- Baking time too long- Pans touching each other or oven walls- Incorrect rack position- Pan size too small
Pie crust edges too brown - Oven temperature too high	- Edges of crust too thin

Before contacting service, check the following to avoid unnecessary service charges.

Oven Problem Problem Solving Steps
Other F__ Error appears in the display window.	Remove power and turn it back on again after a few seconds. If condition persists, note the code number (in the EVENT LOG list) and contact service.
The oven display stays OFF Turn off power at the main power supply (fuse or breaker box). Turn breaker back on.If condition persists, call an authorized service.
Cooling fan continues to run after oven is turned off	The fan turns off automatically when the electronic components have cooled sufficiently.
Oven is not heating Check the circuit breaker or fuse box to your house. Make sure there is proper electrical power to the oven. Make sure the oven temperature has been selected.
Oven is not cooking evenly	Refer to cooking charts for recommended rack position. Always reduce recipe temperature by 25°F (15°C) when baking with Convection Bake mode.
Oven light is not working properly	Replace or reinsert the light bulb if loose or defective. See Page 35. Avoid touching the bulb glass with bare fingers as finger oil may cause bulbs to burn out prematurely.
Oven light stays on Check for obstruction in oven door. Check to see if hinge is bent or door switch broken.
Clock and timer are not working properly	Make sure there is proper electrical power to the oven. See the Clock sections on Page 14.
Excessive moisture When using Bake mode, preheat the oven first. Convection Bake and Convection Roast will eliminate any moisture in oven (this is one of the advantages of convection).
Porcelain chips When oven racks are removed and replaced, always tilt racks upward and do not force them to avoid chipping the porcelain.

Before contacting service, please check "Troubleshooting." It may save you the cost of a service call.

If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

Service Data Record

For authorized service or parts information see paragraph "WARRANTY for Home Appliances".

For authorized service or parts information see paragraph "WARRANTY for Home Appliances".

For serial tag location see Page 2. Now is a good time to write this information in the space provided below.

Keep your invoice for warranty validation.

Service Data Record

Model Number

Serial Number

Date of Installation or Occupancy ____

Note

TABLE DES MATIERES PAGE

Diagram of a device with an arrow pointing to a component, no text or symbols present

IMPORTANT

Technical line drawing of a rectangular tray with internal compartments and an inset close-up view (no text or symbols)

Line drawing of a rectangular kitchen appliance with slatted side panels and a curved handle (no text or symbols)

GLISSIÈRES DÉMONTABLES

Technical line drawing of a multi-tiered rack or storage unit with an inset close-up detail (no text or symbols)

Isometric line drawing of a rectangular metal tray with internal grid structure (no text or symbols)

Line drawing of a metal rack or cage structure with no text or symbols

Technical line drawing of a refrigerator with two circular insets showing internal components (no text or symbols)

Luminosité

Two technical line drawings of a rectangular enclosure with internal channels and numbered components (no text or symbols)

Simple line drawing of two circular plates on a grid background (no text or symbols)

Grille 3

Simple line drawing of two circular plates placed on a grid-lined rack (no text or symbols)

Grille 1

Technical line drawing showing two steps of a hand holding a bracket, with arrows indicating movement direction (no text or symbols)

Line drawing of two open-framed rectangular panels with internal cutouts, no text or symbols present

Technical line drawing of two views of a rectangular frame with internal partitions and mounting brackets (no text or symbols)

Diagram showing two open panels with a circular arrow icon on the left panel, no text or symbols present.

Technical line drawing of a mechanical component with mounting flanges and internal channels (no text or symbols)

Two-panel black-and-white photo showing a hand holding a textured object next to a device panel (no visible text or symbols)

Close-up of gloved hands holding a transparent rectangular device with visible internal components (no text or symbols)

Close-up of a hand using a tool to cut or trim a metal sheet (no text or symbols visible)

Diagram of a kitchen appliance with a highlighted opening and an arrow indicating direction (no text or symbols)

WICHTIG

Technical line drawing of a rectangular device with internal compartments and an inset close-up view (no text or symbols)

Isometric line drawing of a rectangular oven with internal grating and ventilation slots (no text or symbols)

AUSBAUBARE SCHIENEN

Technical line drawing of a multi-tiered rack or storage unit with an inset magnified detail (no text or symbols)

Isometric line drawing of a rectangular metal cage with internal structure (no text or symbols)

Line drawing of a metal rack or cage structure with no text or symbols

Technical line drawing of a refrigerator with two circular insets showing internal components (no text or symbols)

Helligkeit

Technical line drawing showing two steps of a hand holding a bracket, with arrows indicating movement direction (no text or symbols)

Line drawing of two open-framed rectangular panels with no text or symbols

Technical line drawing of two views of a door frame structure (no text or symbols)

Diagram showing two open panels with a circular arrow icon on the left panel, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Two-panel black-and-white photo showing a robotic arm interacting with a device panel, no visible text or symbols.

Close-up of gloved hands holding a transparent rectangular device with a thin wire, no visible text or symbols

Close-up of a hand using a tool to cut or trim a metal sheet (no text or symbols visible)

3D rendering of a device interior with a white arrow pointing to a component (no text or symbols visible)

IMPORTANTE:

Technical line drawing of a rectangular device with internal compartments and an inset close-up view (no text or symbols)

Line drawing of a rectangular kitchen appliance with internal grating and ventilation slots (no text or symbols)

GUIAS DESMONTABLES

Technical line drawing of a multi-tiered rack or shelf assembly with an inset magnified detail (no text or symbols)

Isometric line drawing of a rectangular metal tray with internal grid structure (no text or symbols)

Technical line drawing of a metal rack unit with internal ribs (no text or symbols)

Technical line drawing of a refrigerator with two circular insets showing internal components (no text or symbols)

Volumen

Technical line drawing of a door frame with internal horizontal slats and a circular opening (no text or symbols)

Technical line drawing of a rectangular frame with internal compartments and a curved arrow indicating direction (no text or symbols)

Simple line drawing of two circular plates on a grid background (no text or symbols)

Rejilla 3

Simple line drawing of two circular plates placed on a grid-lined rack (no text or symbols)

Rejilla 1

Technical line drawing showing two steps of a hand holding a bracket, with arrows indicating movement direction (no text or symbols)

Line drawing of two open-framed rectangular panels with internal cutouts, no text or symbols present

Technical line drawing of two views of a rectangular frame with internal partitions and mounting brackets (no text or symbols)

Diagram showing two open panels with a circular arrow icon on the left panel, no text or symbols present.

Technical line drawing of a door frame with mounting brackets and alignment lines (no text or symbols)

Two-panel black-and-white photo showing a hand gripping a device in the top panel and another close-up of a monitor with a handle (no visible text or symbols)

Close-up of gloved hands holding a transparent rectangular device with visible internal components (no text or symbols)

Close-up of a hand using a tool to cut or mark a metal component, no visible text or symbols

Diagram of a device interior with an arrow pointing to a component, no text or symbols present

BELANGRIJK

Technical line drawing of a rectangular device with internal compartments and an inset close-up view (no text or symbols)

Isometric line drawing of a rectangular oven with internal grating and ventilation slots (no text or symbols)

Technical line drawing of a multi-tiered rack or storage unit with an inset magnified detail (no text or symbols)

Isometric line drawing of a rectangular metal cage with internal structure (no text or symbols)

Line drawing of a metal rack cabinet with internal ribs (no text or symbols)

Technical line drawing of a refrigerator with two circular insets showing internal components (no text or symbols)

NL 5 - Bedieninsgpaneel

Helderheid

Hapjes, Biscuits, Cakes

Technical line drawing of a door frame with internal shelves and a circular component on the left (no text or symbols)

Technical line drawing of a rectangular panel with internal compartments and a curved arrow indicating direction (no text or symbols)

Ovenrek 3

Simple line drawing of two circular plates placed on a metal rack (no text or symbols)

Ovenrek 1

Technical line drawing showing two steps of a hand holding a bracket, with arrows indicating movement direction (no text or symbols)

Line drawing of two open-framed electronic devices with no text or symbols

Technical line drawing of two front panels with mounting brackets and side supports (no text or symbols)

Diagram showing two open panels with a circular arrow icon on the left panel, no text or symbols present.

Technical line drawing of a door frame with mounting brackets and measurement lines (no text or symbols)

Two-panel black-and-white photo showing a robotic arm interacting with a device panel, no visible text or symbols.

Person holding a transparent rectangular device with visible internal components, no text or symbols present

Close-up of a hand using a tool to cut or trim a metal sheet, no visible text or symbols

Diagram of a kitchen appliance with a highlighted opening and an arrow indicating direction (no text or symbols)

IMPORTANTE

Technical line drawing of a rectangular device with internal compartments and an inset close-up view (no text or symbols)

Isometric line drawing of a rectangular oven with internal grating and ventilation slots (no text or symbols)

GUIAS REMOVÍVEIS

Technical line drawing of a multi-tiered rack or storage unit with an inset magnified detail (no text or symbols)

Isometric line drawing of a rectangular metal cage with internal structure (no text or symbols)

Line drawing of a metal rack unit with internal ribs and mounting brackets (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a refrigerator with two circular insets showing internal components (no text or symbols)

Tempo

Volume

Brilho

Technical line drawing of a door frame with internal parallel ribs (no text or symbols)

Technical line drawing of a rectangular frame with internal parallel strips and a curved arrow on the left side (no text or symbols)

Prateleiro 3

Simple line drawing of two circular plates placed on a grid-lined rack (no text or symbols)

Prateleira 1

Technical line drawing showing two steps of a hand holding a bracket, with arrows indicating movement direction (no text or symbols)

Line drawing of two open-framed electronic devices with no text or symbols

Technical line drawing of two views of a rectangular frame with mounting brackets and side supports (no text or symbols)

Diagram showing two open panels with a circular arrow icon on the left panel, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Two-panel image showing a hand holding a textured object next to a black panel, with no visible text or symbols.

Close-up of gloved hands holding a transparent rectangular panel with visible internal structure (no text or symbols)

Close-up of a hand using a tool to cut or trim a metal sheet (no text or symbols visible)
