Product Type	Industrial-grade bulkhead coupler
Connectivity	Cat5e/6, female to female
Protection rating	IP44 (splash) and IP68 (immersion up to 1.5 m for 30 min) depending on combination with suitable enclosure and cables
Cable compatibility	Patch cables series N206-PCXX-IND, 4PPoE cables N200P-XXX-IND, waterproof kit N206-WK01-IND
Applications	Indoor and outdoor, demanding industrial environments
Main functions	Allows network cables to be connected through a wall while maintaining waterproofing and robustness
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use solvents or abrasive products.
Safety	Use only with compatible enclosures and cables to maintain protection rating. Do not immerse without proper enclosure.
Spare parts and repairability	No detachable parts. In case of failure, replace the entire coupler.
Warranty	Limited lifetime warranty
General information	Brand: Tripp Lite, Model: N206BC01IND, Category: Computer and peripheral cable

Frequently Asked Questions - N206BC01IND Tripp Lite

What is the Tripp Lite N206BC01IND?

The N206BC01IND is an industrial-grade bulkhead coupler designed to connect Cat5e/6 network cables through a wall while maintaining IP44/IP68 protection.

What are the protection ratings of the N206BC01IND?

The coupler benefits from IP44 splash protection and IP68 immersion protection (up to 1.5 m for 30 min) when used with compatible Tripp Lite enclosures and cables.

How to install the N206BC01IND bulkhead coupler?

Installation is detailed in the manual, section 2. Drill a hole in the wall, insert the coupler, and secure it with a screwdriver (not included). Use cables from the N206-PCXX-IND series or the N206-WK01-IND kit.

Which cables are compatible with this coupler?

Recommended cables are the N206-PCXX-IND (Cat5e/6), N200P-XXX-IND (Cat6 4PPoE), and the waterproof kit N206-WK01-IND for custom connection.

Can I use this coupler outdoors?

Yes, provided it is installed in a suitable enclosure such as the N206-SB01-IND (surface mount box) or N206-FPXX-IND faceplates, to maintain IP44/IP68 sealing.

What is the warranty period of the N206BC01IND?

Tripp Lite offers a limited lifetime warranty on this product. It covers defects in materials and workmanship, but not normal wear or misuse.

Is this coupler compatible with Keystone jacks?

Yes, it can be used with the Keystone jack N206-KJ01-IND as a replacement or addition, depending on the desired configuration.

How to clean the N206BC01IND coupler?

Clean it with a soft, dry cloth. Never use solvents, alcohol, or abrasive products that could damage the seal.

Can I directly immerse the coupler in water?

No, the coupler alone is not waterproof for immersion. To achieve IP68 rating, it must be installed in a N206-SB01-IND enclosure and connected with suitable cables.

Where can I download the full manual?

You can download the manual for free in PDF format from notice-facile.com by searching for model N206BC01IND.

USER MANUAL N206BC01IND Tripp Lite

Industrial Connectivity Solutions

Model Series: N206-XXX-IND, P569-XXX-IND, U325-XXX-IND, N200P-XXX-IND, N455-XXX-IND, N820-XXX-IND See page 2 for a complete model listing.

Tripp Lite's industrial connectivity solutions comply with the IP44 standard for protection against water intrusion on all sides, as well the IP68 standard for protection against invasive dust, dirt and sand, and submersion in up to 1.5m of water for up to 60 minutes.

Note: Certain product combinations are needed to achieve IP44 and/or IP68 standards. See section 4. Product Combinations for IP44 and IP68 Protection for more information. IP68 Protection rating is based on manufacturer's guarantee.

Espanol 13 • Français 25 • Pycckn 37

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Table of Contents

Industrial Connectivity Solutions Complete Product Listing 3

1. N206-SB01-IND Surface Box Dimensions 4
2. Industrial Bulkhead Coupler Installation 5 (N206-BC01-IND, U325-000-IND, P569-000-FF-IND, N455-BC01-IND)
3. Industrial Keystone Jack Installation (N206-KJ01-IND) 7
4. Product Combinations for IP44 and IP68 Protection 10 Warranty and Product Registration 11

Industrial Connectivity Solutions

Complete Product Listing

Industrial Faceplates

N206-FP01-IND (1 Cutout)

N206-FP02-IND (2 Cutouts)

N206-FP04-IND (4 Cutouts)

Industrial Surface Mount Box

N206-SB01-IND

Bulkhead Couplers and

Keystone Jacks

N206-BC01-IND

(Cat5e/6 Bulkhead Coupler)

N206-KJ01-IND (Keystone Jack)

U325-000-IND (USB 3.0 Coupler)

P569-000-FF-IND (4K HDMI Coupler)

N455-BC01-IND

(Multimode Fiber LC/LC Coupler)

Industrial Patch Cables & 4PPoE (90W) Cables

N206-PC03-IND

(3 ft. Cat5e/6 Patch Cable)

N206-PC10-IND

(10 ft. Cat5e/6 Patch Cable)

N206-PC16-IND

(16 ft. Cat5e/6 Patch Cable)

N206-PC23-IND

(23 ft. Cat5e/6 Patch Cable)

N206-PC33-IND

(33 ft. Cat5e/6 Patch Cable)

N206-PC50-IND

(50 ft. Cat5e/6 Patch Cable)

N200P-003BL-IND

(3 ft. Cat6 4PPoE Cables)

N200P-01OBL-IND

(10 ft. Cat6 4PPoE Cables)

N200P-016BL-IND

(16 ft. Cat6 4PPoE Cables)

N200P-023BL-IND

(23 ft. Cat6 4PPoE Cables)

N200P-033BL-IND

(33 ft. Cat6 4PPoE Cables)

Industrial Patch Cables &

4PPoE (90W) Cables (continued)

N200P-05OBL-IND

(50 ft. Cat6 4PPoE Cables)

Industrial USB 3.0 Cables

U325-003-IND (3 ft. USB 3.0 Cable)

U325-006-IND (6 ft. USB 3.0 Cable)

U325-010-IND (10 ft. USB 3.0 Cable)

U325-013-IND (13 ft. USB 3.0 Cable)

Industrial 4K HDMI Cables

P569-003-IND (3 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-006-IND (6 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-010-IND (10 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-012-IND (12 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-003-IND2 (3 ft. 4K HDMI Cable, 2 water-resistant connectors)

P569-006-IND2 (6 ft. 4K HDMI Cable, 2 water-resistant connectors)

P569-010-IND2 (10 ft. 4K HDMI

Cable, 2 water-resistant connectors)

P569-012-IND2 (12 ft. 4K HDMI

Cable, 2 water-resistant connectors)

Industrial Duplex Multimode Fiber Patch Cables

N820-01M-IND

(1 m LC/LC Fiber Patch Cables)

N820-02M-IND

(2 m LC/LC Fiber Patch Cables)

N820-05M-IND

(5 m LC/LC Fiber Patch Cables)

N820-10M-IND

(10 m LC/LC Fiber Patch Cables)

Waterproof Cable Assembly Kit

N206-WK01-IND

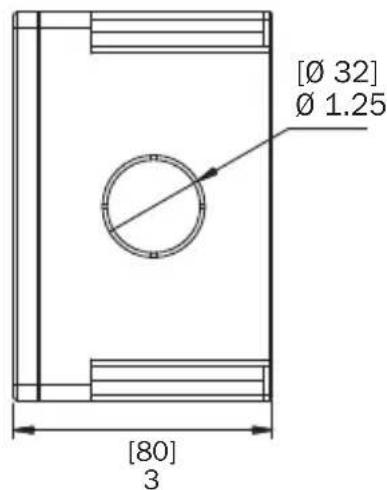

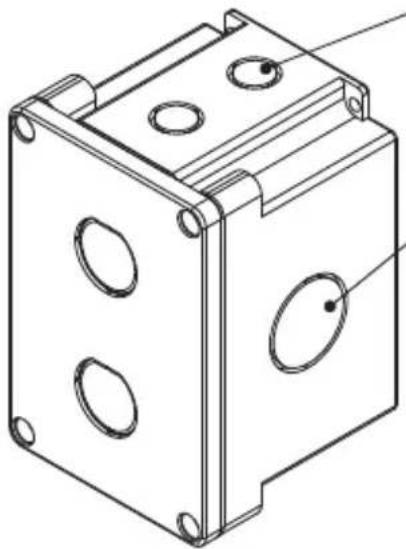

1. N206-SB01-IND Surface Mount Box Dimensions

Dimensions: [mm] INCHES

Knockout for 0.5"

(M16) Cable

Knockout for 1.25"

(M32) Conduit

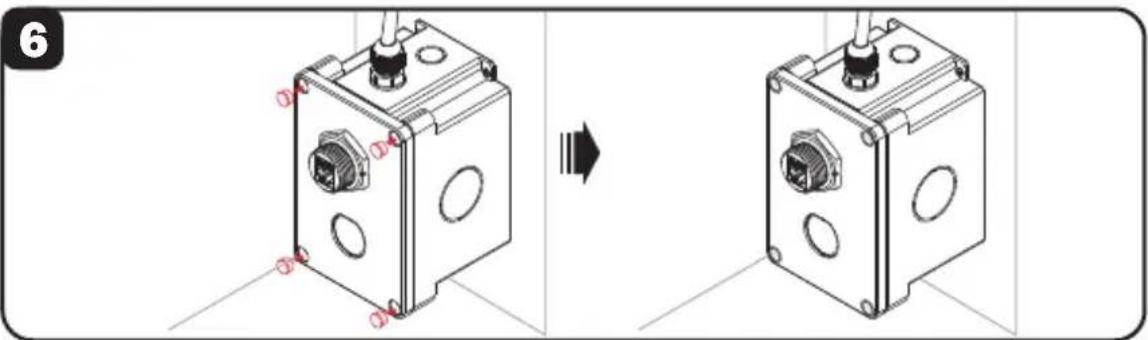

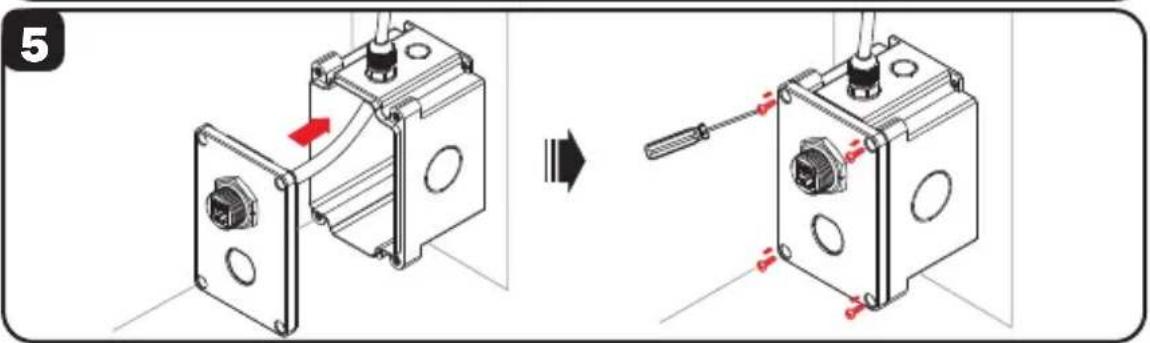

2. Industrial Bulkhead Coupler Installation (N206-BC01-IND, U325-000-IND, P569-000-FF-IND and N455-BC01-IND)

Note: USB, HDMI and fiber solutions are also available. Screwdriver not included. Additional tools may be required to remove knockouts.

2. Industrial Bulkhead Coupler Installation (N206-BC01-IND, U325-000-IND, P569-000-FF-IND and N455-BC01-IND)

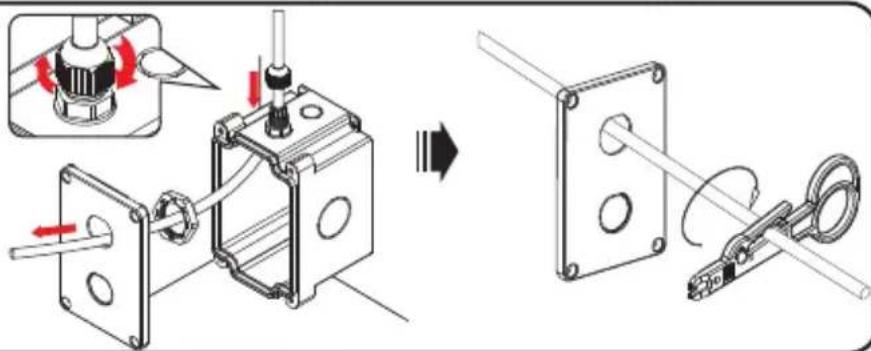

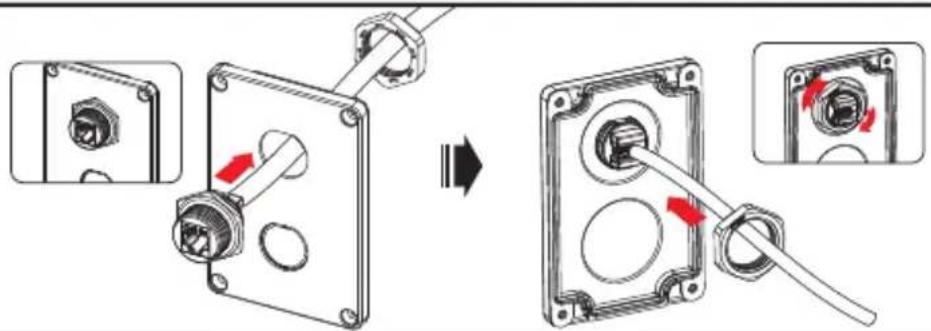

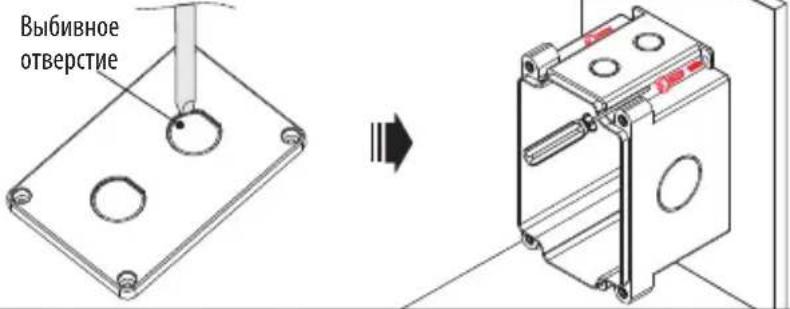

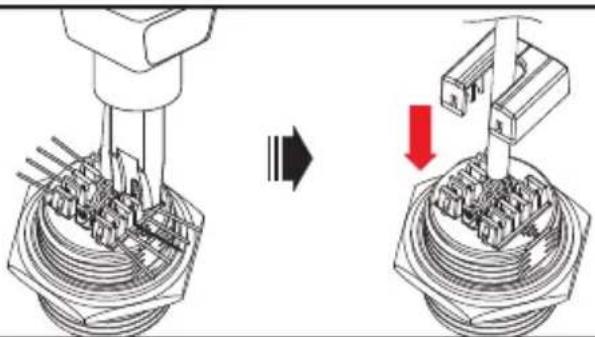

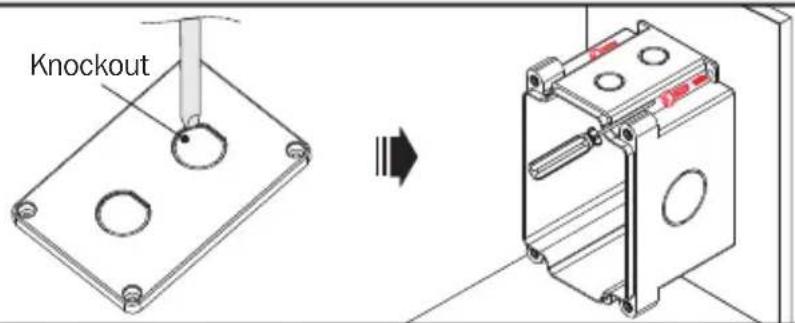

3. Industrial Keystone Jack Installation (N206-KJ01-IND)

Note: Additional tools may be required to remove knockouts.

1
2

Note: Use the included 0.5^ (M16) cable glands to complete this step.

3

4

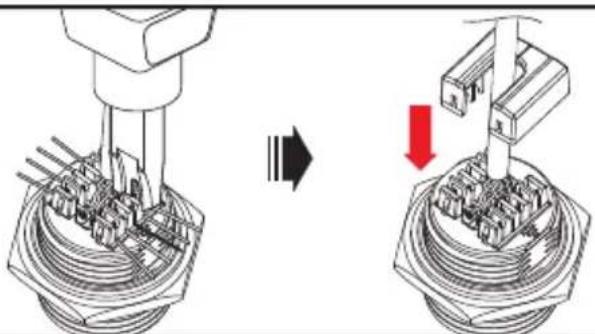

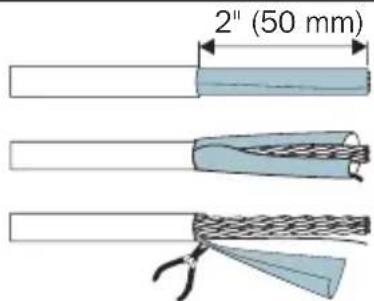

3. Industrial Keystone Jack Installation

(N206-KJ01-IND)

5

6
7

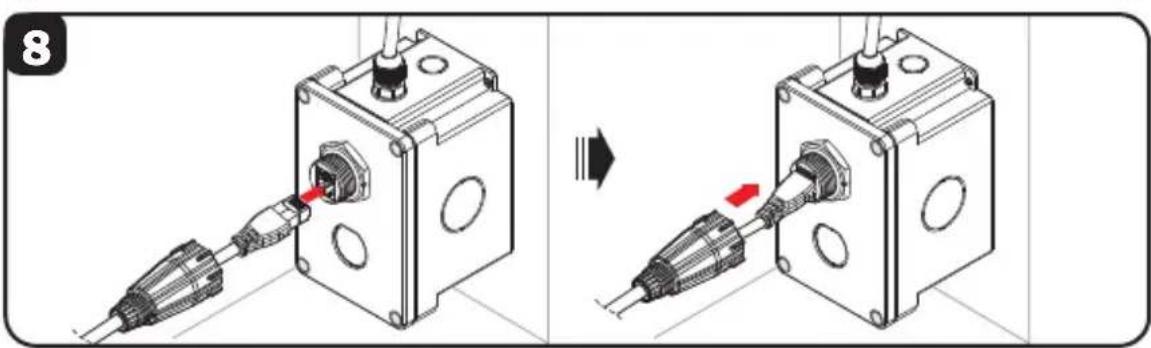

8

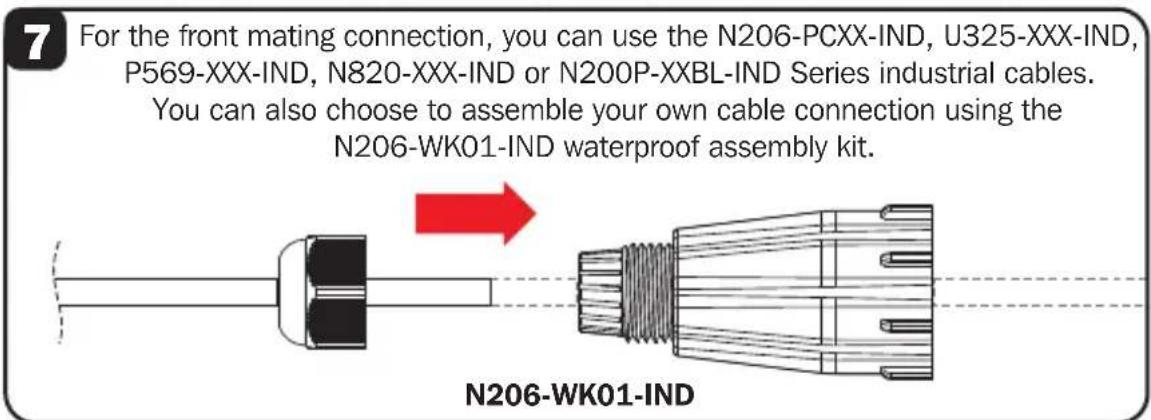

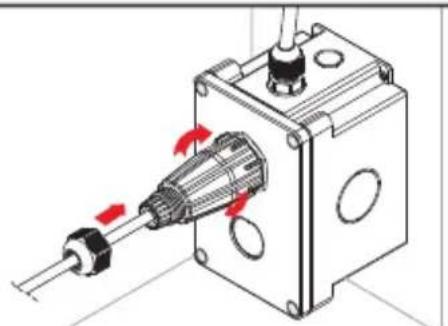

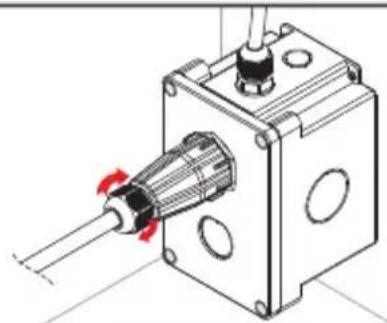

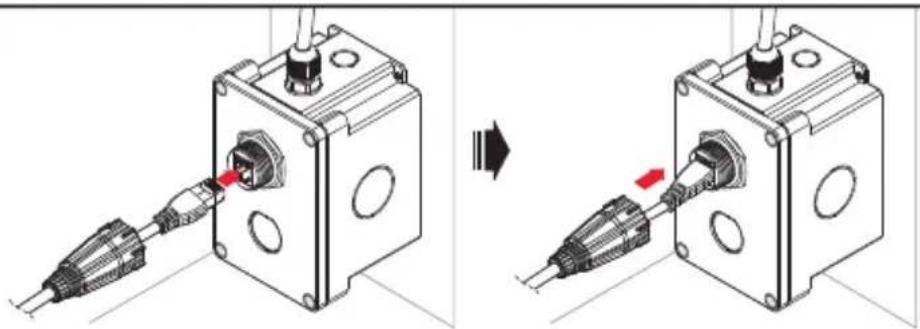

For the front mating connection, you can use N206-PCXX-IND Series industrial cables. You can also choose to assemble your own cable connection using the N206-WK01-IND waterproof assembly kit.

N206-WK01-IND

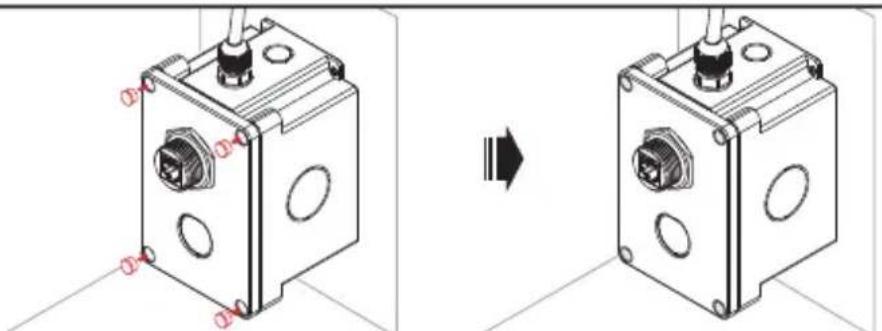

3. Industrial Keystone Jack Installation

(N206-KJ01-IND)

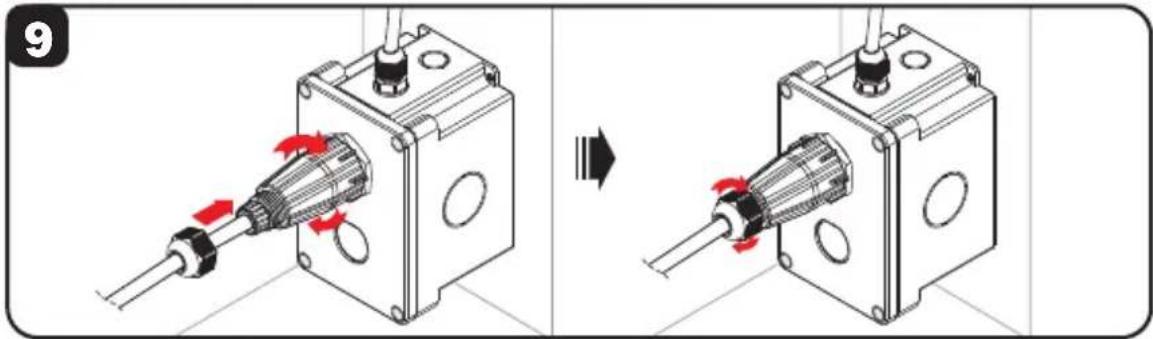

9
10

4. Product Combinations for IP44 and

IP68 Protection

Note: For IP68 environments (submersion in up to 1.5m of water for 60 minutes), the N206-SB01-IND should be used (not the N206-FPXX-IND). IP68 rating of up to 1.5m of water for up to 60 minutes is based on manufacturer's guarantee.

Faceplate	Bulkhead Couplers/ Keystone Jacks	Industrial Patch Cables/ Industrial USB 3.0 Cables		Waterproof Cable Assembly Kit
N206-FPXX-IND N	206-BC01-IND (Bulkhead Coupler)	N206-PCXX-IND (Cat5e/6 Cable)	or	N206-WK01-IND
N206-FPXX-IND N	206-KJ01-IND (Keystone Jack)	N206-PCXX-IND (Cat5e/6 Cable)		N206-WK01-IND
N206-FPXX-IND N	206-BC01-IND (Bulkhead Coupler)	N200P-XXX-IND (Cat6 4PPoE Cables)		N206-WK01-IND
N206-FPXX-IND U	325-000-IND (USB 3.0 Coupler)	U325-XXX-IND (USB 3.0 Cable)
N206-FPXX-IND P	569-000-FF-IND (4K HDMI Coupler)	P569-XXX-IND/ P569-XXX-IND2 (4K HDMI Cable)
N206-FPXX-IND N	455-BC01-IND (LC/LC Fiber Coupler)	N820-XXM-IND (LC/LC Fiber Cable)
Surface Mount Box	Bulkhead Couplers/ Keystone Jacks	Industrial Patch Cables/ Industrial USB 3.0 Cables		Waterproof Cable Assembly Kit
N206-SB01-IND	N206-BC01-IND (Bulkhead Coupler)	N206-PCXX-IND (Cat5e/6 Cable)	or	N206-WK01-IND
N206-SB01-IND	N206-KJ01-IND (Keystone Jack)	N206-PCXX-IND (Cat5e/6 Cable)		N206-WK01-IND
N206-SB01-IND	N206-BC01-IND (Bulkhead Coupler)	N200P-XXX-IND (Cat6 4PPoE Cables)		N206-WK01-IND
N206-SB01-IND	U325-000-IND (USB 3.0 Coupler)	U325-XXX-IND (USB 3.0 Cable)
N206-SB01-IND	P569-000-FF-IND (4K HDMI Coupler)	P569-XXX-IND/ P569-XXX-IND2 (4K HDMI Cable)
N206-SB01-IND	N455-BC01-IND (LC/LC Fiber Coupler)	N820-XXM-IND (LC/LC Fiber Cable)

Warranty and Product Registration

Limited Lifetime Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by Buyer delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Visit tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES.

(Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

The Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
