Product Type	Waterproof Cable Assembly Kit for Industrial Connectivity
Brand	Tripp Lite
Model	N206WK01IND
Application	Industrial connectivity, indoor/outdoor
Protection Standards	IP44 (water splashes) and IP68 (immersion up to 1.5 m for 30 min) in combination with other components
Compatibility	Bulkhead couplers N206-BC01-IND, Keystone jack N206-KJ01-IND, cables from series N206-PC, N200P, U325, P569, N820
Kit Contents	Connectors, sealing gaskets and M16 cable glands for custom assembly
Material	Impact-resistant plastic and rubber gaskets
Warranty	Limited lifetime warranty (material and workmanship defects)
Estimated Weight	0.1 kg
Estimated Dimensions	10 x 5 x 2 cm
Operating Temperature	-20°C to +60°C
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use solvents or abrasive products.
Safety	Use only according to provided instructions to ensure sealing. Do not immerse if improperly assembled.
Spare Parts and Repairability	Sealed kit, non-repairable. Replace entire assembly in case of defect.
General Information	Used to assemble custom waterproof connections. Requires a separate coupler or Keystone jack.

Frequently Asked Questions - N206WK01IND Tripp Lite

What is the N206WK01IND kit?

The N206WK01IND is a waterproof cable assembly kit from Tripp Lite, designed to assemble custom connections in industrial environments. It contains connectors and gaskets to create water- and dust-resistant cables.

What protection standards does it meet?

When used with compatible components (faceplates, enclosures, couplers), it can achieve IP44 (protection against water splashes) and IP68 (immersion up to 1.5 m for 30 minutes) ratings. The IP68 rating is based on manufacturer guarantee.

How to install the N206WK01IND kit?

Installation involves assembling your own cables using the included M16 glands and connectors. Refer to the manual for detailed steps: cable preparation, insertion into connector, tightening of gaskets to ensure sealing.

What cables can I use with this kit?

The kit is compatible with industrial-grade cables from series N206-PC (Cat5e/6), N200P (Cat6 4PPoE), U325 (USB 3.0), P569 (HDMI 4K) and N820 (fiber LC/LC). It allows you to assemble custom lengths.

Is this kit compatible with HDMI couplers?

Yes, it can be used with the HDMI coupler P569-000-FF-IND to create a waterproof HDMI connection. Simply assemble an industrial-grade HDMI cable (series P569-XXX-IND) with this kit.

Can this kit be used for USB cables?

Yes, the kit is suitable for industrial-grade USB 3.0 cables (series U325-XXX-IND). Pair it with the USB coupler U325-000-IND for IP44/IP68 protection.

What is the warranty on the N206WK01IND kit?

Tripp Lite offers a limited lifetime warranty covering material and workmanship defects. To make a claim, contact Tripp Lite support or return the product with prepaid shipping.

How to clean the kit?

Clean the connectors with a soft, dry cloth. Avoid solvents, abrasive products, or high-pressure cleaners that could damage the sealing gaskets.

Can I immerse the kit?

The kit itself is not immersible without proper assembly. Once mounted with appropriate components (e.g., surface mount box N206-SB01-IND), the assembly can withstand immersion up to 1.5 m for 30 minutes (IP68).

Where to find the full manual?

The full manual (48 pages) is available for free download on notice-facile.com in PDF format. You can also request a translation in your language via the form on the site.

USER MANUAL N206WK01IND Tripp Lite

Industrial Connectivity Solutions

Model Series: N206-XXX-IND, P569-XXX-IND, U325-XXX-IND, N200P-XXX-IND, N455-XXX-IND, N820-XXX-IND See page 2 for a complete model listing.

Tripp Lite's industrial connectivity solutions comply with the IP44 standard for protection against water intrusion on all sides, as well the IP68 standard for protection against invasive dust, dirt and sand, and submersion in up to 1.5m of water for up to 60 minutes.

Note: Certain product combinations are needed to achieve IP44 and/or IP68 standards. See section 4. Product Combinations for IP44 and IP68 Protection for more information. IP68 Protection rating is based on manufacturer's guarantee.

Español 13 • Français 25 • Русский 37

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Table of Contents

Industrial Connectivity Solutions Complete Product Listing 3

1. N206-SB01-IND Surface Box Dimensions 4
2. Industrial Bulkhead Coupler Installation 5 (N206-BC01-IND, U325-000-IND, P569-000-FF-IND, N455-BC01-IND)
3. Industrial Keystone Jack Installation (N206-KJ01-IND) 7
4. Product Combinations for IP44 and IP68 Protection 10
   Warranty and Product Registration 11

Industrial Connectivity Solutions Complete Product Listing

Industrial Faceplates

N206-FP01-IND (1 Cutout)

N206-FP02-IND (2 Cutouts)

N206-FP04-IND (4 Cutouts)

Industrial Surface Mount Box

N206-SB01-IND

Bulkhead Couplers and Keystone Jacks

N206-BC01-IND

(Cat5e/6 Bulkhead Coupler)

N206-KJ01-IND (Keystone Jack)

U325-000-IND (USB 3.0 Coupler)

P569-000-FF-IND (4K HDMI Coupler)

N455-BC01-IND

(Multimode Fiber LC/LC Coupler)

Industrial Patch Cables & 4PPoE (90W) Cables

N206-PC03-IND

(3 ft. Cat5e/6 Patch Cable)

N206-PC10-IND

(10 ft. Cat5e/6 Patch Cable)

N206-PC16-IND

(16 ft. Cat5e/6 Patch Cable)

N206-PC23-IND

(23 ft. Cat5e/6 Patch Cable)

N206-PC33-IND

(33 ft. Cat5e/6 Patch Cable)

N206-PC50-IND

(50 ft. Cat5e/6 Patch Cable)

N200P-003BL-IND

(3 ft. Cat6 4PPoE Cables)

N200P-010BL-IND

(10 ft. Cat6 4PPoE Cables)

N200P-016BL-IND

(16 ft. Cat6 4PPoE Cables)

N200P-023BL-IND

(23 ft. Cat6 4PPoE Cables)

N200P-033BL-IND

(33 ft. Cat6 4PPoE Cables)

Industrial Patch Cables &

4PPoE (90W) Cables (continued)

N200P-050BL-IND

(50 ft. Cat6 4PPoE Cables)

Industrial USB 3.0 Cables

U325-003-IND (3 ft. USB 3.0 Cable)

U325-006-IND (6 ft. USB 3.0 Cable)

U325-010-IND (10 ft. USB 3.0 Cable)

U325-013-IND (13 ft. USB 3.0 Cable)

Industrial 4K HDMI Cables

P569-003-IND (3 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-006-IND (6 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-010-IND (10 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-012-IND (12 ft. 4K HDMI Cable, 1 water-resistant connector)

P569-003-IND2 (3 ft. 4K HDMI Cable, 2 water-resistant connectors)

P569-006-IND2 (6 ft. 4K HDMI Cable, 2 water-resistant connectors)

P569-010-IND2 (10 ft. 4K HDMI

Cable, 2 water-resistant connectors)

P569-012-IND2 (12 ft. 4K HDMI

Cable, 2 water-resistant connectors)

Industrial Duplex Multimode Fiber Patch Cables

N820-01M-IND

(1 m LC/LC Fiber Patch Cables)

N820-02M-IND

(2 m LC/LC Fiber Patch Cables)

N820-05M-IND

(5 m LC/LC Fiber Patch Cables)

N820-10M-IND

(10 m LC/LC Fiber Patch Cables)

Waterproof Cable Assembly Kit

N206-WK01-IND

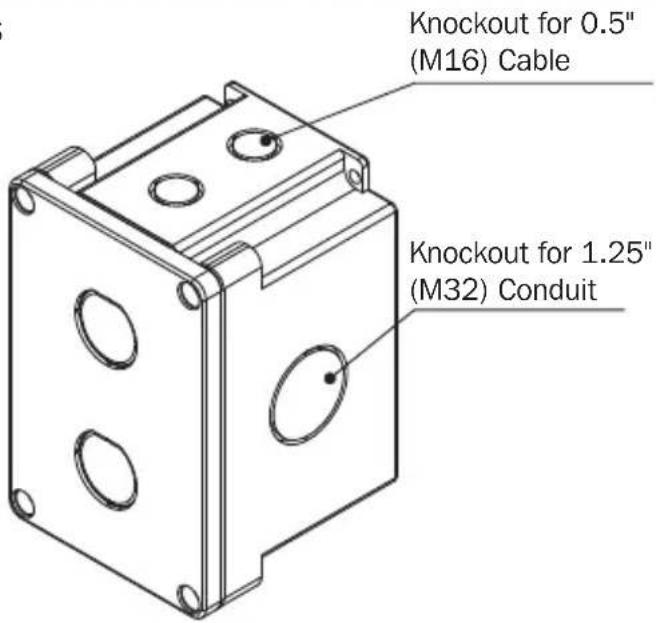

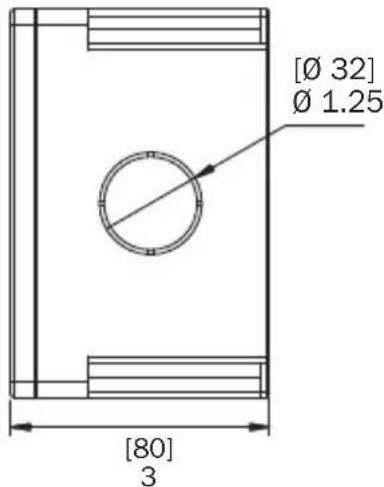

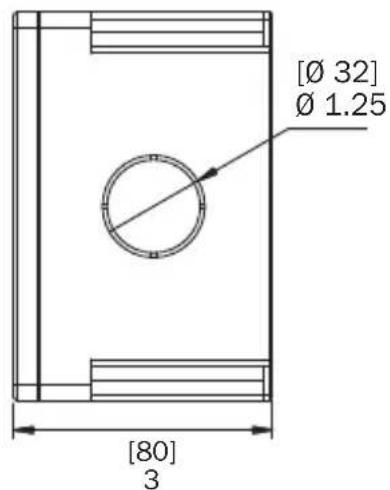

1. N206-SB01-IND Surface Mount Box Dimensions

Dimensions: [mm] INCHES

Knockout for 0.5" (M16) Cable Knockout for 1.25" (M32) Conduit

[Ø 25] Ø 1 [50] 2 [120] 4.7 [24] 1

[Ø 32] Ø 1.25 [80] 3

[107] 4.2 [50] 2 [80] 3

[32] 1.25 [Ø 13] Ø 0.5

2. Industrial Bulkhead Coupler Installation (N206-BC01-IND, U325-000-IND, P569-000-FF-IND and N455-BC01-IND)

Note: USB, HDMI and fiber solutions are also available. Screwdriver not included. Additional tools may be required to remove knockouts.

Knockout

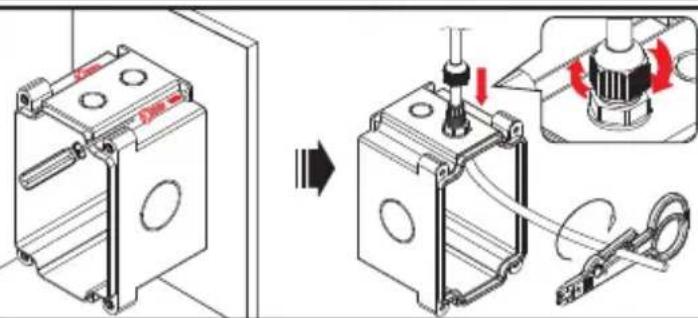

Diagram showing a mechanical assembly transformation from a housing component to a circular component, with red arrows indicating direction of movement.

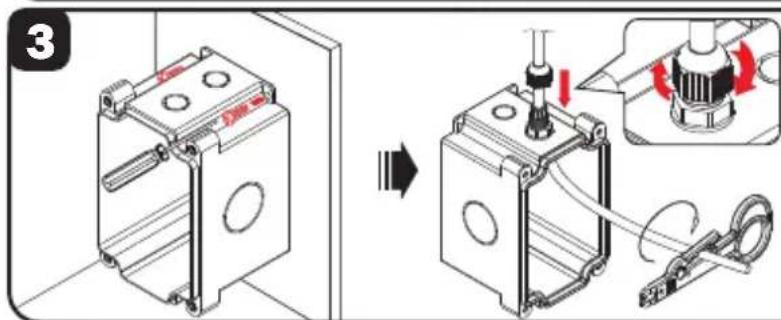

3 Note: Use the included 0.5" (M16) cable glands to complete this step.

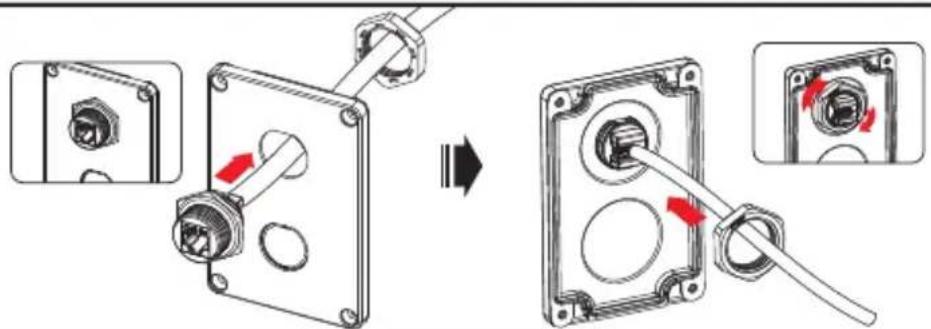

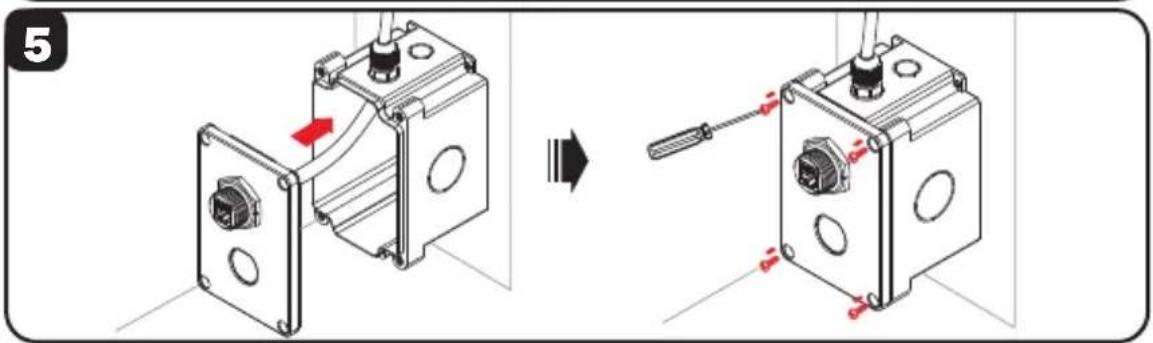

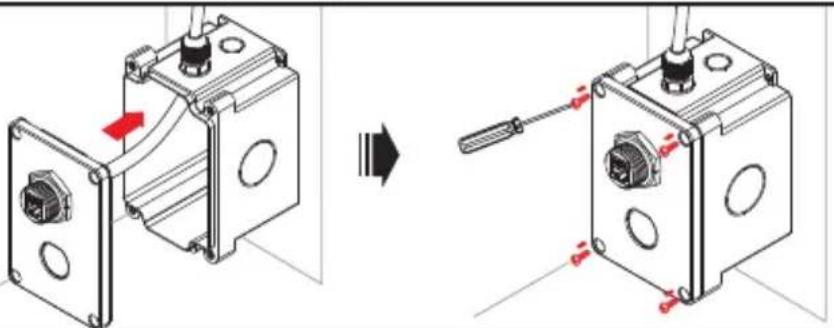

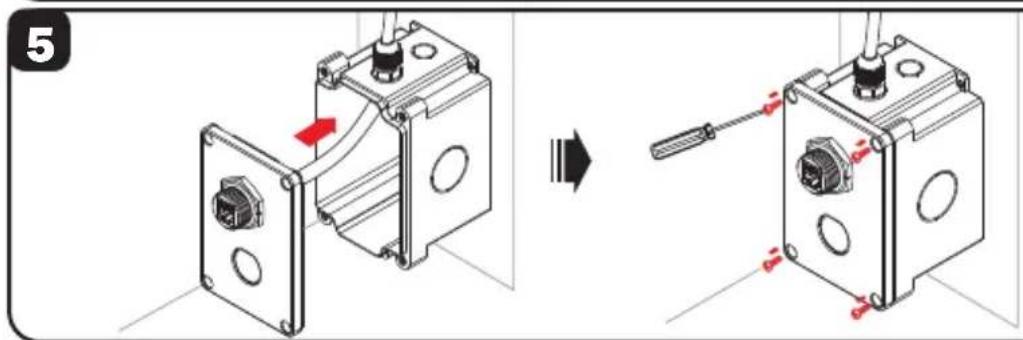

Two-step diagram showing a connector inserted into a panel, with red arrows indicating the insertion direction (no text or symbols present)

5

2. Industrial Bulkhead Coupler Installation

(N206-BC01-IND, U325-000-IND, P569-000-FF-IND and N455-BC01-IND)

6

Technical line drawing of a mechanical component before and after assembly (no text or symbols)

7

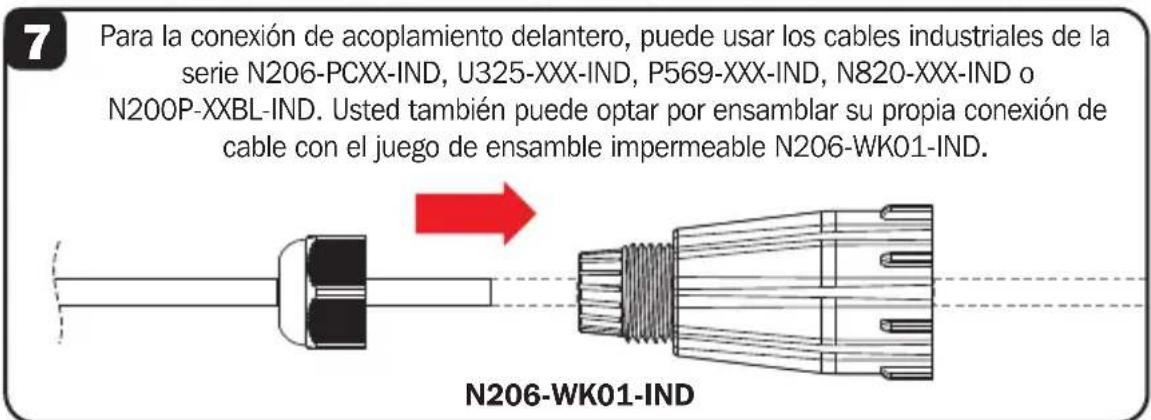

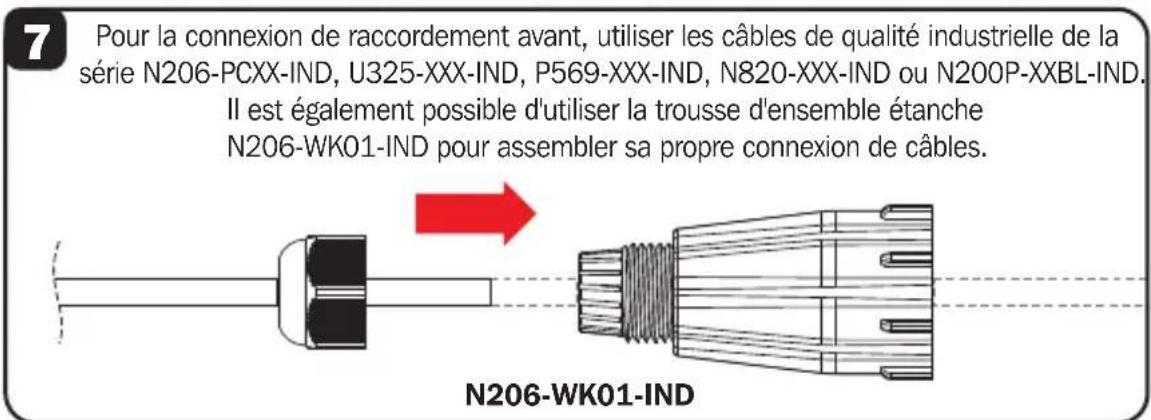

For the front mating connection, you can use the N206-PCXX-IND, U325-XXX-IND, P569-XXX-IND, N820-XXX-IND or N200P-XXBL-IND Series industrial cables. You can also choose to assemble your own cable connection using the N206-WK01-IND waterproof assembly kit.

Diagram showing a screwdriver tip interacting with a threaded connector, with an arrow indicating direction (no text or symbols present)

N206-WK01-IND

8

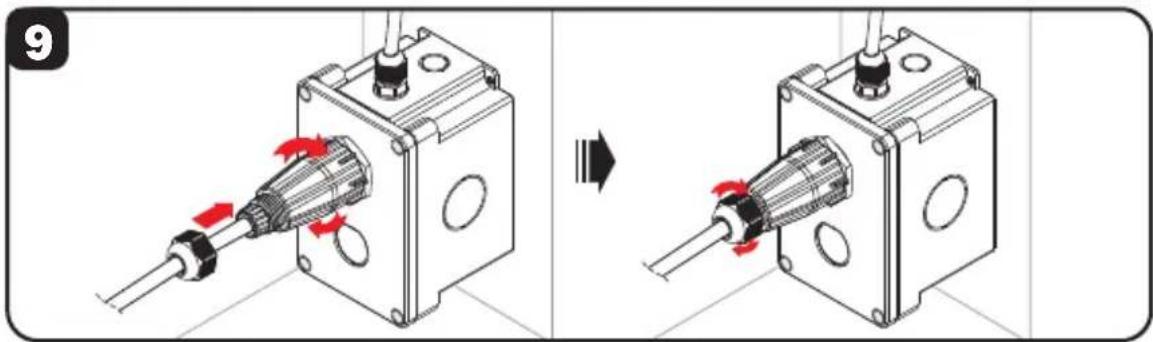

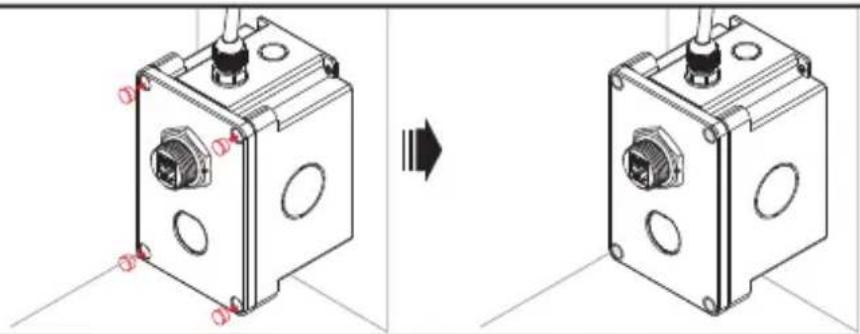

Technical illustration of a mechanical assembly showing two stages of connection (no text or symbols present)

9

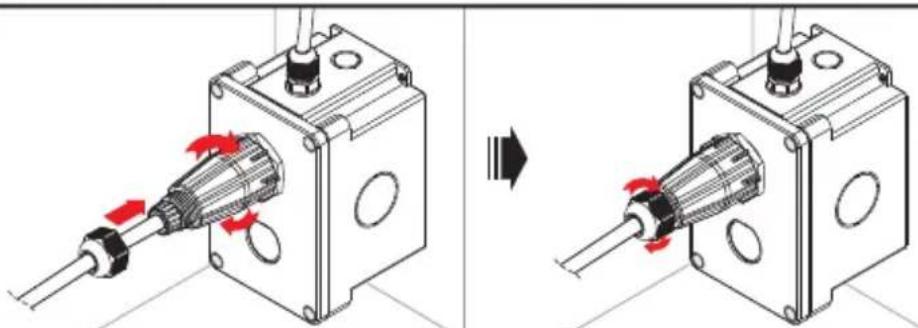

Technical illustration of a mechanical assembly showing a shaft being inserted into a housing, with red arrows indicating motion direction (no text or symbols present)

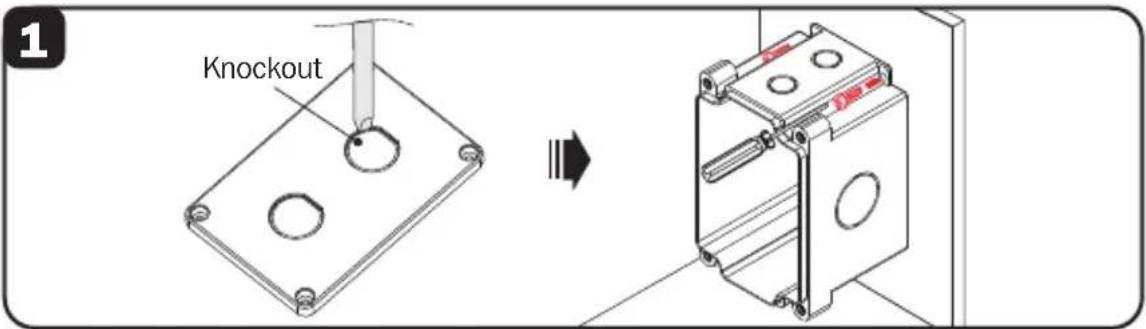

3. Industrial Keystone Jack Installation (N206-KJ01-IND)

Note: Additional tools may be required to remove knockouts.

Knockout

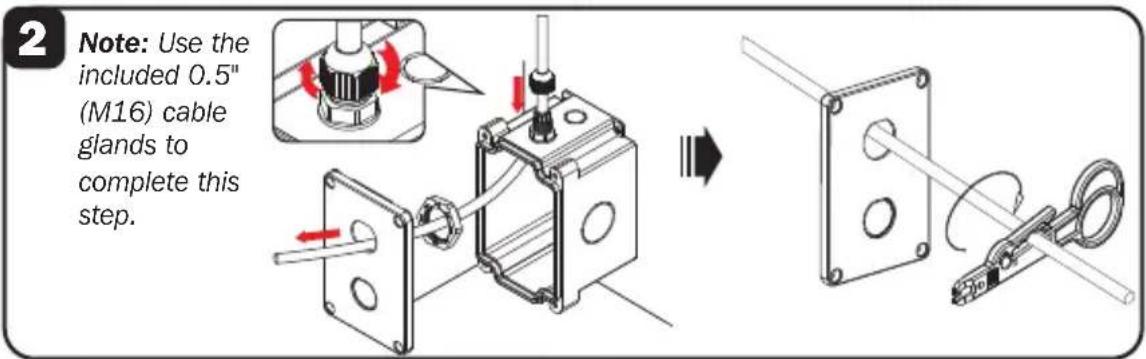

2 Note: Use the included 0.5" (M16) cable glands to complete this step.

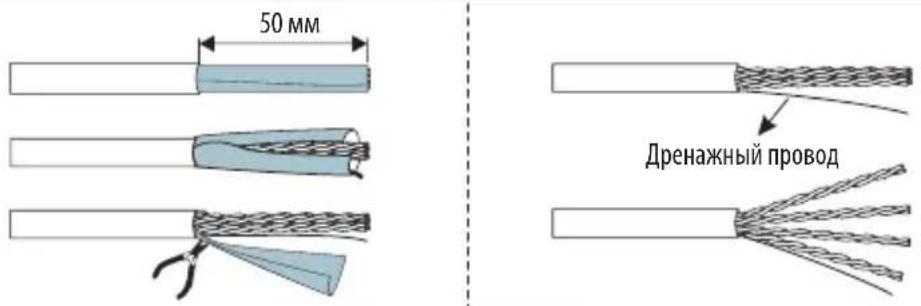

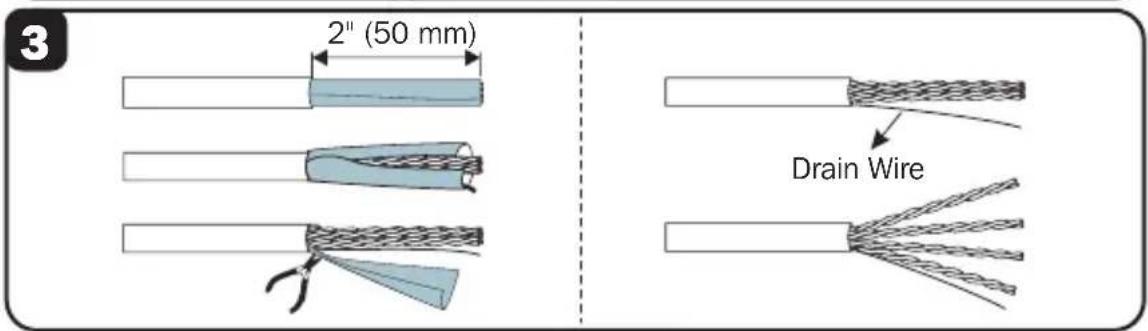

3 2" (50 mm) Drain Wire

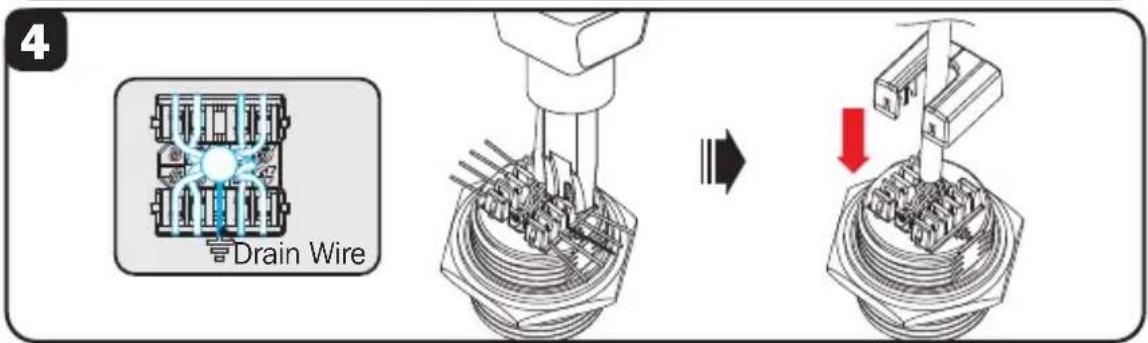

4 Drain Wire

3. Industrial Keystone Jack Installation (N206-KJ01-IND)

5

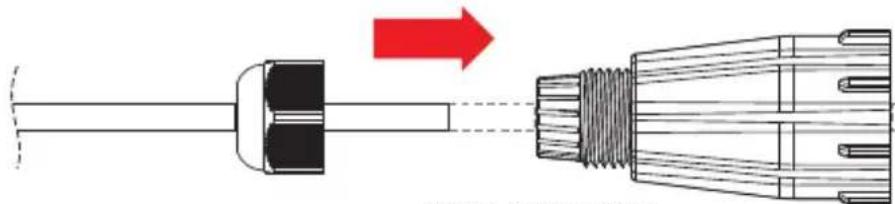

Diagram illustrating cable installation process with labeled components and directional arrows indicating movement

6

Technical illustration of a mechanical assembly showing a component being inserted into a housing, with no visible text or symbols.

7

Technical illustration of a mechanical component before and after assembly, showing cross-sections without any text or symbols

8

For the front mating connection, you can use N206-PCXX-IND Series industrial cables. You can also choose to assemble your own cable connection using the N206-WK01-IND waterproof assembly kit.

Diagram showing a screwdriver tip interacting with a threaded connector, with a red arrow indicating the process (no text or symbols present)

N206-WK01-IND

3. Industrial Keystone Jack Installation (N206-KJ01-IND)

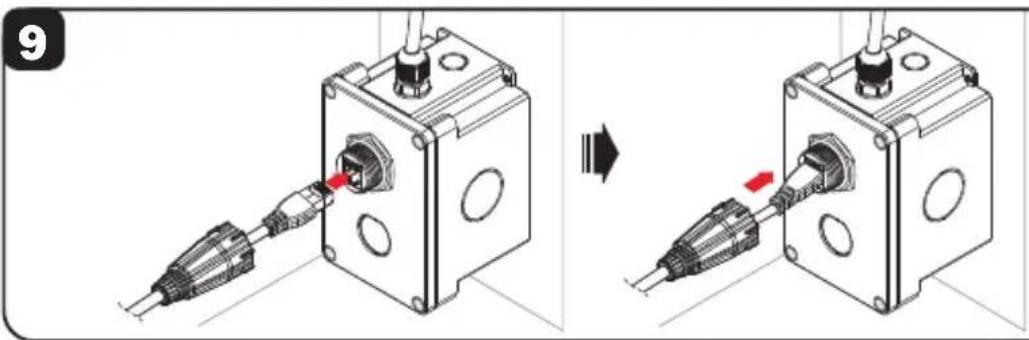

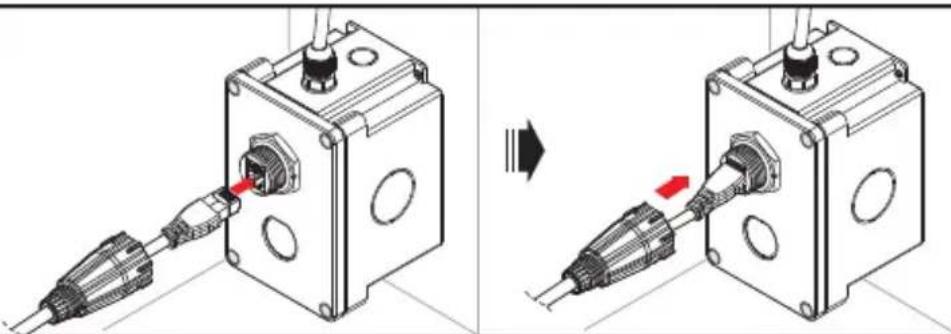

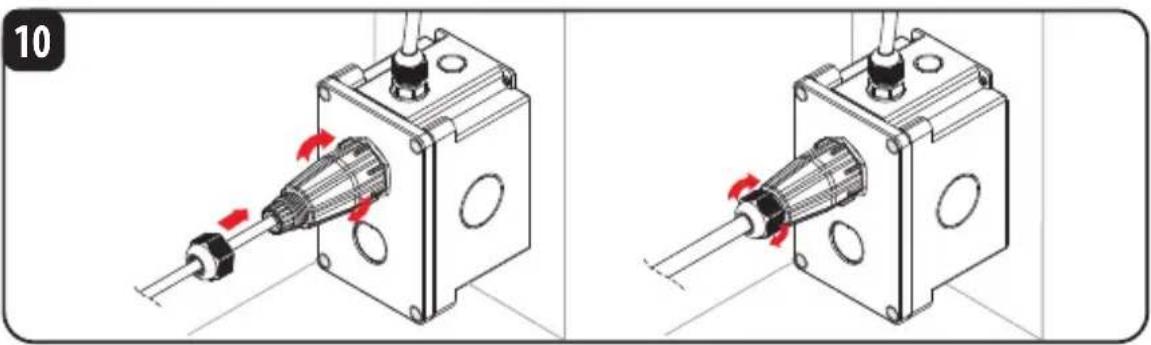

Technical illustration of a mechanical assembly showing two stages of connector insertion (no text or symbols)

Technical illustration of a mechanical component with red arrows indicating motion or assembly (no text or symbols)

4. Product Combinations for IP44 and IP68 Protection

Note: For IP68 environments (submersion in up to 1.5 m of water for 60 minutes), the N206-SB01-IND should be used (not the N206-FPXX-IND). IP68 rating of up to 1.5 m of water for up to 60 minutes is based on manufacturer's guarantee.

Faceplate	Bulkhead Couplers/ Keystone Jacks	Industrial Patch Cables/ Industrial USB 3.0 Cables		Waterproof Cable Assembly Kit
N206-FPXX-IND N	206-BC01-IND (Bulkhead Coupler)	N206-PCXX-IND (Cat5e/6 Cable)	or	N206-WK01-IND
N206-FPXX-IND N	206-KJ01-IND (Keystone Jack)	N206-PCXX-IND (Cat5e/6 Cable)		N206-WK01-IND
N206-FPXX-IND N	206-BC01-IND (Bulkhead Coupler)	N200P-XXX-IND (Cat6 4PPoE Cables)		N206-WK01-IND
N206-FPXX-IND U	325-000-IND (USB 3.0 Coupler)	U325-XXX-IND (USB 3.0 Cable)
N206-FPXX-IND P	569-000-FF-IND (4K HDMI Coupler)	P569-XXX-IND/ P569-XXX-IND2 (4K HDMI Cable)
N206-FPXX-IND N	455-BC01-IND (LC/LC Fiber Coupler)	N820-XXM-IND (LC/LC Fiber Cable)
Surface Mount Box	Bulkhead Couplers/ Keystone Jacks	Industrial Patch Cables/ Industrial USB 3.0 Cables		Waterproof Cable Assembly Kit
N206-SB01-IND	N206-BC01-IND (Bulkhead Coupler)	N206-PCXX-IND (Cat5e/6 Cable)	or	N206-WK01-IND
N206-SB01-IND	N206-KJ01-IND (Keystone Jack)	N206-PCXX-IND (Cat5e/6 Cable)		N206-WK01-IND
N206-SB01-IND	N206-BC01-IND (Bulkhead Coupler)	N200P-XXX-IND (Cat6 4PPoE Cables)		N206-WK01-IND
N206-SB01-IND	U325-000-IND (USB 3.0 Coupler)	U325-XXX-IND (USB 3.0 Cable)
N206-SB01-IND	P569-000-FF-IND (4K HDMI Coupler)	P569-XXX-IND/ P569-XXX-IND2 (4K HDMI Cable)
N206-SB01-IND	N455-BC01-IND (LC/LC Fiber Coupler)	N820-XXM-IND (LC/LC Fiber Cable)

Warranty and Product Registration

Limited Lifetime Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by Buyer delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Visit tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES.

(Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

The Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical housing component with circular holes and mounting holes (no text or symbols)

[Ø 25] Ø 1 [50] 2, [24] 1 [120] 4.7

[Ø 32] Ø 1.25 [80] 3

[107] 4.2 [50] 2, [80] 3

[32] 1.25 [Ø 13] Ø 0.5

2. Instalación de Acoplador de Mampara Industrial (N206-BC01-IND, U325-000-IND, P569-000-FF-IND y N455-BC01-IND)

Technical illustration of a mechanical component before and after assembly (no text or symbols)

Technical illustration showing two stages of a mechanical assembly: one with a red connector inserted into a housing, the other with a black connector inserted into a housing (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction of motion (no text or symbols present)

3. Instalación de Conector Industrial Keystone (N206-KJ01-IND)

Diagram illustrating cable installation process with labeled components and directional arrows indicating movement

6

Technical illustration of a mechanical assembly showing a component being inserted into a housing, with no visible text or symbols.

7

Technical illustration of a mechanical component before and after assembly, showing cross-sections without any text or symbols.

8

Diagram showing a connector being inserted into a socket, with a red arrow indicating the direction (no text or symbols present)

N206-WK01-IND

3. Instalación de Conector Industrial Keystone (N206-KJ01-IND)

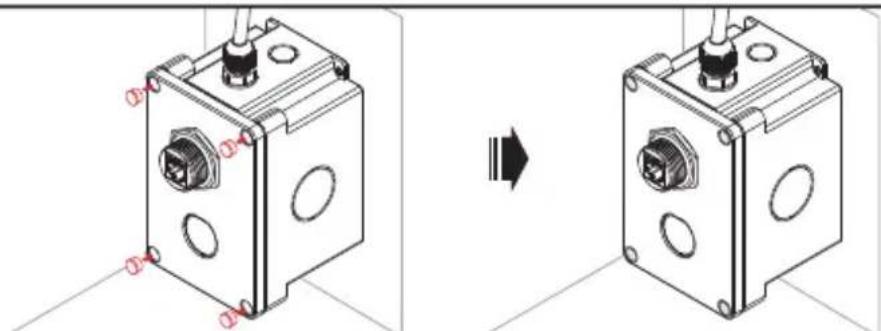

Technical illustration of a mechanical assembly showing two stages of connector insertion (no text or symbols)

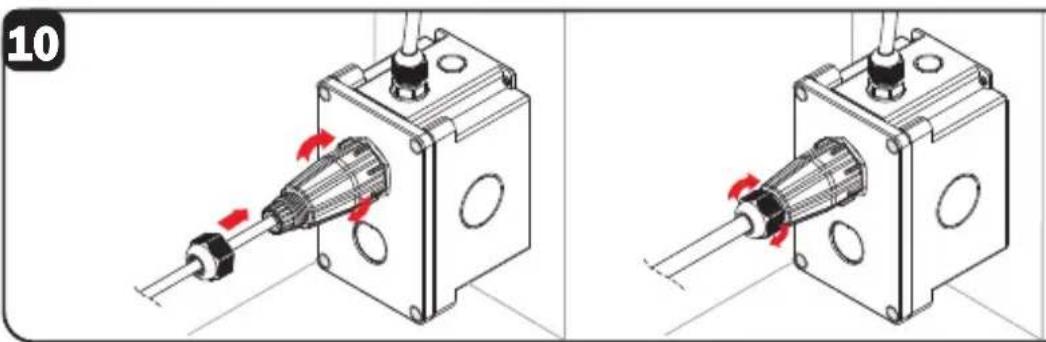

Technical illustration of a mechanical component with red arrows indicating motion or assembly (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

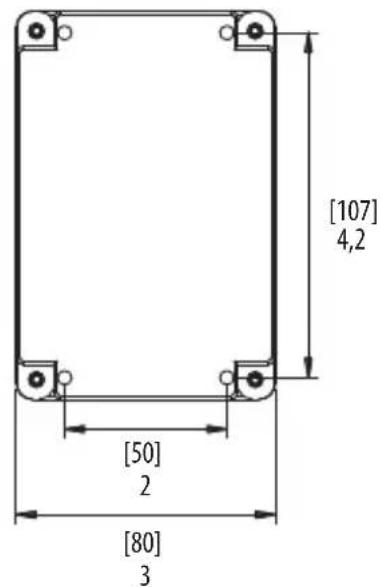

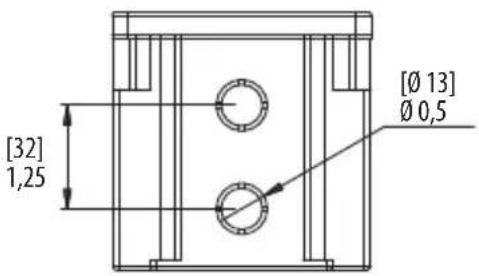

Technical line drawing of a mechanical housing component with circular holes and mounting holes (no text or symbols)

[Ø 32] Ø 1,25 [80] 3

[107] 4,2 [50] 2 [80] 3

[32] 1,25 [Ø 13] Ø 0,5

Diagram showing a device mounting mechanism with red arrows indicating rotation and change in the component.

3

Technical illustration showing two installation steps of a mechanical component with a red arrow indicating the direction (no text or symbols present)

5 →

Technical illustration of a mechanical component before and after assembly (no text or symbols)

Technical illustration showing two stages of a mechanical assembly: one with a red connector inserted into a housing, the other with a black connector inserted into a housing (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction of motion (no text or symbols present)

Diagram illustrating cable installation process with labeled components and directional arrows indicating movement

6

Technical illustration of a mechanical assembly showing a component being inserted into a housing, with no visible text or symbols.

7

Technical illustration of a mechanical component before and after assembly, showing cross-sections without any text or symbols

8

Diagram showing a connector being inserted into a socket, with a red arrow indicating the direction (no text or symbols present)

N206-WK01-IND

Technical illustration of a mechanical assembly showing two stages of connector insertion (no text or symbols)

Technical illustration of a mechanical component with red arrows indicating motion or assembly (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

[Ø 32] Ø 1,25 [80] 3

[107] 4,2 [50] 2 [80] 3

[32] 1,25 [Ø 13] Ø 0,5

Diagram showing two views of a mechanical component with red arrows indicating rotation, no text or symbols present

3

Technical diagram showing a mechanical assembly before and after disassembly, with labeled components and directional arrows indicating process flow.

Technical illustration of two electrical connector assemblies with a red arrow indicating connection point (no text or symbols present)

5

Technical illustration of a mechanical assembly showing a component being rotated, with no visible text or symbols.

Technical line drawing of a mechanical component before and after assembly (no text or symbols)

7

Diagram showing a connector being inserted into a socket, with a red arrow indicating the direction (no text or symbols present)

N206-WK01-IND

8

Technical illustration of a mechanical assembly showing two stages of connection to a component (no text or symbols present)

9

Technical illustration of a mechanical assembly showing a shaft being inserted into a housing, with red arrows indicating motion direction (no text or symbols present)

Technical diagram illustrating the assembly of a mechanical component with labeled parts and directional arrows indicating motion.

3

Diagram illustrating cable installation process with labeled components and directional arrows indicating movement

6

Technical illustration of a mechanical assembly showing a component being inserted into a housing, with no visible text or symbols.

7

Technical illustration of a mechanical component before and after assembly, showing cross-sections without any text or symbols

8

Technical illustration of a mechanical assembly showing two stages of tool insertion (no text or symbols)

Technical illustration of a mechanical assembly with two views showing a pin inserted into a housing (no text or symbols present)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
