Product Type	USB-C Video Adapter with Hub
Brand	Tripp Lite
Model	U444-06N-H4GUSC
Input Connector	USB-C (Male)
Output Connectors	HDMI (Female), USB-A (Female), RJ45 (Female)
Maximum Video Resolution	3840 x 2160 (4K UHD)
Refresh Rate	30 Hz or 60 Hz
HDR Support	No
USB-C Port Data Support	Yes (up to 5 Gbps)
USB-A Hub Port	Yes (1 port, output 5V 1.5A)
Gigabit Ethernet Port	Yes (10/100/1000 Mbps)
USB-C PD Power	Input up to 20V 5A (100W)
USB-A Output	5V 1.5A (5W)
USB Data Transfer	Up to 5 Gbps (USB 3.2 Gen 1)
Plug and Play	Yes, no driver required
Operating Temperature	0°C to 45°C
Storage Temperature	-10°C to 70°C
Operating Humidity	10% to 85% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing
Warranty	3-year limited
Package Contents	Adapter, user manual
Optional Accessories	HDMI cables P568-Series, USB cables U322/U326, Cat6 cable N201-Series, USB-C cable U420-003
Compatibility	Computers, tablets with USB-C port and DisplayPort Alt Mode
Certification	FCC Class B

Frequently Asked Questions - U44406NH4GUSC Tripp Lite

How to connect the Tripp Lite U44406NH4GUSC adapter?

Plug the adapter's USB-C connector into your computer's USB-C port. Connect an HDMI cable between the adapter and your monitor. For charging, plug your USB-C charger into the adapter's USB-C port. USB devices connect to the USB-A port, and network to the RJ45 port.

What is the maximum supported resolution?

The adapter supports Ultra HD 4K resolution up to 3840 x 2160 at 30 or 60 Hz depending on your hardware.

Can I charge my laptop through this adapter?

Yes, the adapter's USB-C port supports USB Power Delivery charging up to 20V 5A (100W), allowing you to charge your device while using the other ports.

Does the adapter require drivers?

No, the adapter is Plug and Play. No additional software or drivers are required, provided your computer supports DisplayPort Alternate Mode on its USB-C port.

Which HDMI cables to use with this adapter?

Tripp Lite recommends using high-speed HDMI cables from the P568 series to ensure optimal 4K image quality.

Does the adapter support HDR?

No, the U444-06N-H4GUSC model does not support HDR. Only the U444-06N-HDR-W model supports HDR.

How to use the Ethernet port?

Connect an RJ45 cable (Cat5e/6) between the adapter's Ethernet port and your network. The network connection establishes automatically. Otherwise, configure it manually in your computer's network settings.

Does the adapter work with a Mac or PC?

Yes, the adapter is compatible with any device with a USB-C port that supports DisplayPort Alternate Mode, whether it's a Mac, Windows PC, Android tablet, etc.

What to do if the image does not display on the monitor?

Check that the HDMI cable is properly connected on both ends and that the monitor is turned on and set to the correct source. Ensure your computer supports DisplayPort Alt Mode. Try a different HDMI cable or another USB-C port.

What data transfer speed does the USB-A port offer?

The USB-A port offers transfer speeds up to 5 Gbps (USB 3.2 Gen 1) and provides an output of 5V 1.5A (5W) to charge your peripherals.

USER MANUAL U44406NH4GUSC Tripp Lite

USB-C® to HDMI Adapters

USB 3.2 Gen 1 to 4K HDMI

Models:

(Charging)

U444-06N-H4-C, U444-06N-H4B-C

(USB-A and USB-C Hub Ports)

U444-06N-H4U-C

U444-06N-H4UB-C

U444-06N-H4GUSC

(Gigabit Ethernet+

USB-A Hub Port+Charging)

U444-06N-H4GU-C

U444-06N-H4GUBC

(HDR Support)

U444-06N-HDR-W

Español 11

Français 20

Deutsch 30

Italiano 40

Powering Business Worldwide

Package Includes

• U444-06N-H4-C, U444-06N-H4B-C, U444-06N-H4U-C, U444-06N-H4UB-C, U444-06N-H4GU-C, U444-06N-H4GUBC, U444-06N-H4GUBC, U444-06N-H4GUSC or U444-06N-HDR-W

- Owner's Manual

Optional Accessories

• P568-Series High-Speed HDMI Cables
• U322-Series USB A/B Device Cables
• U326-Series USB Micro-B Device Cables
• N201-Series Cat6 Gigabit Snagless Patch Cables
- U420-003 USB 3.2 Gen 1 USB-C Male/Male Cable – 3 ft.

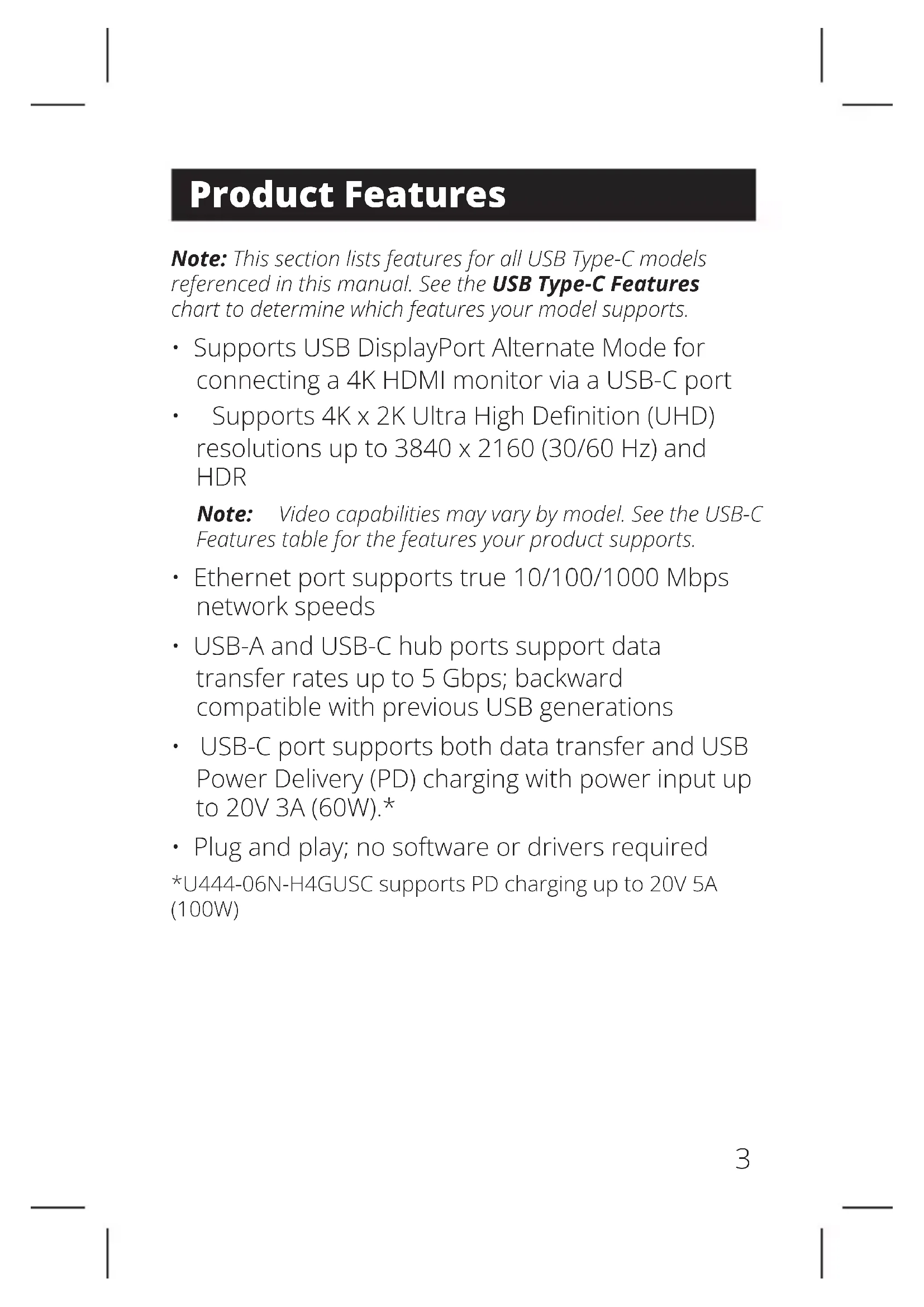

Product Features

Note: This section lists features for all USB Type-C models referenced in this manual. See the USB Type-C Features chart to determine which features your model supports.

• Supports USB DisplayPort Alternate Mode for connecting a 4K HDMI monitor via a USB-C port
• Supports 4K x 2K Ultra High Definition (UHD) resolutions up to 3840 x 2160 (30/60 Hz) and HDR

Note: Video capabilities may vary by model. See the USB-C Features table for the features your product supports.

- Ethernet port supports true 10/100/1000 Mbps network speeds

- USB-A and USB-C hub ports support data transfer rates up to 5 Gbps; backward compatible with previous USB generations

- USB-C port supports both data transfer and USB Power Delivery (PD) charging with power input up to 20V 3A (60W).*

- Plug and play; no software or drivers required *U444-06N-H4GUSC supports PD charging up to 20V 5A (100W)

Product Features

USB Type-C Features

Models	4K HDMI Port	USB-A Hub Port	Gigabit Ethernet Port	USB-C Port Charging Support	USB-C Port Data Support	HDR Video Support
U444-06N-H4-C	Y	N	N	Y	N	N
U444-06N-H4B-C	Y	N	N	Y	N	N
U444-06N-H4U-C	Y	Y	N	Y	Y	N
U444-06N-H4UB-C	Y	Y	N	Y	Y	N
U444-06N-H4GU-C	Y	Y	Y	Y	N	N
U444-06N-H4GUBC	Y	Y	Y	Y	N	N
U444-06N-H4GUSC	Y	Y	Y	Y	Y	N
U444-06N-HDR-W	Y	N	N	N	N	Y

Installation

Note: When the unit is connected to the USB-C port on your computer and to a network via Cat5e/6 cabling, a network connection will be automatically established. If no connection is made, you can manually establish one by going to your computer's network settings page. For example, on a Mac you would navigate to the Network section found in System Preferences, click the 'Assist Me' button to get to the Network Setup Assistant, then follow the prompts to establish a connection.

1. Connect the adapter's USB Type-C connector to the USB-C port on your laptop, tablet or other compatible device.
2. Connect the adapter's HDMI port to the monitor's HDMI port using an HDMI cable (such as P568-Series HDMI cables).
3. Charge your device by connecting its USB-C charger to the adapter's USB-C port.*
4. Connect a USB device to the adapter's USB-A hub port.**
5. Connect the adapter's RJ45 port to a network using a UTP cable (such as N201-Series Cat6 cables).**

*USB-C port for models U444-06N-H4U-C, U444-06N-H4GUBC or U444-06N-H4GUSC supports both data transfer and charging.

**See the USB Type-C Features table for the features your product supports.

Specifications

Models	U444-06N-H4-C	U444-06N-H4B-C	U444-06N-H4U-C	U444-06N-H4UB-C
Input Connectors
USB USB-C (Male)
USB-C Port Charging Support	Y
USB-C Port Data Support	N		Y
Output Connectors
4K HDMI HDMI (Female)
USB N/A USB-A (Female)
Ethernet N/A N/A
Environmental
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 85% RH, Non-Condensing
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Storage Humidity	5% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging Port	Supports up to 20V 3A (60W) Input
USB-A Port N/A			Provides up to 5V 1A (5W) Output

Specifications

Models	U444-06N-H4GU-C	U444-06N-H4GUBC	U444-06N-H4GUSC	U444-06N-HDR-W
Input Connectors
USB USB-C (Male)
USB-C Port Charging Support	Y			N
USB-C Port Data Support	N Y N
Output Connectors
4K HDMI HDMI (Female)
USB USB-A (Female)	N/A
Ethernet RJ45 (Female)	N/A
Environmental
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 85% RH, Non-Condensing
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Storage Humidity	5% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging Port	Supports up to 20V 3A (60W) Input		Supports up to 20V 5A (100W)	N/A
USB-A Port	Provides up to 5V 1A (5W) Output		Provides up to 5V 1.5A (7.5W)	N/A

Warranty

3-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Regulatory Compliance

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Regulatory Compliance

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2023 Eaton

All Rights Reserved

Publication No.

23-07-562 /

93-36FB_RevG

July 2023

Eaton is a registered trademark.

All trademarks are property of their

respective owners.
