USER MANUAL N785INTLCMM Tripp Lite

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

Product Features

• N785-INT-SC extends a 10/100/1000 Mbps Ethernet connection over multimode fiber cable up to 2000 m
• N785-INT-LC-MM and N785-INT-SC-MM extend a 10/100/1000 Mbps Ethernet connection over multimode fiber cable up to 550 m
• LED indicators monitor the Ethernet and fiber link status of the media converters
  Supports both full-duplex and half-duplex operation
  Supports Auto MDI / MDI-X
• Includes an international power supply with compatible North American, U.K., European (Schuko) and Australian plug adapters

Package Contents

Media Converter
- External Power Supply* (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
Owner's Manual

• Includes NEMA 5-15P (North America), CEE 7/16 Schuko (Europe), BS 1363 (U.K.) and AS/NZS 3112 (Australia) plugs.

Optional Accessories

• N001-Series Cat5e Snagless Patch Cables
  N201-Series Cat6 Snagless Patch Cables
• N306-Series Duplex Multimode 62.5/125 Fiber Patch Cables (SC/SC)
• N320-Series Duplex Multimode 62.5/125 Fiber Patch Cables (LC/LC)
• N506-Series Duplex Multimode 50/125 Fiber Patch Cables (SC/SC)
• N520-Series Duplex Multimode 50/125 Fiber Patch Cables (LC/LC)

Installation

Notes:

1. The following installation instructions refer to an installation in which two media converters are used.
2. The installation diagram on the next page features a N785-INT-LC-MM. Connections are the same for all models, with only the specs of the media converter being different. (See the Specifications section in this manual for details on your media converter.)
3. To avoid damage due to Electrostatic Discharge (ESD), it is recommended you handle the product while wearing an ESD wrist grounding strap or by touching a conductive surface (such as metal) to discharge any potential ESD prior to handling the product.

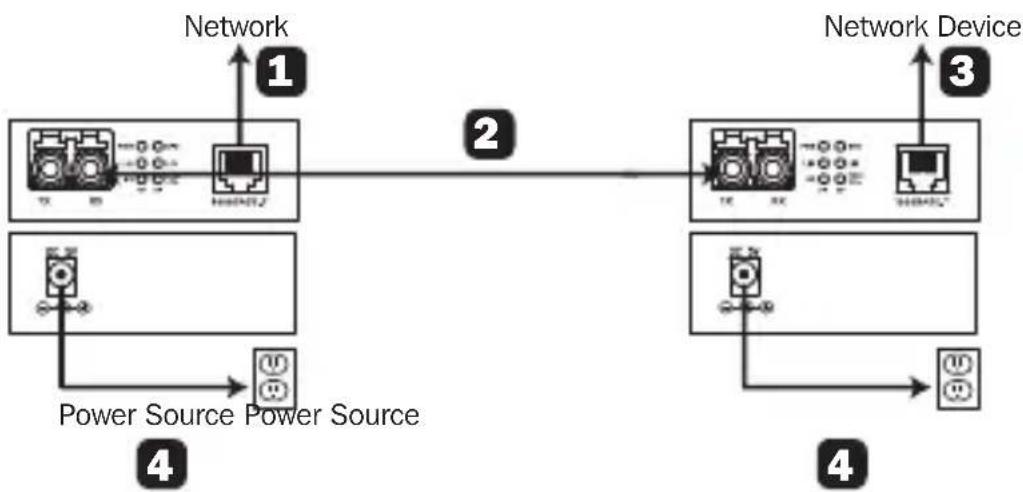

Installation

1 Connect the RJ45 port on the media converter to your network using a Cat5e/6 cable.
Connect the media converter to a second identical media converter using the appropriate type of fiber cable, making sure to connect the TX port on one unit to the RX port on the other. Note: Reference the Product Features section to determine which type of fiber cable is supported by your media converter.
3 Connect the RJ45 port on the second media converter to your network device (workstation, hub, switch, etc.) using a Cat5e/6 cable.
4 Connect the external power supplies that came with each media converter, and plug them into a power source.

LED Status Table

LED Status Description
FP-PWR On The unit is powered on
FP-PWR Off The unit is not powered on
FP-L/A On A link is detected between the connected fiber ports
FP-L/A Blinking Fiber data transmission is taking place
FP-L/A Off No link is detected between fiber ports
FP-SD On A fiber signal is detected
FP-SD Off No fiber signal is detected
TP-SPD On 1000 Mbps
TP-SPD Off 100 Mbps
TP-L/A On A UTP link is detected
TP-L/A Blinking UTP data transmission is taking place
TP-L/A Off No UTP link is detected
TP-FDX/COL On The unit is operating in Full-Duplex mode
TP-FDX/COL Off The unit is operating in Half-Duplex mode

Specifications

Specification N785-INT-LC-MM N785-INT-SC-MM N785-INT-SC
Optical Wavelength (nm) Multimode	(850)
Network Speed (Mbps) 10/100/1000
Transmission Distance 550 m	(1804 ft.)	2000 m (6561 ft.)
Duplex Mode Full / Half (Auto-Detect)
Optical Output Power Range (dBm) -8 to -3
Optical Input Power Range (dBm) ≤ -19
Power Budget (dBm) 11
Power Supply Input 100-240V, 50/60 Hz
Power Supply Output 5V 2A
Operating Temperature 0° to 60°C (32° to 140°F)
Storage Temperature -20° to 70°C (-4° to 158°F)
Relative Humidity 5 to 90% RH, Non-Condensing
Unit Dimensions [H x W x D]	25 x 94 x 71 mm (1 x 3.7 x 2.8 inches)
Unit Weight	0.47 kg (1.03 lb.)	0.45 kg (1 lb.)

Warranty & Product Registration

2-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of two (2) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA. Seller will pay return shipping charges.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of this device for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register the warranty for your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warranty & Product Registration

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support

PykoBODCTBO NOIb3OBaTeJIa

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support

Oxpanyetcay ABTOPCKIM npaBOM © 2018 Tripp Lite. Pepeneuataka 3anpeuaetcra.

XapakTepnCTnKn npOdyKTa

• Uстpoист bo N785-INT-SC Bылняет ровь
• удинітеля coeиненя 10/100/1000 M6nt/c Ethernet
• чез MHorOMOДOBьВ BOLOKOHHO-ONTNUeCKN Ka6elь
• на пастоанne до 2000 m
• Uстpoиства N785-INT-LC-MM и N785-INT-SC-MM Выллягот ров удлинтулся coeиненя 10/100/1000 M6nt/c Ethernet чез мhorомоювь волоконноTNческий кабелha paocstогнene do 550 m
  CBeToIIOHbIe HnIKaTOpbl KOHTPOIpnyOT CTatYc Ethernet- nOnTOBOLOKOHHO KaHaNoB KOHBepTePoB cpebl nepedaun daHHbx
• Повдержka понodyупексоги NOJydyupeKCHOROpexIMOB pa60TbI
• Поведжka Auto MDI / MDI-X
  KOMJIeKTyEtc86JOKOMIITaHmMeJyHaOpDHorO 6bpa3ca co wTeNceJB-NEpeXoHNKaMn dJIa NOdkIIOueHnK PO3eTKam 3JeKTPnueCKnx CeTei cBeBepoAmePnKaHcKO,6pNTaHcKO,EBponeckoro (Schuko) n aBCTpaIIINCKoro cTaHdapTOB

Copexnmoe ynaKOBKn

KoHBePTeP cpeI nepeaun daHHbIX
BheuHn6Iok nTaHna* (BxoD: 100-240 B; 50/60 Tc; 0,35 A; BbIXoD: 5 B, 2 A)
PykoBoDCTBO NOIb3OBaTeJIa
* Komплектуеташтенильные разberами NEMA 5-15P (Северая Ам扼иka), CEE 7/16 Schuko (Еврona), BS 1363 (Велкообравлия) и AS/NZS 3112 (Астразлия).

Copejkmoe ynaKOBKn

• Be3pa3pbIBHbIe coeINHITeJIbHbIe Ka6eI Cat5e cepIN N001
• Be3pa3pbBbIe coeINHITbHbIe ka6eJI Cat6 cepnn N201
• Дуликовные многомоные седип海内外 Кабел 62.5/125 capn N306 (с разьем Am SC/SC)
  -Дупексы MHorOMoObBie COeINHtIbHbIe Ka6eJI62.5/125 cepnN N320 (c pa3bemamn (LC/LC)
  -Дупileкные MHOROMODOBlie COeINHTeHbHbIe Ka6eJI50/125 cepn N506 (c pa3beMaMn SC/SC)
  -Дупексы MHorOMoObBie COeINHtIbHbIe Ka6eJI50/125 cepnn N520 (c pa3bemamn (LC/LC)

yctahobka

Приимechаня:

1.ИЗложенные Нже указаши NO yctaHOBKe OTHOcTcK cnCTeMe C nCNoJIb3OBAHNem DByX KOHBepTePOB cpebl npenpaun naHHbIX
2. Ha cxeme yctaHOBKn, npnbedeHNO ha cJeDyUoSei CTpaHnue, npedCTabIeNo yctpoNcTBO moJeN N785-INT-LC-MM.Cxema coeHNHeHn YBnAETcR OOnHaKOBo Ira BcEx MoJeN, a pa3JIuHaOTcra TOnbKO TexHnueCKne XapaKTePncTNI KOHBepTePOB. (IOpO6HyIO INΦOpMaunIO CBOEM KOHBepTepe CM. B pa3dJe "TexHnueCKne XapaKTePncTNI" HactOJUeRO pYKOBODCTBa).
3.Bo n36eKaHne BbIXOda n3 cTpoBpe3yIbTaTe 3JIeKTPoCTaTnueCKOro pa3PraDa (3CP) peKOMeHdyEtcra HaDeBaTb 3a3eMnIouuIb6pacJeT npi pa6Ote C n3deJIIneM IIN OTBOIDITb IIO60B O3MOxHbI 3CP nyTem npIKOCHOBeHna K IpOBOJaIeN (HaIPmEp, MeTaJIInueCKoI) NOBepXHOCTn Ipeed HauaIOM pa6OTbl C HIM.

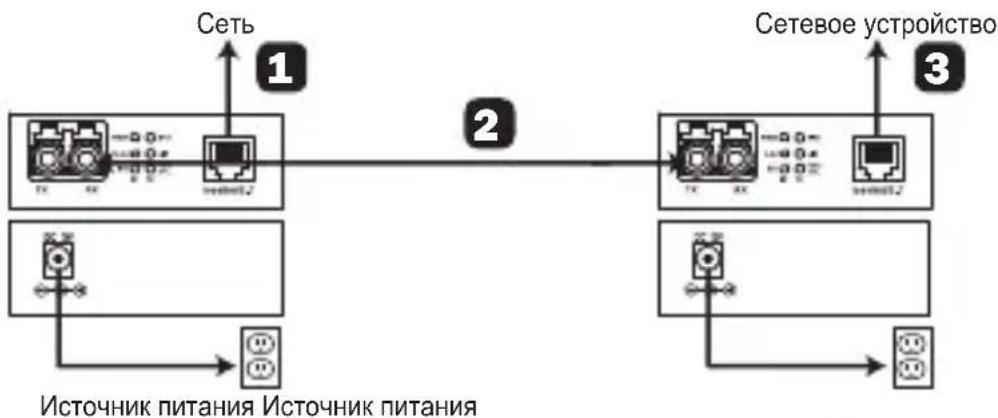

YctaHOBka

1 Порклочи порт RJ45 коньерета срдыпегдачданньх К сбоe сети чез ka6elbCat5e/6.
2 IopcoeHHTe KOHBePcpeBtpepaHbIX Kdpyromy HENTUHOMy C Hm KOHBePepy uepe3 BOJOKOHHO-ONTueckn Kaebb COOTBEcTBYIOeTo Tnpa; npn 3tOM nepeaOuNn nopT (TX) Ondoro MOdUJI DOJKeH IOCoEHNHTbcr K pnpemHomy nopTy (RX) dpyroro moDyIa.

Примechан. Дя onpeдени.Tиа BOJOKOHNOONTчecKOrO Ka6eЯ, NOДерЖИBaEMORO KOHBepTePOM cpeblnepaHn daHHbIX, CM. pa3deI "XapakTePncTnKn npodykTa".

3 IopknHouHTe npT RJ45 BToporo KOHBepTepa cpebl nepeDaun DaHHbIX K CBOemy CeTeBOMy ycTpoiCTBy (pa6oey CTaHcnn, xa6y, kOMMyTaTopy n np.) uepe3 ka6eIb Cat5e/6.
4 IopcoeHHte BHeHnne 6IOKn NITaHnay, NOCTaBnaEMbIe B KOMJIeKTe C KaJdbIM KOHBepTePOM CpeIbI nepeDaun DaHHbIX, INoDKJIIOHTe IX K INCTOCHNY 3JIeKTpONITaHnay.

4
4

Ta6JIuca coCtOJHn CBETODNoDHBIX NHdNKaTOPOB

СИД Статус	Опесане
FP - PWR Горьт Питынице устroduя STВКЛЮЧЕно	Можду сецу StВКЛЮCHЕно
FP - PWR Выключени StВКЛЮCHЕно	Можду сецу StВКЛЮCHЕно
FP - L/A Горьт Можду сецу StВКЛЮCHЕно	Можду сецу StВКЛЮCHGEStВКЛЮCHGE
FP - L/A Мигаert Имeel Т mecentо пeredача данных по оптовоглочиму каналу	Можду сецу StВКЛЮCHGEStВКЛIOCHGE
FP - L/A Выключени StВКЛIOCHGEStВКЛIOCHGE
FP - SD Горьт Оснаружен StВКЛIOCHGE
FP - SD Выключени StВКЛIOCHGE
TP - SPD Горьт 1000 MбNT/c	Оснаружен StВКЛIOCHGE
TP - SPD Выключени StВКЛIOCHGE
TP - L/A Горьт Оснаружен UTP-kanal	Оснаружen UTP-kanal
TP - L/A Мигаert Имeel Т mecentо пeredача данных по UTP-kanalу	Оснаружen
TP - L/A Выключени UTP-kanal	Оснаружen
TP - FDX/COL Горьт Устroduя StВКЛIOCHGE
TP - FDX/COL Выключени USTROБУSTDUПLEKCHOM ржиме	Оснарvey StВКЛIOCHGE

Texhnueckne xapakTepnCTnKn
