USER MANUAL P137GHDVV2K Tripp Lite

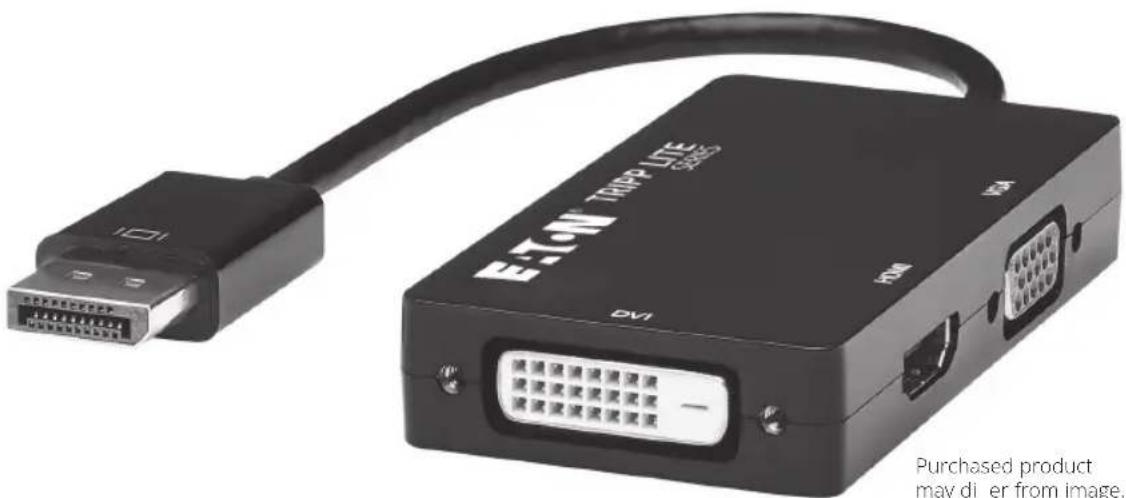

DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter

Models: P136-06N-HDV-4K

Mini DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converters

P137-06N-HDV-4K P137-06N-HDV4KW

Español 5

Français 9

Deutsch 13

Italiano 17

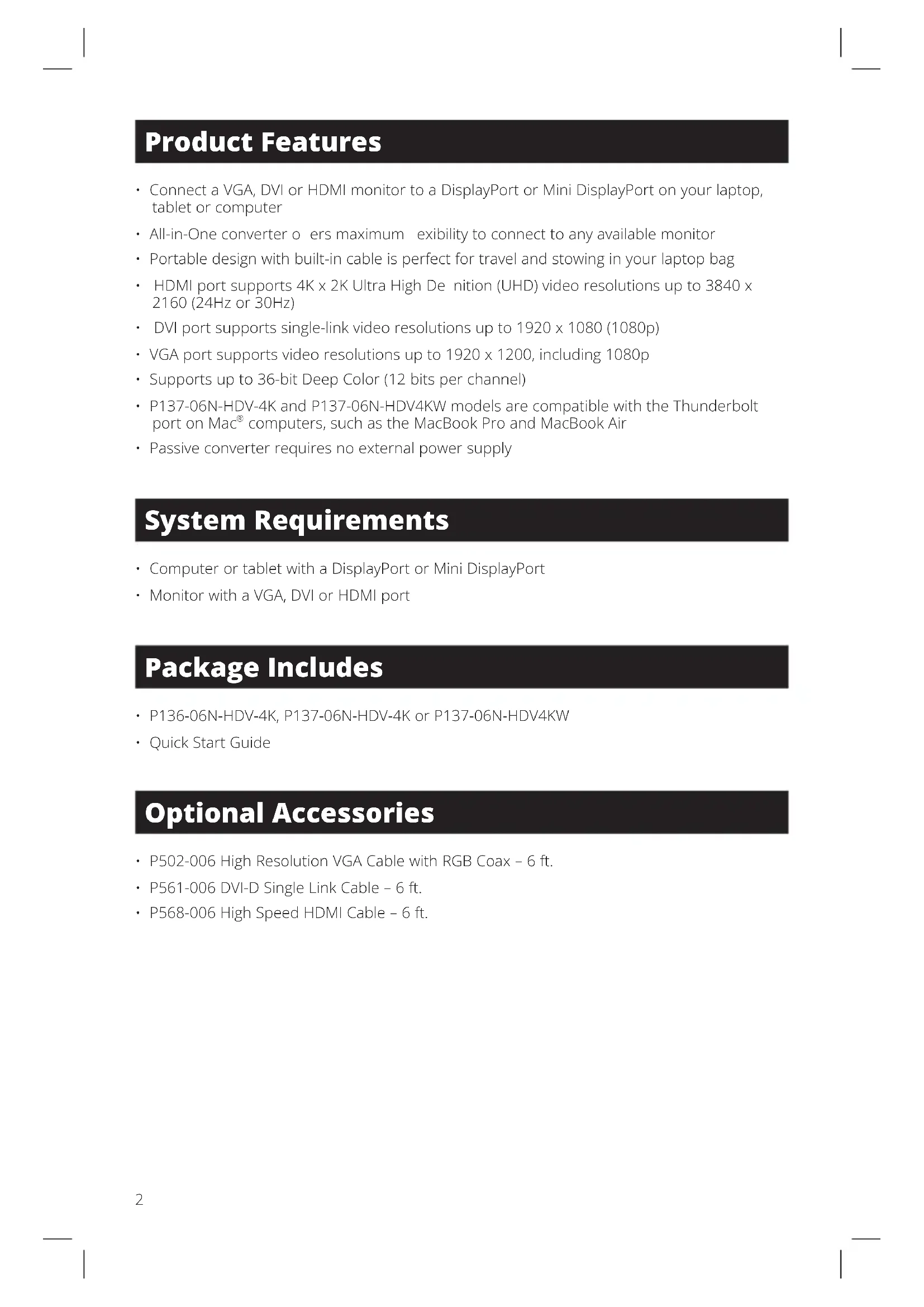

Product Features

• Connect a VGA, DVI or HDMI monitor to a DisplayPort or Mini DisplayPort on your laptop, tablet or computer
• All-in-One converter offers maximum exibility to connect to any available monitor
• Portable design with built-in cable is perfect for travel and stowing in your laptop bag
• HDMI port supports 4K x 2K Ultra High De nition (UHD) video resolutions up to 3840 x 2160 (24Hz or 30Hz)
  • DVI port supports single-link video resolutions up to 1920 x 1080 (1080p)
  • VGA port supports video resolutions up to 1920 x 1200, including 1080p
  • Supports up to 36-bit Deep Color (12 bits per channel)
• P137-06N-HDV-4K and P137-06N-HDV4KW models are compatible with the Thunderbolt port on Mac® computers, such as the MacBook Pro and MacBook Air
  • Passive converter requires no external power supply

System Requirements

• Computer or tablet with a DisplayPort or Mini DisplayPort
  • Monitor with a VGA, DVI or HDMI port

Package Includes

• P136-06N-HDV-4K, P137-06N-HDV-4K or P137-06N-HDV4KW
- Quick Start Guide

Optional Accessories

• P502-006 High Resolution VGA Cable with RGB Coax – 6 ft.
  • P561-006 DVI-D Single Link Cable – 6 ft.
  • P568-006 High Speed HDMI Cable – 6 ft.

Installation

Notes:

• Only one monitor can be connected at a time.
• To connect a Mac to an HDMI monitor with audio, go to "System Preferences" and select "Sound". Then click the "Output" tab and select your HDMI device from the list. Note: DisplayPort or Mini DisplayPort audio is available on all Mac models introduced after April 2010.

• When connecting a DVI or HDMI monitor, the distance between the converter and monitor must be no longer than 6 ft. (2 m). When connecting a VGA monitor, the distance must be no longer than 10 ft. (3 m).

• Connect the converter to the DisplayPort or Mini DisplayPort on your computer or tablet.

• Connect a monitor to the VGA, DVI or HDMI port on the converter.

Specifications

Specification Description
Input Signal DisplayPort 1.2 or Mini DisplayPort 1.2
Output Signal VGA, DVI and HDMI
Vertical Frequency Range 50/60 Hz
Video Amplifier Bandwidth 2.25 Gbps / 225 MHz
Maximum HDMI Resolution 4K x 2K, 3840 x 2160 (24 Hz or 30 Hz)
Maximum DVI Resolution 1920 x 1080 (1080p)
Maximum VGA Resolution 1920 x 1200, including 1080p
Maximum Cable Length 6 ft. (2 m) for DVI and HDMI, 10 ft. (3 m) for VGA
Operating Temperature 32 to 113 °F (0 to 45 °C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage Temperature 14 to 176 °F (-10 to 80 °C)
Storage Humidity 5% to 90% RH, Non-Condensing
Maximum Power Consumption 700mW

Warranty

3 Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

- Send the new equipment back for recycling when this ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
