| Brand | Tripp Lite |
| Model | U4600044ABC (U460-004-4A-C white / U460-004-4AB-C black) |
| Product Type | USB-C to USB-A Hub with Charger |
| Input Connectors | 1 x USB-C Male (Host) + 1 x USB-C Female (Charging) |
| Output Connectors | 4 x USB-A Female |
| Transfer Speed | Up to 5 Gbit/s (USB 3.2 Gen 1) |
| Dedicated USB-A Charging Port | 5 V / 1.5 A |
| USB-C Charging Port | Up to 20 V / 3 A (60 W) |
| Compatibility | Backward compatible with USB 2.0 and USB 3.0 |
| Installation | Plug-and-play, no drivers required |
| Integrated Cable | Yes, for easy transport |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Temperature | -10 to 70 °C |
| Storage Humidity | 10% to 90% RH non-condensing |
| Warranty | 3-year limited |
| Maintenance | Clean with a dry, soft cloth |
| Safety | Do not use in life-sustaining medical applications |
| Spare Parts and Repairability | Not available, device not user-serviceable |
Frequently Asked Questions - U4600044ABC Tripp Lite
User questions about U4600044ABC Tripp Lite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Computer accessory in PDF format for free! Find your manual U4600044ABC - Tripp Lite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. U4600044ABC by Tripp Lite.
USER MANUAL U4600044ABC Tripp Lite
USB 3.2 Gen 1 USB-C to USB-A Hub with Charging
Models:
U460-004-4A-C
U460-004-4AB-C
USB Type-C® and
USB-C ^® are registered
trademarks of USB
Implementers Forum.


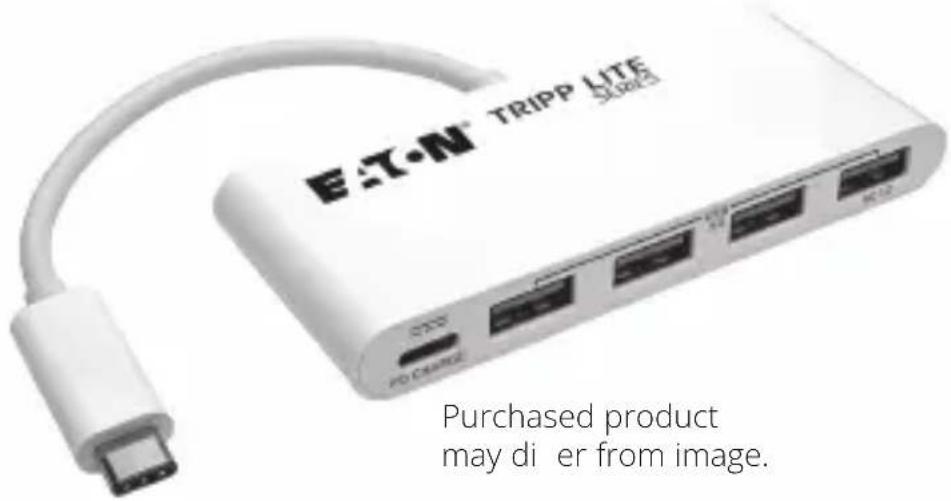

E:T-N TRIPP LITE PORT Purchased product may di er from image.Español 5
Français 9
Deutsch 13
Italiano 17
EAT·N
Powering Business Worldwide

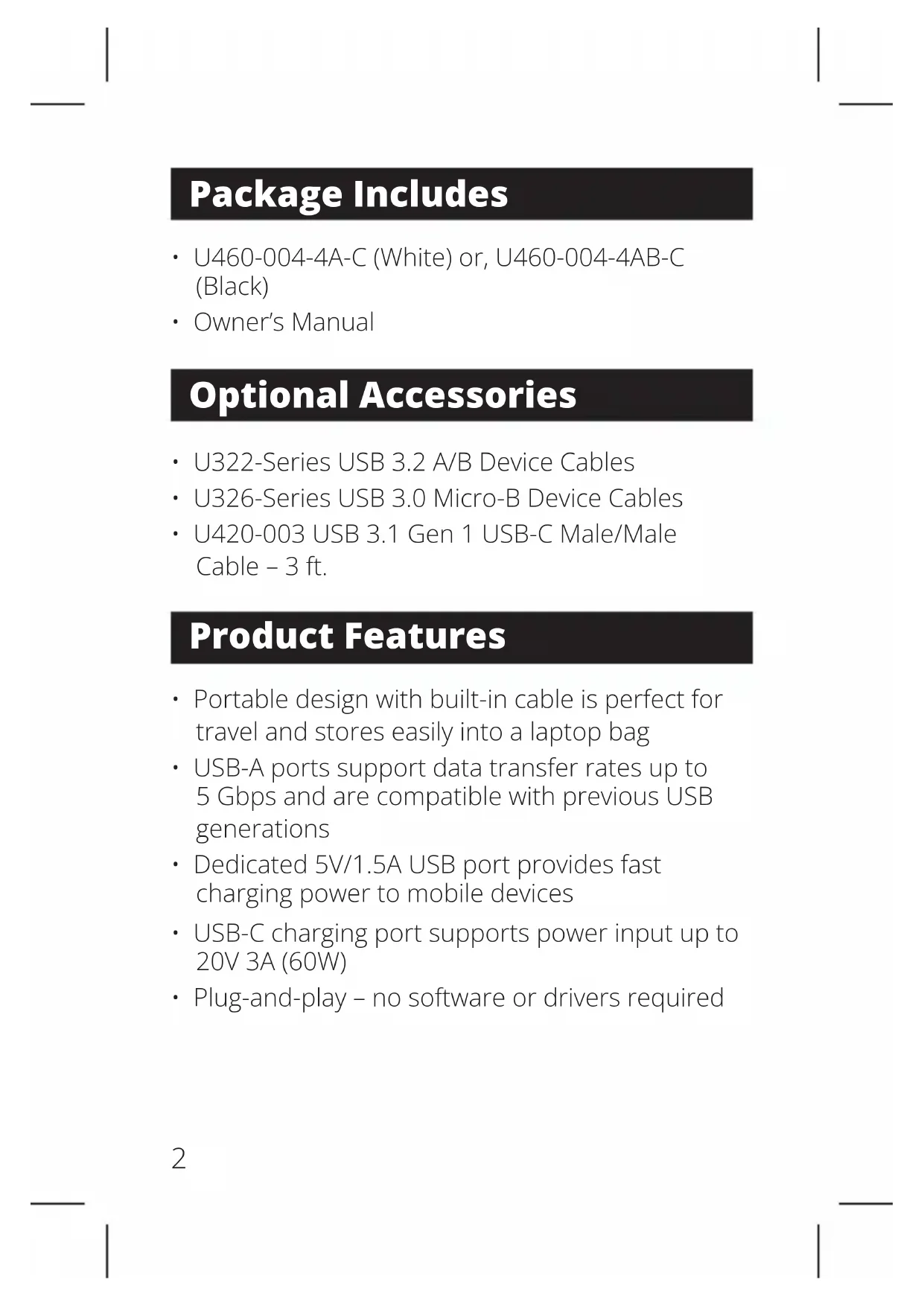

Package Includes
• U460-004-4A-C (White) or, U460-004-4AB-C (Black)
- Owner's Manual
Optional Accessories
• U322-Series USB 3.2 A/B Device Cables
• U326-Series USB 3.0 Micro-B Device Cables
- U420-003 USB 3.1 Gen 1 USB-C Male/Male Cable – 3 ft.
Product Features
- Portable design with built-in cable is perfect for travel and stores easily into a laptop bag
- USB-A ports support data transfer rates up to 5 Gbps and are compatible with previous USB generations
• Dedicated 5V/1.5A USB port provides fast charging power to mobile devices
• USB-C charging port supports power input up to 20V 3A (60W) - Plug-and-play – no software or drivers required
Installation
- Connect the unit's USB Type-C connector to the USB-C port on your laptop, tablet or personal electronic device.
- Connect up to four USB devices to the unit's USB-A ports.
- Charge your device by connecting the unit's USB-C port to your device's USB charger.
Specifications
| Input Connectors | |
| USB USB-C (Male) | |
| Charging USB-C (Female) | |
| Output Connectors | |
| USB-A USB-A (Female) | x4 |
| Environmental | |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Operating Humidity 10% to 90% RH, Non-Condensing | |
| Storage Temperature 14 to 158°F (-10 to 70°C) | |
| Storage Humidity 10% to 90% RH, Non-Condensing | |
| Power Requirements | |
| USB-C Charging Port S | Supports up to 20V 3A (60W) Input |
Warranty
3-YEAR LIMITED WARRANTY
We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
Powering Business Worldwide
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
93374B
© 2023 Eaton
All Rights Reserved
Publication No.
23-08-352 /
93-374B_RevE
September 2023
Eaton is a registered trademark.
All trademarks are property of their respective owners.

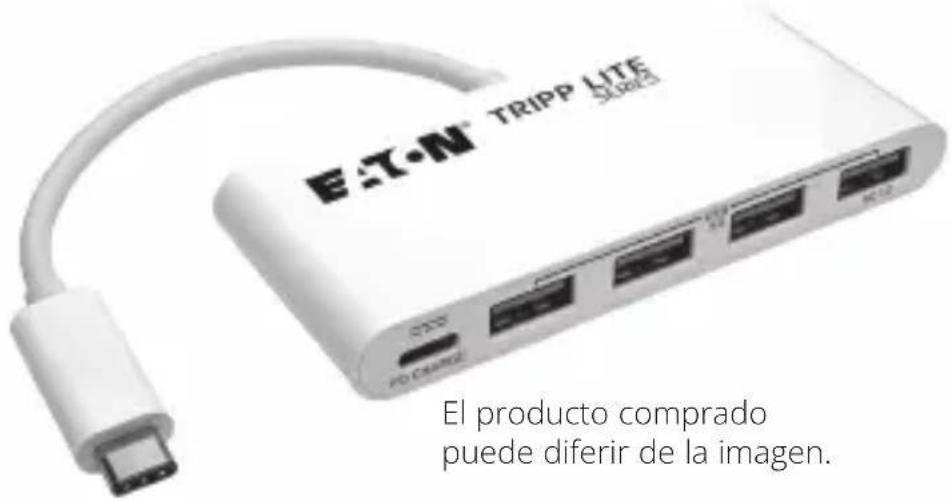

Hub USB 3.2 Gen 1 USB-C a USB-A con Carga
