Product Type	Fiber to Ethernet media converter with PoE power
Brand	Tripp Lite
Model	N785INTPSCMM2
Dimensions (approx.)	9.4 x 7.0 x 2.6 cm
Weight (approx.)	150 g
Power supply	External 48 V DC, 1.25 A
Fiber connector	SC multimode
Wavelength	1310 nm
Max fiber distance	2000 m (6561 ft)
Max copper distance (10/100/1000 Mbps)	100 m (328 ft) with Cat5e/Cat6 cable
Max copper distance (10 Mbps)	330 m (1082 ft) with DIP switch 3 ON
Network speeds	10/100/1000 Mbps
PoE standards	IEEE 802.3af, IEEE 802.3at
Key features	Fiber-to-Ethernet conversion, PoE injector, auto-MDI/MDI-X, full/half duplex, LFP (Link Fault Pass Through), DIP switch for extended 10M mode
LED indicators	PWR, PoE, SD, 1000M, L/A TP, L/A FP
Care and cleaning	Clean with a dry, lint-free cloth. Avoid electrostatic discharge (ESD) when handling.
Safety	Handle with care to avoid ESD. Disconnect before any intervention. Use only the supplied power supply.
Spare parts and repairability	External power supply replaceable. Compatible SFP transceiver (SFP models). 2-year limited warranty.
General information	2-year warranty. Manufactured by Tripp Lite. Certified compliant with applicable standards.

Frequently Asked Questions - N785INTPSCMM2 Tripp Lite

How to install the N785INTPSCMM2 media converter?

Ensure all equipment is powered off, connect the fiber cable to the SC port, the Ethernet cable to the RJ45 port, then connect the supplied 48V power supply. Power on. Use DIP switches to configure LFP (1) and extended 10M mode (3) if needed.

What is the Link Fault Pass Through (LFP) function?

LFP detects a failure on one link (fiber or copper) and propagates it to the other link, preventing packet loss. Enable DIP switch 1 to activate it.

Can I use this converter with an Ethernet cable longer than 100 meters?

Yes, by enabling DIP switch 3 (10M), the maximum distance increases to 330 meters, but speed is limited to 10 Mbps.

What is the maximum supported distance for fiber optic?

With the N785INTPSCMM2 model (multimode 1310 nm), the maximum distance is 2000 meters (6561 feet).

Does the converter provide PoE power?

Yes, it injects 48V DC compliant with IEEE 802.3af/at standards on the RJ45 port, allowing it to power PoE devices such as cameras or access points.

How to know if the converter is working properly?

The LED indicators show status: PWR (power), PoE (PoE active), SD (fiber signal received), 1000M (Gigabit speed), L/A TP and FP (link and activity on copper and fiber ports).

Can I use an SFP transceiver with this model?

No, the N785INTPSCMM2 has a fixed SC fiber port. Only models N785-P01-SFP and N785-INT-PSFP accept SFP transceivers.

What types of Ethernet cables are recommended?

Use high-quality Cat5e or Cat6 cables, up to 100 meters for 10/100/1000 Mbps speeds, and up to 330 meters in 10 Mbps mode.

What to do if the PWR LED does not turn on?

Check the connection of the external power supply and the wall outlet. Test with another outlet. If the problem persists, contact Tripp Lite support for possible warranty repair.

What is the warranty for this product?

Tripp Lite offers a 2-year limited warranty against defects in materials and workmanship. For any claims, contact customer service and have your proof of purchase.

USER MANUAL N785INTPSCMM2 Tripp Lite

Gigabit Fiber to Ethernet Media Converters with PoE

Models (North America): N785-P01-LC-MM1,

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

QR code image containing encoded data, no visible human-readable text

TRIPP·LITE

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Package Includes

• N785-P01-Series or N785-INT-Series Media Converter
- External Power Supply with NEMA 1-15P Power Cord (100-240V), (N785-P01-Series only)
• External Power Supply with AU, EU, UK and US Power Cables (N785-INT-Series Only)

Product Features

All Models:

• Convert your fiber network to a copper network with the addition of power
  • Supports 10/100/1000 Mbps speeds
  • Supports up to 100 m (328 ft.) over Cat5e/Cat6 cable to your PoE-compliant device
• IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at compliant
  • Auto identification of MDI/MDI-X
  • Supports full-duplex and half-duplex modes
  • LED indicators monitor Ethernet and Fiber link status
• Link Fault Pass Through (LFP) allows network personnel to quickly identify faults

Model	Optical Fiber Connector Wavelength Mode			Max Distance from Source
N785-P01-LC-MM1 LC 850 nm Multimode 550 m (1804 ft.)
N785-P01-SC-MM1 SC 850 nm Multimode 550 m (1804 ft.)
N785-P01-SC-MM2 SC 1310 nm Multimode 2000 m (6561 ft.)
N785-P01-SC-SM1 SC 1310 nm Singlemode 20 km (12.4 mi.)
N785-P01-SFP User-Definable Dependent on transceivers used			Dependent on transceivers used	Dependent on transceivers used
N785-INT-PLCMM1 LC 850 nm Multimode 550 m (1804 ft.)
N785-INT-PSCMM2 SC 1310 nm Multimode 2000 m (6561 ft.)
N785-INT-PSFP User-Definable Dependent on transceivers used			Dependent on transceivers used	Dependent on transceivers used

Accessories

All Models:

• N001-Series Cat5e Snagless Patch Cables
• N201-Series Cat6 Snagless Patch Cables

N785-P01-SFP and N785-INT-PSFP Models Only:

• N286-01GSX-MDLC SFP to LC Multimode Transceiver (850 nm / 550 m)
• N286-01GLX-SLX SFP to LC Singlemode Transceiver (1310 nm / 10 km)

Installation

Notes:

• To avoid Electrostatic Discharge (ESD) damage, it is recommended you handle the product while wearing an ESD wrist grounding strap, or touch a conductive surface (such as metal) to discharge any potential ESD prior to handling the product.

• Before installation, verify your fiber equipment's wavelength (850 nm or 1310 nm) and mode type (Single or Multi) matches that of the N785-P01-Series or N785-INT-Series Media Converter.

• Ensure all equipment in the installation is powered off.

• (N785-P01-SFP and N785-INT-PSFP Models Only):

• Ensure all equipment in the installation is powered off.

• (N785-P01-SFP and N785-INT-PSFP Models Only):

Install a user-supplied SFP transceiver that matches your fiber equipment's credentials.

Note: Your fiber equipment's wavelength and mode type must match that of the N785-P01-Series or N785-INT-Series Media Converter.

1. Using existing fiber cable from your network infrastructure, connect the media converter to your fiber network.

2. With a user-supplied Cat5e/Cat6 cable (up to 100 m / 328 ft.), connect your IEEE 802.3 af/at PoE-compliant device to the media converter's 10/100/1000Base-T UTP port.

3. Using existing fiber cable from your network infrastructure, connect the media converter to your fiber network.

4. With a user-supplied Cat5e/Cat6 cable (up to 100 m / 328 ft.), connect your IEEE 802.3 af/at PoE-compliant device to the media converter's 10/100/1000Base-T UTP port.

Note: If your PoE-compliant device is farther than 100 m (328 ft.) away, moving DIP switch 3 (10M) to the ON position allows you to run an additional 230 m (750 ft.) of Cat5e/6 cable (up to 330 m / 1082 ft. away in total) at 10 Mbps speeds only.

1. Connect the included power supply to the media converter.

2. Turn on power to all equipment in the installation.

3. Connect the included power supply to the media converter.

4. Turn on power to all equipment in the installation.

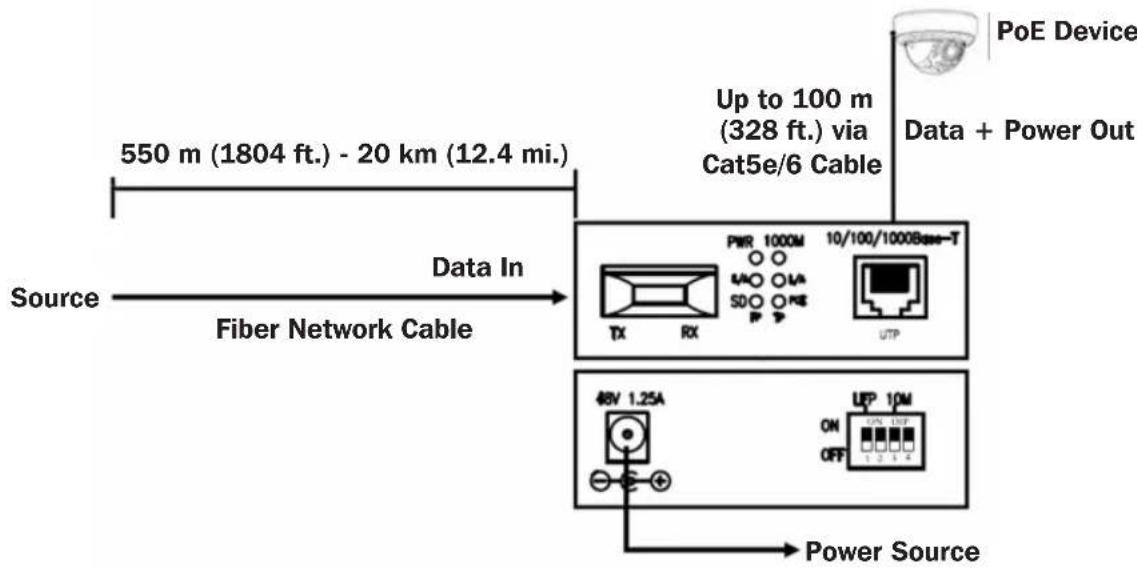


DIP Switch Settings

Note: DIP switches 2 and 4 have no function.

DIP Switch 1 - Link Fault Pass Through (LFP)

To enable the LFP function, move DIP switch 1 to the ON position.

1 2 3 4

Link Fault Pass Through (LFP)

LFP provides constant monitoring of the links connected to the media converter. If either the copper or fiber link fails, the media converter will pass the fail state through both links (copper and fiber), preventing the connected equipment from transmitting packets that would otherwise end up lost.

The LFP function includes both the LLCF (Link Loss Carry Forward) and LLF (Link Loss Return) functions. LLCF and LLR functions can immediately alarm network administrators to the problem of the link media and provide an efficient solution to monitor the network.

Link Loss Carry Forward (LLCF)

LLCF occurs when a device is connected to the converter and the TP (copper) line of the media converter loses the link, resulting in the media converter's fiber to disconnect from the transmission link.

Link Loss Return (LLR)

LLR occurs when a device is connected to the converter and the FP (fiber) line loses the link, resulting in the media converter's fiber to disconnect from the transmission link.

DIP Switch 3 - 10M

With DIP switch 3 In the ON position, the supported transfer distance of the RJ45 port changes to 330 ~m (1082 ft.) and the data transfer rate changes to 10 Mbps. This allows you to extend beyond the 100 ~m (328 ft.) limit while running at lower speeds. When in this mode, speeds of 100 and 1000 Mbps are not supported.

1 2 3 4

LED Functions

LED Color Status Function
PWR Green ON The device is powered on
PoE Green		ON	RJ45 port is providing DC 48V to the remote PoE device
		OFF	RJ45 port is not providing DC 48V to the remote PoE device
SD Green		ON Fiber	port is receiving optical signal
		OFF Fiber	port is not receiving optical signal
1000M Green		ON 1000 Mbps speed
		OFF 10/100 Mbps speed
L/A - TP (Link/Act) (RJ45 Port)	Green	ON	Indicates the RJ45 port link is operating at 10/100/1000 Mbps
		Blinking	Indicates the PoE media converter is actively sending or receiving data over the RJ45 port
		OFF Indicates the RJ45 port link is not operating
L/A - FP (Link/Act) (Fiber Port)	Green	ON Indicates the fiber port link is operating
		Blinking	Indicates the PoE media converter is actively sending or receiving data over the fiber port
		OFF Indicates the fiber port link is not operating

Warranty and Product Registration

2-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from

TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
