USER MANUAL SmartRack SRFC5STR72 Tripp Lite
Straight Channel Section for Fiber Routing System
Models: SRFC5STR48, SRFC5STR72, SRFC10STR48, SRFC10STR72
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
Parts List


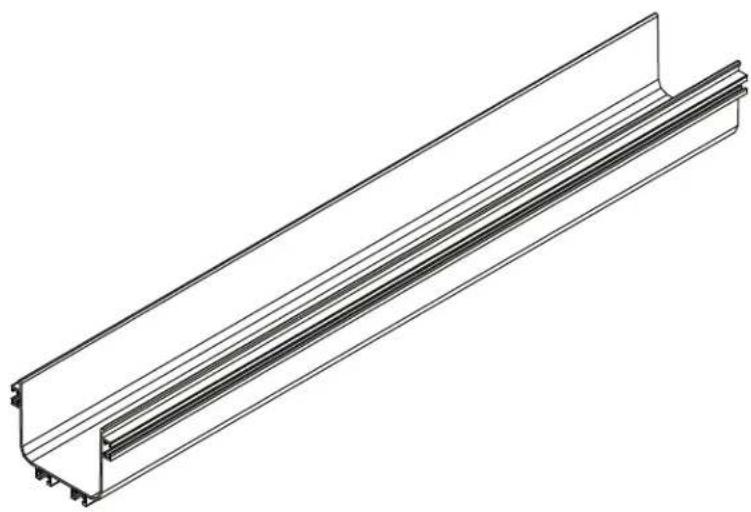

Pure technical line drawing of a structural beam or channel (no text or symbols)Straight Channel Section, x1
Models and Dimensions
Before proceeding with installation, first confirm your model and dimensions.
| Model Cross-Sectional View Height Interior Width Length | ||||
| SRFC5STR48 |  | 4.6 in.(118 mm) | 4.8 in.(120 mm) | 48 in.(1219 mm) |
| SRFC5STR72 |  | 4.6 in.(118 mm) | 4.8 in.(120 mm) | 72 in.(1829 mm) |
| SRFC10STR48 |  | 4.6 in.(118 mm) | 9.5 in.(241 mm) | 48 in.(1219 mm) |
| SRFC10STR72 |  | 4.6 in.(118 mm) | 9.5 in.(241 mm) | 72 in.(1829 mm) |
Additional Accessories
All accessories are sold separately.
| Accessory Model Number | Accessory Description and Function | |
| 5 in. (120 mm) System 10 in. (240 mm) System | ||
| SRFC5CPL5 SRFC10 CPL10 Coupler Kit to Connect Channels and Fittings | ||
| SRFC5RAMP SRFC10 RAMP Up/Down Ramp to Change Level of a Horizontal Run | ||
| SRFC5ELBOW SRFC10 ELBOW 90-Degree Fitting to Create Elbow in a Horizontal Run | ||
| SRFC5JUNT SRFC10 JUNT T-Shaped Fitting to Create 90-Degree Branch from a Straight Run | ||
| SRFC5JUNT4 SRFC10 JUNT4 4-Way Cross Fitting to Create a Junction with 2 Horizontal Exits | ||
| SRFC5DROP SRFC10 DROP | Trumpet Drop-Out Kit to Limit Bend Radius at an Exit from a Channel, Horizontal T or Vertical T | |
| SRFC4WTRFL | Movable Waterfall Adapter to Enable Cable to Cascade over the Side at a Horizontal Exit | |
| SRFC4WTRFL36 | Movable Waterfall Adapter with Pipe to Enable Cable to Cascade over the Side into 36 in. Corrugated Plastic Pipe at a Horizontal Exit | |
| SRFC4WTRFL48 | Movable Waterfall Adapter with Pipe to Enable Cable to Cascade over the Side into 48 in. Corrugated Plastic Pipe at a Horizontal Exit | |
| SRFC5CAP SRFC10 CAP | End Cap Kit to Close off the End of a Channel for a Professional, Finished Look | |
| SRFC5CPL10 | Adapter to Combine 5 in. (120 mm) Components with 10 in. (240 mm) Components | |
Installation

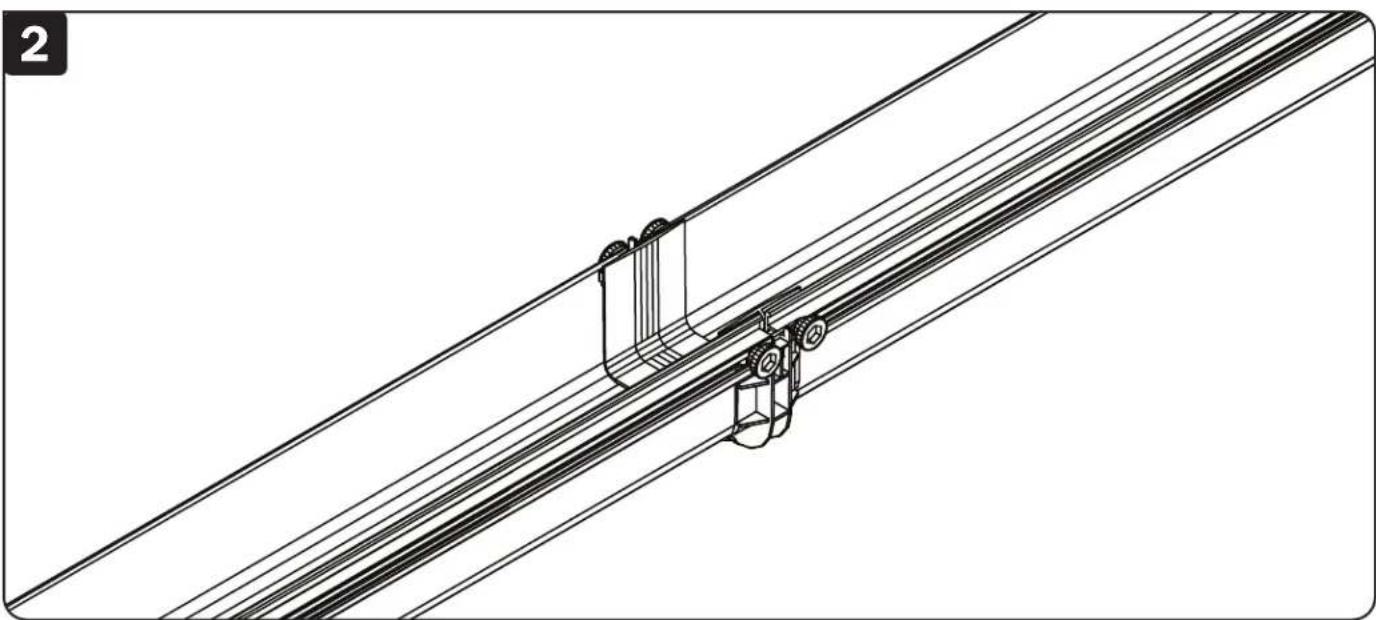

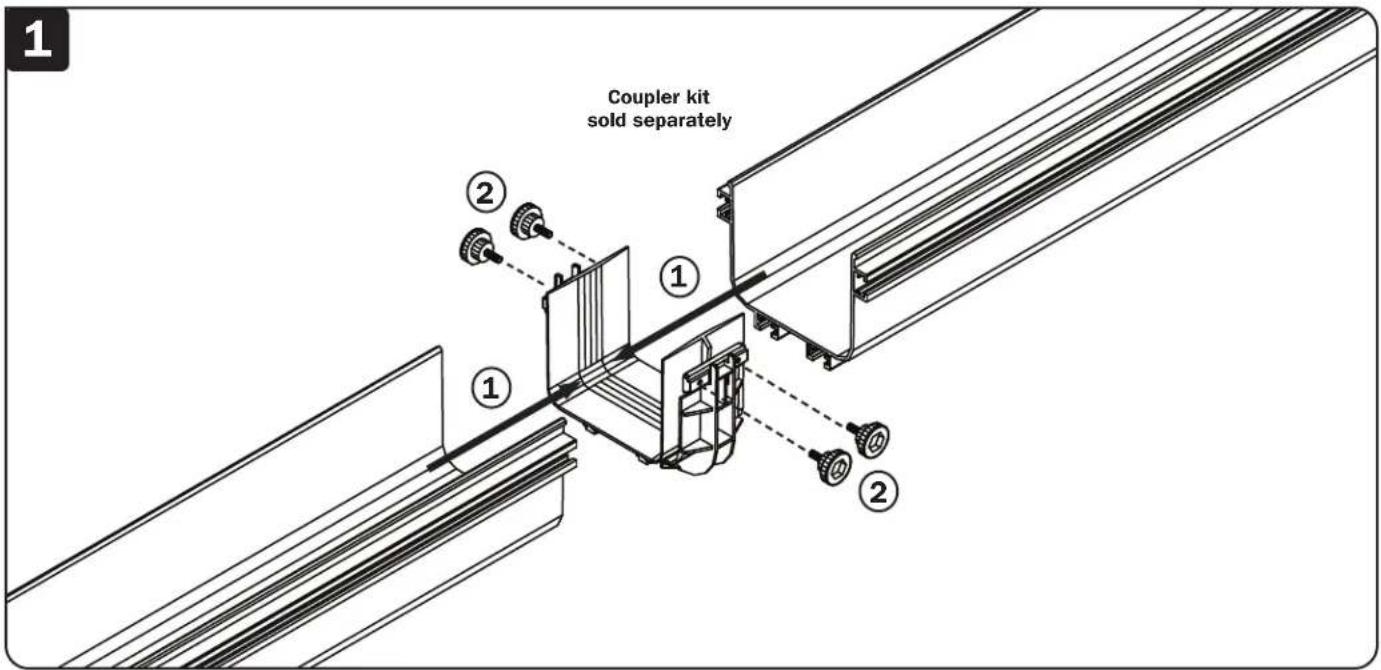

Straight channel sections carry fiber cables horizontally through the system. Connect to additional straight channel sections or other fittings using SRFC5CPL5 or SRFC10CPL10 couplers, sold separately. Tighten screws and nuts by hand, no tools necessary.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
20-01-051 93-5008 mm
