Product Type	HDMI Extender over CAT6 with Power over Cable (PoC)
Model	Tripp Lite B1271A1HH
Maximum Resolution	4K (3840 x 2160) @ 60 Hz with 4:4:4 subsampling
Transmission Distance	Up to 38 m (125 ft) over Cat6 24 AWG cable
HDMI Compatibility	HDMI 2.0, HDCP 2.2, HDR
Audio Formats	Up to 7.1 channels (Dolby TrueHD, DTS-HD Master Audio)
Number of Ports	1 HDMI input, 1 local HDMI output, 1 RJ45 port (transmitter); 1 RJ45 port, 1 HDMI output (receiver)
Recommended Cable Type	24 AWG solid wire Cat6 (Tripp Lite N202 series)
Power Supply	External 5 V DC (included); PoC technology for the receiver (no separate power supply required)
Power Consumption	Transmitter: 5 W max; Receiver: 2.5 W max
Dimensions (Transmitter and Receiver)	Approximately 100 x 70 x 25 mm each
Total Weight	Approximately 0.4 kg (set)
Operating Temperature	0 °C to 40 °C
Operating Humidity	5% to 85% RH (non-condensing)
Key Features	HDMI extension over Cat6, local HDMI port, built-in equalizer and automatic EDID adjustment, wall/rack/pole mounting (hardware included)
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use solvents or abrasive materials.
Safety	Do not expose to moisture, liquids, or excessive heat. Use only the provided power supply.
Spare Parts and Repairability	The device contains no user-serviceable parts. In case of failure, contact Tripp Lite support.
Warranty	1 year (manufacturer limited warranty)
General Information	WEEE compliant. HDMI 2.0 certified. Manufactured by Tripp Lite, an Eaton brand.

Frequently Asked Questions - B1271A1HH Tripp Lite

How to install the B1271A1HH extender?

Ensure all devices are powered off. Connect the HDMI source to the INPUT port of the transmitter using an HDMI 2.0 cable. (Optional) Connect a local monitor to the LOCAL OUT port. Connect the transmitter to the receiver via a Cat6 cable (up to 38 m). Plug the receiver to the display with an HDMI 2.0 cable. Power on the displays, then plug the external power supply into the transmitter. Finally, turn on the source. The LEDs indicate proper operation.

What is the maximum transmission distance?

With a 24 AWG solid wire Cat6 cable, you can transmit a 4K @ 60 Hz signal up to 38 m (125 ft). For shorter distances, the B127-100-H-SR receiver supports 15 m.

What type of Cat6 cable should I use?

Use a 24 AWG solid wire Cat6 cable for optimal performance. Stranded or higher gauge (26 AWG) cables reduce transmission distance. Tripp Lite recommends its N202 series.

Does the extender support HDR?

Yes, the B1271A1HH is HDR (High Dynamic Range) compatible. Ensure that both the source and display enable UHD Deep Color mode and that the display's input setting is HDMI 2.0.

Can I connect a local monitor to the transmitter?

Yes, the B1271A1HH has an additional LOCAL OUT HDMI port. You can connect a local monitor to view the signal without going through the remote receiver.

How does Power over Cable (PoC) work?

The receiver is powered via the Cat6 cable from the transmitter (Power over Cable technology). Thus, only the transmitter requires an external power supply; the receiver does not need a wall outlet.

What are the mounting options?

The transmitter and receiver include mounting hardware allowing wall, 19-inch rack or pole installation. Follow the instructions to attach the appropriate brackets.

What do the LED indicators mean?

LED POWER (green): power present. LOCAL (orange): local monitor connected. OUTPUT (orange): source signal received. RJ45 (orange): Cat6 link active. If an LED does not light up, check the connections.

Why is the image not displaying in 4K?

Check that the display is set to HDMI 2.0 and that UHD Deep Color option is enabled. Ensure that the source is outputting 4K @ 60 Hz. Use high-quality HDMI 2.0 and Cat6 cables.

Can I use multiple receivers with one transmitter?

This model (B1271A1HH) is a 1:1 kit (one transmitter, one receiver). For multiple receivers, use the B127-002-2H2 or B127-004-H4H models which include 2 or 4 receivers respectively.

USER MANUAL B1271A1HH Tripp Lite

Local Unit Models: B127-002-H, B127-004-H Remote Unit Models: B127-100-H, B127-100-H-SR

Español 17 • Français 33 • Русский 49

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value! www.tripplite.com/warranty

Manufacturing Excellence

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved.

Package Contents

	B127-1A1-HH	B127-002-2H2	B127-004-H4H	B127-002-H	B127-004-H	B127-100-H	B127-100-H-SR
Local Unit (L), Remote Unit (R) or Both (B)	B B	B L L	R R
External Power Supplies (0 or 1)	1 1	1 1 1	0 0
Mounting Hardware Y Y Y Y Y Y N

Product Features

All

• Support a maximum video resolution of 4K (3840 x 2160) @ 60 Hz with 4:4:4 Chroma Subsampling
  • Support up to 7.1-channel surround sound audio
  • HDMI 2.0, HDCP 2.2 and HDR compatible
• Plug and play—no software or drivers required

B127-1A1-HH

• HDMI over Cat6 Power-over-Cable (PoC) Extender Kit
- Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m) from the source

Product Features

• Additional HDMI port on the local transmitter unit allows connection of local monitor
- Remote receiver unit features built-in equalization (EQ) control and auto EDID image adjustment
- Includes mounting hardware that allows both the local transmitter and remote receiver units to be wall-mounted, rack-mounted or pole-mounted

B127-002-2H2

• HDMI over Cat6 Power-over-Cable (PoC) 2-Port Splitter/Extender Kit
- Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m) from the source
- Remote receiver unit features built-in equalization (EQ) control and auto EDID image adjustment
- Kit includes a 2-Port Splitter Extender and two Remove Receivers
- Includes mounting hardware that allows unit to be wall-mounted, rack-mounted or pole-mounted

B127-004-H4H

• HDMI over Cat6 Power-over-Cable (PoC) 4-Port Splitter/Extender Kit
- Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m) from the source
- Remote receiver unit features built-in equalization (EQ) control and auto EDID image adjustment
- Kit includes a 4-Port Splitter Extender and four Remote Receivers
- Includes mounting hardware that allows unit to be wall-mounted, rack-mounted or pole-mounted
• Additional HDMI port on the local transmitter unit allows connection of local monitor

Product Features

B127-002-H

• 2-Port HDMI over Cat6 Extender/Splitter Local Transmitter Unit
- Splits an HDMI signal into two
- Works with remote receiver units to extend an HDMI signal past the 15 ft. (4.5 m) distance limitation
- Includes mounting hardware that allows unit to be wall-mounted, rack-mounted or pole-mounted

B127-004-H

• 4-Port HDMI over Cat6 Extender/Splitter Local Transmitter Unit
- Splits an HDMI signal into four
- Includes an additional HDMI port, which can be used to connect a local monitor or to daisy-chain additional B127-004-H units (up to three units can be daisy-chained together)
- Works with remote receiver units to extend an HDMI signal past the 15 ft. (4.5 m) distance limitation
- Includes mounting hardware that allows unit to be wall-mounted, rack-mounted or pole-mounted
- Additional HDMI port on the local transmitter unit allows connection of local monitor

B127-100-H

• HDMI over Cat6 Power-over-Cable (PoC) Remote Receiver Unit
• Works with B127-002-H and B127-004-H extender/splitters to extend a 4K/60 Hz signal up to 125 ft. (38 m) from the source
  • Built-in equalization (EQ) and EDID allows control for auto image adjustment
• Includes mounting hardware that allows unit to be wall-mounted, rack-mounted or pole-mounted

Product Features

B127-100-H-SR

• HDMI over Cat6 Power-over-Cable (PoC) Short Distance Remote Receiver Unit
• Works with B127-002-H and B127-004-H extender/splitters to extend a 4K/60 Hz signal up to 50 ft. (15 m) from the source
  • Built-in equalization (EQ) and EDID allows control for auto image adjustment

Optional Accessories:

• N202-Series Cat6 24 AWG Solid-Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0 Cables

Disclaimer

Before installation, please check the following settings of your source(s) and TV/monitor(s):

1. Set to display 60 Hz. Double-check factory settings, as default can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0. Some displays may have default setting at HDMI 1.4
3. Verify your monitor has the HDR feature enabled. Some displays may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on your TV/monitor. Confirm with your TV/monitor manufacturer which HDMI ports support UHD Deep Color.

Note: If wishing to connect a local monitor to your installation, depending on your TV/monitor make/model, the UHD Deep Color setting may need to be disabled on your local TV/monitor to achieve 4K 60 Hz resolution.

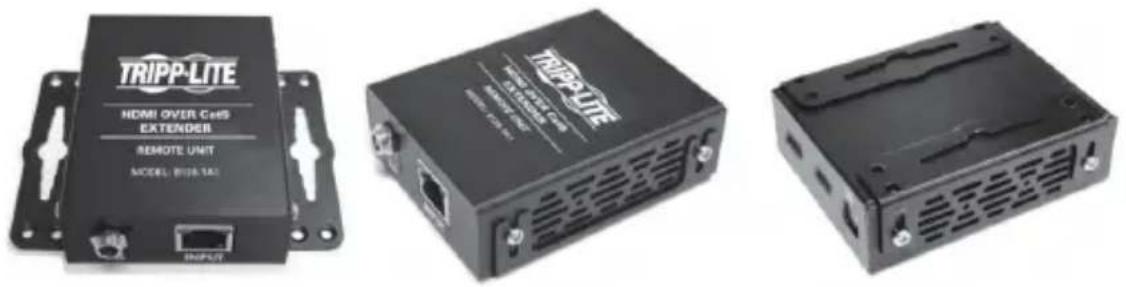

Mounting Instructions (select models only)

The B127-1A1-HH, B127-002-2H2, B127-004-H4H, B127-002-H, B127-004-H and B127-100H include includes mounting hardware that allows for a variety of mounting methods. The following images illustrate how the included mounting brackets can be attached for different installations.

Note: The model shown in the below images is for illustrative purposes only. Your product may vary by model number, size or port orientation. The mounting options for all over IP units are the same.

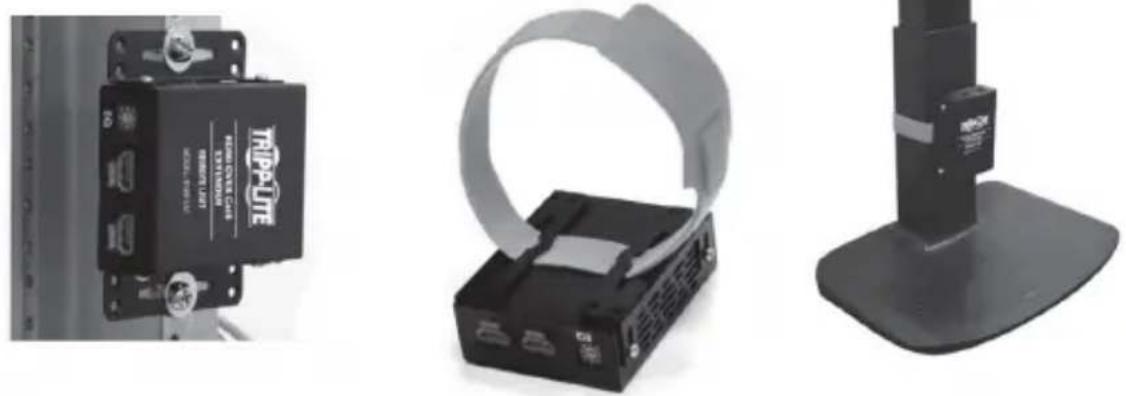

Wall-mount

19" Rack-mount Pole-mount

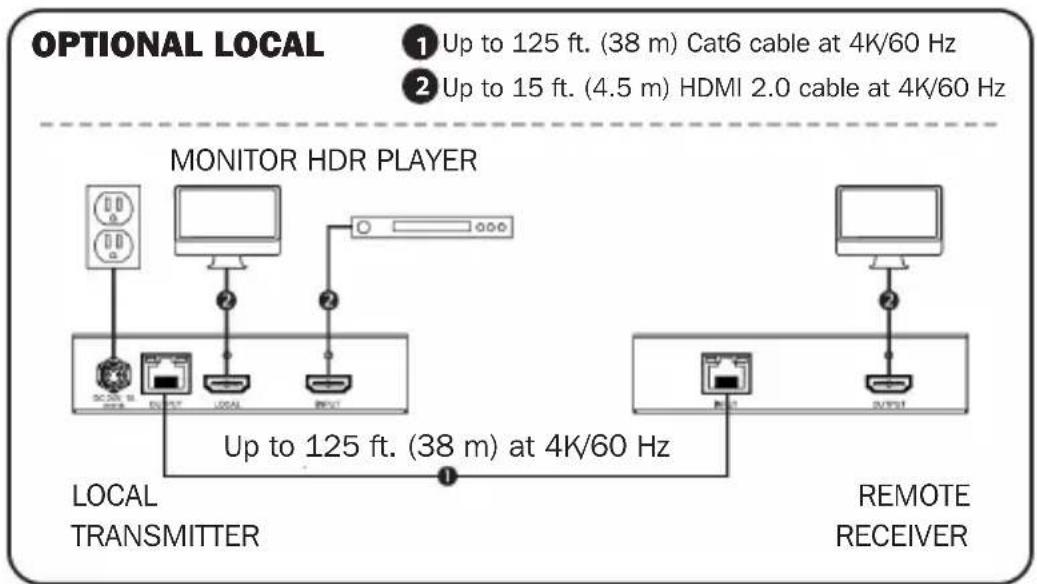

Standard Extender Kit Installation

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid-wire Cat6 cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher than 24 AWG, will result in shorter extension distance. Higher gauge cabling, such as 26 AWG, has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid-wire cabling.
3) The installation diagram shows a B127-1A1-HH unit.
4) External power is not required for remote receiver units due to Power-over-Cable (PoC) technology incorporated in the transmitter units.

1. Make sure all equipment in the installation—such as TVs, Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the HDMI source to the INPUT port on the local transmitter unit.

Standard Extender Kit Installation

1. Optional for B127-1A1-HH: Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect a local monitor to the LOCALOUT port on the B127-1A1-HH local transmitter unit.

2. Using Cat6 cable, connect the RJ45 port on the local transmitter unit to the RJ45 port on the remote receiver unit.

3. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the remote receiver unit's HDMI port to a monitor.

4. Turn the power on to your connected TVs/monitors. The LOCAL (orange) LED will illuminate to indicate local port has been connected to a display.

5. Connect the external power supply to the local transmitter unit and plug it into an available wall outlet or (optional) a Tripp Lite Surge Protector, Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS). The POWER (green) LED on the local transmitter unit will illuminate to indicate the unit is receiving power from the external power supply. The POWER (green) LED on the remote receiver unit will illuminate to indicate the unit is receiving power from the local transmitter unit through PoC technology.

6. Turn on the power to the HDMI source. The OUTPUT (orange) LED on the local transmitter unit illuminates to indicate a signal is being received from the source.

7. The (orange) RJ45 LED will illuminate on both local transmitter and remote receiver units to indicate a signal is being received from source to display. The screen should now display on the connected monitor.

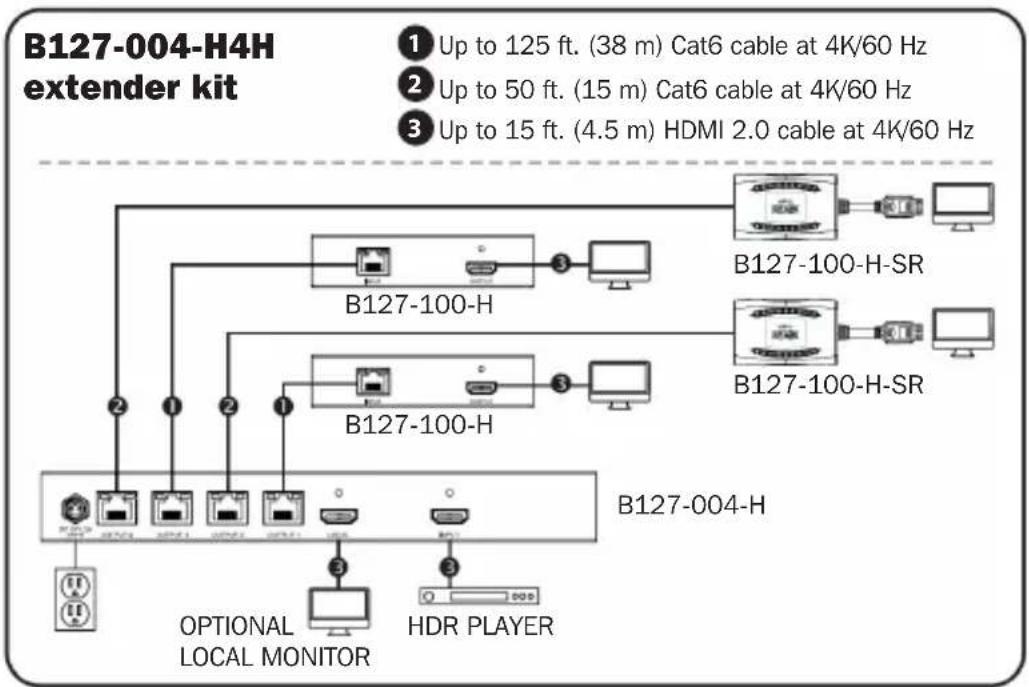

Standard Extender/Splitter Installation

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.

2) To achieve maximum distance and performance, use 24 AWG solid-wire Cat6 cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher than 24 AWG, will result in shorter extension distance. Higher gauge cabling, such as 26 AWG, has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series cables are made with 24 AWG solid-wire cabling.

3) The installation diagram shows the B127-004-H local transmitter unit. The B127-002-H installation is the same, except there are only two remote ports and no local monitor port.

4) External power is not required for the B127-100-H and B127-100-H-SR units.

5) These installation instructions can be used for the B127-002-2H2 and B127-004-H4H extender kits.

Standard Extender/Splitter Installation

1. Make sure all equipment in the installation—such as TVs, Blu-ray players and the transmitter—is powered OFF.

2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the HDMI source to the INPUT port on the B127-002-H or B217-004-H units.

3. Optional for B127-004-H: Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect an HDMI monitor to the LOCAL port on the B127-004-H unit.

4. Using Cat6 cable, connect one of the RJ45 output ports on the local transmitter unit to the RJ45 input port on a B127-100-H (up to 125 ft./38 m) or B127-100-H-SR (up to 50 ft./15 m) remote receiver unit.

5. Repeat step 5 for each additional remote unit being connected.

6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the B127-100-H-SR or B127-100-H to a display.

7. Turn on the power to all your connected TVs or monitors. The LOCAL (orange) LED will illuminate to indicate the port has been connected to a display.

8. Connect the external power supply to the local transmitter unit and plug it into an available wall outlet or (optional) a Tripp Lite Surge Protector, Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS). The POWER (green) LED will illuminate to indicate the unit is receiving power from the external power supply. On the B127-100-H, the POWER (green) LED will illuminate to indicate the unit is receiving power from the extender/splitter. On the B127-100-H-SR, the (green) LED next to the RJ45 port will illuminate to indicate the unit is receiving power from the extender/splitter.

Standard Extender/Splitter Installation

1. Turn on the power to the HDMI source. The (orange) RJ45 LEDs will illuminate on the B127-002-H and B127-004-H to indicate the unit is receiving a signal from the source. Additionally, the OUTPUT (orange) LED will illuminate for each port signal connection.

2. The RJ45 (orange) LEDs on the B127-100-H and orange LED on the B127-100-H-SR will illuminate to indicate a signal is being received from the extender/splitter. The screen should now display on the connected monitors.

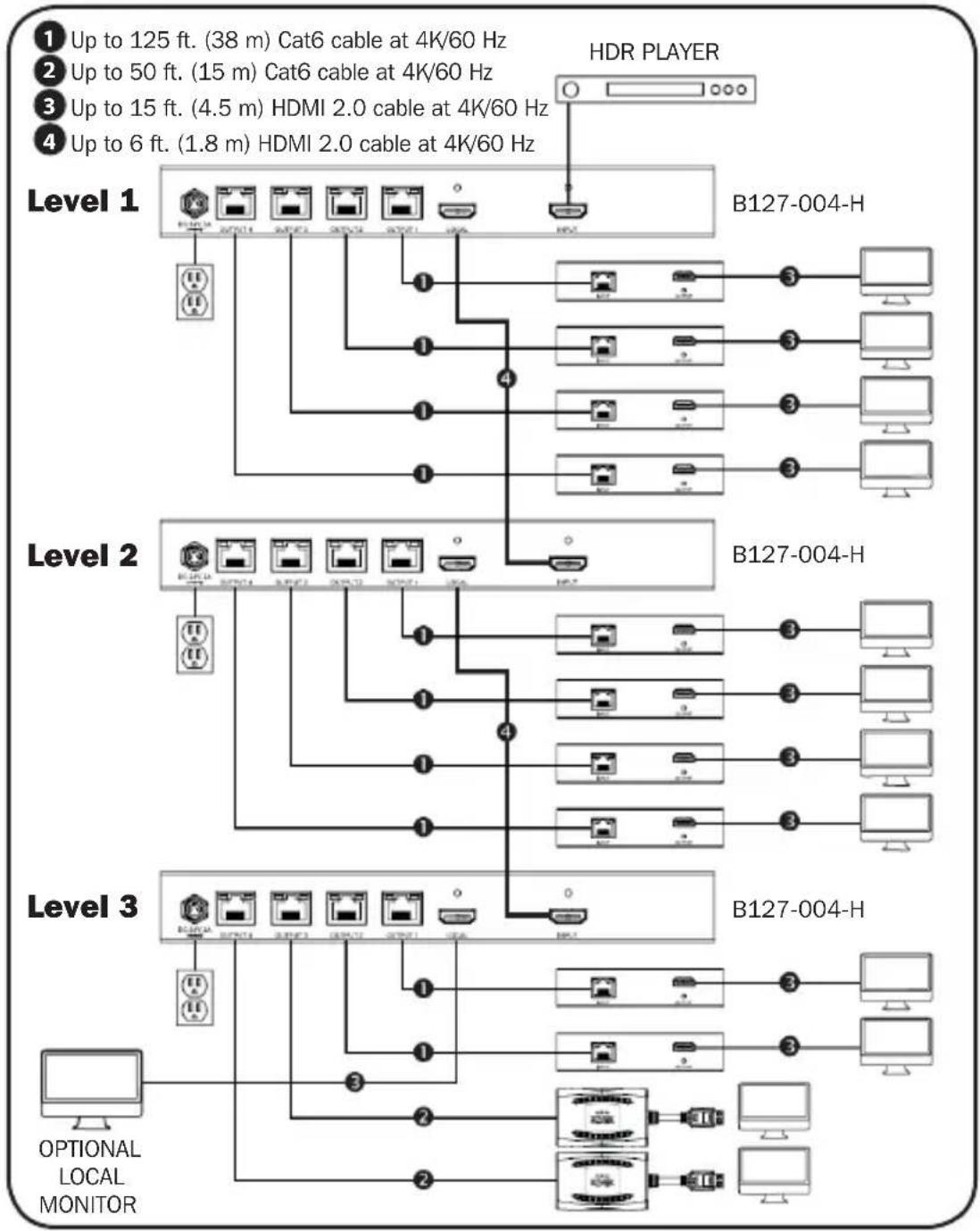

Splitter Daisy-Chain Installation (B127-004-H only)

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.

2) To achieve maximum distance and performance, use 24 AWG solid-wire Cat6 cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher than 24 AWG, will result in shorter extension distance. Higher gauge cabling, such as 26 AWG, has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series cables are made with 24 AWG solid-wire cabling.

3) Using the B127-100-H, a 4K/60 Hz signal can be extended up to 125 ft. (38 m) from the source. Using a B127-100-H-SR, a 4K/60 Hz signal can be extended up to 50 ft. (15 m) from the source.

Splitter Daisy-Chain Installation (B127-004-H only)

Splitter Daisy-Chain Installation (B127-004-H only)

1. Make sure all equipment in the installation—such as TVs, Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the HDMI source to the INPUT port on the B127-004-H unit.
3. Using a 6 ft./1.83 m HDMI 2.0 cable (such as Tripp Lite P569-006-CERT or P568-006-2A cables), connect the LOCAL port on the B127-004-H to the INPUT port on a second B127-004-H unit.
4. Repeat step 3 if connecting a third B127-004-H unit.

Note: Only three levels of splitters can be cascaded.

1. Optional: Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect a local monitor to the LOCAL HDMI port of the last B127-004-H unit in the installation.

2. Using Cat6 cable, connect one of the RJ45 output ports on the local transmitter units to the RJ45 input port on a B127-100-H or B127-100-H-SR remote receiver unit.

3. Repeat step 6 for each additional remote unit being connected.

4. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the B127-100-H or B127-100-H-SR to a display.

5. Repeat step 8 for each additional monitor you are connecting to a remote receiver unit.

6. Turn on the power to all your connected displays.

7. Connect the external power supply to the local transmitter unit and plug it into an available wall outlet or (optional) a Tripp Lite Surge Protector, Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS). The POWER (green) LED will illuminate to indicate the unit is receiving power from the external power supply.

Splitter Daisy-Chain Installation (B127-004-H only)

1. Repeat step 11 for each additional B127-004-H unit in the daisy chain.
2. B127-100-H and B127-100-H-SR: The green and orange LEDs will illuminate, with the green LED indicating the unit is receiving power from the extender/splitter, and the orange LED indicating the unit is connected to a powered ON local unit via Cat6 cable.
3. Turn on the power to the HDMI source. The orange RJ45 LEDs will illuminate on the B127-004-H to indicate the unit is receiving a signal from the source. The screen should now display on the connected monitors.

Warranty and Product Registration

1-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase.

TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Warranty and Product Registration

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

19-01-427 93-3919_RevA

1111 W. 35th Street, Chicago, IL 60609 EE UU • www.tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU • www.tripplite.com/support

19-01-427 93-3919_revA

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

19-01-427 93-3919_RevA

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

19-01-427 93-3919_RevA
