USER MANUAL B127A2A1BHBH Tripp Lite

HDMI over Cat6 Extender Kits and Repeater, 4K/60 Hz

Extender Kit Models: B127A-1A1-BHBH, B127A-1A1-BHPH, B127A-111-BHTH, B127A-110-BH Repeater Model: B127A-010-H

Espanol 27 • Français 53 • Pycckn 79 • Deutsch 105

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Package Contents

	B127A-1A1-BHBH	B127A-1A1-BHPH	B127A-111-BHTH	B127A-110-BH	B127A-010-H
Local and Remote Units (LR), Remote Unit (R), Repeater Unit (RT)	LR	LR LR	R RT
External Power Supplies (0 or 1) 1 1 1 1	0
Mounting Hardware Y Y Y Y N

Product Features

All

• Support video resolutions up to 4K x 2K (3840 x 2160) @ 60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma Subsampling
• Support up to 7.1-channel surround sound audio
• HDCP 2.2- and HDR-compatible
  USB 1.1 standard
• Plug and play—no software or drivers required

Note: USB 1.1 standard and bi-directional IR applies only to the extender kits, not the repeater.

Product Features

B127A-1A1-BHBH

• HDMI over Cat6 Power over Cable (PoC) Extender Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0, up to 230 ft. (70 m) from the source
  Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ) control and auto EDID image adjustment
  Supports up to 7.1-channel surround sound audio
• Receiver features built-in Toslink port for audio extraction function
  HDCP 2.2-compatible
• Plug and play—no software or drivers required
• Support bi-directional IR and USB 1.1 function by dip switch selection
• Includes mounting hardware that enables both the local transmitter and remote receiver units to be wall-mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply to be plugged in at either transmitter or receiver side and provide power to both units

Product Features

B127A-1A1-BHPH

• HDMI over Cat6 Power over Cable (PoC) Extender Kit with Pigtail Receiver
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0, up to 230 ft. (70 m) from the source
  Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ) control and auto EDID image adjustment with 1 ft. HDMI male cable
  Supports up to 7.1-channel surround sound audio
• HDCP 2.2-compatible
• Plug and play—no software or drivers required
• Includes mounting hardware that enables both the local transmitter and remote receiver units to be wall-mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply to be plugged into transmitter and provide power to both units

Product Features

B127A-111-BHTH

• HDMI over Cat6 Power over Cable (PoC) daisy-chainable Extender Kit
• Remote transceiver unit features built-in equalization (EQ) control, auto EDID image adjustment and RJ45 expanding port to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio extraction function
• Extends and expands a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0, in an over Cat6 installation, allowing multiple monitors to be located at different points in a chain by adding up to four B127A-110-BH units
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to an additional 230 ft. or a 1080p @ 60 Hz signal up to an additional 230 ft. from each remote/repeater unit to the next unit in the chain (in a full four-level daisy chain installation), a 4K (3840 x 216) @ 60 Hz signal up to 920 ft. or a 1080p @ 60 Hz signal up to 500 ft. from the source to the last remote unit in the chain
  Supports up to 7.1-channel surround sound audio
• Transceiver features built-in Toslink port for audio extraction function

Product Features

• HDCP 2.2-compatible
• Plug and play—no software or drivers required
• Includes mounting hardware that allows unit to be wall-mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply to be plugged into either transmitter or receiver side and provide power to connected units

B127A-110-BH

• HDMI over Cat6 Power over Cable (PoC) transceiver unit
• Works with the B127A-111-BHTH to extend a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0, up to 230 ft. (70 m)
• This transceiver unit features built-in equalization (EQ) control and auto EDID image adjustment and one RJ-45 expanding port to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio extraction function

Product Features

B127A-010-H

• Repeater unit extends the transmission of a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0, up to a total of 400 ft. (120 m)
• Power over Cable (PoC) technology means no external power is required to power the unit
  HCDP 2.2- and HDR-compliant
  Supports up to 7.1-channel surround sound audio

Optional Accessories:

N202-Series Cat6 24 AWG Solid Wire Patch Cables
- P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0 Cables

Disclaimer

Before installation, please check the following settings of your source(s) and TV/monitor(s):

1. Set display to 60Hz . Double-check factory settings, as default can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0. Some displays may have default setting at HDMI 1.4.
3. Verify your monitor has the HDR feature enabled. Some displays may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on your TV/monitor. Confirm with your TV/monitor manufacturer which HDMI ports support UHD Deep Color.
5. Check USB/IR DIP switch, as the default setting is set to IR.

Note: To connect a local monitor to your installation, the UHD Deep Color setting may need to be disabled on your local TV/monitor (depending make/mode) to achieve 4K @ 60 Hz resolution.

Mounting Instructions (select models only)

The B127A-1A1-BHBH, B127A-1A1-BHPH, B127A-111-BHTH and B127A-110-BH include mounting hardware that allows for a variety of mounting methods.

The following images illustrate how the included mounting brackets can be attached for different installations.

Note: The model shown in the below images is for illustrative purposes only. Your product may vary by model number, size or port orientation. The mounting options for all over IP units are the same.

Wall-Mount

19" Rack-Mount Pole-Mount

Standard Extender Kit Installation

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid wire Cat6 cable. Using stranded wire Cat6 cable or cable with a gauge (AWG) size higher than 24 AWG will result in shorter extension distance. Higher gauge cabling, such as 26 AWG, has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.

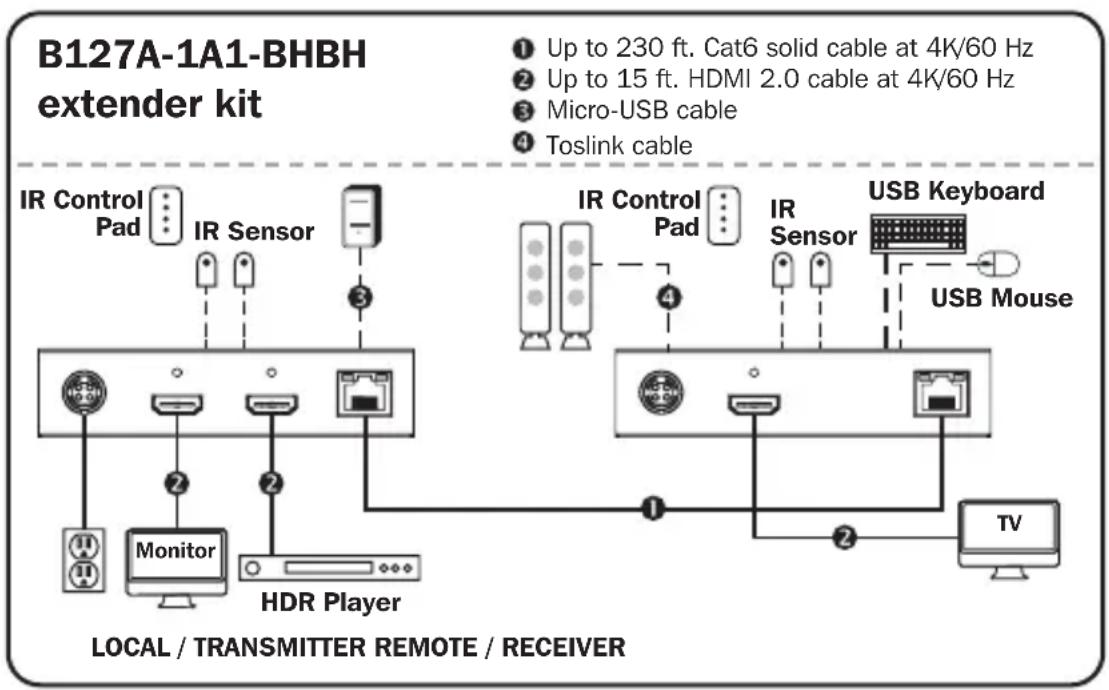

3) The installation diagram shows a B127A-1A1-BHBH unit.
4) External power is not required for remote receiver units due to Power over Cable (PoC) technology incorporated in the transmitter units.

Standard Extender Kit Installation

1. Make sure all equipment in the installation—such as TVs, Blu-ray™ players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the HDMI source to the INPUT port on the local transmitter unit.
3. Optional for B127A-1A1-BHBH: Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect a local monitor to the LOCALOUT port on the B127A-1A1-BHBH local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H signal repeater unit to the transmitter and receiver via Cat6 cabling. See B127A-010-H product features for more information.
5. Using Cat6 cable, connect the RJ45 port on the local transmitter unit to the RJ45 port on the remote receiver unit.
6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the remote receiver unit's HDMI port to a monitor.
7. Turn on the power to your connected TVs/monitors. The LOCAL (orange) LED will illuminate to indicate the local port has been connected to a display.

Standard Extender Kit Installation

1. Connect the external power supply to either the transmitter or receiver unit. Plug it into an available wall outlet or a Tripp Lite surge protector, power distribution unit (PDU) or uninterruptible power supply (UPS). The POWER (green) LED on the local transmitter unit will illuminate to indicate the unit is receiving power from the external power supply. The POWER (green) LED on the remote receiver unit will illuminate to indicate the unit is receiving power from the local transmitter unit through PoC technology.
2. Turn on the power to the HDMI source. The OUTPUT (orange) LED on the local transmitter unit will illuminate to indicate a signal is being received from the source.
3. The (orange) RJ45 LED will illuminate on both the local transmitter and remote receiver units to indicate a signal is being received from the source to display. The screen should now display on the connected monitor(s).

Standard Extender Kit Installation

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid wire Cat6 cable. Using stranded wire Cat6 cable or cable with a gauge (AWG) size higher than 24 AWG will result in shorter extension distance. Higher gauge cabling, such as 26 AWG, has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.

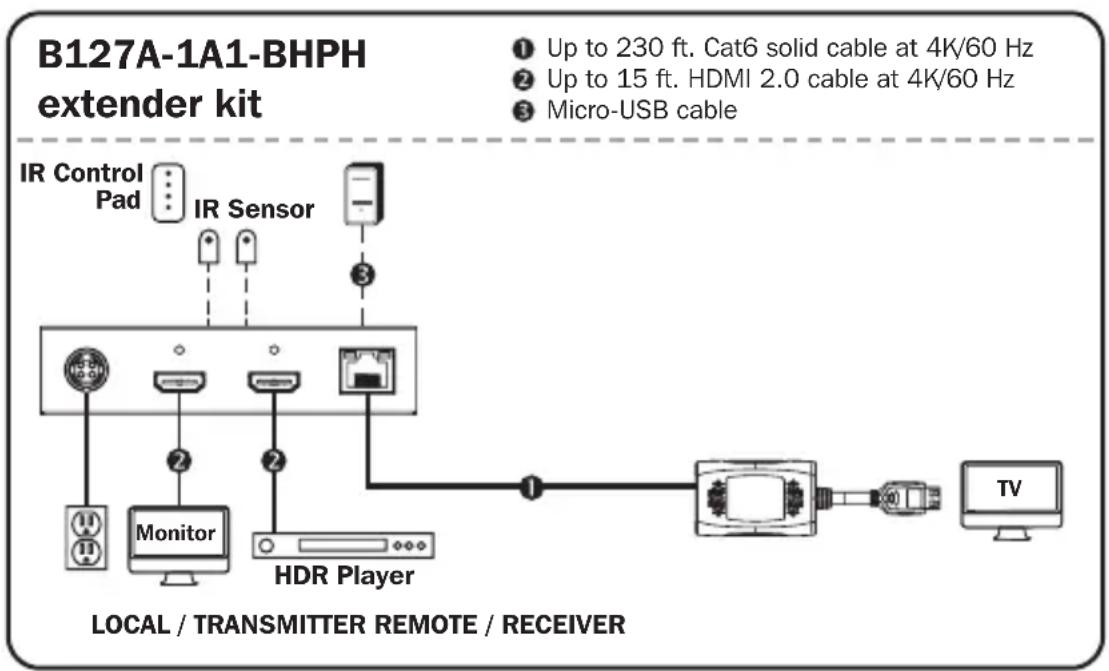

3) The installation diagram shows a B127A-1A1-BHPH unit.
4) External power is not required for remote receiver units due to Power over Cable (PoC) technology incorporated in the transmitter units.

Standard Extender Kit Installation

1. Make sure all equipment in the installation—such as TVs, Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the HDMI source to the INPUT port on the local transmitter unit.
3. Optional for B127A-1A1-BHPH: Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect a local monitor to the LOCALOUT port on the B127A-1A1-BHPH local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H signal repeater unit to the transmitter and receiver via Cat6 cabling. See B127A-010-H product features for more information.
5. Using Cat6 cable, connect the RJ45 port on the local transmitter unit to the RJ45 port on the remote receiver unit.
6. Connect the remote receiver unit's HDMI cable to a monitor/TV.
7. Turn on the power to your connected TVs/monitors. The LOCAL (orange) LED will illuminate to indicate the local port has been connected to a display.

Standard Extender Kit Installation

1. Connect the external power supply to the transmitter unit. Plug it into an available wall outlet or a Tripp Lite surge protector, power distribution unit or uninterruptible power supply (UPS). The POWER (green) LED on the local transmitter unit will illuminate to indicate the unit is receiving power from the external power supply. The POWER (green) LED on the remote receiver unit will illuminate to indicate the unit is receiving power from the local transmitter unit through PoC technology.
2. Turn on the power to the HDMI source. The OUTPUT (orange) LED on the local transmitter unit will illuminate to indicate a signal is being received from the source.
3. The (orange) RJ45 LED will illuminate on both local transmitter and remote receiver units to indicate a signal is being received from source to display. The screen should now display on the connected monitor(s).

Standard Extender Kit Installation

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid wire Cat6 cable. Using stranded wire Cat6 cable, or cable with a gauge (AWG) size higher than 24 AWG, will result in shorter extension distance. Higher gauge cabling, such as 26 AWG, has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.

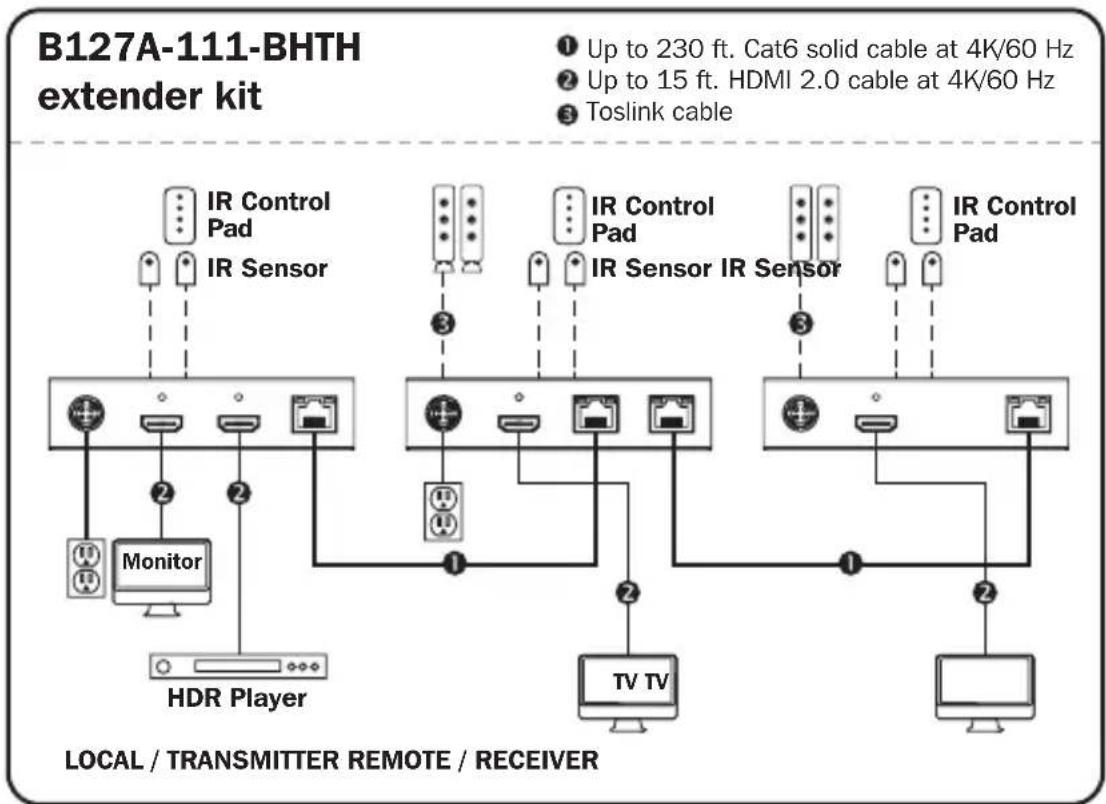

3) The installation diagram shows a B127A-111-BHTH unit.
4) External power is not required for remote receiver units due to Power over Cable (PoC) technology incorporated in the transmitter units.

Standard Extender Kit Installation

1. Make sure all equipment in the installation—such as TVs, Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the HDMI source to the INPUT port on the local transmitter unit.
3. Optional for B127A-111-BHTH: Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect a local monitor to the LOCALOUT port on the B127A-111-BHTH local transmitter unit.
4. Using Cat6 cable, connect the RJ45 port on the local transmitter unit to the RJ45 port on the remote receiver unit.
5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect the remote receiver or transceiver unit's HDMI port to a monitor.
6. Turn on the power to your connected TVs/monitors. The LOCAL (orange) LED will illuminate to indicate the local port has been connected to a display.

Standard Extender Kit Installation

1. Connect the external power supply to the transmitter. Plug it into an available wall outlet or a Tripp Lite surge protector, power distribution or uninterruptible power supply (UPS). The POWER (green) LED on the local transmitter unit will illuminate to indicate the unit is receiving power from the external power supply. The POWER (green) LED on the remote receiver unit will illuminate to indicate the unit is receiving power from the local transmitter unit through PoC technology.
2. Turn on the power to the HDMI source. The OUTPUT (orange) LED on the local transmitter unit will illuminate to indicate a signal is being received from the source.
3. The (orange) RJ45 LED will illuminate on both the local transmitter and remote receiver units to indicate a signal is being received from the source to display. The screen should now display on the connected monitor.

Transceiver Daisy-Chain Installation (B127A-110-BH only)

Notes:

1) Test to ensure the entire installation works properly before pulling cables through ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid wire Cat5e/6 cable. Using stranded wire Cat5e/6 cable or cable with a gauge (AWG) size higher than 24 AWG will result in shorter extension distance. Higher gauge cabling, such as 26 AWG, has a more limited transmission capability than lower gauge cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.

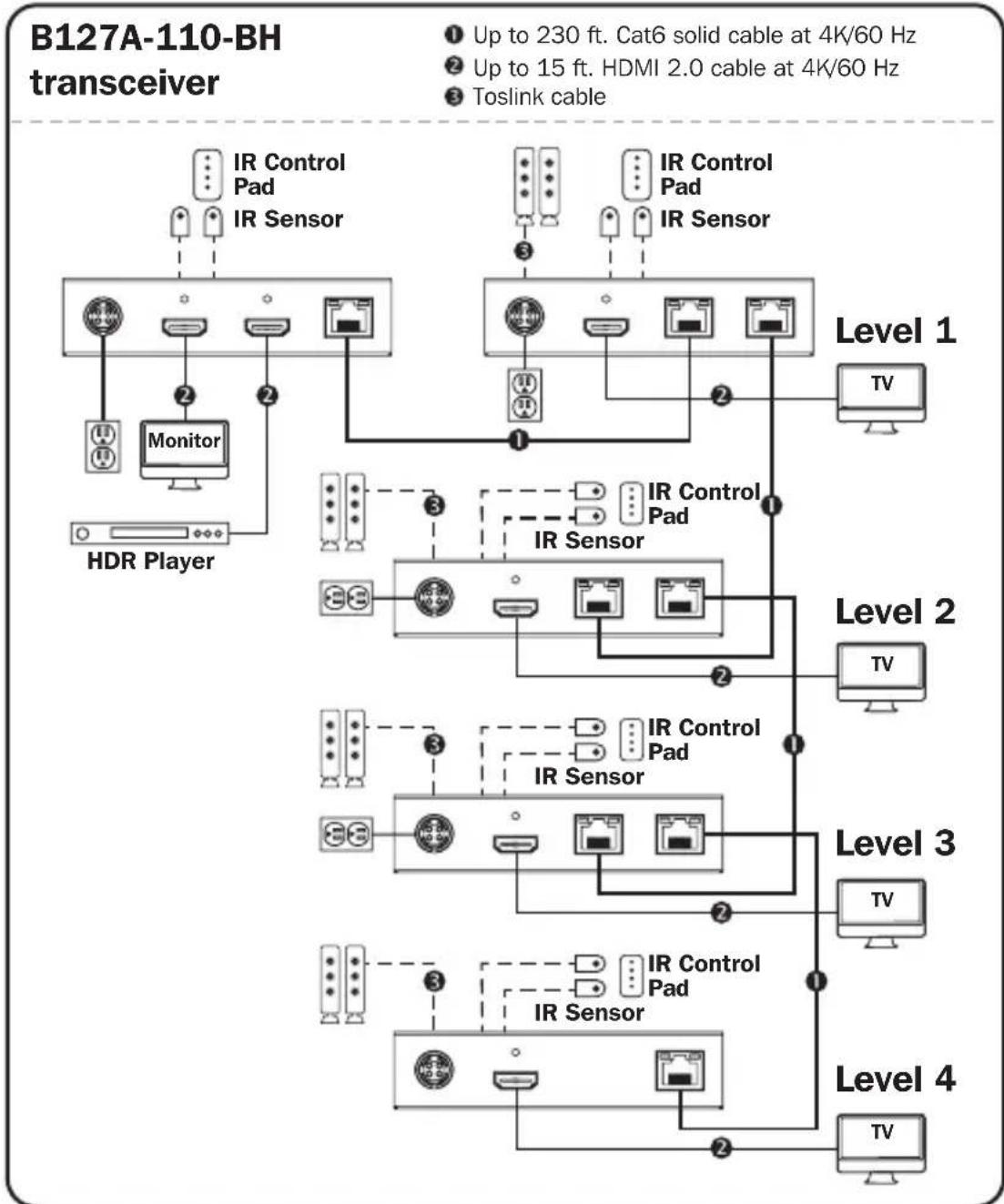

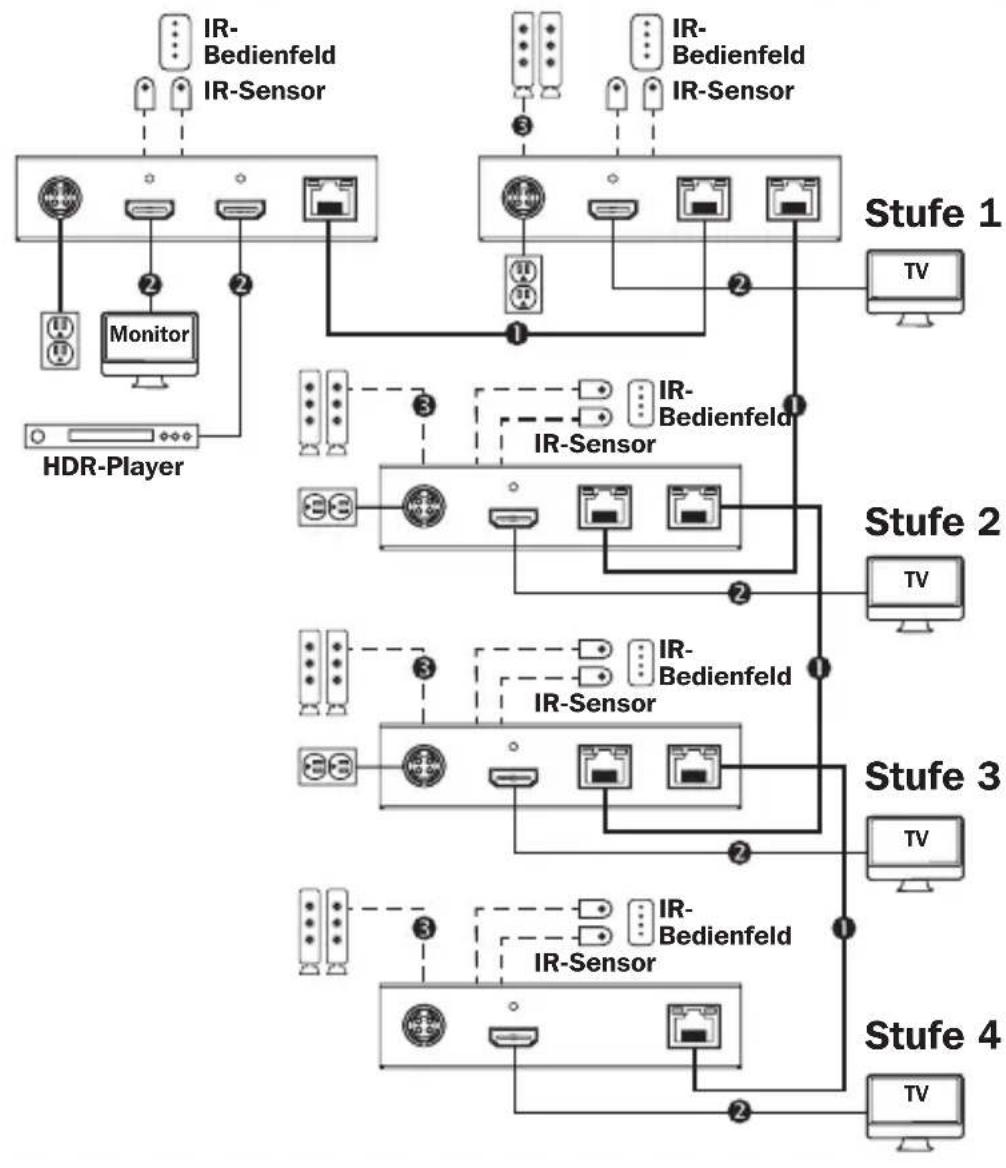

3) The installation diagram shows the B127A-111-BHTH and B17A-110-BH installation.

Transceiver Daisy-Chain Installation (B127A-110-BH only)

Transceiver Daisy-Chain Installation (B127A-110-BH only)

1. Make sure all equipment in the installation—such as TVs, Blu-ray players and the transmitter—is powered OFF.
2. Connect the HDMI source to the INPUT port on the B127A-111-BHTH using a Tripp Lite P568-Series HDMI Cable.
3. Connect a local monitor to the LOCAL HDMI port using a Tripp Lite P568-Series HDMI Cable.
4. Connect the external power supply to the local unit and plug it into a Tripp Lite surge protector, power distribution unit (PDU) or uninterruptible power supply (UPS). The green RJ45 LEDs will illuminate to indicate power is being received from the external power supply.
5. Using Cat5e/6 cable, connect one of the RJ45 output ports on the local unit to the RJ45 input port on the B127A-110-BH transceiver unit.
6. Connect a monitor to the HDMI OUTPUT port on the transceiver unit using a Tripp Lite P568-Series HDMI Cable.
7. The green power LED and the green RJ45 LEDs on the transceiver will illuminate to indicate the unit is receiving power. Up to four units can be daisy-chained (three transceivers and one receiver). To connect additional transceiver units, proceed to step 8. To finish your installation with a B127A-110-BH unit, proceed to step 12.

Transceiver Daisy-Chain Installation (B127A-110-BH only)

1. Using Cat5e/6 cable, connect the RJ45 OUTPUT port on the B127A-111-BHTH receiver unit to the RJ45 INPUT port on B127A-110-BH.
2. Connect a monitor to the HDMI OUTPUT port on the B127A-110-BH that you just added using a Tripp Lite P568-Series HDMI Cable.
3. Connect the external power supply to the B127A-110-BH and plug it into a Tripp Lite surge protector, power distribution unit (PDU) or uninterruptible power supply (UPS). The green power LED and the green RJ45 LEDs will illuminate to indicate the unit is receiving power.
4. To add a second B127A-110-BH, repeat steps 8 through 10. To finish your installation with a B127A-110-BH, proceed to step 12.
5. Using Cat5e/6 cable, connect the RJ45 OUTPUT port on the last B127A-110-BH to the RJ45 INPUT port.
6. Connect a monitor to the HDMI OUTPUT port on the B127A-110-BH using a Tripp Lite P568-Series HDMI Cable.
7. The green LED on the B127A-110-BH will illuminate to indicate the unit is receiving power from the previous transceiver. The orange LED will illuminate to indicate the unit is connected to a powered ON remote/repeater unit.
8. Turn on the power to the HDMI source. The orange RJ45 LEDs on the local unit will illuminate to indicate a signal is being received from the source.

Transceiver Daisy-Chain Installation (B127A-110-BH only)

1. If necessary, use the Equalization control on the remote/repeater unit(s) and remote receiver unit to adjust the video image.
2. The maximum number of daisy chain layers is 4 for a total distance of 920 ft.

Note: An improper Equalization setting can cause the monitor not to display a picture at all. Try each Equalization setting until an acceptable picture is displayed.

USB/IR/Toslink Controls

The extender kit provides the following functional controls:

• USB 1.1 - One Micro-USB input at transmitter, dual USB-A outputs at receiver
• Bi-Directional IR - Dual 3.5 mm jacks at both the transmitter and receiver
• Toslink output at receiver and transceiver

(Optional) Connect the included IR-OUT cable to the transmitter unit's IR-OUT port. Place the sensor on the IR-OUT cable in an unobstructed area within clear view of the device being controlled. Then connect the included IR-IN cable to the receiver unit's IR-IN port. The IR-IN cable will communicate the desired command via the transmitter's IR-OUT cable.

Note: The IR-OUT cable receives the signal from the remote control and sends it to the device being controlled (e.g. Blu-ray player, etc.).

(Optional) With a user-supplied USB Micro-B cable (such as Tripp Lite U050-XXX Series USB cable), connect to the transmitter's Micro-B port. Then connect a keyboard and mouse to the available USB-A ports on the receiver unit.

(Optional) Using a Toslink cable (such as Tripp Lite A102-XXM Series cables), connect the Toslink cable to a set of speakers, an audio receiver or other audio system equipped with Toslink digital outputs.

Warranty and Product Registration

1-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Warranty and Product Registration

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Manufacturing

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

20-10-008 93-3D27_ReVA

1111 W. 35th Street, Chicago, IL 60609 EE UU • triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support

20-10-008 93-3D27_ReVA

1111 W. 35th Street, Chicago, IL 60609 USA • triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

20-10-008 93-3D27_ReVA

PykoBODCTBO N0Ib30BaTeJia

KoMnJIeKtbl peTpaHcIaTOpOB HDMl chepe3 Cat6 n peTpaHcIaTOp (4K/60 T)

Mодениkomплесковpeетрансяторов:B127A-1A1-BHBH, B127A-1A1-BHPH,B127A-111-BHTH,B127A-110-BH Mодениpeетрансятopa:B127A-010-H

English 1 • Espanol 26 • Français 53 • Deutsch 105

PpOyKunBcuWcEoH KcNCTBa.

HDMI

HSHDSEPHIOENMULTBDOATIMTRPA

1111 W. 35th Street, Chicago, IL 60609 USA - triplite.com/support

OxpanaTcA BTOpCKnM npaBOM © 2021 Tripp Lite. NepeneuTaKta Zanpeuaetca.

CopexmuoynakOBkn

Ha npuBeHbIX HnKe n3o6paXeHnX npEcdTaBneHbI B03MOxHbI cNoCobI KpenJIeHH BxoJaXh B KOMPNeKT MOHTaXHbIX KPOHtTeHOB dJa pa3NNUHbIX yCTaHOBOK.

Ipumeyaue. Ipubeehn Hxke Moden bp npedcmabena monbko b kaecme unnocmpauu. Baue u3denue moxem omnuambcna no homepy modenu, pa3mepy unu opuenmauu npmoB. BapuaHmbi MOhmaxa oduhakobblrae cx IP-Modyne.

HacteHHbIMoHTaX

TpaHcNBepoB (ToIbKO,IJIa MoI, B127A-110-BH)

YcTaHOBka Co 7IeNfoBbIM NOdknIOUyeHNMe TpaHCNBepOB (ToIbKO dIy MoI, B127A-110-BH)

1. Y6eIITecb B TOM, qTO pHTaHne BCero 06OpyIOBaHnra (a IMeHHO TeNeBUN3OpOB, npOIRpbIBaTeNei Blu-ray n nepeDaTuNka) oTKIOUcHo.
2. Поdkлочи龟ctoуннHDMI-cnrgana Ko BXOДHOMY nopTu moуь B127A-111-BHTC nomoью HMI-ka6eЯ Tripp Lite cepu P568.
3. Пордклочи Лokальнь монтор к порту LOCAL HDMI сnomоцью HDMI-ka6еля Tripp Lite cepи P568.
4. Поdkлioчnte K lokaibHomу nepedaTchky BheHnI NCTOCHN KNTaHn, 3aTeM BknIOHTe ero B ceTeBOJ nIbTp, 6noK paCnpdeJeHn IITaHn (PDU) nIIN cTOUHK 6ecpeboHorO nITaHn (N5I) Tripp Lite. HAnuNe nITaHn ot BHeHrero NCTOChnKa 6yDet OTO6paXaTbcra CBeToINOJNbIMn INDnKaTopamn RJ45 3eJeHO rCBeta.
5. CoeINHnTe OINH n3 BbIXoHbIX nopToB RJ45 loKaIbHo rO MoDyIa CBXoHNbIM nopToM RJ45 TpaHcNBePa B127A-110-BH npn nomoi Ka6eIa Cat5e/6.
6. Пордклочи монитор К порту HDMI OUTPUT (BblXODHDMI) Трансubера спомоцью HDMI-kaбеля Tripp Lite cepи P568.
7. Hanuhe nnta Hra TpaHcBepa OTo6pKaetcraero CBeToIOHbIMn INHdkaTOpamn Power ("PiTaHne") n RJ45 3eIeHoro zBaTe. PpeymatPnaBaeTc B03MOxHOCTb IneΦOBOro noKluOeyHn DO yeTbipex MoUyne (Tpex TpaHCNBepOB n Ondoro npneMHka).ДЯ noKluOeyHn DoonHHTeJIbHbIX TpaHCNBepOB NepeiNeTe K Wary 8.ДЯ 3abepWeHn KOMNKeTauHn CBoe yCTaHOBKn MoUyEm B127A-110-BH nepeiDte K Wary 12.

YcTaHOBka co ⅢeIΦOBbIM NOdkIIOUeHnEM

TpaHcNBepoB (ToIbKO,IJIa MoI, B127A-110-BH)

1. Coeinnite npr RJ45 OUTPUT (BblXoJ RJ45) npneMnka B127A-111-BHTC npotom RJ45 INPUT (BXOJ RJ45) TpaHcNBepa B127A-110-BH npn nmoi Ka6eJa Cat5e/6.
2. Пождклочи монитор к порту HDMI OUTPUT (BbIXODHDMI) только что установленно Трансubера B127A-110-BH сnomоцью HDMI-ka6еля Tripp Lite cepи P568.
3. Поклочи К Трасньеру B127A-110-BH В breeшни NGToCHNK NITAHNIA, 3aTeM BKIOUHTe erO B cTeBOJ FOJIbTp, 6NoK paCnpedEnHЯ NITAHNIA (PDU) nIN NCTOuHnK 6ecpe6oHOrO pHTAHNIA (IV5П) Tripp Lite. HAnuHne pHTAHNЯ ModyJЯ 6yIeT OTO6paxaTbcra CBeToDnOdHbIMn INHdNkAtopamn Power ("PITaHne") u RJ45 3eHeHOrO uBeta.
4. Дя подклоченя доронитьногу TrpaHcNBepa B127A-110-BH noBtopuTe warg 8-10. Дя заBERSEHЯ KOMпeКТaцIN CBoe yCTaHOBk moJyIeM B127A-110-BH nepeiDHTe K wary 12.
5. CoeHnHTe nopT RJ45 OUTPUT (BblXOД RJ45) nocJeHero TpaHcNBepa B127A-110-BH c npToM RJ45 INPUT (BXOД RJ45) npn nomoNs Ka6eNa Cat5e/6.
6. ПоdkлочиMe MOHITOP K npoty HDMI OUTPUT (BbIXOД HDMI) petpahcnaTopa B127A-110-BH c nomoцью HDMI-ka6eЯ Tripp Lite cepn P568.
7. Hanuhe nntaHnMoDyIOn ot npedbIduyUero TpaHcNBepa OTo6paXaeTcBcTeODnOdbIM HndKATOpOM 3eJeHoro UBeTa Ha yctpoiCTBe B127A-110-BH. IodKnIOueHne daHHoro MoDyIg K 3aHTaHOMy ydaJIeHNHomy/peTpaHcNauOHHomMy MOnyIO OTo6paXaeTcCBcTeODnOdbIM HndKATOpOM opAHxkeBOrO UBeTa.
8. BkIIOUHTe nITaHne nCTOuHnka HDMl-cnHaJa. IOnyueHne cunHana ot nCToUHnka loKaJIbHbIM MoIyIeM OTo6paJxAetc CBETOAnOdHbIMn INHdkaTOpamr RJ45 opAHKeBOrO uBeTa.

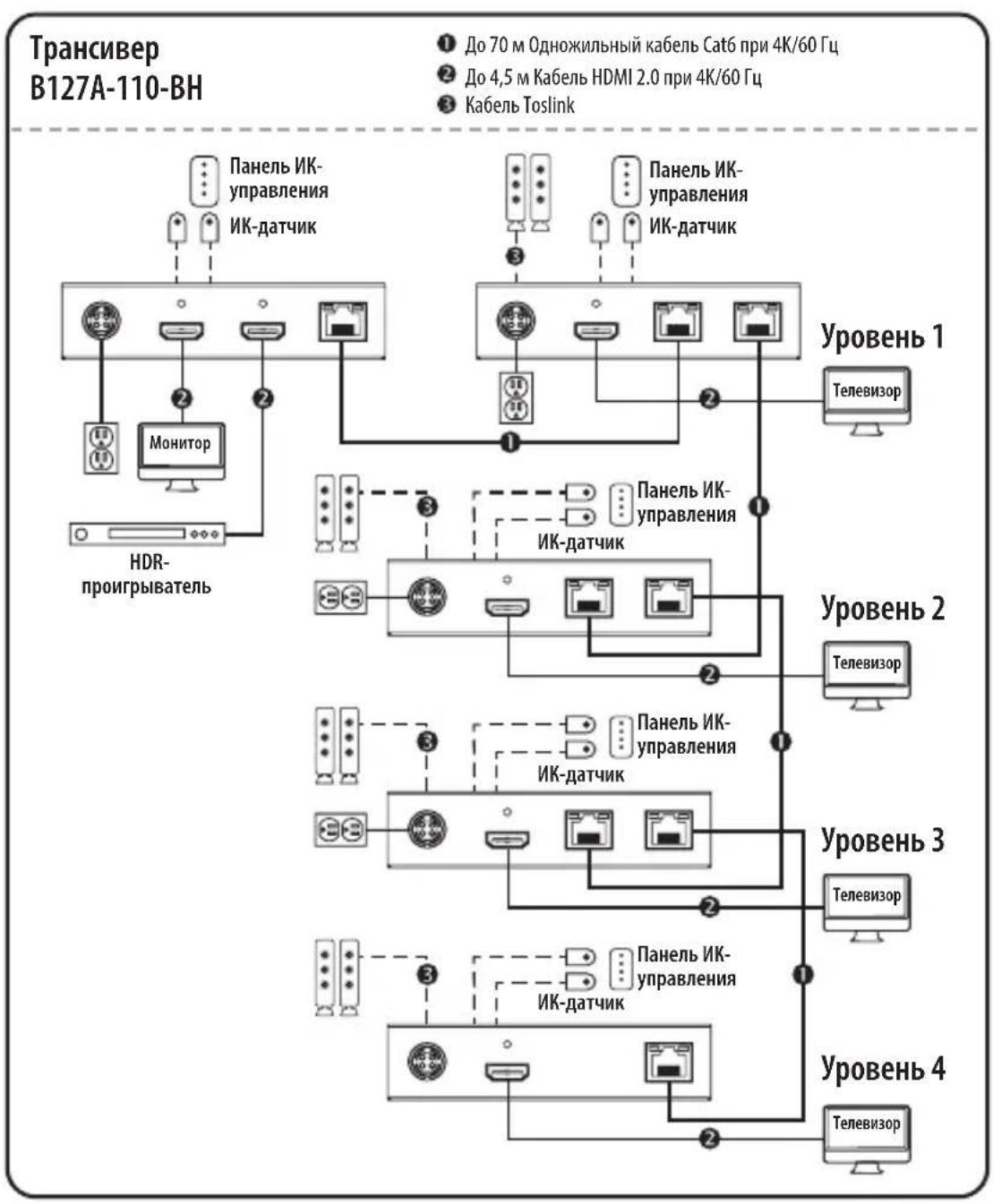

YcTaHOBka Co 7IeNfoBbIM NOdknIOUyeHNMe TpaHCNBepOB (ToIbKO dIy MoI, B127A-110-BH)

1. При Heo6xOДmOCTn BocnoIb3yITeCb эКВаиЗeрOM ydaJIeHOrO(-bIX) moIyIeN/ NOBTOpITeIa(-eI) n ydaJIeHHO rPnEMLHO rMOyIa Ira KOppeKcIIu KaueCTBa BIndeOn3O6paJxKeHnIa.
2. MaKcImaJIbHoe YnCNo yPoBHei IJneIfoBOro NODKnIOueHnra: 4. CymMapHaJa DaJIbHOCTb peTpaHCJIaCnU: 280 M.

Ipumeyane. HenpaunbnaH aHcmpouka 3Kbana3epa moKem npuecmu K noHOMy omycmcbuO u3o6paKeHnHa MoHumope. NOnbmauemcb doobmbcra npabunbHO Hacmpouku KaXdo20 u3 eMeHmoB 3Kbana3epa do nolyeHn npueMeMozo KauecmBa u3o6paKeHn.

UnpaBnenne uepe3 USB/IK/Toslink

KOMnJIeKT petpaHcIaTopa oBeCneuBaet cIeIyUoIe yHKUOHaJIbHbIe 3JIeMeHTbl ynpabLeHn:

USB 1.1 - OdnBxoD Micro-USB ha nepaTnuke, Dba BbixoJa USB-A Ha npneMnke
-ДынравелныИК - по дba pa3bema 3.5mm Ha nepedatunkeи ппемнke
BbIXoToslinkHa npneMnke n nepedatunke

(Heo6aTeBHO) BCTaBbTe BbIXOHOH NK-Ka6eB (IR-OUT) n3 KOMnEKeTb Nopr IR-OUT nepeDaTuKHa. YCTaHOBITE DaTUnK Ha Ka6eB IR-OUT B CBO6OHNOM OT npenrCTBm MeCte TaKIM O6pa30M, UTObI ynpabNaeMoE yCTpoiCTBO HxOAnIOCb B npedeJax BUNMOCTN. 3aTeM BCTaBbTe BxOHOH NK-Ka6eB (IR-IN) n3 KOMnEKeTb Nopr IR-IN npneMHnKa. Ka6eB IR-IN 6ydt nepeDaBaTb HxNhble KOMaHdbI uep3 Ka6eB IR-OUT nepeDaTuKHa. IpumeyAue. Ka6eB IR-OUT npuHMaem cuzHan ducmaHcuOHHO20 ynpabNeHua u nepedaem e2o Ha ynpabNaeMoE ycmpoucMbO (hanpumep, npou2pbiamenblu-ray u np.).

(Heo6aTeNbHo) C nOmoIbIO Ka6eNa USB Micro-B, He BxOJaIeRo B KOMnJIeK T NOCTaBKn (HapnpMep, USB-Ka6eNa Tripp Lite cepuu U050-XXX), BblOnHnTe noDKIoueHne K npOpTu Micro-B nepeDaTUnKa. 3aTeM noDknOHTe KnaBnAtpy uMbIb K CBO6OdHbIM nopTaM USB-A npnemHnka.

(Heo6a3aTeIbHo) PoIcoeHInIte Ka6eN Toslink (HaIpImep, Ka6eN Tripp Lite cepn A102-XXM) K akyctnuecko cnCTeme, ayuOnnpemHnky nI npyro ayuNoCnCTeMe, ochaueHHo uΦpoBbIM N BixOdaMn Toslink.

TapaHTnI npErnctpaZnI n3denn

OrpaHnueHHa rapaHTna cpoKm 1 roD

KOMnHaTRIPP LITE rapaHTnpyET OTCYCTBNE deeKTOB MaTePnaIOB N3rOToBNeHn B TeueHne Ondoro (1) rOda c MOMeHTa nepBOHaayalbHO nOKynk.

063aTeNbCTBa KOMnHn TRIPP LITE no HactoJe rapaHTm OrpaHnUbaOTcpeMOHTom nI 3aMeHO (no ee eHNOHUMO ycmotpeHHIO) IIObIX TaKHX DeFeKTHbIX N3denn. IJna Noyehn YcUYr NO daHHO rapaHTn Heo6xoHmIO noyunb Homep Returneded Material Authorization (RMA — pa3peuHne Ha Bo3BpaT MaepuaNoB) OT KOMnHn TRIPP LITE nIe ee ABTOZOBaHHOro cepBnCHOro cHTpa. N3denn DonxHbI 6bITb BO3BpaSeHbIB KOMnHn TRIPP LITE nIe abTOzOBaHHbI cepBnCHbI cHTp TRIPP LITE c npedonlato TpaHCnOpTHbIX paXoOB IN cnpoBOXDaTcK pAaKIM OnncAHmE Bo3NkWe np6NeMbI N DOkyMeHToM, NOdTBePxAIOUmm DaTy IMecTo Ero npio6peHHe JcTBE NaHctOaJe rapaHTm He paCnpocTpaHareTcHa o6OpyOBAHme, NobpeKDeHHoe B pe3yIbTaTe abAPIN, He6peXHoRo 6bpaSeHn IIN HnPabUNbHOrO NCnOLb3OBaHHa, a TaKKe BnDOHNMeHHoe KaKM 6bl To HN 6bl O6pa3Om.

3A NCKJIIOUHHEM IPEJYCMOTPEHHbIX 3DECb CJUYAEB KOMNHAHNA TRIPP LITE HE IPEJOCTABJARET KAKNX- JIN60 ABHbIX INI IIOPA3YMBAEMbIX TAPAHTN, BKJIOUAY TAPAHTN KOMMEPUECKO IPINOHOCTIN I PNIFOJHOCTIN DIA KAKOI-JIN60 KOHKPETHOI CEIN. B HeKOToBPbIX WtTaX/TOcydApCTBax OpapHueHne INI NCKJIIOUHHe IIOpa3YMBAEMbIX TapaHTn He IOnyckaETc; CNeIOBaTeNbHO, BblweyKa3aHHe(-bie) OrpauHueHne(-a) INI NCKJIIOUHHe(-r) MOrTy He paCInPoCTpaHrtbCn Ha NOKyNaTeN.

3A NCKHIOUCHHEEM PEPDCMOTPEHHbIX BbIe CNYAEB KOMNAHNA TRIPP LITE HN INPN KAKNX OBCOTERTBAX HE HECET OTBETCTBEHHOCTN 3A INPMAble, KOCBEHHbIE, CNYAHbIE WNN IIO6OHTbE YbItKN IINBOYbITKN, ONPDEJIEMbIE OC0bIMN OBCTOReTbCTBAMN, BO3HNIKAIOUIE B CBA3N CNCNOJIb3OBAHNE MDAHHORI N3DEJIN, DAXE B CNYAE EE INHOPMIMPOBAHNA O BO3MOXHOCTN HACTYNLEHNA TAKNX YbBITKOB. B qactHOCTN, KOMNAHNA TRIPP LITE He Hecet OTBETCTBEHHOCTN 3a KaKne-Imbo N3depIXK, TaKne KaK ynyuHbIe np6bln nn DoxObl, NOTepr o6OpDobAHNA, NOTepr BO3MOXHOCTN NCNoIb3OBAHNA o6OpDobAHNA, NOTepr npOrpaMMHoro Obceueehna, NOTepr daHHbIX, paXoDbI Ha 3aMeHNTEIn, UpeylnipOBaHne ppeTeH3N TpeTBIX NmI np.

TapaHTnI npErnctpaunI3denn

HΦopMaunno BbInonHeHH Tpe6oBaHn DnpeKtBbI WEEE nJnokynaTeNei nepepaOToNKOB npOdyKcnn KOMNaHm Tripp Lite (AIBnIOUxXpe3nEHTAMN EBponeckoro co103a)

Cornacno noIonoJHnI MInpeKtNbbl 6yTnIN3aunm OTxOIOB 3JeKtpueckoro n 3JeKtpoHHoro
obopydOBaHn (WEEE) u nCNoHNrTeNbHbIX paCnpopJxHeHn Ioo ee npImeHnIO, npn NOKynke
noTpe6nteTMn HOBO r 3JeKtpueckoro Hnn 3JeKtpoHHoro obopydOBaHn npOn3BoDCTBa KOMnAHn
Tripp Lite oHI nOnyauot npabo Ha:

• PpOdaJx cyaporo 06OpuyoBaHnno npuHunny "OINH 3a OINH" n/nnn Ha 3KBvBaIeHTHO OHOBE (B 3aBNCIMOCn OT KOHKpeTHOH CTpaHbI)
• Otnpabky HOBOr o6OpyobAHnHa npepa60Ky nocne oKOnHaeTbHoB bBypa60Kn erO pecypca

BHUMAHVE!

He pekomehnyetcnaonb3oBAHne daHHoro 6obpyoBaHnB CnCTeMaX Xn3Heo6ecneueHn, rIe erO BbIXoN 3ctpo npednoJoxntbHO MoKET npIBeTn K nepe6oam B pa6ote 6oppyoBaHnXn3Heo6ecneueHn INB 3NaHTbHoM Mepe CHN3NTb erO be30NaChOCTb INN eΦeKTUBHOCTb.

KomnaHn Tripp Lite noctoHHo COBepseHCTBye CBOIO npOdyKuio. B CBa3N C 3TNM BO3MOxHO N3MeHeHneTexHuecknx xapaKtepncTik 6e3 npEbpntelbHorO yBeOMLeHn. BHeuHn Bn peAhbix N3denn MoKet HeckolbKO OTnUaTbCt O TnpEcdTaBHeHOrO Ha oToTpaΦnX nIInIOCTpaunX.

POMPHORIN NUCLEOTIDE KINCTCBS

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

104

20-10-008 93-3D27_ReVA

Bedienungsanleitung

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

B127A-110-BH Transceiver

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

132

20-10-008 93-3D27_RevA
