Product Type	19" 14U Server Cabinet
Brand	Tripp Lite
Model	SmartRack SR14UBDP
Usage	Server
Dimensions (H x W x D)	717 x 600 x 1108 mm (28.23 x 23.62 x 43.62 in)
Weight	53.5 kg (118 lb)
Maximum Load Capacity	454 kg (1000 lb) stationary or on casters
Rack Units	14U
Material	Steel
Doors	Lockable, reversible front and rear doors
Side Panels	Lockable, removable
Variable Mounting Depth	101.6 mm to 1066.8 mm (4 in to 42 in)
Casters and Leveling Feet	Yes, 4 casters and 4 leveling feet
Grounding	M6 grounding point (screw included)
Warranty	5-year limited
Package Contents	Cabinet, front and rear doors, side panels, mounting rails, cable management rails, mounting hardware, keys, documentation

Frequently Asked Questions - SmartRack SR14UBDP Tripp Lite

How do I install the SmartRack SR14UBDP cabinet?

Unpack the cabinet near the final location. Use a forklift if necessary. Remove the shipping brackets, then push the cabinet off the pallet. Level it by lowering the leveling feet with a 13mm wrench. Secure the shipping brackets to the floor for stability. Finally, connect the grounding point with 8 AWG wire.

How do I reverse the front and rear doors?

First remove the ground screw from the door. Remove the handle, then remove the locking mechanism and rotate the latch 90 degrees. Remove the door, move the cabinet hinges to the opposite side, then attach the door hinges to the other side. Replace the door reversed and reconnect the grounding. Reinstall the handle.

What is the maximum load capacity of the cabinet?

The maximum load capacity is 454 kg (1000 lb) both stationary and on casters. It is recommended to install the heaviest equipment at the bottom.

How do I adjust the depth of the mounting rails?

Remove the 6 screws securing each mounting rail (2 top, 2 middle, 2 bottom). Slide the rail to the desired depth (in 6mm increments) and re-screw. The holes are numbered to help you align front and rear rails.

How do I ground the cabinet?

Use the threaded grounding point (front or rear) and an M6 screw (included) to connect an 8 AWG wire to the ground of your installation. Route the wire under the frame so it does not interfere with door opening.

How do I install equipment in the cabinet?

Start by installing heavy equipment at the bottom. Use the provided cage nuts: insert them into the square holes of the mounting rails, then secure the equipment with M6 screws and washers. Do not open more than one sliding drawer at a time.

How do I remove or install the side panels?

To remove a side panel, slide the latch down, tilt the top of the panel outward, then lift it to disengage from the spacer. To reinstall, reverse the operation.

How do I maintain the cabinet?

Store the cabinet in an indoor environment away from moisture and dust. Clean it with a dry, non-abrasive cloth. Regularly check the leveling feet and fasteners. Keep the original packaging for transport.

What to do in case of a problem?

First check the instructions in the manual. If the problem persists, visit tripplite.com/support. For repair, request an RMA number online and return the product prepaid in its original packaging with a copy of the invoice.

What is the warranty of the SmartRack SR14UBDP cabinet?

Tripp Lite offers a 5-year limited warranty from the date of purchase. It covers material and manufacturing defects, but not normal wear or accidental damage. For more information, visit tripplite.com/warranty.

USER MANUAL SmartRack SR14UBDP Tripp Lite

Important Safety Instructions 2

Overview 2

Feature Identification 3

Enclosure Installation 4

Preparation 4

Unpacking 4

Placement 5

Leveling 6

Ground Connection 6

Enclosure Configuration 7

Adding or Removing Front and Rear Doors 7

Reversing Front and Rear Doors 7

Adding or Removing Roof Panel 9

Adding or Removing Side Panels 9

Adjusting Mounting Rails and Cable Management Rails 10

Equipment Installation 11

Installing or Removing Cage Nuts 11

Specifications 12

Storage and Service 12

Warranty and Product Registration 12

Español 13

Français 25

Русский 37

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

Important Safety Instructions

SAVE THESE INSTRUCTIONS

All sections of this manual contain instructions and warnings that should be followed during the installation and use of the SmartRack Enclosures described in this manual. Read all instructions and warnings thoroughly before attempting to move, install or use the SmartRack Enclosures described in this manual. Failure to comply will create a risk of personal injury and property damage and may invalidate the warranty.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation openings of the enclosure.
• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.
• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.
• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.
• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible. The casters are designed for minor position adjustments within the final installation area only. The casters are not designed for moving the enclosure over longer distances.
• The casters are not designed to provide long-term support for the enclosure after final installation. Use the levelers to provide long-term support.
• Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.
  • Install the cabinet securely to the building structure, using the shipping brackets as illustrated in the Enclosure Installation section of this manual.
• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.
• When rolling the enclosure on its casters, always push it from behind, never pull it toward you.
• A rolling enclosure can cause personal injury and property damage if not properly supervised. If rolling the enclosure down a ramp is required, use extreme caution. Do not attempt to use ramps that have a slope steeper than 1:12.
• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage that will void the warranty.
  • DANGER: STABILITY HAZARD, RACKS ARE TO BE INSTALLED BY QUALIFIED SERVICE PERSONNEL ONLY.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Overview

The SR14UBDP SmartRack Enclosure accommodates all standard 19-inch rackmount equipment, regardless of vendor, and ships fully assembled for quick and easy deployment. The SR14UBDP allows for variable mounting depth, making it ideal for servers. The SR14UBDP also includes quick-release locking doors and side panels for convenient maintenance. Front and rear access doors are reversible for installation flexibility.

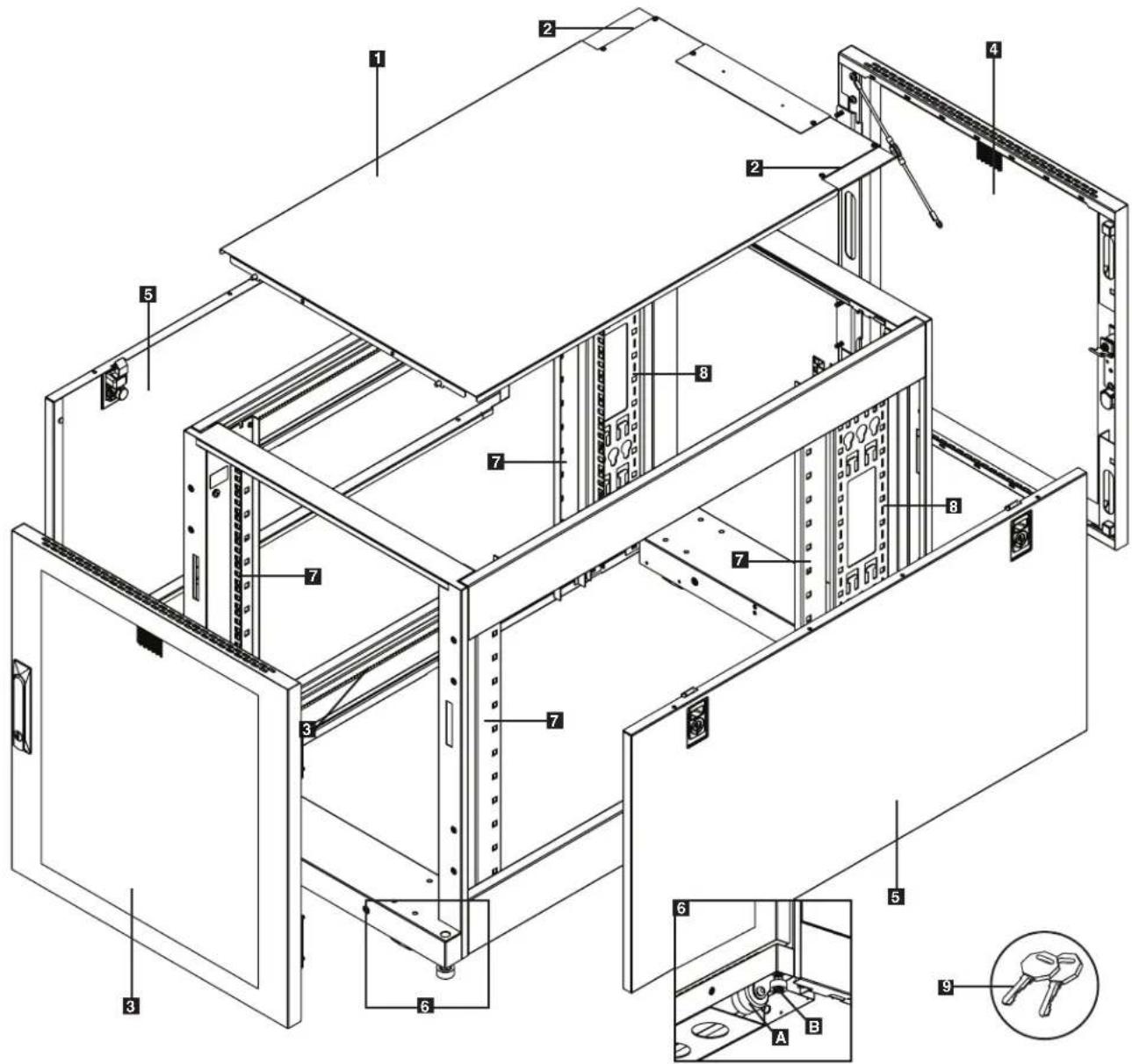

Feature Identification

1 Roof Panel
2 Cable Pass-Through Cutouts with Brush Strips
3 Locking Front Door
4 Locking Rear Door
5 Locking Side Panels
6 Casters A and Levelers B
7 Mounting Rails (Provide horizontal and vertical mounting points for equipment.)
8 Cable Management Rails
9 Keys (One for the doors and one for the side panels.)

Not Shown: Mounting hardware, documentation, shipping brackets and other shipping materials.

Enclosure Installation

Caution! Read All Instructions and Warnings Before Installation!

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move or install the enclosure without assistance. Until it has been properly installed and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when handling the enclosure and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the enclosure.

Preparation

The enclosure must be installed in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all the equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby. Before unpacking the enclosure, you should transport the shipping container closer to the final installation location to minimize the distance you will need to move the unit after the protective packaging has been removed. If you plan to store the enclosure for an extended period before installation, follow the instructions in the Storage and Service section.

You need several tools (user-supplied):

• 13 mm Open-end Wrench
• 18 mm Open-end Wrench
- Utility Blade
- Carpenter's Level
• Phillips-head Screwdriver
• 5/32" Allen Wrench

You also need the following hardware (included):

• (60) Phillips-head Mounting Screws (M6 x 5/8")
• (60) Cage Nuts (M6)
• (60) Nylon Cup Washers

Unpacking

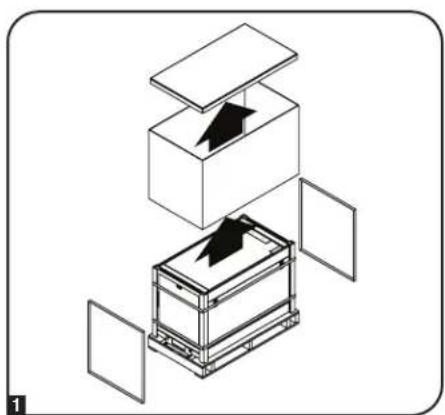

1 Confirm the shipping container is upright and stable. With pair of snips, cut the bands securing the cardboard to the unit. Remove the cardboard. The packing materials are recyclable.

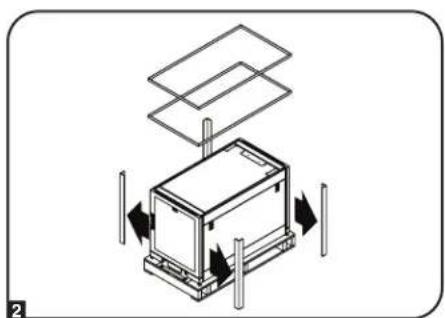

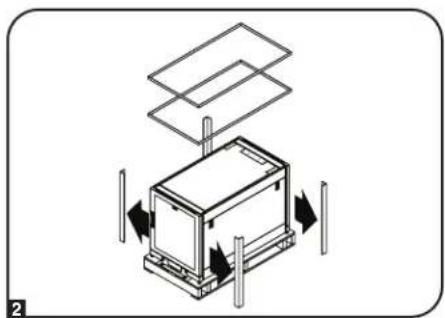

2 With the outer cardboard packaging removed, use a pair of snips to cut the bands securing the corner protectors. Remove the corner protectors. Save all packing materials (including the pallet) for later use unless you are certain they will not be required. The packing materials are recyclable.

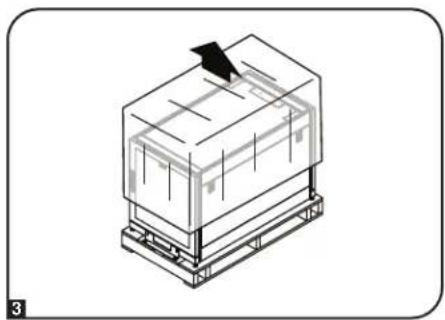

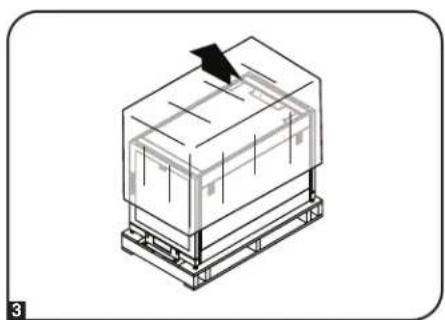

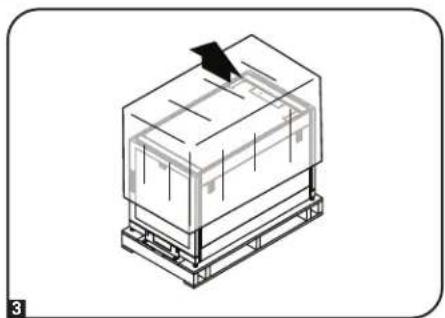

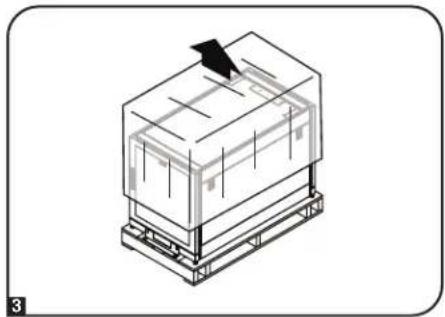

3 Remove the heavy plastic bag surrounding the enclosure. Examine the enclosure for any damage or loose parts. Confirm that all parts are present. If anything is missing or damaged, contact Tripp Lite for assistance. Do not attempt to use the enclosure if it has been damaged.

Diagram of a box being lifted into a rack, showing internal components and directional arrows (no text or symbols)

Isometric line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Isometric illustration of a rectangular electronic device with a black arrow pointing to its top surface (no text or symbols)

Enclosure Installation

Unpacking (continued)

4 Use a 13 mm open-end wrench to remove the shipping brackets. Be extremely careful, as the enclosure could shift unexpectedly after bracket removal. Save the brackets and bracket hardware for later use.

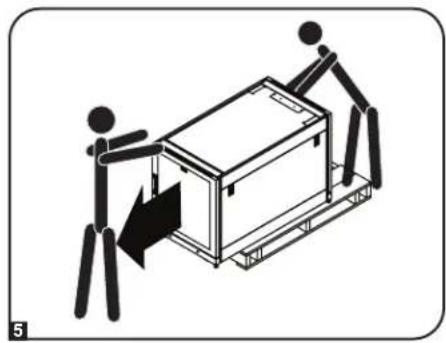

5 Position at least one person at the front of the enclosure and one person at the rear of the enclosure. Slowly push the enclosure toward the back of the shipping pallet until all four casters go over the edge of the pallet and touch the floor. WARNING: Use at least one assistant when removing the enclosure from the pallet. Be extremely careful when moving the enclosure.

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols)

Illustration of two stick figures interacting with a box, one holding an object (no text or symbols present)

Placement

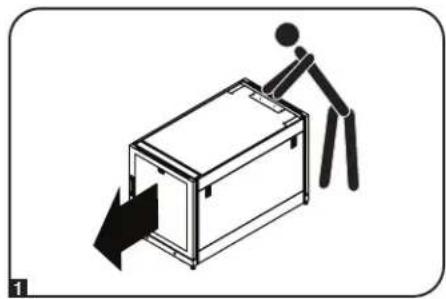

1 Use the casters to move the enclosure for a short distance over a level, smooth, stable surface by pushing it from the front or rear (not the side panels). Do not attempt to roll the enclosure over long distances. The enclosure should be moved close to its installation location inside its shipping container before it is unpacked. (Use a forklift or pallet jack to move the shipping container.) WARNING: Do not push or pull the enclosure at the side panels or pull the enclosure toward you.

Illustration of a person moving a box with arrows indicating direction (no text or symbols)

Enclosure Installation

Leveling

WARNING: Level the enclosure before attempting to install equipment. The casters are not designed to provide long-term support for the enclosure. Use the levelers to provide long-term support. Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.

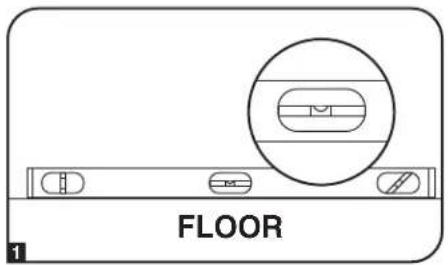

1 After the enclosure has been moved to the installation location, use a carpenter's level to check the slope of the floor. If the floor slopes more than 1%, choose an alternate installation site.

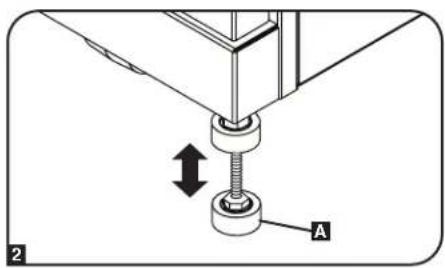

2 Use an 18 mm open-end wrench to lower each leveler A until it reaches the floor. (There are 4 levelers, 2 at the front and 2 at the rear.) Make sure each leveler contacts the floor solidly. Note: Lower a leveler by turning it clockwise; raise a leveler by turning it counter-clockwise.

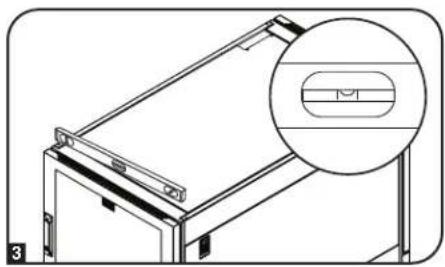

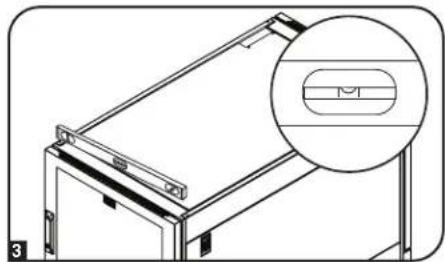

3 After lowering each leveler, use the carpenter's level to confirm that the enclosure is level in all directions. Adjust the levelers as required until the enclosure is level.

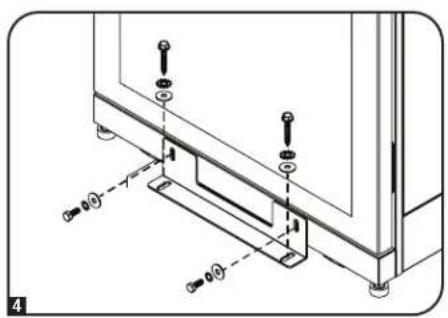

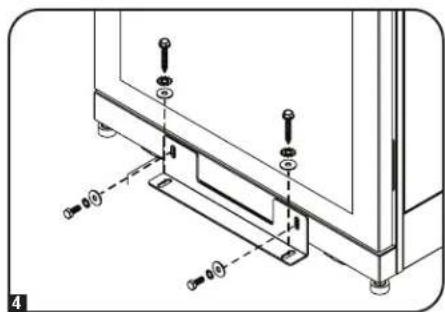

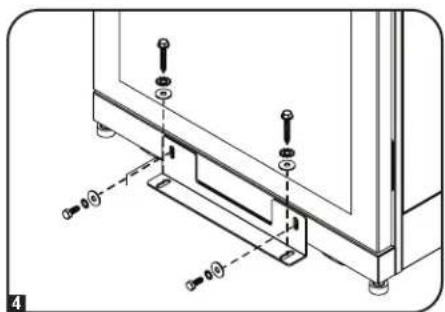

4 In order to secure the cabinet to the building structure for stability, attach the 2 shipping brackets using the hardware that attached the enclosure to the shipping pallet. Use a 13 mm open-end wrench to connect the brackets to the outer or inner bracket mounting points of the enclosure. Attach the brackets to secure mounting points in the floor using user-supplied hardware or Tripp Lite's SmartRack Bolt-Down Kit (Model: SRBOLTDOWN).

Technical line drawing of a mechanical device with an inset magnified view showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with mounting holes and structural supports (no text or symbols)

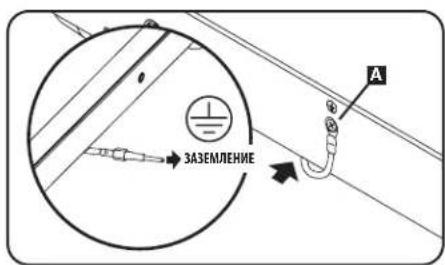

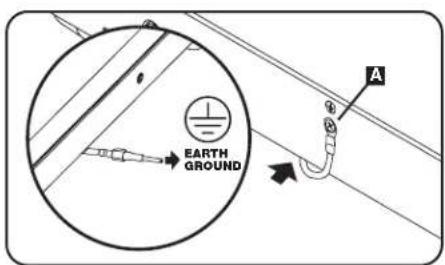

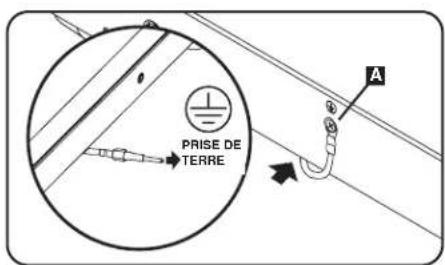

Ground Connection

All the parts of the enclosure are grounded to the frame of the enclosure. Use the enclosure's front or rear threaded grounding point A and an M6 screw (included) to connect the frame of the enclosure directly to your facility's earth ground connection with an 8 AWG (3.264 mm) wire. Route the ground wire under the enclosure's frame to ensure unhindered door operation. WARNING: Attach each enclosure to earth ground separately. Do not use the enclosure without an earth ground connection.

Enclosure Configuration

Adding or Removing Front and Rear Doors

Removing Door

1 Disconnect the door's ground wire.

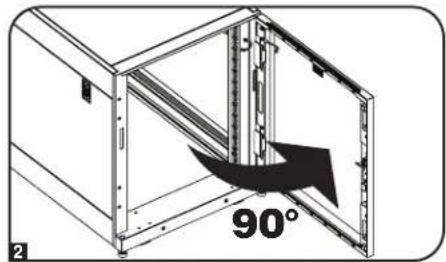

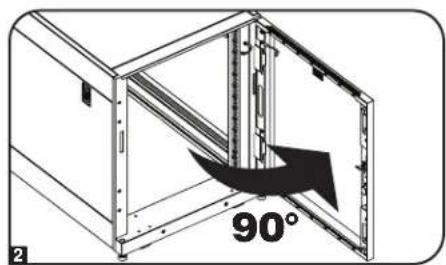

2 Open the door until it is perpendicular (90 degrees) to the front of the enclosure.

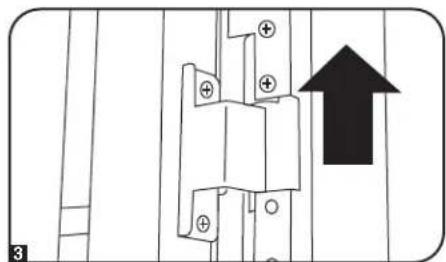

3 Lift the door from the hinges and remove it from the enclosure.

To Reinstall Door, Reverse Steps 1-3

(Optional) If the enclosure is joined to another enclosure, turn the door back toward the enclosure as you lift it from the hinges.

Reversing Front and Rear Doors

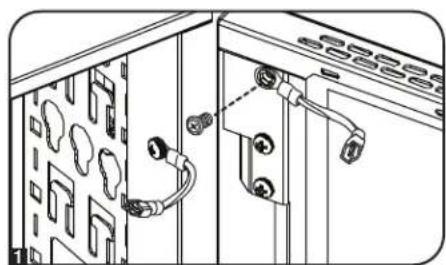

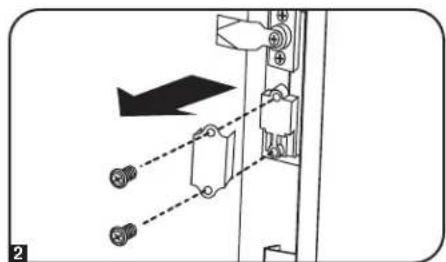

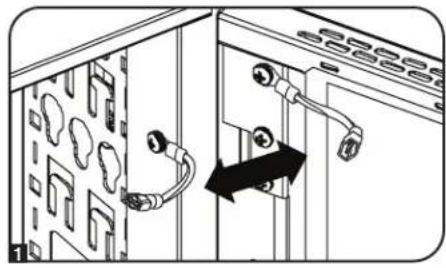

1 Remove the screw connecting the ground wire to the inside of the door.

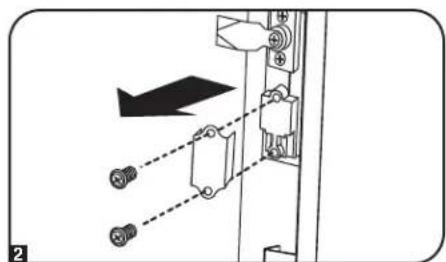

2 Remove the 2 screws connecting the door handle to the door. Remove the door handle.

Diagram of a server rack with attached cables and connectors, showing no text or symbols

Pure electrical circuit lines without any symbols

Technical diagram of a server rack with attached cable and connector (no text or symbols)

Mechanical assembly diagram showing a door mechanism with two screws and a dashed line indicating alignment (no text or symbols)

Enclosure Configuration

Reversing Front and Rear Doors (continued)

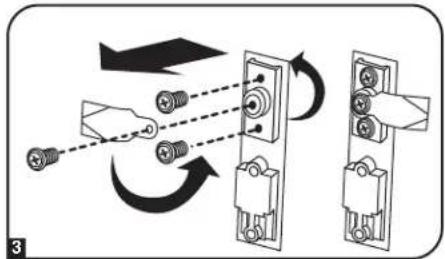

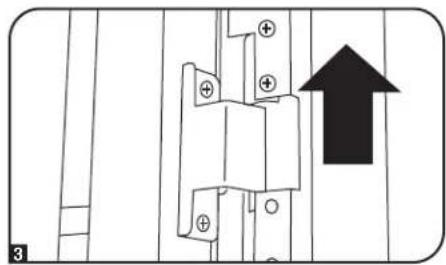

3 Remove the screw and washer from the rear of the door handle and remove the latching mechanism. Rotate the latch washer counter-clockwise 90 degrees and reverse the latch so it points in the opposite direction, then use the screw and washer to re-attach the latch to the rear of the door handle.

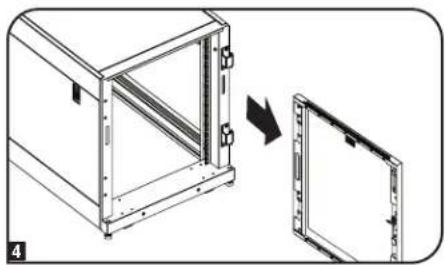

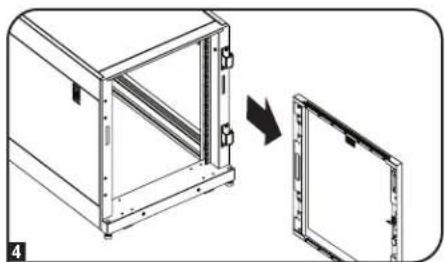

4 Remove the door by following the steps in the previous section.

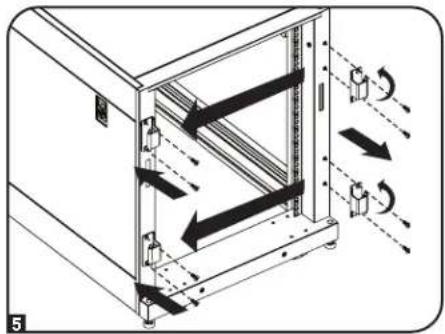

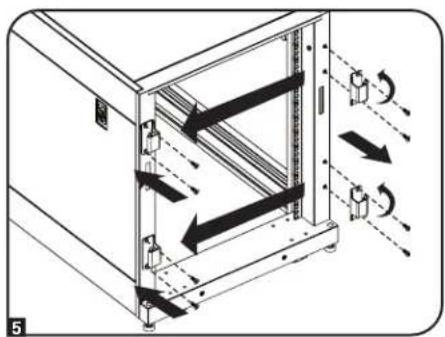

5 Remove the door hinges from the enclosure, rotate them 180 degrees and attach them on the opposite side of the enclosure.

Note: The alternate door hinge attachment points have plastic plugs in the screw holes. Remove the plugs and insert them in the original door hinge attachment points.

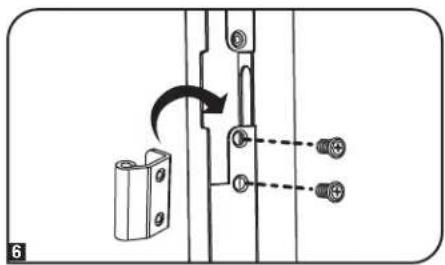

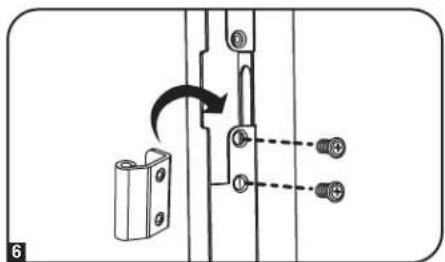

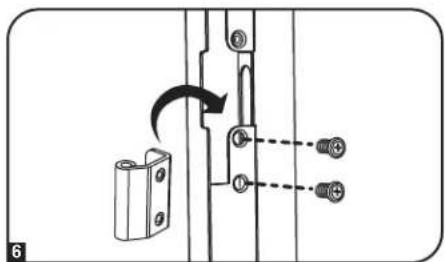

6 Unscrew the 2 hinge mechanisms from the hinge openings inside the door, then reattach each of them using the set of screw holes immediately opposite their original position.

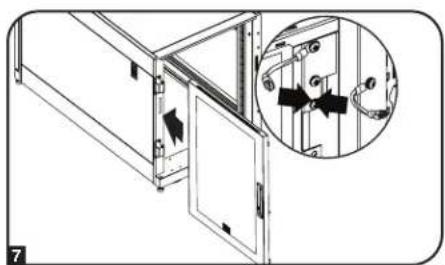

7 Rotate the door 180 degrees and reinstall it on the enclosure. Remember to connect the ground wire to the inside of the door, using the attachment point nearest the hinge at the top of the door. The attachment point is marked with the ground connection symbol:

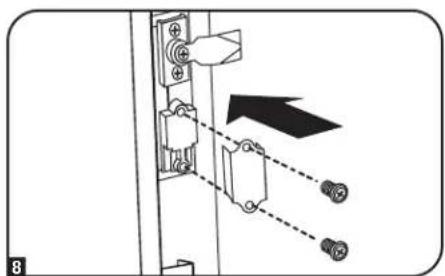

8 Reinstall the door handle.

Technical illustration of a mechanical assembly with an arrow indicating transformation (no text or symbols present)

Technical diagram of a cabinet with internal shelves and directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing internal components (no text or symbols)

Enclosure Configuration

Adding or Removing Roof Panel

WARNING: Do not attempt to use the roof panel for weight-bearing purposes other than those explicitly described and approved by Tripp Lite. Do not attempt to add or remove the roof panel without assistance.

Removing Roof Panel

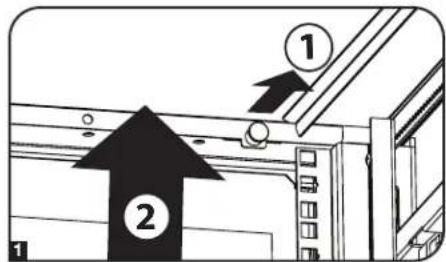

1 Pull the 2 pins near the rear of the roof panel. While holding the pins, push the roof panel upward.

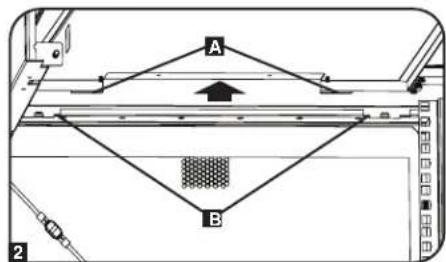

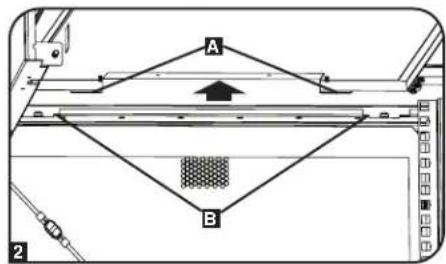

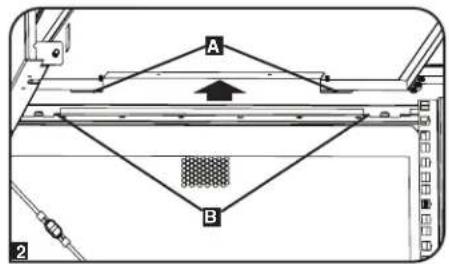

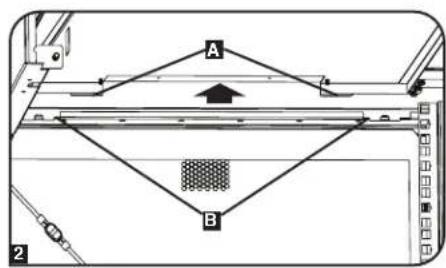

2 Remove the roof panel tabs A from the roof panel attachment slots B in the enclosure frame.

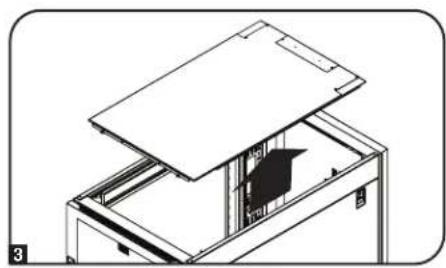

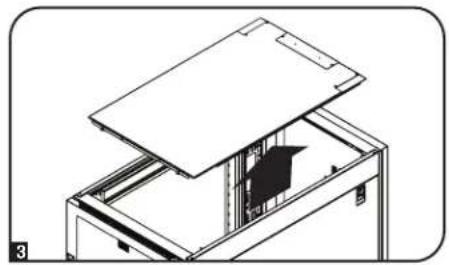

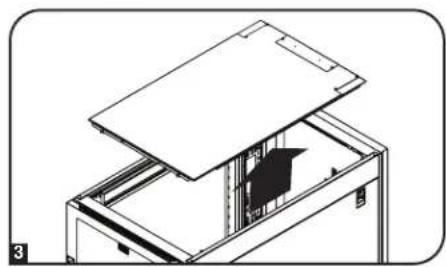

3 Lift the roof panel from the enclosure.

To Reinstall Roof Panel, Reverse Steps 1-3

Adding or Removing Side Panels Removing Side Panel

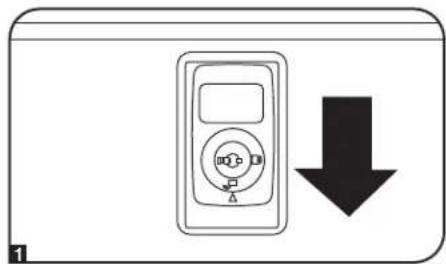

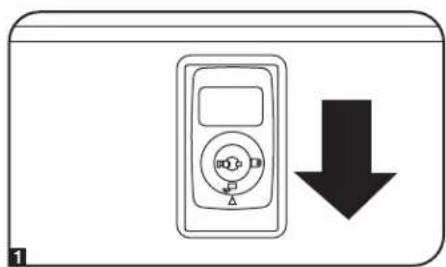

1 Open the latch by sliding it downward.

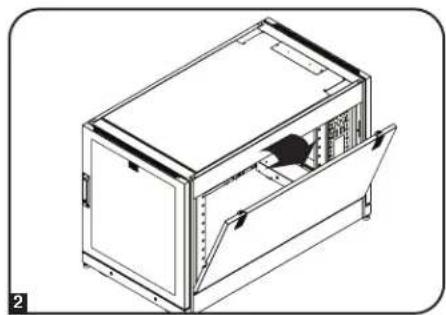

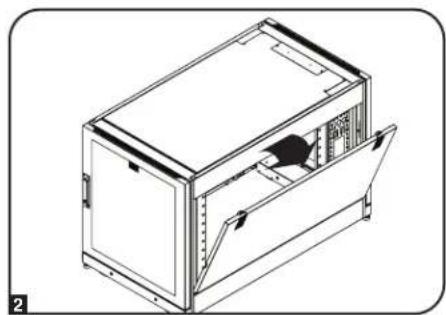

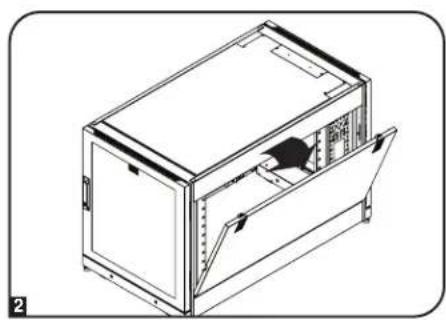

2 Tilt the top of the panel away from the enclosure.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Simple line drawing of a device with a circular button and a downward arrow, no text or symbols present.

Technical line drawing of a multi-chamber electronic device with internal components and mounting bracket (no text or symbols)

Enclosure Configuration

Adding or Removing Side Panels (continued)

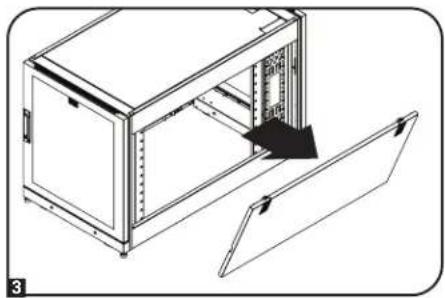

3 Lift the panel away from the brace that supports it.

To Reinstall Side Panel, Reverse Steps 1-3

Technical line drawing of a cabinet with an arrow indicating direction, showing internal components and exterior panels (no text or symbols)

Adjusting Mounting Rails and Cable Management Rails

WARNING: Do not attempt to adjust rails without assistance. Do not attempt to adjust rails while equipment is installed in the enclosure. Do not attempt to use rails without screws installed (4 per rail).

The 4 mounting rails are pre-installed to accommodate equipment with a mounting depth of 30 inches (762 mm). Do not adjust the mounting rails unless your equipment requires a different mounting depth. The front and rear sets of rails can be adjusted independently in 14 -inch (6 mm) increments for mounting depths between 4 inches (101.6 mm) and 42 inches (1066.8 mm).

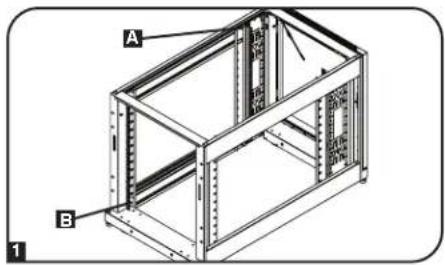

1 Each rail is connected to the enclosure with 4 screws - 1 pair at the upper beam A and 1 pair at the lower beam B.

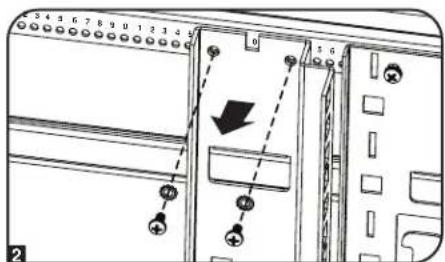

2 Remove the screws fastening each of the rear mounting rails to the enclosure. (If adjustment of the front rails is required, you can also remove the screws from the front rails.)

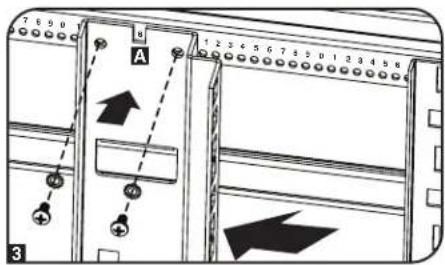

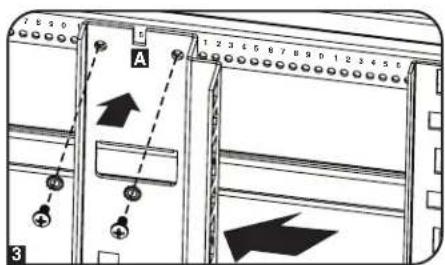

3 Slide the mounting rails to the desired depth and reattach them using the screws you removed in Step 2. The rail attachment points are numbered A to help you align each pair of rails at the same depth.

The depth of the 2 cable management rails can be adjusted using the same method.

Equipment Installation

WARNING: Do not install equipment until you have stabilized the enclosure. Install heavier equipment first and install it toward the bottom of the enclosure. Install equipment starting from the bottom of the enclosure and proceeding toward the top of the enclosure - never the reverse. If using sliding equipment rails, be careful when extending the rails. Do not extend more than one set of sliding equipment rails at one time. Avoid extending sliding equipment rails near the top of the enclosure.

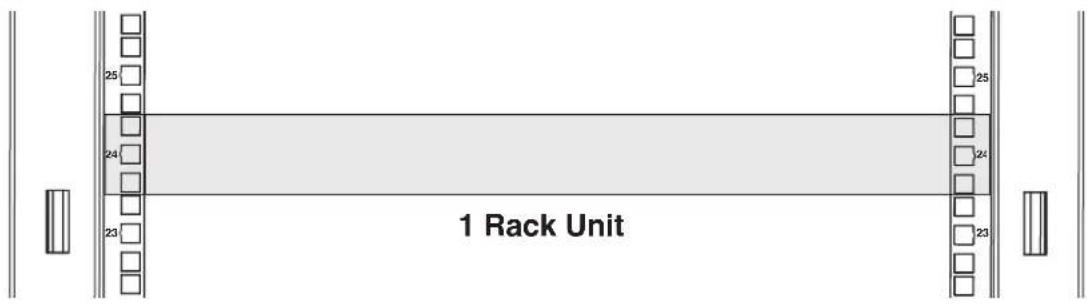

Note: The square holes at the middle of each rack unit are numbered and also include a small notch to aid identification. A single rack unit includes the space occupied by the numbered hole and the holes directly above and below.

Installing or Removing Cage Nuts

WARNING: The flanges of the cage nuts should engage the sides of the square opening in the rail, not the top and bottom. Follow the instructions in your equipment documentation to ensure proper installation of your equipment.

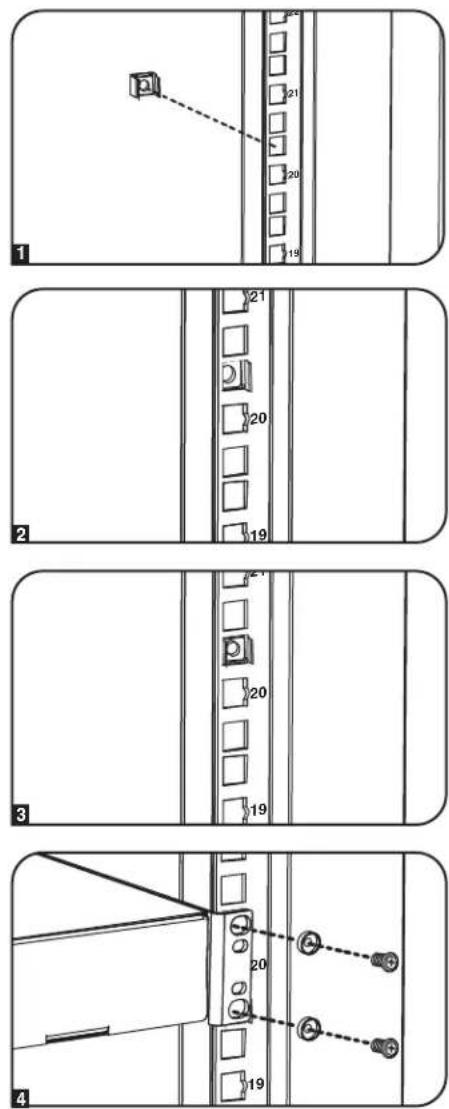

Installing Cage Nuts

1 Locate the numbered square openings in the mounting rails where you plan to install your equipment. You will install cage nuts (included) into the square openings in order to provide an attachment point for the mounting screws (included).

Note: Consult your equipment documentation to determine how many cage nuts will be required and where they will need to be installed.

2 From the inside of the mounting rail, insert one of the flanges of the cage nut through the square opening. Press it against the side of the square opening. Each flange should engage one side of the square opening, not the top or bottom.

3 Compress the cage nut at the sides slightly to allow the remaining flange to fit through the square opening. When the cage nut is properly installed, both flanges will protrude through the square opening and will be visible on the outer surface of the mounting rail. Repeat steps 1-3 until all required cage nuts are installed.

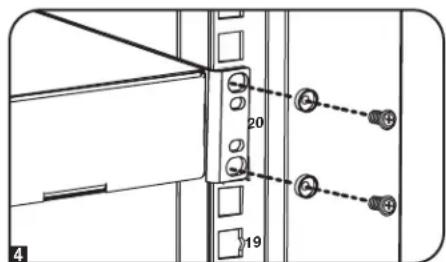

4 After installing the required cage nuts, use the included mounting screws and cup washers to secure your equipment to the rack rail. Place the cup washers between the screws and the equipment mounting brackets.

Note: Your equipment may also include mounting hardware. Read the mounting instructions that came with your equipment before installing your equipment.

To Remove Cage Nuts, Reverse Steps 1-3

Note: You may wish to use a cage nut tool (user-supplied) to aid cage nut installation and removal.

Specifications

Dimensions [H x W x D] 28.23 x 23.62 x 43.62 in. (717 x 600 x 1108 mm)
Unit Weight 118 lb. (53.5 kg)
Load Capacity 1000 lb. (454 kg) Stationary or Rolling

Storage and Service

Storage

The enclosure should be stored in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

Your Tripp Lite product is covered by the warranty described in this manual. A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For more information on service, visit tripplite.com/support. Before returning your product for service, follow these steps:

1. Review the installation and operation procedures in this manual to insure that the service problem does not originate from a misreading of the instructions.
2. If the problem continues, do not contact or return the product to the dealer. Instead, visit tripplite.com/support.
3. If the problem requires service, visit triplite.com/support and click the Product Returns link. From here you can request a Returned Material Authorization (RMA) number, which is required for service. This simple on-line form will ask for your unit's model and serial numbers, along with other general purchaser information. The RMA number, along with shipping instructions will be emailed to you. Any damages (direct, indirect, special or consequential) to the product incurred during shipment to Tripp Lite or an authorized Tripp Lite service center is not covered under warranty. Products shipped to Tripp Lite or an authorized Tripp Lite service center must have transportation charges prepaid. Mark the RMA number on the outside of the package. If the product is within its warranty period, enclose a copy of your sales receipt. Return the product for service using an insured carrier to the address given to you when you request the RMA.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See Web site for details.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Note on Labeling

This symbol is used on the product: Ground Connection

1111 W. 35th Street, Chicago, IL 60609 USA • triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Exploded view diagram of a mechanical assembly with stacked boxes and arrows indicating direction (no text or symbols)

Isometric line drawing of a mechanical device with arrows indicating motion or force, no text or symbols present

Isometric line drawing of a rectangular box with a black arrow on top, placed on a platform (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Illustration of two stick figures lifting a box on a tray (no text or symbols)

Colocación

Illustration of a person moving a box with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Conexión a Tierra

Diagram of a server rack with attached cables and connectors, showing no text or symbols

Pure electrical circuit lines without any symbols

Technical diagram of a door panel with attached cable and connectors (no text or symbols)

Mechanical assembly diagram showing a door mechanism with two screws and a dashed arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating transformation from a frame to a closed panel (no text or symbols present)

Technical diagram of a cabinet with directional arrows indicating movement or force, no text or symbols present

Technical diagram of a mechanical assembly with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a lid and internal components (no text or symbols)

Simple line drawing of a device with a control panel and downward arrow (no text or symbols)

Technical line drawing of a multi-chamber electronic device with internal components (no text or symbols)

Diagram of a server rack cabinet with an open door and directional arrows indicating movement (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Entreposage et service.

Isometric diagram of a box being lifted by an airfoil, showing internal components and directional arrows (no text or symbols)

Isometric line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Isometric line drawing of a rectangular box with a black arrow on top, placed on a platform (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Illustration of two stick figures assembling a box on a tray, no text or symbols present

Mise en place

Illustration of a person lifting a box with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with an inset magnified view showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Diagram of a door with attached clips and a black arrow indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a door panel with attached cable and connectors (no text or symbols)

Mechanical assembly diagram showing a door mechanism with two sensors and a directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating transformation from a frame to a closed panel (no text or symbols present)

Technical diagram of a cabinet with directional arrows indicating movement or force, no text or symbols present

Technical line drawing of a cabinet or enclosure with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Simple line drawing of a device with a control panel and downward arrow (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical illustration of a server rack cabinet with an arrow indicating internal structure (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

1 Верхняя панель

Exploded view diagram of a mechanical assembly with stacked boxes and arrows indicating direction (no text or symbols)

Isometric diagram of a device with arrows indicating motion or assembly, no text or symbols present

Isometric line drawing of a rectangular box with a black arrow on top, placed on a base (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols)

Illustration of two stick figures lifting a rectangular box on a tray (no text or symbols)

Размещение

Illustration of a person moving a box with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an inset magnified view showing internal components (no text or symbols)

Компоновка шкафа

Diagram showing a door panel with attached tubing and a black arrow indicating direction (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a cabinet or rack with attached connectors and ventilation slots (no text or symbols)

Mechanical assembly diagram showing a door mechanism with two screws and a dashed arrow indicating motion (no text or symbols)

Компоновка шкафа

Diagram showing a mechanical assembly with an open panel and a close-up view of its side panel (no text or symbols present)

Technical diagram of a cabinet with directional arrows indicating movement or force, no text or symbols present

Technical diagram of a mechanical assembly with an inset showing internal components (no text or symbols)

Компоновка шкафа

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Simple line drawing of a device with a downward arrow, no text or symbols present

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Компоновка шкафа

Technical line drawing of a server rack cabinet with an open door and directional arrows indicating movement (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support
