USER MANUAL SmartRack SRWOSHELFLG Tripp Lite

Wall-Mountable Shelf for Open Frame Racks

Models: SRWOSHELFSM, SRWOSHEFLG

Introduction 2

Important Safety Instructions 2

Parts List 2

Assembly 3

Equipment Installation 4

Storage & Service 5

Warranty & Product Registration 5

Espanol 6

Français 11

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Introduction

Tripp Lite's SRWOSHELFSM and SRWOSHELFLG are the perfect open frame rack solution for applications where space is limited. Heavy-duty construction and a wall-mount form factor keep equipment out of the way. The SRWOSHELFSM and SRWOSHELFLG accommodates all standard 19-inch rack-mount equipment.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

• Keep the rack in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants and dust.
• Leave adequate space at the front of the rack for proper ventilation.
• Inspect the shipping container and the rack for shipping damage. Do not use the rack if it is damaged.
• Leave the rack in the shipping container until it has been moved as close to the final installation location as possible.
• Install the rack in a structurally sound area capable of handling the load, the weight of the rack, all equipment that will be installed in the rack and any other equipment that will be installed nearby.
• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage that may affect the warranty.
• Do not attempt to install the rack unassisted.
• Do not attempt to install equipment without first wall-mounting and stabilizing the rack.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Parts List

Assembly

WARNING: Do not attempt to mount the rack to the wall with equipment mounted to the rack.

WARNING: The wall surface, the wall studs and all user-supplied mounting hardware must be able to support the combined weight of the rack and all equipment that will be installed in the rack.

Note: Recommended torque for tightening all M5 screws is 35 in·lbf (3.9 N·m).

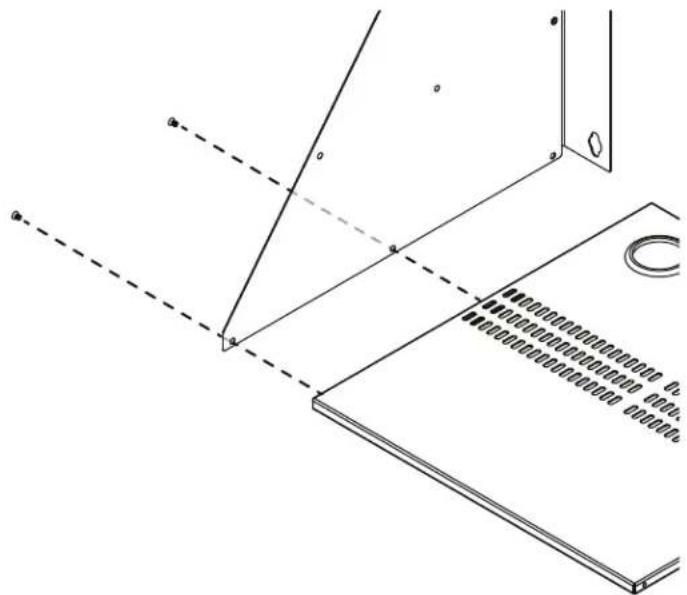

Step 1 Using two M5 X 8 mm screws in the front and middle position, attach the Left Panel to the Base Panel.

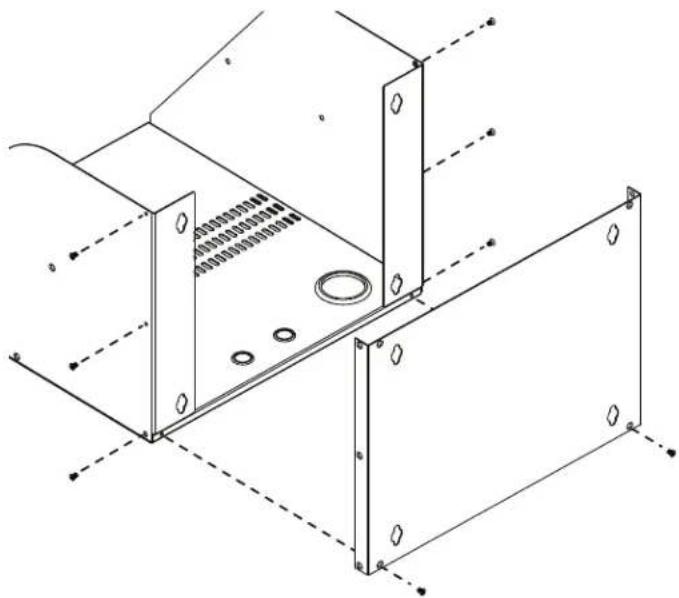

Step 3 Using eight M5 X 8 mm screws (three per side and two at the bottom rear), attach the Rear Panel to the Base Panel.

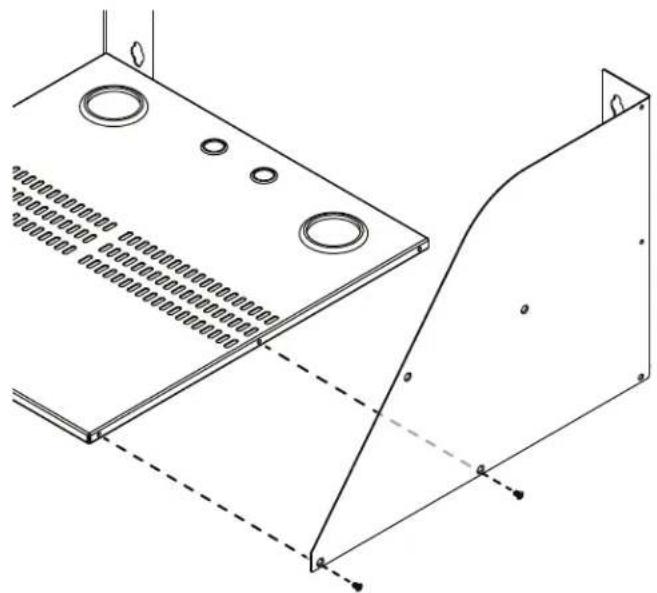

Step 2 Using two M5 X 8 mm screws in the front and middle position, attach the Right Panel to the Base Panel.

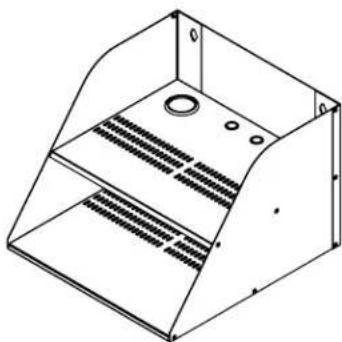

SRWOSHELFLG Model Only Using six M5 X 8 mm screws, attach the Top Shelf.

Assembly

Step 4 To mount the rack, first find the studs in your wall/mounting surface and make all measurements and/or guide marks.

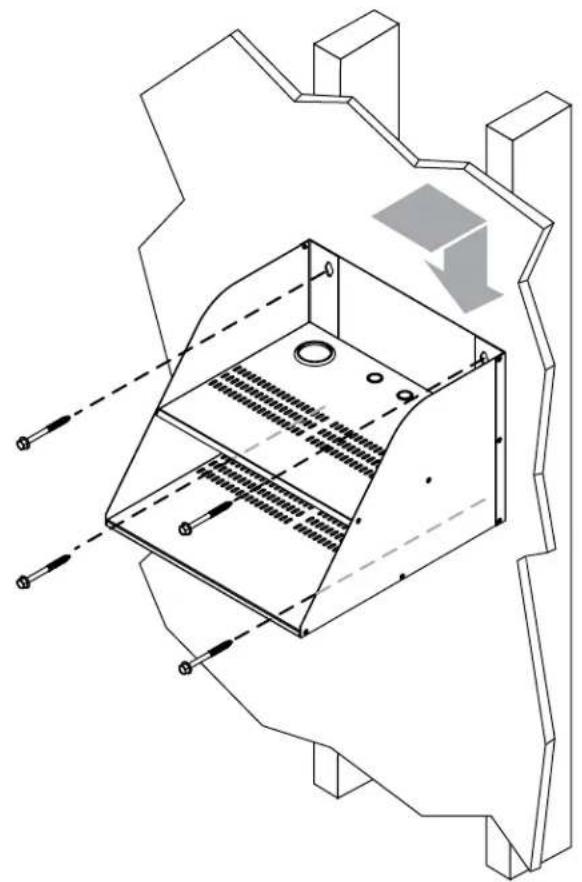

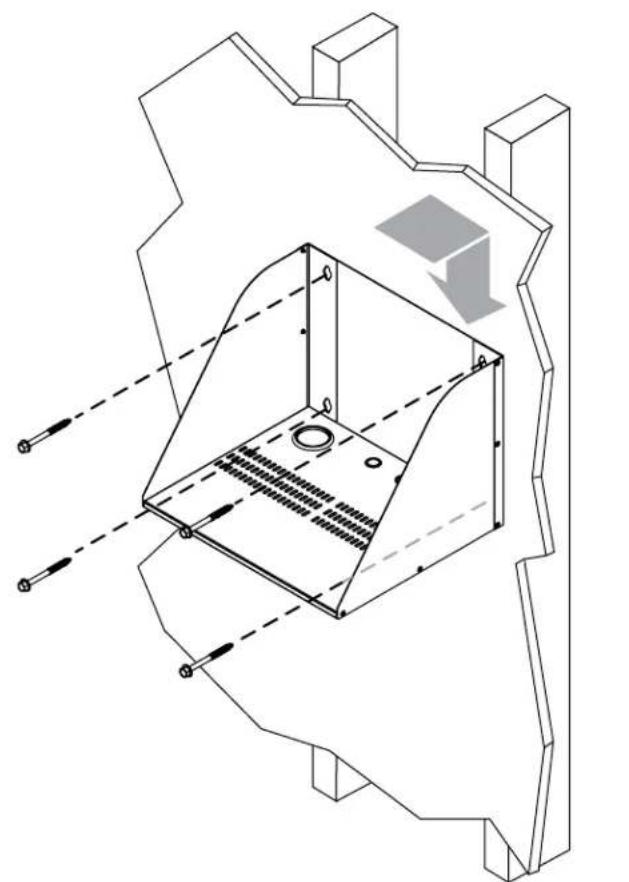

Step 5 With user-supplied hardware, mount the Rear Panel to the wall. The Rear Panel can accommodate 5/16'' lag bolts.

SRWOSHELFSM SRWOSHEFLG

Equipment Installation

The SRWOSHELFSM can support a maximum equipment load up to 200 lb. (90 kg).

The SRWOSHELFLG can support a maximum equipment load up to 250 lb. (113 kg).

For all other equipment mounting, please refer to the intended equipment's Owner's Manual for equipment installation instructions. Typically, this information can be found in the "Mounting" or "Rack Mounting" sections of the manual.

Storage & Service

Storage

The enclosure should be stored in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

Your Tripp Lite product is covered by the warranty described in this manual. A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For more information on service, visit triplite.com/support. Before returning your product for service, follow these steps:

1. Review the installation and operation procedures in this manual to ensure that the service problem does not originate from a misreading of the instructions.
2. If the problem continues, do not contact or return the product to the dealer. Instead, visit tripplite.com/support.
3. If the problem requires service, visit triplite.com/support and click the Product Returns link. From here you can request a Returned Material Authorization (RMA) number, which is required for service. This simple on-line form will ask for your unit's model and serial numbers, along with other general purchaser information. The RMA number, along with shipping instructions will be emailed to you. Any damages (direct, indirect, special or consequential) to the product incurred during shipment to Tripp Lite or an authorized Tripp Lite service center is not covered under warranty. Products shipped to Tripp Lite or an authorized Tripp Lite service center must have transportation charges prepaid. Mark the RMA number on the outside of the package. If the product is within its warranty period, enclose a copy of your sales receipt. Return the product for service using an insured carrier to the address given to you when you request the RMA.

Warranty & Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
