Brand	Frigidaire
Model	MWTK30FGUF
Product Type	Built-in Microwave Oven
Kit Dimensions (H x W x D)	18 x 30 x 1.5 inches (458 x 762 x 38 mm)
Opening Dimensions (H)	16 3/4 to 17 inches (42.5 to 43.2 cm)
Opening Dimensions (W)	24 3/4 to 25 inches (62.9 to 63.5 cm)
Maximum Opening Depth	20 inches (50.8 cm)
Approximate Weight	45 kg (100 lb)
Power Supply	120 V, 60 Hz, 1500 W (estimated)
Microwave Power	1000 W (estimated)
Capacity	1.6 cu ft (estimated)
Main Functions	Microwave cooking, defrosting, keep warm (estimated)
Safety	Child lock, auto shut-off (estimated)
Noise Level	55 dB (estimated)
Color	White or stainless steel (not specified)
Included Parts	Finish kit: front frame, exhaust duct, 2 mounting rails, screws
Warranty	1 year (estimated)
Use	Indoor only
Installation	Built-in with included kit, basic skill level

Frequently Asked Questions - MWTK30FGUF FRIGIDAIRE

How to install the microwave oven in a cabinet?

Follow the provided installation instructions. Ensure the opening has the correct dimensions, attach the exhaust duct to the floor, then place the microwave by guiding it over the duct. Finally, install the front frame and secure it with the provided screws.

What are the required cutout dimensions?

The cutout height must be between 16 3/4 and 17 inches (42.5 to 43.2 cm), the width between 24 3/4 and 25 inches (62.9 to 63.5 cm), and the maximum depth of 20 inches (50.8 cm).

What tools are needed for installation?

You will need a spirit level, a screwdriver (for the provided screws), and possibly a drill if you need to drill pilot holes. The kit contains all necessary screws.

How to attach the exhaust duct?

Place the exhaust duct in the opening aligning the center line, then attach it to the floor with three screws A in the outer holes. Ensure the floor is level before starting.

How to install the front frame?

Position the frame assembly squarely on the already placed microwave. Check the level, then attach the top with two screws B, then the bottom with the remaining two screws B (see illustrations 7 and 8).

What to do if the microwave is not level?

Before installing the exhaust duct, check that the floor is level using a spirit level. If not, adjust the floor or use shims. A level floor is essential for proper operation.

Can I install this microwave above a wall oven?

Yes, provided that the wall oven is installed first and there is a clearance of at least 3 inches between the wall oven and the microwave. Follow the instructions for the wall oven and the trim kit.

What is the minimum opening height?

The minimum opening height is 16 3/4 inches (42.5 cm). The maximum height is 17 inches (43.2 cm). Respect these dimensions for correct installation.

How to connect the power supply?

The electrical outlet must not be in the shaded area shown in illustration 3. Plug the microwave's power cord into a standard 120 V outlet before inserting it into the opening. Ensure the service panel is off before any handling.

Where can I get installation assistance?

For customers in the United States, call 1-800-944-9044. In Canada, dial 1-800-265-8352 (English) or 1-800-668-4606 ext. 8199 (French). Also visit www.frigidaire.com.

USER MANUAL MWTK30FGUF FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Model # MWTK27FGUF MWTK30FGUD MWTK30FPUF MWTK30FGUF MWTK27FGUD

BEFORE YOU BEGIN

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and ordinances.
  Note to Installer - Be sure to leave these instructions with the Consumer.
  Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
  Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock out to prevent being switched on accidentally. When the service cannot be locked, securelyfasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH ELECTROLUX MICROWAVE OVENS SPECIFYING BUILT-IN KIT

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-800-944-9044

For customers in Canada call: 1-800-265-8352 (English)

1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823511

June 2018

Installation Instructions

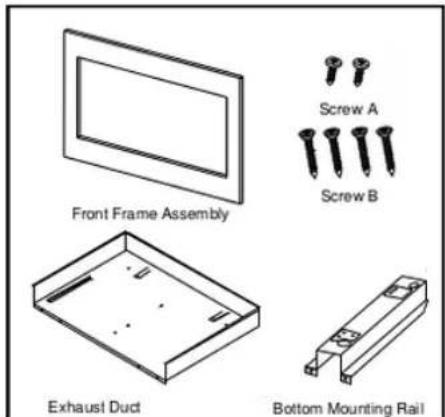

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly-QTY 1
   2.Exhaust Duct-QTY 1

Bottom Mounting Rail - QTY 2

3.Screw A-QTY 11+3 extra
4.ScrewB-QTY4+2extra

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven".

Microwave Models:

FGMO226NUF FGMO226NUD FPMO227NUF

CGMO226NUF CPMO227NUF

See Illustration 1 for proper location and when building in above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches. See illustration 2.

NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non self-clean single cavity wall oven.

CARINET OR WALL CUTOUT

Illustration 1

Installation Instructions

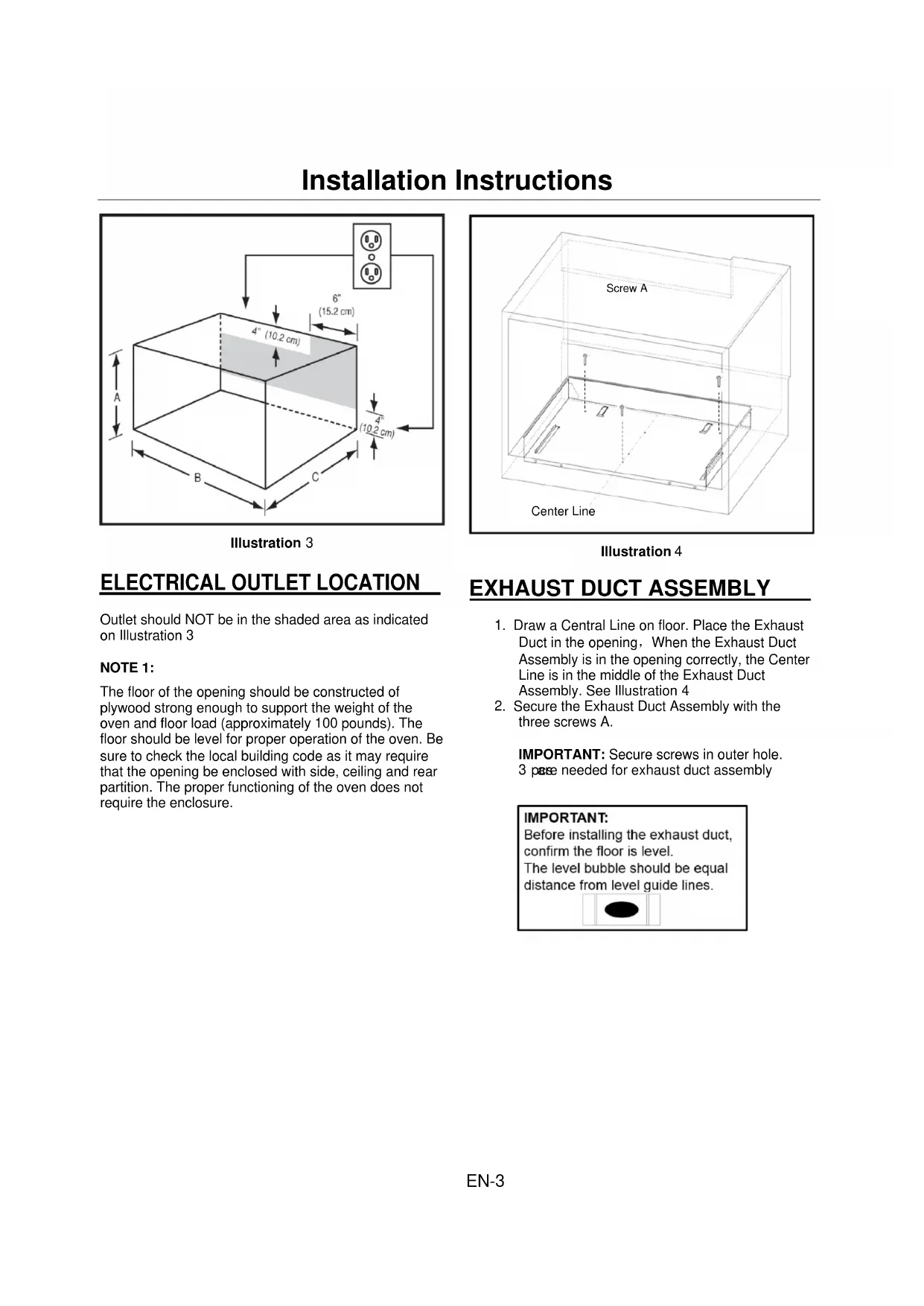

Illustration 3

Illustration 4

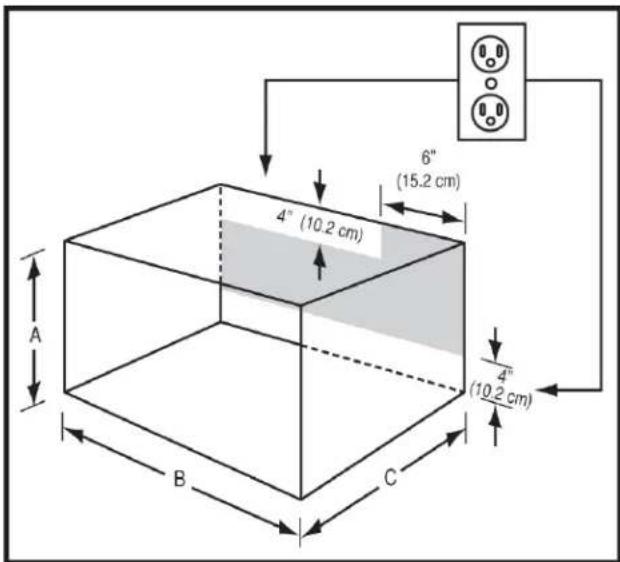

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

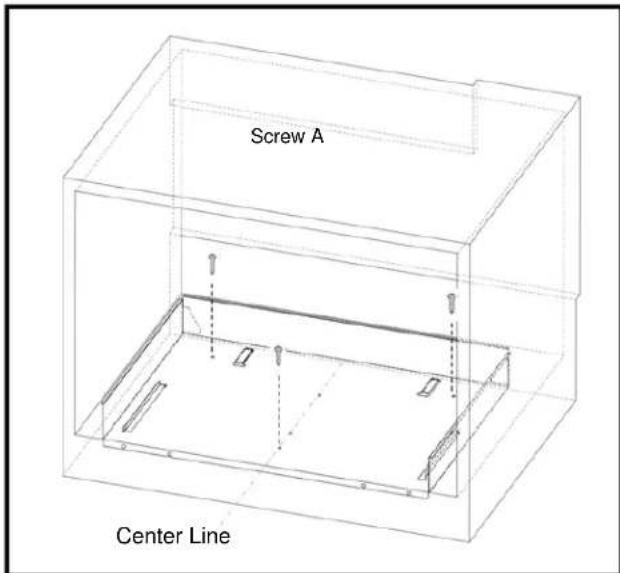

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 peae needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level.

The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

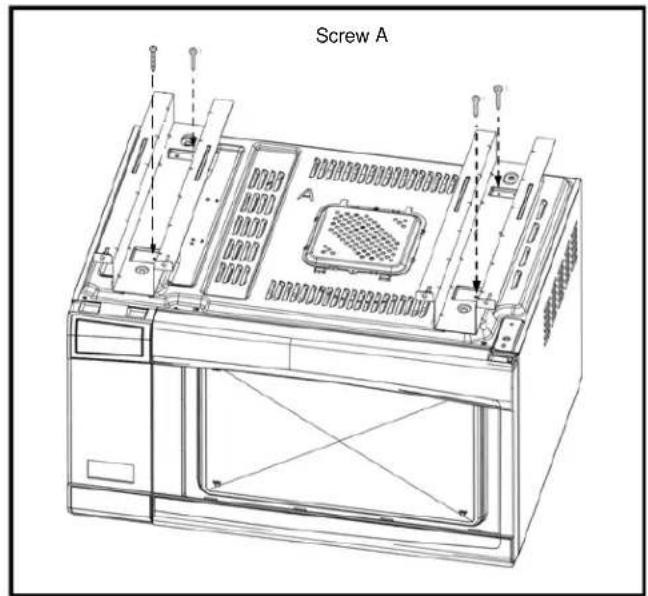

Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four SCREWS A. See Illustration 5.

NOTE: Please make sure to align the holes(marked with "36") of bottom mounting rail and the holes(marked with "36") of microwave oven's bottom plate.

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.

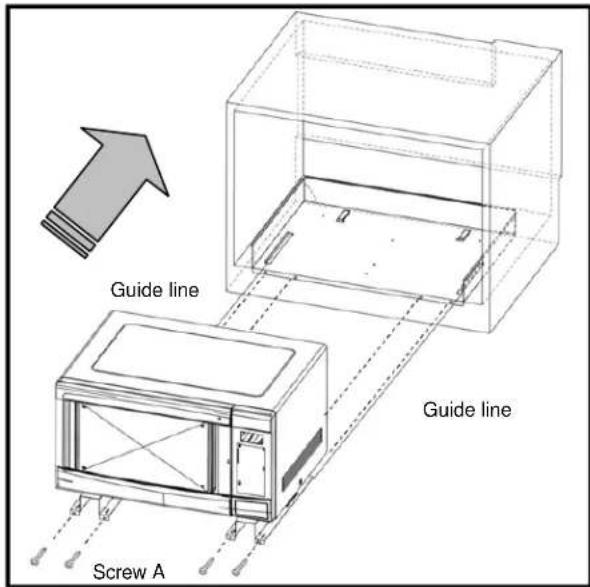

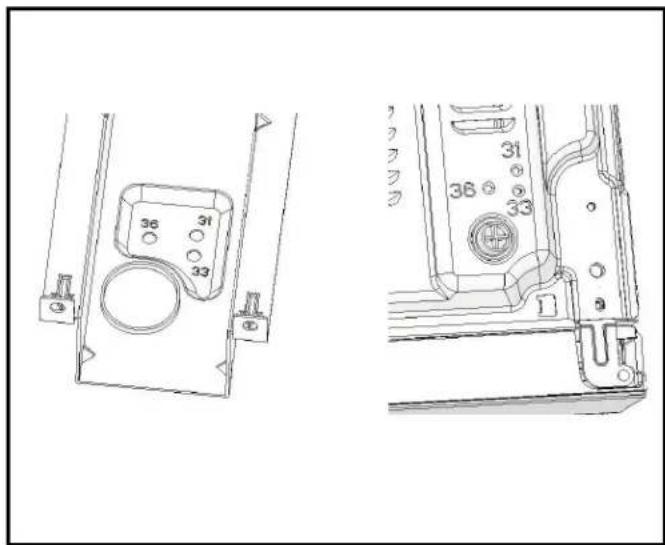

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

Installation Instructions

FRAME INSTALLATION

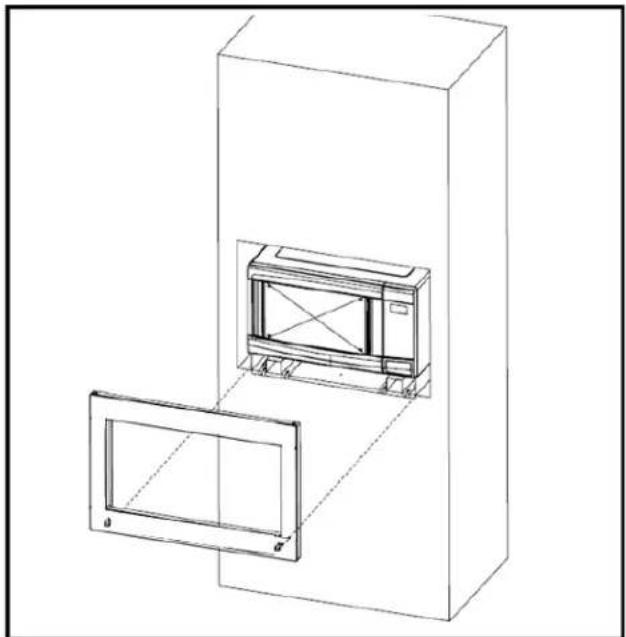

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

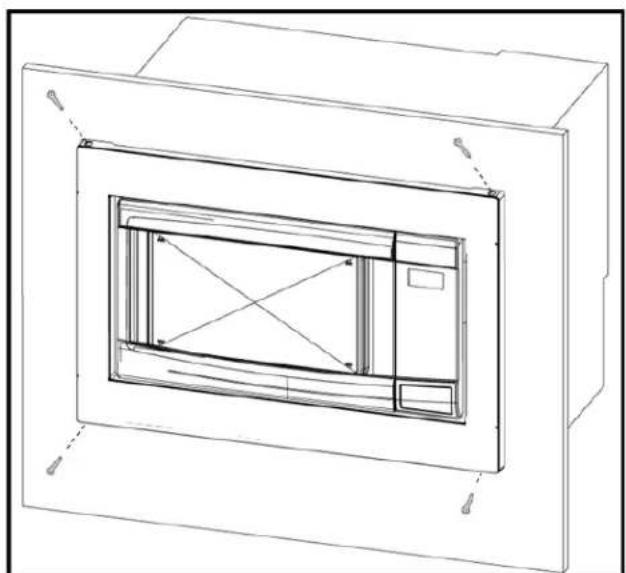

2. Check that it is level and then secure with two SCREWS B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining SCREWS B. See Illustration 8.

Illustration 7

Illustration 8

FGM0226NUF FGM0226NUD FPM0227NUF

CGM0226NUF CPM0227NUF
