USER MANUAL VPSBS177B Veripart

American Refrigerator

Climate classification SN/N/ST

Electric shock classification: Class I

Voltage: 220-240V

Frequency: 50/60Hz

Rated current: 1.6A

Defrosting Power: 230W

Energy Consumption of E_16 0.525kWh/24h

Energy Consumption of E32 1.245kWh/24h

Total storage volume: 562L

Refrigerator storage volume: 359L

Freezer storage volume: 203L

Refrigerant: R600a/84g

Net weight: 86Kg

Temperature rise time: 7.8h

Product code: 895858

Serial Number:

Made In China

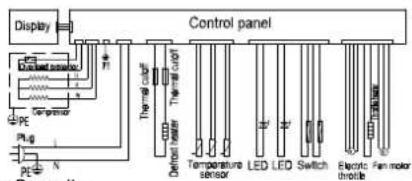

Diagram of Circuit Principles

10Kg/24hFreezing Capacity:

86Kg

7.8h

895858

Veripart is a registered trademark.

Weena 664, 3012CN, Rotterdam

The Netherlands

VPSBS177B

Zwart - Black - Noir - Schwarz

veripart™

Type: VPSBS177B

Climate classification SN/N/ST

Electric shock classification: Class

Voltage: 220-240V

Frequency: 50/60Hz

Rated current: 1.6A

Defrosting Power: 230W

Energy Consumption of E _16 0.525kWh/24h

Energy Consumption of E32 1.245kWh/24h

Total storage volume: 562L

Refrigerator storage volume: 359L

Freezer storage volume: 203L

Refrigerant: R600a/84g

Net weight:

Temperature rise time:

Product code:

Serial Number:

Made In China

VPSBS177B

/ST

Class I

220-240V

50/60Hz

1.6A

230W

6kWh/24h

kWh/24h

562L

359L

203L

10Kg/24hFreezing Capacity:

86Kg

7.8h

895858

Veripart is a registered trademark.

Weena 664, 3012CN, Rotterdam

The Netherlands

INHOUDSOPGAVE

VOORWOORD 4

1. VEILIGHEID 6
2. PRODUCTEIGENSCHAPPEN 12
3. INSTALLATIE 15
4. FUNCTIONS 18
5. REINIGING EN ONDERHOUD 28
6. STORINGEN OPLOSSEN 30
7. BUITEN GEBRUIK STELLEN 33
8. VEILIG AFVOEREN 34

VOORWOORD

Over dit document

1.1 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

Two identical panels showing a checkmark and a cross symbol, both mounted on supports (no text or labels)

Accessoires monteren

Line drawing of a hand holding a wooden shelf with shelves (no text or symbols)

Diagram of a multi-level storage unit with two upward-pointing arrows indicating flow or movement (no text or symbols present)

4. FUNCTIONS

Recycling symbol with crossed-out trash bin and recycling arrow (no text or numbers)

1. SAFETY: 40
2. PRODUCT FEATURES 46
3. INSTALLATION 49
4. FUNCTIONS 52
5. CLEANING AND MAINTENANCE 62
6. TROUBLESHOOTING 64

7. TAKING OUT OF SERVICE 67

8. SAFE DISPOSAL 68

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

NOTE

- You can also find the latest version of this manual online, at www.coolblue.nl if you search for the article number.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at:

https://www.coolblue.nl/en/customer-service

1. SAFETY:

1.1 SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open in both freestanding and built-in fridges.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your refrigerator.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance (only in cases where the cooling circuit is freely accessible).
• Do not place electrical appliances in the food storage compartments of the refrigerator (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• When positioning the appliance, ensure that the power cable is not stuck or damaged.
• Do not use an extension lead or socket for this appliance.

CAUTION!

• Packaging with flammable gases or liquids may leak at
  low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the refrigerator compartment if your hands are wet/damp as this may cause grazes or frostbite.

• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.

• It is dangerous for people other than authorised technicians to carry out maintenance or repairs with cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.

• This appliance may be used by children from eight years of age and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been trained in the safe use of the appliance and that they understand the associated dangers.

! ATTENTION!

- This appliance is intended for domestic use and similar applications such as:

• staff kitchens in shops, offices and other work environments;
• farms and guests in hotels, motels, B&B and other residential environments;

• catering and similar non-retail applications.

• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

• Food storage times recommended by the food manufacturer must be observed.
• Never pull the power cable to disconnect the plug from the socket. Always hold the plug firmly and pull it straight out of the socket.

1.2 SAFETY INSTRUCTIONS: INSTALLATION

DANGER!

Risk of fire / flammable materials.

! CAUTION!

• The appliance is heavy. Take care when handling and wear protective gloves and closed footwear.
• It is dangerous for persons other than authorised service technicians to carry out maintenance on electrical components (plug, power cable, compressor, etc.) or to carry out repairs with the cover plates removed.
• To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.
• If you detect any damage to the appliance or the power cable, do not connect the appliance but contact the service department.
• The power cable must be attached behind the appliance and must not be exposed or loose.
• Make sure that the power cable of the installed appliance is always easily accessible.
• This appliance requires a standard 220-240V 50Hz socket with 2-pole earthing. The power cable of this appliance is equipped with a 2-pole plug suitable for standard wall sockets with earthing to minimise the risk of electric shocks.
• On first installation (or after turning the door) wait at least four hours before connecting the appliance to the power. This allows the oil to flow back into the compressor.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• Incorrect use of the earthed plug may cause an electric shock.
• This appliance is not intended for use as a built-in refrigerator.

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• This appliance is not suitable for use with an inverter.

• Do not install the appliance near radiators, stoves, ovens or hobs.
• Do not install the appliance in direct sunlight.
• Do not install this appliance in spaces that are too damp or too cold.
• Do not expose the appliance to rain.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m ^3 . The amount of refrigerant contained in the appliance can be found on the type plate.
• The lamp supplied with this appliance is only for use in this appliance and is not intended for other applications.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the “Climate Range” table below.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (i.e. the room temperature at which the appliance operates) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N and ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST	From +16°C to +38°C
T	From +16°C to +43°C

1.3 SAFETY INSTRUCTIONS: USE

! CAUTION!

Observe the following instructions to avoid food contamination:

• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish in suitable containers in the appliance so that they do not come into contact with or drip on other foods.
• Clean water tanks if not used for 48 hours
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

Does not contain freon

The freon-free refrigerant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the refrigerator do not affect the ozone layer and have a very small impact on global warming.

Guarantee

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/klantenservice. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/klantenservice.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both printed on page 1).

The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database.

Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance.

See link www.theenergylabel.eu for detailed information on the energy label.

VERIPART CONTACT DETAILS
Address:	Weena 664, 3012 CN, Rotterdam
Website https://www.coolblue.nl/en/customer-service

2. PRODUCT FEATURES

This is a side-by-side inverter fridge-freezer adopting the electronic control mode. Its upper part is the fridge compartment for fresh food storage, such as fruits, vegetables, eggs, milk, cooked foods, etc.; and its lower part is the freezer compartment where fish, meat, etc. can be frozen for the long-term storage.

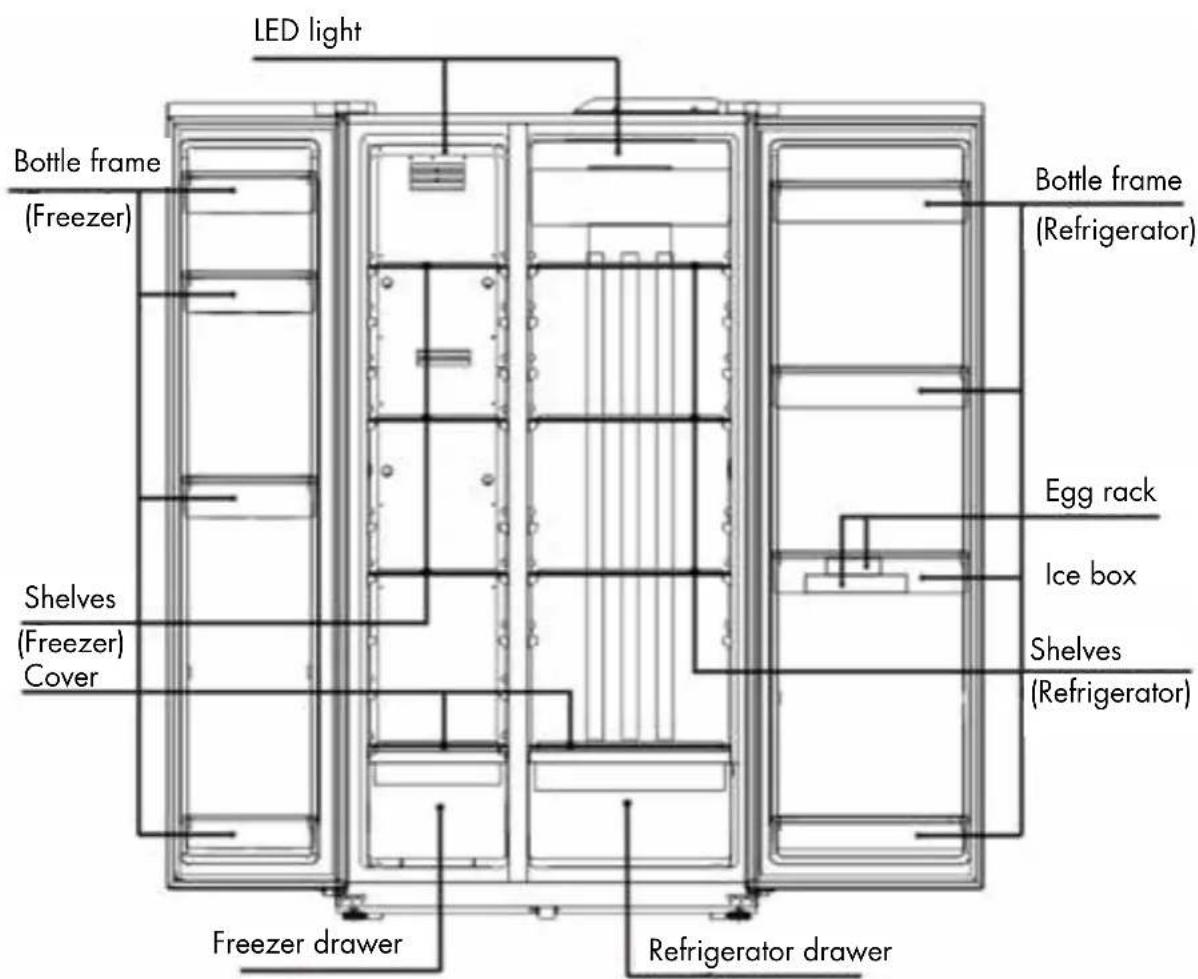

LED light Bottle frame (Freezer) Shelves (Freezer) Cover Freezer drawer Refrigerator drawer Bottle frame (Refrigerator) Egg rack Ice box Shelves (Refrigerator)

Due to technological innovation, the descriptions of the product in this manual may not be completely consistent with your refrigerator. Details are in accordance with the material item.

- Computer control

Adopting the electronic temperature control, the fridge-freezer is designed with a LED display screen, by which the temperature of each compartment and the working parameters can be managed and set.

- Inverter technology

Integrated with precise frequency conversion, noise reduction, energy saving, precise temperature control and other technologies, the fridge-freezer boasts of superior performances. Furthermore, working efficiency of the inverter compressor can be automatically adjusted according to the ambient temperature and the set temperature, so as to keep the fridge-freezer operating in its optimal state.

• LECO

The fridge-freezer is internally configured with the LECO device for the net flavor and fresh-keeping purpose, with the preservation time of fruits and vegetables effectively extended.

- Green technology

The freon-free refrigerant and foaming insulation material are used for the fridge-freezer, causing no damage to the ozone layer and having a very small impact on the global warming, so it is the environmentally friendly product.

- Stylish appearance

Adopting the optimized man-machine engineering design, the side-by-side refrigerator has an elegant and novel appearance, and is easy to be opened.

- More user-friendly designs

Such functions as wide working voltage range, automatic temperature control, power-off memory, power-on delay, automatic alarm, fast freezing, and fridge power-off, etc. are available.

W G H

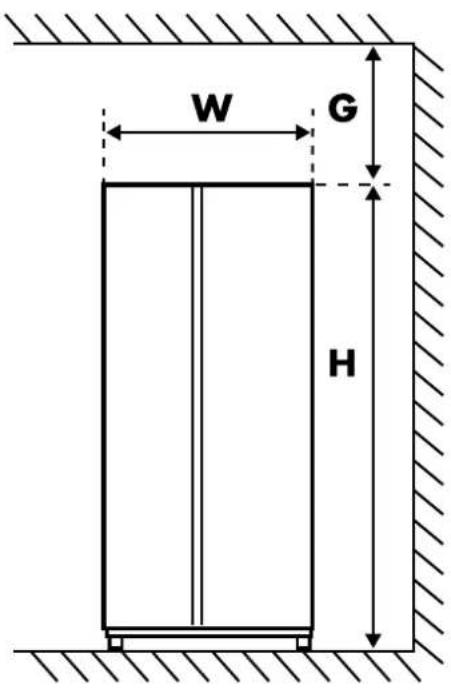

• Figure 1: Front view

E D F F B C A

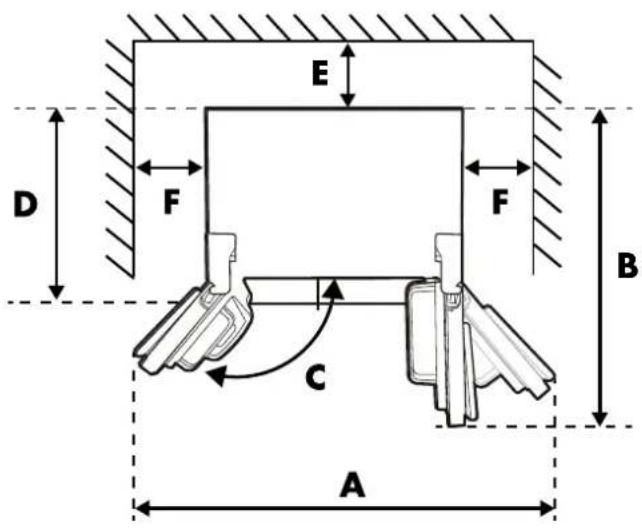

• Figure 2: Top view

W D H A B C(°) E F G
91,2 cm 7	0,4 cm 170	cm 152,4	cm 106,2 cm	135°±5°	5cm 5cm	0cm

! Warning!

- Unobstructed ventilation must be maintained around the appliance.

Note!

- Figure 1 and Figure 2 only illustrate the space requirements of the product.

3. INSTALLATION

Before installing the appliance, carefully review the safety information (Section 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Wait

Wait four hours before connecting the appliance so the oil can flow back to the compressor.

3. Clean

Clean the interior and all internal accessories with lukewarm water and some neutral soap before first use to remove the typical smell of a brand new appliance. Dry everything carefully. Important! Do not use solvents or abrasive powders; these will damage the coating

4. Location

The location where you place your appliance should be well ventilated and the air should not be too warm. Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so that as to guarantee the cooling effect and save on energy consumption. Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.

5. Heat dissipation area

During operation, the appliance emits heat to the environment. Therefore there must be at least 10 cm clearance on the top, at least 5 cm on both sides and at least 5 cm on the back of the fridge (see also page 48).

6. Installation of the appliance

• This appliance is not intended for use as a built-in refrigerator.
• Use the front adjusting legs to level the appliance. If the appliance is not level, it may affect the performance of the gasket seal or even lead to a failure of your appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
• Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the refrigerator on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the refrigerator to prevent colour change due to heat dissipation.

- Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. The appliance must be earthed. The power cable is supplied with a contact for this purpose. If the socket is not earthed, connect the appliance to a separate earth according to current regulations and consult a qualified electrician.

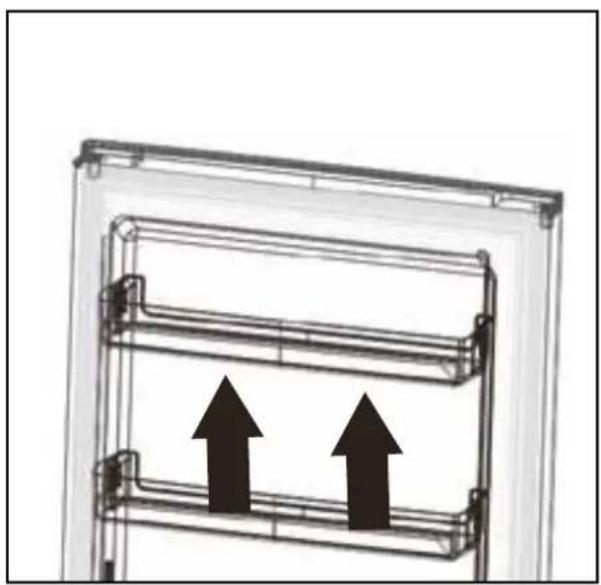

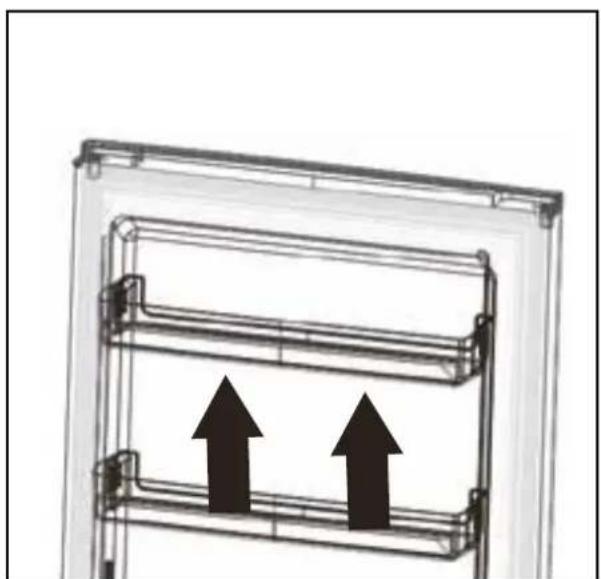

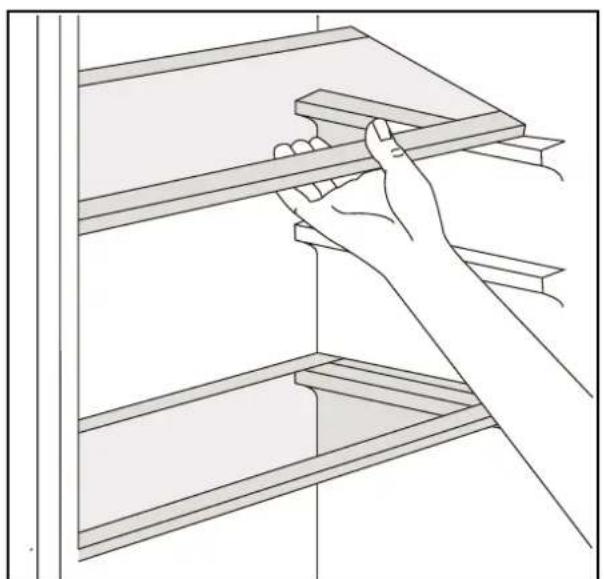

7. Mounting accessories: door compartments and shelves

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

The walls of the refrigerator are equipped with a series of guide profiles so that the shelves can be inserted if desired. To remove the shelf, lift it first and then pull it out. To put the shelf back in place, push it into place before lowering.

For the two-piece shelf, first push back the first part and then pull out the second part.

Raise the rear edge of the shelf to prevent food coming into contact with the wall lining. Hold the shelf firmly when removing or replacing it and take care to avoid damage.

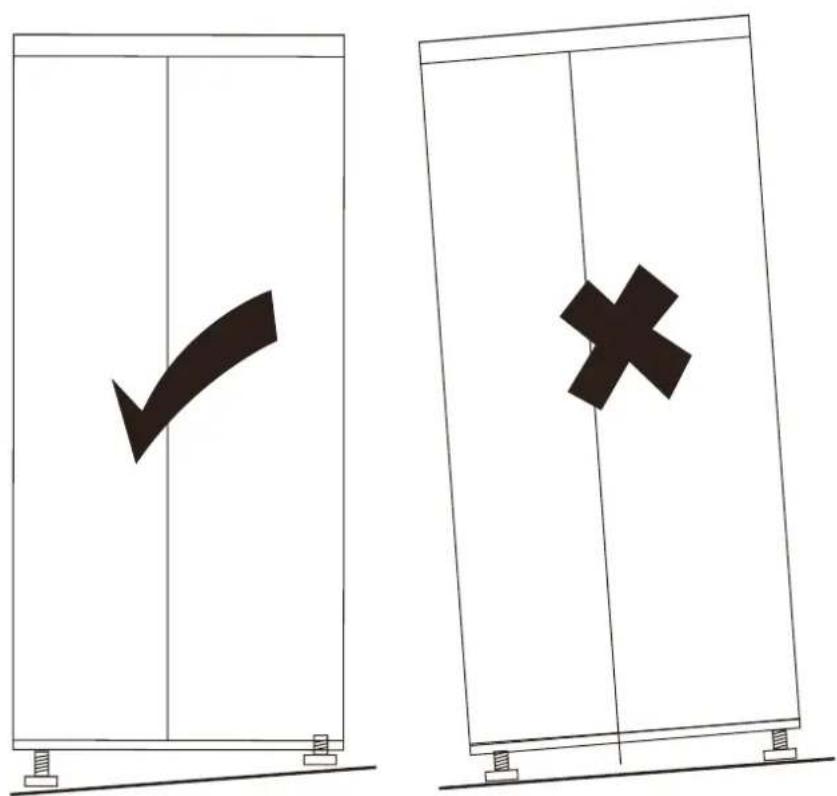

Level

Two identical panels showing a curved black checkmark and a cross symbol, both mounted on small supports (no text or labels)

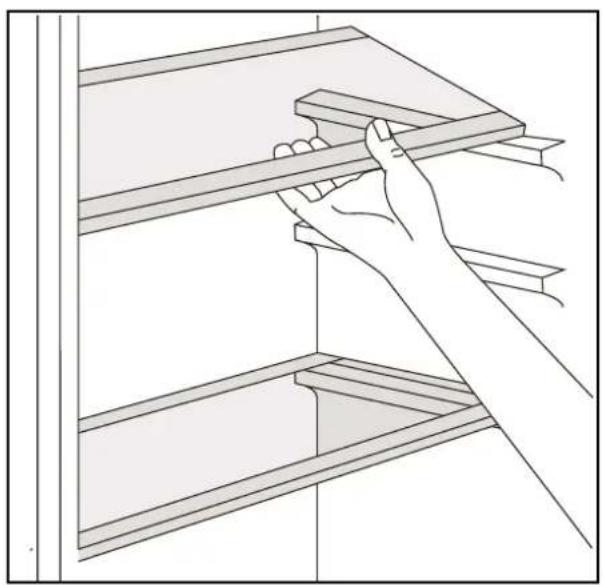

Mounting accessories

Line drawing of a hand installing or adjusting a wooden shelf panel (no text or symbols)

Diagram of a multi-level mechanical or electrical component with two upward-pointing arrows indicating direction (no text or symbols present)

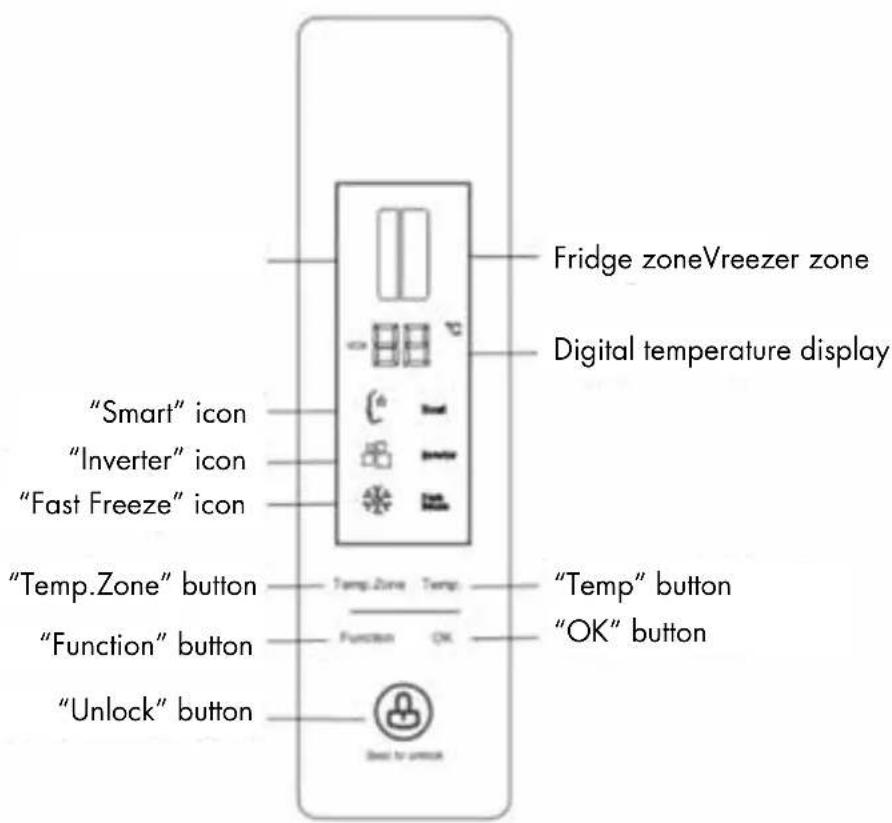

4. FUNCTIONS

When the fridge freezer combination system is connected to the power supply for the first time, all the icons on the display panel will be illuminated for 2 seconds. When all the doors are closed, the display will be extinguished automatically if there is no key operation within 3 minutes. When the display is off, it will light up if any door is opened or any key is pressed.

The following key operations are valid only when the keys are unlocked and will be illuminated on the display.

"Inverter" is the frequency conversion indicator. When the power is turned on, it lights up when the compressor is working.

TEMP. SETTING

1. Fridge temperature setting

Press the 'Fridge' button.

Then, when the fridge temperature digits start flickering, press the 'Fridge' key to adjust the temperature, then finally press OK to set the temperature.

The fridge temperature setting cycles are as follows :

$$ 5 ^ {\circ} \mathrm{C} > 6 ^ {\circ} \mathrm{C} > 7 ^ {\circ} \mathrm{C} > 8 ^ {\circ} \mathrm{C} > \text {OFF} > 2 ^ {\circ} \mathrm{C} > 3 ^ {\circ} \mathrm{C} > 4 ^ {\circ} \mathrm{C} > 5 ^ {\circ} \mathrm{C} $$

When OFF is illuminated and then confirmed, the fridge will stop cooling.

⚠ Warning!

- Take foods out of the fridge compartment before setting this function.

Freezer temperature setting

Press the 'Freezer' button. Then, when the freezer temperature digits begin flickering, press the 'Freezer' key to adjust the temperature, then finally press OK to set the temperature.

The freezer temperature setting cycles are as follows:

$$ - 1 8 ^ {\circ} \mathrm{C} > - 1 7 ^ {\circ} \mathrm{C} > - 1 6 ^ {\circ} \mathrm{C} > - 2 4 ^ {\circ} \mathrm{C} > - 2 3 ^ {\circ} \mathrm{C} > - 2 2 ^ {\circ} \mathrm{C} > - 2 1 ^ {\circ} \mathrm{C} > - 2 0 ^ {\circ} \mathrm{C} > $$

$$ - 1 9 ^ {\circ} \mathrm{C} > - 1 8 ^ {\circ} \mathrm{C} $$

"Smart" icon "Inverter" icon "Fast Freeze" icon "Temp.Zone" button "Function" button "Unlock" button Fridge zoneVreezer zone Digital temperature display Temp Zone Temp Function OK "Temp" button "OK" button Send to account

SMART

1. When the Smart function is enabled, the temperature of the fresh food compartment is controlled at 5^ C, and that of the freezer compartment at -18^ C, so that foods can be stored in the best condition while also ensuring that the refrigerator is running more efficiently and providing better performance.

Warning!

- Under the Smart mode, the fresh food compartment temperature and the freezer compartment temperature are not subject to change.

2. Enabling the Smart function

- Press the Function key to select Smart until the corresponding icon starts flickering, and then press the OK key within 5 seconds to confirm. If OK is not pressed within 5 seconds, the setting will be invalidated.

3. Exiting the Smart function

- While in Smart mode, press the Function key to select Smart until the corresponding icon begins to flicker, and then press the OK key for confirmation. This will ensure you have exited the Smart function. - When the Fast Freeze functions are enabled, the Smart function will be disabled automatically.

FAST FREEZING

1. When the Fast Freezing function is enabled, the freezer temperature will be set at -32^ C automatically, and after 26 hours of running, the Fast Freezing function will shut off. Cooling the temperature rapidly is beneficial to prevent the loss of nutrients and preserve the freshness of food.

Warning!

- Under the Fast Freezing mode, the freezer temperature cannot be manually adjusted.

2. Enabling the Fast Freezing function

- Press the Function key to select Fast Freeze until the corresponding icon begins to flicker, then press the OK key within 5 seconds for confirmation. If the OK key is not pressed within 5 seconds, the setting will be invalidated.

3. Exiting the Fast Freezing function

- After a cumulative running period of 26 hours, the Fast Freeze function switch off automatically.

- While in Fast Freeze mode, press the Function key to select Fast Freeze until the corresponding icon begins to flicker, and then press the OK key for confirmation. This will ensure that you have exited the Fast Freeze function.

- When the Smart function is enabled, the Fast-Freezing function will be disabled automatically.

Child Lock

When the Child Lock function is enabled, the temperature and function are subjected to no change to prevent maloperation.

In case of no key operation within 3 minutes, the Child Lock function will be enabled automatically.

Exiting the Child Lock function manually

Press and hold down the Unlock for 3s, then the Child Lock function can be disabled.

Note!

- The Child Lock function is not available with the product of the glass panel door.

Power cut memory

In case of power failure, the fridge freezer combination will return to its operating state before the power failure once the power supply is restored.

Power-on delay

In order to protect the fridge freezer combination compressor from being damaged in the case of a short-time power failure (i.e., less than 5 minutes), the compressor will not be started immediately after it is powered on.

High-temperature alarm (only after power outage)

If, when the fridge freezer combination system is powered on the freezer sensor temperature is higher than -10^ , the digits on the freezer zone will flicker on the display. The freezer temperature can be displayed when any key is pressed, and the normal display will be restored when any key is pressed again or after 10 seconds.

Door open alarm

If the fridge door is open for more than 3 minutes, buzzer alarms will continuously sound. This can be stopped when any key is pressed, but will continue again after 3 minutes if the door remains open. The alarms will not stop until the door is properly closed.

Fault alarm

If E0, E1, E2, EH, or EC is displayed on the operation panel, this indicates a fault with the fridge freezer combination. Please contact the after sales department to request a call-out in such cases.

INSTRUCTIONS FOR FOOD STORAGE

Precautions for use

• The appliance might not operate consistently (there is possibility of defrosting or a rise in temperature in the frozen food compartment) if it remains below the cold limit of the temperature range for which the refrigerating appliance is designed for an extended period of time.
• The information concerning the appropriate climate range for the appliance is provided on the rating plate.
• The internal temperature may be affected by such factors as the location of the refrigerating appliance, the ambient temperature, and the frequency of door opening, etc., and if appropriate, a warning that the settings of any temperature control device might need adjustment to allow for these factors will be given.
• Effervescent drinks should not be stored in the freezer compartment or the low-temperature compartment, and some products such as ice lollies should not be consumed at too cold of a temperature.

Food storage location

Due to the cold air circulation in the refrigerator, the temperature of each area in the refrigerator is different, so different kinds of food should be placed in different areas.

The fresh food compartment is suitable for the storage of foods that need not be frozen, such as cooked food, beer, eggs, some condiments that need cold preservation, milk, fruit juice, etc. The crisper box is suitable for the preservation of vegetables, fruits, etc.

The freezer compartment is suitable for the storage of ice cream, frozen food and food needing long-term preservation.

Use of the fresh food compartment

Fridge shelf: When removing the shelf, lift it up first, and then pull it out; and when installing the shelf, place it into position before putting it down. (For the two-section shelf, push the first section to the rear end, and then pull the second section out). Keep the shelf's rear flange upward, to keep food away from the liner wall. When taking out or putting in the shelf, hold it firmly, and handle with care to avoid damage.

Crisper box: Pull out the crisper box for access to food. After using or cleaning the cover plate of the crisper box, be sure to put it back onto the crisper, so that the internal temperature of the crisper box will not be affected.

Use of the humidity regulating rod of the crisper box:

The humidity regulating rod is used to preserve moisture inside the crisper box, in order to keep the vegetables and fruit stored inside fresh. When the humidity regulating rod is slide to the right, with more holes exposed, lower humidity will be kept inside the crisper box. When the humidity regulating rod is slide to the left, with less holes exposed, higher humidity will be kept inside the crisper box.

How to use the ice-cube tray

Place the ice-cube tray in the upper part of the freezer compartment, so that it freezes as soon as possible.

Cautions for food storage

It is best to wash and dry food products before storing them inside the refrigerator. Before foods are put in the refrigerator, it is advisable to place them in sealed containers, so as to prevent water evaporation to both keep fruits and vegetables fresh, and to prevent any taint or odour.

Do not put too much, or very heavy food, inside the refrigerator. Leave enough space between foods; if items are stored too closely together, the cold air flow will be blocked, thus affecting the refrigeration effect. Do not store an excessive amount or any very heavy food, to avoid shelf breakage. When storing food, keep them away from the inner wall; and do not place water-rich foods too close to the rear of the fridge, lest they get frozen to the inner wall.

Categorised storage of foods: Foods should be stored by category, with the foods you eat every day placed at the front of the shelf, so that the length of time that the door remains open can be shortened and food spoilage can be avoided.

Energy-saving tips: Allow hot food to cool down to room temperature before putting it in the refrigerator. Put frozen food in the fresh food compartment to thaw, using the low temperature of the frozen food to cool the other food, thus saving energy.

Storage of fruits and vegetables

In the case of refrigerating appliances with chiller compartments, a statement to the effect that some types of fresh vegetables and fruits are sensitive to cold and therefore are not suitable for storage in this kind of compartment should be made.

Use of the frozen food storage compartment

The freezer compartment, where the temperature is below -18^ , is designed for the long-term storage of food, but the storage duration indicated on the food packaging should, nevertheless, be adhered to.

The freezer drawers can be used to store food that needs to be frozen. Fish and meat in large blocks should be cut into smaller pieces and packed into freezer-safe bags before being evenly distributed inside the freezer drawers.

Storage of fruits and vegetables

1. When buying frozen food, check the storage guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the star rating. This is usually stated as "Best before", found on the front of the packaging.
2. Check the temperature of the frozen food cabinet in the shop where you buy frozen foods.
3. Make sure the frozen food packaging in perfect condition.
4. Always buy frozen products last on your shopping trip or visit to
5. the supermarket.
6. Try to keep frozen food together whilst shopping and on the journey home, as this will help to keep the food cooler.
7. Don't buy frozen food unless you can freeze it straight away. Specially insulated bags can be bought from most supermarkets and hardware shops. These keep frozen foods cold longer.
8. For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steamed. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.
9. Use quality food and handle it as little as possible. When food is frozen in small quantities, it will take less time to freeze or thaw.
10. Estimate the amount of food to be frozen. When freezing large amounts of fresh food, adjust the temperature control knob to the low mode, to lower the freezer temperature. This will ensure that food can be frozen quickly to maintain freshness.

Fast freezing

1. Refer to the description about the fast freezing function in the "Function" section.

2. In contrast to normal freezing, fast freezing enables food to pass through the maximum ice crystal formation zone at the fastest speed. Fast freezing allows the food's water content to freeze into fine ice crystals, without damaging the cell membrane, so cell moisture will not be lost when thawing, and the original freshness and nutrition of the food can be maintained.

3. The fast-freezing function is designed to preserve the nutrition of the frozen food, with the food thoroughly frozen in the shortest time. Fast freezing consumes more energy than normal freezing does.

4. Allow hot foods to cool down to room temperature before putting them in the freezer compartment.

5. Do not put a glass container with liquid or sealed cans of liquid into the freezer compartment, so as to avoid breakage or distortion of the containers due to volume expansion during freezing.
6. Divide the food into appropriately-sized portions
7. It is best to wrap food before freezing it, and the wrapping material should be dry, to avoid the packages freezing to each other. Foods should be packed or covered by suitable materials that are firm, tasteless, impervious to air and water, non-toxic and pollution-free, to avoid cross-contamination and transfer of odours.

5. CLEANING AND MAINTENANCE

Before cleaning the appliance, carefully review the safety information (Section 1).

! CAUTION!

• Remove the plug from the socket before cleaning.
• Never touch the plug with wet hands because of the risk of electric shocks and injury.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not put your hands in the bottom of the fridge as the sharp metal corners can cause scratches.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.

! Attention!

- The electrical parts of the appliance may only be cleaned with a dry cloth.

Interior and exterior cleaning

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly. The fresh food compartment is preferably cleaned monthly.
• Remove all shelves, fruit and vegetable compartment, bottle racks, cover plate, drawers, etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, rinse afterwards with pure water and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance has been empty for a long time, turn it off, defrost, clean, dry and leave the door open to avoid mould forming in the appliance.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. Caution!

! Attention!

• Before solving the problem, switch off the power supply.
• If the following descriptions do not solve your problem, please contact our customer service:

https://www.coolblue.nl/en/customer-service

- Only a qualified electrician or authorised person may solve the faults not contained in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

- The refrigerator can make noises during normal use (compressor, refrigerant circulation).

PROBLEM POSSIBLE CAUSE SOLUTIONS
The appliance does not cool at all	- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is located on a balcony, in a garage, storage room or other place where the ambient temperature is less than 10°C.	- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
Abnormal noise	- The appliance is not stable/level.- The appliance is in contact with the wall or other objects.	- Readjust the appliance's adjusting legs.- Move the appliance.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.The door is not completely closed.- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
The side panels are hot.	- This is normal. The heat exchanger components are on the side.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Find the cause of the door not closing properly, remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.- Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
The lamp does not work.	- The lamp is broken.- The lamp is in the standby position.	- Please contact our customer service.- Close and open the door.
Poor cooling efficiency	- Do you put hot food or too much food in the appliance?- The door does not close properly.- Is there direct sunlight or a stove or heater nearby?- Is the appliance properly ventilated?The temperature set too high?	- Cool hot food before putting it in the appliance.- Check the door and door rubbers and see if the door is blocked.- Place the appliance further away from the heat source.- Ensure sufficient distance to ensure proper ventilation.- Set the appropriate temperature.

7. TAKING OUT OF SERVICE

7.1 SWITCHING OFF AND STORAGE

If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.

• Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and carefully wipe it dry.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

! CAUTION!

Waste processing

• Refrigerants and the cyclopentane foam used for the refrigerator are flammable. When the refrigerator is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The refrigerator may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this product.

Creative Commons recycling symbol with recycling icon and crossed-out trash bin

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that this product should not be disposed of via household waste throughout the EU. In order to prevent damage to the environment or human health as a result of uncontrolled waste, it must be processed responsibly so that raw materials can be reused sustainably. Use the existing collection systems or contact the shop where you purchased the product if you want to dispose of the used product. There, the product is recycled in an environmentally friendly way.

• Old cooling appliances still have value. Responsible disposal ensures that valuable raw materials can be recycled. Of course, the refrigerator may not be disposed of with (domestic) residual waste, but it must be collected or returned to the environmental station of your municipal waste processing company.
• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.
• Information on how to dispose of old appliances and packaging correctly can be found at your local municipal waste processing company.

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN, Rotterdam

The Netherlands

Made in China

NOTICE D'UTILISATION

NO FROST AMÉRICAIN RÉFRIGÉRATEUR

VPSBS177Z

VPSBS177B

veripart

TABLE DES MATIÈRES

AVANT-PROPOS 72

1. SÉCURITÉ 74
2. CARACTÉRISTIQUES DU PRODUIT 80
3. INSTALLATION 83
4. FONCTIONS 86
5. NETTOYAGE ET ENTRETIEN 97

6. DÉPANNAGE 99

7. MISE HORS SERVICE 102

8. ÉVACUATION SÉCURISÉE 103

AVANT-PROPOS

Line drawing of a hand installing or adjusting a wooden shelf panel (no text or symbols)

Diagram of a multi-level storage unit with two upward-pointing arrows indicating flow or movement (no text or symbols present)

4. FONCTIONS

PROBLÈME CAUSE POSSIBLE SOLUTIONS

Symbol of recycling and disposal with recycling symbol above a trash bin and crossed lines below (no text or labels)

Creative Commons recycling symbol with recycling icon and no disposal bin
