USER MANUAL Bellagio EBL436SS ELICA

READ AND SAVE THESE INSTRUCTIONS

APPROVED FOR RESIDENTIAL APPLIANCES

FOR RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. INSTALLATION MUST COMPLY WITH ALL LOCAL CODES. IMPORTANT: Save these Instructions for the Local Electrical Inspector’s use. INSTALLER: Please leave these Instructions with this unit for the owner. OWNER: Please retain these instructions for future reference. Safety Warning: Turn off power circuit at service panel and lock out panel, before wiring this appliance. Requirement: 120 V AC, 60 Hz. 15 or 20 A Branch Circuit3

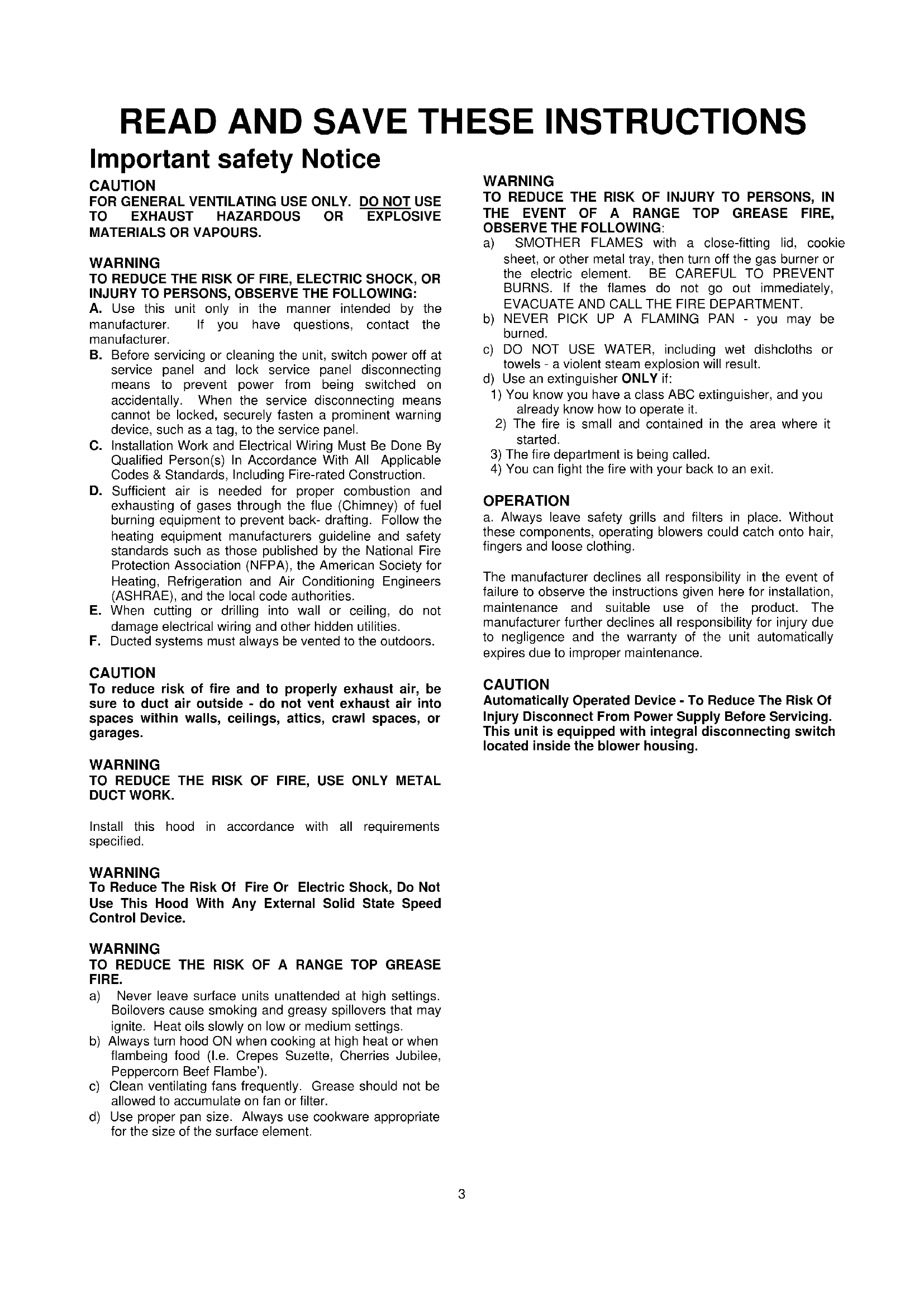

READ AND SAVE THESE INSTRUCTIONS

MATERIALS OR VAPOURS. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. B. Before servicing or cleaning the unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. C. Installation Work and Electrical Wiring Must Be Done By Qualified Person(s) In Accordance With All Applicable Codes & Standards, Including Fire-rated Construction. D. Sufficient air is needed for proper combustion and exhausting of gases through the flue (Chimney) of fuel burning equipment to prevent back- drafting. Follow the heating equipment manufacturers guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities. E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. F. Ducted systems must always be vented to the outdoors. CAUTION To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK. Install this hood in accordance with all requirements specified. WARNING To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Hood With Any External Solid State Speed Control Device. WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE. a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing food (I.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or other metal tray, then turn off the gas burner or the electric element. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN - you may be burned. c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result. d) Use an extinguisher ONLY if:

1) You know you have a class ABC extinguisher, and you

already know how to operate it.

2) The fire is small and contained in the area where it

3) The fire department is being called.

4) You can fight the fire with your back to an exit.

OPERATION a. Always leave safety grills and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance. CAUTION Automatically Operated Device - To Reduce The Risk Of Injury Disconnect From Power Supply Before Servicing. This unit is equipped with integral disconnecting switch located inside the blower housing.4 Electrical & Installation requirements Electrical requirements IMPORTANT Observe all governing codes and ordinances. It is the customer’s responsibility: To contact a qualified electrical installer. To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. Do not ground to a gas pipe. Check with a qualified electrician if you are not sure range hood is properly grounded. Do not have a fuse in the neutral or ground circuit. IMPORTANT Save Installation Instructions for electrical inspector’s use. The range hood must be connected with copper wire only. The range hood should be connected directly to the fused disconnect (Or circuit breaker) box through metal electrical conduit. Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0-M91 - latest edition** and all local codes and ordinances. A U.L.- or C.S.A.-listed conduit connector must be provided at each end of the power supply conduit (at the range hood and at the junction box). Copies of the standards listed may be obtained from:

• National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 Before installing the hood

1. For the most efficient air flow exhaust, use a straight run

or as few elbows as possible. CAUTION: Vent unit to outside of building, only.

2. At least two people are necessary for installation.

3. The hood is fitted with Screws and Drywall Anchors

suitable for most surfaces, consult a Qualified Installer, check if they perfectly fit with your cabinet/wall.

4. Do not use flex ducting.

5. COLD WEATHER installations should have an additional

backdraft damper installed to minimize backward cold air flow and a nonmetallic thermal break to minimize conduction of outside temperatures as part of the ductwork. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the ducting enters the heated portion of the house.

6. Make up air: Local building codes may require the use of

Make-Up Air Systems when using Ducted Ventilation Systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.5 List of Materials Parts supplied

• Hood Canopy Assembly with Round Metal Transition installed

• Rectangular Metal Transition with Back draft dampers

• Fitting Screws Parts not supplied

• Duct, conduit and all tools required for installation.

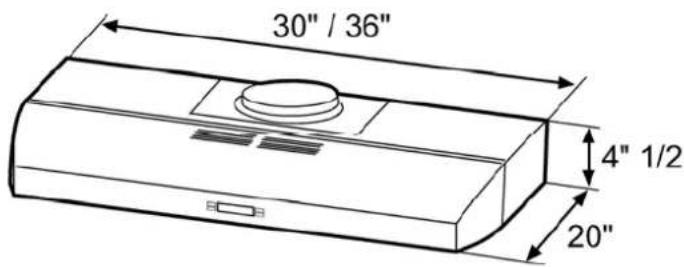

• Ductless Recirculating Kit To be used only in the Ductless (Recirculating) version includes: charcoal filter6 Dimensions and Clearances7 Ducting Options and Examples Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. Venting methods Vent Exhaust Option The hood is designed for vertical or horizontal discharge or can be installed in a recirculating ductless version: Vertical discharge: Use a rectangular duct 3 1/4” x 10” or use a round 7” duct. Horizontal discharge: Use a rectangular duct 3 1/4” x 10” Recirculating (non vented ductless) NOTE: For ductless (Recirculating) version only: purchase the Ductless Recirculating Kit. Minimum Duct Size (Ducting/Ductless version): 7" Round Pipe.

Preparation Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed. Fittings material is provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent. Hood installation height above cooktop is the users preference. The lower the hood is above the cooktop, the more efficient the capturing of cooking odors, grease and smoke. CAUTION: FOR GAS RANGES INSTALLATION: MOUNT THIS HOOD SO THAT THE BOTTOM EDGE IS AT 30" (76,2 CM) ABOVE THE COOKING SURFACE. FOR ELECTRIC RANGES INSTALLATION: MOUNT THIS HOOD SO THAT THE BOTTOM IS NOT LESS THAN 24" (61 CM) AND NOT MORE THAT 30" (76,2 CM) ABOVE THE COOKING SURFACE. HOUSEHOLD USE. PLEASE, READ INSTALLATION MANUAL FOR SPECIFIC APPLICATION. Check your ceiling height and the hood height maximum before you select your hood.8 Installation Installation - Ducting version After having choosen the vent option, proceed as follows: Step 2 Remove the round transition from its seat by unscrewing the its fixing screws (save the screws).

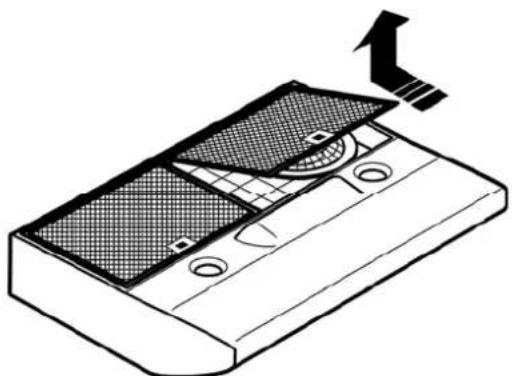

Step 3 Remove the grease filters.

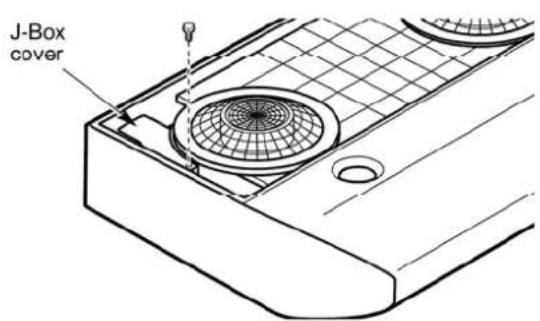

Step 4 Remove the junction box cover. Remove either the top or the back wiring knockout according the preference and install an approved wiring clamp

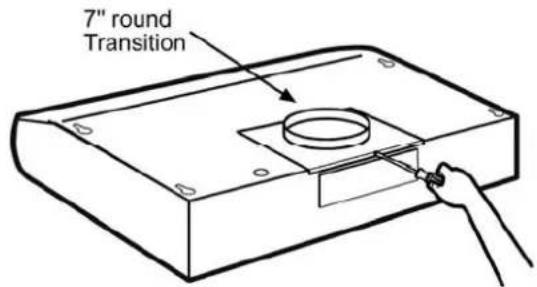

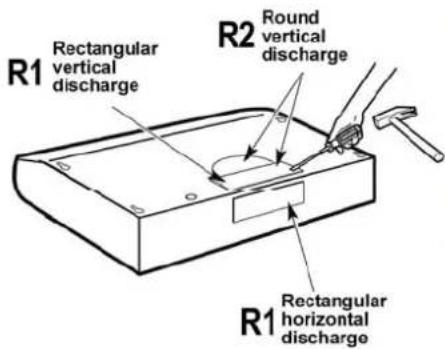

Step 5 Remove the duct knockouts using a flat blade screwdriver and a small hammer. Use the screwdriver by knocking out the pannel in similar fashion to a scalpel. Take care of sharp edges. Attention! If it is intended to use the hood in the recirculating version do not remove any duct knockouts and order the necessary charcoal filter from your supplier. R1 = Remove rectangular duct knockout only. R2 = Remove semicircular and rectangular duct knockouts.

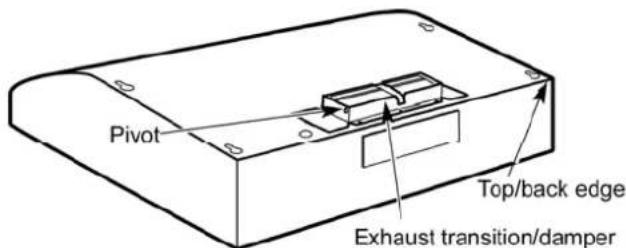

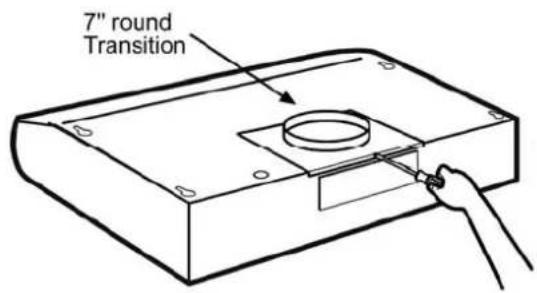

Step 6 For rectangular ducted discharge installations only (otherwise skip to next step) Attach exhaust adaptor/damper over knockout opening with two exhaust adaptor screws. Make sure damper pivot is nearest to top/back edge of hood. Remove tape from damper flap. NOTE: The exhaust adaptor/damper can be installed up to 1 inch on either side of the hood center to accommodate off-center ductwork. In extreme offcenter installations, one end of the duct connector may need to be trimmed to clear the electrical cable clamp.9 Step 7 For round ducted discharge installations only Re-install the round transition with its screws. NOTE: The round transition can be installed up to 1 inch on either side of the hood center to accommodate off-center ductwork. In extreme offcenter installations, one end of the duct connector may need to be trimmed to clear the electrical cable clamp.

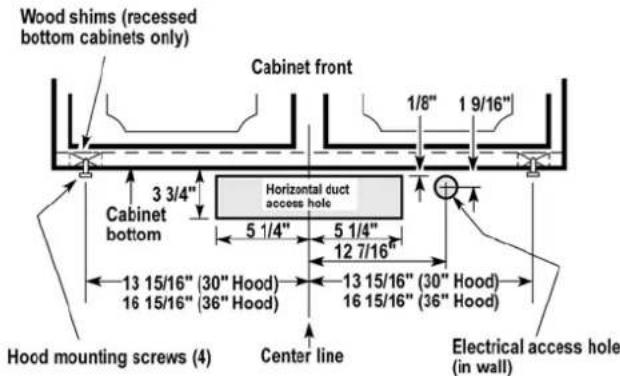

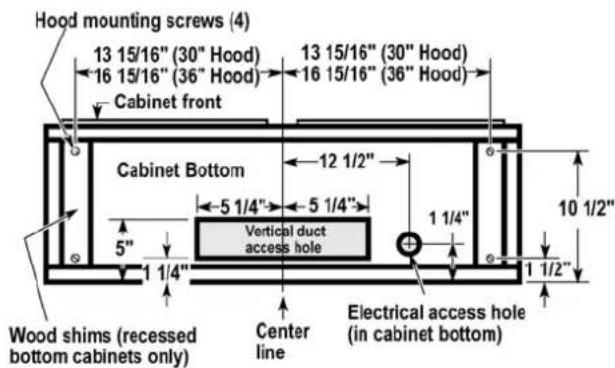

Step 8 Mark holes Select the vent option that your installation will require and proceed to that section: Outside top exhaust (Vertical duct– 3 1/4”x 10” Rectangular) Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

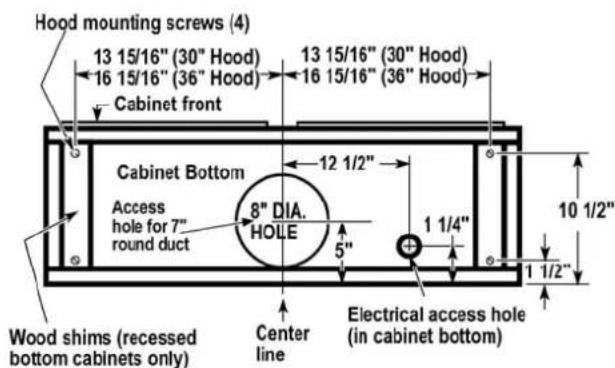

Outside top exhaust (Vertical duct–7” Round) Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

• Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

Recirculating Use the hood as a template and mark the locations on the cabinet for the electrical wiring and keyhole screw slots. Since the hood is to be recirculated (not to be vented outside), do not cut out any vent openings in the wall or cabinet bottom.

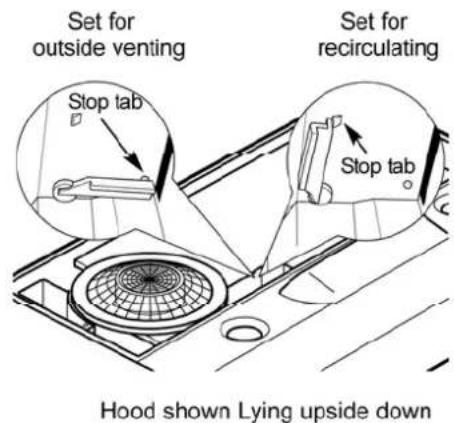

Step 9 Choose Venting Option The hood can be set to vent outside or to recirculate air back into the kitchen. The plastic vent lever is located near the center of the hood opening. To vent to the outside, make sure the plastic vent lever is in the HORIZONTAL position (flat against the metal top of the hood). To recirculate air into the kitchen, make sure the plastic vent lever is in the VERTICAL position (flat against the plastic blower housing). NOTE: In order to change the vent lever position, you will need to pull the lever out slightly to clear the plastic tabs.10 Step 10 For recessed bottom cabinet only If the cabinets have front, side or back trim, make 2 wood shims the width of the trim and attach them to the cabinet bottom recess on both sides. See previous page for marking locations. Step 11 Cut holes at marked locations for duct and electrical wiring. For the vertical duct, cut out 3/4” extra toward the front of the cabinet so you can move the duct freely when installing the hood. It may also ease installation by cutting the hole 10 1/ 2” instead of 10”. Step 12 Drive a mounting screw (from the hardware packet) partway into each center of the narrow neck of the keyhole slots marked on the cabinet bottom. Step 13 Fix the wiring conduit to the hood. Step 14 Slide the hood back against the wall. Tighten the mounting screws. Be sure the screw heads are in the narrow neck of the keyhole slot. Connect Ductwork to hood. Step 15. Electrical connection WARNING Electrical Shock Hazard

Warning: Turn off power circuit at the service panel

THIS APPLIANCE IS FITTED WITH AN ELECTRICAL JUNCTION BOX WITH 3 WIRES, ONE OF WHICH

ELECTRIC SHOCK, THE GREEN AND YELLOW WIRE MUST BE CONNECTED TO THE GROUNDING WIRE IN YOUR HOME ELECTRICAL SYSTEM, AND IT MUST UNDER NO CIRCUMSTANCES BE CUT OR REMOVED. Failure to do so can result in death or electrical shock. Remove the knockout and the Junction box cover and install the conduit connector (cULus listed) in junction box. Run 3 wires; black, white and green ,according to the National Electrical Code and local codes and ordinances, in 1/2" conduit from service panel to junction box. Connect black wire from service panel to black or red in junction box, white to white and green to green-yellow. Close and secure junction box cover. Step 16 Final installation steps Replace filters. Check operation of the hood. If range hood does not operate:

• Check that the circuit breaker is not tripped or the house fuse blown.

• Disconnect power supply. Check that wiring is correct. To get the most efficient use from your new range hood, read the “Use and Care Information” section. Keep your Installation Instructions and Use and Care Guide close to range hood for easy reference.11 Description of the hood & Controls

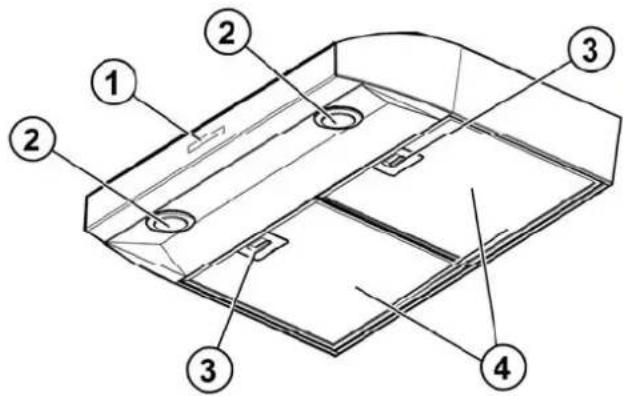

1. Blower and light controls

2. Halogen lamp housings

Controls Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. Note: Hood retains last speed setting when aspiration switch is turned off. Description of control panel

• Press lamp button to turn ON the light on High Intensity (Lamp state previously OFF).

• Press lamp button to turn ON the light on Low Intensity (Lamp state previously ON).

• Press lamp button to turn OFF the light (Lamp state previously ON).

• The default timer setting is 10 minutes, and it can be adjusted between 60 minutes and 1 minute.

• After pressing the timer button, the control enters to a timer setup mode, and user can adjust the timer countdown time with the “+” and “-” buttons within 5 seconds. The timer can be initiated immediately pressing the timer button, after setting the timer duration or pressing the timer button twice (default 10 minutes setting).

• If no action occurs within 5 seconds, the countdown will start.

• During the timer setup the “+” and “-” buttons are dedicated to the timer and no motor action will occur.

• Once the timer is initiated, it can be cancelled by pressing the timer button again.

• Shows the hood settings.

• The display will be lit at low intensity when the hood is not operating. Pressing any key the display will light up at high intensity.

• The display will be lit at high intensity when the hood is operating. If no key is pressed within a minute the display will return to being lit at low intensity.

4. “-” Button. Speed Decrease / OFF

• This button is used to decrease the fan speed, or turn OFF the fan.

• The fan will turn OFF if the “-” button is pressed and the hood was in the first speed.

• If the fan is at second speed and the “-” button is pressed, the fan will be set to first speed.

• If the fan is at third speed and the “-” key is pressed, the fan will be set to second speed.

• If the fan is at fourth speed and the “-” button is pressed, the fan will be set to third speed.

• If the fan is OFF and the “-” button is pressed, the control backlight will light up.

5. “+” Button. Speed Increase / ON

• This button is used to increase the fan speed, or turn ON the fan.

• The fan will turn ON if the “+” button is pressed and the hood was OFF.

• If the fan is at first speed and the “+” button is pressed, the fan will be set to second speed.

• If the fan is at second speed and the “+” button is pressed, the fan will be set to third speed.

• If the fan is at third speed and the “+” button is pressed, the fan will be set to fourth speed.

• If the fan is at fourth speed and the “+” button is pressed, a beep will sound. Clock programming

• The clock can be reprogrammed at any time except during an active timed function.

• The clock can be displayed in a twelve hour format and valid clock times are from 1:00 to 12:59.

• The clock can be reprogrammed pressing the “Timer” button for 3 seconds, and after, the clock can be adjusted with the “+” and “-” buttons.

• The user can have minute increments / decrements of 1 minute, but if the user keep pressing the “+” / ”-” buttons for more than 1 second, the increments / decrements will be of 5 minutes. During this option the control will round to the nearest 5 minutes.

• The user can finish on reprogramming the clock pressing the “Timer” button.

• After 1 minute of no button pressed the control will accept the programmed clock time and will add one minute to the set clock. Grease filter saturation alarm (Optional)

• After thirty fan functional hours, the display will show “Grease Filter” if the fan is active. When this icon is shown in the display, the grease filters installed are required to be washed.

• To reset the grease filter saturation alarm the user must press the “+” button for 5 seconds, after this action the icon “Grease filter” is not displayed, and the hood has the normal display operation. Charcoal filter saturation alarm (Optional)

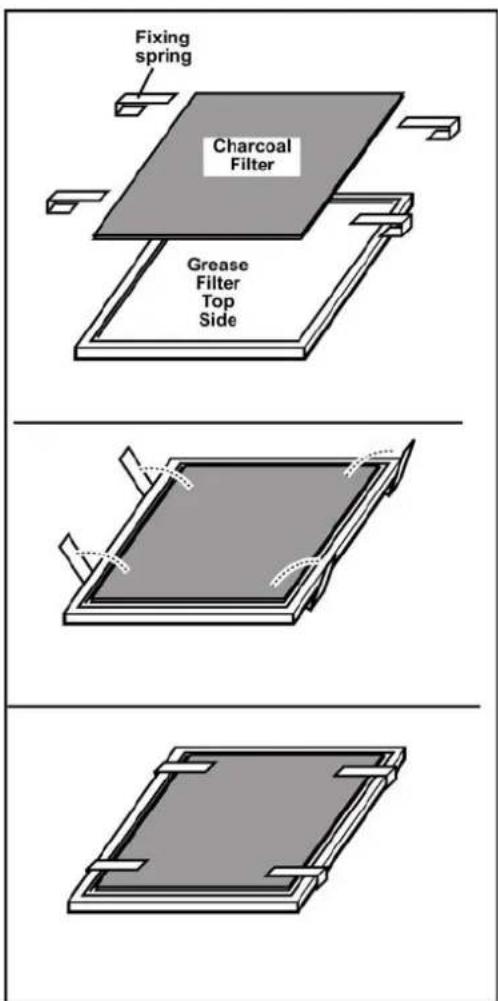

• After one hundred and twenty functional hours of the fan, the display will show “Charcoal Filter” if the fan is active. When this icon flashes on display, the charcoal filters installed are required to be replaced or reactivated.

• To reset the charcoal filter saturation indication the user must press the “-” button for 5 seconds, after this time the icon “Charcoal filter” is not displayed and the hood has the normal display operation. Audible signal activation and deactivation

• The audible signals can be activated or deactivated pressing the “Light” button for 5 seconds.

• If the audible signal is activated, a tone must sound and the “Snd” symbol must appear on the display for 3 seconds.

• If the audible signal is deactivated, the “Snd” symbol must appear on the display for 3 seconds and no tone must sound.13 Charcoal filter inclusion and exclusion (Recirculating accessories)

• The charcoal filter inclusion or exclusion can be set by pressing the “+” and “-” buttons at the same time for 5 seconds.

• The Inclusion or exclusion of charcoal filter must be selected while the lamps and the motor are OFF.

• When the charcoal filter has been excluded, the charcoal filter alarm is disabled. Heat sensor

• The control is equipped with a heat sensor that will turn on the blower at third speed if excessive heat occurs (over 149° F or 65°C) surrounding the control area.

• If the blower is OFF or if it is operating at first speed, the blower will be set automatically to third speed, the display shows the word "CArE" to indicate that heat sensor has detected an excessive heat.

• During this state, the user may raise the blower speed to fourth speed but can not decrease the speed.

• When the temperature level on the hood drops to normal, the blower will operate in the setting defined by the user before the alarm occured.14 Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Cleaning Do not spray cleaners directly to the control while cleaning the Hood.The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend oserving these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. Grease Filter Traps cooking grease particles. This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle.

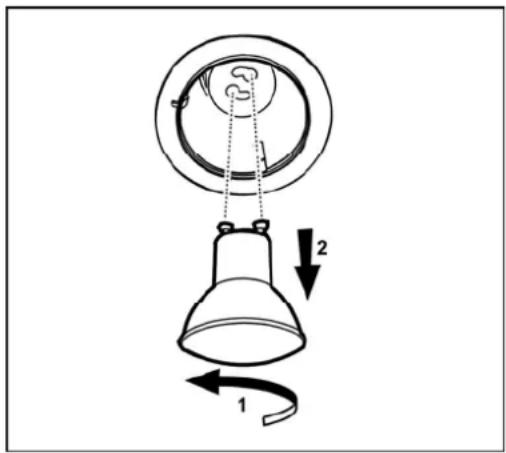

Replacing the light bulb CAUTION Before replacing the lamps, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. NOTE: Turn off the lights and fan. Allow the lights to cool before handling. If new lights do not operate be sure lights are inserted correctly before calling service.

• Remove the damaged light (twist counter clockwise) and replace with a new 120 Volt, 50 Watt (maximum) 50° halogen light made for a GU10 base, suitable for use in open luminarie.15 Charcoal Filter If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that help remove smoke and odors. The charcoal filters cannot be cleaned. They must be replaced. The charcoal filters are clipped inside of each metal grease filter (mounting instructions included with charcoal filters kit). The charcoal filters should be replaced every 4-6 months (depending on hood usage). NOTE: DO NOT rinse, or put charcoal filters in an automatic dishwasher. NOTE: Charcoal filters are not included with the hood. They must be ordered from your supplier. Order the needed kit specifying your hood model and width size. Charcoal filter placement (Recirculating accessories) Fit the charcoal filter mattress on the upper side of each grease filter. Use provided springs to fix it in place. Note: When removing for replacing for a new one do not remove Fixing Springs, simply pull out one and rotate outwards.16 Warranty E L I C A N o r t h A m e r i c a TWO YEAR LIMITED WARRANTY

TO OBTAIN SERVICE UNDER WARRANTY

Owner must present proof of original purchase date. Please keep a copy of your dated proof of purchase (sales slip) in order to obtain service under warranty.

PARTS AND SERVICE WARRANTY

For the period of two (2) years from the date of the original purchase, Elica will provide free of charge, non consumable parts or components that failed due to manufacturing defects. During this two (2) years limited warranty, Elica will also provide free of charge, all labor and in-home service to replace any defective parts.

• Damage or failure to the product caused by accident or act of God, such as, flood, fire or earthquake.

• Damage or failure caused by modification of the product or use of non-genuine parts.

• Damage or failure to the product caused during delivery, handling or installation.

• Damage or failure to the product caused by operator abuse.

• Damage or failure to the product caused by dwelling fuse replacement or resetting of circuit breakers.

• Damage or failure caused by use of product in a commercial application.

• Service trips to dwelling to provide use or installation guidance.

• Light bulbs, metal or carbon filters and any other consumable part.

• Normal wear of finish.

• Wear to finish due to operator abuse, improper maintenance, use of corrosive or abrasive cleaning products/pads and oven cleaner products.

This warranty is extended to the original purchaser for products purchased for ordinary residential use in North America (Including the United States, Guam, Puerto Rico, US Virgin Islands & Canada). This warranty is non-transferable and applies only to the original purchaser and does not extend to subsequent owners of the product. This warranty is made expressly in lieu of all other warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose and all other obligations on the part of Elica North America, provided, however, that if the disclaimer of implied warranties is ineffective under applicable law, the duration of any implied warranty arising by operation of law shall be limited to two (2) years from the date of original purchase at retail or such longer period as may be required by applicable law. This warranty does not cover any special, incidental and/or consequential damages, nor loss of profits, suffered by the original purchaser, its customers and/or the users of the Products.

To obtain Service under Warranty or for any Service Related Question Please Call:

• Elica North America Authorized Service at [phone] Or by Writing To:
