330005 - Coffee machine CaterChef - Free user manual and instructions

Product type	Coffee machine
Brand	CaterChef
Model	330005
Tank capacity	2.0 liters / 16 cups
Hourly capacity	18 liters / 144 cups
Preparation time per carafe	5-6 minutes
Minimum production	1/2 carafe
Paper filter	90/250
Power supply	220-240 V ~ 50-60 Hz, 2200 W
Net weight	8 kg
Packaged weight	6 kg
Dimensions (L x D x H)	518 x 453 x 695 mm
Carafe type	Glass carafe 1.8 L and insulated jug 2.0 L included
Hot plates	Double temperature maintaining plate (upper and lower) with separate switches
Indicator light	Indicates that the machine is in production
Cleaning	Clean the exterior with a damp cloth and mild detergent. Do not immerse. Wash the carafe and filter holder by hand or in the dishwasher (except filter holder).
Descaling	Regular with CaterChef descaler (50 g sachet for 1 L of hot water at 60-70°C). Follow the procedure in the manual.
Initial rinsing	Before first use or after prolonged inactivity, run water without coffee.
Safety	Use a grounded outlet. Do not immerse in water. Repairs by a specialist. Do not touch hot plates.
Accessories	Filter holder, glass carafe 1.8 L, insulated jug 2.0 L, measuring scoop, user manual
Warranty	According to general delivery conditions

Frequently Asked Questions - 330005 CaterChef

What is the capacity of the CaterChef 330005 coffee machine?

The tank has a capacity of 2.0 liters, which is about 16 cups of coffee.

What type of ground coffee should I use?

Use medium ground coffee. The recommended amount is 65 to 90 grams for a 1.8 L carafe or 70 to 100 g for the 2.0 L insulated jug.

How to descale the machine?

Use CaterChef descaler (50 g sachet). Dissolve it in 1 L of hot water at 60-70°C, pour into the tank, turn on the machine for 1 minute, turn off for 2 minutes, then turn on again to let the rest run through. Then rinse 3 times with clear water without coffee.

Can I use a glass carafe or an insulated jug?

The 330005 model comes with a 1.8 L glass carafe and a 2.0 L insulated jug. Both can be used. Place the desired container on the lower plate during production.

What to do if the machine does not turn on or does not produce coffee?

Check that the machine is plugged in and the main switch is on. If the indicator does not light up, there may be air in the system: check the water inlets at the bottom of the tank and remove air bubbles with a pen. Also make sure you have filled at least 1/2 carafe of water.

How to clean the hot plates?

Never use abrasive products or sharp objects. Clean the plates with a damp cloth and mild detergent after cooling. They have a teflon coating.

Can I wash the filter holder in the dishwasher?

It is not recommended to wash the filter holder in a professional dishwasher because it is light and may float and deteriorate. Wash it by hand.

What are the voltage and power settings?

The machine operates on 220-240 V AC, 50-60 Hz, with a power of 2200 W.

How to transport the machine?

Unplug it, remove the jug, filter, and tank cover. Turn it over above a sink to drain any water. Replace items before transport.

Is the machine suitable for professional use?

Yes, the hourly capacity of 18 liters (144 cups) makes it suitable for semi-professional use, for example in small catering. It is designed for indoor use only.

USER MANUAL 330005 CaterChef

Line drawing of two industrial coffee machines with handles and control panels (no text or symbols)

This appliance is in accordance with the following Directives:

All rights reserved.

CaterChef has the right to change parts of the machine at any time without preceding or direct announcements to the client. The contents of this manual can also be changed without any announcements. This manual is to be used for the standard model/type of the machine. Thus CaterChef can not be held responsible for any damage resulting from the application of this manual to the version delivered to you. For extra information on adjustments, maintenance and repair, contact the technical department of your supplier. This manual has been written very carefully. However, CaterChef cannot be held responsible neither for mistakes in the book nor for their consequences.

Line drawing of a simple kettle with handle and lid (no text or symbols)

WOORD VOORAF

Inleiding

Line drawing of two industrial coffee machines with handles and control panels (no text or symbols)

Fig. 1
330005 330001

Gebruiksdoel

Simple line drawing of a trash bin with a 'X' symbol crossed out by a black X (no text or labels)

Technical line drawing of a mechanical device with an open lid and circular ports, showing internal components and a directional arrow (no text or symbols)

Fig. 5

6. KOFFIE ZETTEN

Line drawing of a simple kettle with handle and lid (no text or symbols)

PREFACE

Introduction

Congratulations on your purchase of one of our products. We hope that you will enjoy using it.

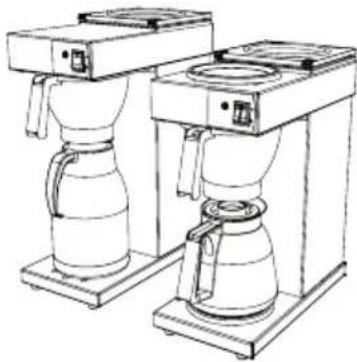

Models

This manual covers the following coffee makers:

Line drawing of two industrial coffee machines with no visible text or symbols

Fig. 1 330005 330001

Purpose of the appliance

The sole purpose of this appliance is to make coffee. The use of the appliance for other purposes is not permitted and may be hazardous. The manufacturer cannot be held liable for losses caused by using the appliance for purposes other than those indicated here or by incorrect use.

Guarantee conditions

The guarantee conditions applicable to this appliance form an integral part of the general terms of delivery.

Appliances and the environment

The packing material

Your new coffee maker has been carefully packaged to protect it against damage. The packing is not harmful to the environment and consists of the following materials:

Corrugated cardboard

☒ Filler elements made of polyurethane foam covered with a polythene film (>PE-HD<). The waste processing plant in your municipality will be pleased to inform you about where you can dispose of the materials.

Discarding the appliance

No appliance lasts forever. When the time comes to discard your appliance it will usually be possible to return it to your dealer. If this is not the case, ask your municipal council about the alternatives for recycling the materials. All plastic parts have been given standard codes. The parts of the appliance such as the printed circuit board and accompanying parts form electrical and electronic waste. The metal pipes are made of stainless steel and can be completely dismantled.

Simple line drawing of a trash bin with a cross symbol on its side (no text or labels)

Read these instructions for use carefully, before using this appliance. This will protect your safety and prevent damage being caused to the appliance. Perform the various actions in the order given. Always keep this manual close by the appliance.

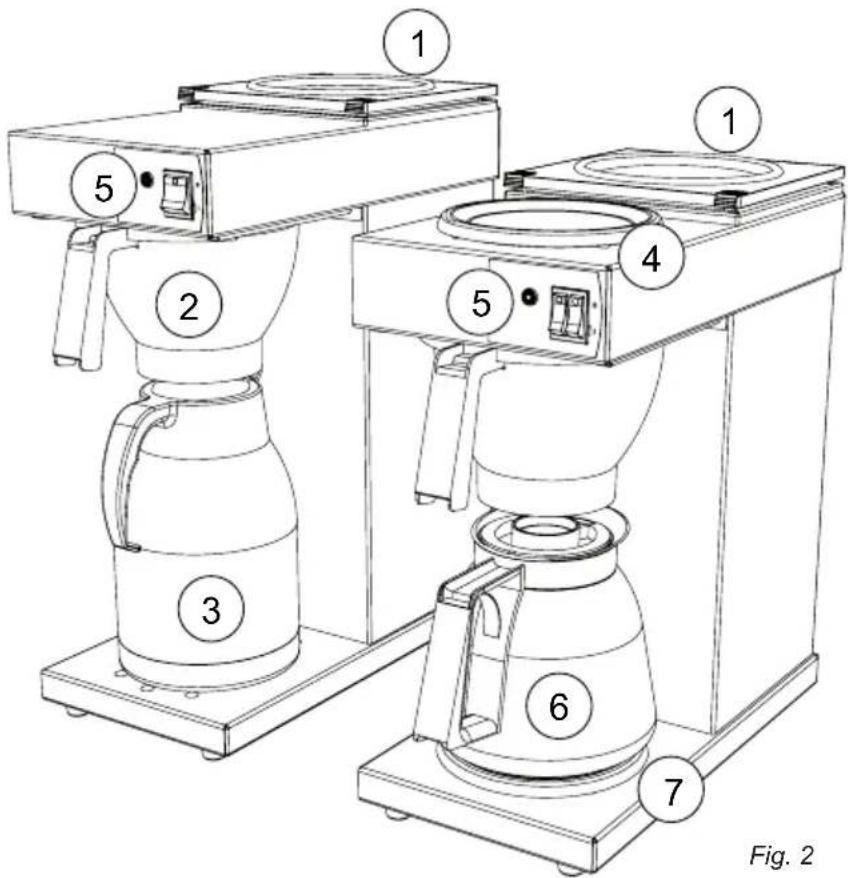

1. GENERAL DESCRIPTION

Figure 2:

Water reservoir1.

Removable filter2.

Thermos jug (only 330005)3.

Upper hot plate4.

Switch panel5.

Glass jug6.

Lower hot plate7.

1 5 2 3 4 5 6 7 Fig. 2

330005 330001

2. TECHNICAL DETAILS

Model 330005 330001

Buffer supply coffee	2,0ltr./ 16 cups	1,8 ltr./ 14 cups
Hour capacity coffee	18 ltr./144 cups	18 ltr./144 cups
Coffee preparation time	5-6 min.	5-6 min.
Minimum amount of coffee	12 jug	12 jug
Paper filter size	90/250	90/250
Electrical connection	1N~ 220-240 V	1N~ 220-240 V
Frequency	50-60 Cy	50-60 Cy
Power consumption	2200 W	2400 W
Weight empty	6 kg	6 kg
Weight filled	8 kg	8 kg
Dimensions see last page	Fig. 6	Fig. 7

Technical alterations reserved

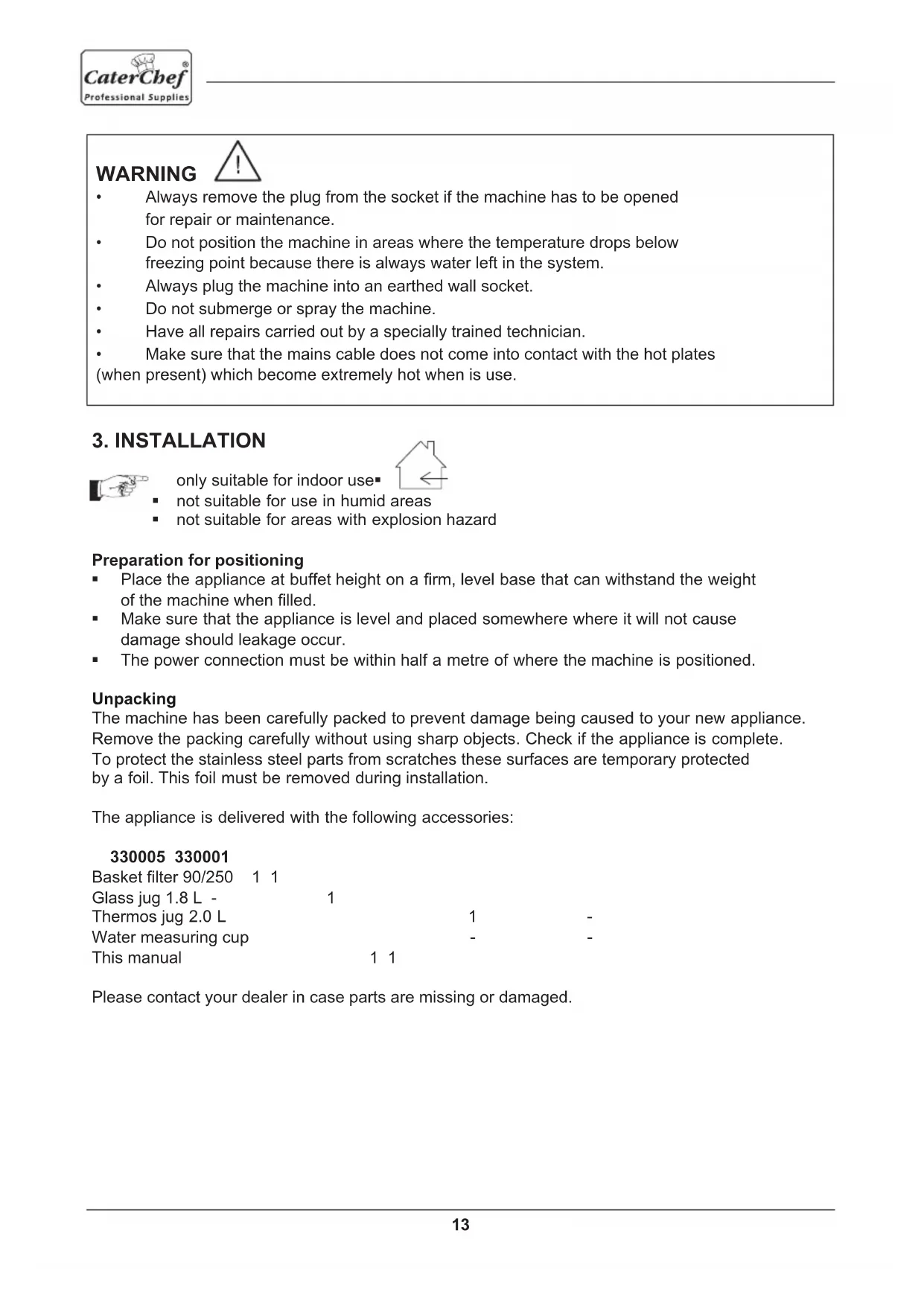

WARNING

• Always remove the plug from the socket if the machine has to be opened for repair or maintenance.
- Do not position the machine in areas where the temperature drops below freezing point because there is always water left in the system.
• Always plug the machine into an earthed wall socket.
• Do not submerge or spray the machine.
• Have all repairs carried out by a specially trained technician.
• Make sure that the mains cable does not come into contact with the hot plates (when present) which become extremely hot when is use.

3. INSTALLATION

only suitable for indoor use■

■ not suitable for use in humid areas
■ not suitable for areas with explosion hazard

Preparation for positioning

• Place the appliance at buffet height on a firm, level base that can withstand the weight of the machine when filled.
• Make sure that the appliance is level and placed somewhere where it will not cause damage should leakage occur.
• The power connection must be within half a metre of where the machine is positioned.

Unpacking

The machine has been carefully packed to prevent damage being caused to your new appliance. Remove the packing carefully without using sharp objects. Check if the appliance is complete. To protect the stainless steel parts from scratches these surfaces are temporary protected by a foil. This foil must be removed during installation.

The appliance is delivered with the following accessories:

330005 330001

Basket filter 90/250 1 1

Glass jug 1.8 L - 1

Thermos jug 2.0 L 1 -

Water measuring cup - -

This manual 1 1

Please contact your dealer in case parts are missing or damaged.

4. CONTROL PANEL

A C

Fig. 3 Fig. 4

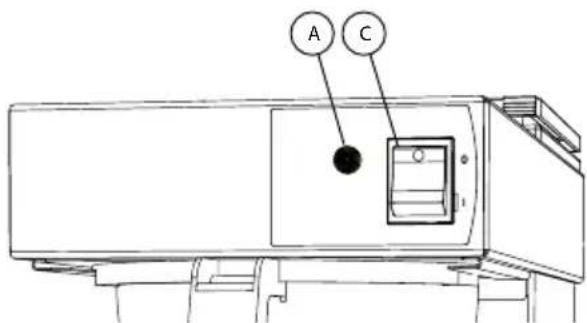

330005 (fig. 3)

A B C

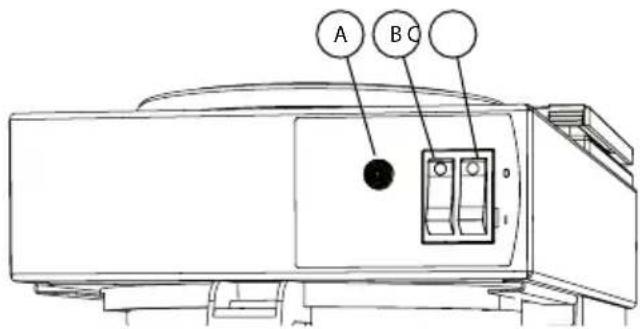

330001 (fig. 4)

A. Brew inducatir light

A. Brew inducatir light
C On-Off coffee maker B. On/Off upper hot plate
C. On/Off coffe maker and lower plate

5. FIRST TIME USE

This chapter will explain the coffee brewing and hot water system process: when the appliance is used for the first time. when the appliance has not been used for more than one week, for example after a holiday period.

1. Slide the empty basket filter into the appliance.
2. Pour one jug of cold water into the water reservoir and place an empty jug (with lid) underneath the filter.
3. Wait for three minutes so that the entire heating system can de-aerate.
4. Place the plug in the socket and turn the machine on using the main switch (fig. 3C or 4C).
5. The brew indicator light (fig. 3A or 4A) will now light up until the appliance has run though. When the light goes out again and the jug has been emptied, the appliance is ready for use.

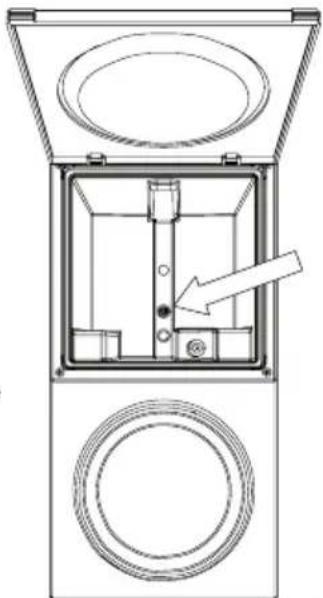

Tip: In case the light does not light up, there will probably be some air inside the system. Check the supply down in the water reservoir (fig.5), there might be some air bubbles inside. In that case they have to be removed with, for instance, a pencil.

Technical line drawing of a mechanical device with open lid, internal compartments, and circular ports (no text or symbols)

Fig. 5

6. MAKING COFFEE

Basic instructions for brewing coffee

Use fine-grind coffee.

Keep the jugs and the basket filter clean.

- Only use fresh cold water to fill the water reservoir.

JugGlas Thermos
Capacity	1,8 litre	2 litre
Coffee	65-90 gram	70-100 gram

1. Place a sheet of basket filter paper (90/250) containing the desired amount of coffee (fine grind type) in the basket filter and slide it into the appliance. See the table above for the amount of coffee required.
2. Pour one jug of cold water into the water reservoir and place an empty jug (with lid) underneath the filter. Attention: fill the machine with minimal 12 a jug of water, otherwise the brewing process will not start!
3. Switch on the appliance using the on/off switch (fig. 3C / 4C). The lower hot plate (*) will also switch on.
4. The brew indicator (fig. 3A / 4A) will light up and the coffee brewing process will begin.
5. When the indicator light switches off again, the hot water supply will stop. After about 1 minute, all of the coffee will have poured through the filter. Stir the coffee in the jug briefly and pour the coffee out, or place it on the upper 6. hot plate (*). The upper hot plate is switched on separately using switch (fig. 3B). Always switch off the extra hot plate when it is not being used.
6. Once the basket filter has been cleaned you can immediately resume making coffee.

(*) if present

7. MAINTENANCE

WARNING

• Stay near the machine while maintenance is being carried out.
• When descaling the machine, always observe the instructions for use provided with the descaling agent.
• When descaling the machine, it is advisable to wear safety goggles and protective gloves.
• Allow the machine to run through at least three times after it has been descaled.
  • Wash your hands thoroughly after descaling.
  • The machine should not be submerged or sprayed.
• Never clean the hot plates (if present) with an abrasive or sharp object. This way scratches on the teflon surface will be prevented.
  • Have all repairs carried out by a specially trained technician.

Cleaning of the appliance and accessories

• Clean the outside of the appliance with a clean, damp cloth, if necessary using a mild (non-abrasive) cleaning agent.
  ■ Do not use an abrasive, as this will leave scratches and dull patches.
• The glass jugs and the basket filter can be washed normally and rinsed clean. Please note, however, that it is inadvisable to clean the basket filter in an industrial dish washer as its lightness may cause it to float and sustain damage.
• The coffee deposit in the coffee jugs and the filter can be cleaned with CaterChef coffee fur remover.

7.1 DESCALING

The machine can leave lime deposits during use. The machine should be descaled minimum once a month in order to ensure that it functions efficiently.

1. Before descaling the appliance, carefully read the instructions for use on the scale remover. We advise you to use the tried and tested CaterChef scale remover.
2. Dissolve one 50 gram sachet of CaterChef scale remover in 1 litre of warm water (approx. 60-70°C).
3. Slide an empty basket filter into the filter holder and place an empty jug under it.
4. Carefully pour the solution into the reservoir and switch on the appliance (fig. 3A / 4A). The solution will now run through the heating system and discharge into the jug. Leave the lid of the reservoir open!
5. Switch off the appliance using switch (fig. 3A / 4A) after 1 minute.
6. Now wait about 2 minutes. The solution will react with the deposit in the heating system.
7. After the waiting time, switch the appliance back on and allow the rest of the solution to run through the system.
8. Wash away the solution in the iug until the filter has finished dripping.
9. After descaling the appliance, flush the system by following the coffee brewing procedure tree times but without using filter paper or coffee. Remember to empty the jug in the meantime.
10. Switch off the appliance and thoroughly clean the basket filter and the jug.
11. The appliance is now ready for use.

8. TRANSPORT

The following procedure should be followed when the appliance is transported:

1. Switch off the machine (fig. 3C & 4C) and remove the plug from the wall socket.
2. Remove the jugs and the basket filter.
3. Empty the machine, by turning it upside down above the sink, so that the remaining water runs out through the spray head (attention: the water can still be hot!)
4. Wipe the machine dry, and replace all the components that have been removed.
5. The machine is now ready for transport.
6. When it is relocated, the procedures of "Installation", should be followed.

D

INHALTSVERZEICHNIS

VORWORT....18

Line drawing of a simple kettle with handle and lid (no text or symbols)

ENTKALKER

Vorwort

Einleitung

Line drawing of two coffee brewing machines with different shapes and designs (no text or labels)

Abb. 1

330005 330001

Verwendungszweck

Simple line drawing of a trash bin with a cross symbol (no text or labels)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Abb. 5

Line drawing of a simple kettle with handle and lid (no text or symbols)

AVANT-PROPOS

Introduction

Line drawing of two coffee brewing machines with no text or symbols

Abb. 1

330005 330001

Simple line drawing of a trash bin with a cross symbol (no text or labels)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Fig. 5

6. FAIRE DU CAFE
