34300 - Food Warmer PROCTOR SILEX - Free user manual and instructions

Product Type	Food Warmer
Brand	Proctor Silex
Model	34300
Voltage	120 V ~ 60 Hz
Temperature Range	60 °C to 85 °C (140 °F to 185 °F)
Number of Included Dishes	2
Lids Included	Yes, for each dish
Dish Support Included	Yes
Power Indicator	Yes
Operation Indicator	Yes (turns on and off to maintain temperature)
Temperature Control	Variable, from Min to High
Use as Hot Plate	Possible without dishes
Care of Dishes and Lids	Dishwasher safe (top rack, no SANI cycle)
Cleaning the Hot Plate	Wipe with a soft, damp cloth
Prohibited Cleaning Products	Steel wool, scouring pads, abrasive cleaners
Safety	Polarized plug, do not immerse, hot surfaces, supervision required
Warranty	1 year limited
Customer Service (USA)	1-800-851-8900
Customer Service (Canada)	1-800-267-2826
Customer Service (Mexico)	01 800 71 16 100
Intended Use	Household use only, keeping already cooked food warm

Frequently Asked Questions - 34300 PROCTOR SILEX

What types of food can I keep warm with this food warmer?

This food warmer is designed to keep already cooked food warm. It does not cook food. Ideal for main dishes, sides, soups, etc. Avoid very dry foods without liquid, or use a low setting and stir regularly.

How do I set the temperature?

Turn the temperature dial from Min (off) to High (maximum). The temperature range is 60 °C to 85 °C (140 °F to 185 °F). For quick preheating, use the maximum setting, then reduce to the desired temperature. The operation indicator turns on and off to maintain the temperature.

Can I use the food warmer without the included dishes?

Yes, you can use the hot plate alone as a hot plate. Be sure to use heat-safe containers. The plate is not designed for large dishes or large amounts of liquid.

How do I clean the dishes and the plate?

Unplug and let cool. The dishes and lids are dishwasher safe (top rack, avoid SANI cycle). The dish support is hand wash only with warm soapy water. The hot plate should be wiped with a soft, damp cloth. Never use steel wool or abrasive cleaners.

What if the operation indicator does not turn off?

This is normal: the indicator may stay on for 20 to 30 minutes before turning off the first time, because the power is not high. After that, it will turn on and off to maintain the temperature.

Can I leave the appliance plugged in unattended?

It is recommended to supervise the appliance during use. Do not leave children unattended nearby. Always unplug after use and before cleaning.

How to avoid burns?

The exterior surfaces and handles become hot. Use oven mitts when handling the appliance. Allow to cool before moving or removing parts.

Can I use an extension cord?

Yes, if the cord is too short, use an approved extension cord with electrical ratings equal to or greater than those of the appliance (120 V ~ 60 Hz). Place it out of reach of children to avoid tripping hazards.

What is the first use procedure?

Plug in the appliance, set the temperature dial to the highest setting and let it heat for 10 minutes (a smell may occur). Turn off and let cool. Wipe the plate with a damp cloth. Wash the dishes and lids in warm soapy water.

What if the appliance does not heat?

Check that the plug is securely inserted and the outlet is working. Make sure the temperature dial is not set to Min. If the problem persists, contact customer service: USA 1-800-851-8900, Canada 1-800-267-2826. Do not attempt to repair yourself.

USER MANUAL 34300 PROCTOR SILEX

Line drawing of a Calentad electric heater with three heat exchangers and a warning symbol (no text or labels on the device itself)

READ BEFORE USE

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surface. Use handles or knobs, which may be warm. Use oven mitts.
5. To protect against electric shock, do not immerse cord, plug, or the appliance in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. Do not clean with metal scouring pads. They can scratch and ruin the finish of your unit.
14. Do not use plastic dishes or plastic wrap on tray.
15. Do not use the appliance for other than intended use.
16. Always attach plug to appliance first; then plug cord into wall outlet. To disconnect, turn any control to "Min" then remove plug from wall outlet.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

This appliance is only intended for the preparation, cooking, and serving of foods. This appliance is not intended for use with any nonfood materials or products.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

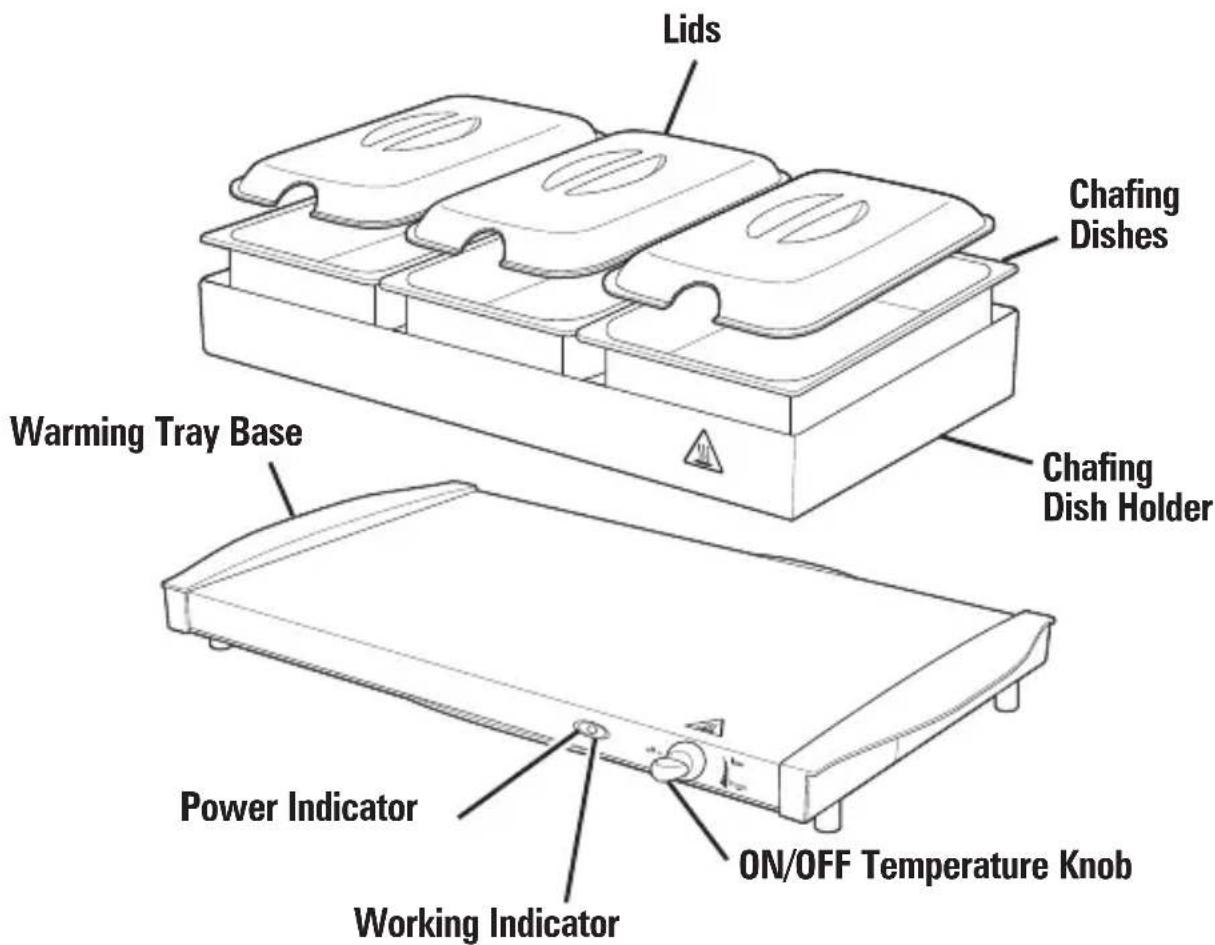

Parts and Features

Before First Use: Most heating appliances produce an odor when used for the first time. Plug into outlet. Turn temperature dial to highest setting. Let heat for 10 minutes. Turn off and cool completely. Wipe warming tray base with soft, damp cloth. Wash chafing dishes and lids in hot, soapy water. Rinse and dry.

To order parts:

US: 1.800.851.8900

www.proctorsilex.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

CAUTION: HOT SURFACE.

Exterior surfaces and handles get hot. Use oven mitts or allow unit to cool completely before moving or removing parts.

How to Use

1. The heating element is equipped with a variable thermostat knob. Heat range is from 60^ C to 85^ C ( 140^ F to 185^ F) to keep foods at serving temperatures. For best results, use maximum heat setting to quickly reach your desired temperature; then adjust to desired temperature.
2. The working indicator will cycle on and off to maintain preset temperature. Due to low wattage necessary for warming trays, it can be 20–30 minutes before the light goes off.
3. You may use unit either fully assembled with chafing dishes or use warming tray base alone as a warming tray.
4. If using chafing dishes, place chafing dish holder on warming tray base before placing chafing dishes in place.
5. Food placed on warming tray base or in chafing dishes should be fully cooked and already hot. Buffet server is designed to keep food warm only. To retain heat and moisture, keep lids on chafing dishes when not serving.
6. Foods containing little or no liquid should be kept warm on low setting and stirred periodically.
7. If using unit as a warming tray without chafing dishes, be sure to use containers that are heat-proof.
   NOTE: The base is not designed to keep large, deep pots full of food or liquid warm.

Suggestions for Use

1. Warming tray base is ideal for placing shallow pans right out of the oven to keep foods warm and ready to serve.

2. Keep entrees warm while preparing other foods or for serving.

3. Make sure temperature knob is in the "Min" position before plugging power cord into power outlet. The power indicator and working indicator will come on once plugged in. The power indicator will stay lit until unit is unplugged.

4. The adjustable temperature range is 60^-85^ ( 140^-185^ ). See details as follows. Select an appropriate cooking

temperature according to different kinds of food.

- The lowest temperature setting ("low"): 60^ (140°F). - The highest temperature setting ("high"): 85^ (185°F).

1. Set the temperature. Once the temperature has been set, the working indicators will come on to heat up and will go off once preset temperature has been reached. During operation, it will cycle on and off to maintain the preset temperature on the warming tray.

NOTE: If it is not necessary to keep the warming tray base warm, turn the temperature knob to the "Min" position. The working indicator will go off. The power indicator will not go off until you unplug the power cord.

Care and Cleaning

WARNING

Electrical Shock Hazard. Disconnect power before

cleaning. Do not immerse cord, plug, or base in any liquid.

1. Unplug and completely cool.
2. Remove chafing dishes, lids and chafing dish holder.
3. Chafing dishes and lids are dishwasher-safe in top rack of dishwasher.
4. Wash chafing dish holder in hot, soapy water. Rinse and dry.
5. Wipe the warming tray surface with a soft, damp towel and dry.
6. Do not use steel wool, scouring pads, or abrasive cleansers on any part of this appliance. Never use sharp or pointed objects for cleaning.

NOTE: DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your appliance.

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

"Y" y/o "MX" y/o "MXY" y/o "Z".
