| Product Type | Range Hood |
| Brand | JENN-AIR |
| Model | JXI8742DS |
| Dimensions (W x D x H) | 24" (61 cm) x 13" (33 cm) x 28" to 45 1/4" (71 to 115 cm) |
| Approx. Weight | 45 kg (100 lb) |
| Power Supply | 120 V, 60 Hz, 15 A, fuse-protected circuit |
| Duct Diameter | 6" (15.2 cm) round, metallic |
| Fan Speeds | 4 speeds: Low, Med, Hi, Boost (10 min max, returns to Hi) |
| Auto Sense Function | Yes, adjusts speed according to temperature, configurable gas/electric |
| Automatic Shut-off Timer | 15 minutes, configurable per speed |
| Lighting | LED lamps, on/off control |
| Metal Grease Filters | Dishwasher-safe, frequent cleaning recommended |
| Charcoal Filter (recirculation option) | Ref. W10272069, replace every 3 years or reactivate in oven |
| Recirculation Mode (non-vented) | Possible with recirculation kit ref. W10646865 |
| Recommended Installation Height | 24" (61 cm) min. for electric cooking, 30" (76.2 cm) min. for gas, max. 36" (91.4 cm) |
| Installation Type | Island, roof/wall venting or recirculation, ceiling support required (100 lb load) |
| Material | Stainless steel |
| Available Accessories | Chimney extension, 6" to 8" adapter, make-up air kit |
| Warranty | 2 years limited (parts and labor) |
Frequently Asked Questions - JXI8742DS JENN-AIR
How do I install the JXI8742DS hood?

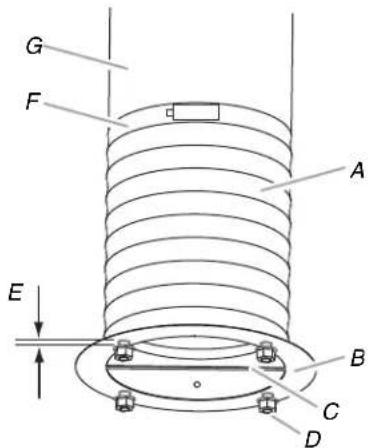

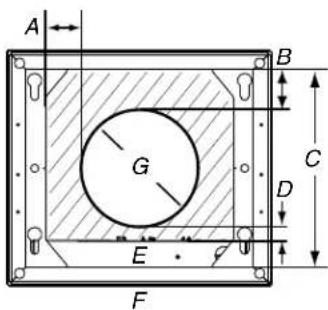

Installation requires a ceiling support capable of holding 100 lb (45 kg). Follow the provided template to drill holes, install bolts, then lift the hood with two people. Connect the duct (6" round) and power supply (120 V, 15 A). Refer to the manual for details.
How to clean the metal grease filters?

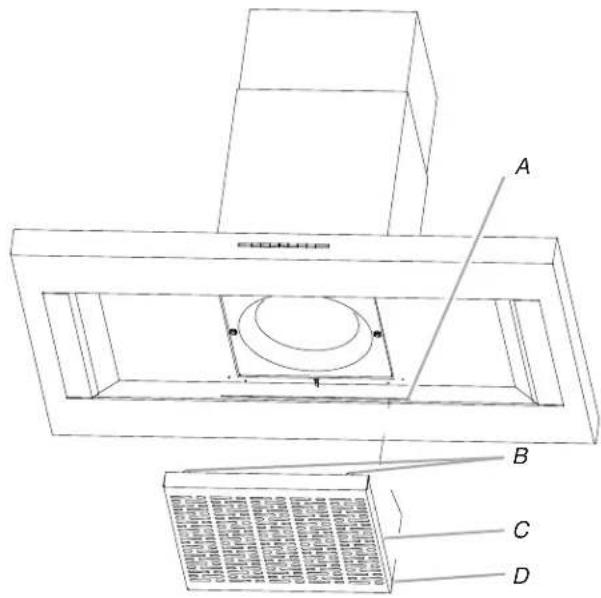

Remove the filter cover by pulling downward. Rotate the retaining screws 90° counterclockwise to release the filter. Wash it in a dishwasher or hot soapy water. Let dry completely before reinstalling.
What is the Auto Sense function?
Auto Sense automatically detects cooking heat and adjusts the fan speed. It can be configured for a gas cooktop (default) or electric by holding the AUTO button for 5 seconds. The hood turns off if no heat is detected for 2 hours.
How to install the charcoal filter for recirculation?
Remove the metal grease filter. Wrap the flexible charcoal filter around the grease filter, secure with side springs, then place the top cover with locking spring. Use recirculation kit ref. W10646865.
What is the minimum installation height above the cooktop?
For an electric cooktop: 24" (61 cm) minimum. For a gas cooktop: 30" (76.2 cm) minimum. Maximum recommended height is 36" (91.4 cm).
How to use the hood's timer?
Press and hold the desired speed button (Low, Med, Hi or Boost) for 2 seconds. The indicator flashes and the hood will automatically shut off after 15 minutes. To cancel, press the same button again or change speed.
What to do if the filter light comes on?
The Filter light indicates it is time to clean or replace the filter. After cleaning the grease filter or replacing the charcoal filter, press the FILTER button to turn off the light.
Can I use the hood without external ventilation?
Yes, with the recirculation kit (ref. W10646865) and a charcoal filter (ref. W10272069). Air is filtered and recirculated through the upper chimney cover louvers.
What accessories are available for this hood?
Chimney extension for high ceilings (ref. W10646863, W10685946 for vented; W10685947, W10646866 for recirculation), 6" to 8" duct adapter (W10685950), make-up air kit (W10446915).
How to contact Jenn-Air customer service in Canada?
Call 1-800-JENNAIR (1-800-536-6247) or visit www.jennair.ca. For installation assistance, service, or ordering parts.
